Axes-SM115

By Colab Lighting
Website

20W Adjustable Surface Mount Downlight

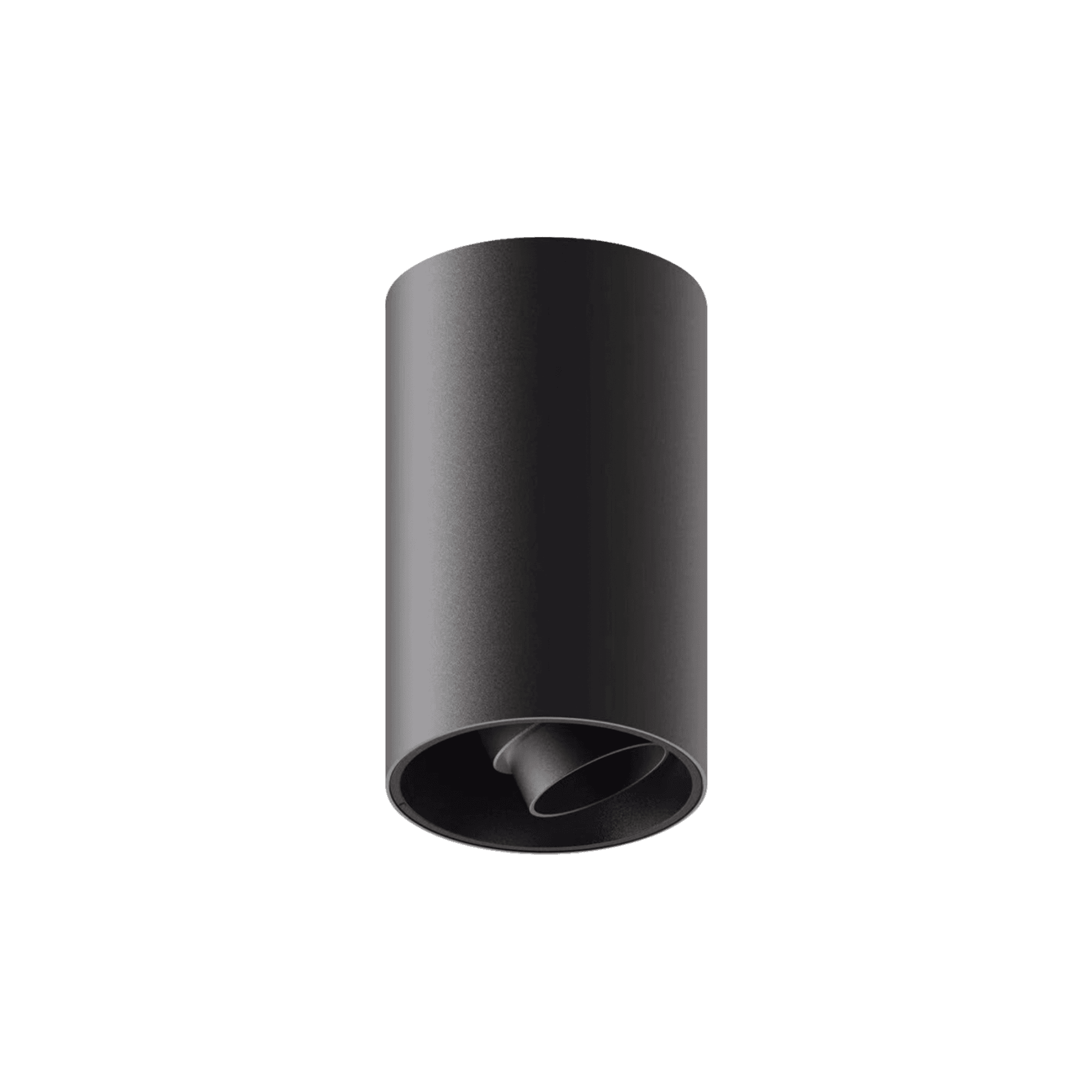

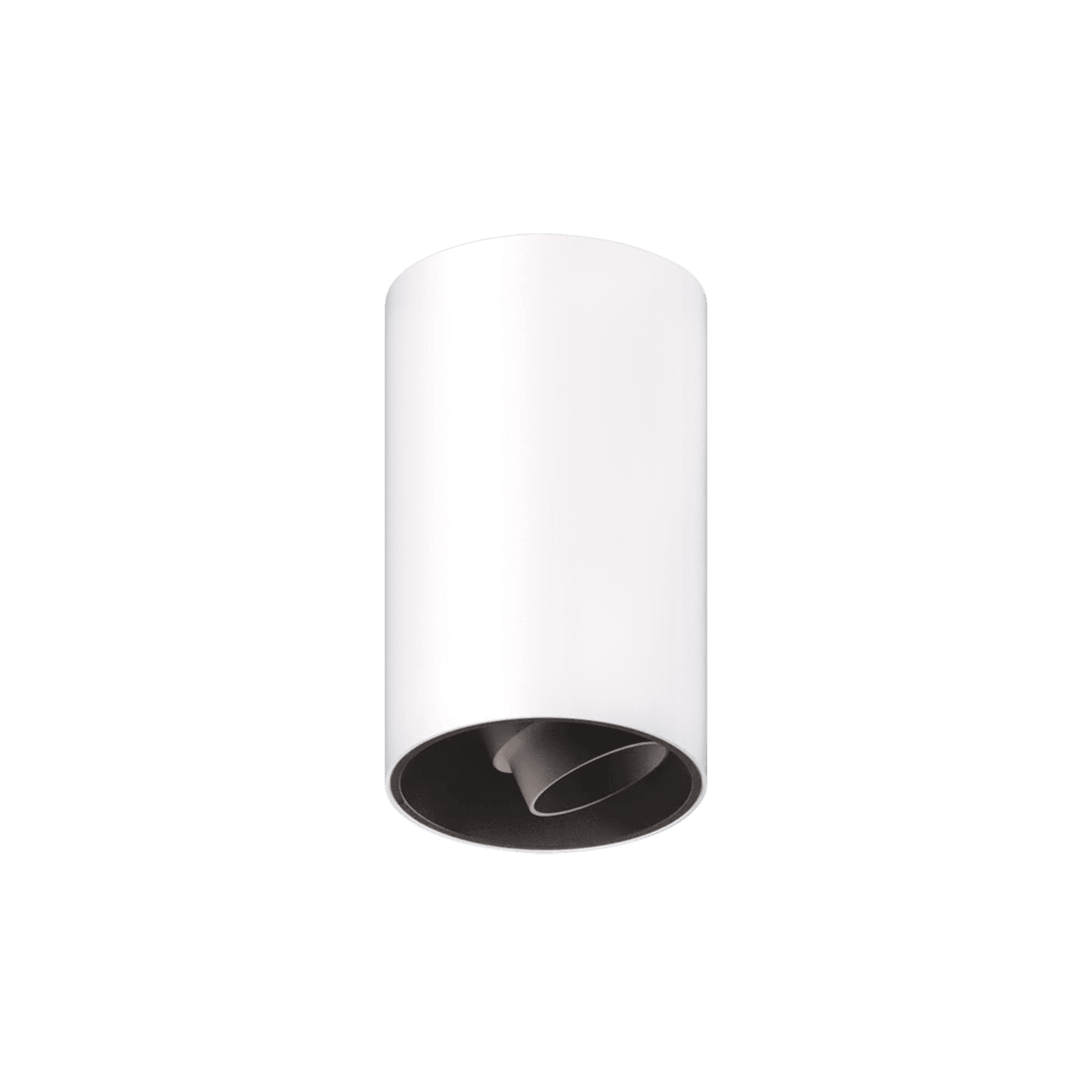

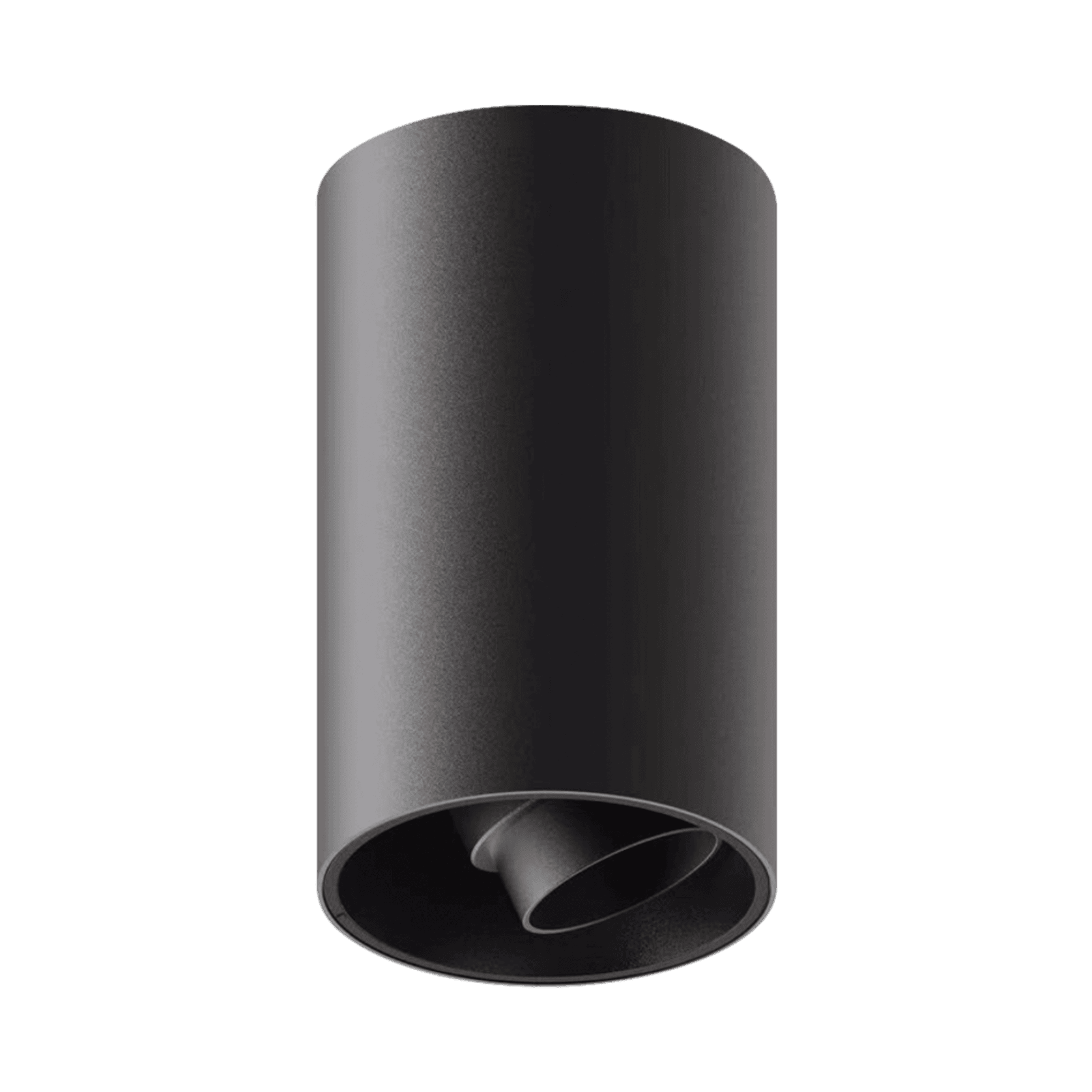

The Axes surface mounted adjustable luminaire provides optimised and efficient performance in a small discrete housing. The architectural LED fitting uses a deep-set light source and honeycomb louvre to provide a symmetrical distribution without glare. The fitting can be rotated 355° with the ability to tilt up to 30° for better focusing.

Built using a high quality aluminium construction and optical grade lens for controlled illumination. Available in a Matte White or Black exterior with a Black Baffle. Suitable for residential, hotel, retail and commercial applications. Integrating Bridgelux COB LED technology with high CRI for superior colour rendering, optional DALI-2 or BLE dimming on request. The Axes-SM115 offers a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage: 20W (System 20.5W)

Luminous Flux: 1605.5-1703 Lm

Luminaire Efficacy: 83.0 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K

CRI: >90

Beam:

  • 15°
  • 25°
  • 38°
  • 50°

Colour Deviation: 3-SDCM

UGR: <19

Size: Ø115mm x Height 170mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • White
  • Black

Baffle Colour: Black

Warranty: 5 Years

Get in touch
Thank you for contacting Colab.Lighting, one of our staff will be reaching out to you soon. Regards Colab Team
Visit Website

About the
Seller

  • Products listed

    312

  • Recent Responsiveness

    100%

    Usually responds within
    24 hours on weekdays

Lighting the spaces we live, work, and play.

CoLab specialises in quality architectural lighting products for projects of all scales. We work closely and collaboratively with our industry partners to create innovative lighting solutions that work for our clients and showcase the possibility of light.

CoLab is a commercial lighting company with collaboration at its heart. Previously Onelight, our new name reflects our collaborative approach and innovative spirit.

With resources to create bespoke products and unique functions, our factory facilities and experienced team welcome creative challenges bringing your ideas to light.

Click HERE to complete the form to receive your interactive digital catalogue.
