100ARGALLBL20 Linear Drainage System
by Stormtech
New South Wales
- 560.3K profile views
- 67 saves

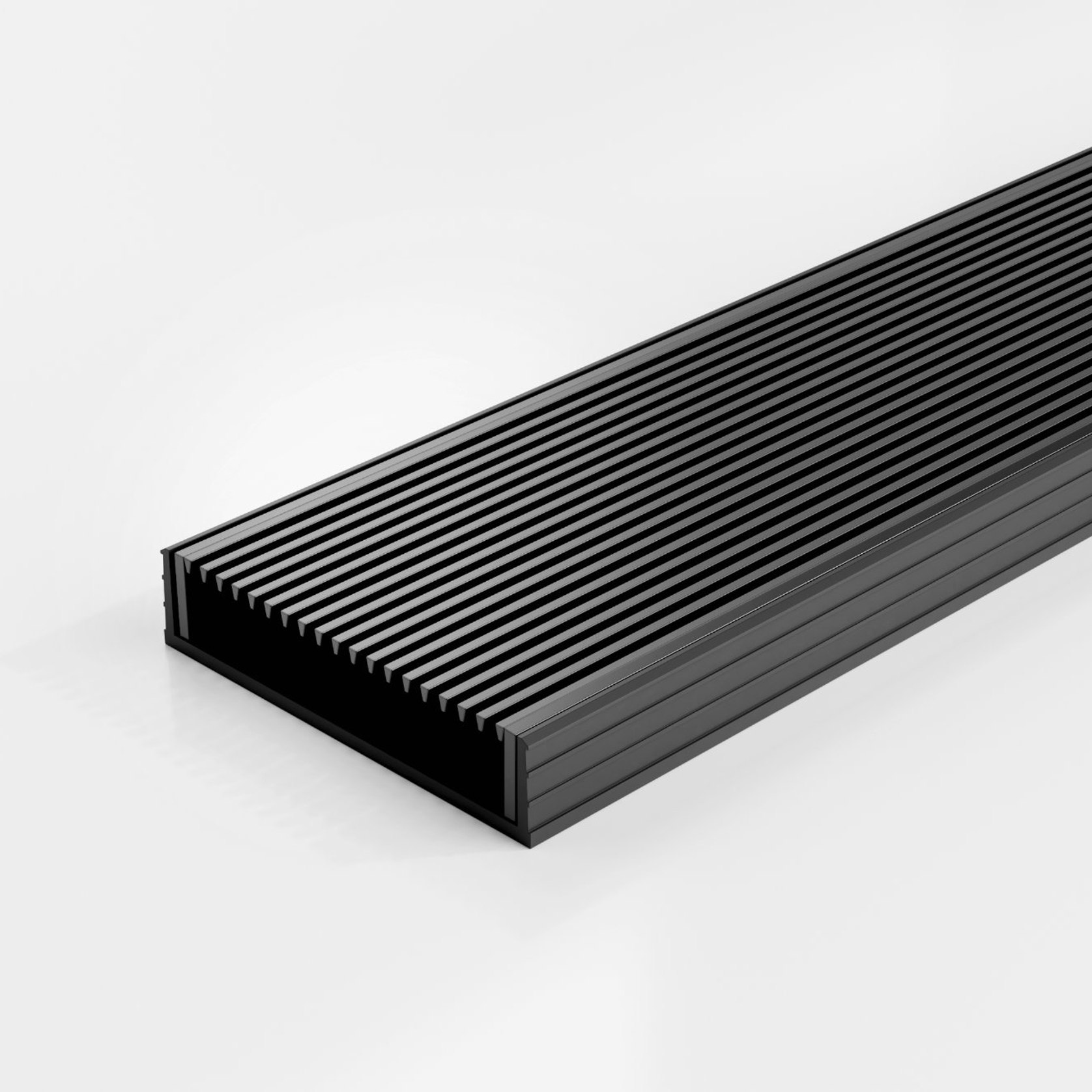

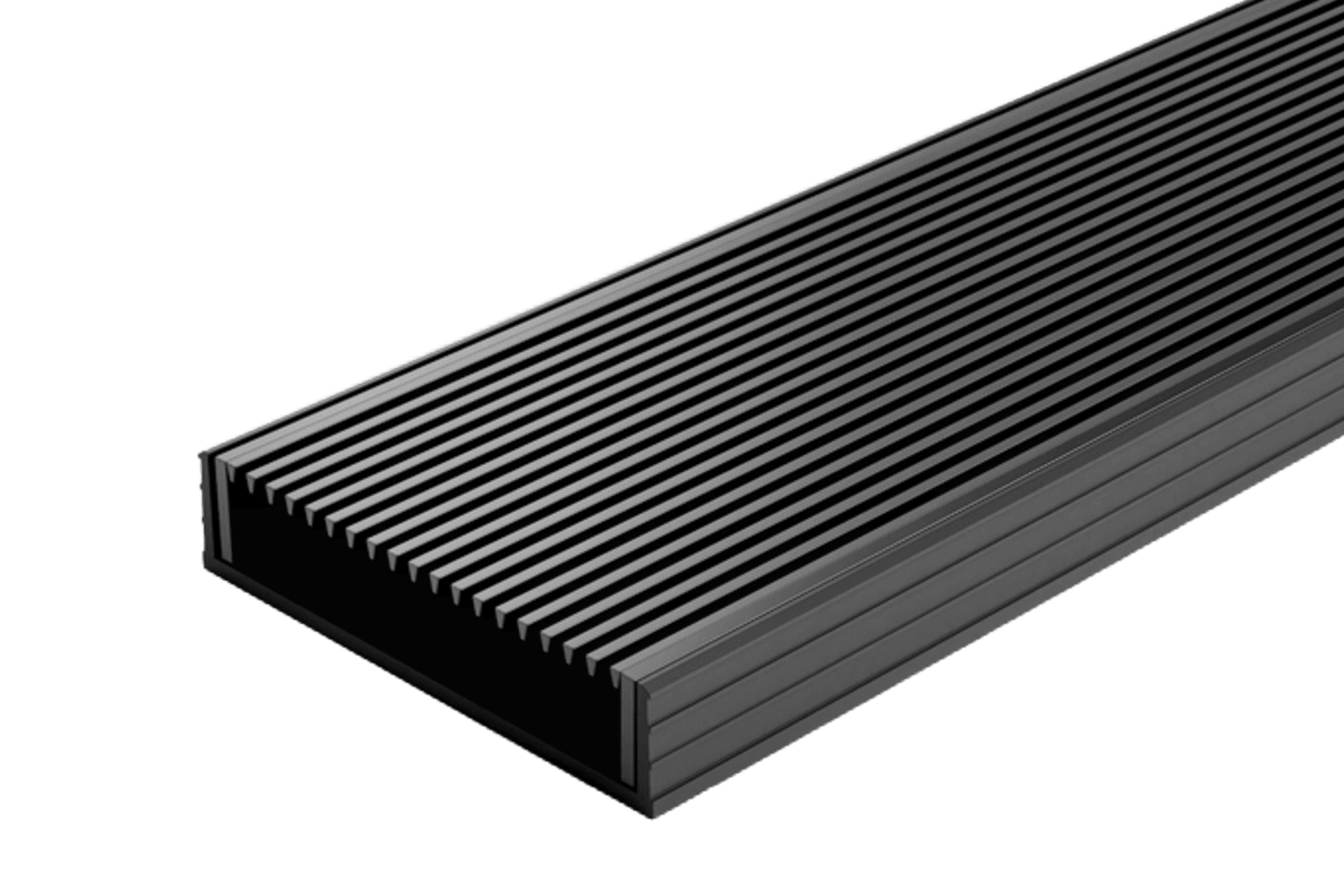

Powder-coated black stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications. Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
Product Details
- Product
- 100ARGALLBL20 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Stormtech is specified by
NTF ArchitectureArchitects
Cadence & CoArchitects
Smyth & SmythArchitects
Rama ArchitectsArchitects
Bryant Alsop ArchitectsArchitects
J Mammone ArchitectureArchitects
djrd architectsArchitects
BVNArchitects
Ian Moore ArchitectsArchitects
WexhausArchitects
Winter ArchitectureArchitects
Chan ArchitectureArchitects
Windiate ArchitectsArchitects
Whisker ArchitectureArchitects
DX ArchitectsArchitects
Eliza Blair ArchitectureArchitects
Bower ArchitectureArchitects
Hive ArchitectureArchitects
SJBArchitects
ArchierArchitects
Tim Hodges ArchitectArchitects
Greenaway ArchitectsArchitects
Create ArchitectureArchitects
Utz Sanby ArchitectsArchitects
Tham ArchitectsArchitects
Taylor KnightsArchitects
Hutchinson BuildersBuilders
Millboard DeckingManufacturers and Suppliers
K.Holland Architectural InteriorsInterior Designers
Studio ApercuInterior Designers
BeecraftBuilding Designers
Matic by DesignInterior Designers
Seidler GroupDesign & Build
STUDIO GAXAInterior Designers
Sici DesignInterior Designers
Powder-coated black stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications.
Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
- Specs

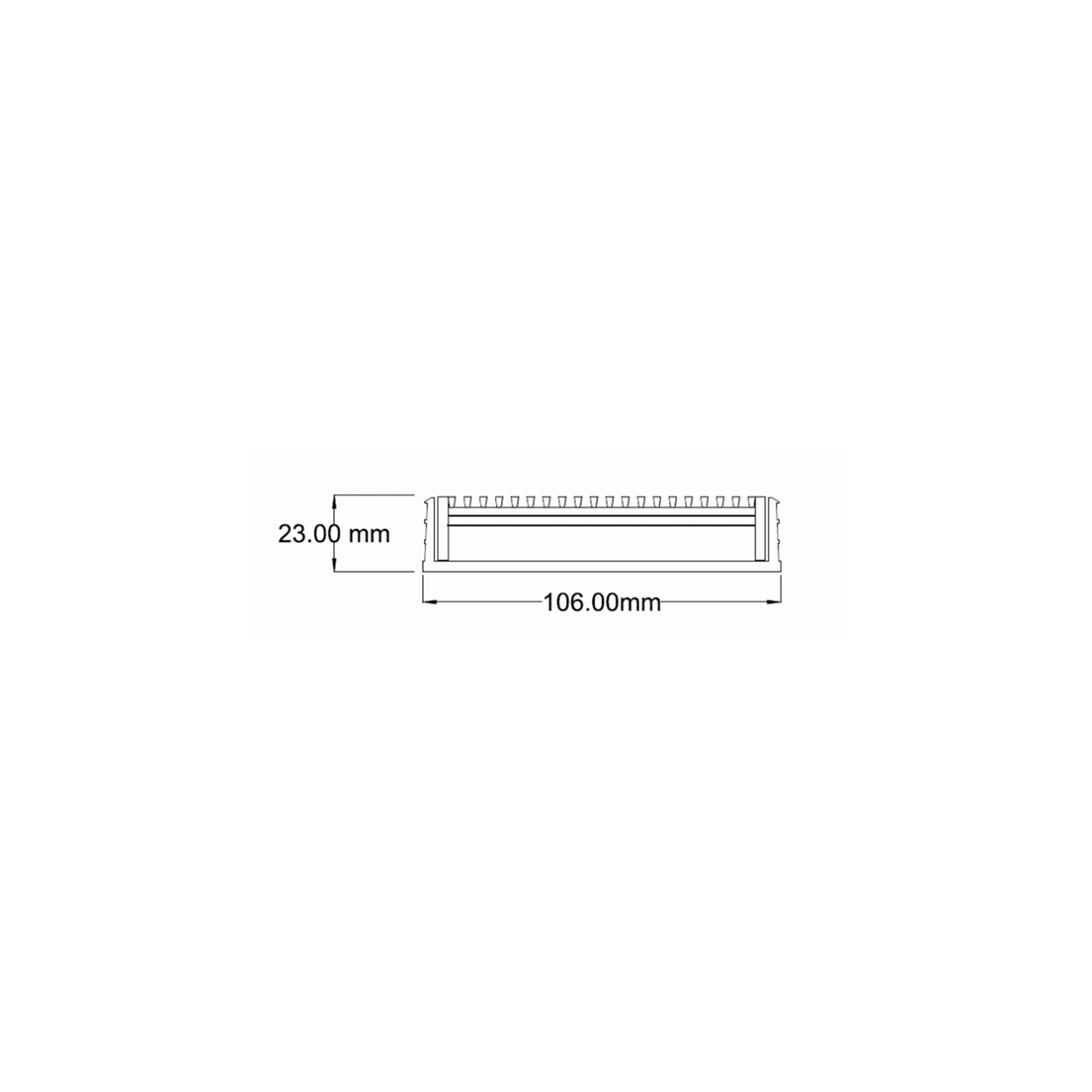

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm, 2200mm, 2400mm, 2700mm, 3000mm
- Outlet Size: DN40, DN50, DN80, DN100
- Features
- 100mm wide Architectural Stainless Steel grate with Black UPVC channel & Black grate.
- The 100AR is the original premium architectural grate featuring a 2mm wire/2.5mm gap.
- Modular site finish system, wedge wire grate, manufactured from 316 grade stainless steel (powder coated black) combined with a black UPVC channel.
- Kits longer than 3000mm are available on request.
- Black uPVC channel is suitable for Internal use only
