100PPSG20 Linear Drainage System
by Stormtech
New South Wales
- 560.1K profile views
- 67 saves
Stainless steel linear drain grate and grey uPVC channel modular kit designed for architectural applications. Suitable for internal and external wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting down the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
Product Details
- Product
- 100PPSG20 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Stormtech is specified by
NTF ArchitectureArchitects
Bower ArchitectureArchitects
ArchierArchitects
Winter ArchitectureArchitects
Cadence & CoArchitects
J Mammone ArchitectureArchitects
Chan ArchitectureArchitects
BVNArchitects
Greenaway ArchitectsArchitects
Rama ArchitectsArchitects
Whisker ArchitectureArchitects
DX ArchitectsArchitects
Ian Moore ArchitectsArchitects
Windiate ArchitectsArchitects
Hive ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Utz Sanby ArchitectsArchitects
Tham ArchitectsArchitects
SJBArchitects
WexhausArchitects
djrd architectsArchitects
Smyth & SmythArchitects
Taylor KnightsArchitects
Eliza Blair ArchitectureArchitects
Create ArchitectureArchitects
Tim Hodges ArchitectArchitects
Millboard DeckingManufacturers and Suppliers
BeecraftBuilding Designers
Hutchinson BuildersBuilders
K.Holland Architectural InteriorsInterior Designers
STUDIO GAXAInterior Designers
Studio ApercuInterior Designers
Seidler GroupDesign & Build
Matic by DesignInterior Designers
Sici DesignInterior Designers
Stainless steel linear drain grate and grey uPVC channel modular kit designed for architectural applications.
Suitable for internal and external wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting down the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
- Specs

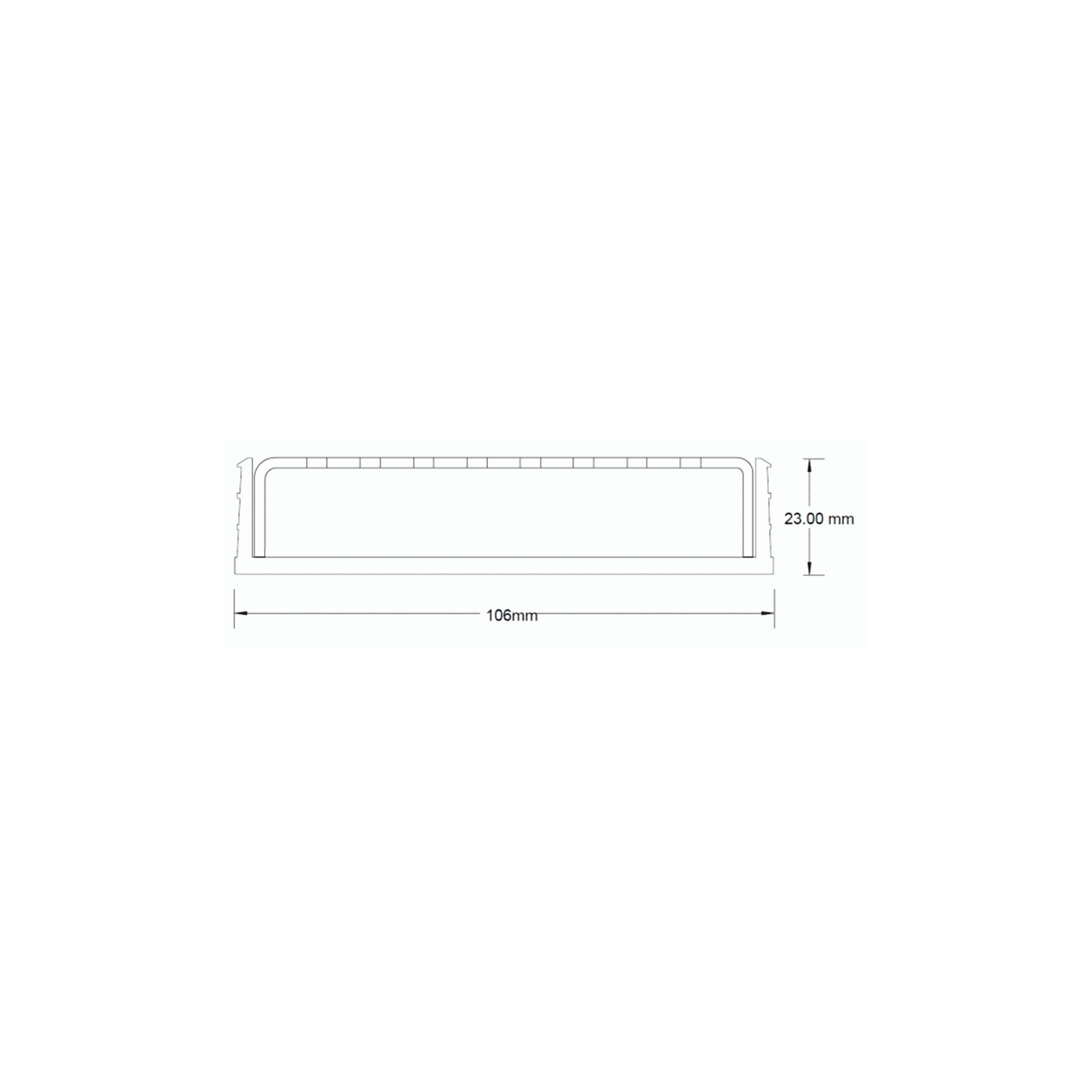

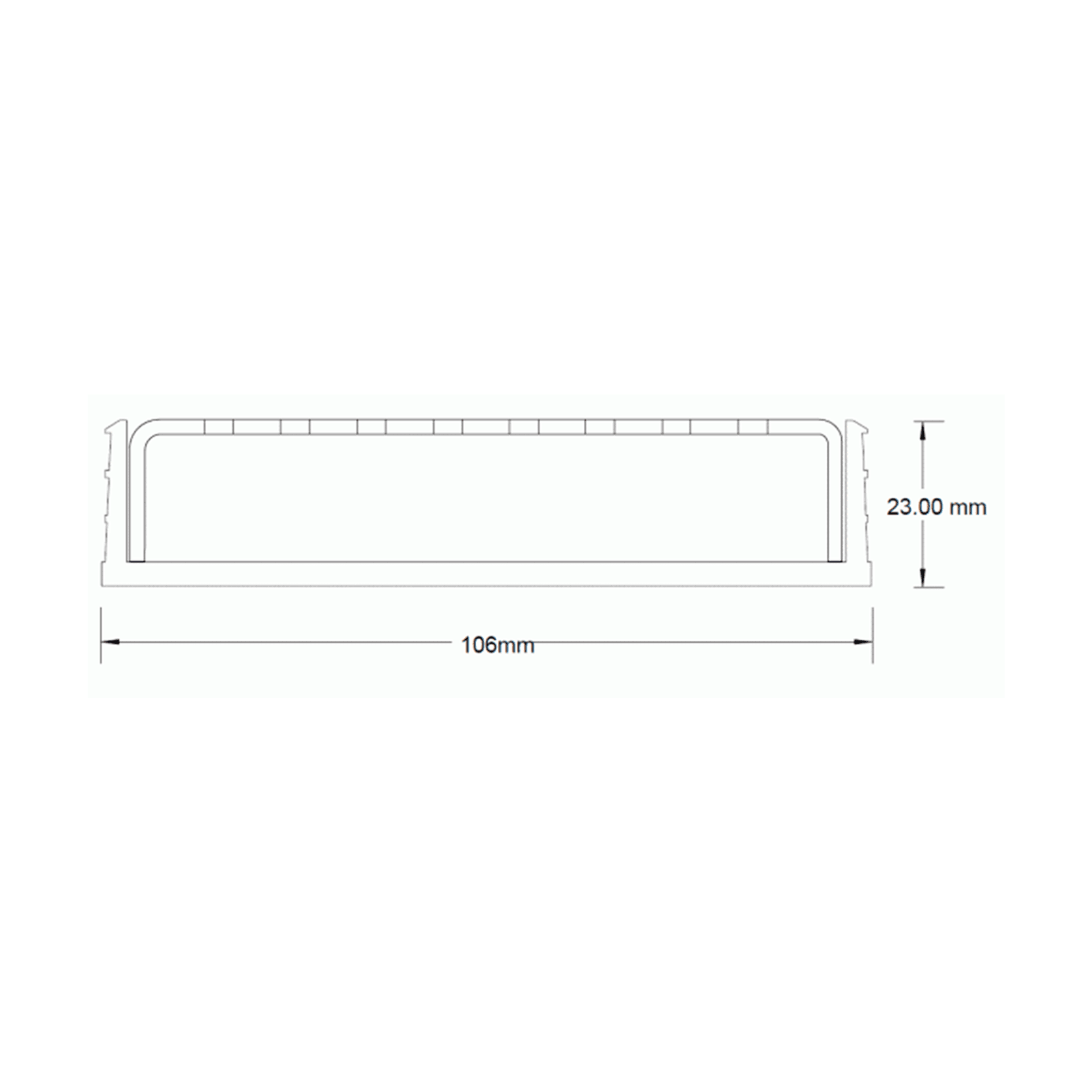

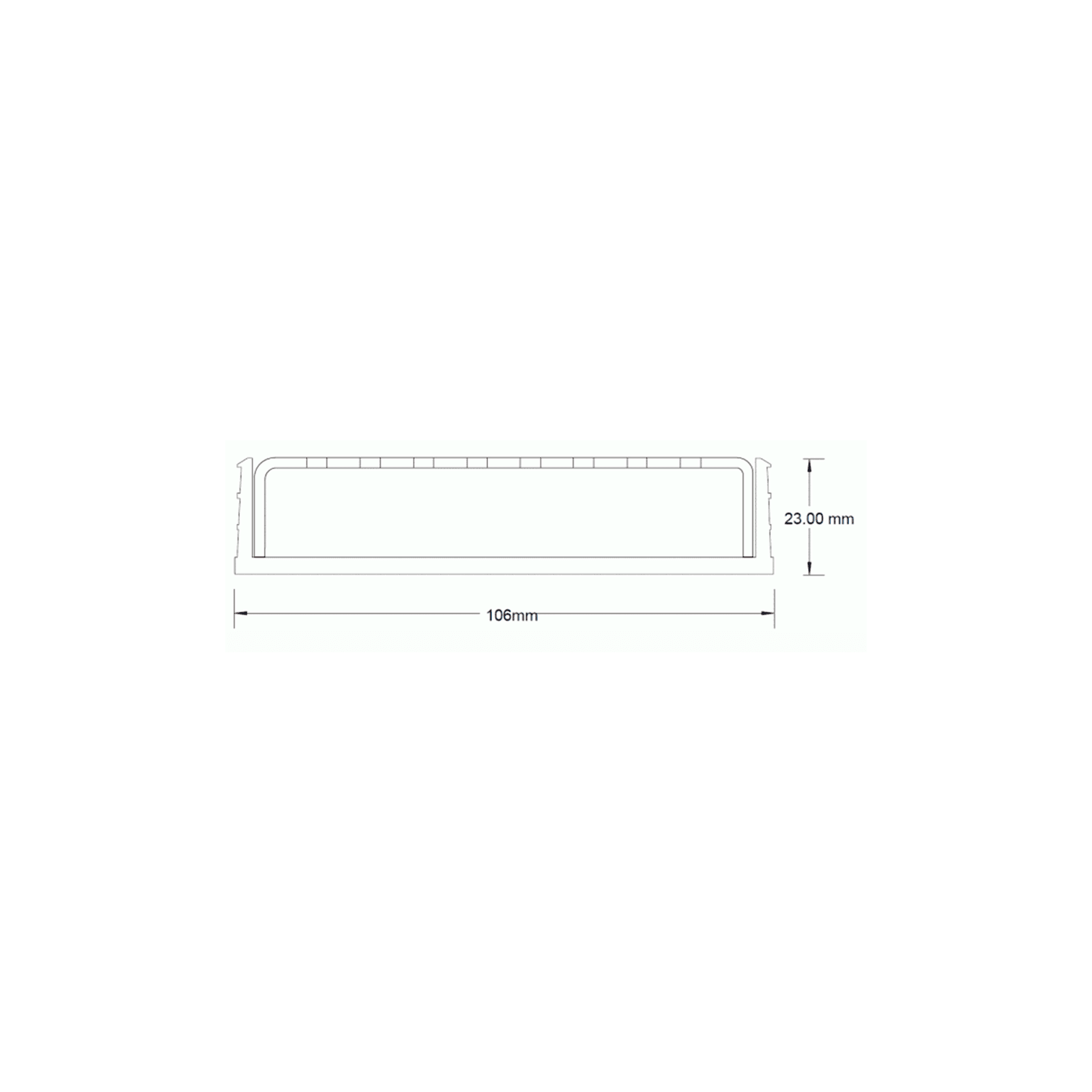

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 2400mm, 2500mm, 2700mm, 2800mm, 2900mm, 3000mm
- Outlet Size: DN80, DN100
- Features

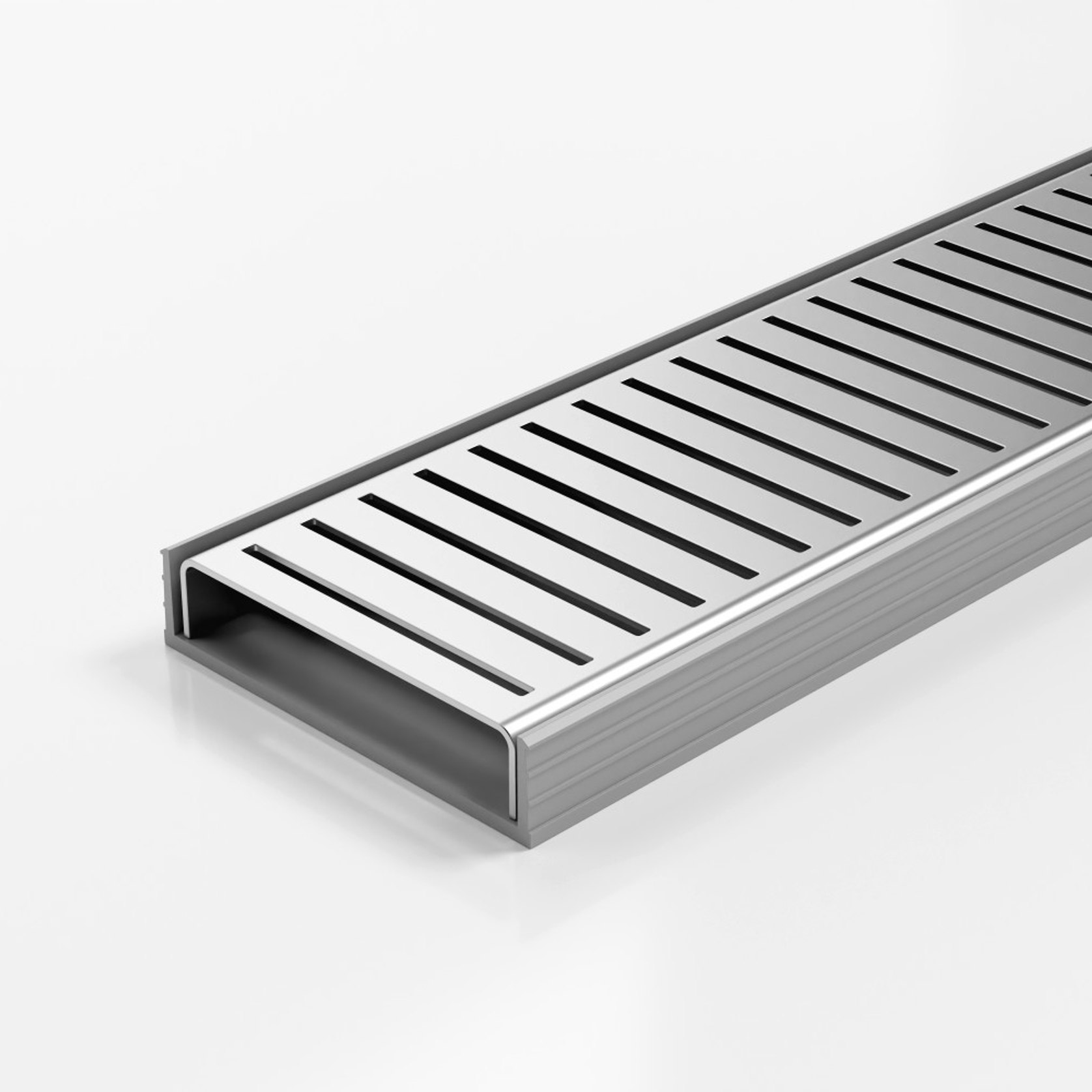

- 100mm Wide Punched Perpendicular Slot Perforated Stainless Steel Grate with uPVC Channel.
- The 100PASG20 slot perforated grate is manufactured from 316 marine-grade stainless steel combined with a UPVC drainage channel and offers an affordable option to use the Slimline system.
- Kits longer than 3000mm available on request.
- Please be aware that, depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
