65Tii25MTL Tile Insert Drain
by Stormtech
New South Wales
- 560.3K profile views
- 67 saves
All stainless steel drainage unit made to specified length with specified outlet position.

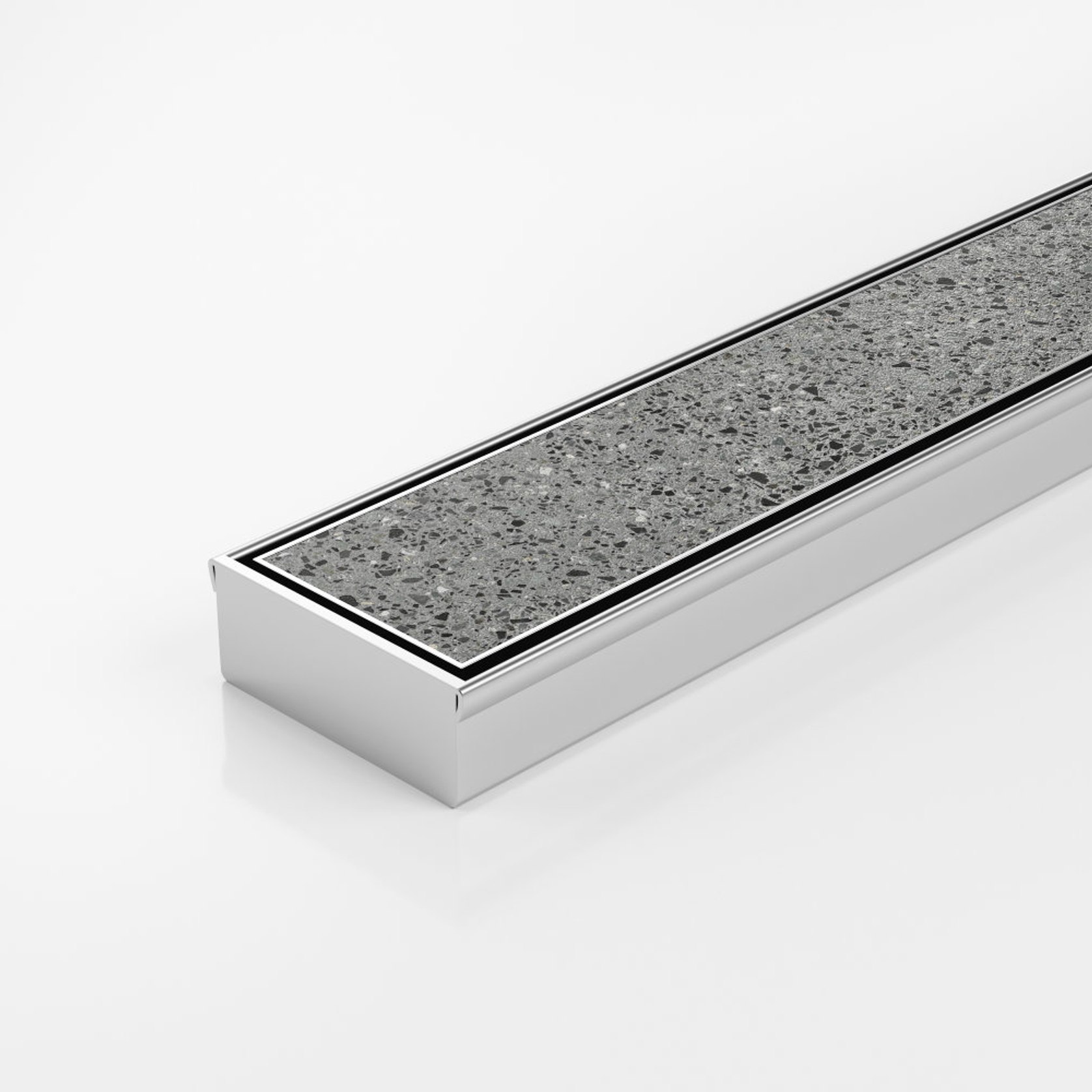

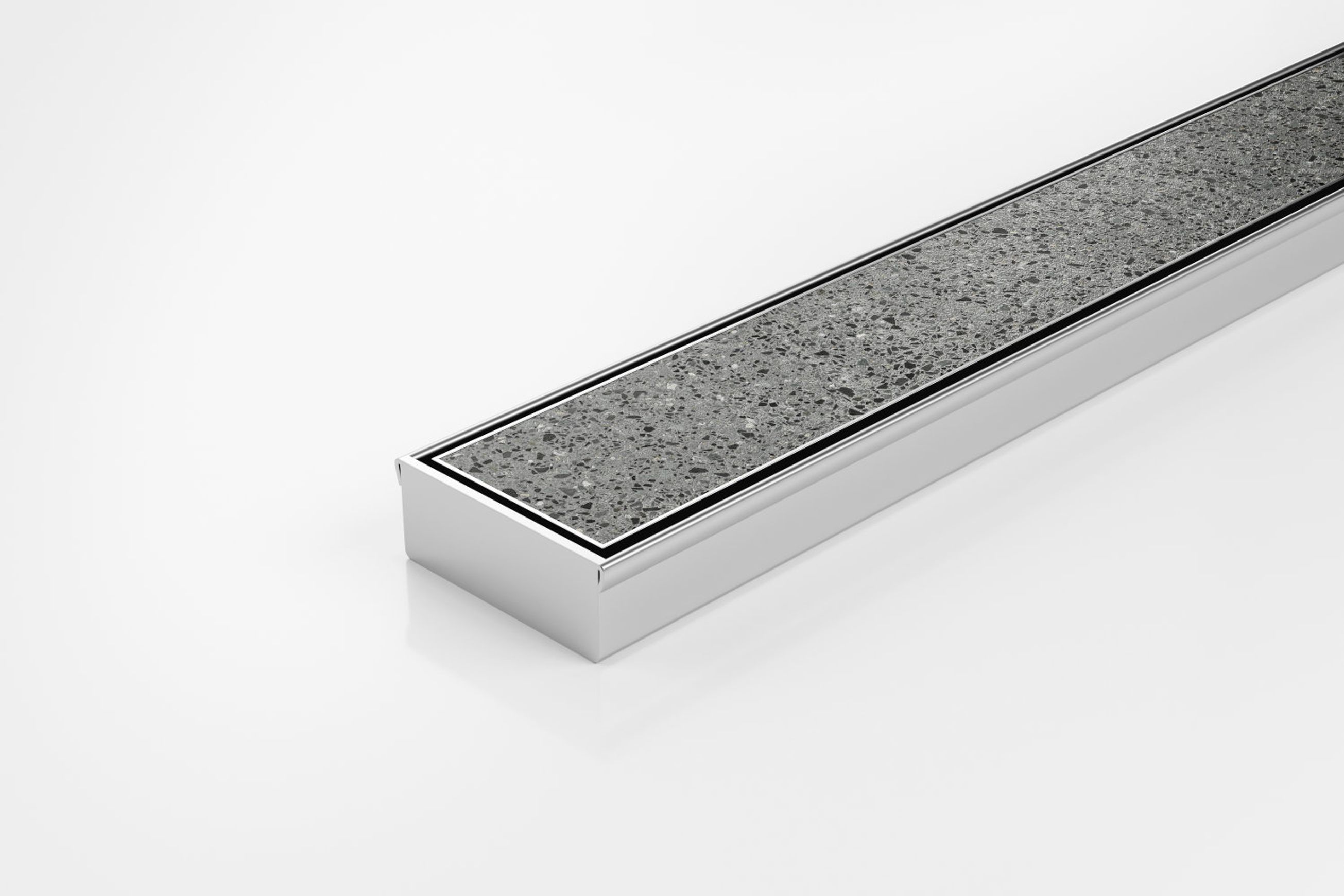

The 65Tii25 is a Tile Insert Drain manufactured from 1.5mm thick 316 marine grade stainless steel.
Suitable for tiles up to 10mm thick.
The maximum length of the tile insert will be 1200mm in one piece, channels longer than 1200mm will have inserts in multiple equal sections
Product Details
- Product
- 65Tii25MTL Tile Insert Drain
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 65
Product Variants
- Size
Product specified by
All stainless steel drainage unit made to specified length with specified outlet position.
The 65Tii25 is a Tile Insert Drain manufactured from 1.5mm thick 316 marine grade stainless steel.
Suitable for tiles up to 10mm thick.
The maximum length of the tile insert will be 1200mm in one piece, channels longer than 1200mm will have inserts in multiple equal sections
- Specs

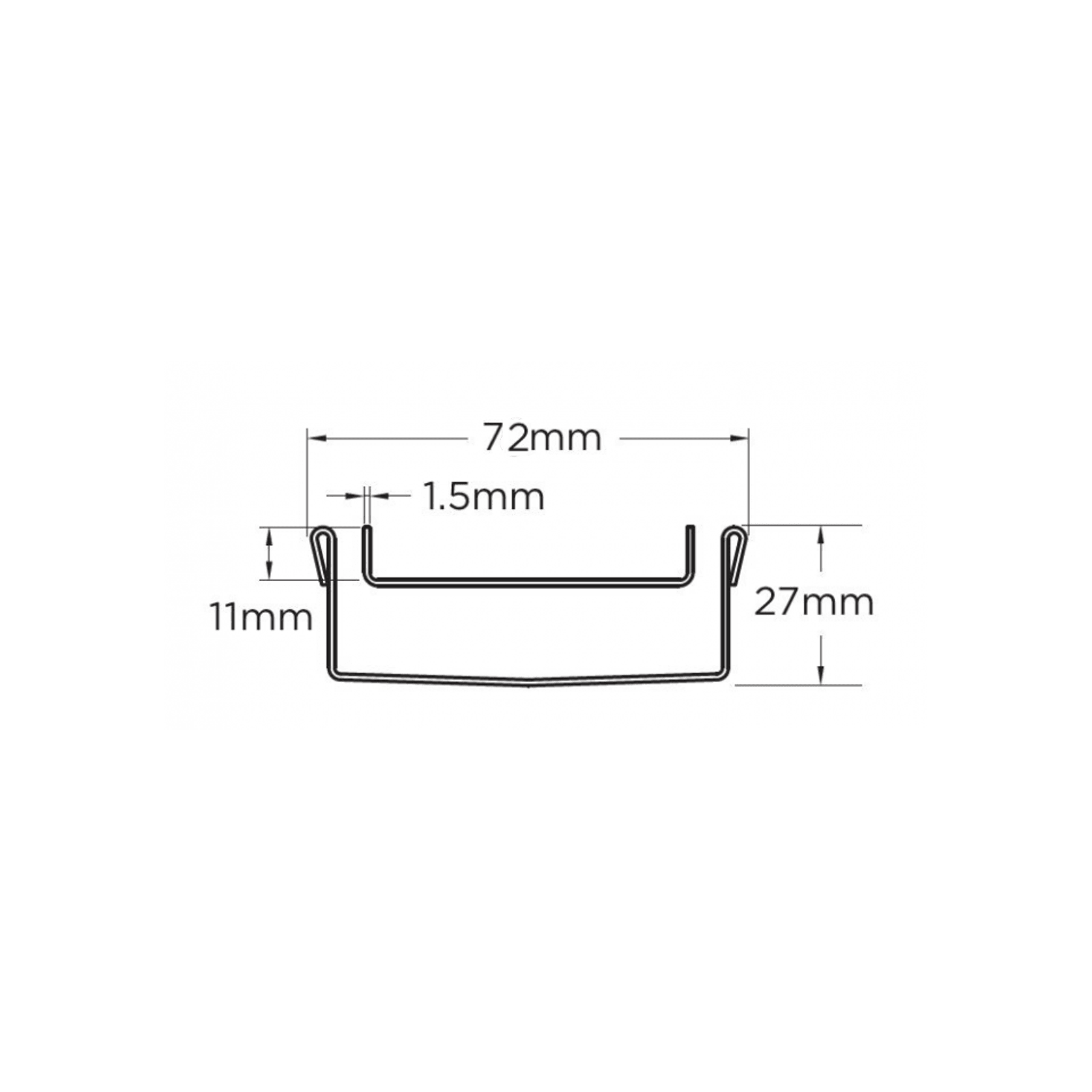

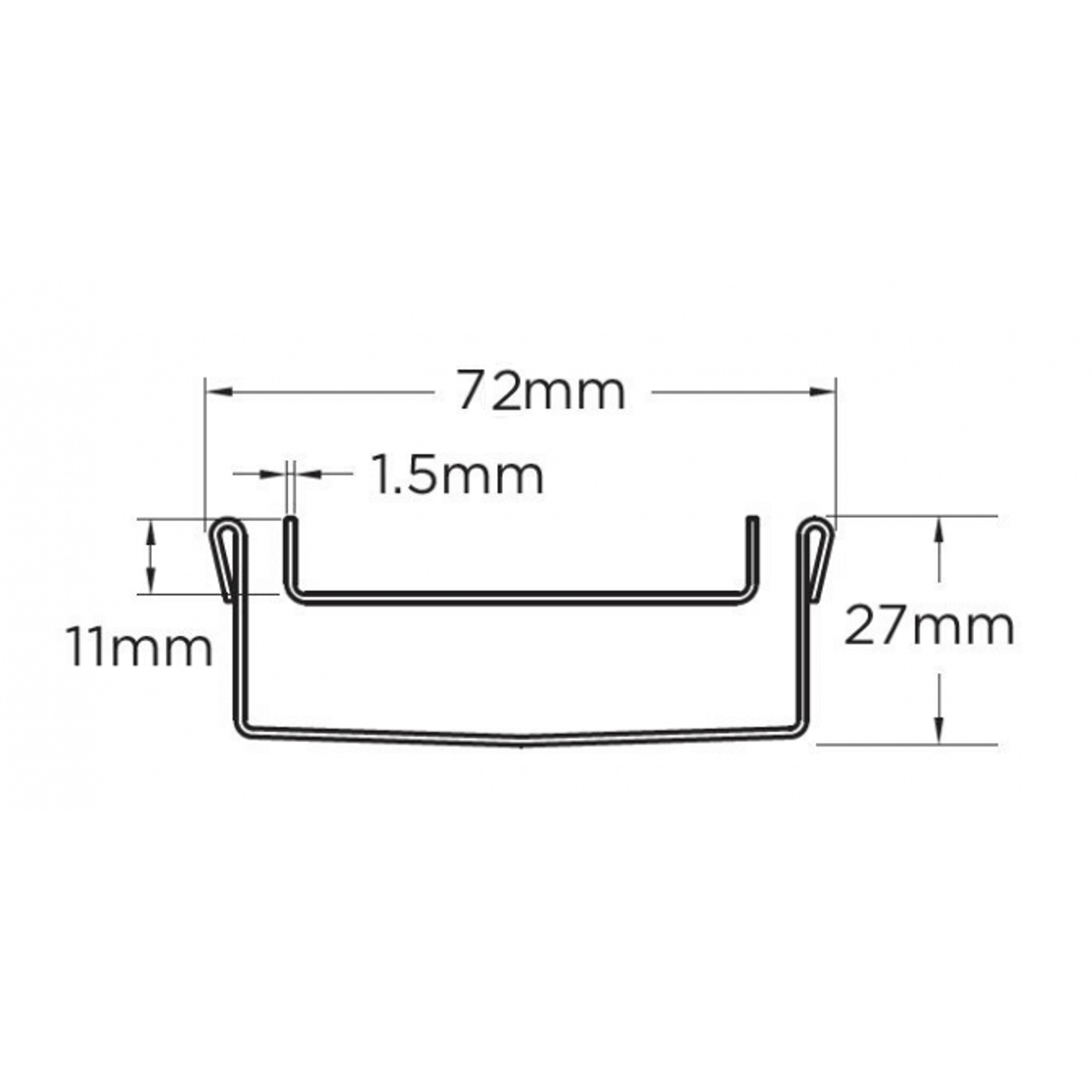

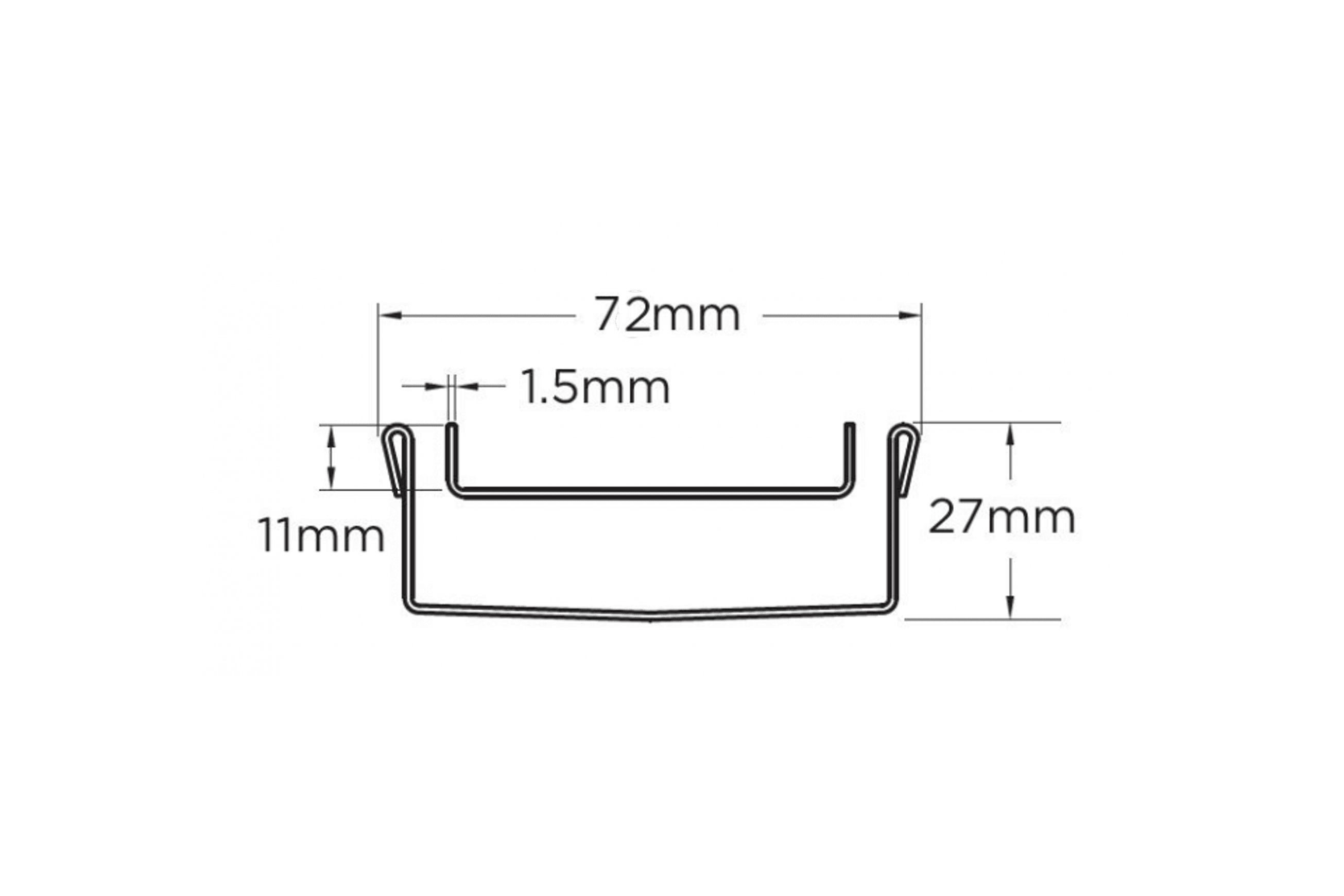

- Channel Width: 72mm Channel Depth: 27mm Length(s): As Required Outlet Size: DN40, DN50, DN65
Downloads
Downloads (11)11 Direct downloads • 4 Available on request
Frequently asked questions about
65Tii25MTL Tile Insert Drain
The 65Tii25MTL Tile Insert Drain is supplied by Stormtech. It is also on their website, and you can browse every product Stormtech lists on ArchiPro.
Stormtech does not publish a price for the 65Tii25MTL Tile Insert Drain on ArchiPro. for pricing, or visit their website.

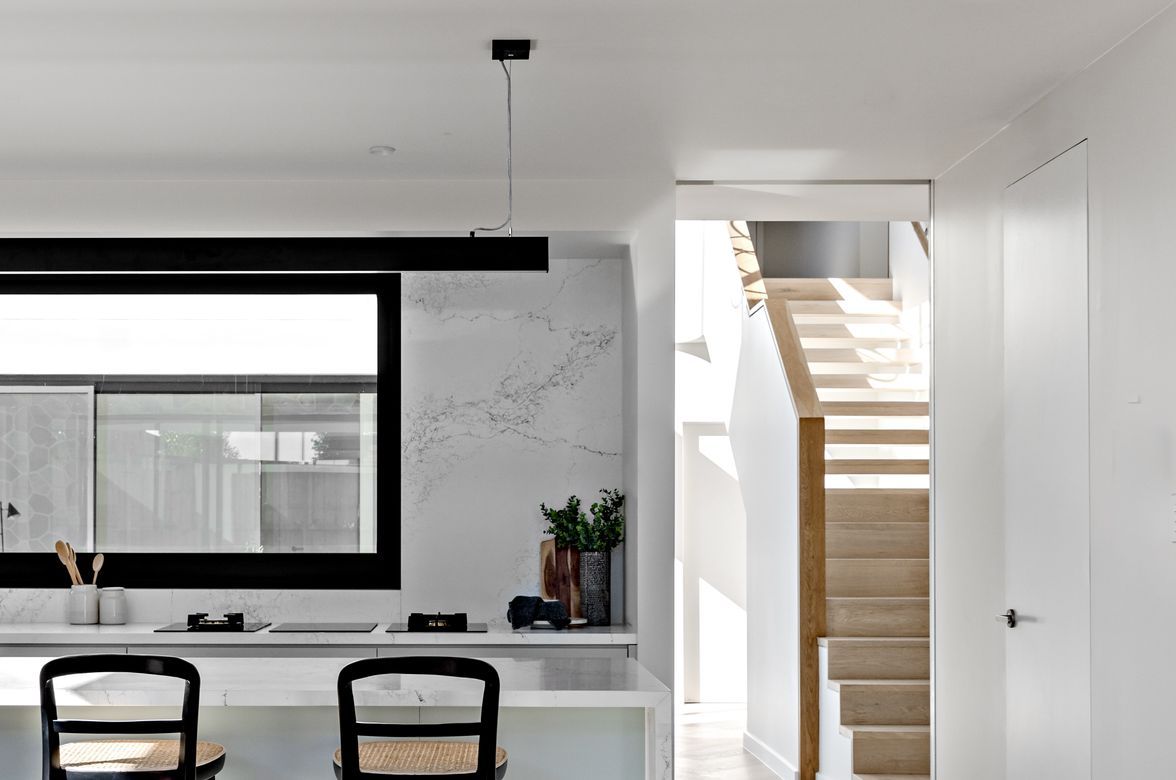

Yes. It has been specified in projects on ArchiPro, including Sir Garnet by Tham Architects and Fairway House by Tham Architects. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Stormtech profile on ArchiPro has the rest of their products.
