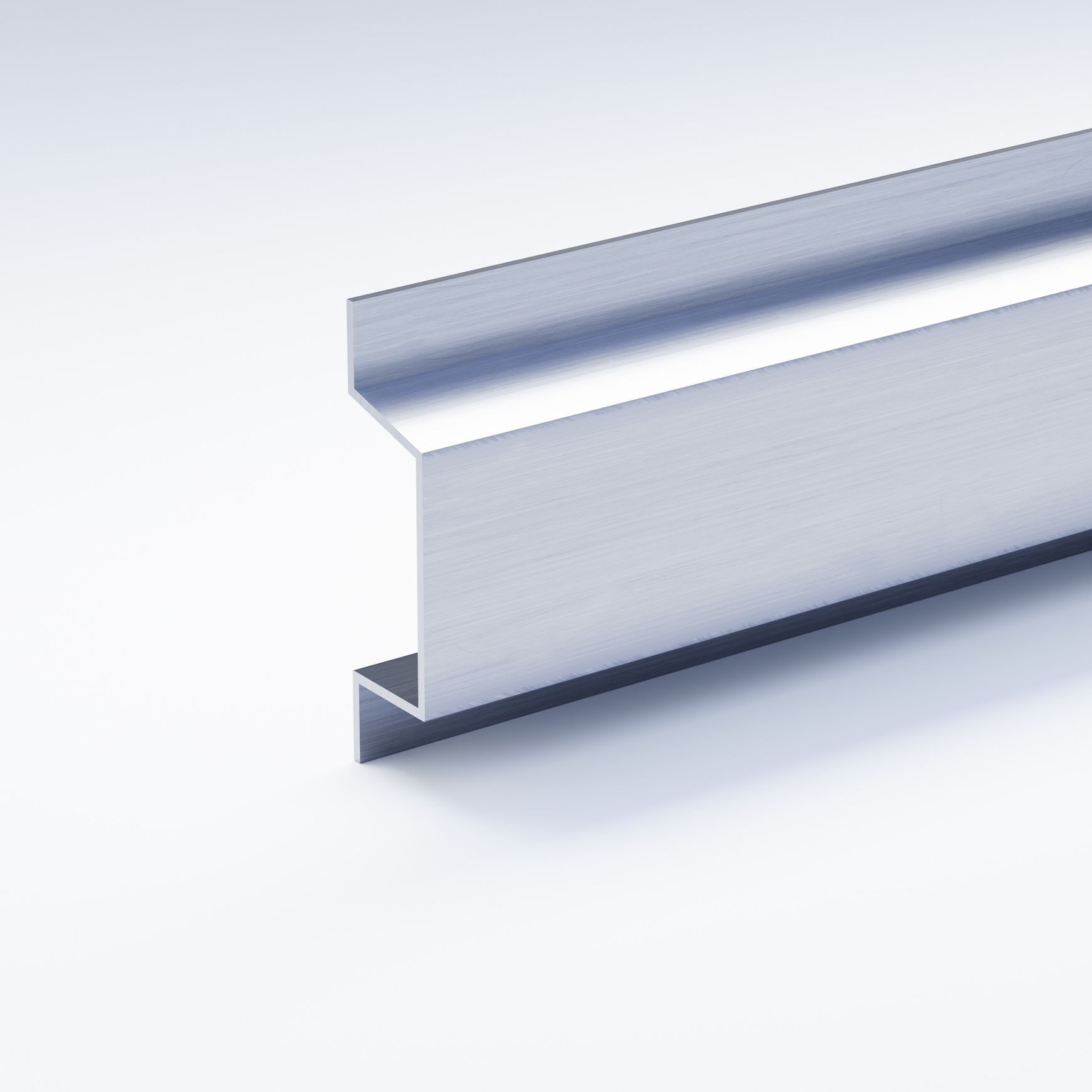

Vulcan Tophat Structural Cavity Batten
by Vulcan
Auckland, New Zealand
- 132.0K profile views
- 66 saves
The Vulcan aluminium tophat structural cavity batten forms a 20 mm drained and ventilated cavity while doubling as a certified structural fixing point for exterior wall cladding.
Product Details
- Product
- Vulcan Tophat Structural Cavity Batten
- Category
- Metal Cladding
- Sold by
- Vulcan
- Brand
- Vulcan
- Year
- 2026
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
Vulcan is specified by
Leuschke Group ArchitectsArchitects
VIA architectureArchitects
Studio Pacific ArchitectureArchitects
Redbox ArchitectsArchitects
APG ArchitectsArchitects
Bob Burnett ArchitectureArchitectural Designers
HarbourCity Building CompanyBuilders
eHausDesign & Build
Artwork HomesBuilders
Slate ConstructionDesign & Build
MetWood®Manufacturers and Suppliers
Redgwell ConstructionConstruction
Origin ArchitectureArchitectural Designers
Smylie BuildersBuilders
McBrimarDesign & Build
The Vulcan aluminium tophat structural cavity batten forms a 20 mm drained and ventilated cavity while doubling as a certified structural fixing point for exterior wall cladding.
- Specs
- Height/width: 77 mm
- Top face: 45 mm
- Fixing lips (each side): 15 mm
- Nominal cavity depth: 20 mm
- Material thickness: 1.6 mm
- Top face angle: 15°
- Material: 6060-T5 Aluminium
- Features
- Drained & ventilated
Forms a 20mm cavity that keeps moisture moving, for drier walls that last. - Sloped drainage face
A 15° top face sheds water fast, so it never pools against the cladding. - Built from 6060‑T5 alloy
Durable, lightweight aluminium engineered for reliable long-term performance. - Finish your way
Mill finish or powder-coated in a wide range of cladding colours. - Certified structural fixing
Meets or exceeds NZBC E2/AS1 structural requirements across all wind zones. - Vertical or horizontal
One profile suits both orientations, across a wide range of cladding types. - Fire and Corrosion resistant
Non-combustible and fully corrosion-resistant in exposed environments. - NZ‑made, 100% recyclable
Designed and manufactured in New Zealand, fully recyclable at end of life
- Drained & ventilated
- Scope of use
Suitable for vertical or horizontal installation, it supports a wide range of cladding systems and is engineered to meet or exceed the minimum structural requirements of NZBC Acceptable Solution E2/AS1 across all wind zones
