AM-Clad® | Antimicrobial Hygienic Wall Cladding
by AM360
Ingleburn, Australia
- 2.8K profile views
AM-Clad® is an antimicrobial PVC wall cladding system designed for environments where hygiene, durability, and compliance are critical.
The panels incorporate silver-ion antimicrobial technology that helps inhibit microbial growth on the surface between cleaning cycles. Combined with a smooth, non-porous finish, AM-Clad provides a hygienic wall surface that is easy to clean and resistant to moisture, impact, and daily wear.

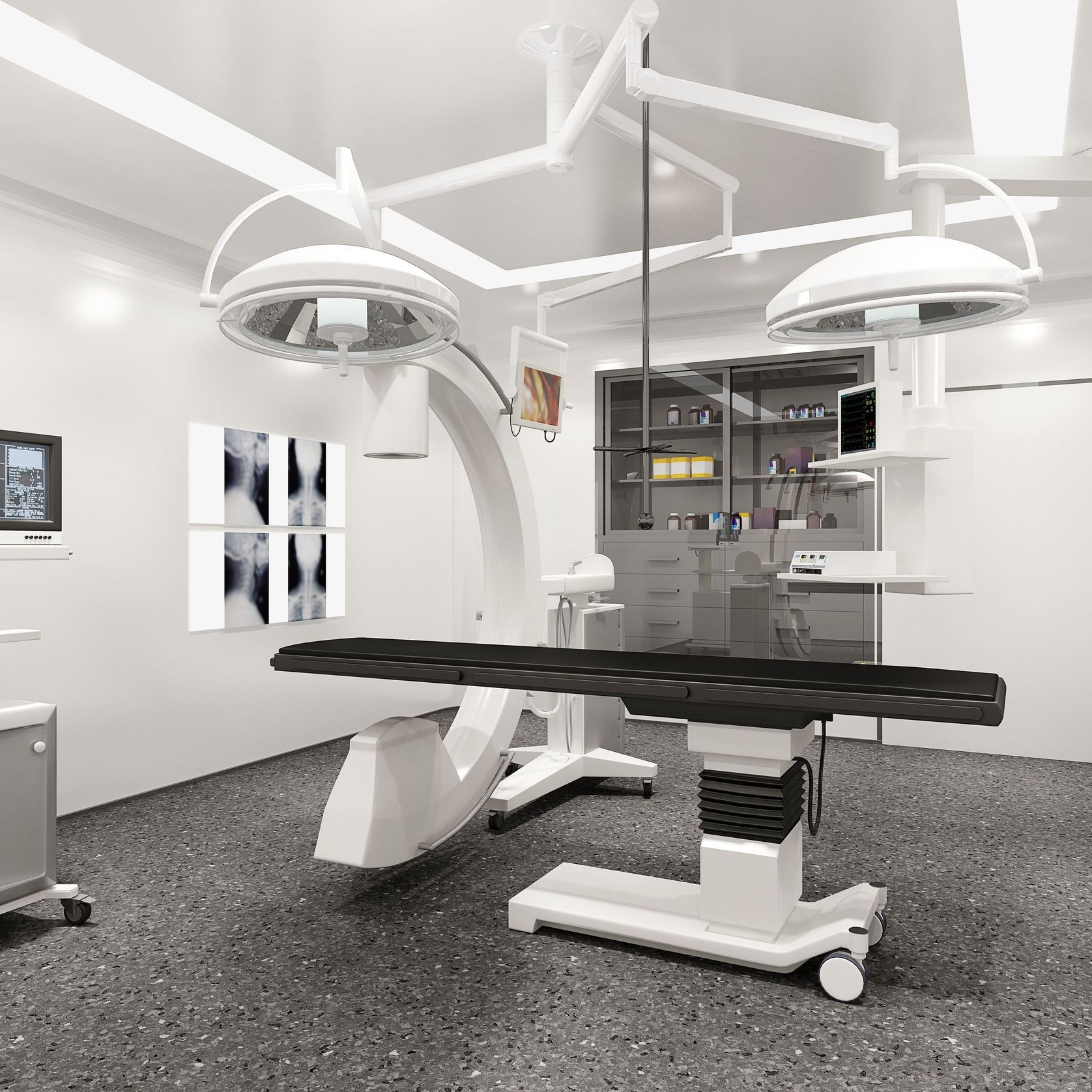

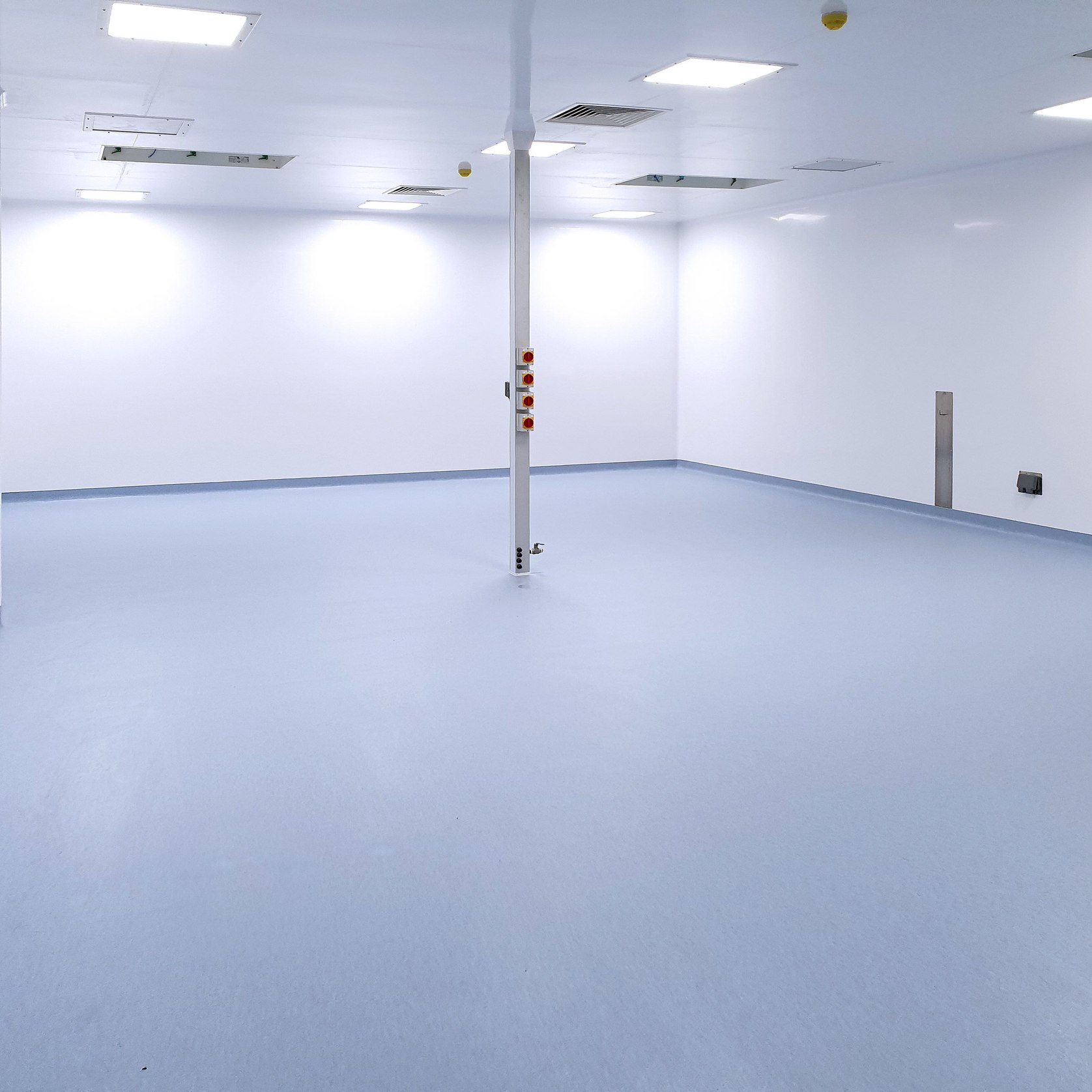

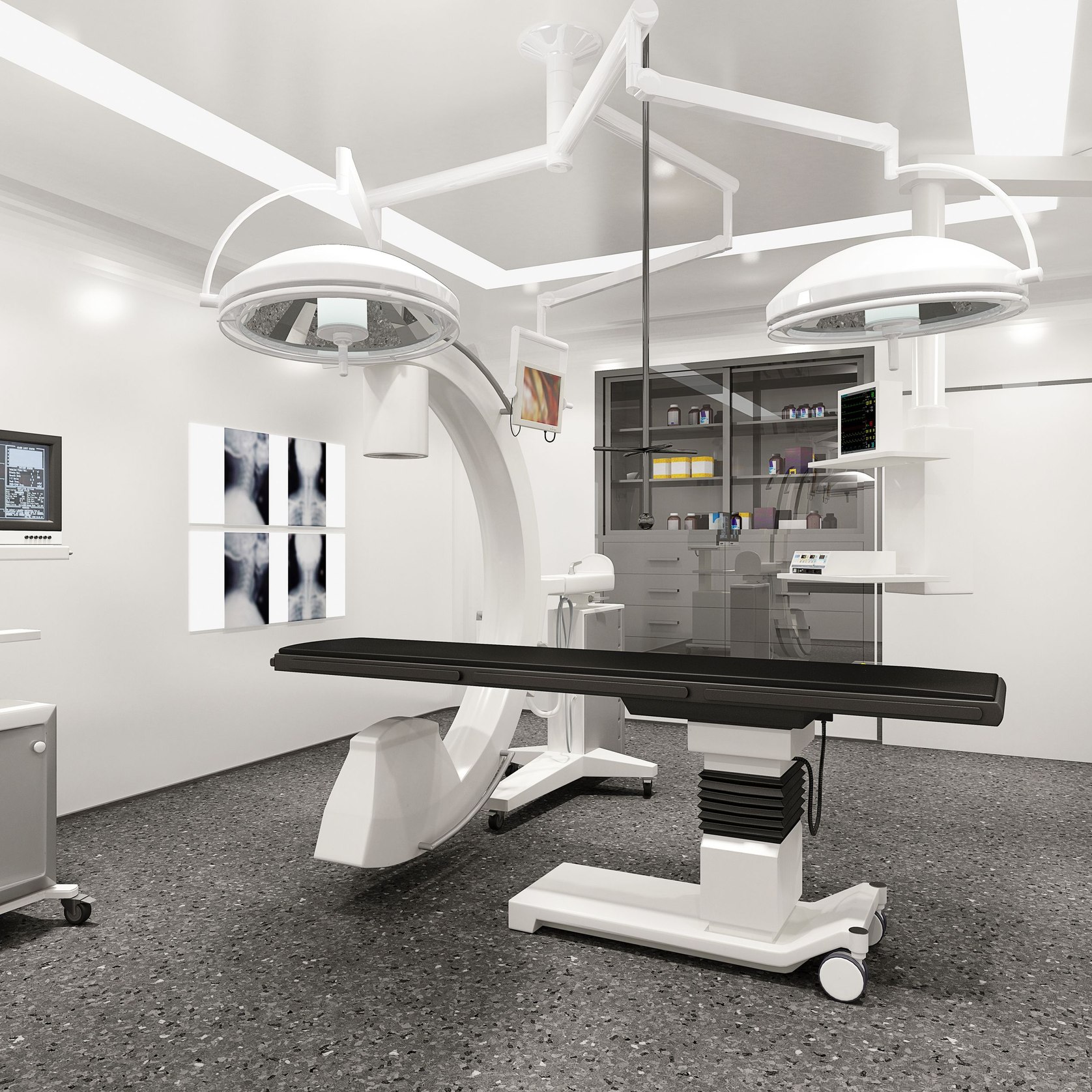

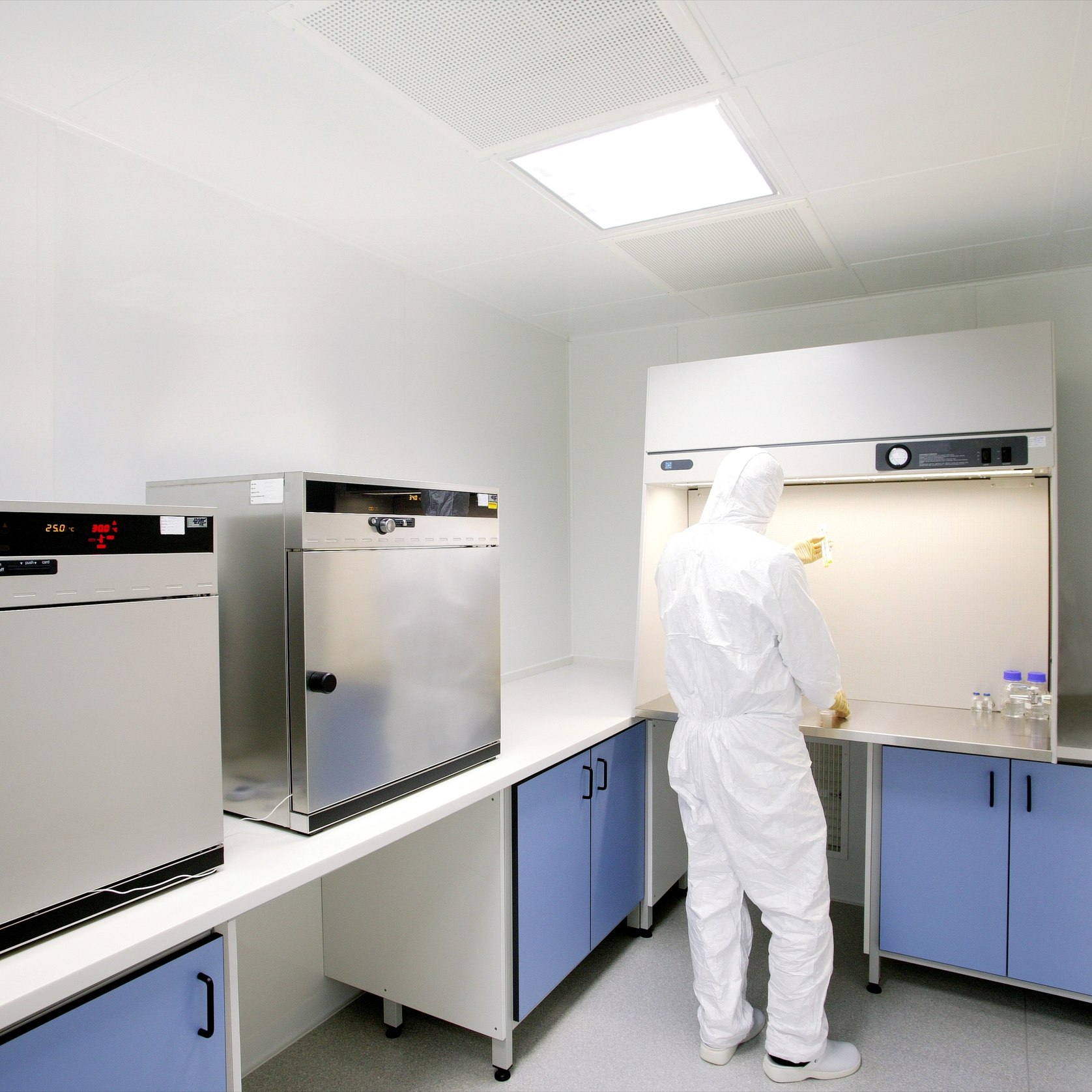

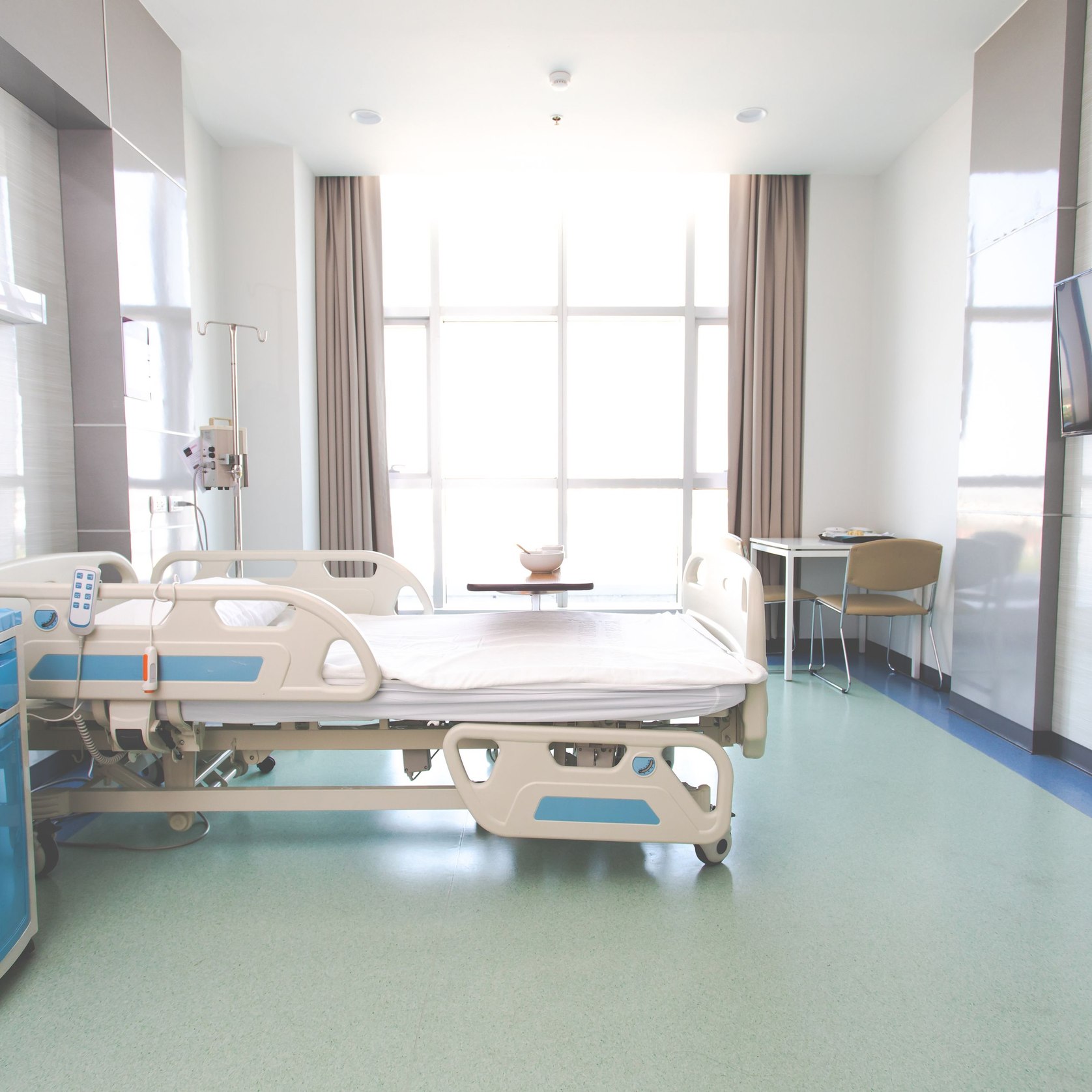

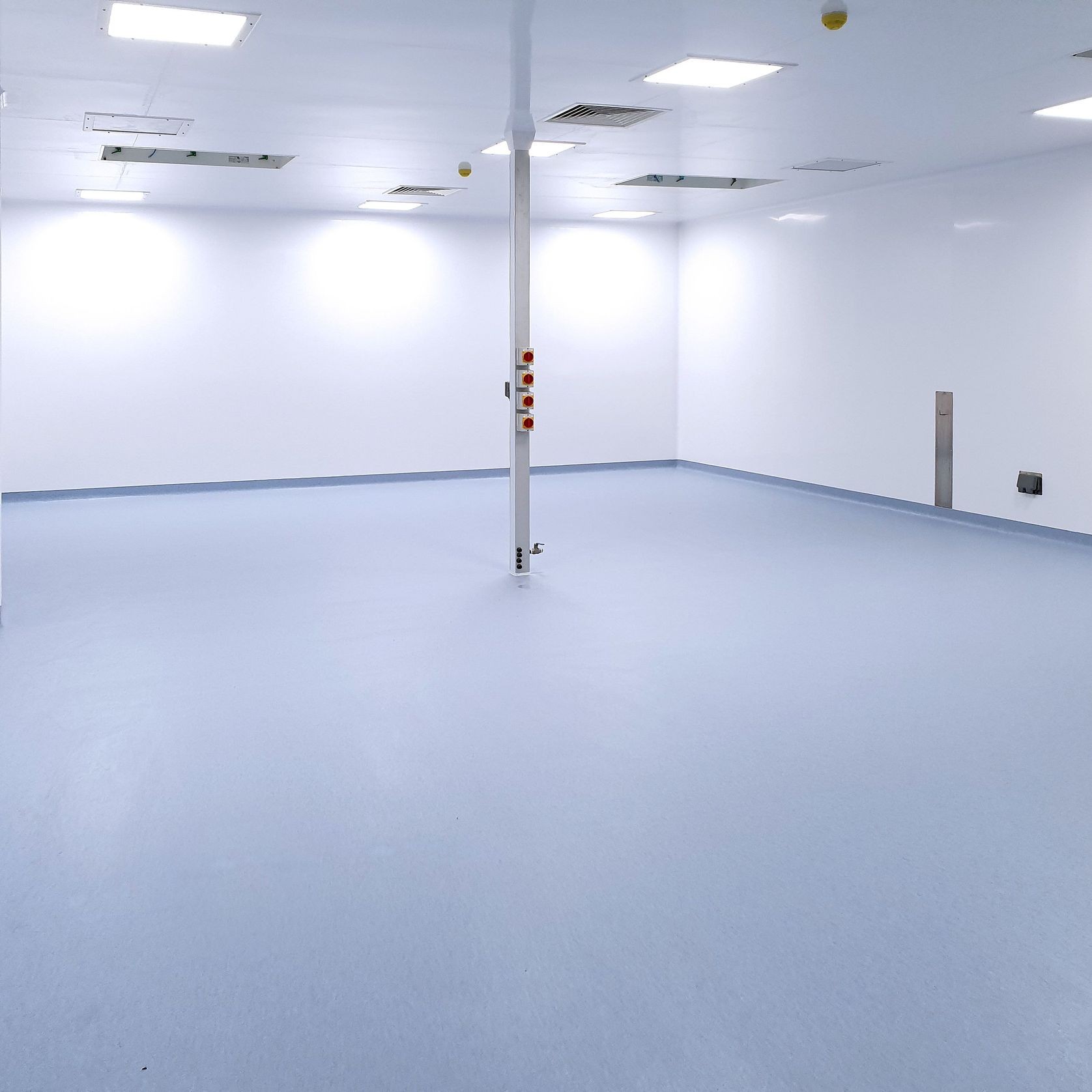

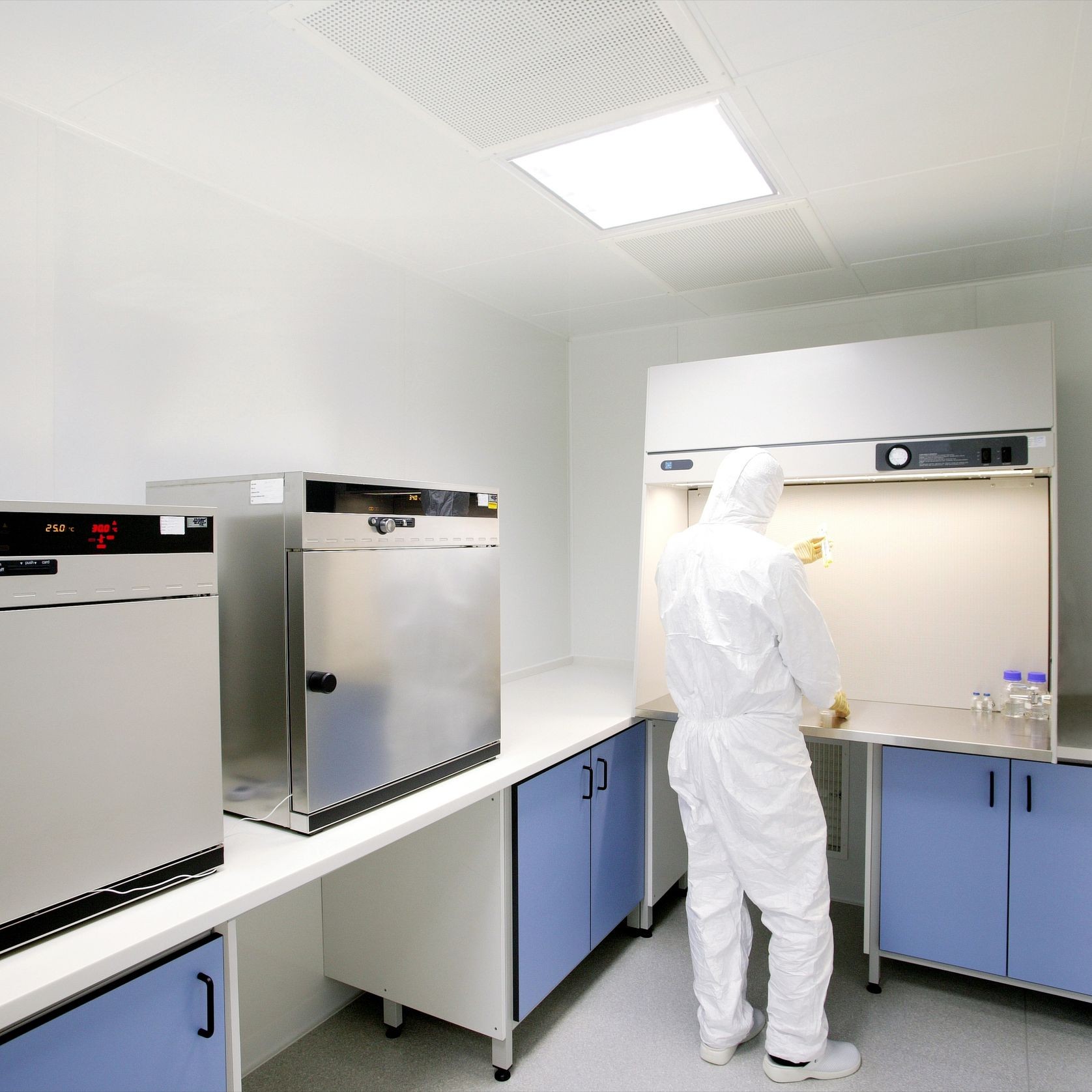

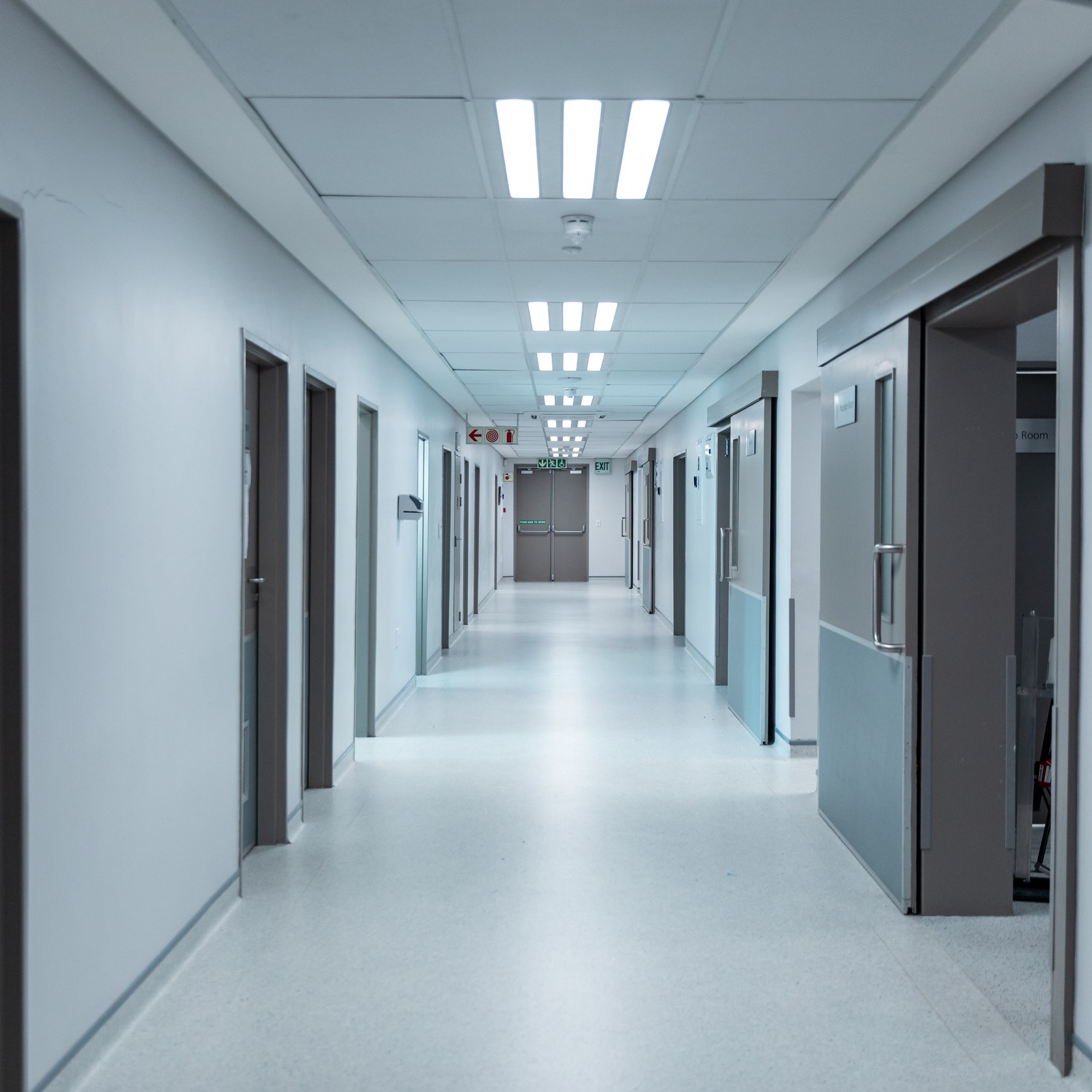

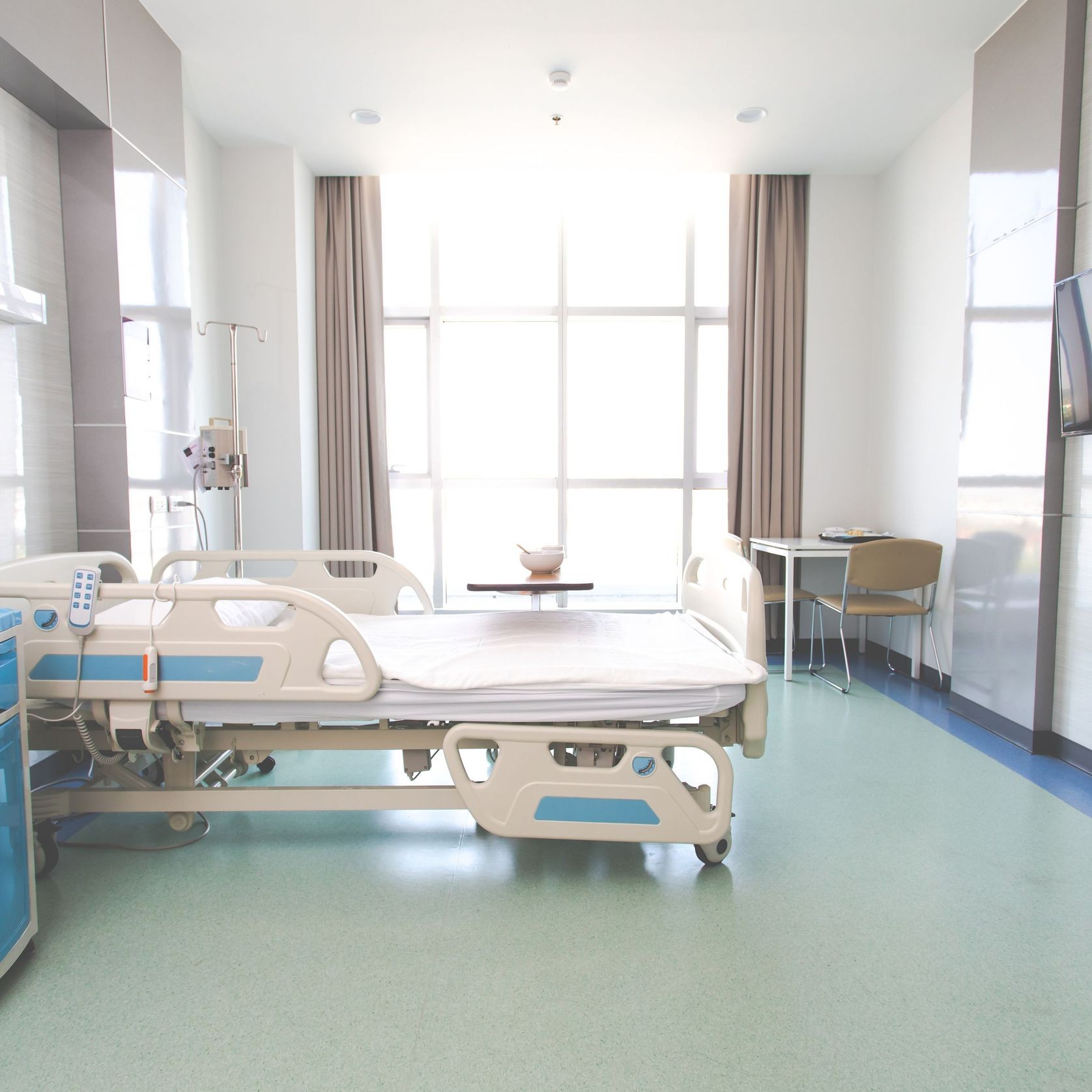

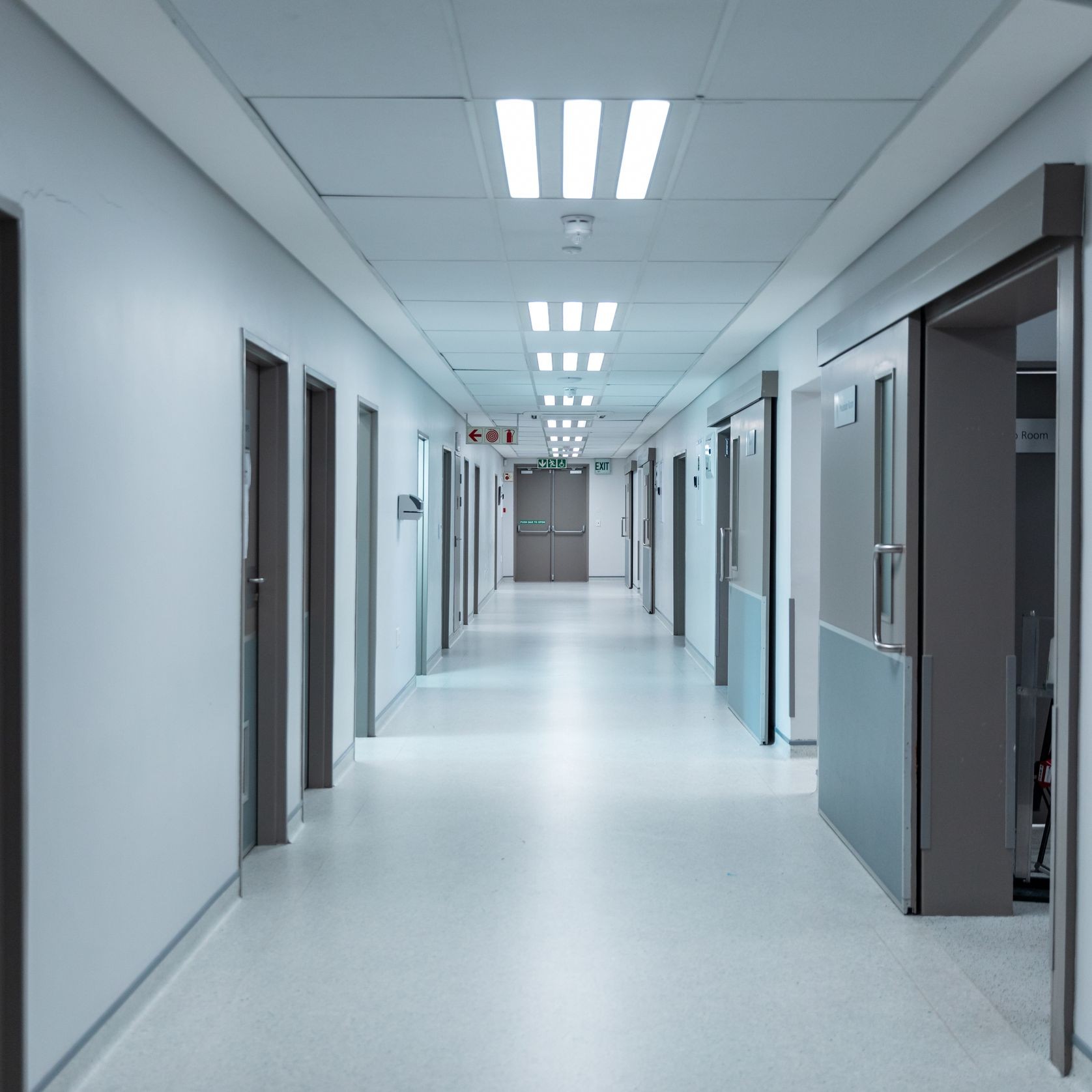

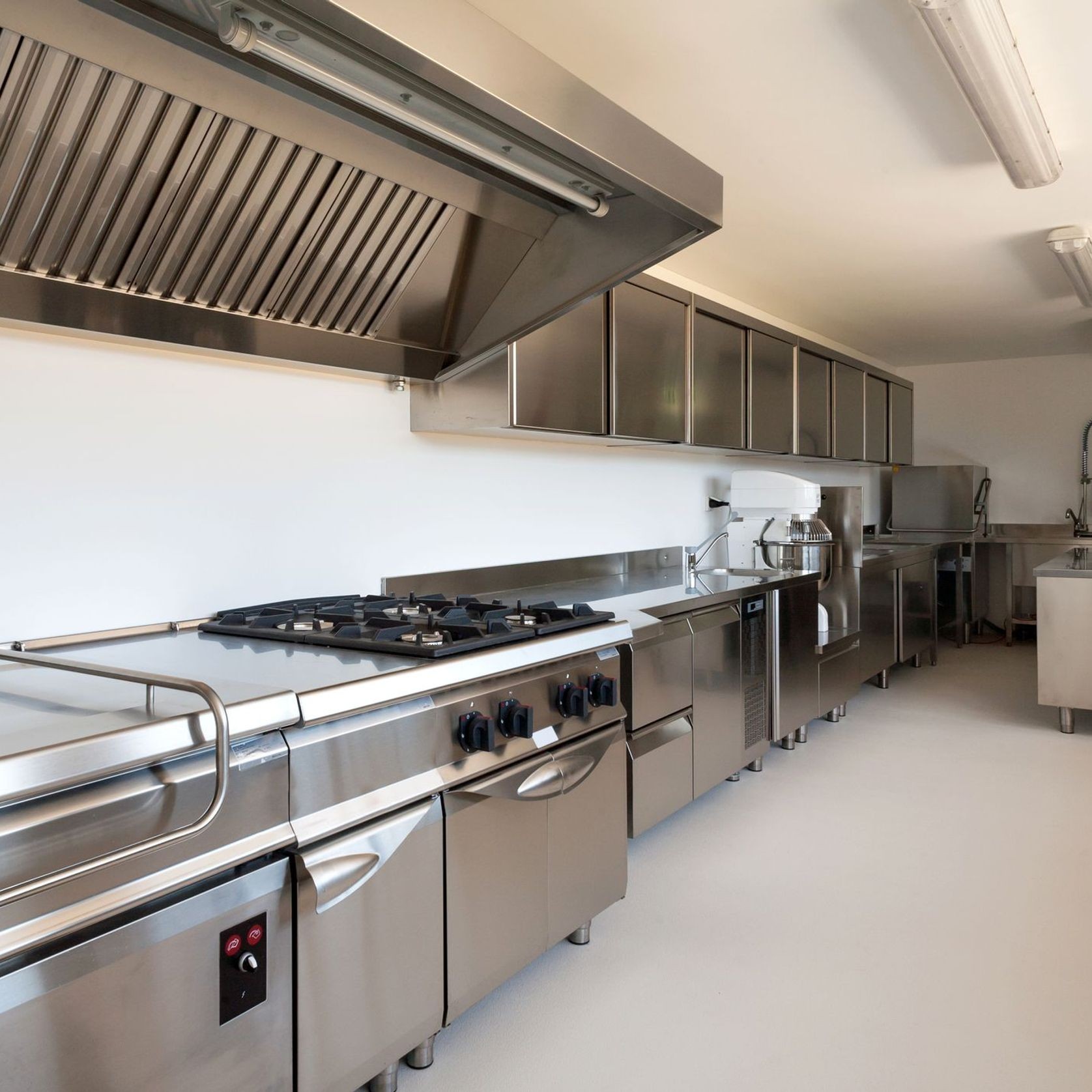

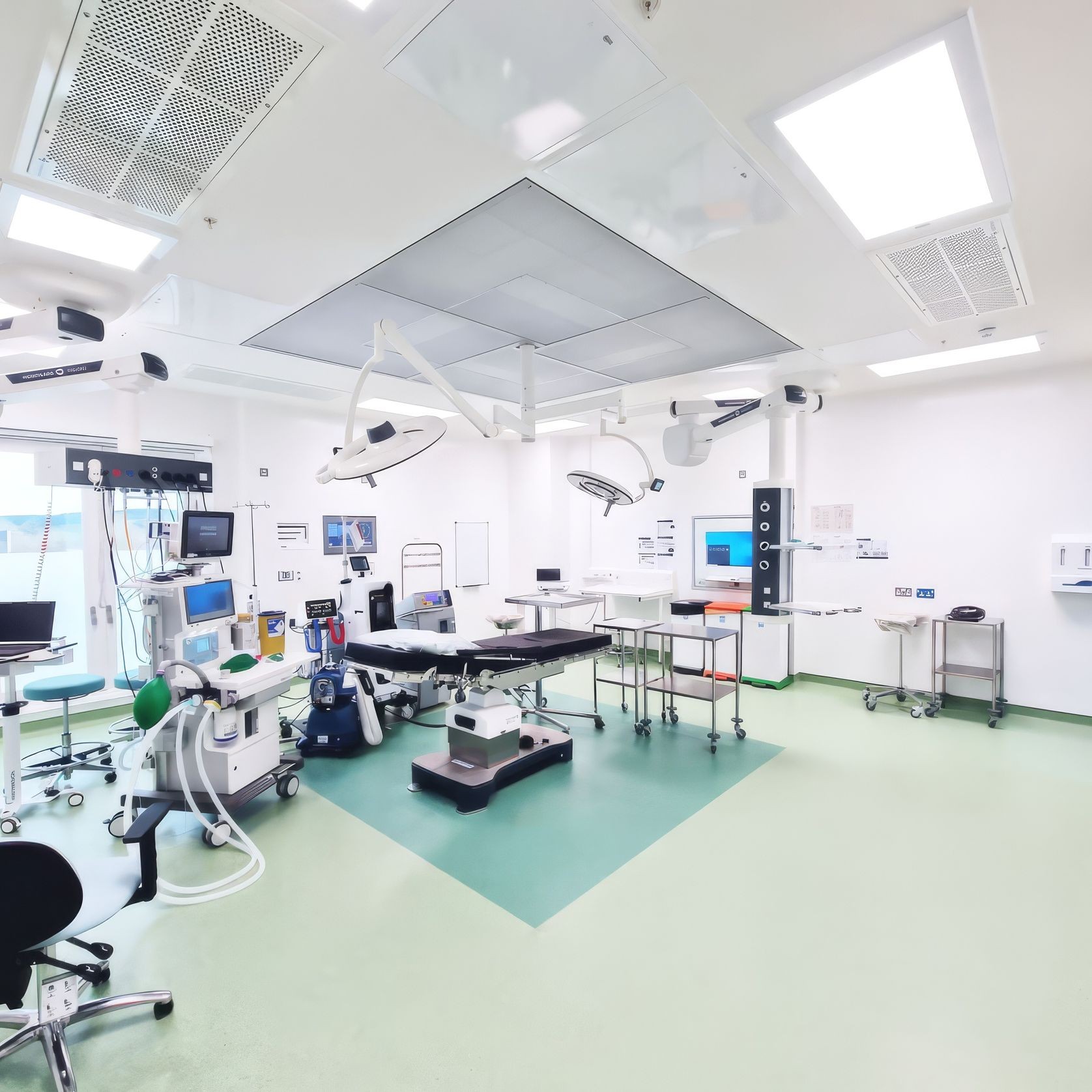

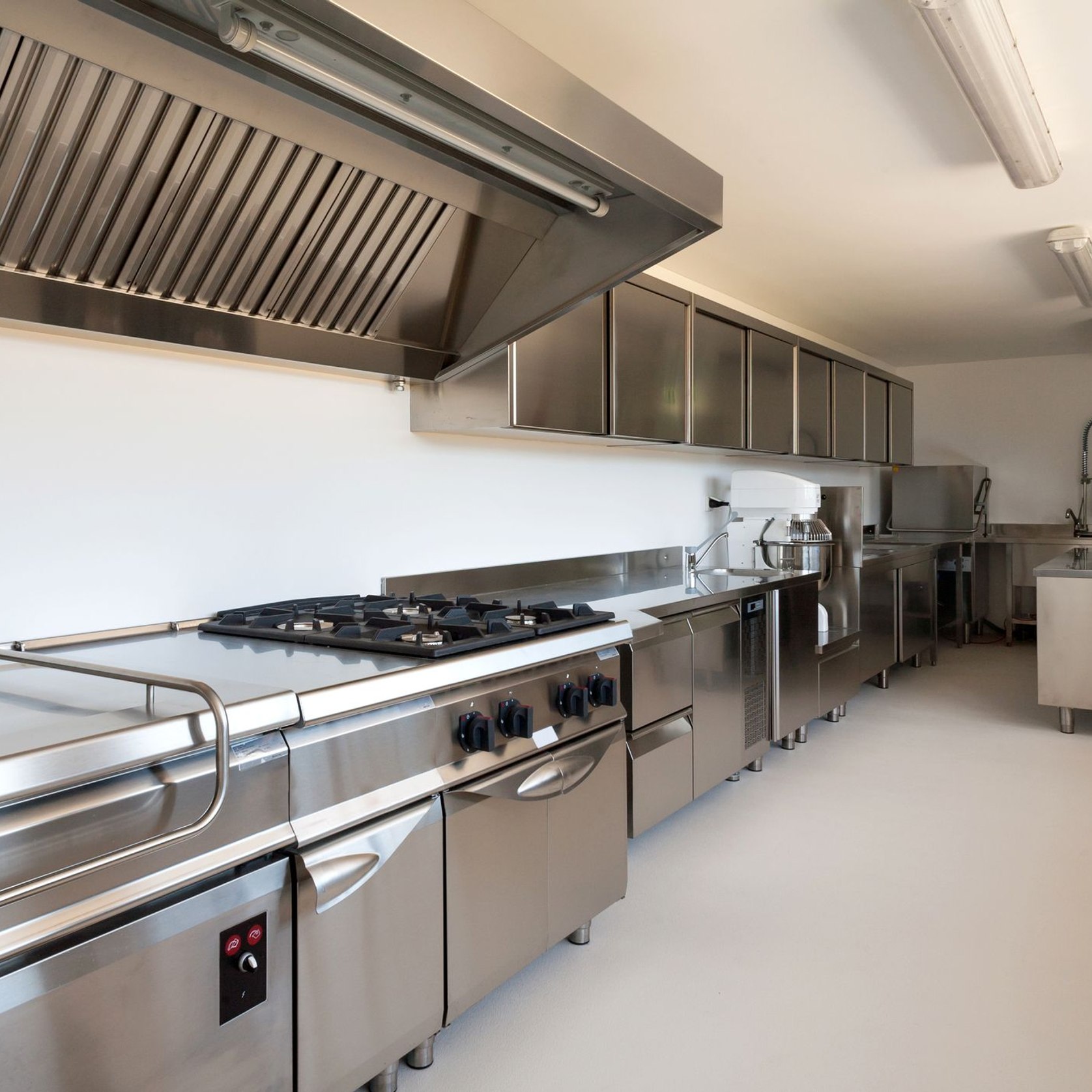

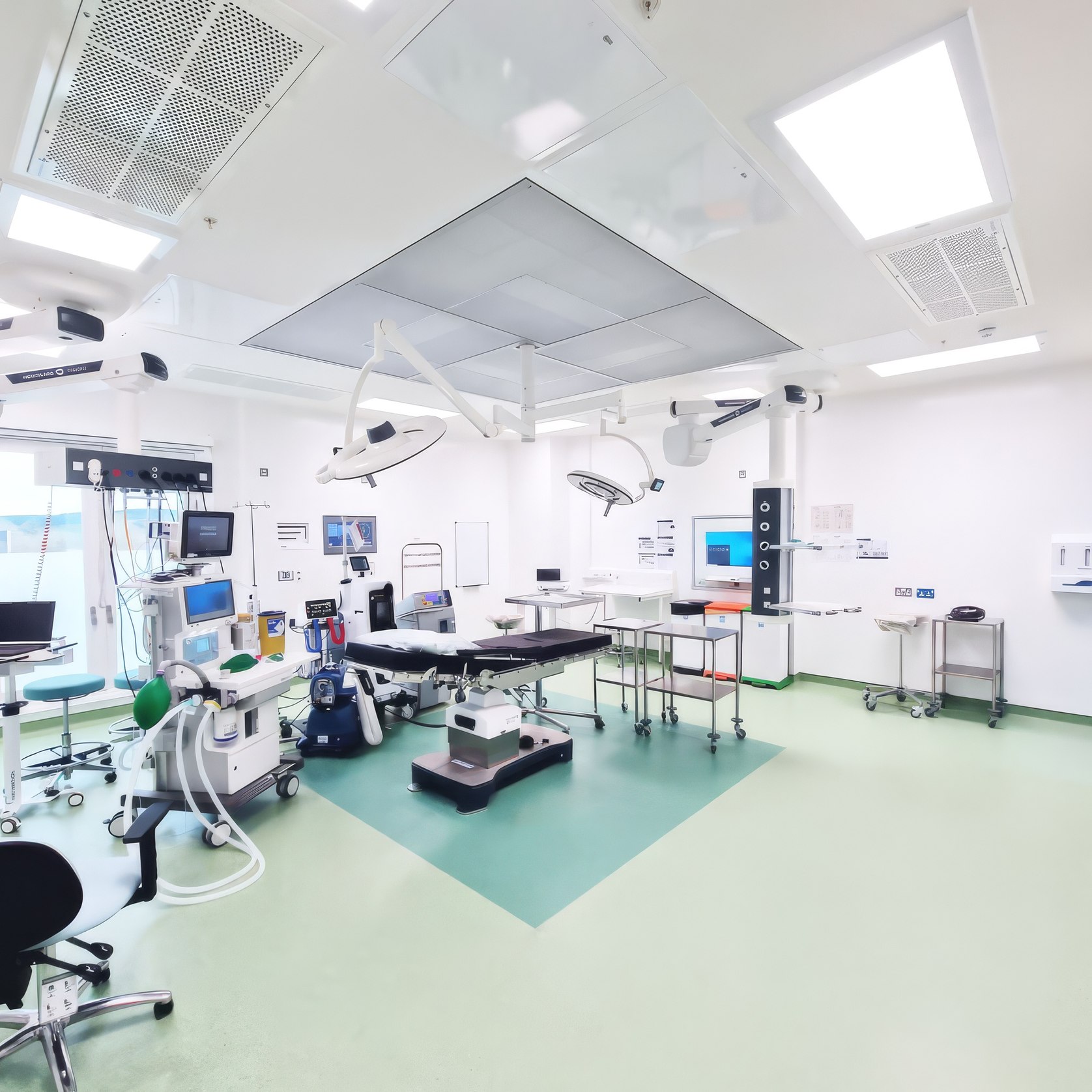

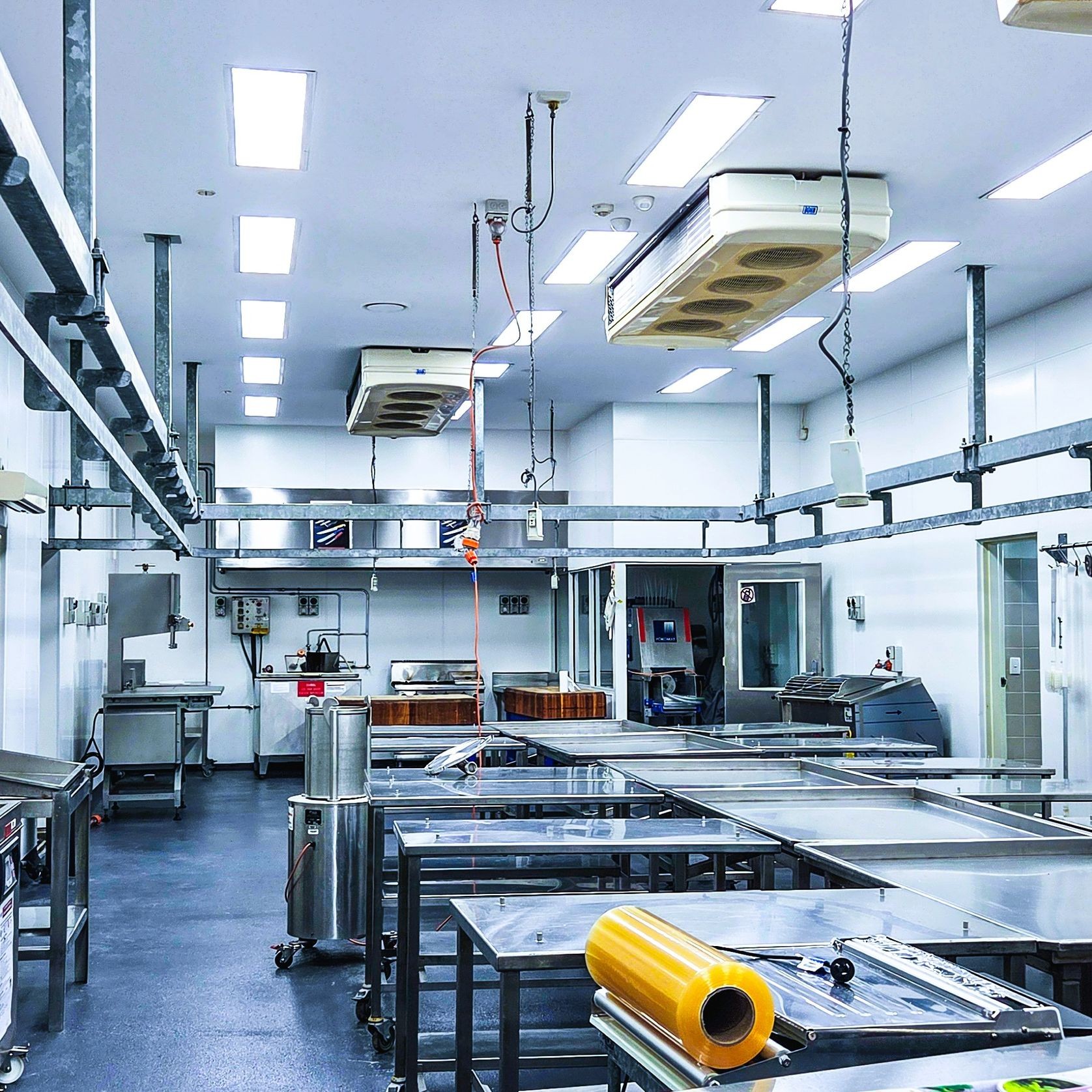

AM-Clad is widely used in hospitals, laboratories, cleanrooms, commercial kitchens, pharmaceutical facilities, and wet areas, where traditional wall finishes such as tiles, paint, or wall vinyl can create maintenance and hygiene challenges.
Product Details
- Product
- AM-Clad® | Antimicrobial Hygienic Wall Cladding
- Category
- Wall Panels & Cladding
- Sold by
- AM360
- Range
- Cladding
- Brand
- AM360
- Warranty
- 30 years
Material
Thickness
LRV
Finish
Colours
AM-Clad® is an antimicrobial PVC wall cladding system designed for environments where hygiene, durability, and compliance are critical.
The panels incorporate silver-ion antimicrobial technology that helps inhibit microbial growth on the surface between cleaning cycles. Combined with a smooth, non-porous finish, AM-Clad provides a hygienic wall surface that is easy to clean and resistant to moisture, impact, and daily wear.
AM-Clad is widely used in hospitals, laboratories, cleanrooms, commercial kitchens, pharmaceutical facilities, and wet areas, where traditional wall finishes such as tiles, paint, or wall vinyl can create maintenance and hygiene challenges.
- Specs
- 2.5mm AM-Clad PVC Wall Cladding
- 3050mm (10’) x 1220mm (4’)
- Finish: Satin or gloss
- Weight: 3.5 kg per m²
- Service temp: -10 degrees (C) to +60 degrees (C)
Preparing the surface
AM-Clad products should be fitted to a plumb surface that is clean, dry, smooth and free from dust, grease and flaking paint. It can be fitted over existing tiles, fair-faced brickwork, blockwork, plaster walls and boarded-out stud partitions. The sheets fix directly to the dry substrate using high quality AM360 approved adhesives. See the Installation Guide for full details.
Fire Ratings
AM-Clad has achieved Group 1 fire performance following a full-room burn test, making it the only known PVC wall lining system to reach this classification. The panels demonstrate low heat release and low smoke development, supporting safe use in occupied environments such as healthcare facilities, laboratories, and commercial buildings.
AM-Clad has been tested to the following fire standards:• AS/NZS 3837 – Group 1
• EN 13501 – B-s3,d0
• BS 476 Parts 6 & 7 – Class 0
• ASTM E84 – Class A- Additional Information
Cutting and Drilling
Sheets can be cut to size using a fine-toothed, circular or jigsaw and specialist hand tools. Use slow machine speeds to prevent overheating.
Corners
Sheets can be expertly thermoformed on-site ensuring a professional finish and minimising edge joints around corners, windows and doors.
Method of Fixing
Systems and sheets should be bonded to the wall with AM360 approved adhesives.
Floor Junction
Specialist PVC profiles create a neat interface between AM-Clad sheets and floor detail, or a vinyl overlay, as required.
Joints
Sheets are fixed using matching PVC ‘H-Divider’ joints and end trims, flush hot welded joints, or matching foodsafe silicone sealant. Always leave an expansion gap of 3mm to 4mm at all joints or fixings – see current Datasheet and Fixing Detail PDFs for guidance.
Chemical Resistance
High resistance to mineral acids, alkalis, plating solutions, paper making chemicals, pickling solutions, inorganic solutions and fumes. See individual Data sheets for more details.
Cleaning
Regular cleaning using a soft cloth and a suitably diluted mild detergent is all that is normally required. Do not use abrasive pads or wire wool. Do not clean above 60°C.
Limitations
AM-Clad sheets should not be used in rooms where the temperature exceeds 60°C or near a naked flame.
Warranty
AM-Clad systems are guaranteed for 30 years. Full Warranty details are available on request.
Storage
AM-Clad sheets should not be used in rooms where the temperature exceeds 60°C or near a naked flame.
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
