Archclad Cliptray 25mm™

By Archclad
Visit Website

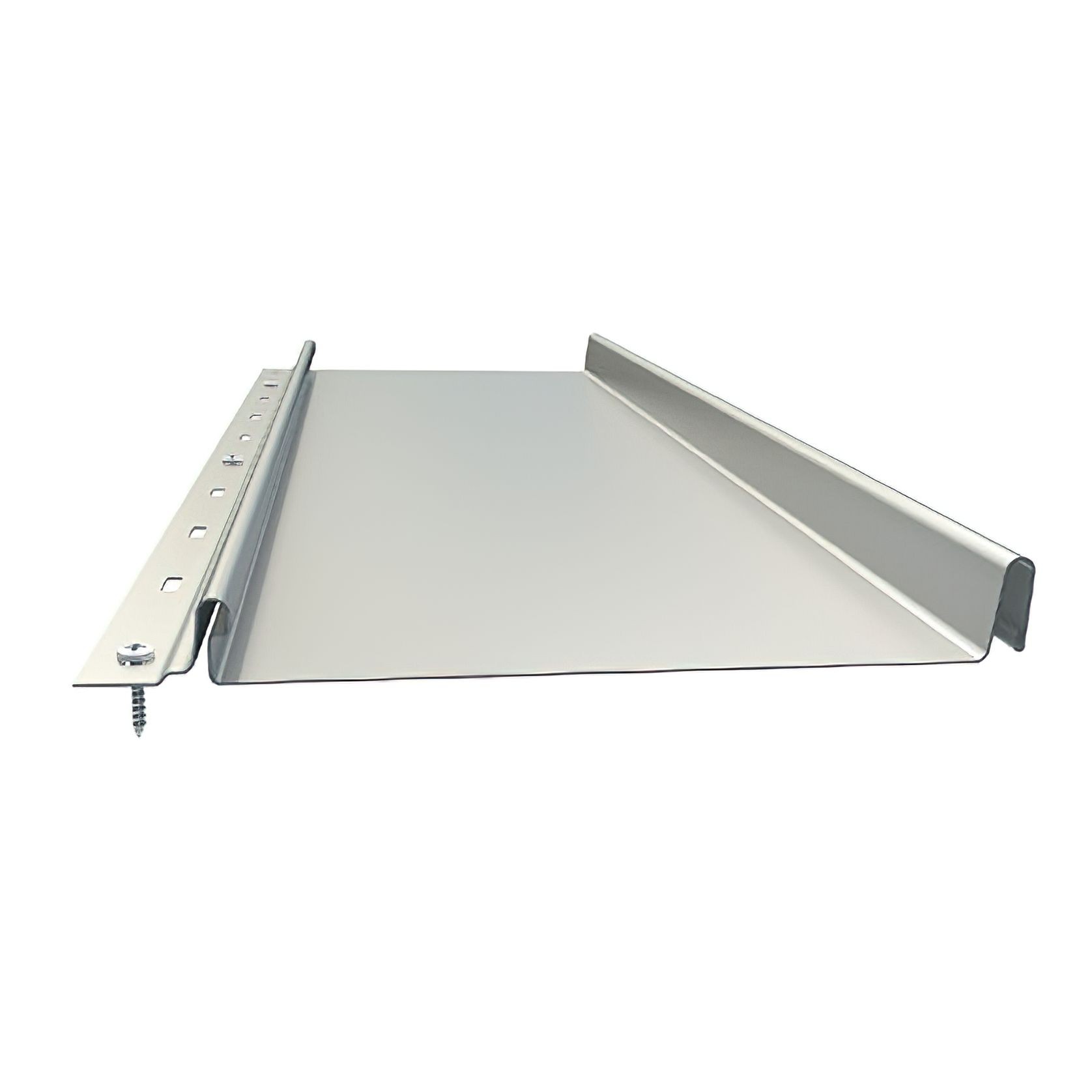

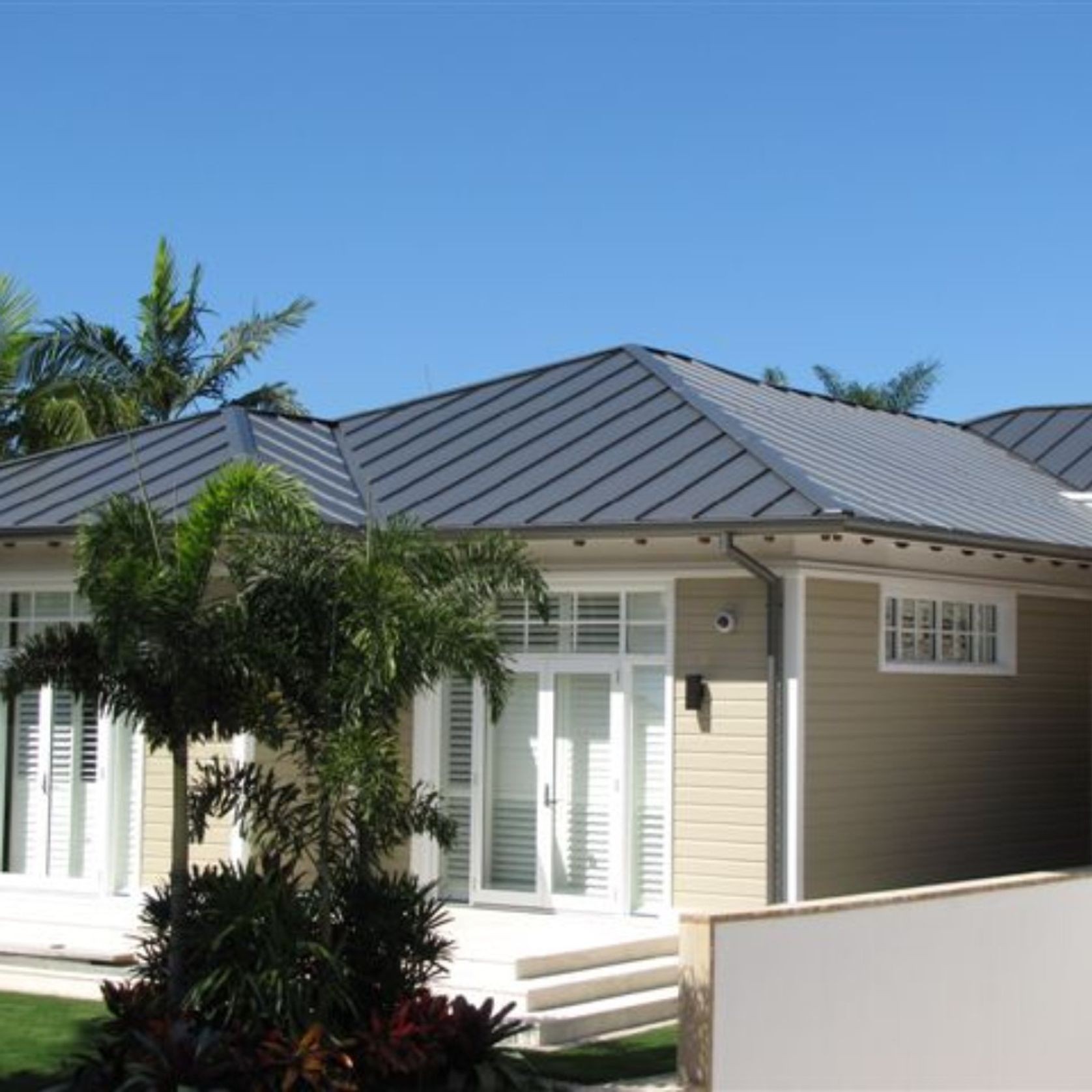

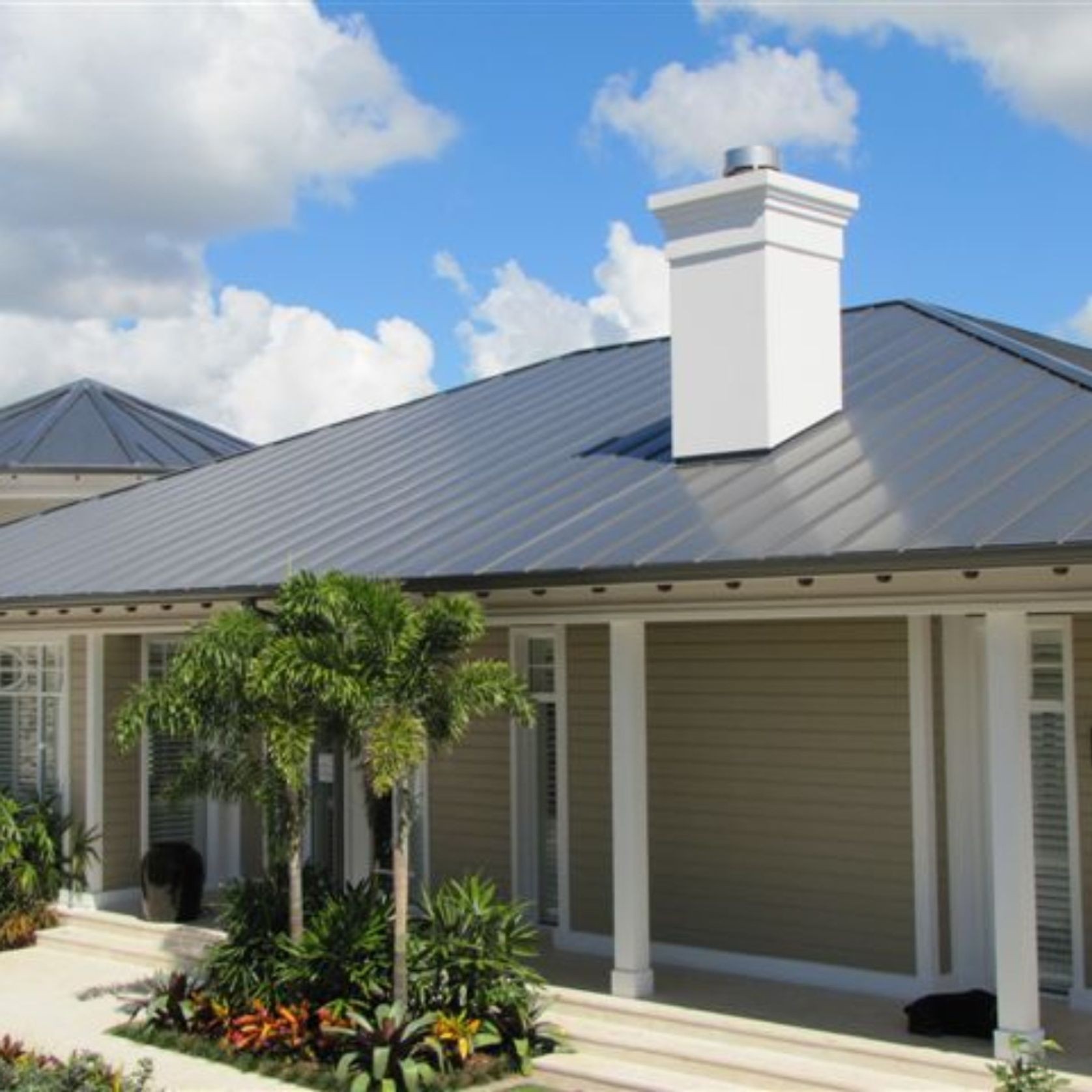

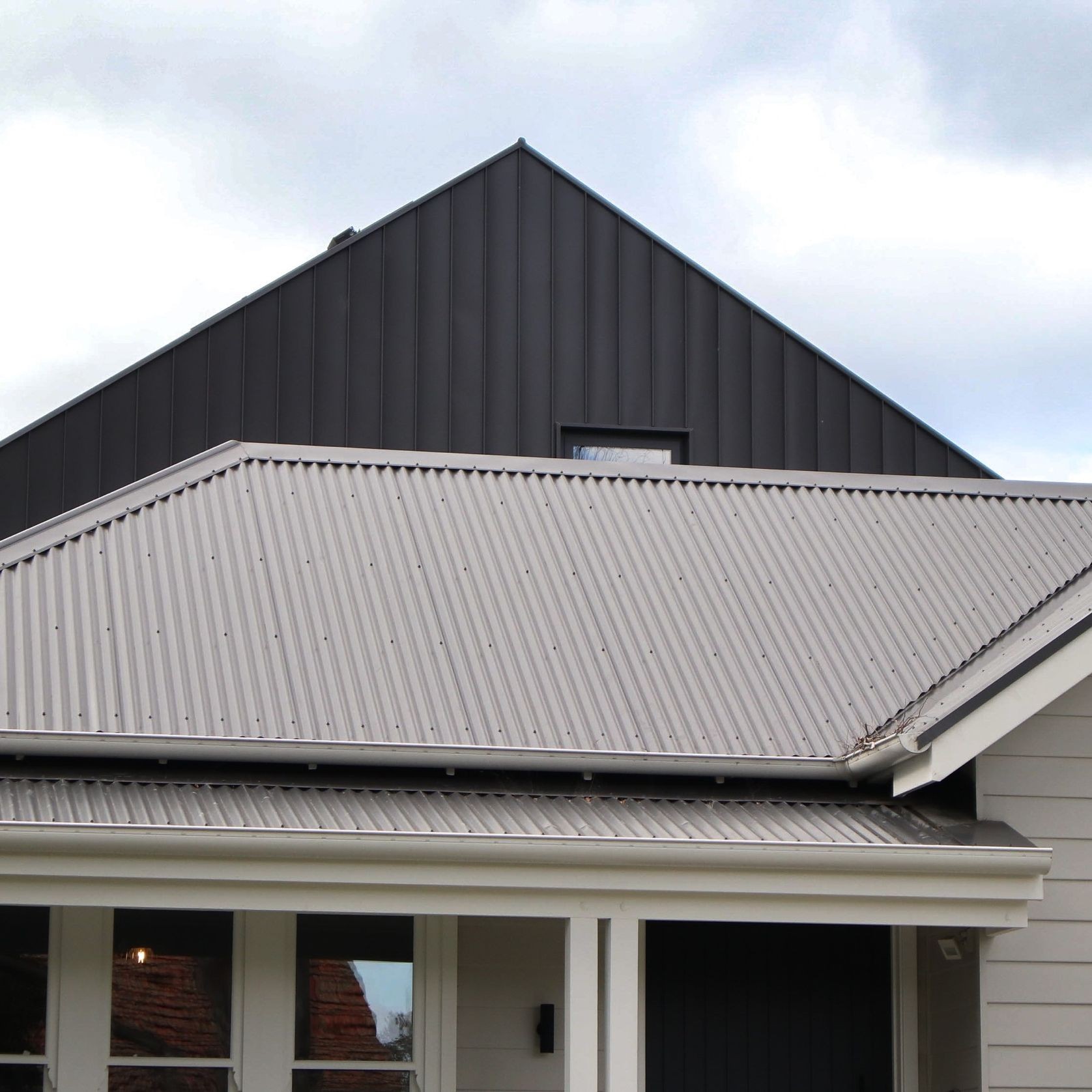

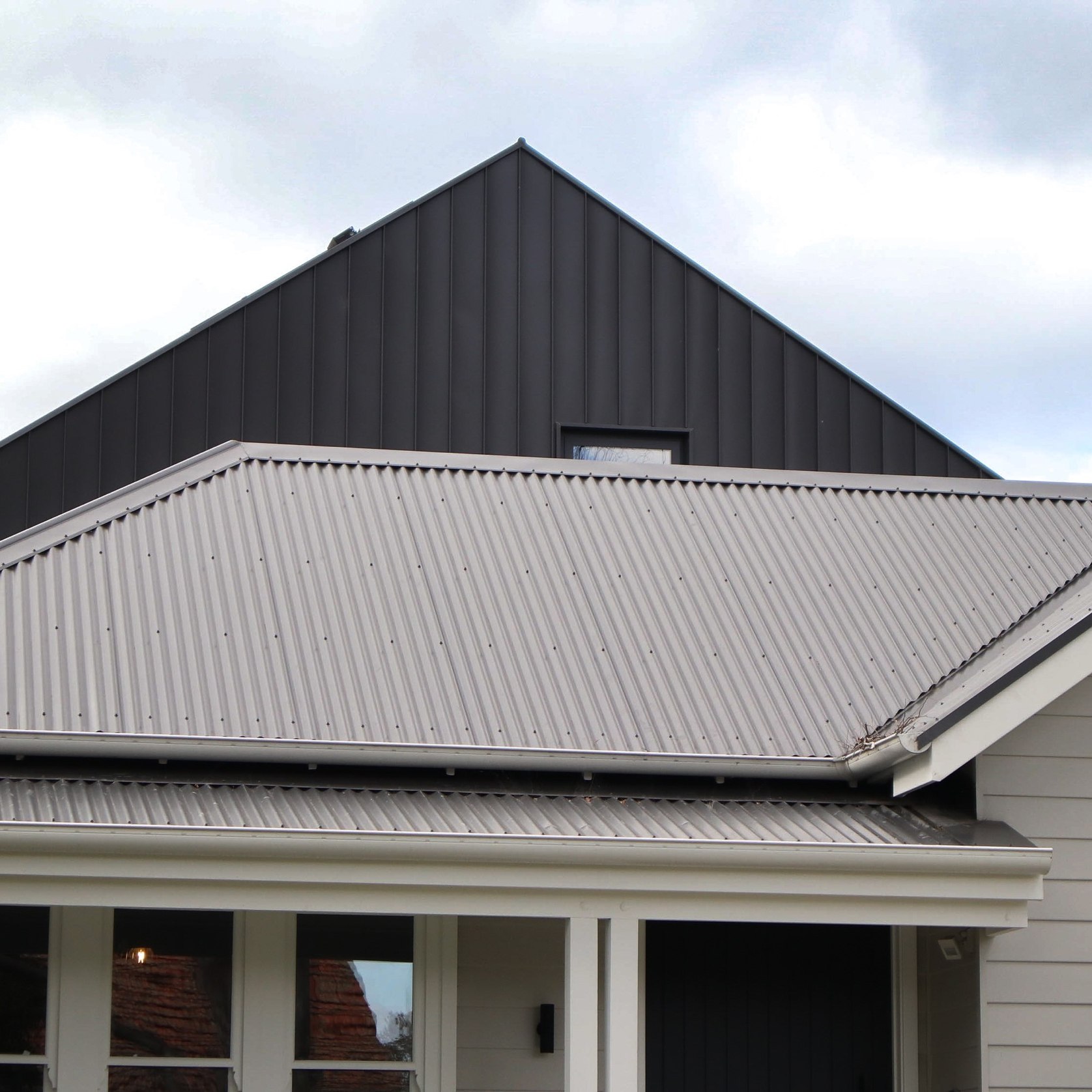

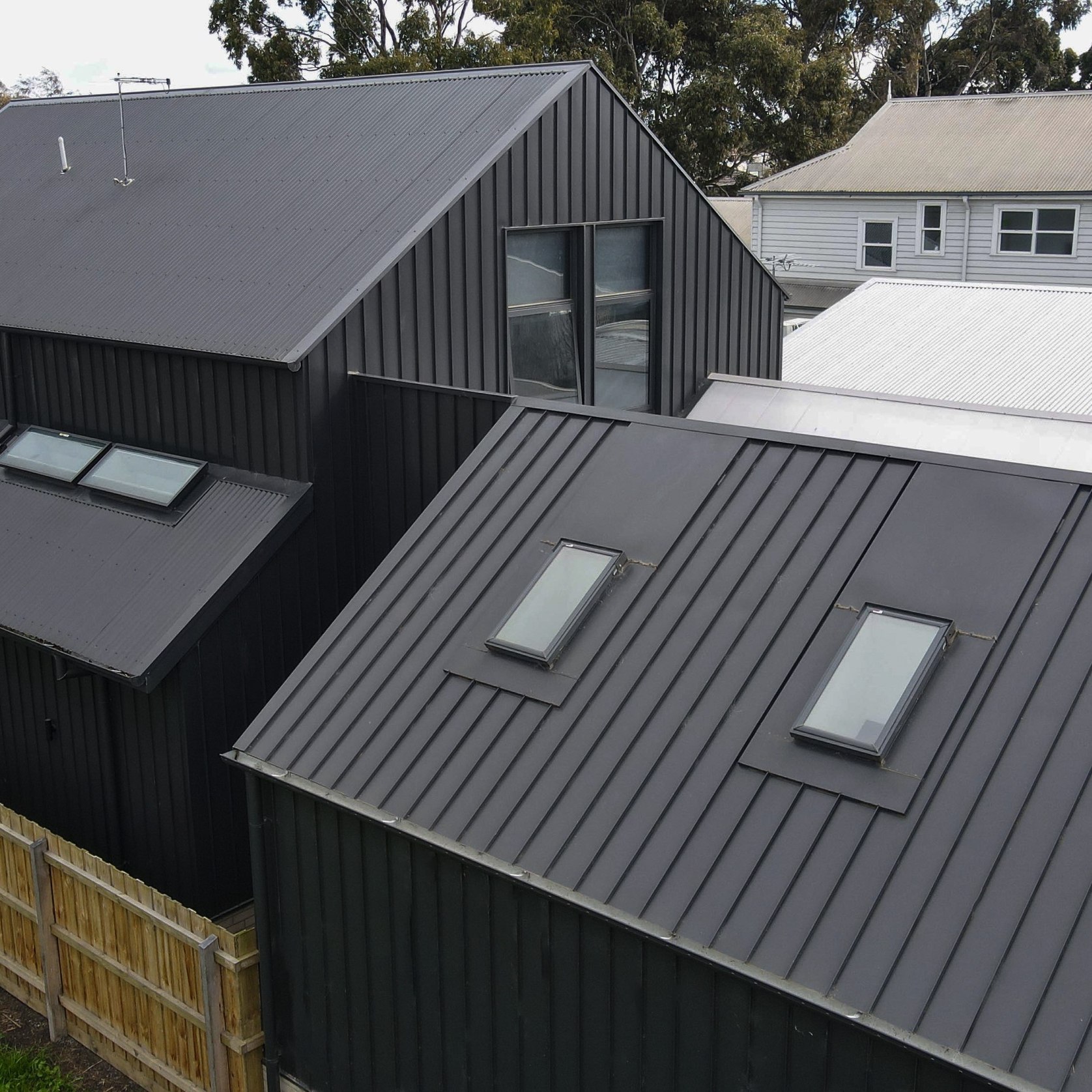

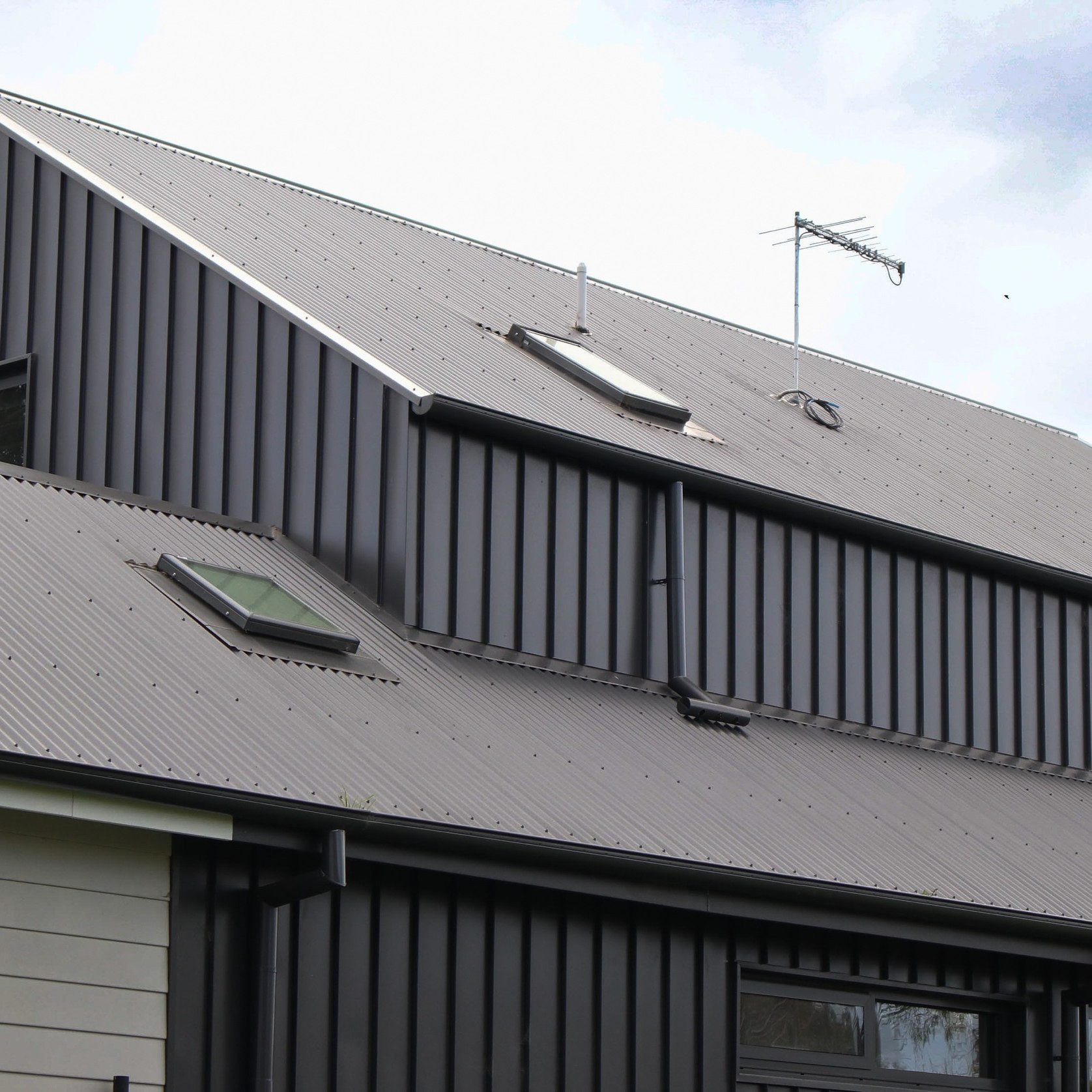

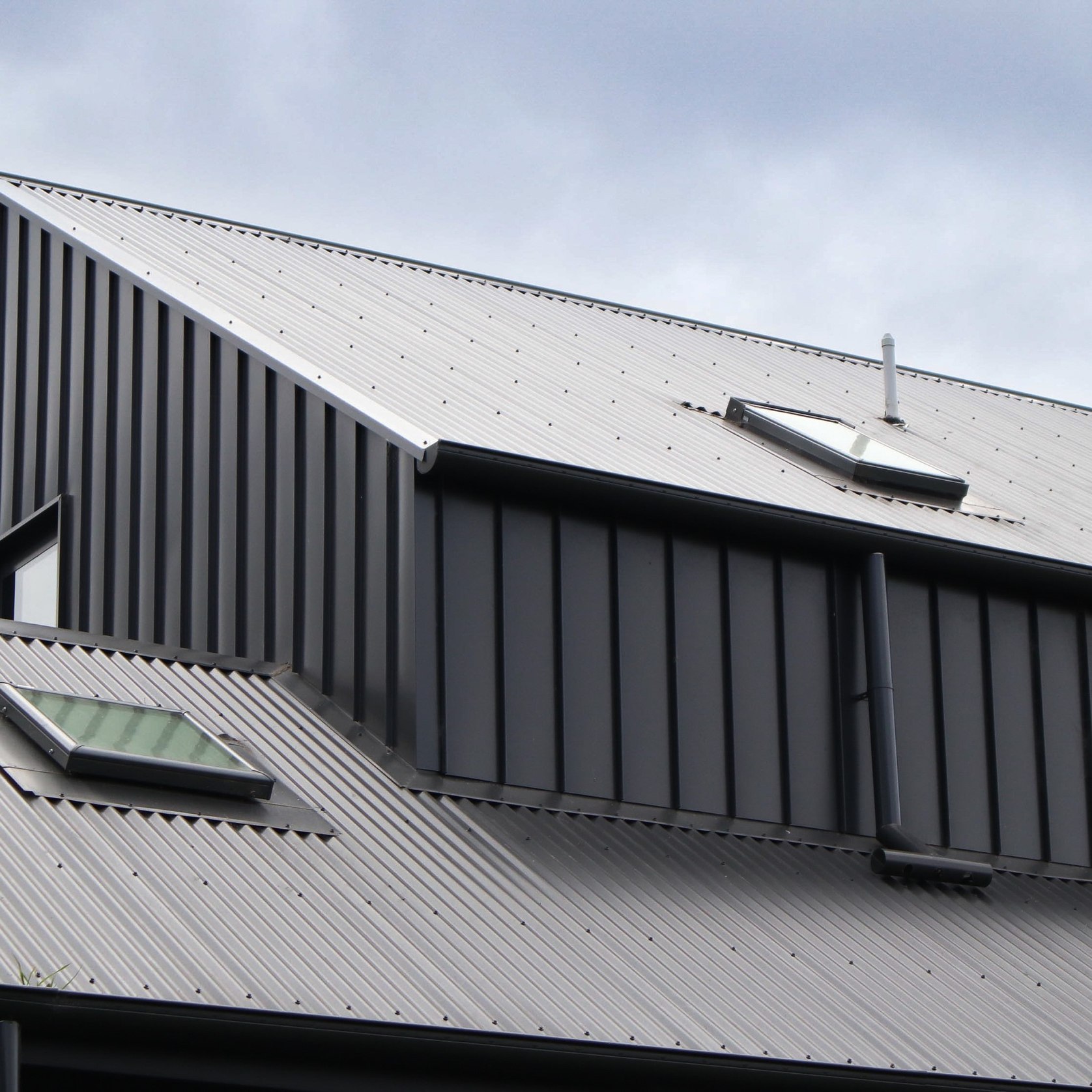

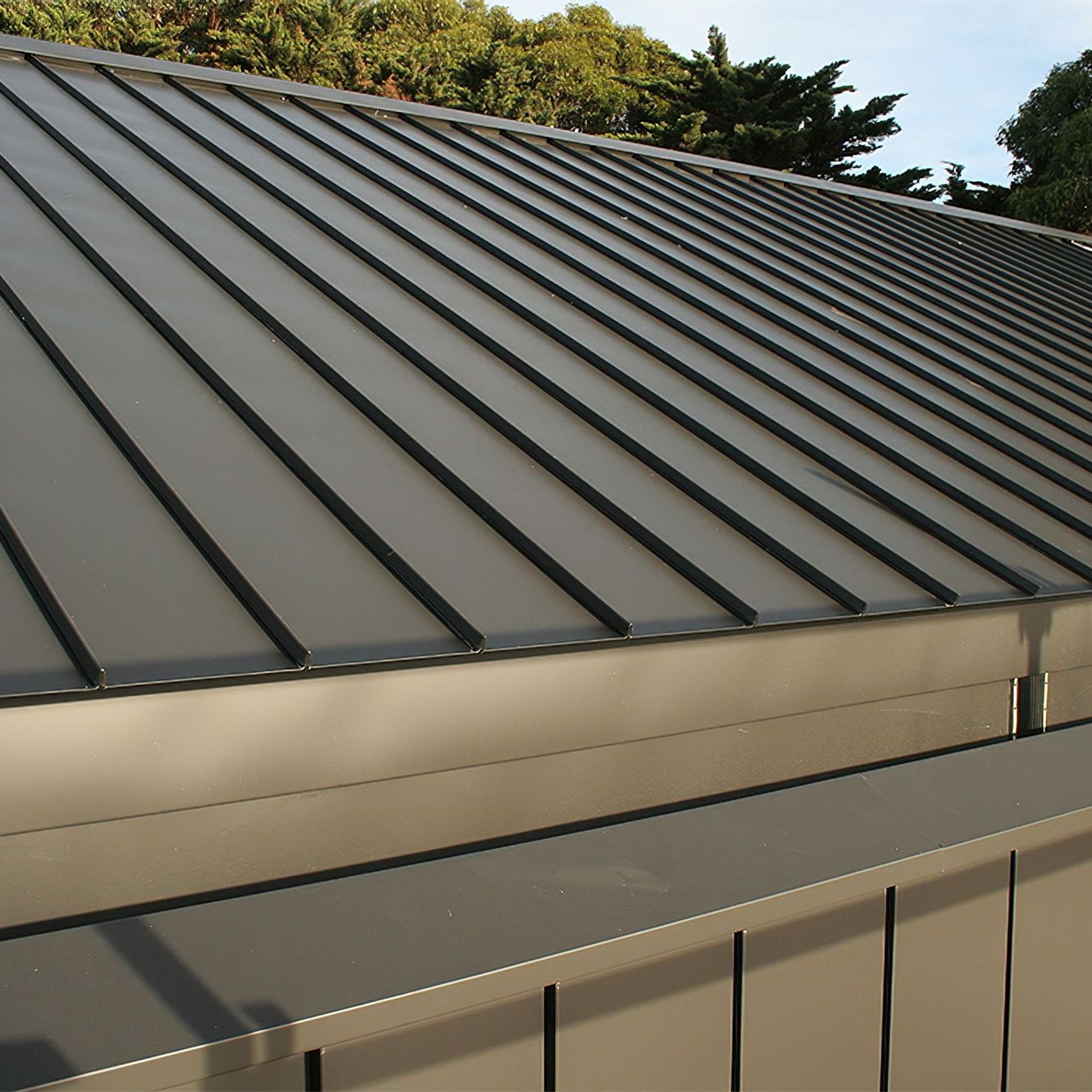

Archclad™ Cliptray 25 mm can be roll formed in Zinc, Copper, Colorbond, Unicote and Aluminium. Similar to traditional mechanical standing seam roofs, Archclad™ Cliptray 25 mm provides a distinctive 25 mm thin structural rib. The aesthetically pleasing design will cover a full range of buildings, from residential properties (new or re roof) to commercial constructions.

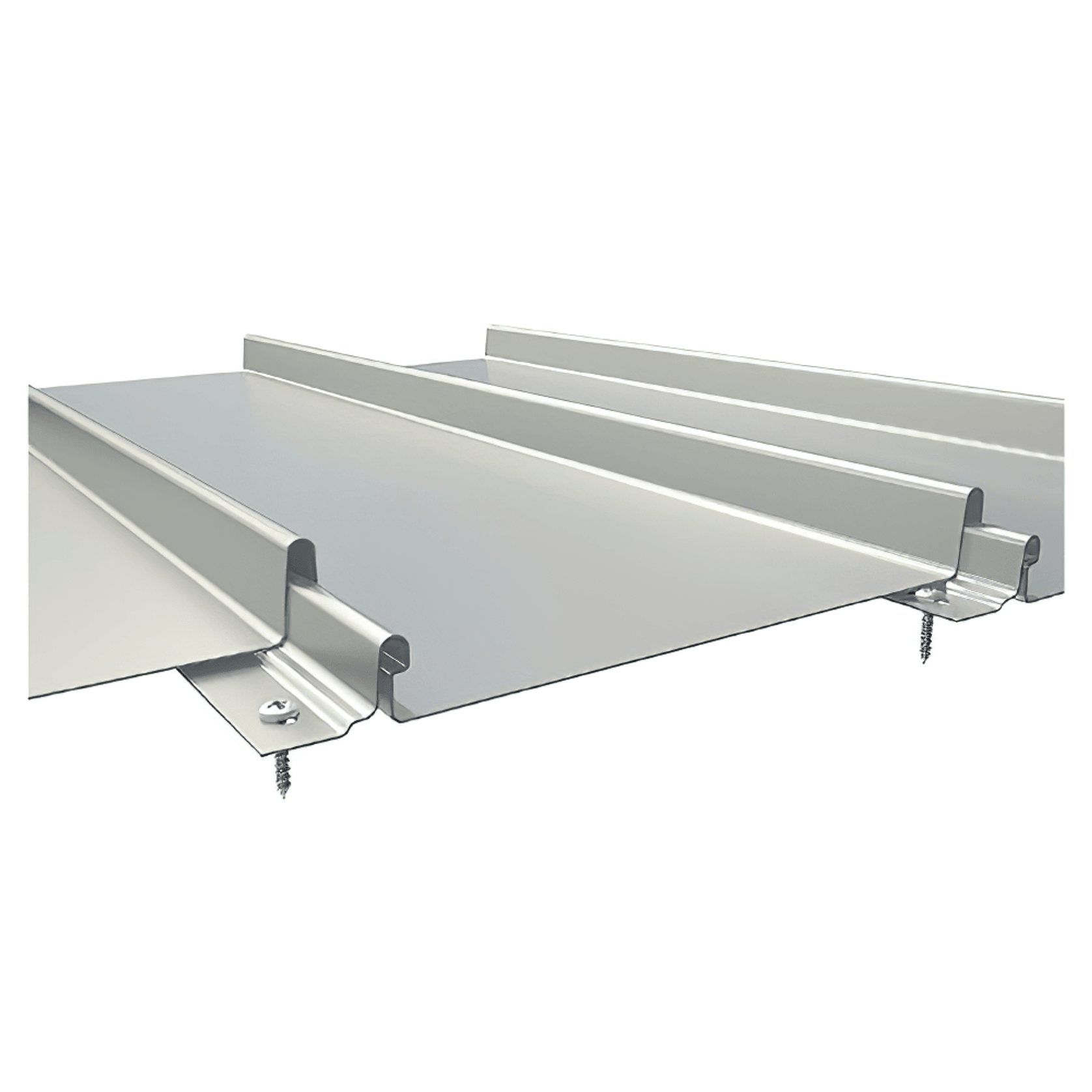

The very sophisticated economical Archclad™ Cliptray 25 mm opens a new dimension in metal roofing and façades. This system provides a quick and straightforward installation of over 19 mm plywood for roofing, or 15 mm plywood for façades. Cliptray 25 mm is installed with screws at 300 mm centres—no clips, no seaming—and less labour means cheaper on the pocket.

Details
  • Category
    Metal Cladding
  • Range
    Roofing
Specifications

Pan Width available:

  • 190 mm, 290mm, 390mm* Pans
Scope of use

Façades

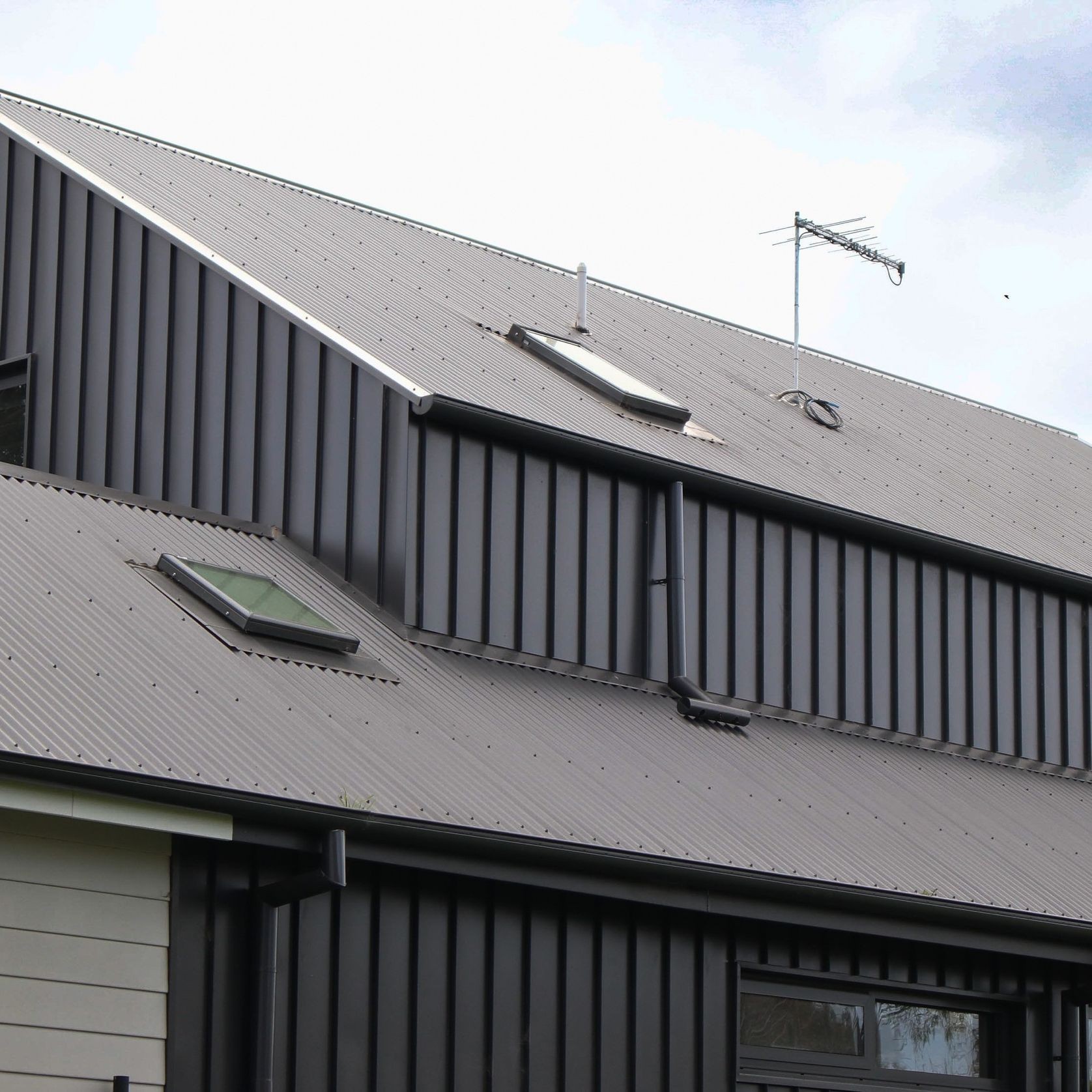

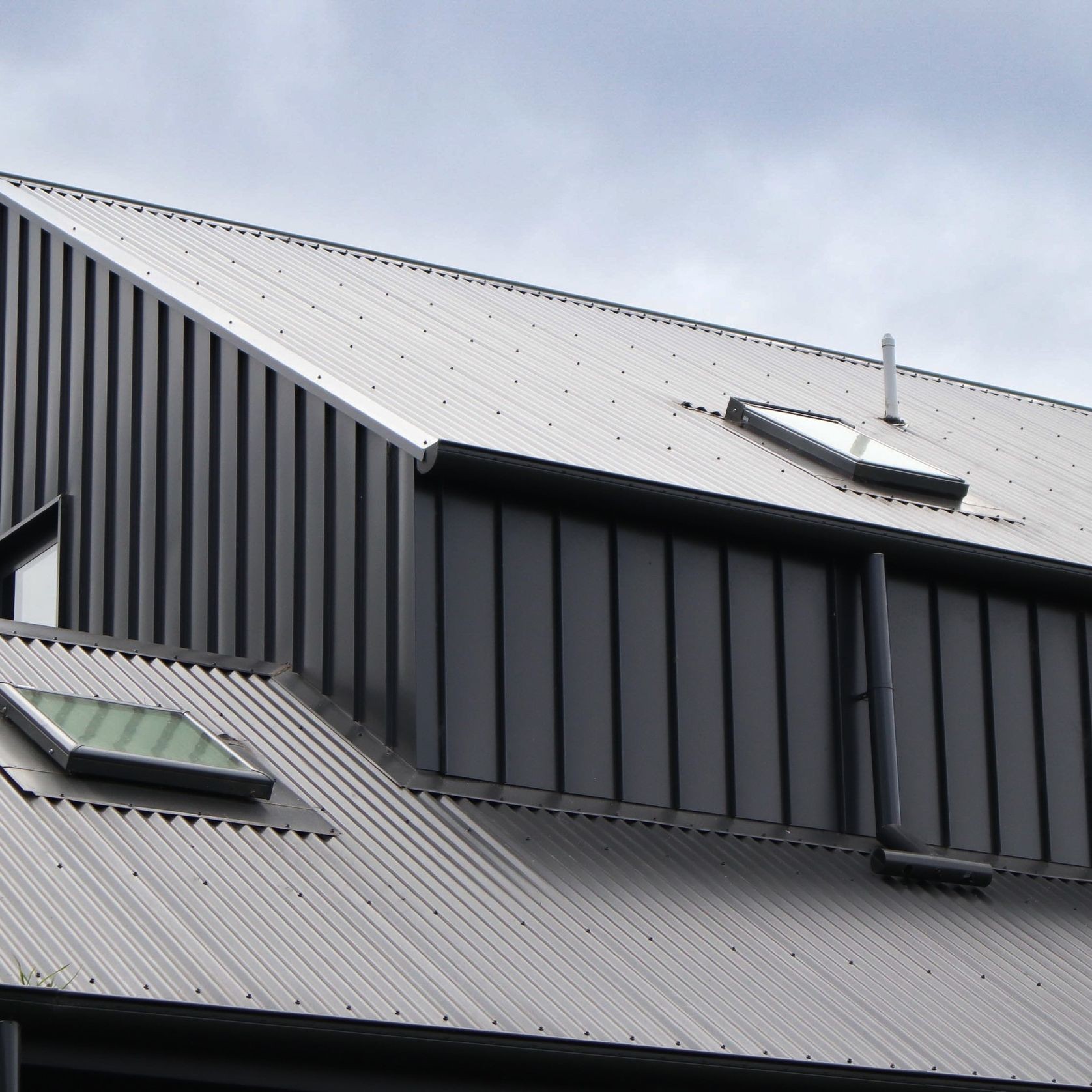

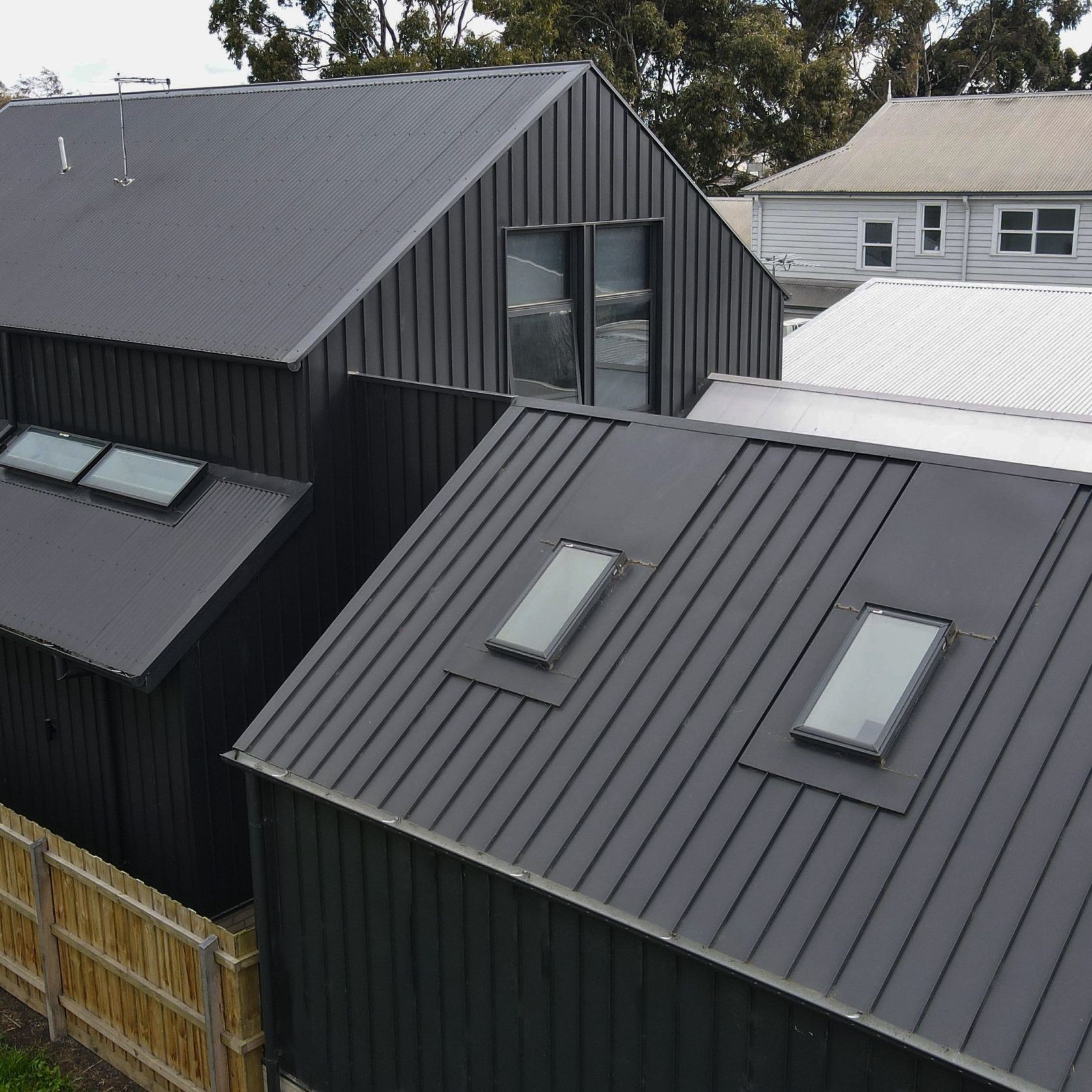

Archclad™ Cliptray 25 mm is suitable for façade applications with similar technical procedures as for roof coverings. It is advisable to limit the section lengths to a maximum of 6 m.

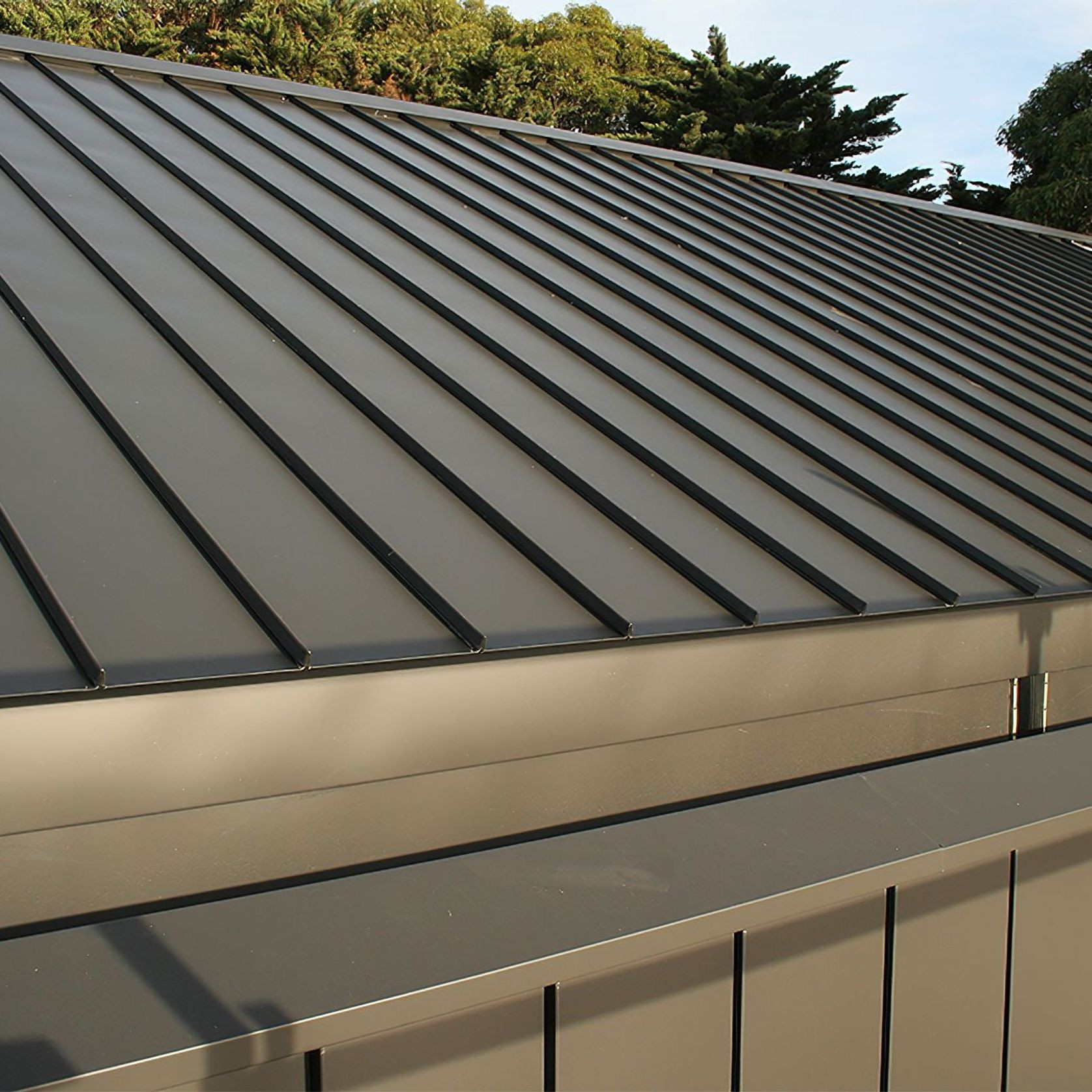

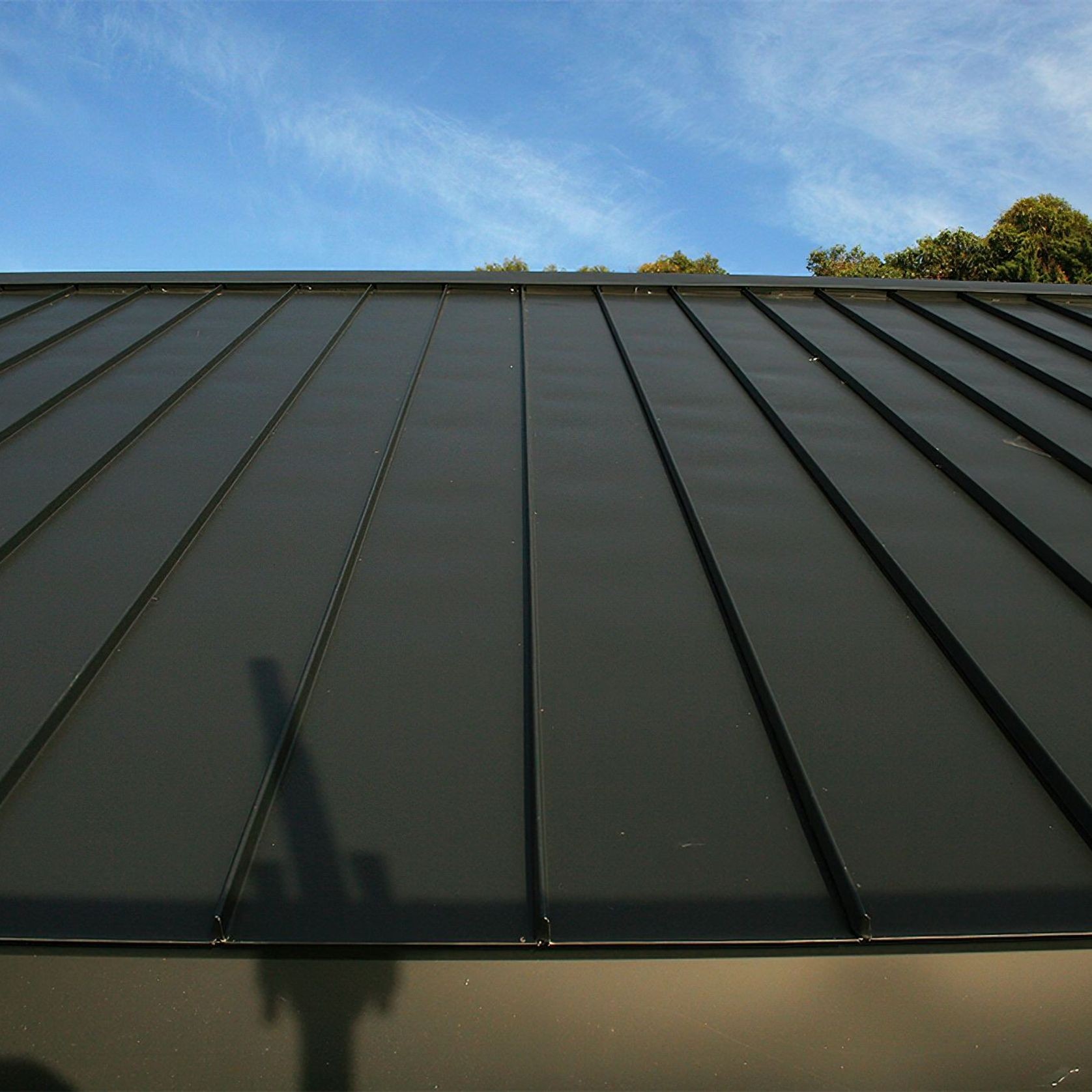

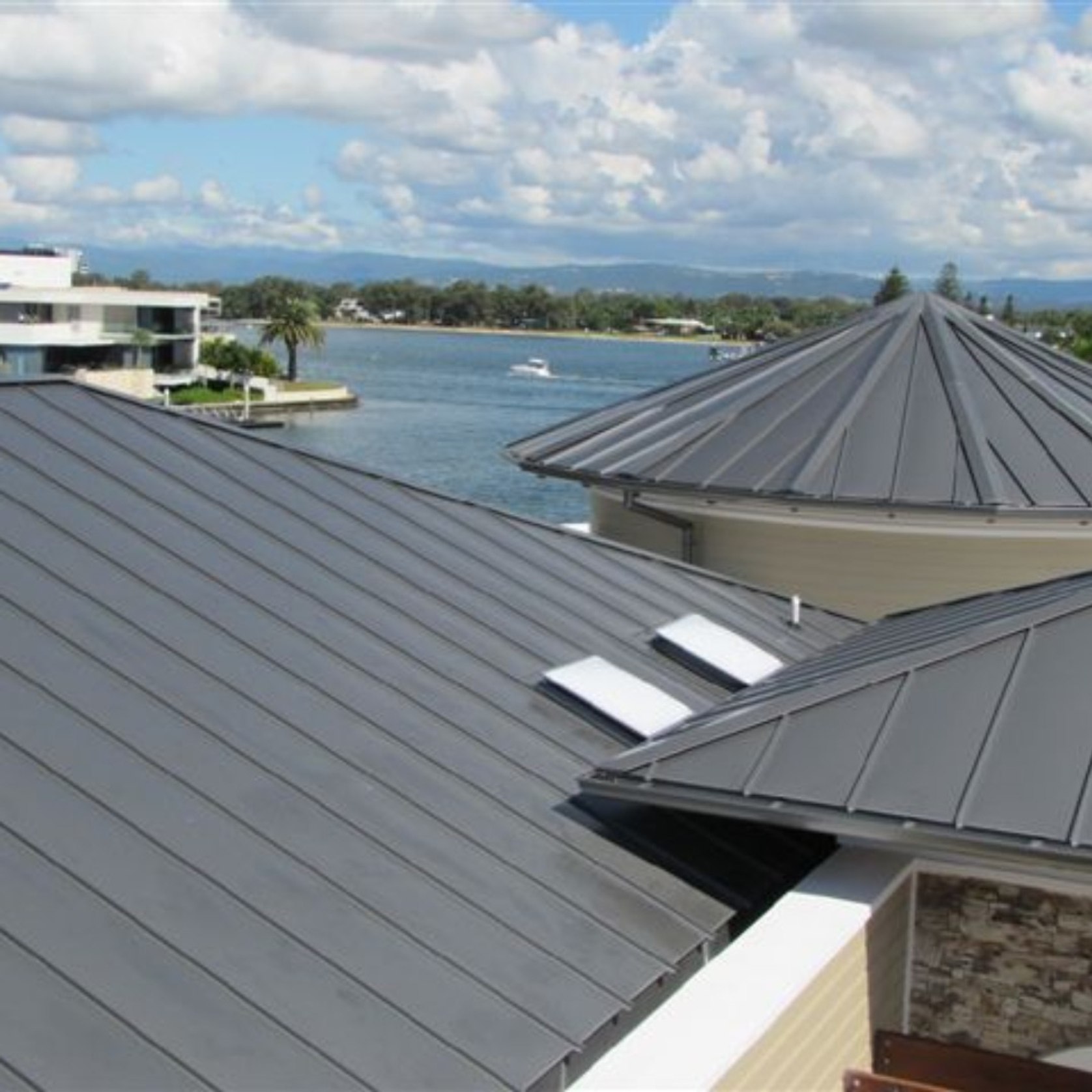

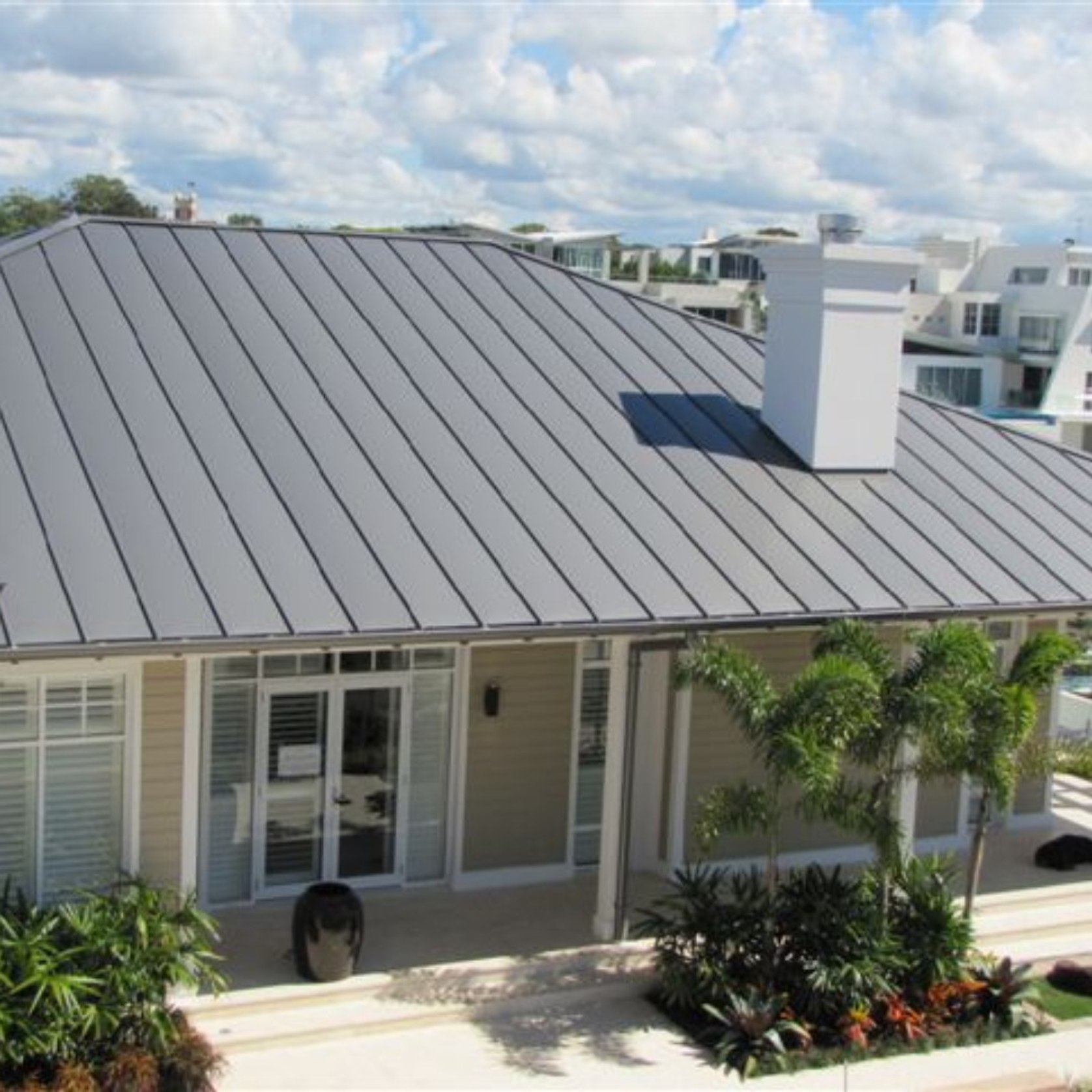

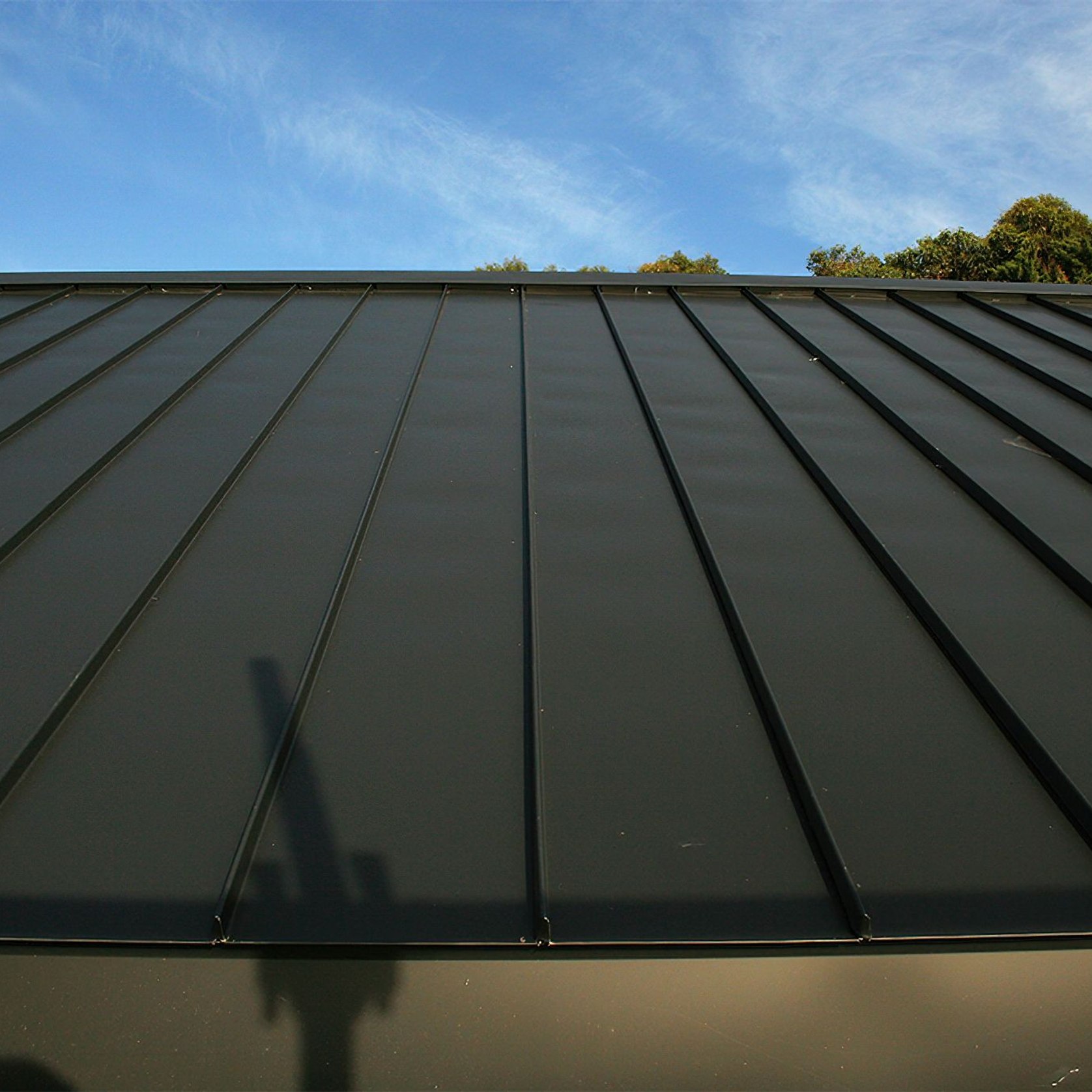

Roofing

Minimum Pitch 3 deg.

Performance

Testing to Australian Standards

Standing Seam and Archclad™ Cliptray 25mm profiles have been tested to Australian standards as 4040.3-1992 "Methods of testing sheet roof and wall cladding method 3: Resistance to wind pressures for cyclone regions".

Architectural Cladding Australia Standing Seam and Cliptray profiles have been tested to Australia Standards AS/NZS 1170.2:2002 Structural Design Actions - Part 2: Wind Actions. Clause 5.3.2. This report details the results of the debris impact testing carried out on a sample of Architectural Cladding Australia's profile only.

Thank you for your interest in our range, we will get back to you shortly.
Visit Website

Other products
in this range

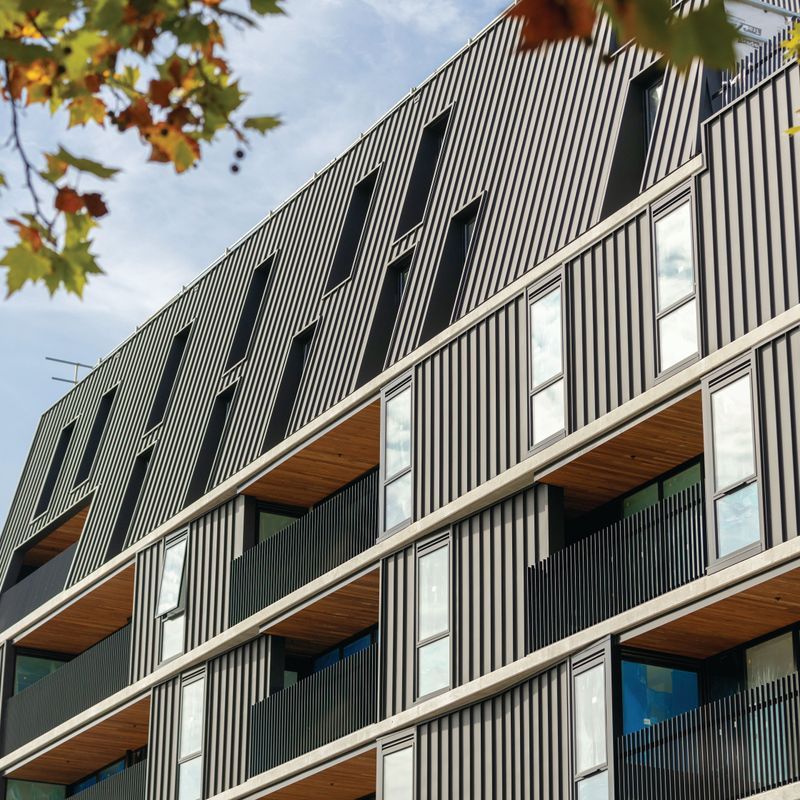

Archclad Cliptray 48mm™
Archclad Cliptray 48mm™
By Archclad

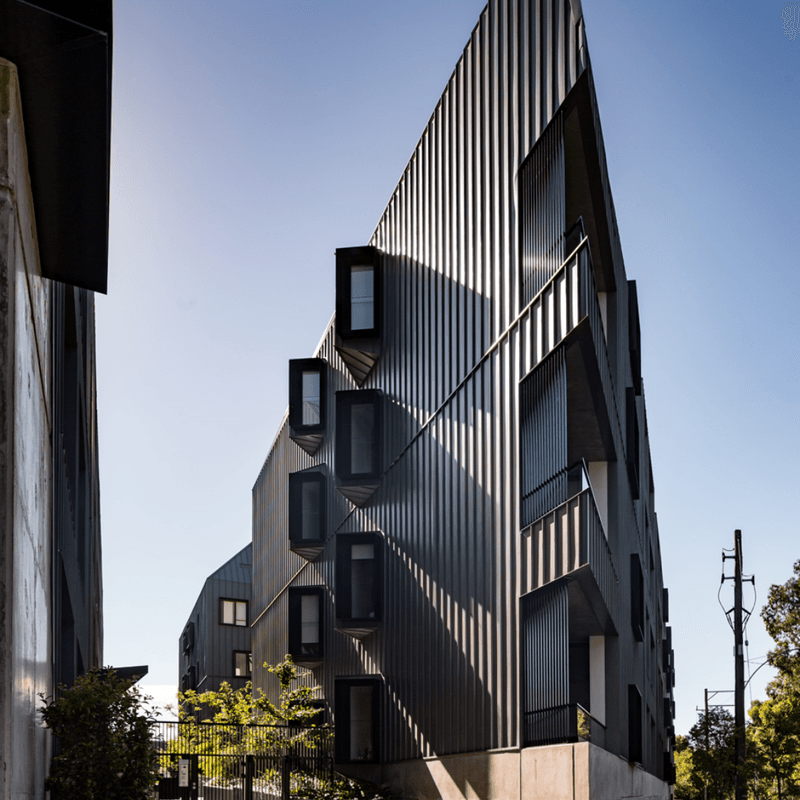

Archclad Standing Seam - Single Lock
Archclad Standing Seam - Single Lock
By Archclad

About the
Seller

Archclad™ is the original, longest established independent cladding company, offering; Specialized Metals

  • Metal Wall Cladding
  • Metal Roofing
  • Cladding Customisation

Created in the early 2000's. We coined the phrase "Architectural Cladding" to describe the birth of this newly created industry. We have since established ourselves as the market leader in exclusive metals for wall cladding and roofing.

We believe we are the only metal cladding company in Australia that has fully tested our products to meet the requirements of the NCC/BCA.

This NATA approved testing includes structural testing to AS 1562.1, fire testing to meet AS 1530.3 and therefore satisfying BCA clause C1.9 (e.)(v.).

Furthermore, we have carried out full scale testing of wall systems to meet WEATHERPROOFING requirement FV1.1/FP1.4 certification by using a NATA approved testing facility. Let us know if your project requires any site-specific certification or testing certificates, as we can provide REGULATION 126 CERTIFICATION at a small cost.

For the past 15 years we have been assisting Architects, Builders, Designers and Developers with our innovative technical details and due to our extensive range of imported and local specialised materials, we can offer a suitable material to meet their aesthetic and financial requirements.

We can supply any of the following materials found on our website: http://www.archclad.com.au/materials

A unique benefit we can offer is the ability to source exclusive materials and colours in various finishes to suit your bespoke project (these special colours may be subject to MOQ's).

Archclad™ is dedicated to achieving the highest quality in manufacturing, using state-of-the-art machinery and employing highly skilled personnel, most of which have been with the company since it's inception.

Although our manufacturing facility is based in Melbourne, Victoria we are able to supply our full range of products nationally and we can also recommend installers throughout the country. Our material is packed in custom plywood crates to avoid damage to the panels during transit.

The management team at Archclad™ have been involved in major projects throughout Australia and overseas. You can therefore have confidence in advice and project management.

Testimony to this can be shown by our involvement in "land mark" projects including Melbourne Convention Centre (the first 5 star energy rated Convention Centre in the world), Melbourne Cricket Ground (MCG), South Wharf and the Ferris Wheel (Southern Star) to name a few.

Our continued investment in new machines and material development make Archclad™ your obvious choice.
