Bradford Supertel Insulation

Name: Bradford Supertel Insulation
Brand: CSR Potter Interior Systems

Auckland

404.0K profile views
52 saves

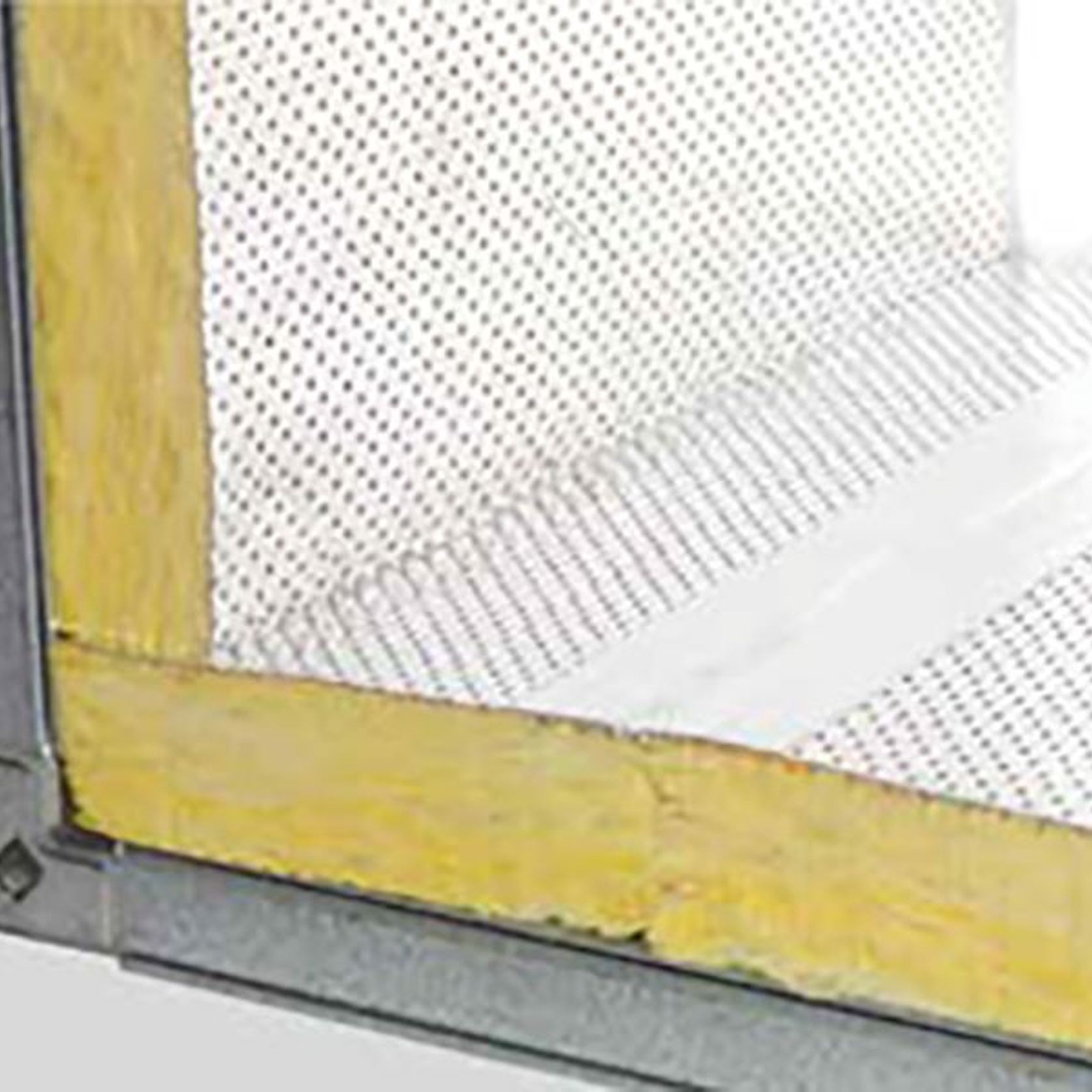

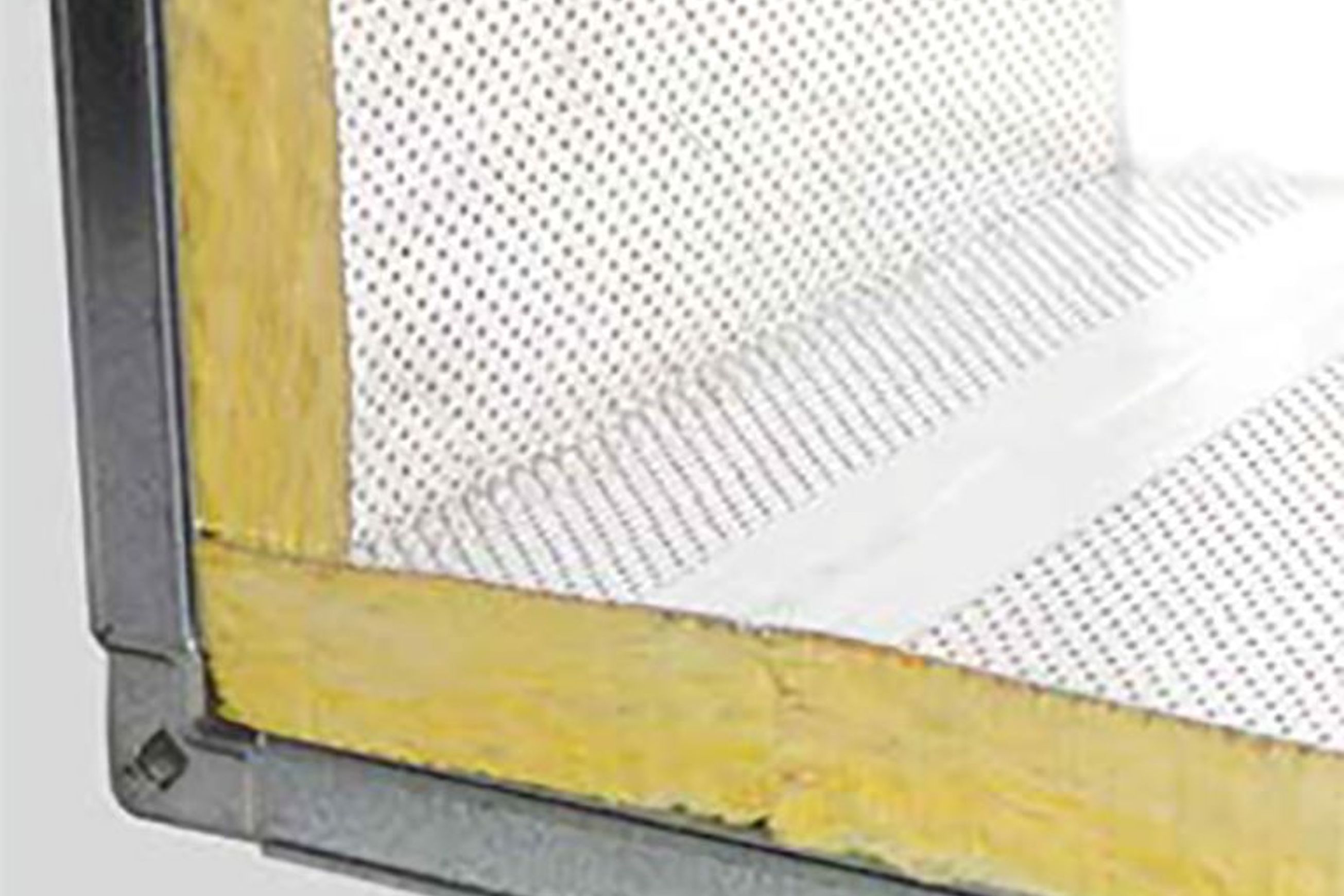

Bradford Supertel™ is designed as internal insulation for HVAC ductwork. It also has many applications as a general insulation product to enhance both thermal and acoustic performance.

Bradford Supertel is manufactured from a resilient engineered glasswool insulation blanket typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.

Tags

insulation ductwork HVAC internal insulation glasswool insulation

Product Details

Product: Bradford Supertel Insulation
Category: Roof & Ceiling Insulation
Sold by: CSR Potter Interior Systems

CSR Potter Interior Systems is specified by

(33) Professionals

Visit site

It also has many applications as a general insulation product to enhance both thermal and acoustic performance. Bradford Supertel is manufactured from a resilient engineered glasswool insulation blanket typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.

Bradford Supertel™ is designed as internal insulation for HVAC ductwork.

It also has many applications as a general insulation product to enhance both thermal and acoustic performance.

Specs

R-Value 0.4

Thickness (mm) - 13
Length (mm) - 2.4
Width (mm) - 1200
Pieces Per Pack - 16
Coverage Per Piece (m2) - 2.9
Coverage Per Pack (m2) - 46.1
Pack Weight (kg) - 19.2

R-Value 0.8

Thickness (mm) - 25
Length (mm) - 2.4
Width (mm) - 1200
Pieces Per Pack - 10
Coverage Per Piece (m2) - 2.9
Coverage Per Pack (m2) - 28.8
Pack Weight (kg) - 23

R-Value 1.2

Thickness (mm) - 40
Length (mm) - 2.4
Width (mm) - 1200
Pieces Per Pack - 6
Coverage Per Piece (m2) - 2.9
Coverage Per Pack (m2) - 17.3
Pack Weight (kg) - 21

R-Value 1.5

Thickness (mm) - 50
Length (mm) - 2.4
Width (mm) - 1500
Pieces Per Pack - 5
Coverage Per Piece (m2) - 3.6
Coverage Per Pack (m2) - 18
Pack Weight (kg) - 28.8

R-Value 1.8

Thickness (mm) - 63
Length (mm) - 2.4
Width (mm) - 1200
Pieces Per Pack - 4
Coverage Per Piece (m2) - 2.9
Coverage Per Pack (m2) - 11.52
Pack Weight (kg) - 23.2

R-Value 2.2

Thickness (mm) - 75
Length (mm) - 2.4
Width (mm) - 1200
Pieces Per Pack - 3
Coverage Per Piece (m2) - 2.9
Coverage Per Pack (m2) - 8.6
Pack Weight (kg) - 20.7

Features and Benefits

Lightweight
Easily handled
High tensile strength
Resists damage
Maximum performance at minimal thickness
Helps meet the NZ Building Code energy efficiency provisions
Provides both energy and cost savings
Biosoluble material – safe to use
Made from up to 65% recycled material

Applications

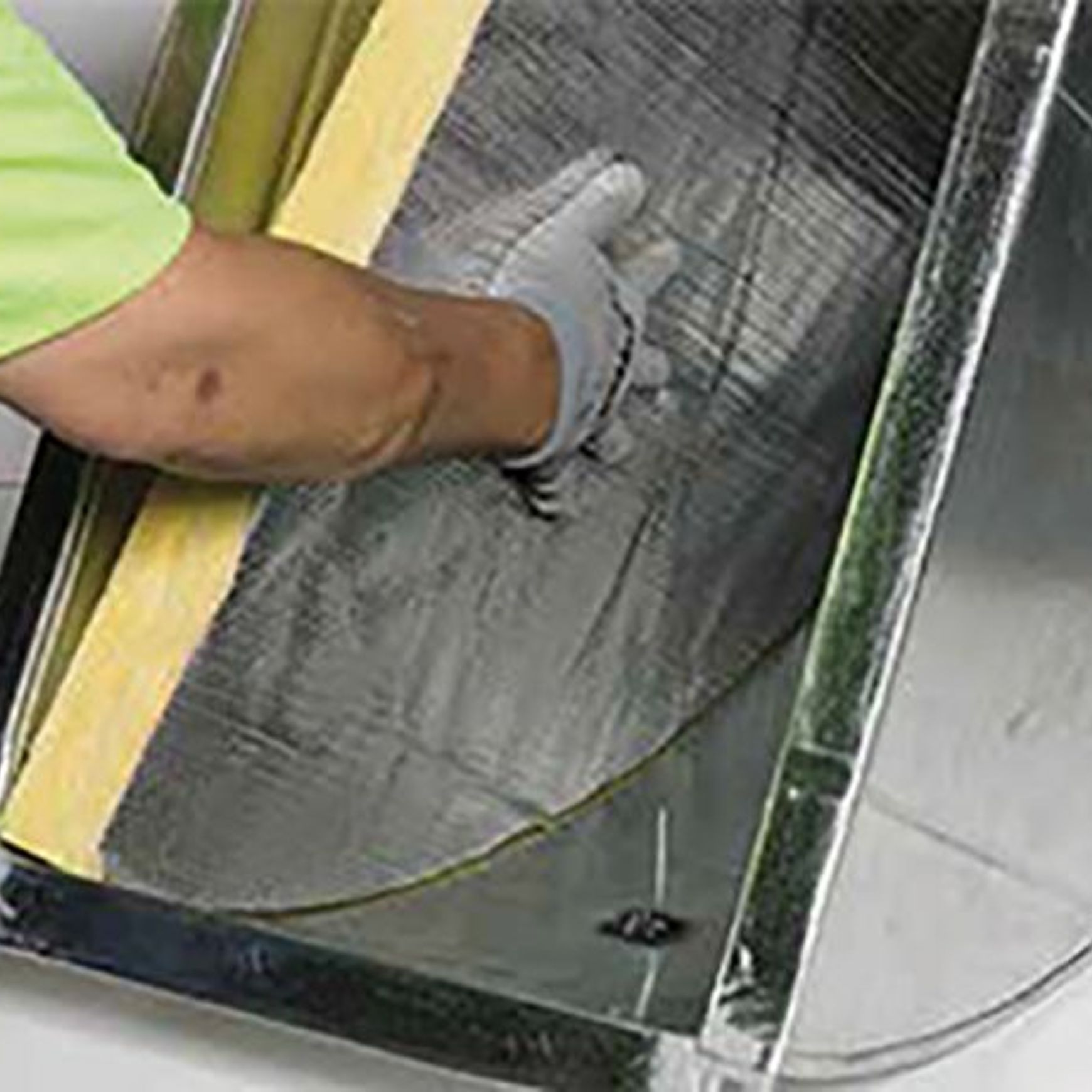

Supertel™ has been designed as a thermal and acoustic internal lining for all air conditioning duct work or may be used for other thermal and acoustic applications where high insulation performance is required at minimal thickness. Supertel™ comes in a range of thicknesses that meet the performance requirements as set out by the NZ Building Code.

Typical HVAC applications include:

Offices
High rise
Hospitals
Shopping centres etc
