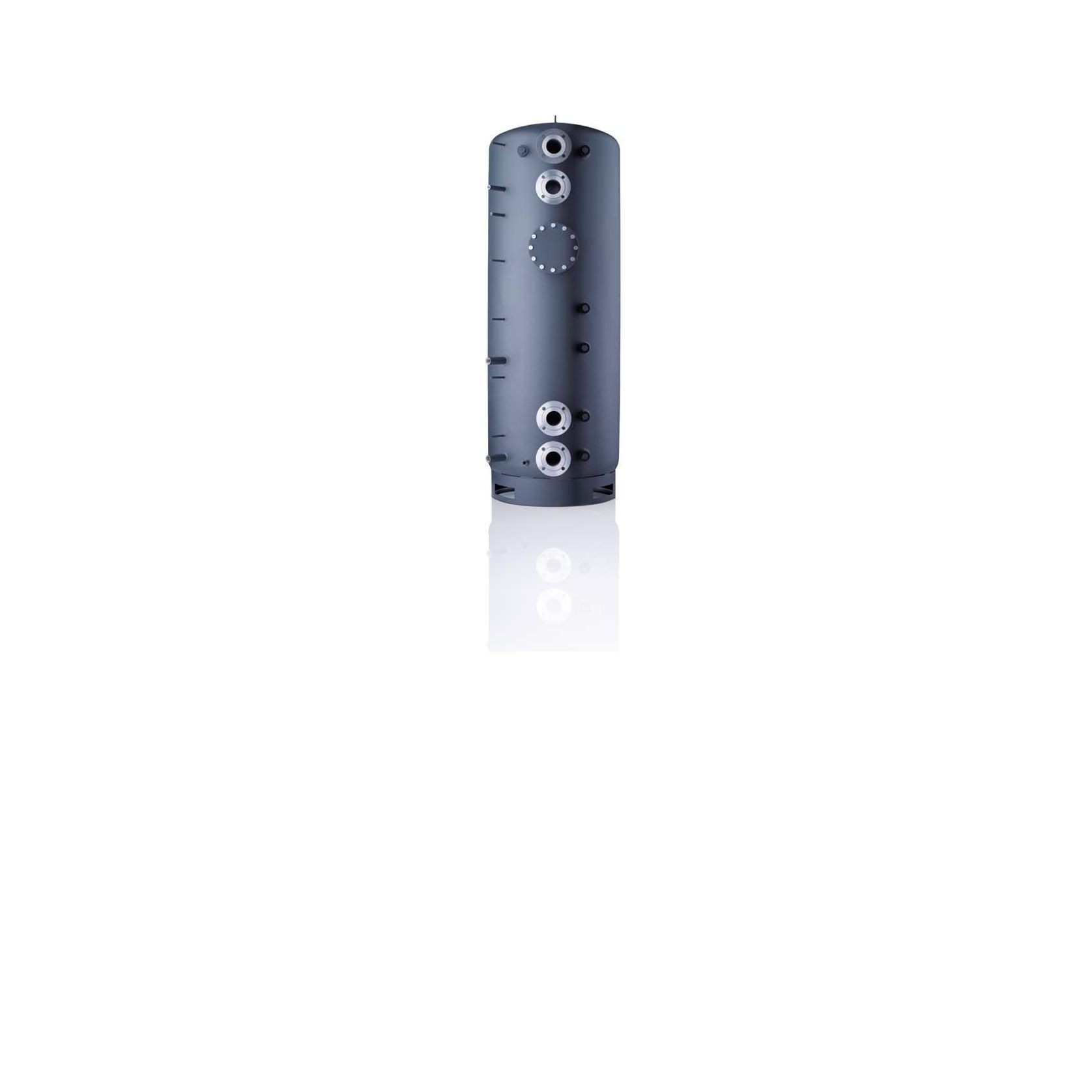

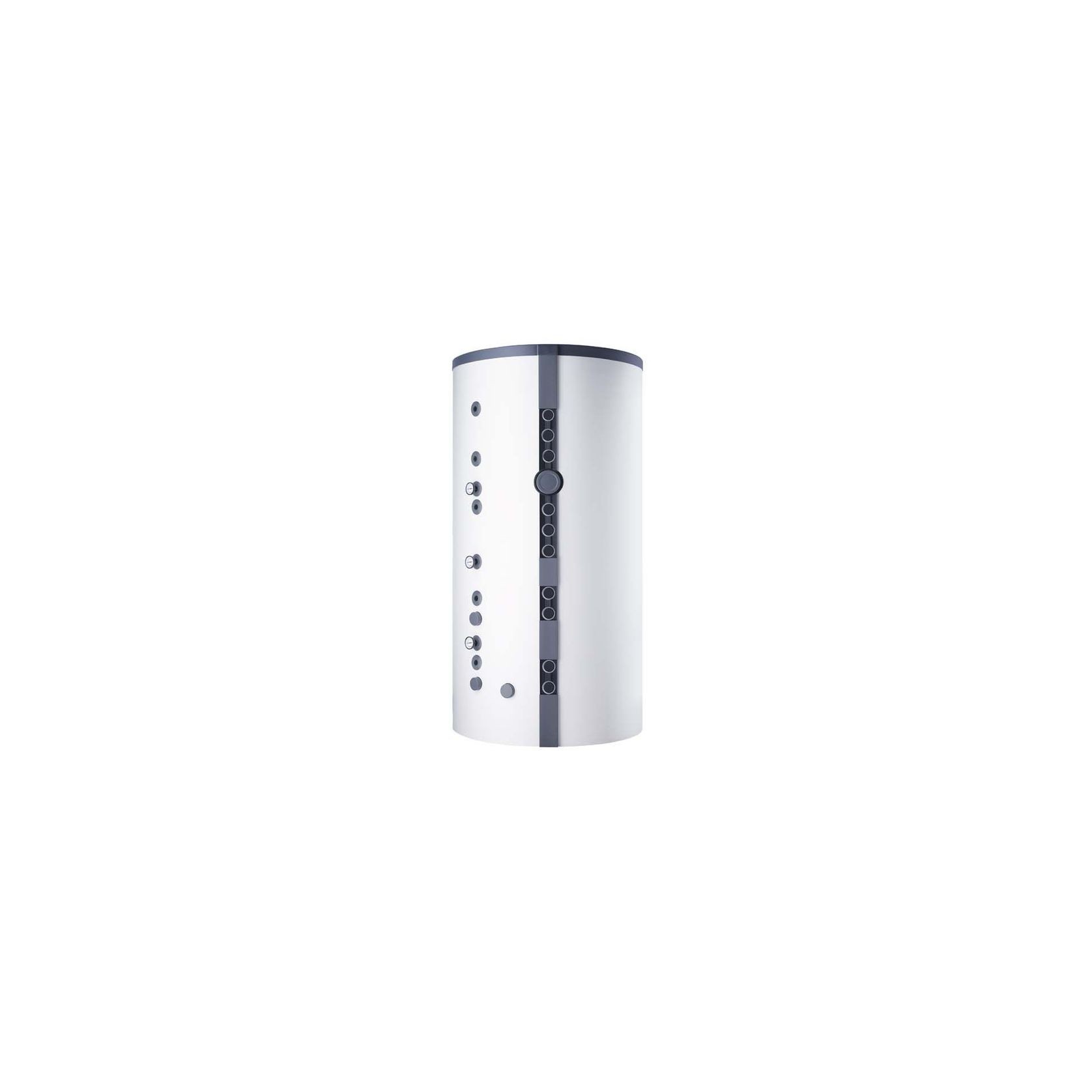

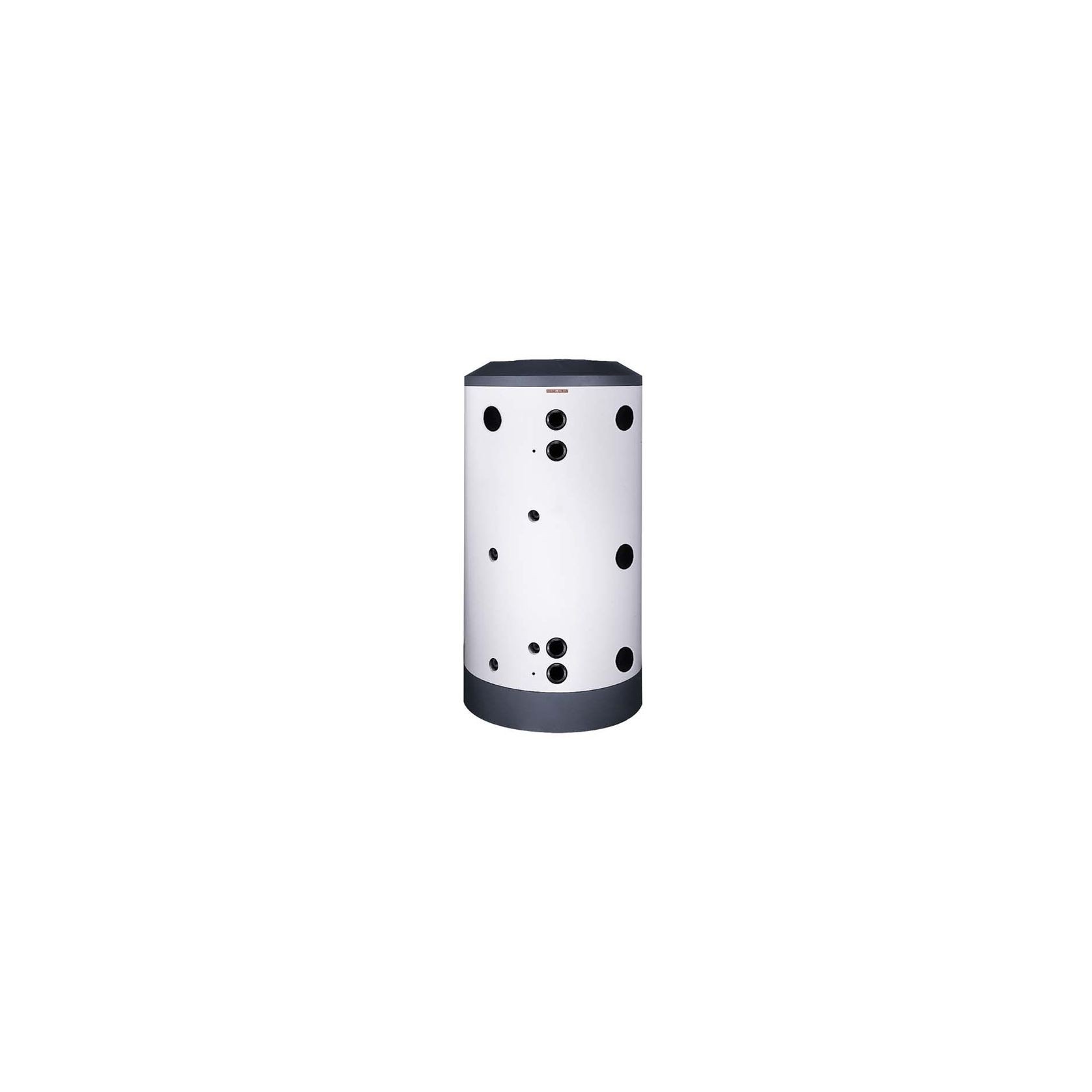

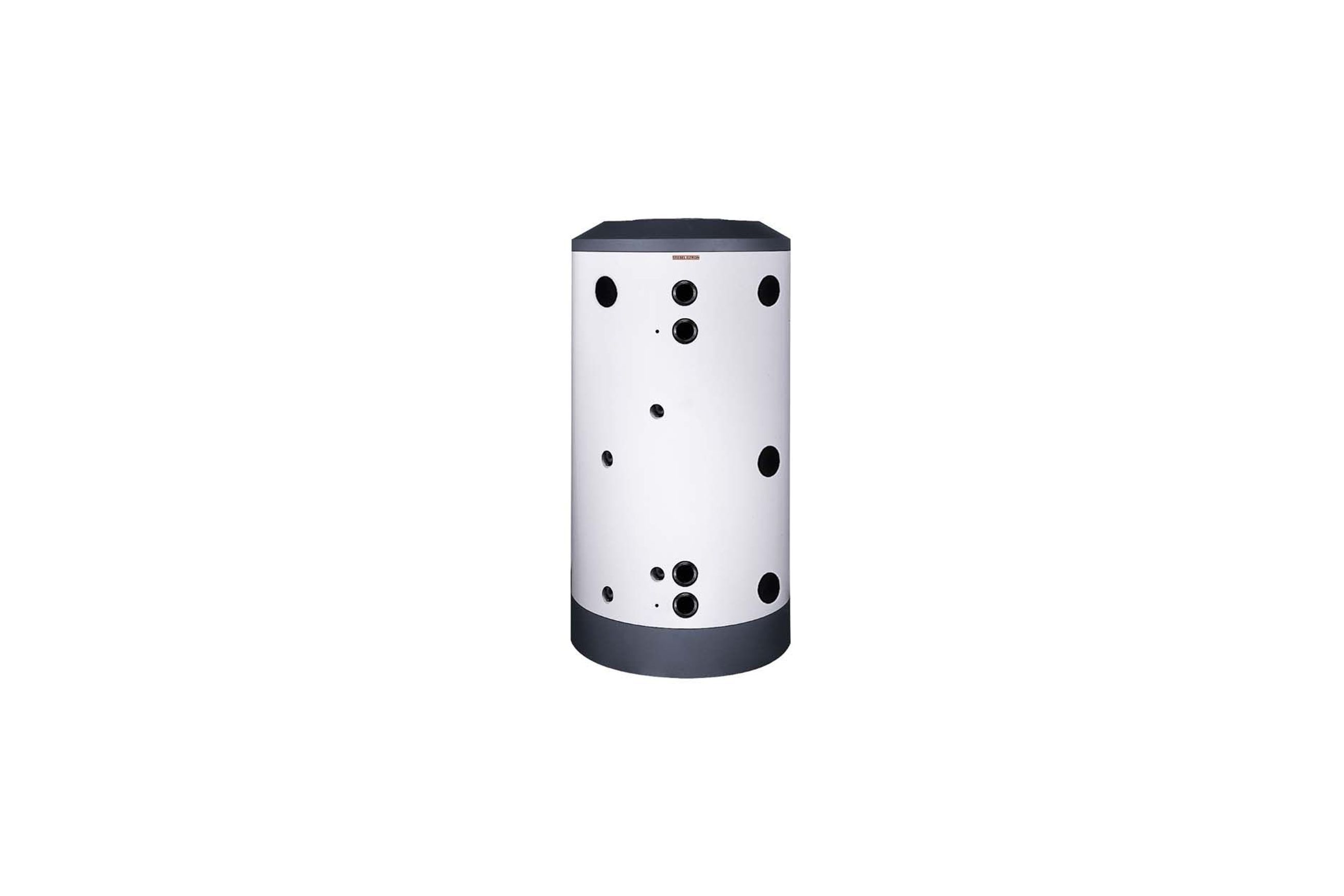

Buffer Cylinders

The SBP range of Buffer Cylinders offers an ideal interface and collecting point for even the most diverse heating systems.

Specs

Model number - SBP 100 classic

• Rated capacity - 100 L
• Height - 877 mm
• Diameter - 510 mm
• Standby energy consumption/24 h at 65 °C - 1.2 kWh
• Connection - 2x G 1 1/4 A
• Weight - 21 kg
• Solar Thermal Compatible - No

Model number - SBP 200 E

• Rated capacity - 207 L
• Height - 1535 mm
• Diameter - 630 mm
• Standby energy consumption/24 h at 65 °C - 1.1 kWh
• Connection - 4x G2 A
• Weight - 58 kg
• Solar Thermal Compatible - No

Model number - SBP 400 E

• Rated capacity - 415 L
• Height - 1710 mm
• Diameter - 750 mm
• Standby energy consumption/24 h at 65 °C - 1.6 kWh
• Connection - 4x G2 A
• Weight - 81 kg
• Solar Thermal Compatible - No

Model number - SBP 700 E [SOL]

• Rated capacity - 720 L
• Height - 1890 mm
• Diameter - 910 mm
• Weight / Weight SOL model - 185 kg / 216 kg
• Solar Thermal Compatible - SOL model – max. 14 m2

Model number - SBP 1000 E [SOL]

• Rated capacity - 1006 L
• Height - 2300 mm
• Diameter - 1010 mm
• Weight / Weight SOL model - 172 kg / 219 kg
• Solar Thermal Compatible - SOL model – max. 20 m2

Model number - SBP 1500 E [SOL]

• Rated capacity - 1503 L
• Height - 2220 mm
• Diameter - 1220 mm
• Weight / Weight SOL model - 229 kg / 285 kg
• Solar Thermal Compatible - SOL model – max. 30 m2

Summary

• Made in Germany
• Problem solver in complex hydronic heating systems
• 100 – 1500 L capacity
• Compatible with all STIEBEL ELTRON hydronic heat pumps
• Highly effective insulation for low heat losses
• Can be combined with a solar thermal systems (SOL models)
