Phonic Impact Combo + Acoustic Sports Tile

By T&R Interior Systems
Visit Website

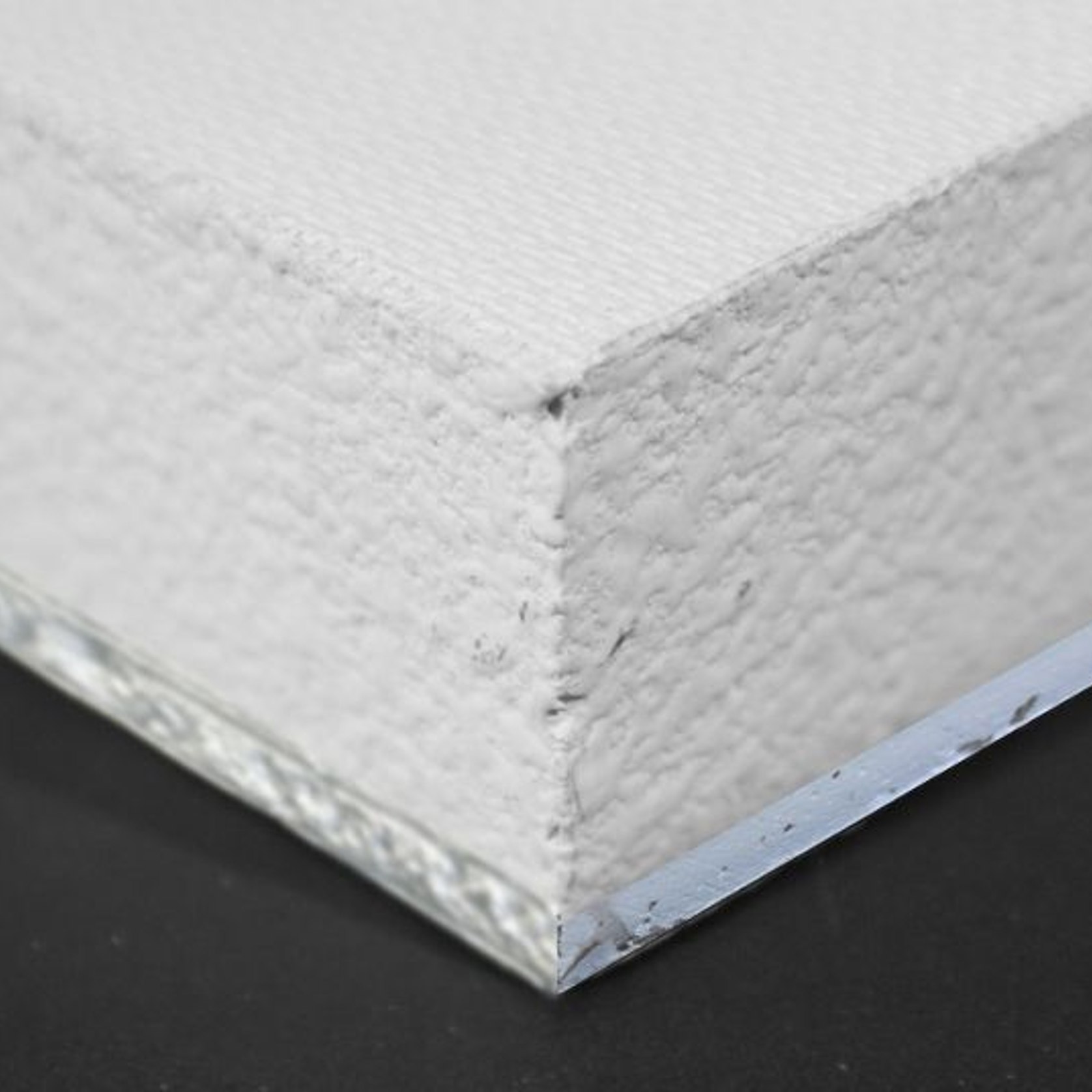

The C Max Impact Combo Sports Sound Panel is thick glass wool tile with a strong impact-resistant fibre glass face and an attenuating layer behind (either 6mm layer of compressed glass-fibre board or 9mm plasterboard). This combination results in a tile with an extremely high Noise Reduction Coefficient (NRC) combined with a high Ceiling Attenuation Class (CAC).

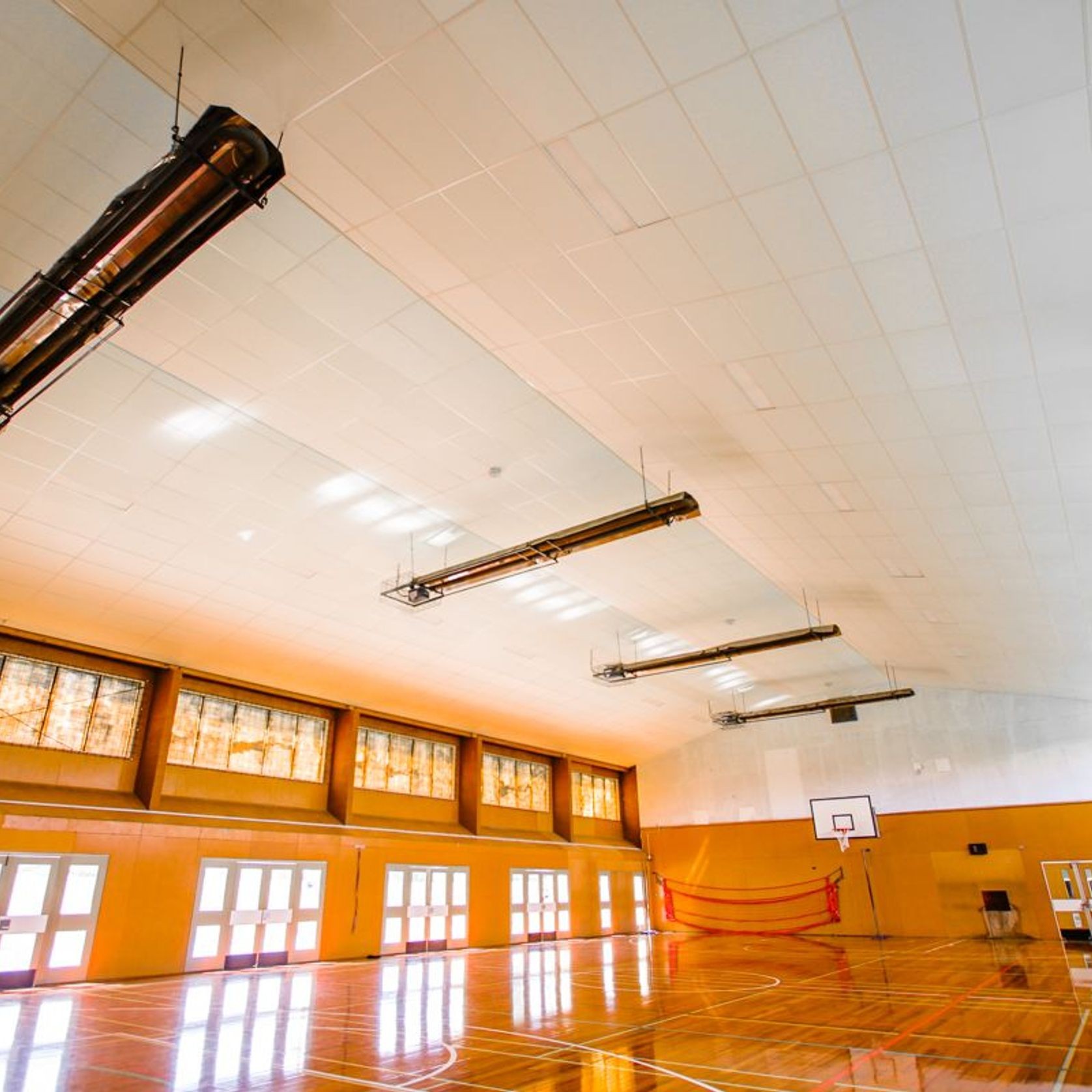

The tile exceptionally high acoustic properties for both absorption and attenuation: the high Noise Reduction Coefficient (NRC) will reduce reverberation time and the compressed glass-fibre backer blocks noise from the ceiling plenum (such as rain noise). This is an ideal tile for gymnasiums where sound transfer is a concern.

Details
  • Category
    Acoustic Tiles, Ceiling Tiles
  • Range
    Phonic Ceiling Tiles
Specifications

C Max Impact Combo + 44mm High Acoustic Panel

Absorption (ISO354)

  • NRC 0.90
  • SAA 1.02
  • aw 0.85

Attenuation

  • CAC & D n,c,w 46
  • LR > 85% + (white panel only)
  • Density Weight - 8.2kg/m²glass fibre 100kgs/m³
    mineral fibre 280kg/m³
  • Fire Test - ISO 5660 Parts 1 & 2 - Group 1-S
  • Moisture Rate ≤ 1%
  • Thermal Resistance R2.2
  • Square Edge, 53mm Depth Square Edge - [600 x 600] [1200 x 600]

Absorption (ISO354)

  • NRC 0.90
  • SAA 1.02
  • aw 0.85

Attenuation

  • CAC & D n,c,w 46
  • LR > 85% + (white panel only)
  • Density Weight - 8.2kg/m²glass fibre 100kgs/m³
    mineral fibre 280kg/m³
  • Fire Test - ISO 5660 Parts 1 & 2 - Group 1-S
  • Moisture Rate ≤ 1%
  • Thermal Resistance R2.2
  • Square Edge, 53mm Depth Square Edge - [600 x 600] [1200 x 600]

Colour - white, C Max Impact Combo + 44mm High Acoustic Panel
