C50 Chain Actuator 230v 600mm Stroke For Top Hung Windows

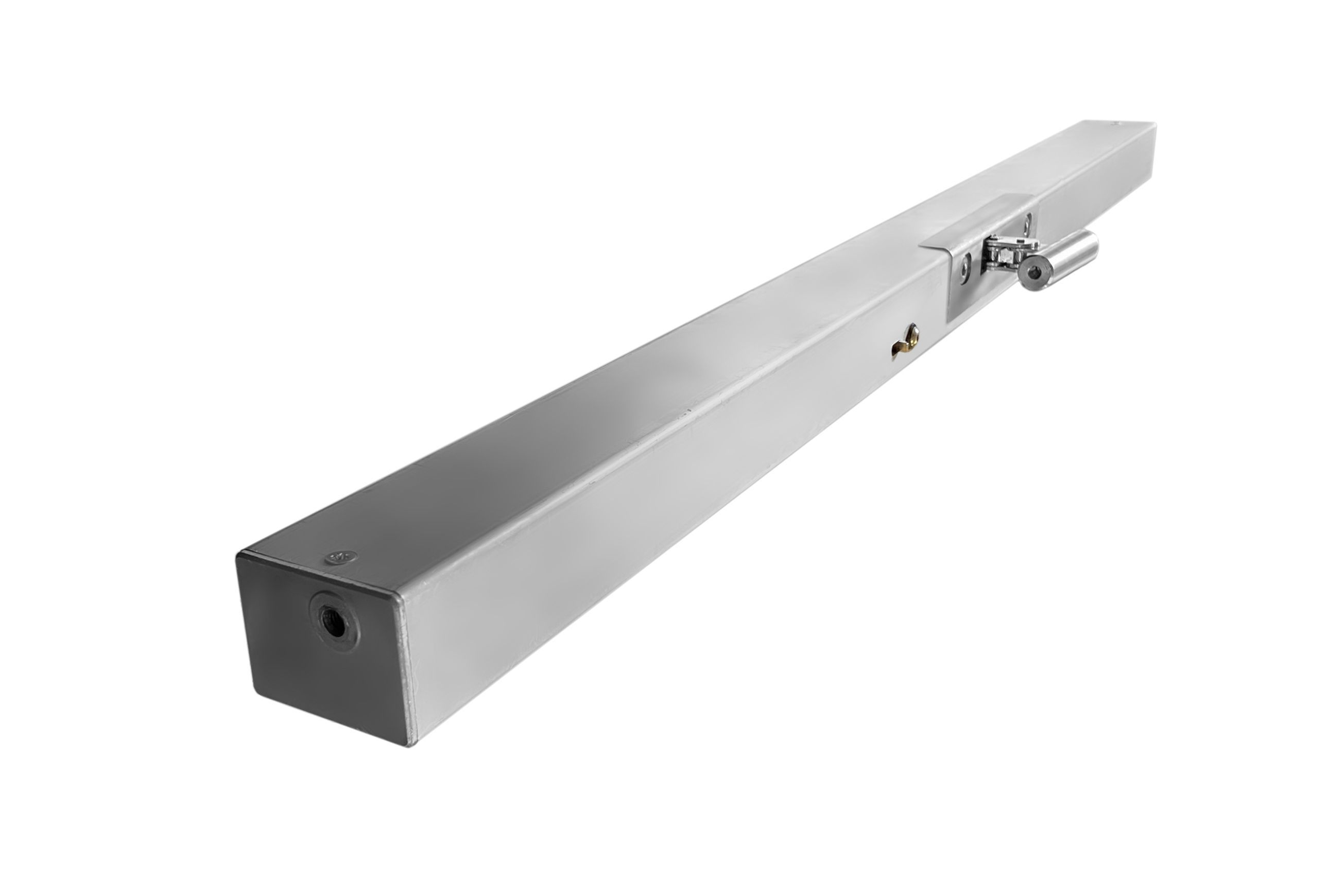

TOPP electric actuator model C50 with double-link chain, in an aluminium profile, available with brackets and accessories for skylights, bottom hung or top hung windows. Operation at 230V 50Hz. Max. thrust force 500N. Stroke 600 - 800 - 1000 mm. Patented chain terminal, attachment to the frame and chain load adjustment to ensure maximum resistance to high loads with long strokes. Preset for the synchronous operation of two actuators on the same window. CE marked device.

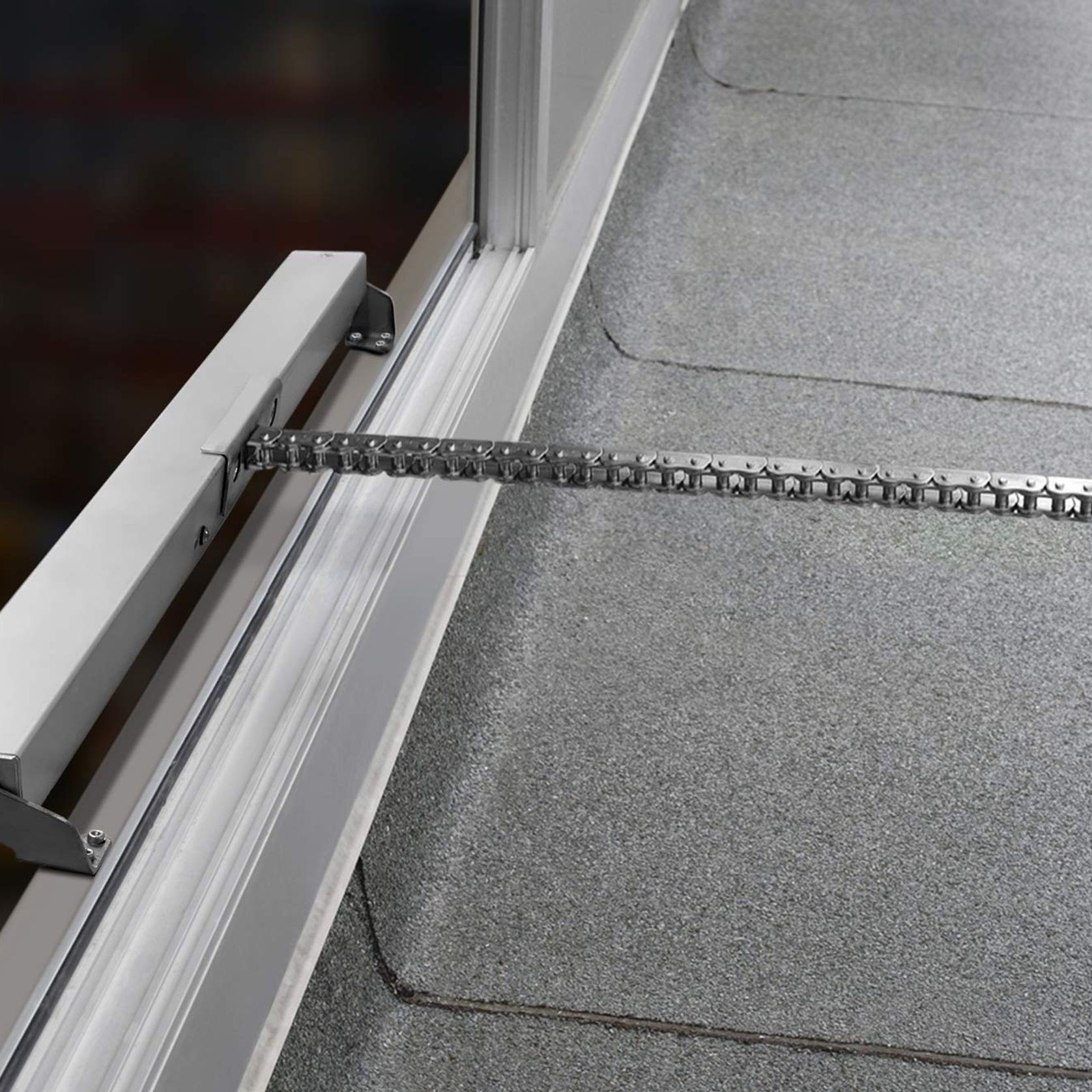

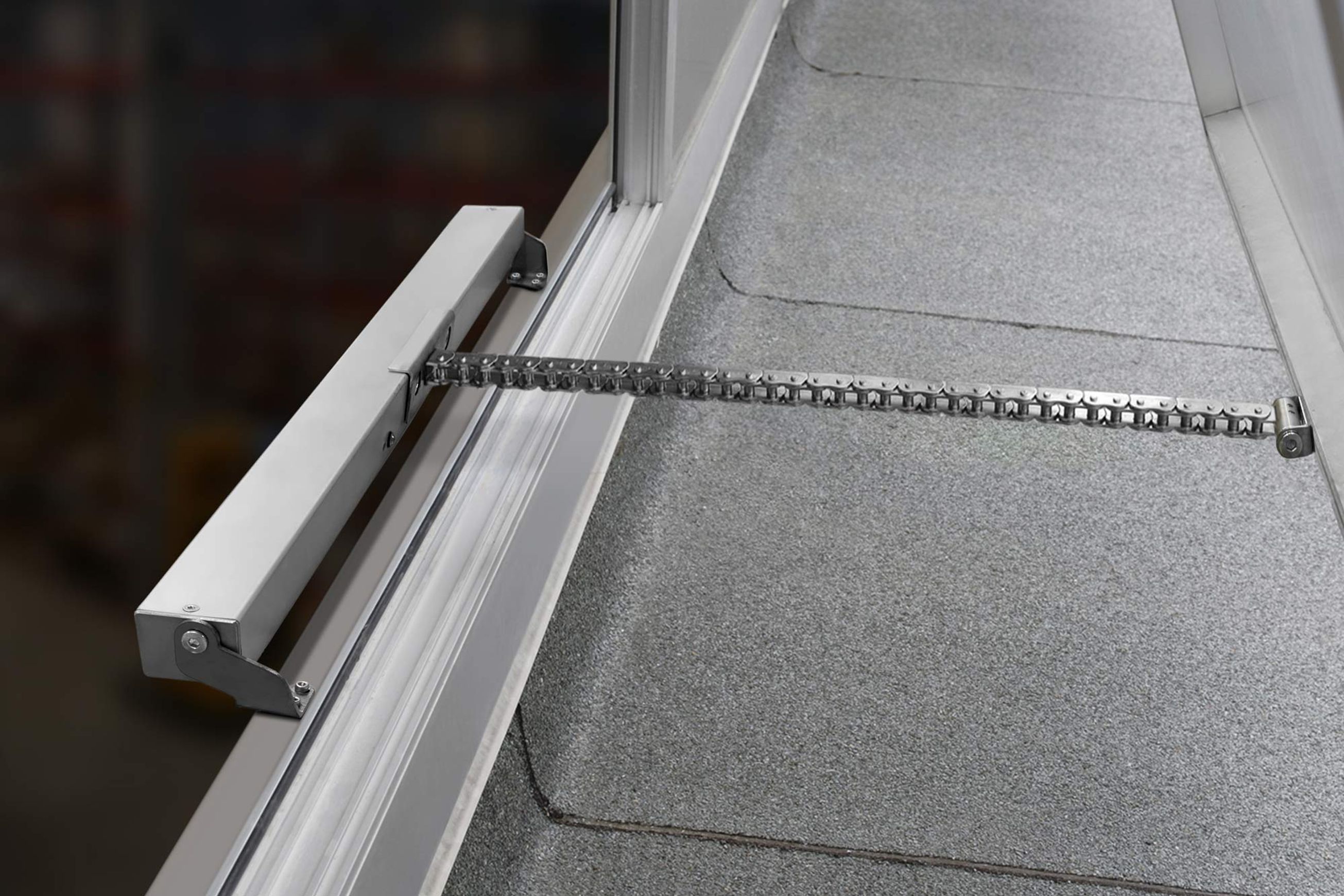

- Double-link chain and die-cast aluminum gearbox with shaft supported by ball bearings for higher resistance to heavy loads.
- Patented chain load adjustment system to allow the maximum resistance to high loads with long strokes.

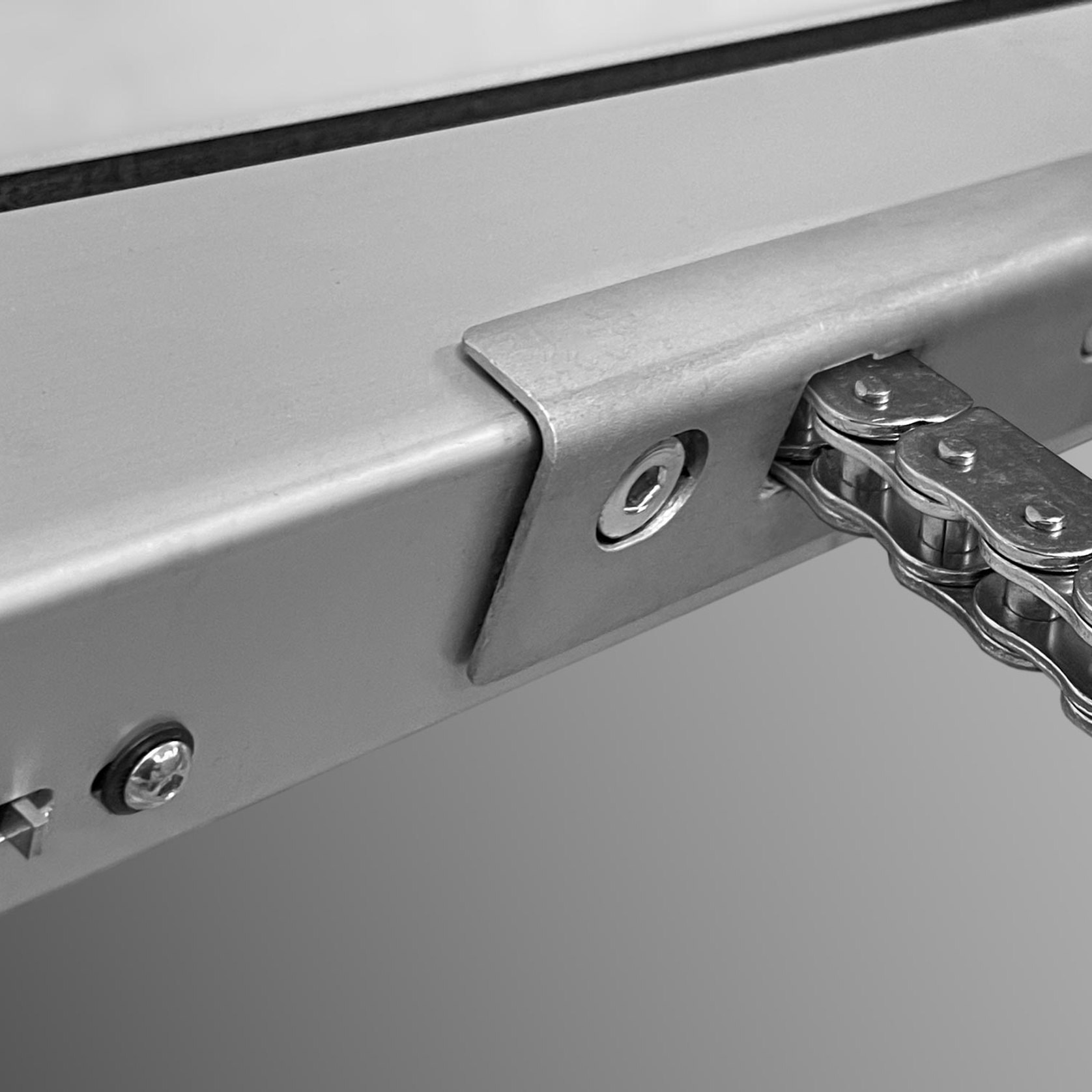

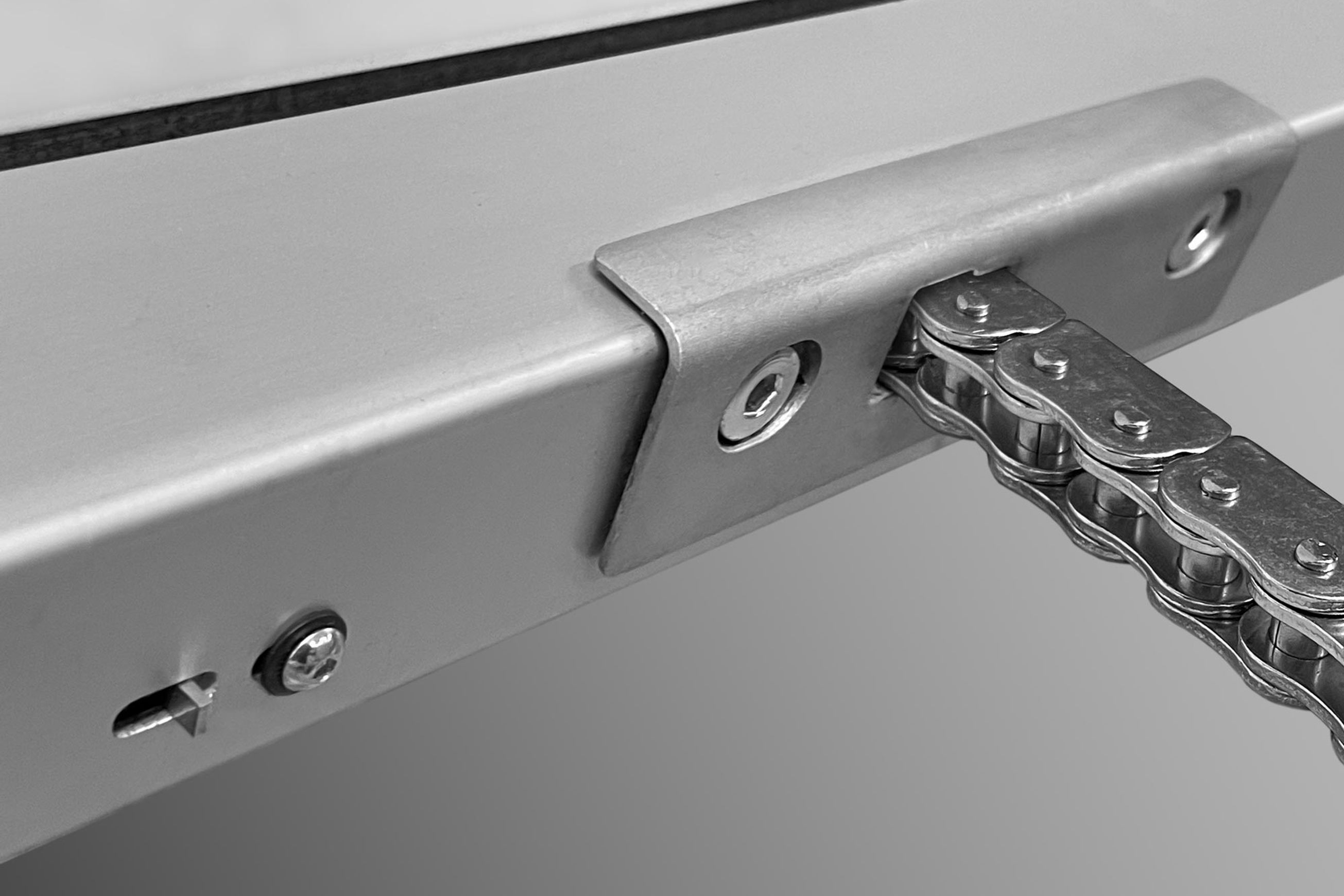

- Patented chain terminal with double lateral fixing and swivelling range of two degrees to ensure a greater resistance to heavy loads.
Product Details
- Product
- C50 Chain Actuator 230v 600mm Stroke - Top Hung Windows
- Category
- Mechanical Ventilation Systems
- Sold by
- EllisCo
- Range
- Natural Ventilation
- Brand
- TOPP
- Warranty
- Lifetime
EllisCo is specified by
Fisher PartnersArchitects
JTB ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Johnston ArchitectsArchitects
Megan Edwards ArchitectsArchitects
Charissa Snijders ArchitectArchitects
Dalman ArchitectsArchitects
Condon Scott ArchitectsArchitects
Parkhurst DesignInterior Designers
UNEX SystemsManufacturers and Suppliers
AdluxManufacturers and Suppliers
MaxCladManufacturers and Suppliers
FortéManufacturers and Suppliers
ThermosashManufacturers and Suppliers
Harnett BuildersBuilders
HawkinsConstruction
WPCWaterproofers
Cult DesignManufacturers and Suppliers
ao architectureArchitectural Designers
C50 Chain Actuator 230v 600mm Stroke For Top Hung Windows TOPP electric actuator model C50 with double-link chain, in an aluminium profile, available with brackets and accessories for skylights, bottom hung or top hung windows.
Operation at 230V 50Hz. Max. thrust force 500N. Stroke 600 - 800 - 1000 mm. Patented chain terminal, attachment to the frame and chain load adjustment to ensure maximum resistance to high loads with long strokes. Preset for the synchronous operation of two actuators on the same window. CE marked device.
- Double-link chain and die-cast aluminum gearbox with shaft supported by ball bearings for higher resistance to heavy loads.
- Patented chain load adjustment system to allow the maximum resistance to high loads with long strokes.
- Patented chain terminal with double lateral fixing and swivelling range of two degrees to ensure a greater resistance to heavy loads.
- Scope of use

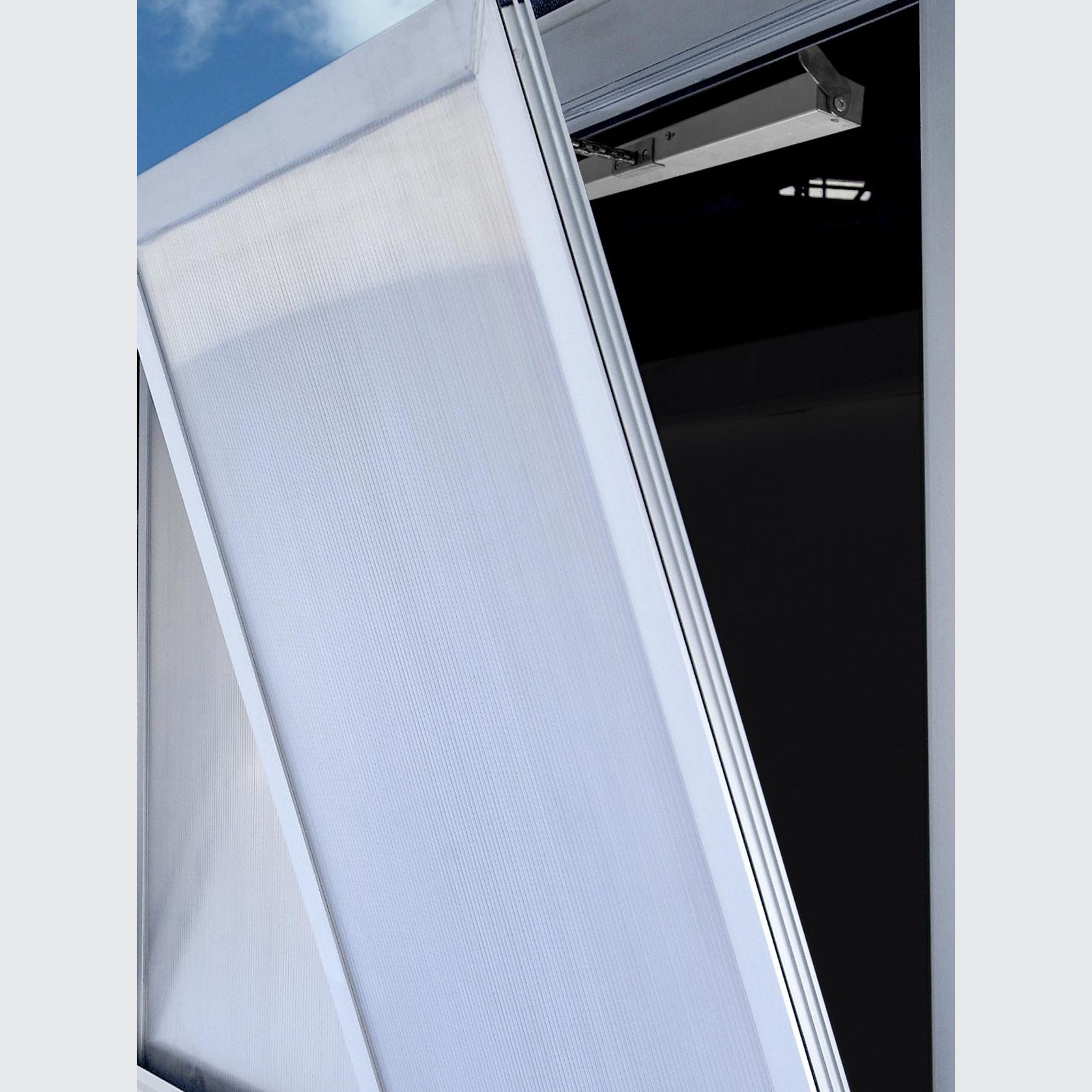

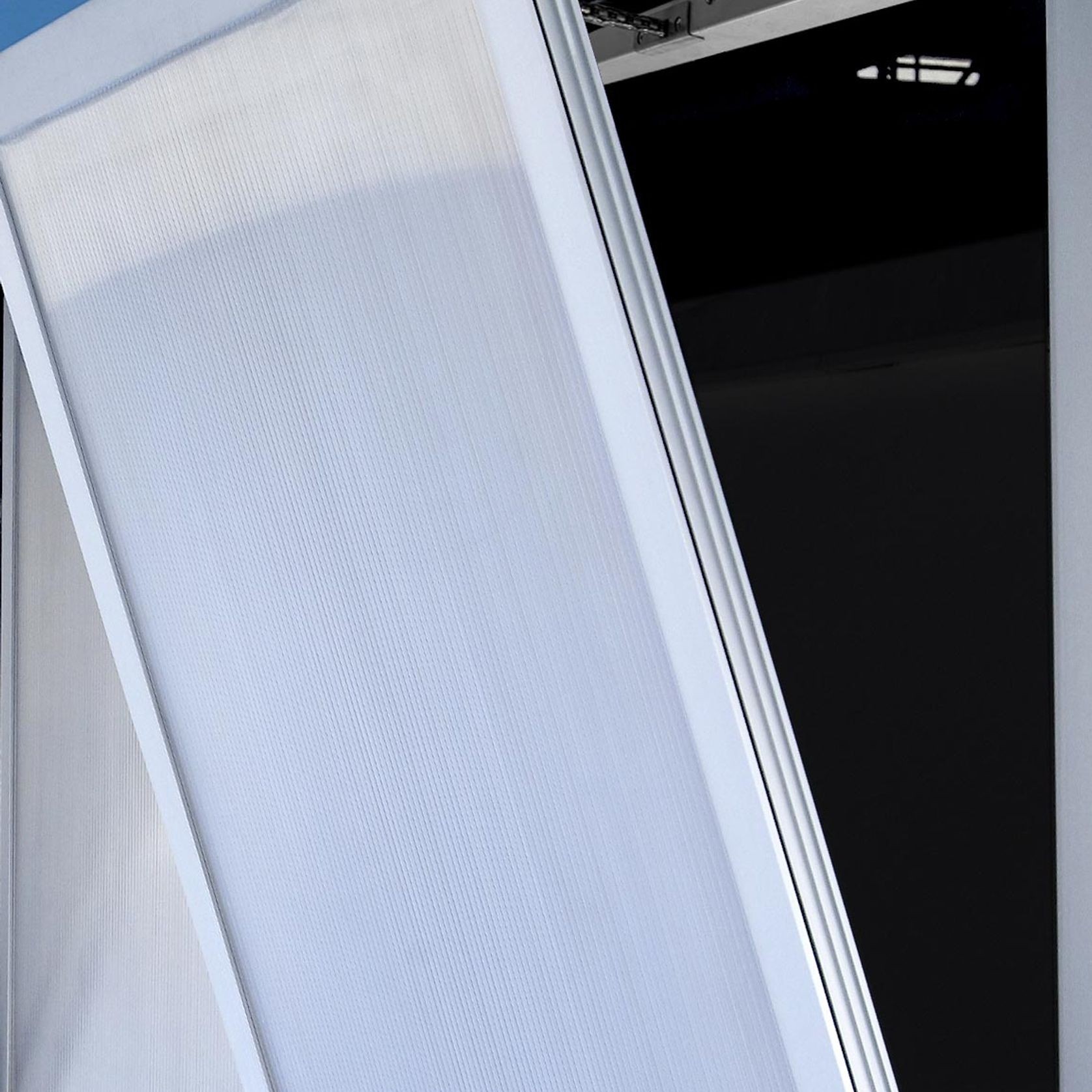

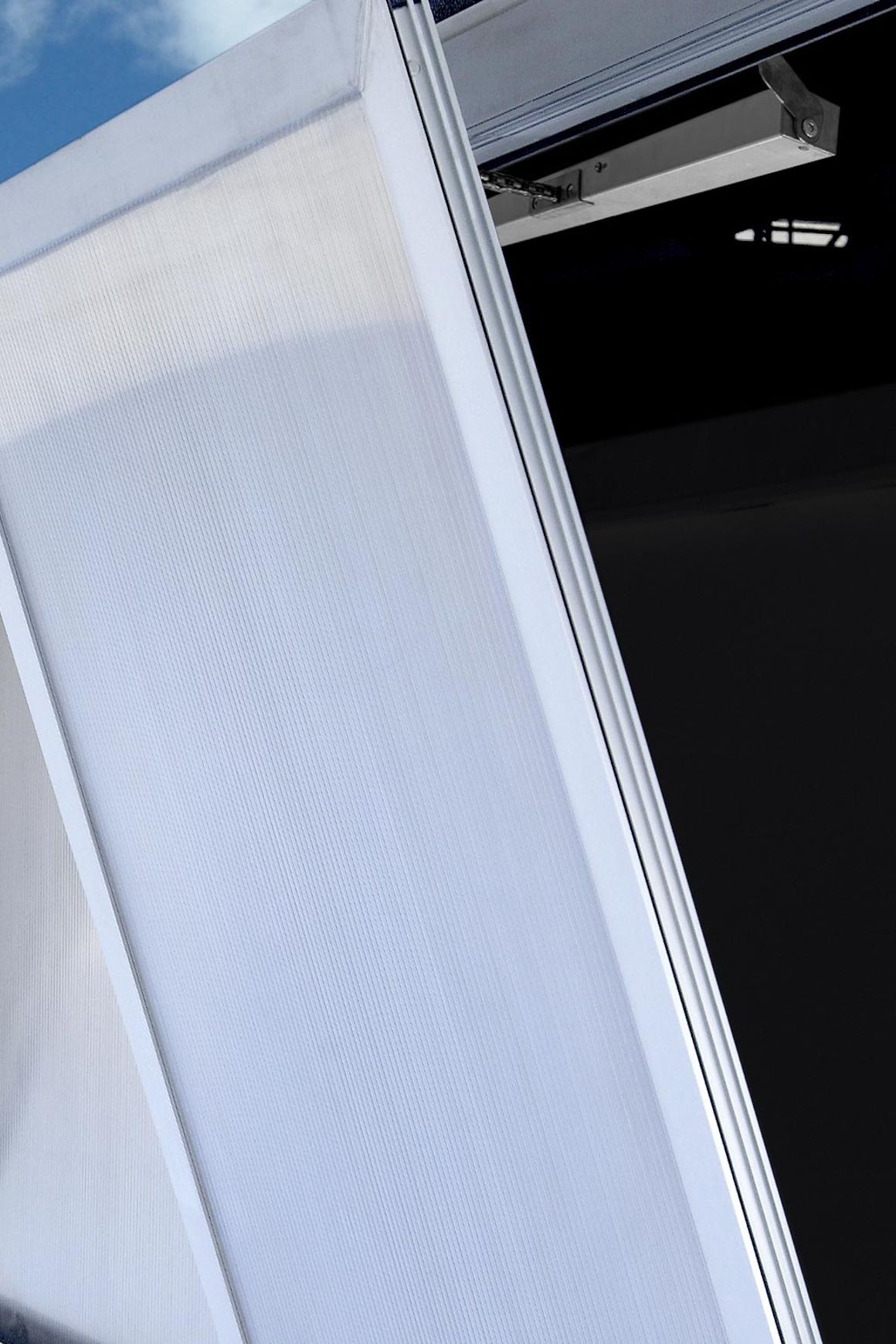

Mechanical chain actuator for top hung windows
