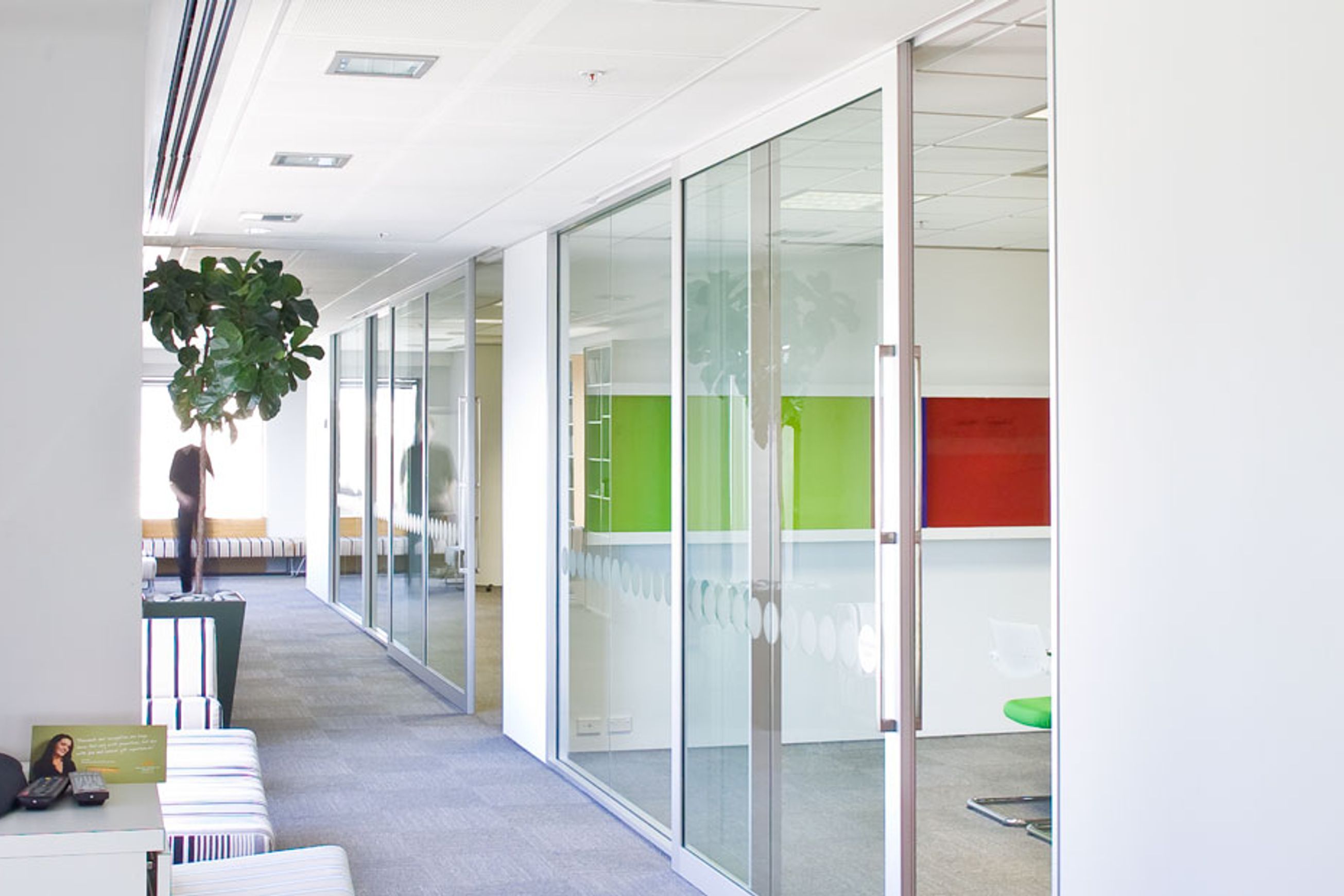

CS Track Systems For Sliding Doors

CS Track Systems are a range of track and carriage systems for surface sliding set-ups. Designed and manufactured in New Zealand, they are based on the high quality extrusions used in our cavity slider units.

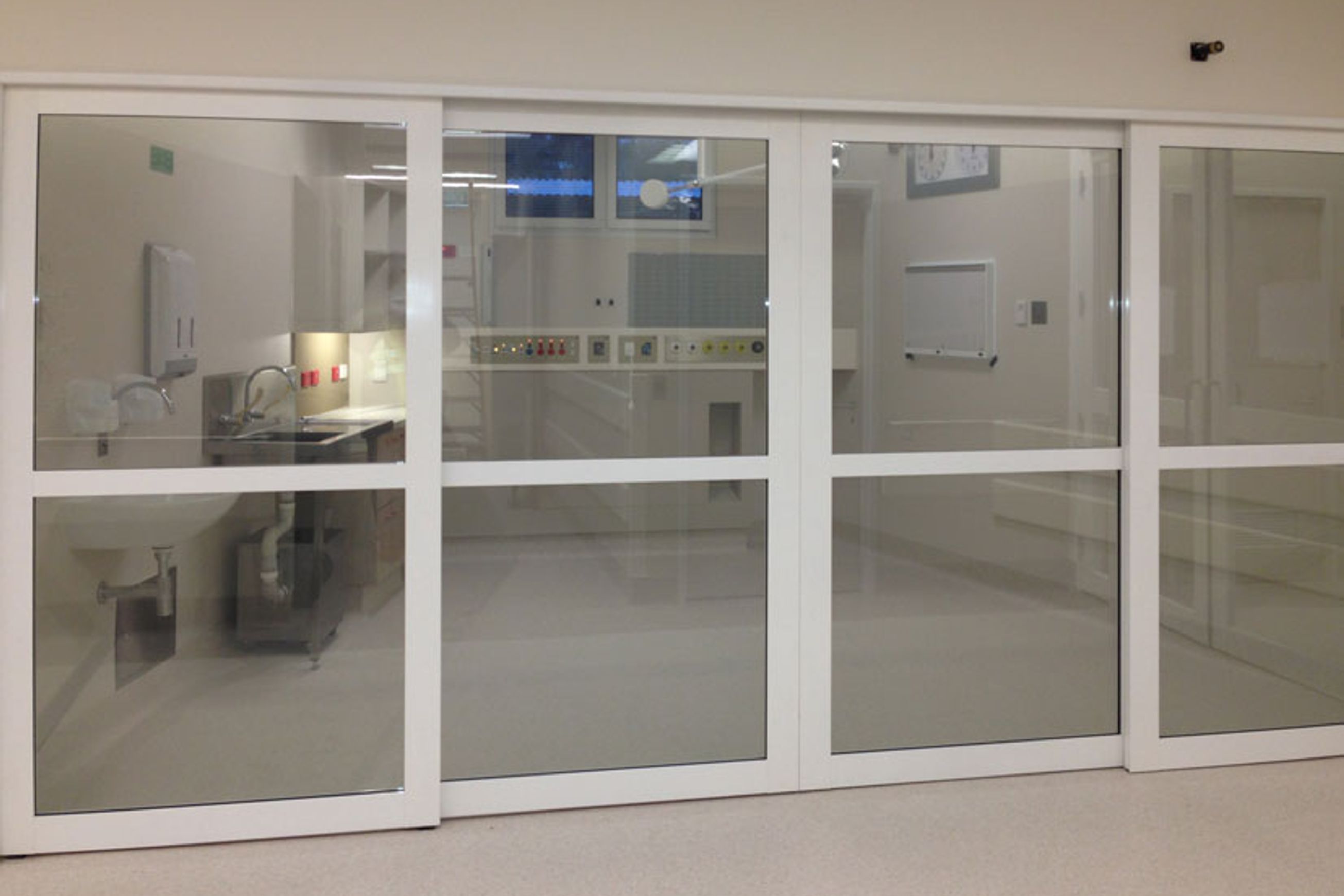

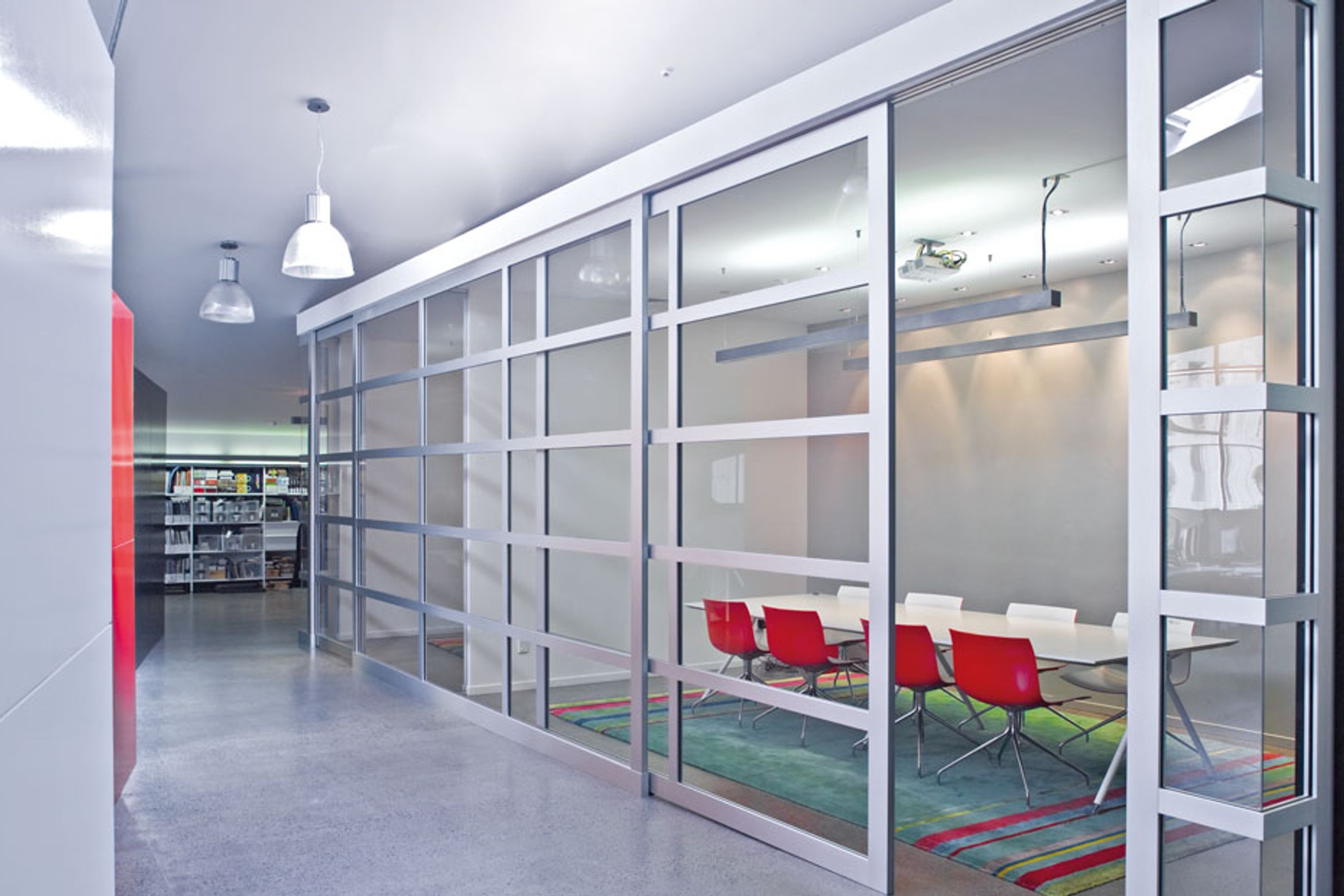

CS FH Ceiling Mount Track

Track for full height applications. It is supplied with full-length timber packers enabling ceiling linings to be fixed flush with the underside of the track. On request the track can be painted at time of manufacture to help blend with the ceiling colour. Available in 2, 3, 4 or 5 track set-ups up to 10 metres. Maximum door thickness is 40mm where multiple tracks are ordered. Track can be configured to suit Bi-Parting door setups, including Corner Meeting detail. A door pick-up system is available for use with multiple track set-ups. Available with SofStop® Soft close for doors up to 100kg.

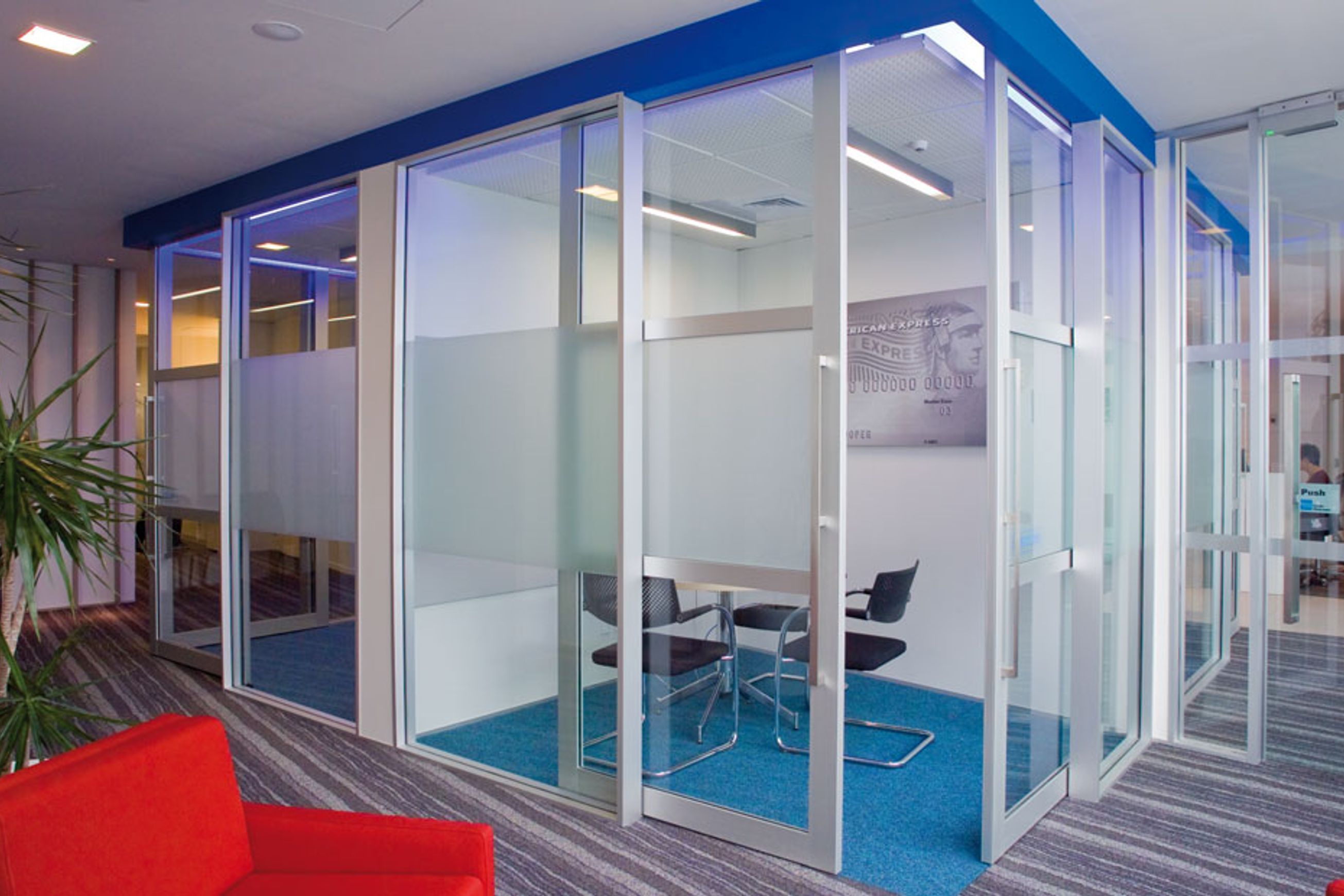

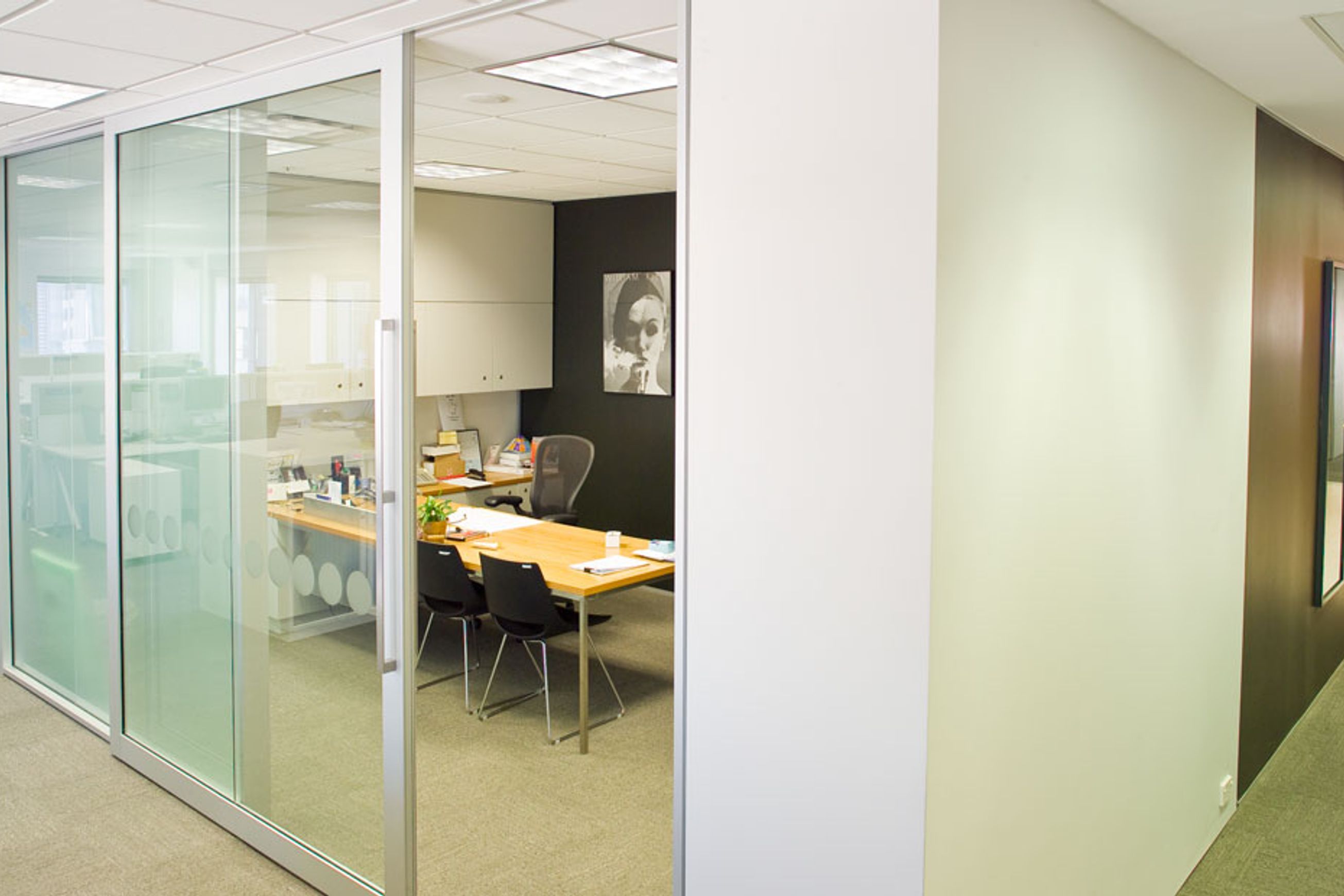

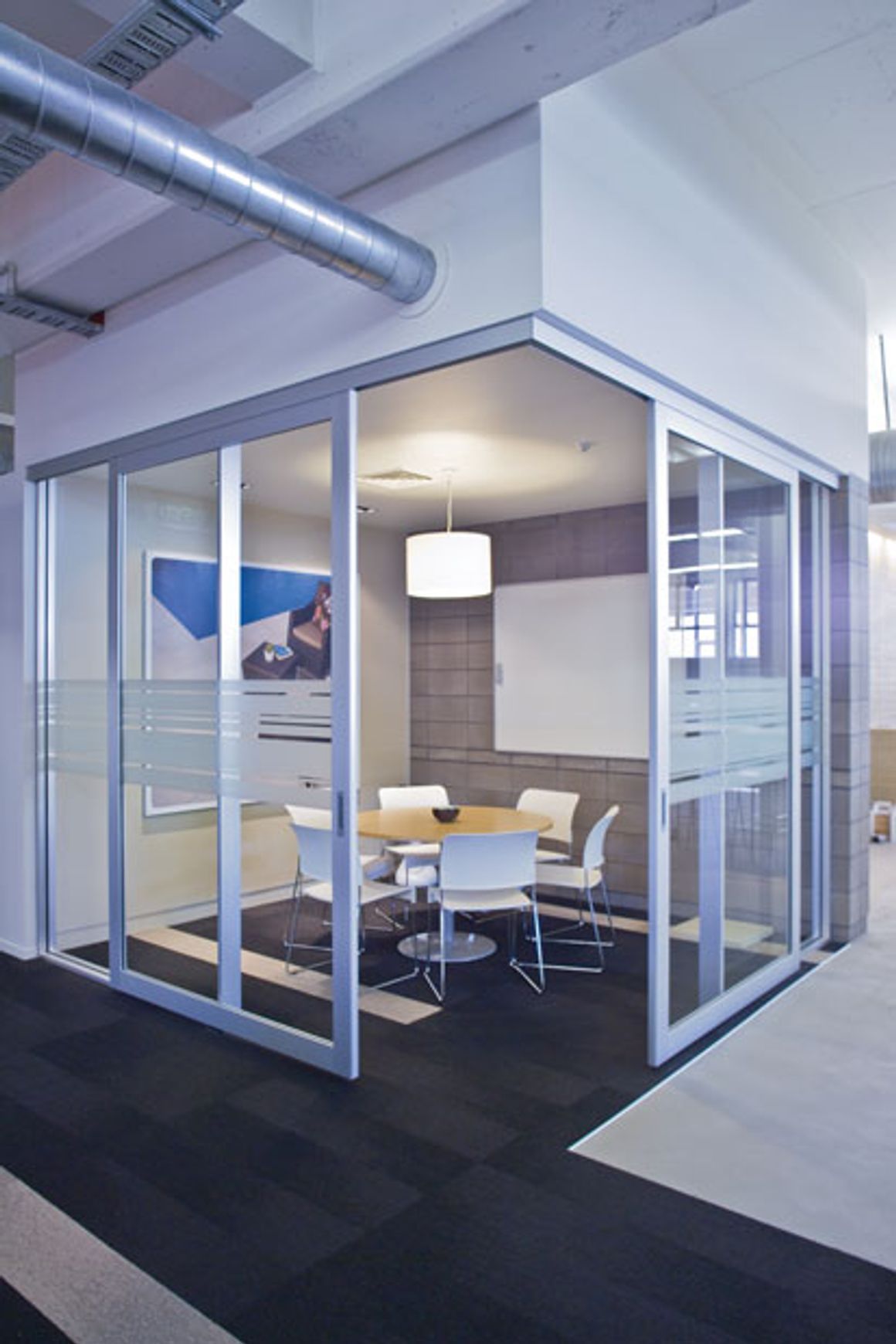

CS Partition Top Mount Track

Suitable for office fit outs, but may also be used in other applications where a single or double top mounted track is required. The track comes complete with pelmets offering two different options:

1) The track is fitted neatly under a bulk head with a flush pelmet either side.
2) The track is mounted within a suspended ceiling and a legged pelmet is used to sit the ceiling tile on.

Available with SofStop® Soft close for doors up to 100kg.

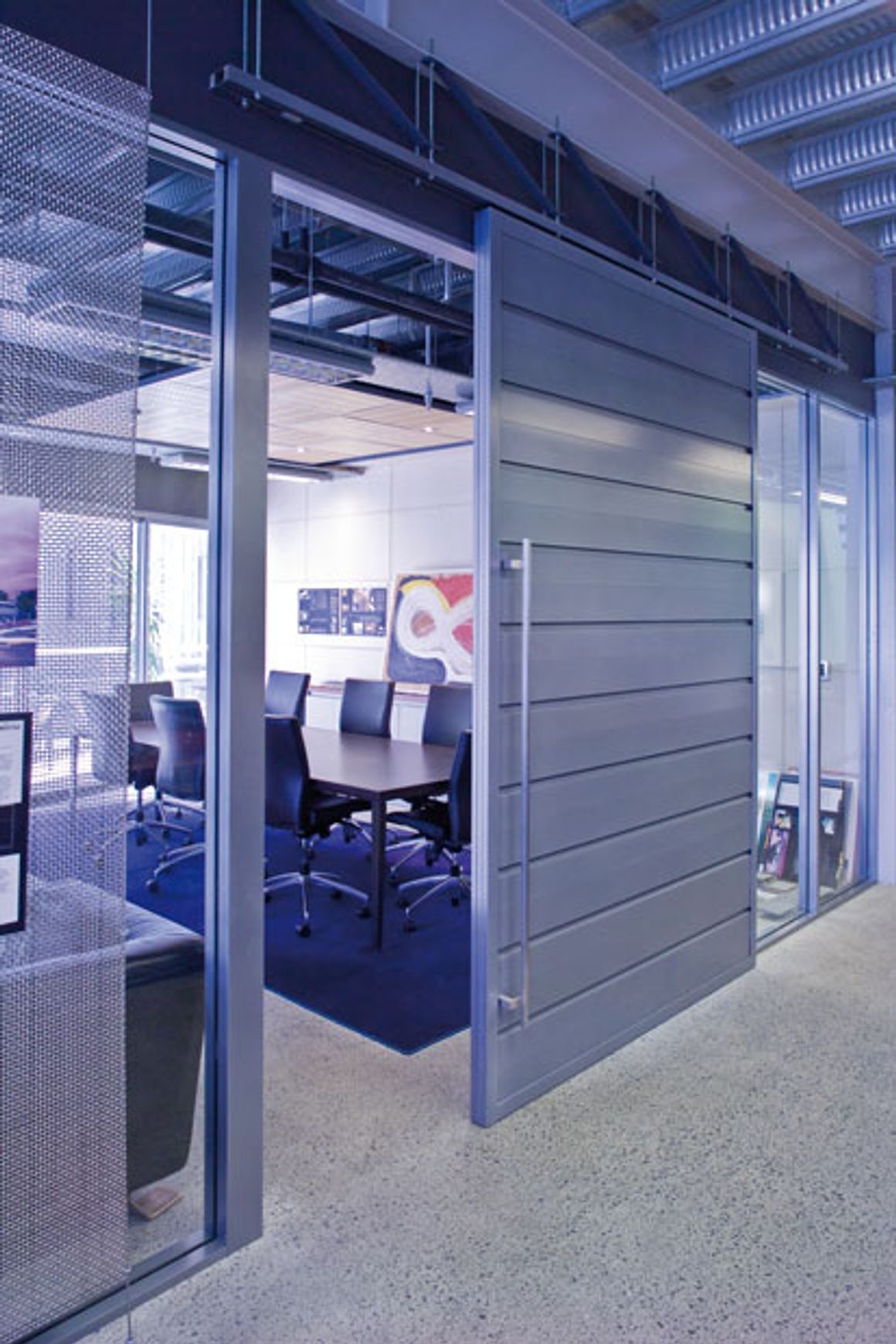

CS Wall Mount Track

For surface sliding applications where there is enough strength in the wall to mount and support a side-track with door above the opening. The track comes with a pre-finished clip-on aluminium pelmet and end caps that neatly conceal the top of the door, track, and running gear. Maximum door thickness is 40mm. Available with SofStop® Soft close for doors up to 100kg.

CS Heavy Duty Track

An ultra heavy-duty track designed to take large doors weighing up to 500kg. The intrinsic strength of CS HeavyDutyTrack makes it suitable for a wide range of commercial and industrial applications, such as large factory doors or light-aircraft hangers.

Track is available in a single set-up only. Minimum door thickness is 40mm.

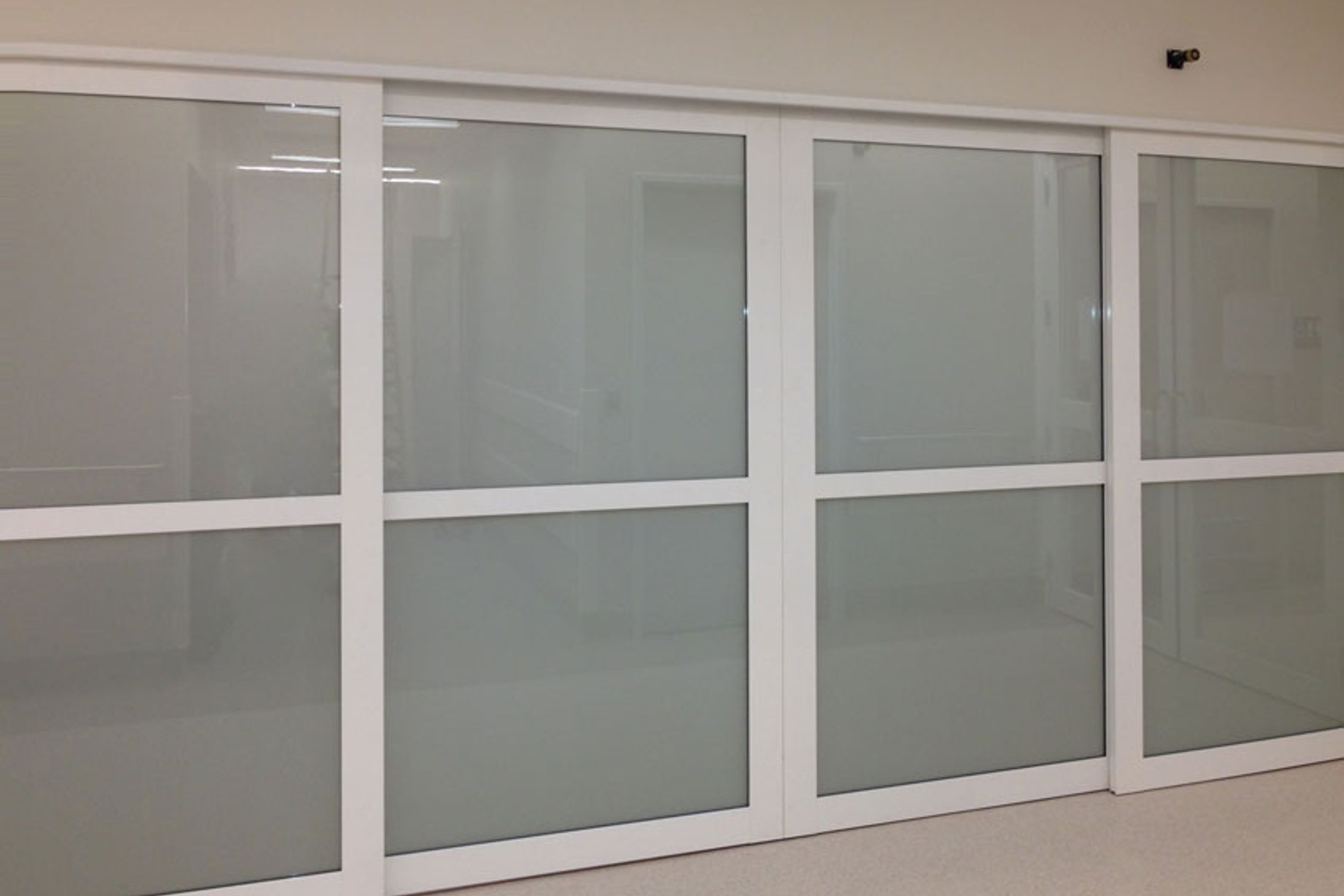

CS ElecTrack®

Developed as a means of transferring power from a switchable source to a sliding or stationary CS NewYorker® door. Available in single, double or triple surface sliding configurations or as a single cavity slider, CS can supply a complete system pre-finished in the factory with the CS NewYorker door leaf and SwitchShield® switchable glass (a sheet glass product that can switch from clear to opaque at the touch of a switch), ready for installation and final wire.
