Dado Dave 20 Linear LED Light
Napier, New Zealand
- 162.3K profile views
- 29 saves
Dado Dave 20 Linear LED Light is a sleek, architectural profile designed to provide high-output up lighting. The LED strip is positioned to maximise asymmetric distribution which offers smooth light out into the space. The concealed light source keeps glare to a minimum, while up to 2650 lumens per metre LED strip means it packs a punch.

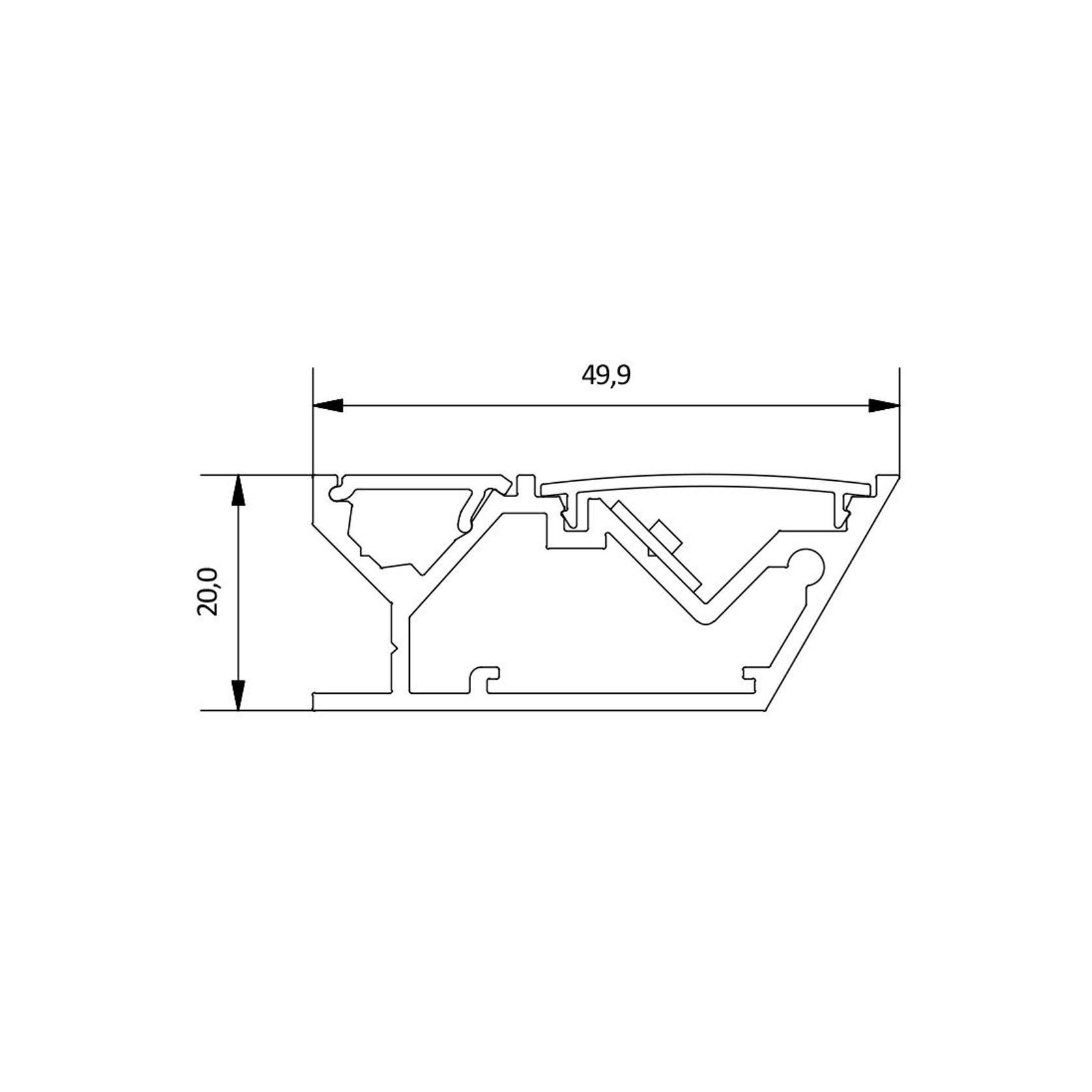

The extrusion is designed for super-quick screw-fixing, while a clip-in aluminium lid covers the screw heads and provides a smooth, easy-to-clean surface. For applications where Dado Dave 20 is being mounted flush with the bottom of a bulkhead, then the mounting adaptor can be used to reverse the direction of the mounting screw.
Product Details
- Product
- Dado Dave 20 Linear LED Light
- Category
- Linear Lighting
- Sold by
- Offspring Profiles®
- Brand
- Offspring Profiles
Dado Dave 20 Linear LED Light is a sleek, architectural profile designed to provide high-output up lighting.
The LED strip is positioned to maximise asymmetric distribution which offers smooth light out into the space. The concealed light source keeps glare to a minimum, while up to 2650 lumens per metre LED strip means it packs a punch.
The extrusion is designed for super-quick screw-fixing, while a clip-in aluminium lid covers the screw heads and provides a smooth, easy-to-clean surface. For applications where Dado Dave 20 is being mounted flush with the bottom of a bulkhead, then the mounting adaptor can be used to reverse the direction of the mounting screw.
- Specs

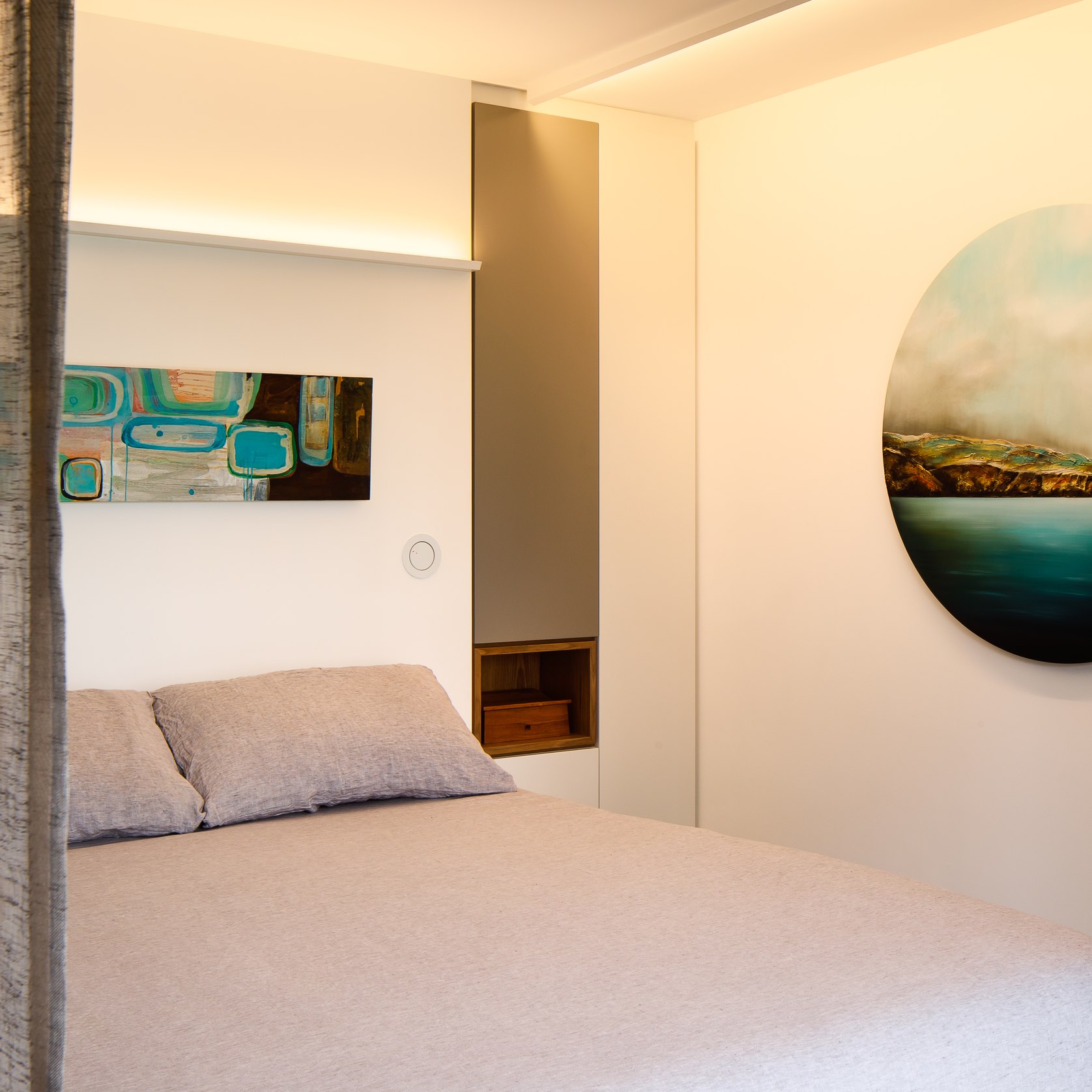

- Applications - Concealed indirect lighting for living rooms, board rooms, hallways.
- Installation - Interior only
- Material - Aluminium body, polycarbonate diffuser, aluminium end caps
- Finish - Natural silver anodised or custom powder coat
- Light source - LED ribbon strip
- Power supply - 24V DC - remote driver options ranging from 6W up to 320W
- Dimming - Various options available including DALI, 0-10V, DMX - please enquire
- Mounting options - Ceiling surface mounted, wall mounted
- Features - New Zealand designed and made, uniform lighting (reduces or eliminates the appearance of LED 'dots' with opal diffuser), provides heat sinking for high wattage LED strips, dust & grease protection
- Diffuser options - Opal polycarbonate, clear polycarbonate
Downloads
Downloads (8)8 Direct downloads • 10 Available on request
Frequently asked questions about
Dado Dave 20 Linear LED Light
The Dado Dave 20 Linear LED Light is supplied by Offspring Profiles®. It is also on their website, and you can browse every product Offspring Profiles® lists on ArchiPro.
Offspring Profiles® does not publish a price for the Dado Dave 20 Linear LED Light on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Uplights & Downlights range from Offspring Profiles®, where you can see every product in the range together.
Yes. It has been specified in projects on ArchiPro, including Vodafone, Wellington by Offspring Profiles®, Redwood retreat by Marlene Hudson Design and Suburban Industrial by Marlene Hudson Design. See how it was used in a finished space.
