DEL 18 Plus Instantaneous Water Heater
Auckland
- 280.3K profile views
- 61 saves
No other instantaneous water heater with 3i technology has such a wide range of features as the DEL Plus. It offers best-in-class comfort and convenience with a backlit multifunction display, temperature memory, and ECO mode.
With the energy and water saving ECO mode, the maximum flow rate of the DEL Plus can be limited so that a constant DHW temperature is possible even at low inlet temperatures.
- Electronically controlled instantaneous water heater
- 3i technology for accurate temperature delivery
- Three-stage ECO mode for increased convenience and greater energy savings

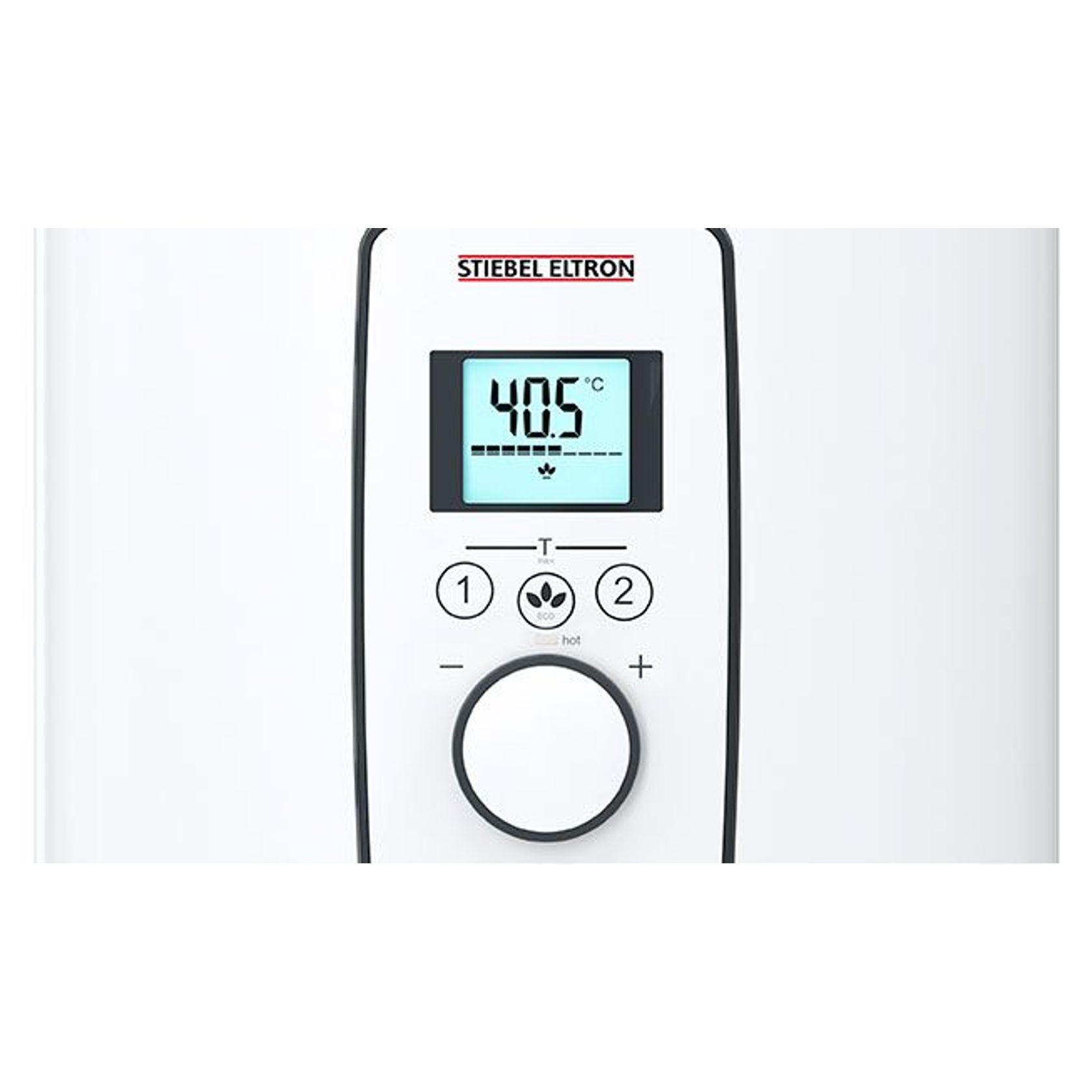

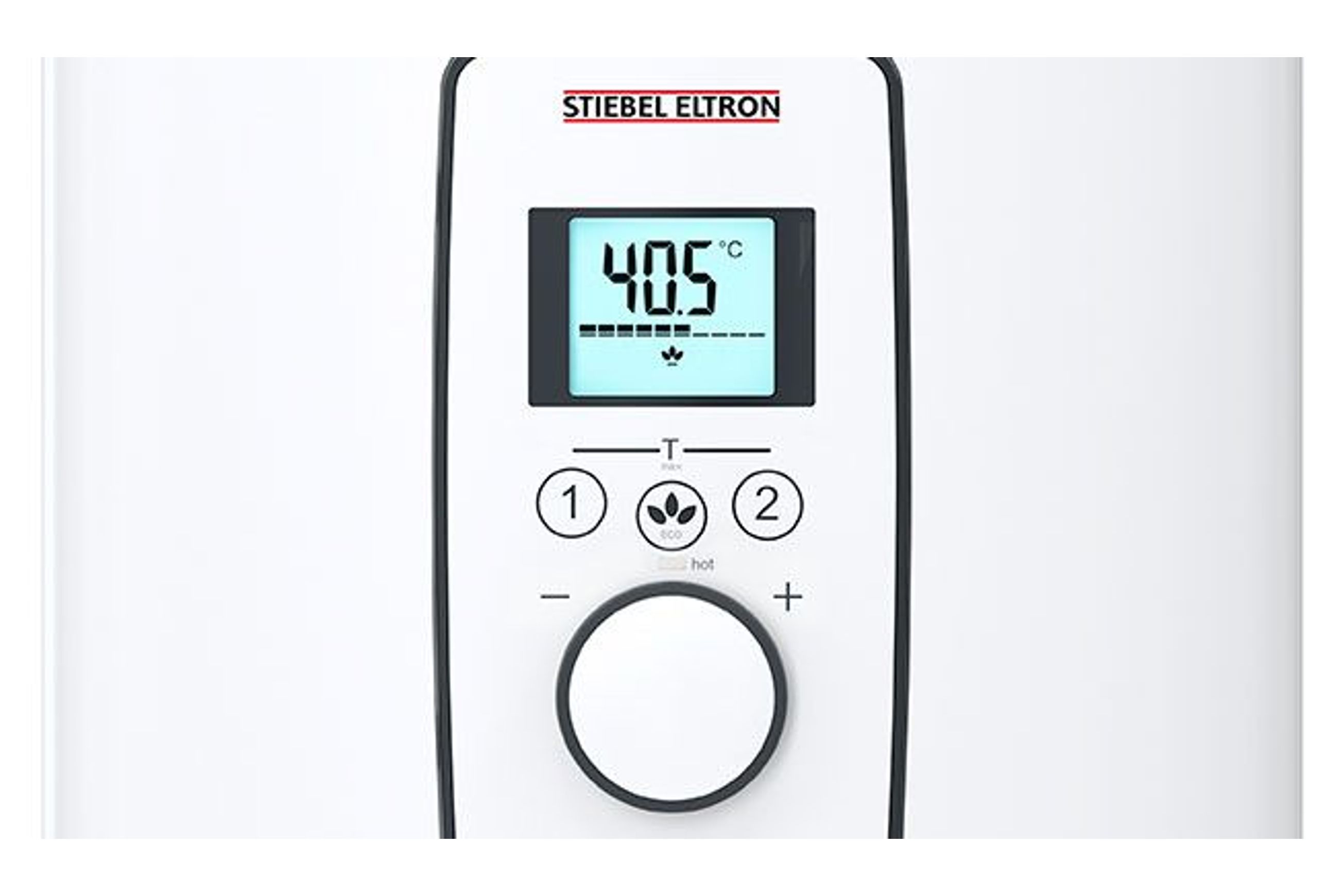

- Backlit multifunction display with output information temperature
Product Details
- Product
- DEL 18 Plus Instantaneous Water Heater
- Category
- Hot Water Heating
- Sold by
- STIEBEL ELTRON
- Pricing
- $1,633.29
- Brand
- Stiebel Eltron
- Warranty
- 7 years
Product Variants
- Size
STIEBEL ELTRON is specified by
Daniel Marshall ArchitectsArchitects
Rafe Maclean ArchitectsArchitects
Respond ArchitectsArchitects
Chaney & Norman ArchitectsArchitects
Arête ArchitectsArchitects
Patterson AssociatesArchitects
SA StudioArchitects
VIA architectureArchitects
Johnston ArchitectsArchitects
Gel ArchitectsArchitects
First Light Studio LtdArchitects
Kamermans Architects LtdArchitects
M A BuildingBuilders
Ethos HomesBuilders
Ockham ResidentialProperty Developers
eHausDesign & Build
Fairfield ConstructionBuilders
Landmark Homes Auckland - North Shore & RodneyBuilders
GS Cayless ConstructionBuilders
Trinity ConstructionConstruction
Pro ClimaManufacturers and Suppliers
Bob Burnett ArchitectureArchitectural Designers
M C Fearnley DesignArchitectural Designers
Passive House Institute New ZealandAssociations
Tawa ArchitectureArchitectural Designers
No other instantaneous water heater with 3i technology has such a wide range of features as the DEL Plus.
It offers best-in-class comfort and convenience with a backlit multifunction display, temperature memory, and ECO mode.
With the energy and water saving ECO mode, the maximum flow rate of the DEL Plus can be limited so that a constant DHW temperature is possible even at low inlet temperatures.
- Electronically controlled instantaneous water heater
- 3i technology for accurate temperature delivery
- Three-stage ECO mode for increased convenience and greater energy savings
- Backlit multifunction display with output information temperature
- Specs
19.4kW, 27Amps/Ph, 415V 50oC Max
The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray, flue or ventilation.
Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 30 to 50°C via rotary selector, temperature adjustment for showers in 0.5 °C increments. Backlit multi-function display to show set temperature, current power consumption, status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations.
Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this, only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems).
Rapid bare wire heating system, suitable for hard and soft water. Electronic safety concept with air bubble detection.- Scope of use
Continuous hot water for shower, basins, and sink.
- Performance
11ltrs/min at 40oC water temperature
