Dominator Somerset Garage Doors

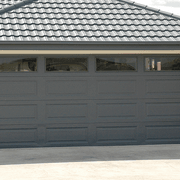

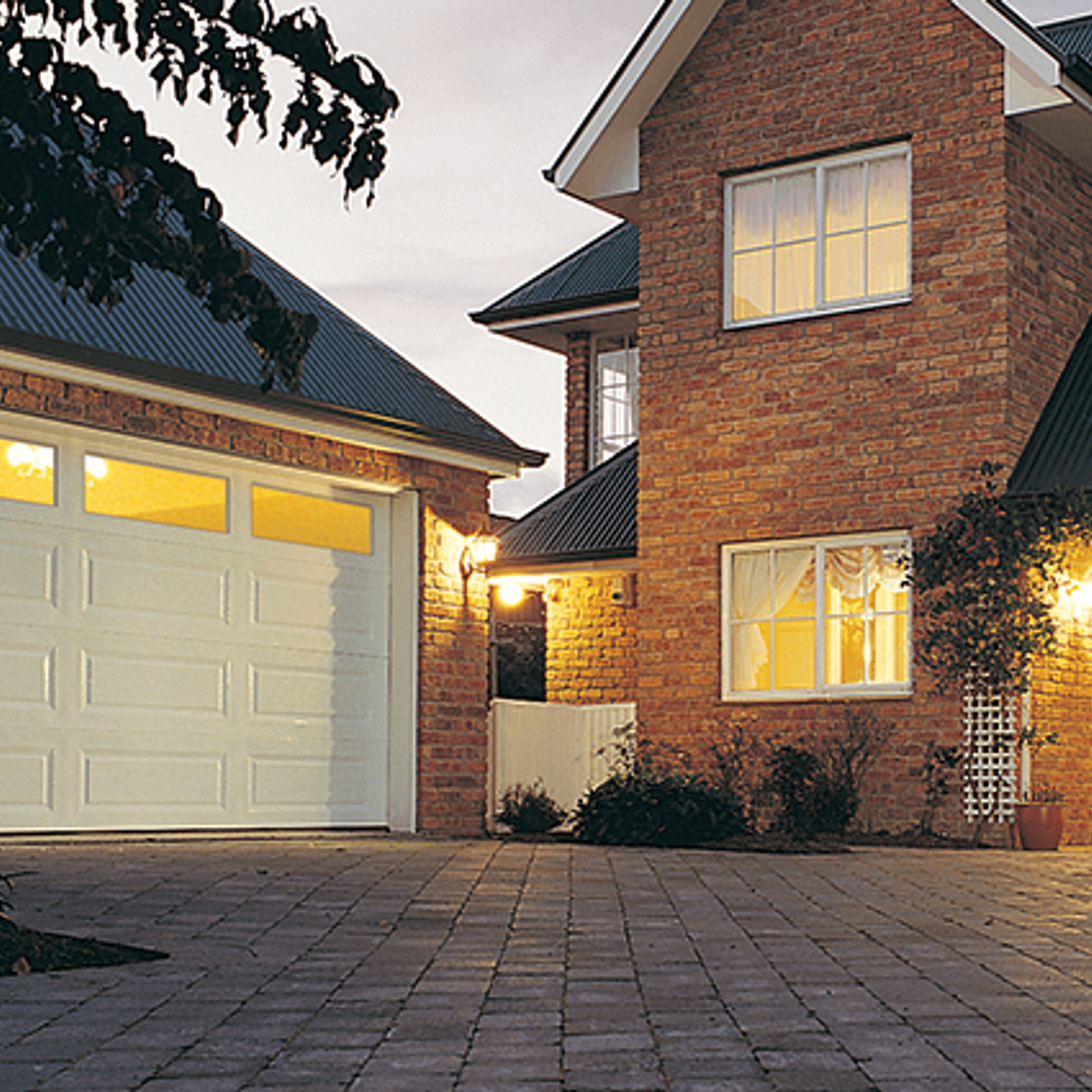

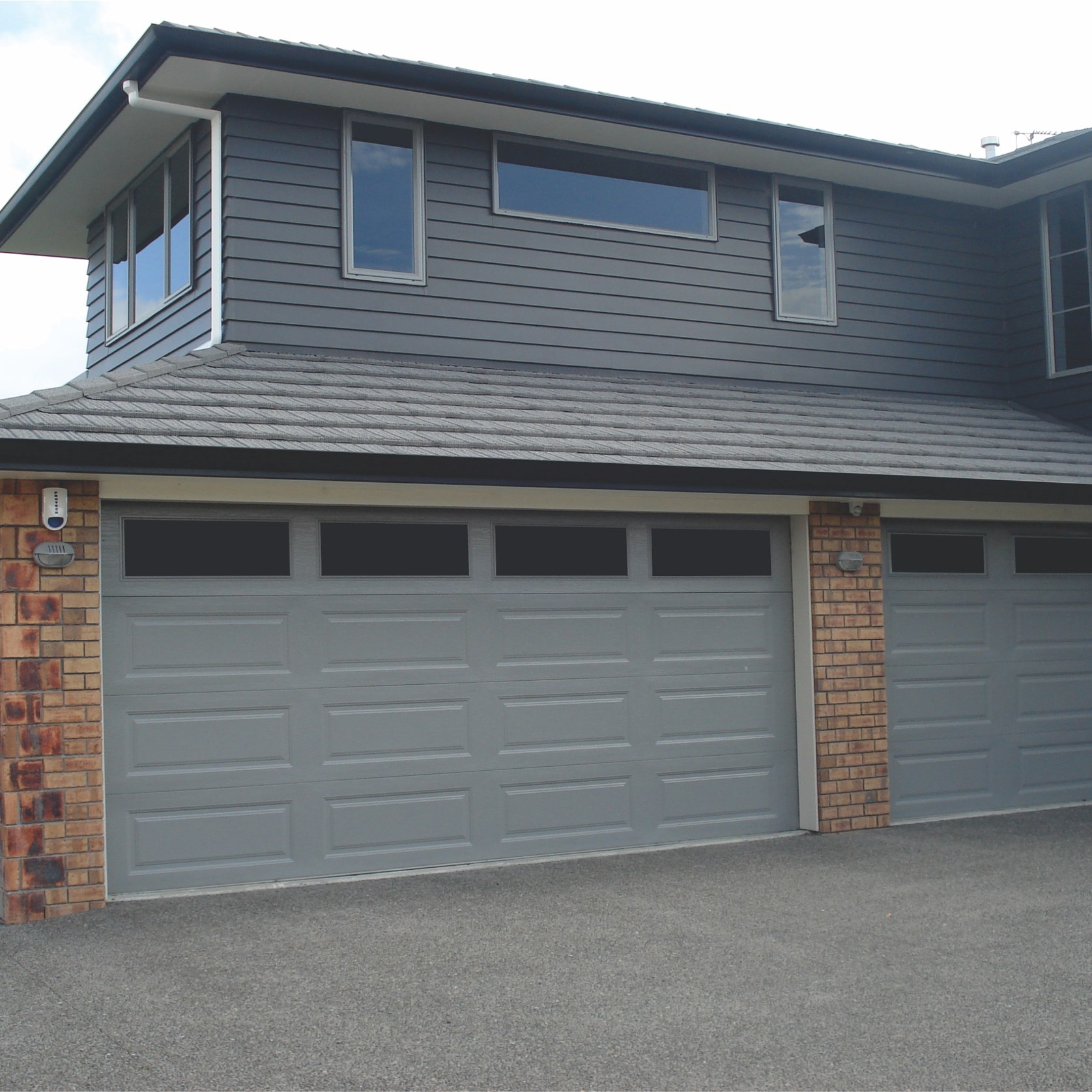

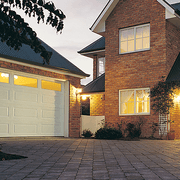

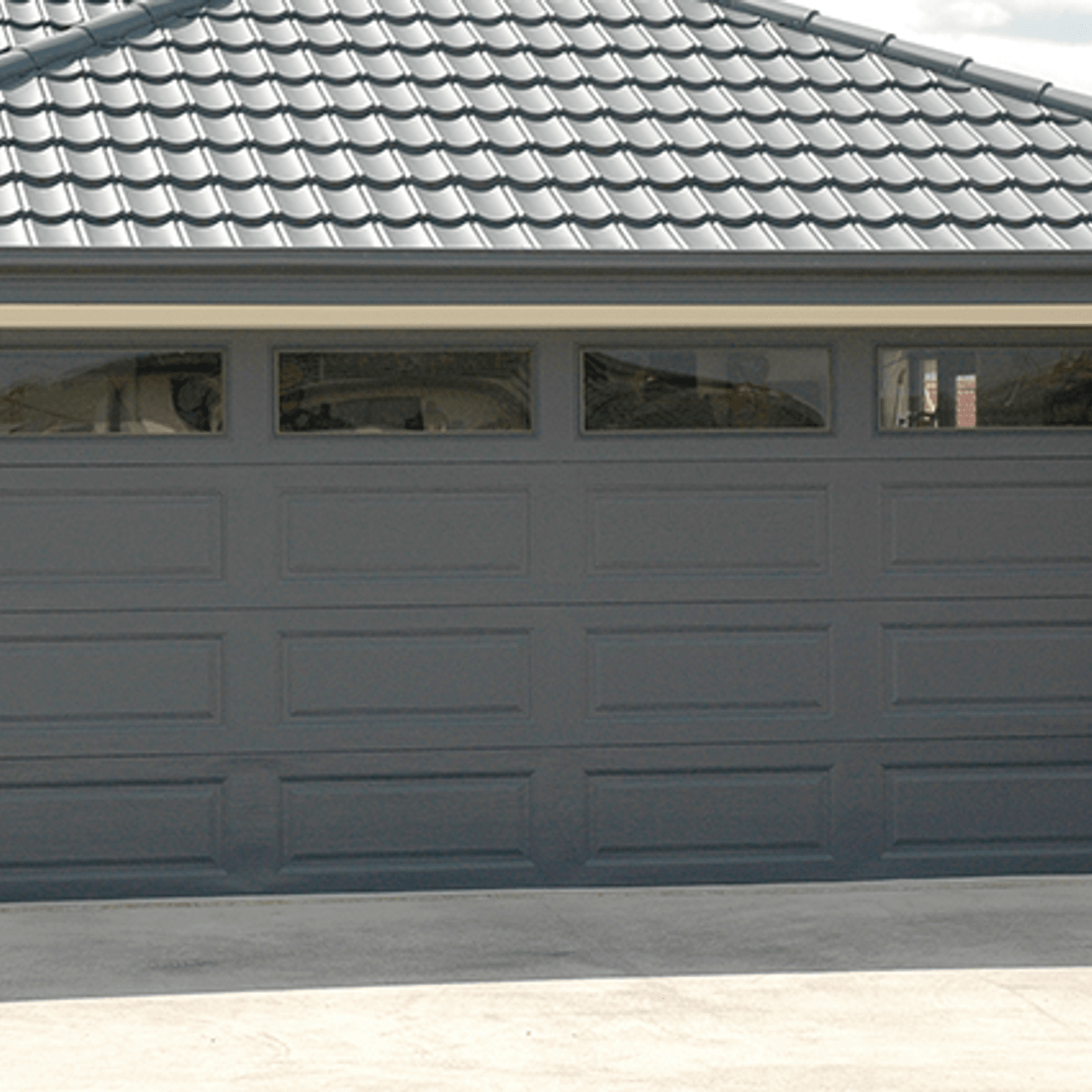

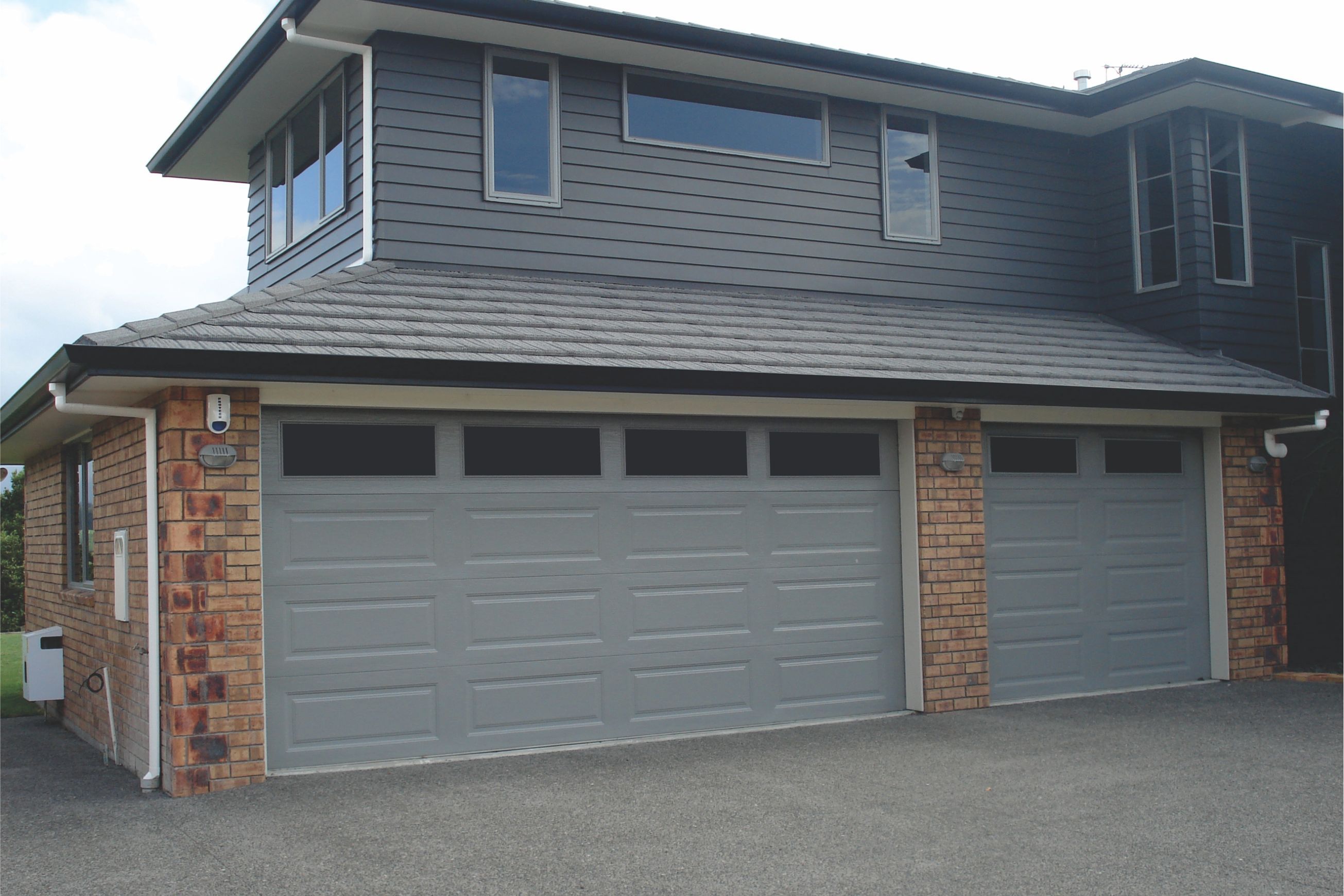

A garage door with a sweeping horizontal feel created by its rectangular, (370mm H x 990mm W) raised pressings; the Somerset lends itself to modern architecture while still maintaining its traditional style.

The number of pressings across your door is determined by the overall width of the opening and the resulting amount is spaced out evenly.

Designed to be operated with an automatic garage door opener, we recommend our GDO-9 with either the Chain or Belt-drive configuration for Somerset Sectional Garage Door installations.

The ‘Double Press’ range of window options are recommended for the Somerset sectional door as their size and position across the door will match the remaining pressings. Glazing with acrylic or toughened glass is available.

Manufactured by roll-forming 0.6 BMT COLORSTEEL® and then pressing the detail into the panel, the Somerset will provide a touch of the traditional to the front of your home.

SIZE RANGE

Available in Daylight Opening Sizes (DLO) from 1825mm to 3440mm in height and from 2400mm to 6600mm in width.

Additional sizes may be available, please discuss your requirements with your local Dominator Dealer.

PROFILE INFORMATION

Somerset 'Double Press' profile - Roll-formed Panel with 'Rectangular' Pressings.

Manufactured from 0.6 BMT COLORSTEEL®.

Fixed Sized Pressings of 370mm H x 990mm W - Quantity is width dependant. (4.8m wide panel shown.)

INSTALLATION CLEARANCES

Recommended Clearance Requirements:

• Standard Headroom - 320mm
• Standard Headroom with opener - 350mm
• Low Headroom with opener - 200mm (Opener Recommended)
• Sideroom - 140mm
• Backspace with opener - 3550mm (Door height up to 2300mm)

Download the Dominator Framing Specification Sheet

LIFTING SYSTEMS

Doors are provided for standard headroom (350mm) situations, unless otherwise specified.

Rear torsion and Intermediate Low Headroom systems are available as optional extras.

SMOOTH & QUIET

Dominator sectional garage doors will provide you with quiet, smooth operation.
Features include:

• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble free operation.
• Nylon wheels with ball bearings.

EASY OPERATION

Your Dominator sectional door will continue to be easy to open and close, with features such as:

• Ball bearing wheels with two-piece roll-formed track, allowing the door to run easily and smoothly during opening and closing.
• Full sized hinges reduce stress loading for consistent operation.

WEATHER PROTECTION

The garage today is used to store many different valuable objects, and in some cases is converted into another room, so weather protection is an important feature of any garage door. The Dominator sectional door features:

• Pre-painted steel, to stand up to the harsh New Zealand climate.
• Bottom weatherseal which is soft and pliable, helping to stop leaves and rain coming in under the door.
• Mohair option available to reduce gaps between the door and the door jamb, to keep out the weather.

DURABILITY

Your Dominator sectional door will continue to operate like new, with features such as:

• Springs designed to exceed the Aus/NZ Standard for garage doors – 20,000 cycles.
• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble free operation.

It’s important to have peace of mind when you make a purchase, that’s why your Dominator sectional door comes with the following warranty:

• 5 years for steel door curtain & associated labour, 1 year for surface coating, locking mechanism & all other components & associated labour.
• Industrial/Commercial use – 1 year for all components & labour.
