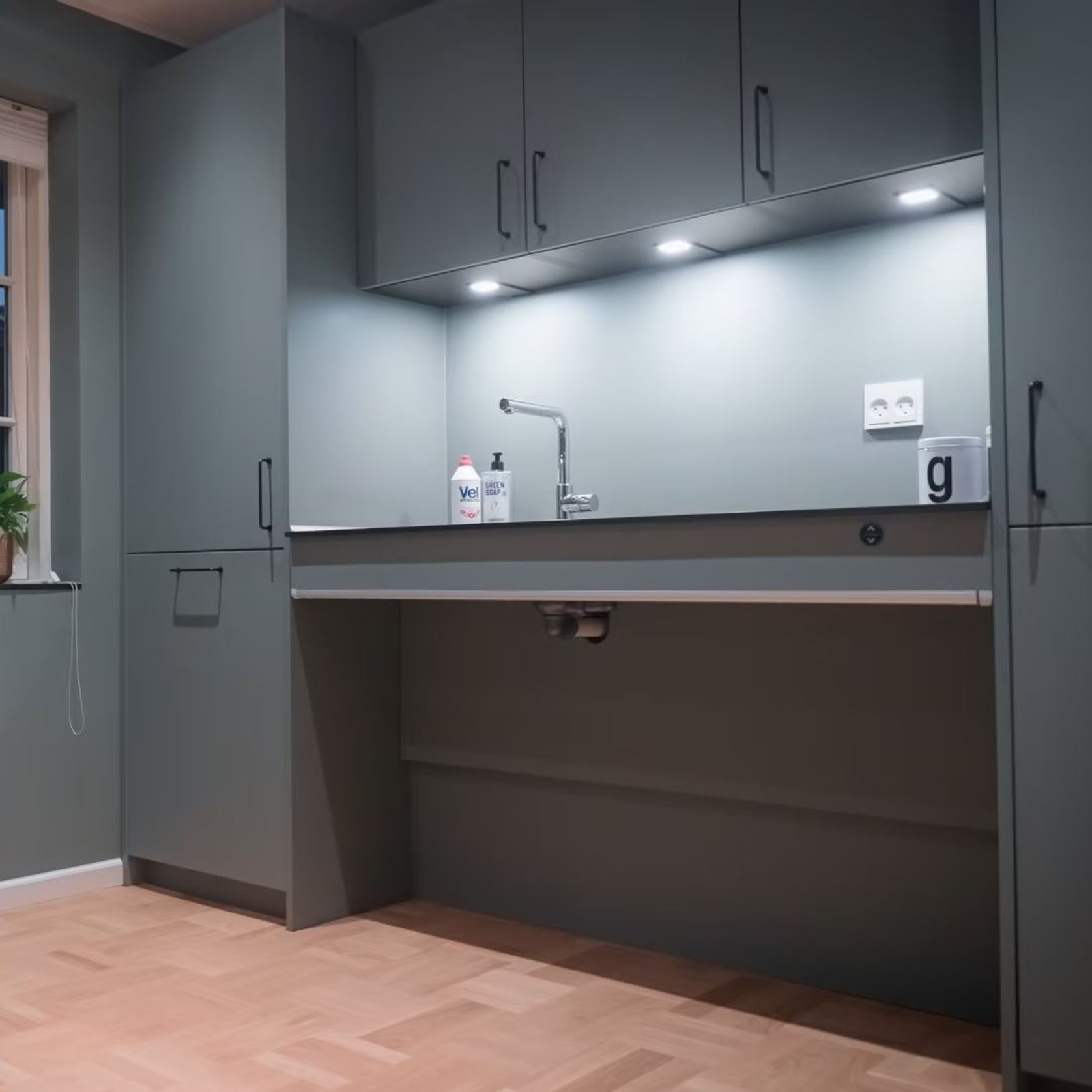

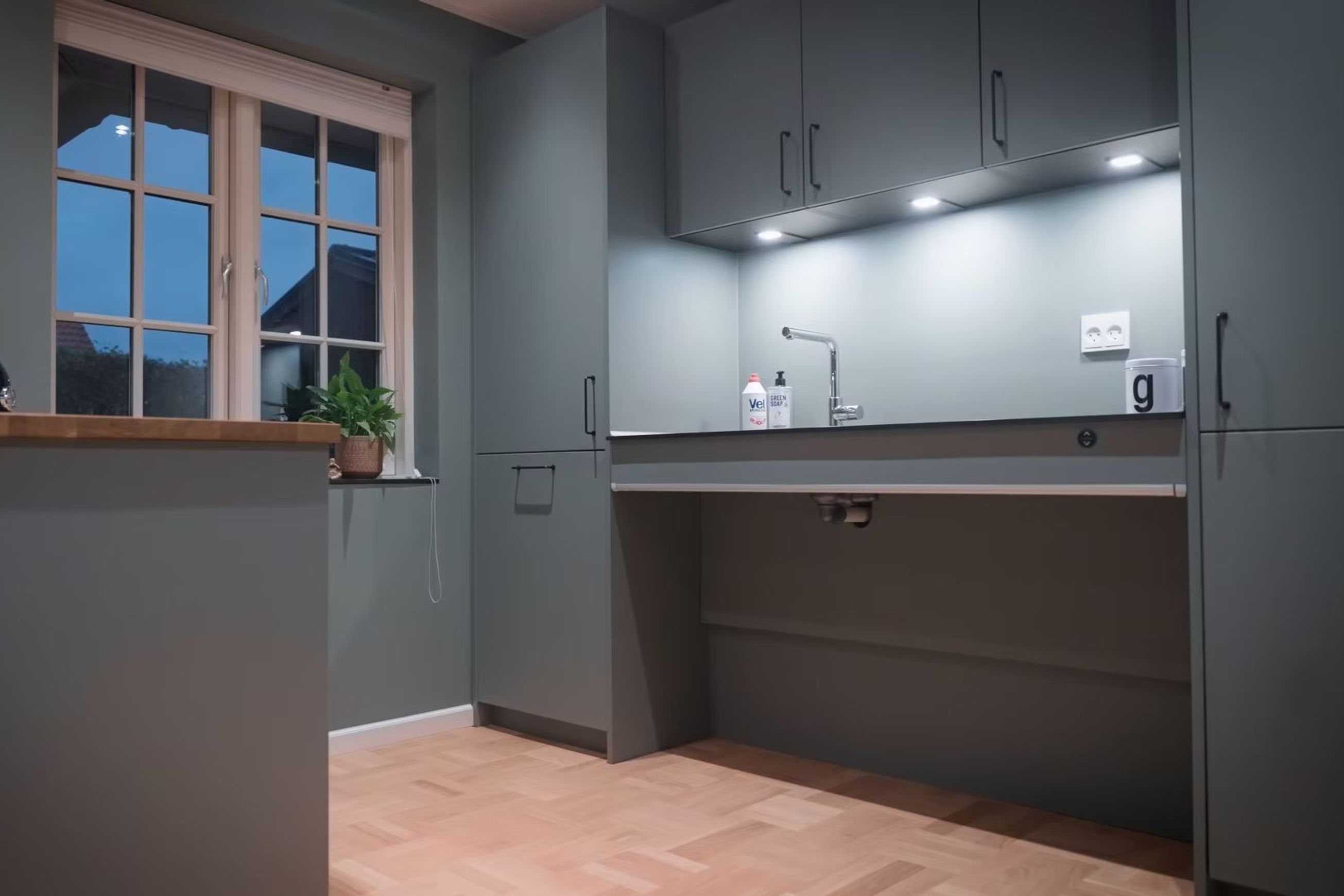

Electrical and Manual Height Adjusted Benchtop

An electric height-adjustable benchtop is ideal in all situations where various users – both seated and standing – use the same benchtop. This is the most common design preference in schools and rehabilitation facilities.

• Height of the benchtop is adjusted via a switch that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300mm.
• We can manufacture a height adjustable frame up to a maximum length of 3000mm.
• All our height adjustable electrically operated frames can lift 150 kg

A freestanding electric solution is a flexible work or dining table where the height of the worktop can be quickly and easily adjusted to the given user or situation. In addition to this a freestanding frame can be used where the walls are not strong enough to support our wall mounted models.

• Height of the freestanding benchtop is adjusted via a switch that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300 mm.
• The design of the legs and feet make the table stable and secure.
• It is possible to use the benchtop from all sides in a wheelchair.
• All our height adjustable frames can lift 100kg.
• Benchtops can be up to 3000 mm long and between 700-1000 mm wide

A manually height-adjustable benchtop is the budget solution for designs catering to both seated and standing users. These are most commonly used in areas which do not require frequent, daily adjustment.

• Height of the benchtop is adjusted via crank handle that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300 mm.
• We can manufacture a height adjustable frame up to a maximum length of 3000 mm.
• All our height adjustable frames can lift 100 kg

Wall cabinets can be moved diagonally towards the user, this makes it easy for seated users to see and access the contents of any cabinet. Height-adjustable wall cabinets provide extra storage options when traditional storage cannot be installed under benchtops, out of consideration for wheelchair access.

• Adjustment of the wall cabinet frame is via a switch located under the leading edge of the benchtop.
• You can locate this switch wherever you like under the leading edge of the benchtop.
• The design of the height adjustable frames ensures that they are as discreet as possible, regardless of the cabinet position.
• When the wall cabinets are lowered 430 mm to their lowest position, they are also extended 180 mm towards the user.
• Wall cabinets up to 2400 mm long can be installed on our height adjustable frames.
• Both of the wall cabinet frames we manufacture can lift between 110–220 kg’s, depending on the model used.
