Elevate | Series 672 | UltraEDGE™ Sliding Window 150mm

Architectural Window Systems
Visit Website

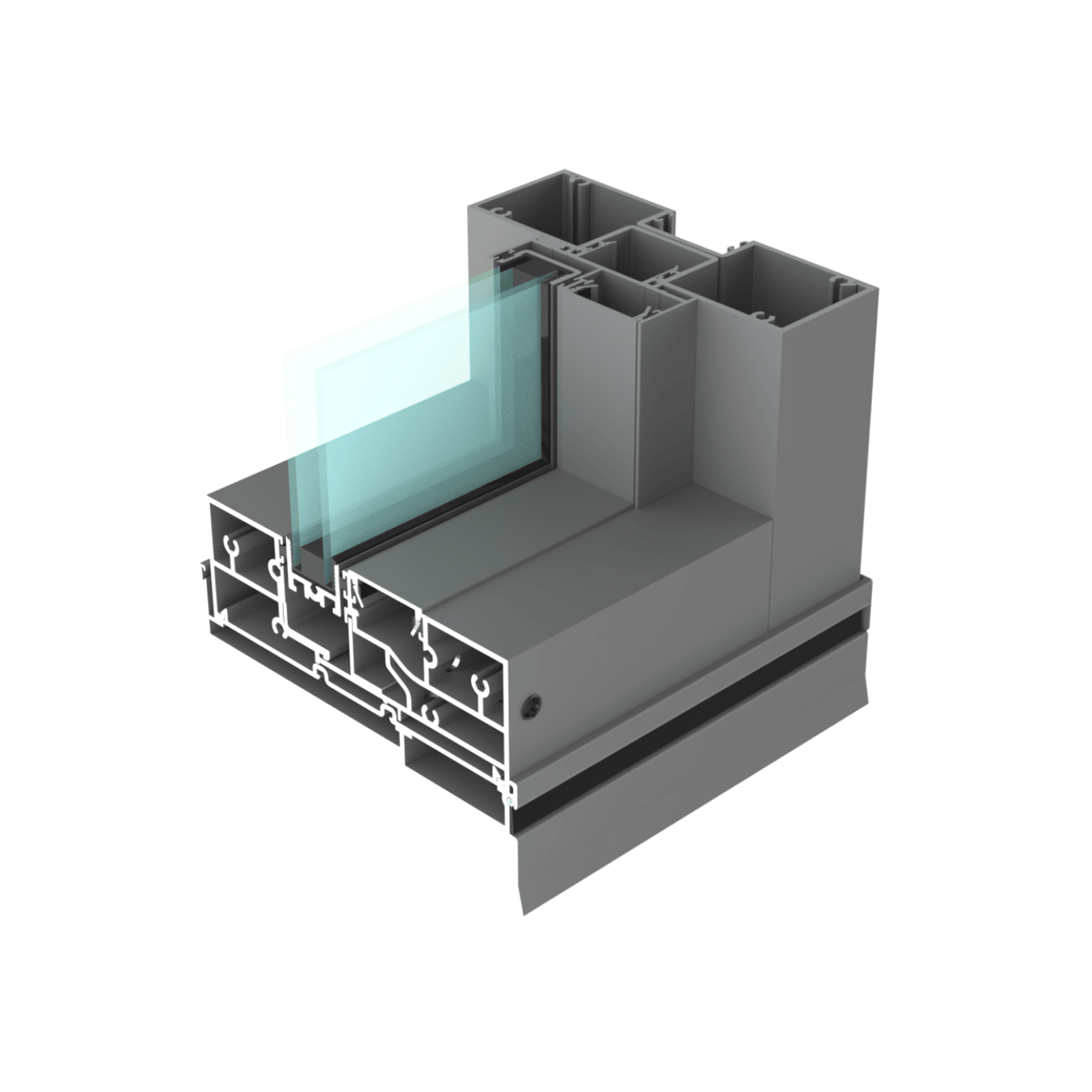

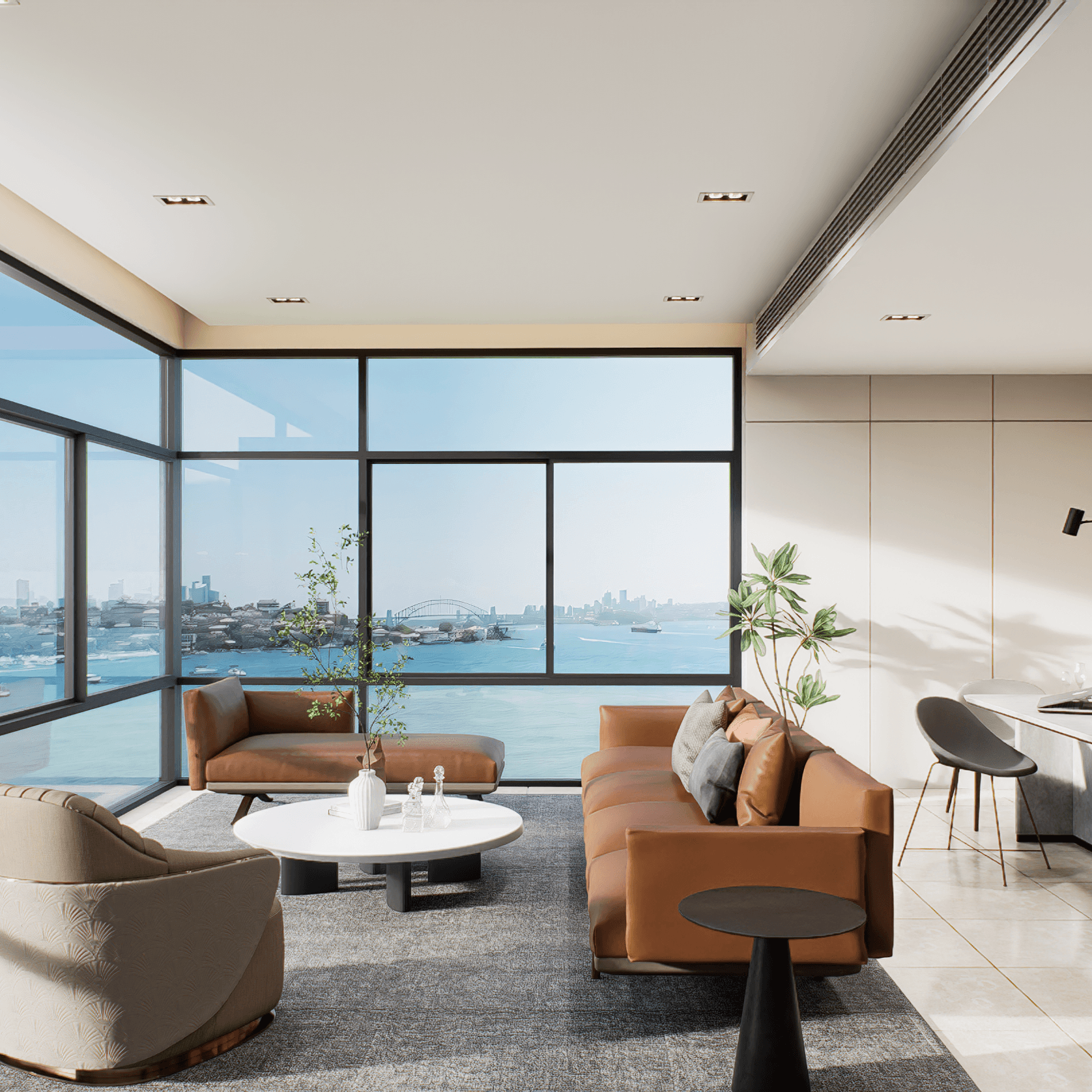

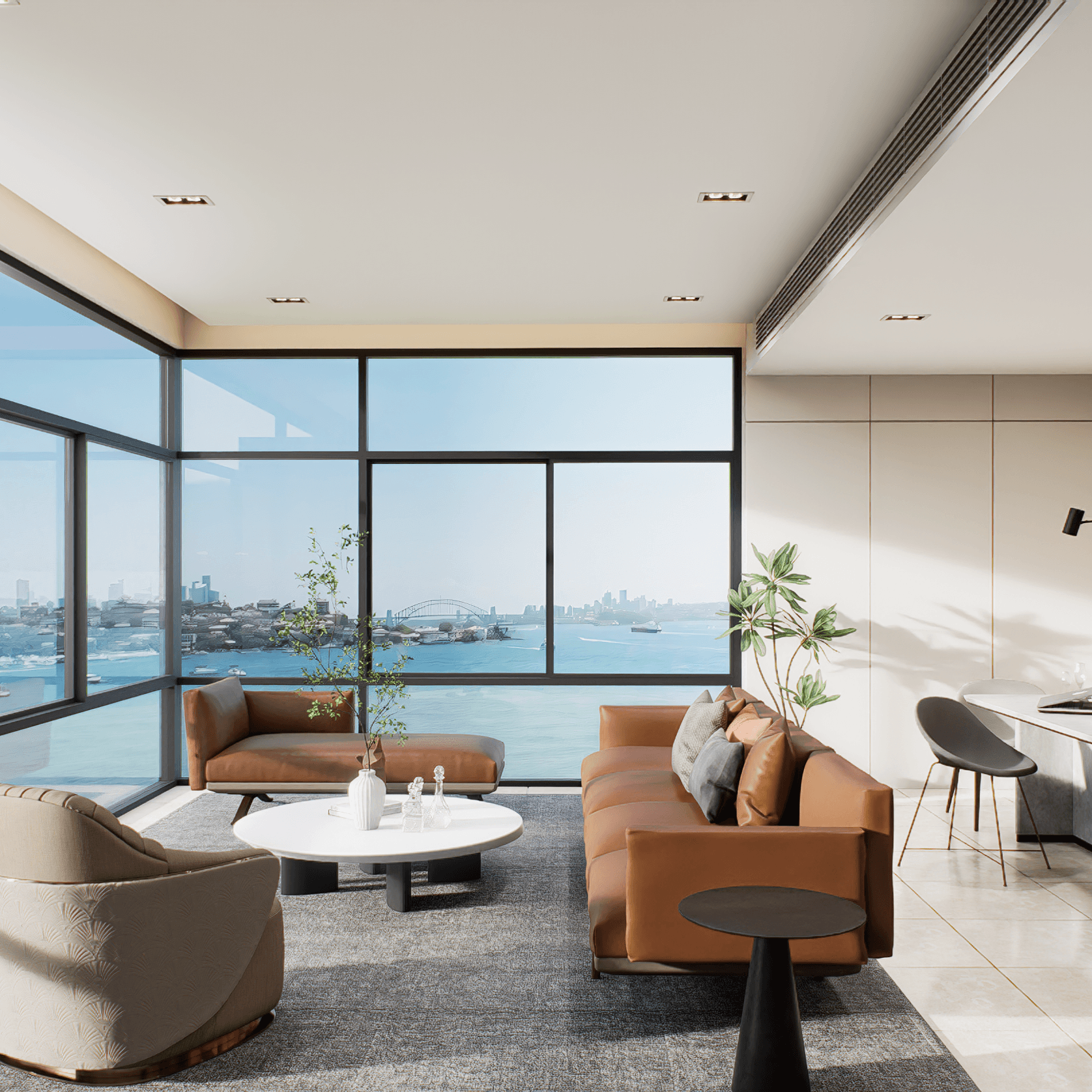

Elevate | Series 672 | UltraEDGE™ Sliding Window 150mm gallery detail image

The UltraEDGE™ Sliding Window (150 mm) frame delivers a clean, modern glazing solution with concealed sash rails for a smooth, minimalist look. Built for tough Australian conditions, it offers strong water and pressure performance and supports flexible glazing options from single to double glazing.

The system integrates seamlessly with AWS commercial framing, features refined slim-line interlocks, and can be reinforced for higher wind loads. With multiple locking choices and discreet flyscreen options, it provides a strong, versatile, and visually consistent solution for commercial, residential, and mixed-use projects.

Details
  • Category
    Sliding Windows
Specifications
  • Seamless Form and Function – The top and bottom sash rails are completely concealed within the frame, producing a smooth transition between glass and structure that enhances visual purity and reinforces UltraEDGE™’s signature clean, architectural lines.
  • Engineered for Australian Conditions – With a water resistance rating of 500Pa and an Ultimate Pressure of 7450Pa +/-, UltraEDGE™ is designed to perform in Australia’s most exposed environments.
  • Versatile Glazing Capability – The wrap-around double-glazed sash accommodates 20mm IGUs with a continuous glazing channel, while single-glazed options accept glass from 4mm to 10.38mm for maximum flexibility.
  • Integrated Framing Compatibility – Fixed lights are glazed directly into the matching AWS commercial framing system, maintaining visual continuity and performance integrity across the façade.
  • Refined Minimalism – Sashes feature multiple interlock options, including an ultra-slim 15mm stile that accentuates the minimalist aesthetic without compromising strength.
  • Adaptable Structural Options – Optional sash and mullion reinforcements support a wide range of design wind loads, ensuring reliable performance across commercial, residential and mixed-use applications.
  • Flexible Locking and Security – Sliding sashes can be configured with a custom meeting stile key lock, push-button jamb lock, or vent lock for tailored security and ventilation control.
  • Discreet Screening Solution – Optional flyscreens fit neatly into the head and sill, secured by custom-moulded nylon clips for a clean, unobtrusive finish.
