Bradford Fibertex 820 is a specialty purpose industrial insulation for use on high temperature furnace and hydrocracker insulation as well as for use in marine and building application for fire protection. It is a heavy duty thermal and acoustic insulation suitable for continuous operation up to 820°C and exhibits minimal shrinkage.

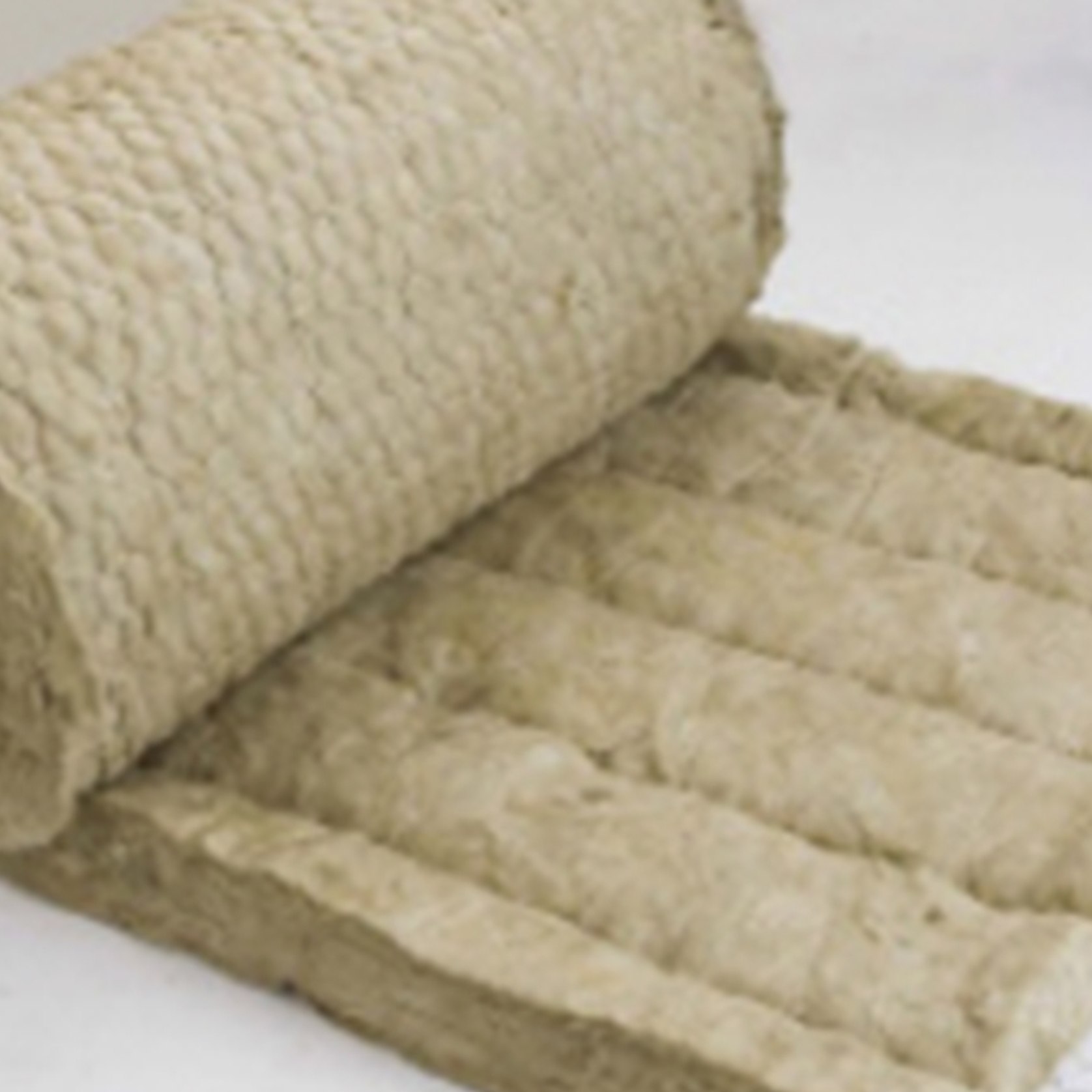

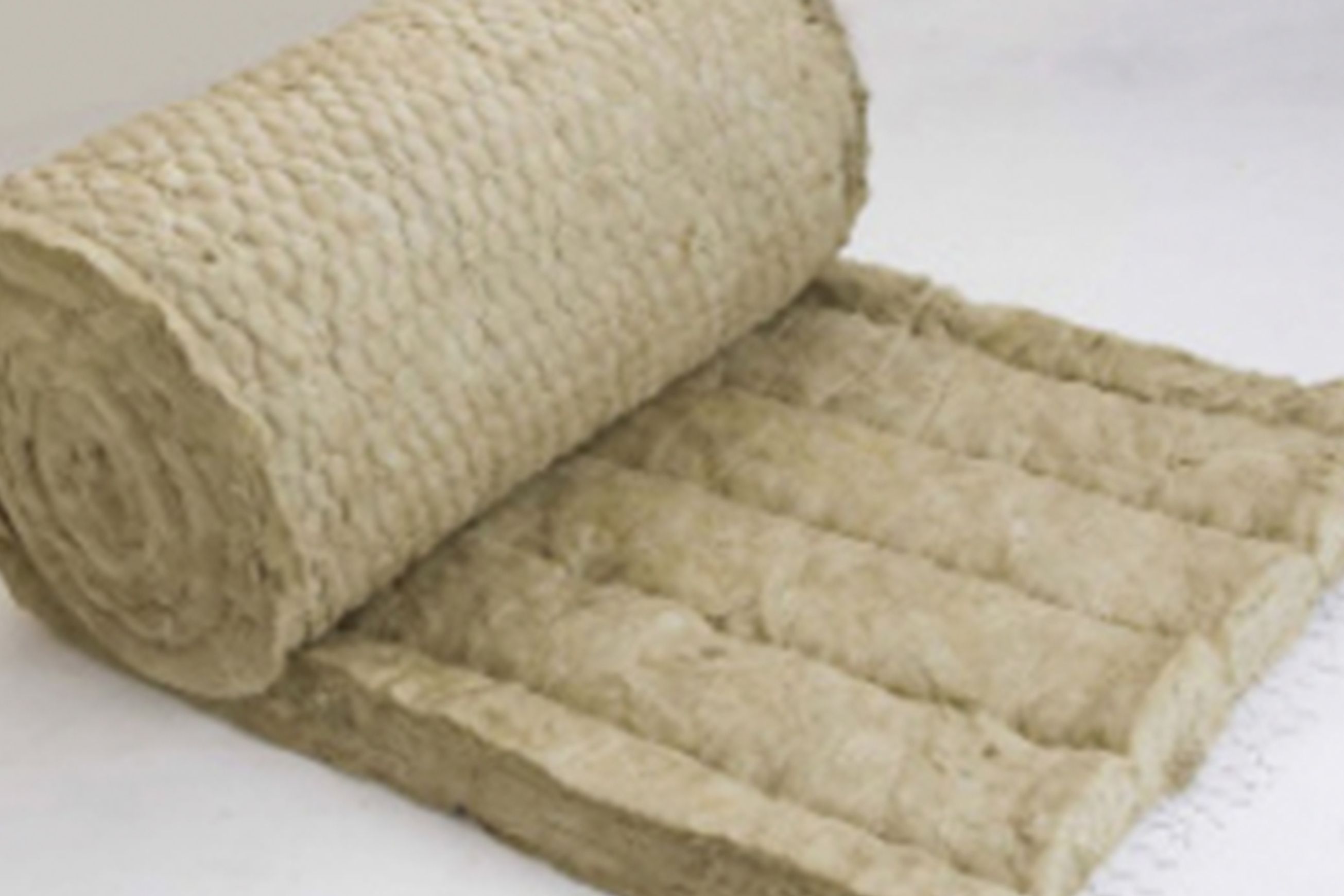

Bradford Fibertex 820 Rockwool is a robust very high density insulation product for insulation in high temperature applications. It is manufactured by spinning a molten mixture of natural rock and recycled products into fine wool like fibres which are bonded together using a thermosetting resin. The product can be identified by its dark green/black appearance.
Features and Benefits:
- Highly durable insulation product
- Cost effective high temperature insulation
- Performance is not adversely effected from contact with water
- Non-combustible (un-faced products only)
- Biosoluble safe to use product
Product Details
- Product
- Fibertex 820 Board & Blanket
- Category
- Wall Insulation
- Sold by
- CSR Bradford Insulation
Product Variants
- Colours
- Material
- Size
CSR Bradford Insulation is specified by
Bradford Fibertex 820 is a specialty purpose industrial insulation for use on high temperature furnace and hydrocracker insulation as well as for use in marine and building application for fire protection.
It is a heavy duty thermal and acoustic insulation suitable for continuous operation up to 820°C and exhibits minimal shrinkage.
Bradford Fibertex 820 Rockwool is a robust very high density insulation product for insulation in high temperature applications. It is manufactured by spinning a molten mixture of natural rock and recycled products into fine wool like fibres which are bonded together using a thermosetting resin. The product can be identified by its dark green/black appearance.
Features and Benefits:
- Highly durable insulation product
- Cost effective high temperature insulation
- Performance is not adversely effected from contact with water
- Non-combustible (un-faced products only)
- Biosoluble safe to use product
- Scope of use
Fibertex 820 can be used in applications up to operating temperatures of 820°C such as process temperature control, energy conservation, condensation prevention, acoustic absorption treatment and personnel protection from plant and equipment. Typical applications include:
- lightweight furnace lining
- fire rated bulkheads and deck-heads
- boilers
- eat exchangers
- reactors
- ovens
- kilns
- autoclaves
- large diameter piping
Bradford Fibertex 820 is easily installed by impaling the boards or blankets on weld pins and securing with speed clips. Please note because of the semi-rigid nature of Fibertex 820, it does not easily conform to curved surfaces.
The un-faced surface of the Rockwool board or blanket is to be applied to the hot surface to be insulated.
Downloads
Downloads (2)2 Direct downloads • 10 Available on request
Frequently asked questions about
Fibertex 820 Board & Blanket
The Fibertex 820 Board & Blanket is supplied by CSR Bradford Insulation. It is also on their website, and you can browse every product CSR Bradford Insulation lists on ArchiPro.
CSR Bradford Insulation does not publish a price for the Fibertex 820 Board & Blanket on ArchiPro. for pricing, or visit their website.
It comes in 6 sizes: Board 114095 - L1200 x D25 x W600 mm, Board 114096 - L1200 x D50 x W600 mm, Board 114097 - L1200 x D75 x W600 mm, Blankets 118493 - L4000 x D25 x W600 mm, Blankets 118493 v2 - L4000 x D50 x W600 mm and Blankets 118493 v3 - L4000 x D75 x W600 mm. For a size that is not listed, .
Yes. It is part of the Commercial Insulation range from CSR Bradford Insulation, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The CSR Bradford Insulation profile on ArchiPro has the rest of their products.
