FireStrip ALX Construction Foam

Name: FireStrip ALX Construction Foam
Brand: CSR Potter Interior Systems

Auckland

404.0K profile views
52 saves

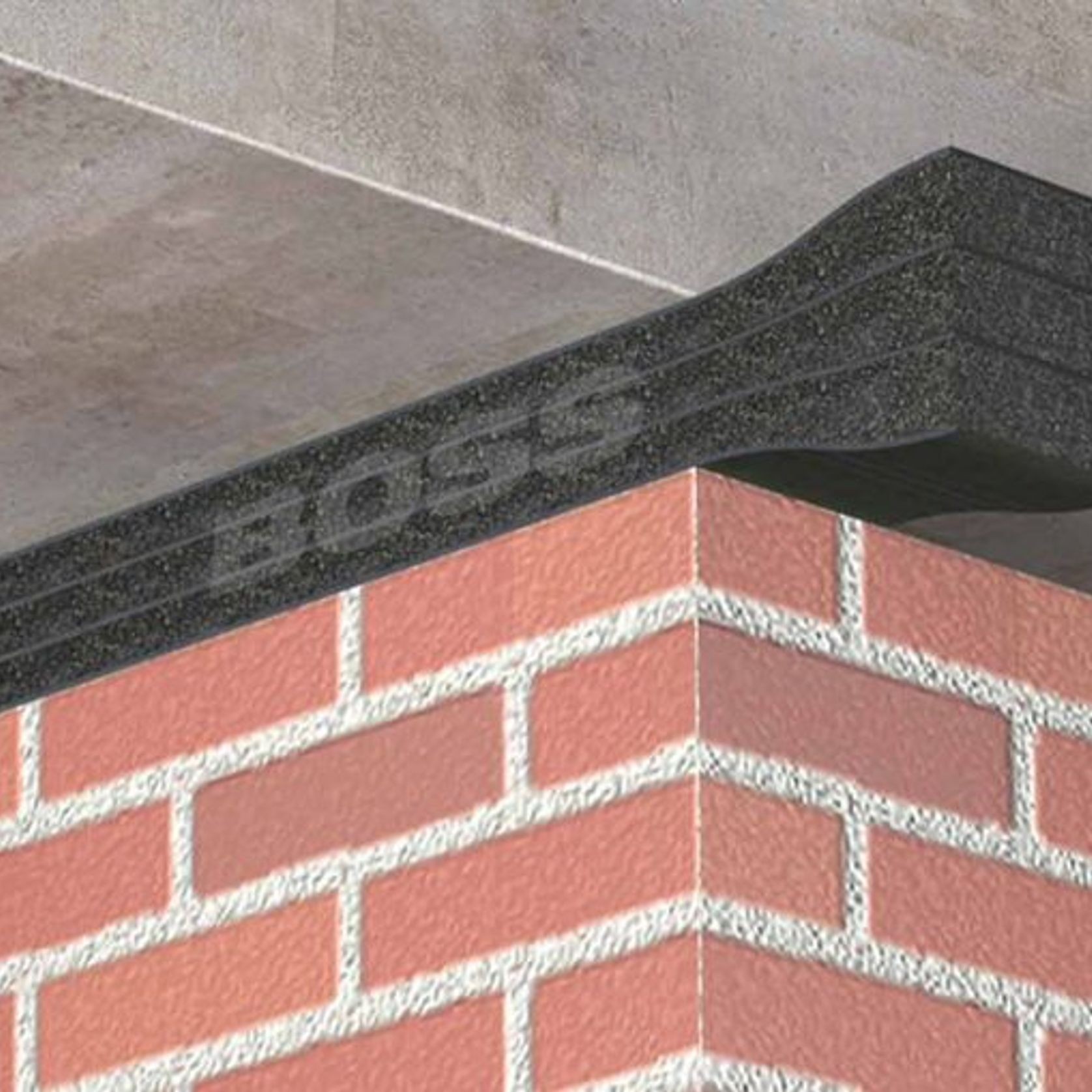

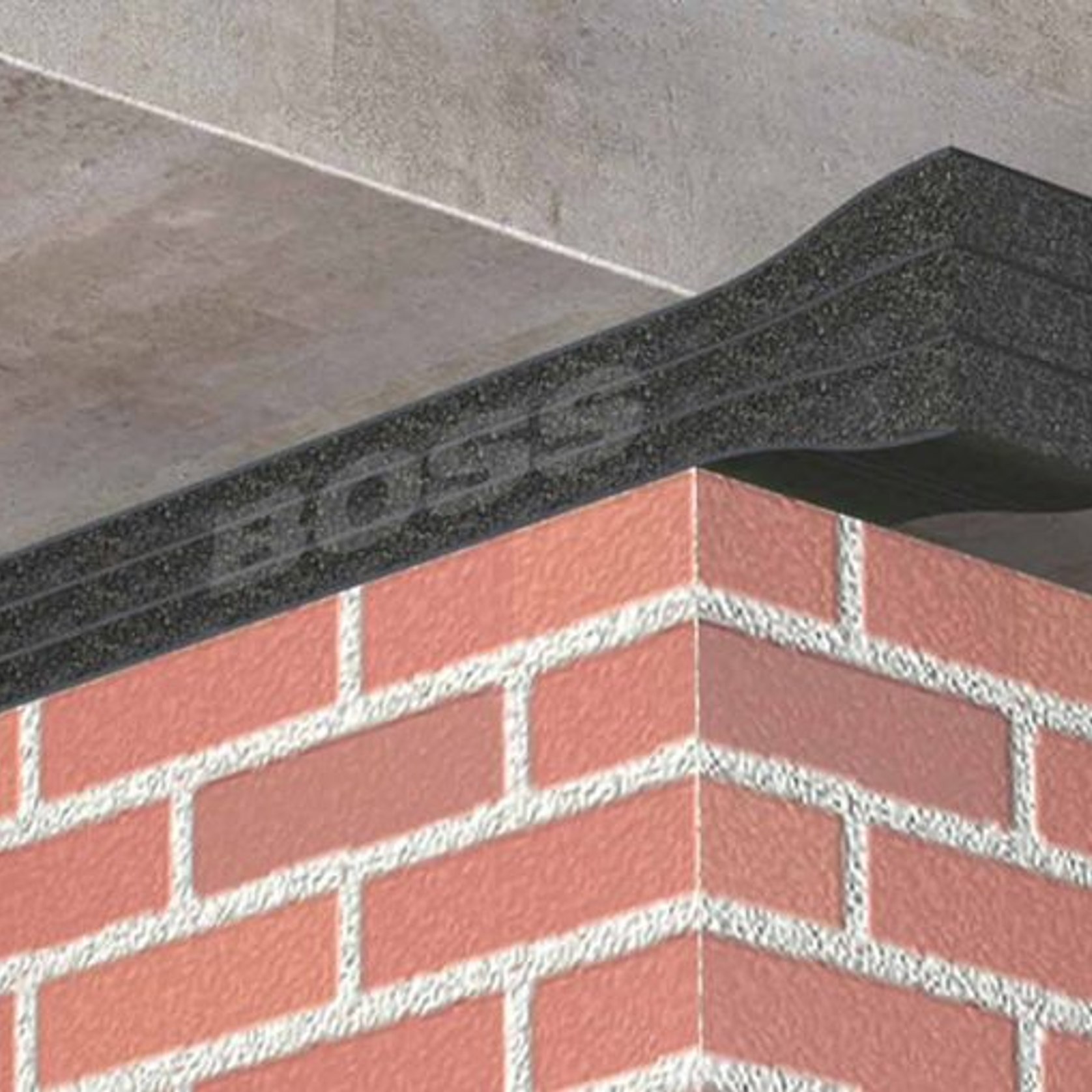

FireStrip ALX Construction Foam is elastomeric foam laminated with a graphite based intumescent compound on both sides. It is designed to perform as a 2 or 4-hour barrier in construction movement joints. Designed for long linear installations in horizontal and vertical applications.

FireStrip-ALX is a flexible water resistant seal that expands when exposed to heat. It can also be used as a fire barrier inside cable trunkings allowing for the installation of further cables. FireStrip-ALX has Acoustic Isolation to 22dB.

Tags

passive fire fire strip fire strip foam fire stopping elastomeric foam

Product Details

Product: FireStrip ALX Construction Foam
Category: Fire Systems
Sold by: CSR Potter Interior Systems
Brand: BOSS

CSR Potter Interior Systems is specified by

(33) Professionals

Visit site

It is designed to perform as a 2 or 4-hour barrier in construction movement joints. Designed for long linear installations in horizontal and vertical applications. FireStrip-ALX is a flexible water resistant seal that expands when exposed to heat. It can also be used as a fire barrier inside cable trunkings allowing for the installation of further cables. FireStrip-ALX has Acoustic Isolation to 22dB.

FireStrip ALX Construction Foam is elastomeric foam laminated with a graphite based intumescent compound on both sides.

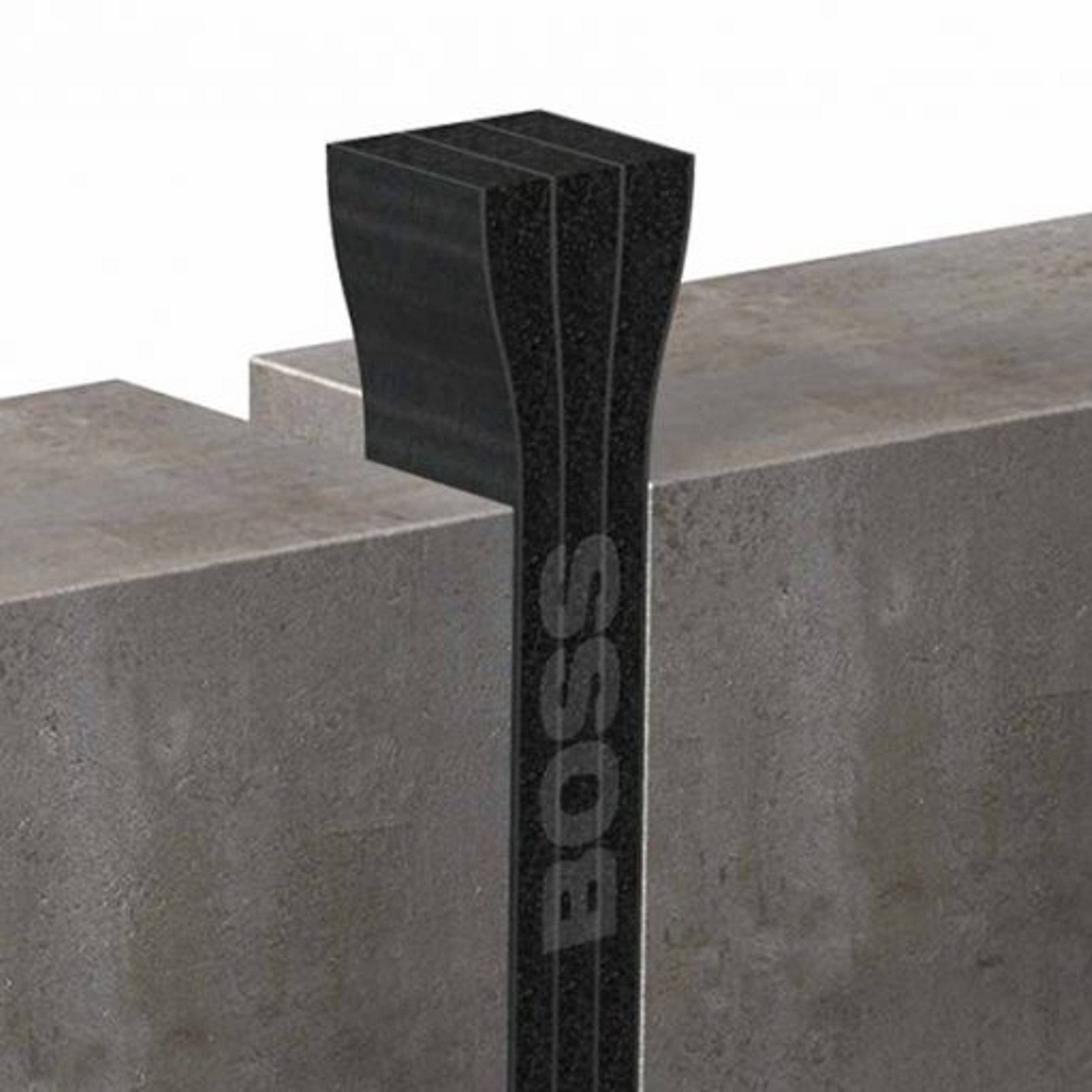

It is designed to perform as a 2 or 4-hour barrier in construction movement joints. Designed for long linear installations in horizontal and vertical applications.

Specs: Colour - Black

Density 75Kg/m3

Fire Resistance Up to 4hrs

Acoustic Performance

Acoustic Reduction up to 8Rw, 22DnTW EN10140

Expansion Ratio 25 times

Max. Size of Aperture 150mm

Max. Size of Seal 170mm (other sizes can be requested)

Seal Length 1000mm Seal Width Various – see table

Movement Capability +\- 50% (compression of 75%/expansion)

Compression 75% Expansion 40%
Benefits: Fire rated up to 240 mins

Acoustic Isolation to 22dB

Air Permeability testing to 600Pa - 100Pa

Tested in Block Wall, Concrete and Masonry

Tested in Concrete Floors

Tested in Linear Joints up to 150mm wide

Tested with Cables, Cable Bunches, Cable Trays and Cable Trunking 

Contributes to Green Building

Joint movement capability of +/- 50%

Highly flexible and water resistant

Maintenance free

Available up to 150mm gap size

Halogen free, resists fungi and vermin
