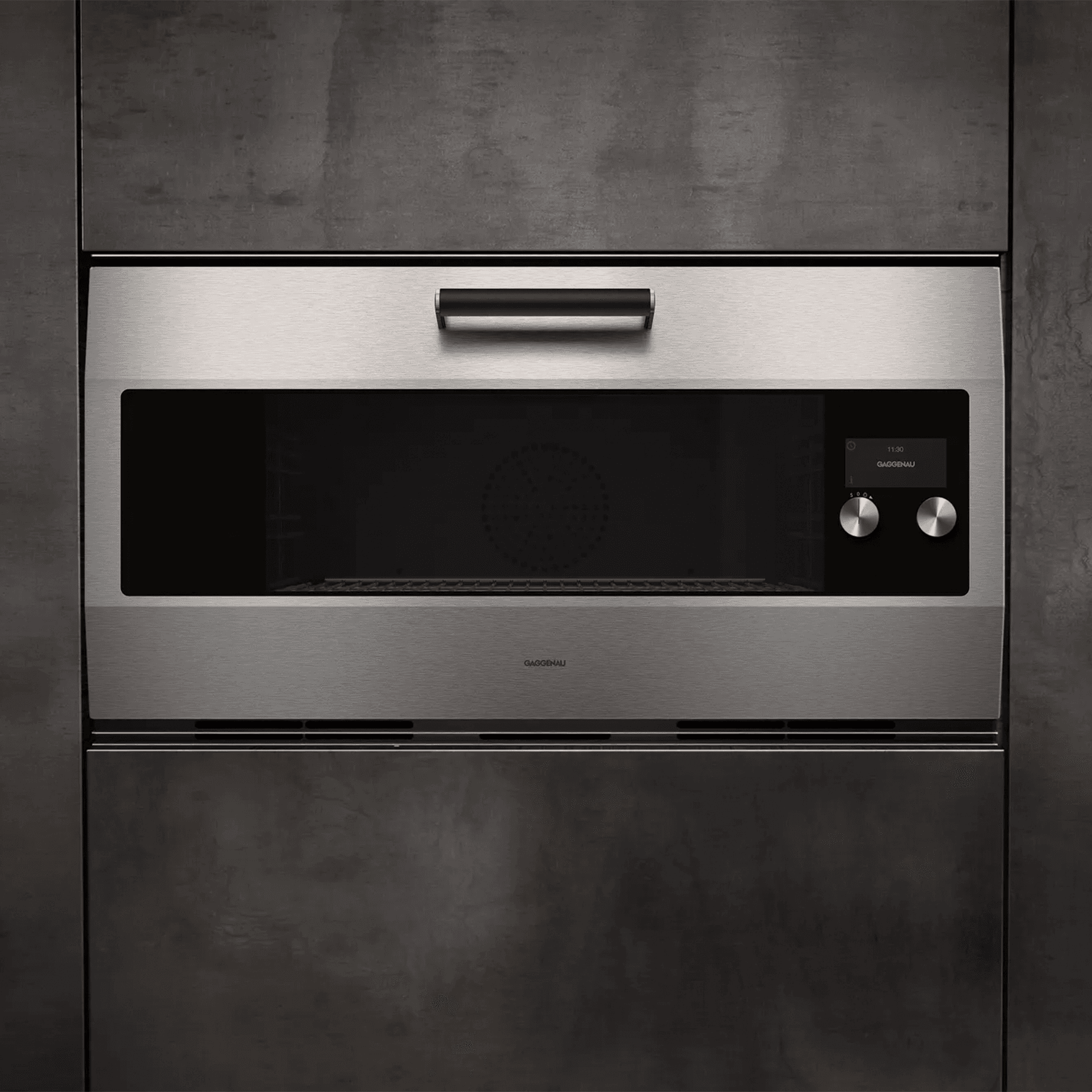

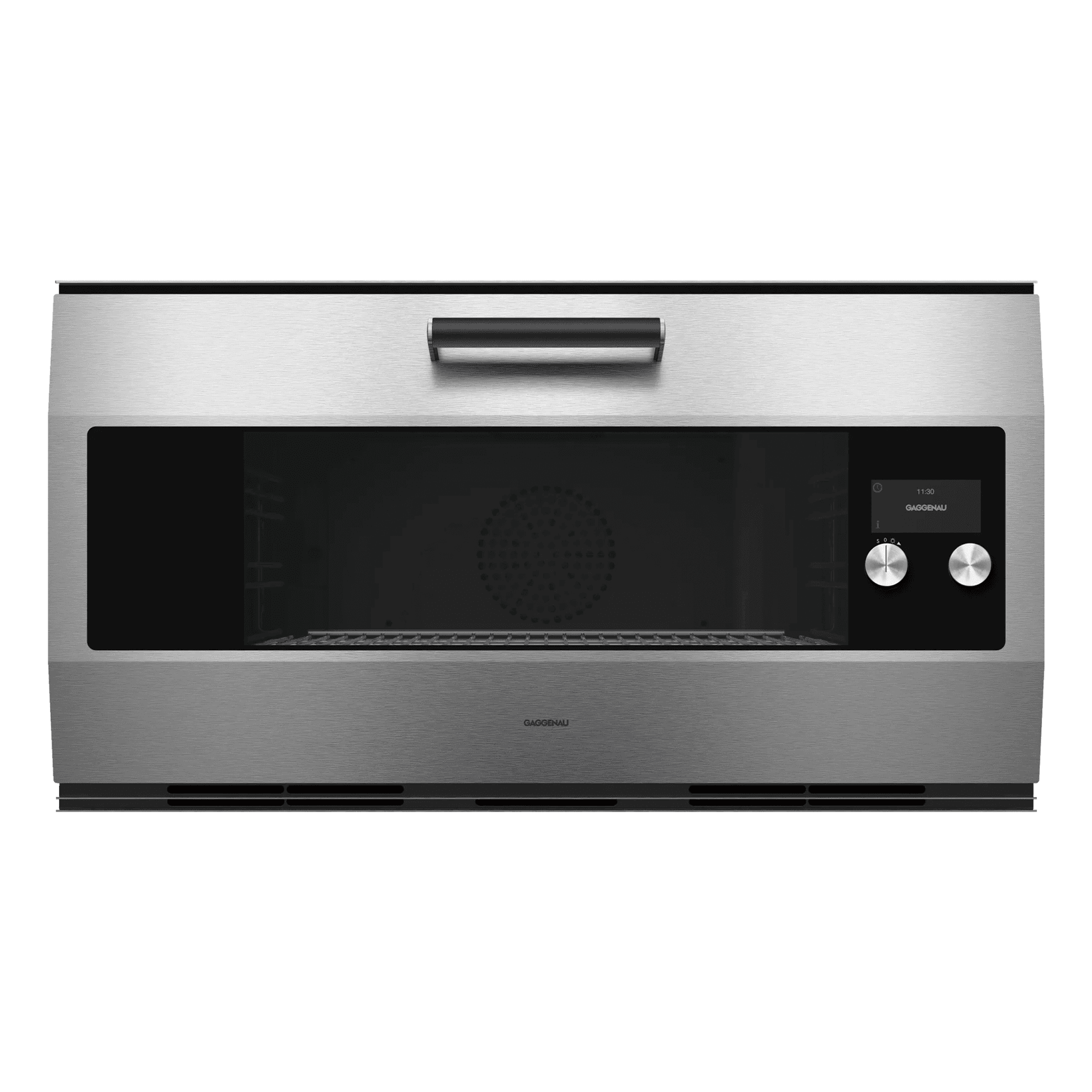

Gaggenau Built-in Oven 90 x 48 cm Stainless Steel

Size, Door, Colour &Controls

• Stainless Steel - 90 x 48 cm



Heating methods

Hot air.

Eco hot air. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Hot air + bottom heat. Hot air + 1/3 bottom heat. Full surface grill + circulated air. Full surface grill. Compact grill. Baking stone function. Roaster function. Dough proofing. Defrosting. Keeping warm.

Capacity

• Rotary knob and TFT touch display operation.

• Clear text display.

• Option to save individual recipes (incl. core temperature probe).

• Personalisation of automatic programmes.

• Information key with use indicators.

• Front-hinged door with 90° door opening angle.


Safety

• Child lock.

• Safety shut-off.

• Cooled housing with temperature protection.

• Thermally insulated door with quintuple glazing.


Cleaning

• Pyrolytic system.

• Gaggenau enamel.

• Heated catalyser to clean the oven air.


Connection

• Total connected load 3.1 KW.

• Connecting cable 1.8 m with plug.

• Plan a LAN cable.

• Power consumption standby/display on 0.8 W.

• Power consumption standby/display off 0.5 W.

• Power consumption standby/network 1.8 W.

• Time auto-standby/display on 20 min.

• Time auto-standby/display off 20 min.

• Time auto-standby/network 20 min.

• Please check the user manual for how to switch off the WiFi module.

• Three-point core temperature probe with automatic shut-off and estimation of cooking time.
• Automatic programmes.
• Rotisserie spit.
• Baking stone socket.
• Actual temperature display.
• Rapid heating.
• 60 W halogen light on the top.
• 2 x 10 W halogen light on the side.
• Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
• Home network integration for digital services (Home Connect) either via cable connection LAN or wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

• The door panel surface of the appliance extends 40 mm from the furniture cavity.
• The outer edge of the door handle extends 90 mm from the furniture cavity.
• For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 15 mm. The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into account.
• To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.
• The mains socket needs to be planned outside the built-in niche.
• The LAN port can be found at the back on the upper left side.
• Total connected load 5.4 KW.
• Plan a connection cable.
• Plan a LAN cable.
• Power consumption standby/display on 0.7 W.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 1.5 W.
• Time auto-standby/display on 20 min.
• Time auto-standby/display off 20 min.
• Time auto-standby/network 20 min.
• Please check the user manual for how to switch off the WiFi module.
