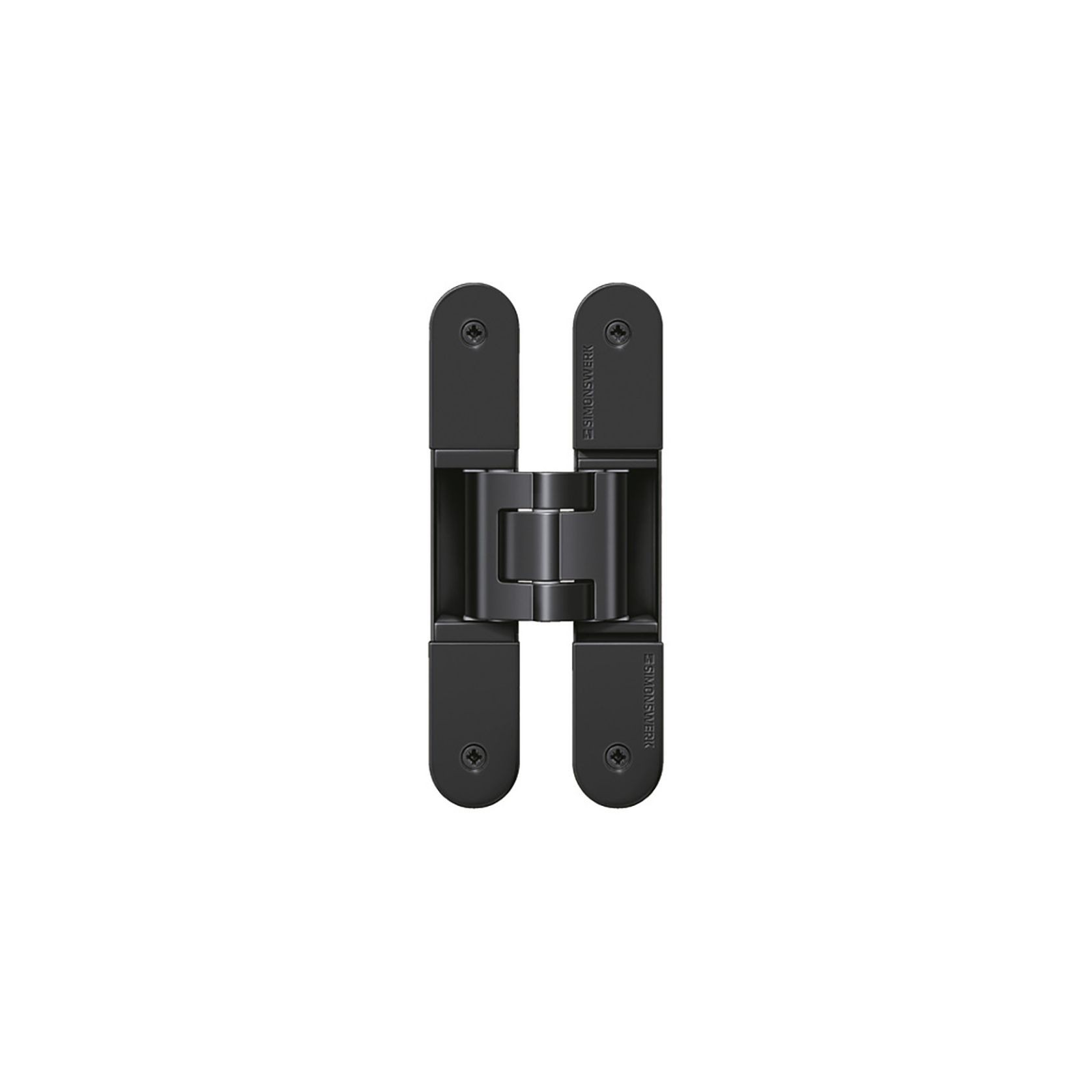

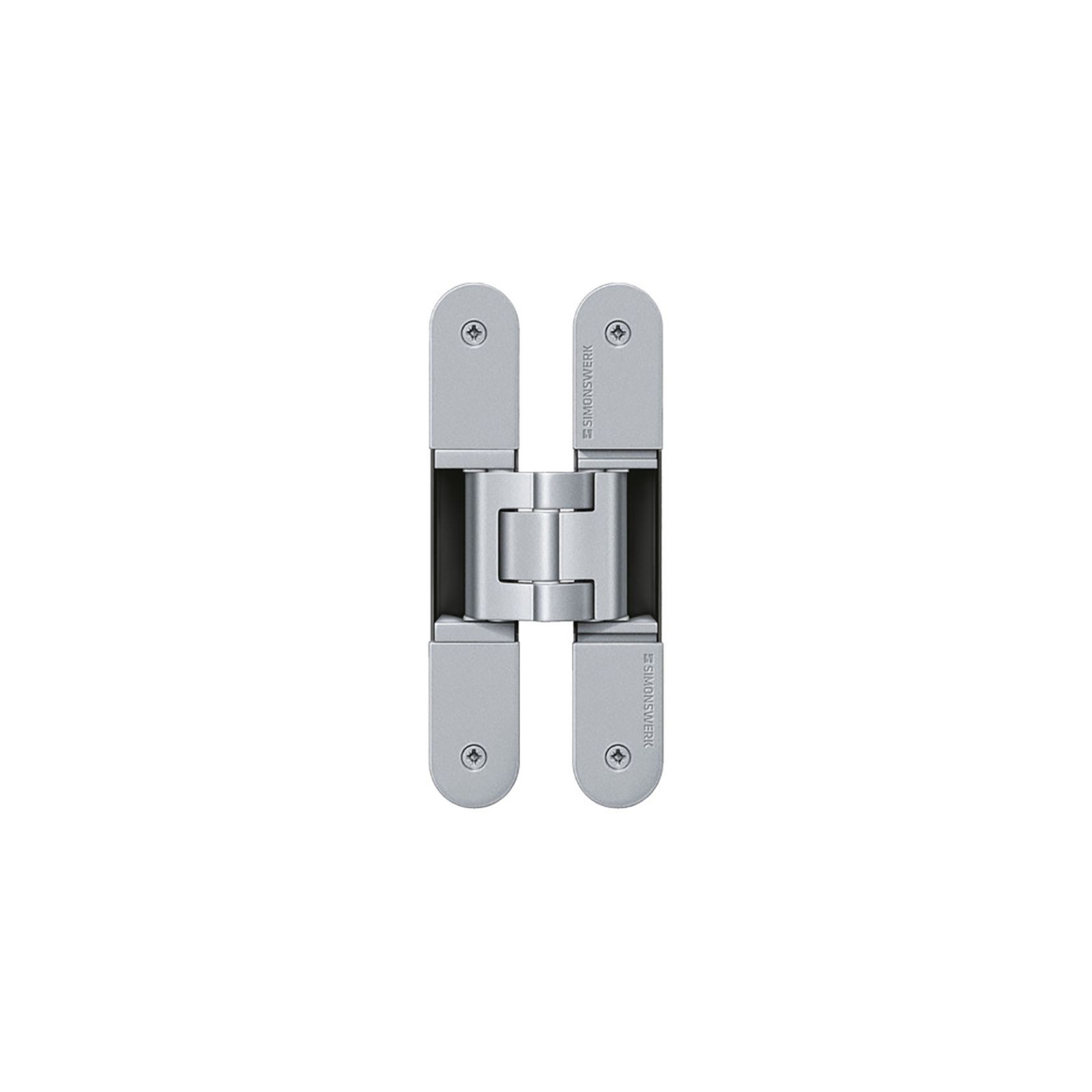

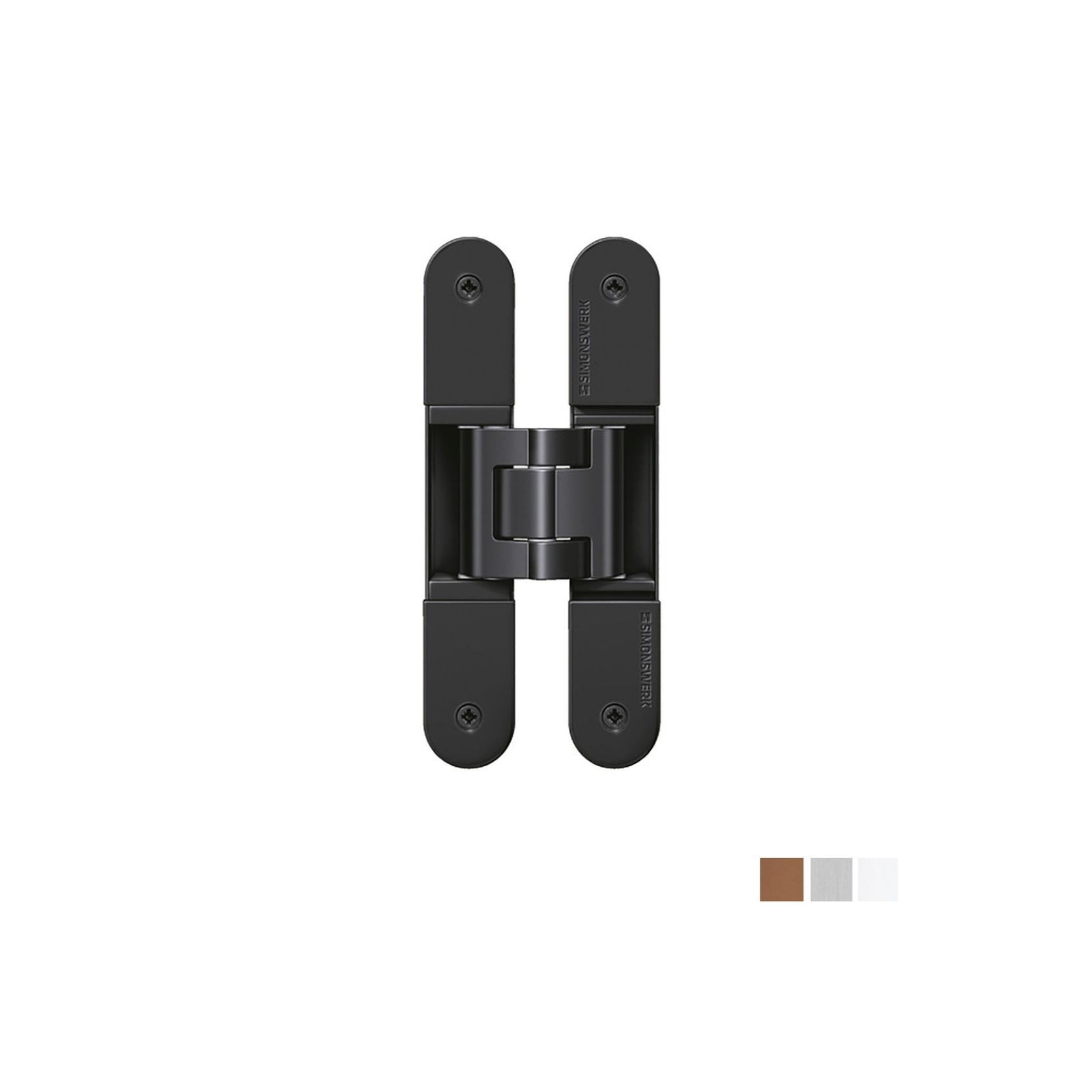

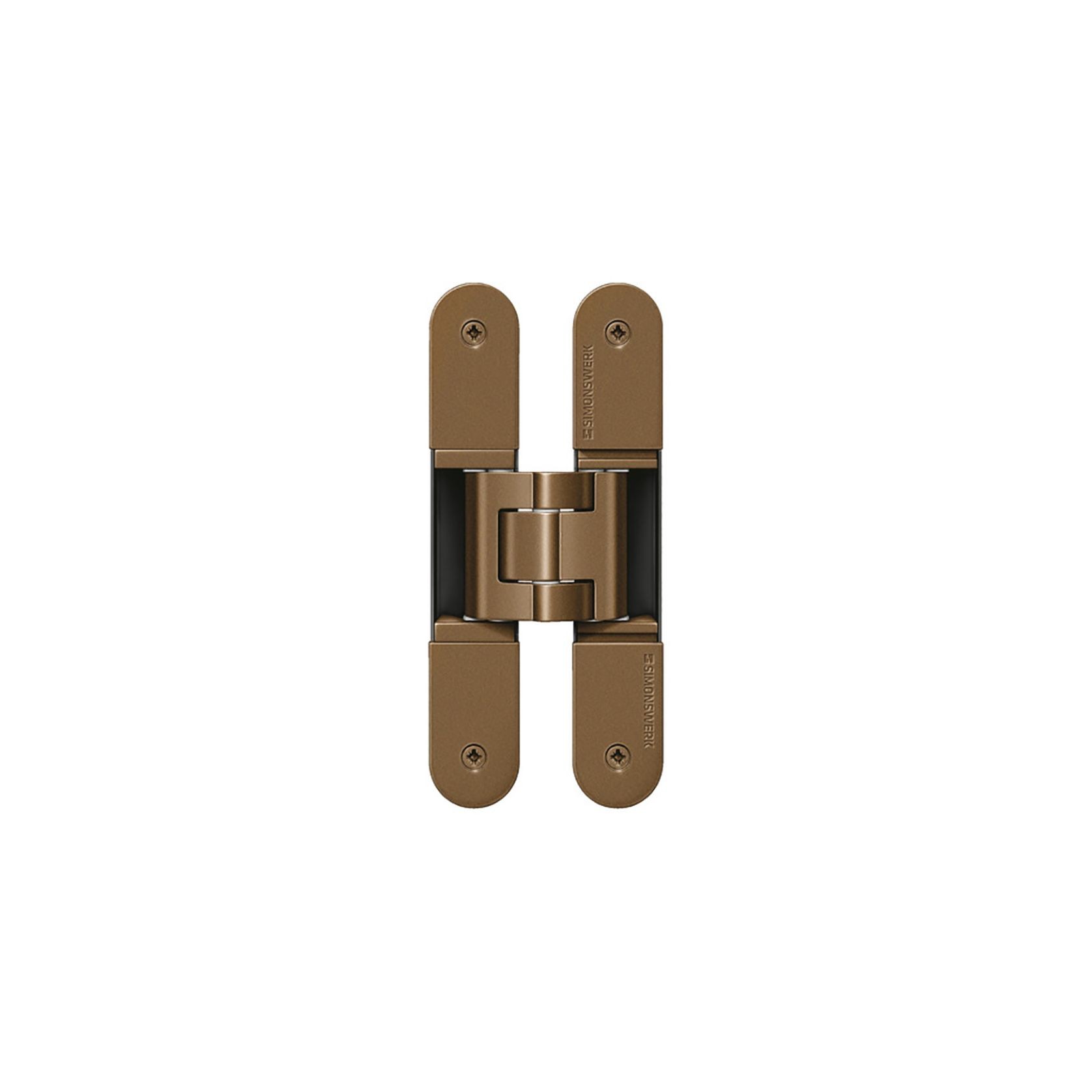

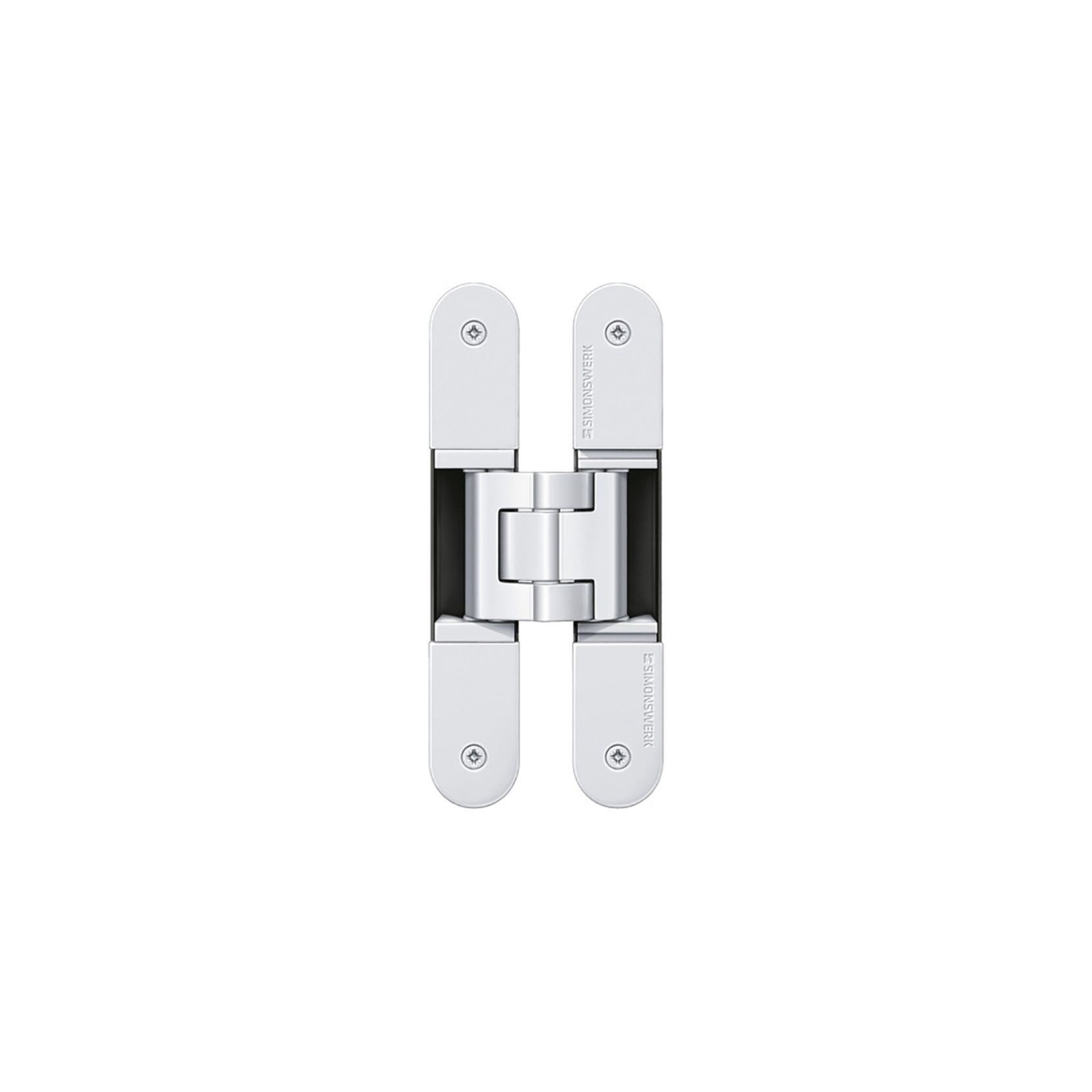

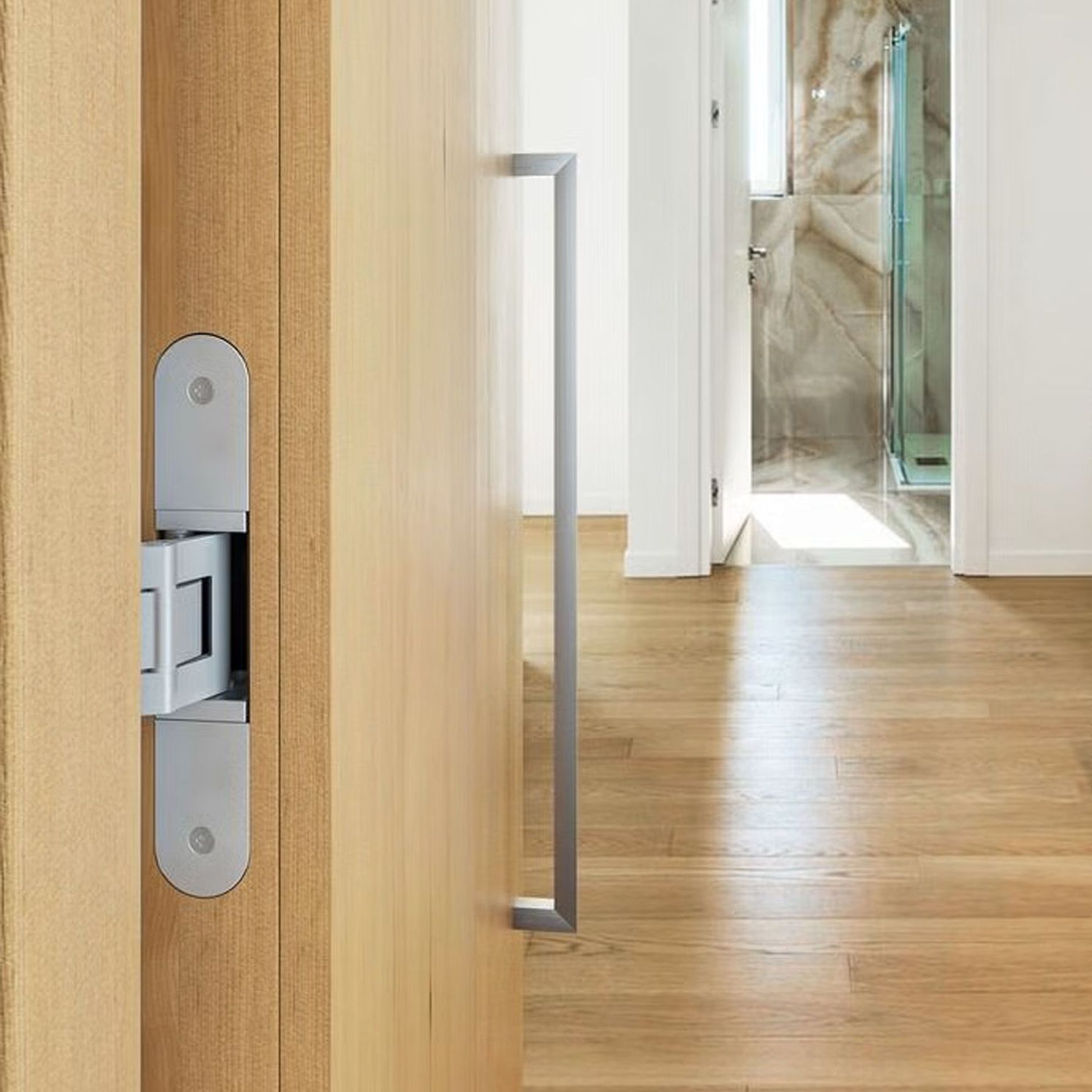

Halliday & Baillie Tectus Concealed Hinge

Halliday & Baillie Tectus Concealed Hinge Concealed Hinges Function - provide a clean and modern look to cabinets.

Care and cleaning

Easy maintenance, Cleaning equipment required

Installation

Minor installation required, Tools required

Assembly

Minor assembly required, Tools required

Specs

• Material: Aluminium-alloy
• Base to Center of Magnet: 34mm
• Length: 51mm
• Diameter: 33mm
• Magnet Diameter: 38mm
• Keeper Projection: 12mm
• Available Finish:

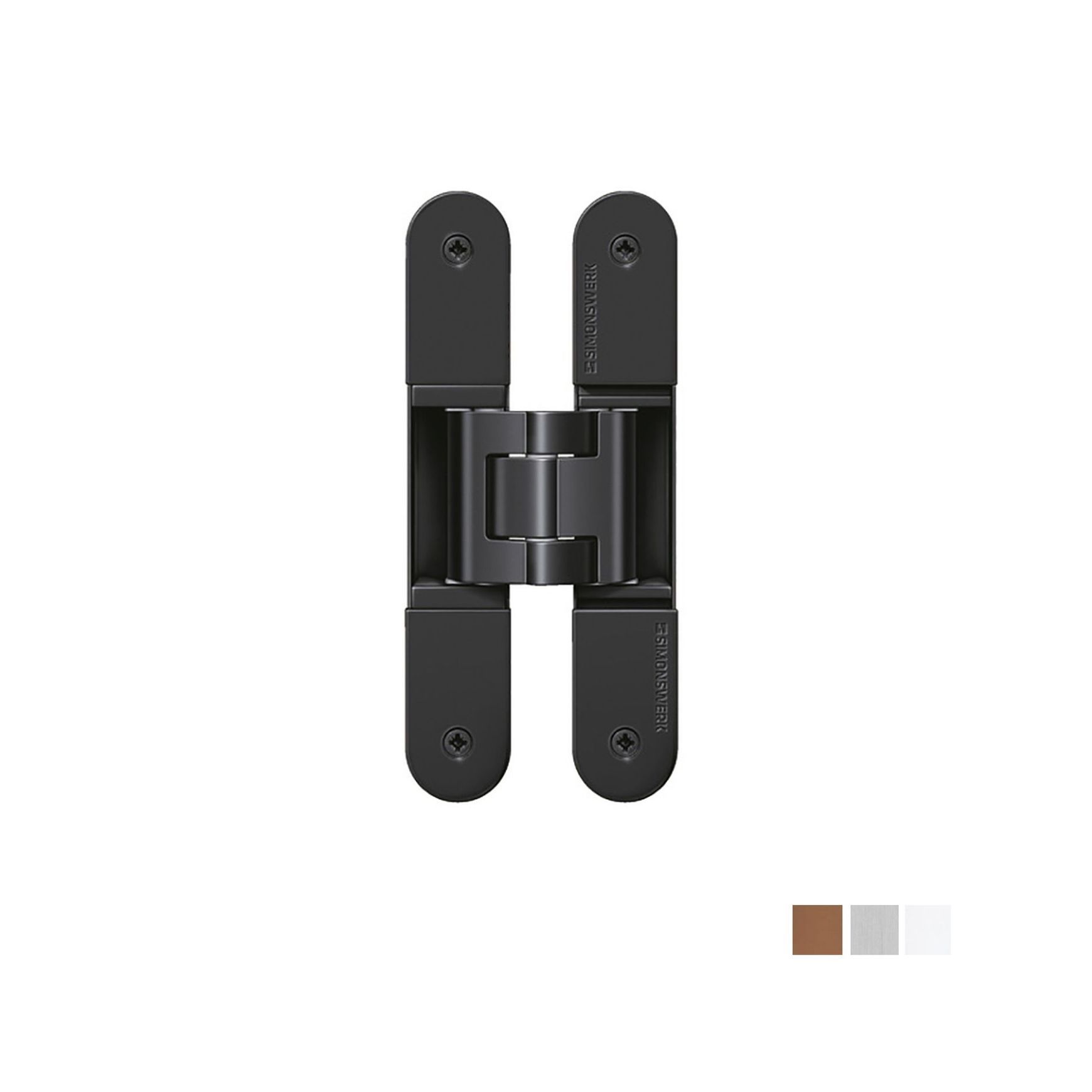

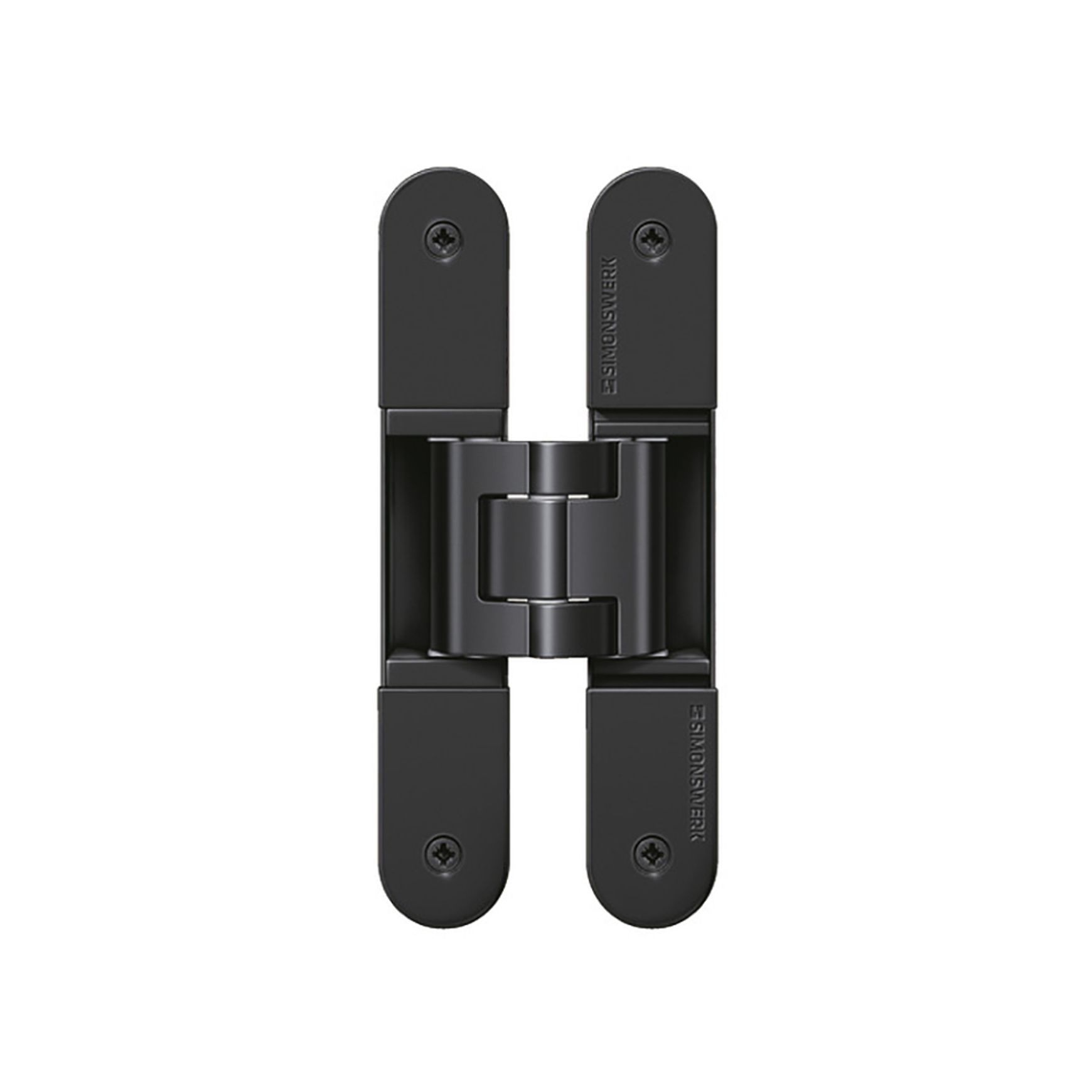

  • Black Chrome

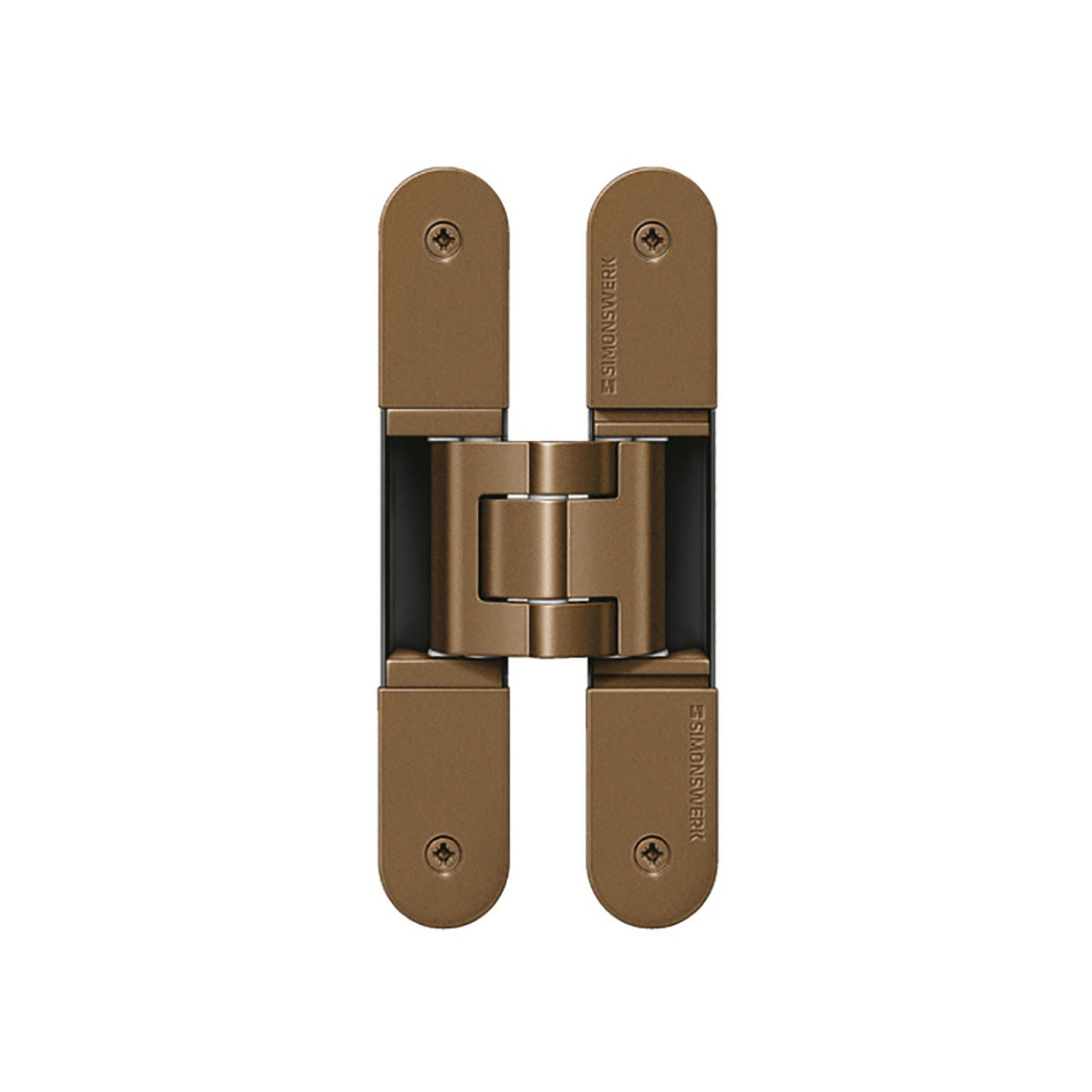

  • Dark Bronze
  • Electro Black Ace
  • Electro Dark Bronze
  • Electro Medium Bronze

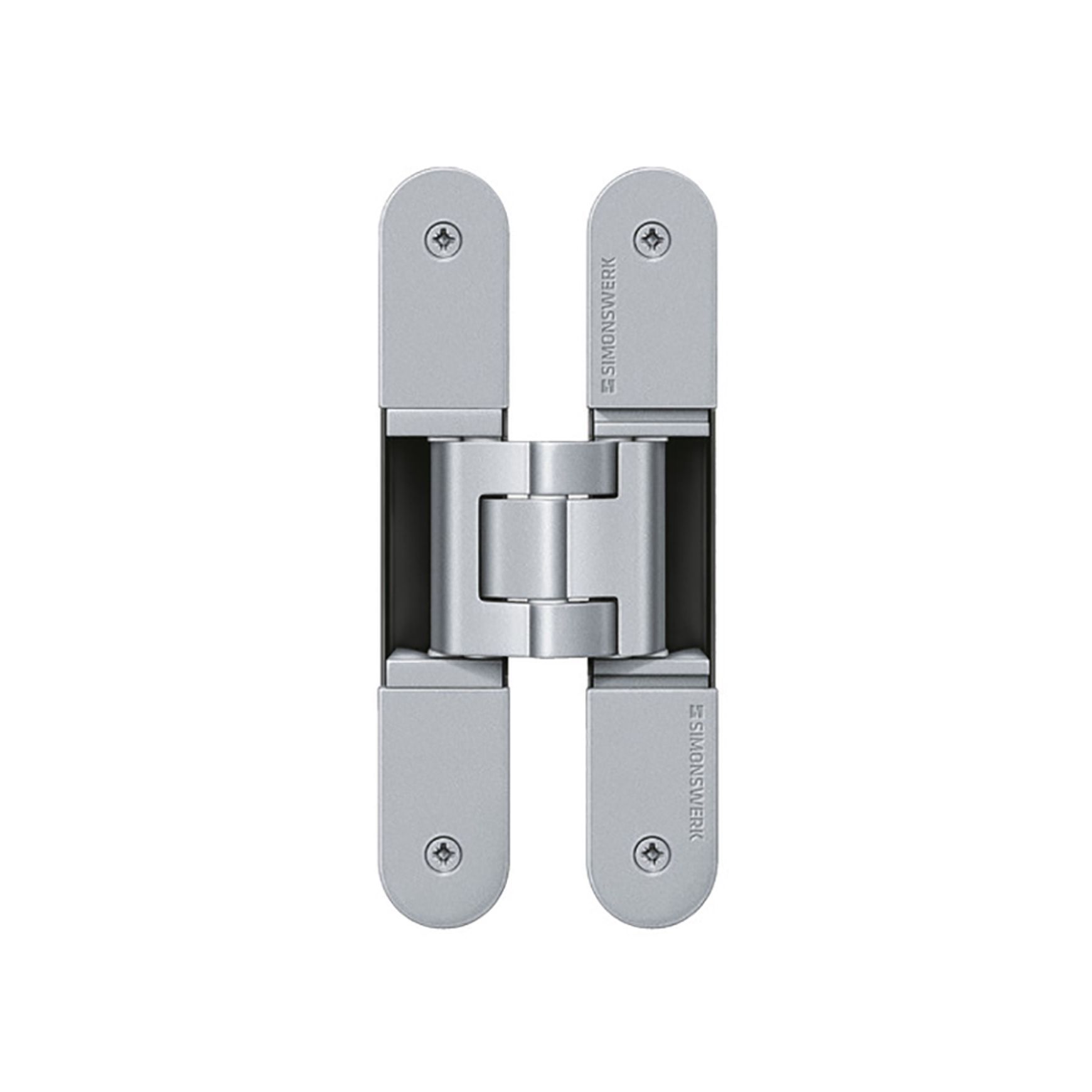

  • Satin Chrome

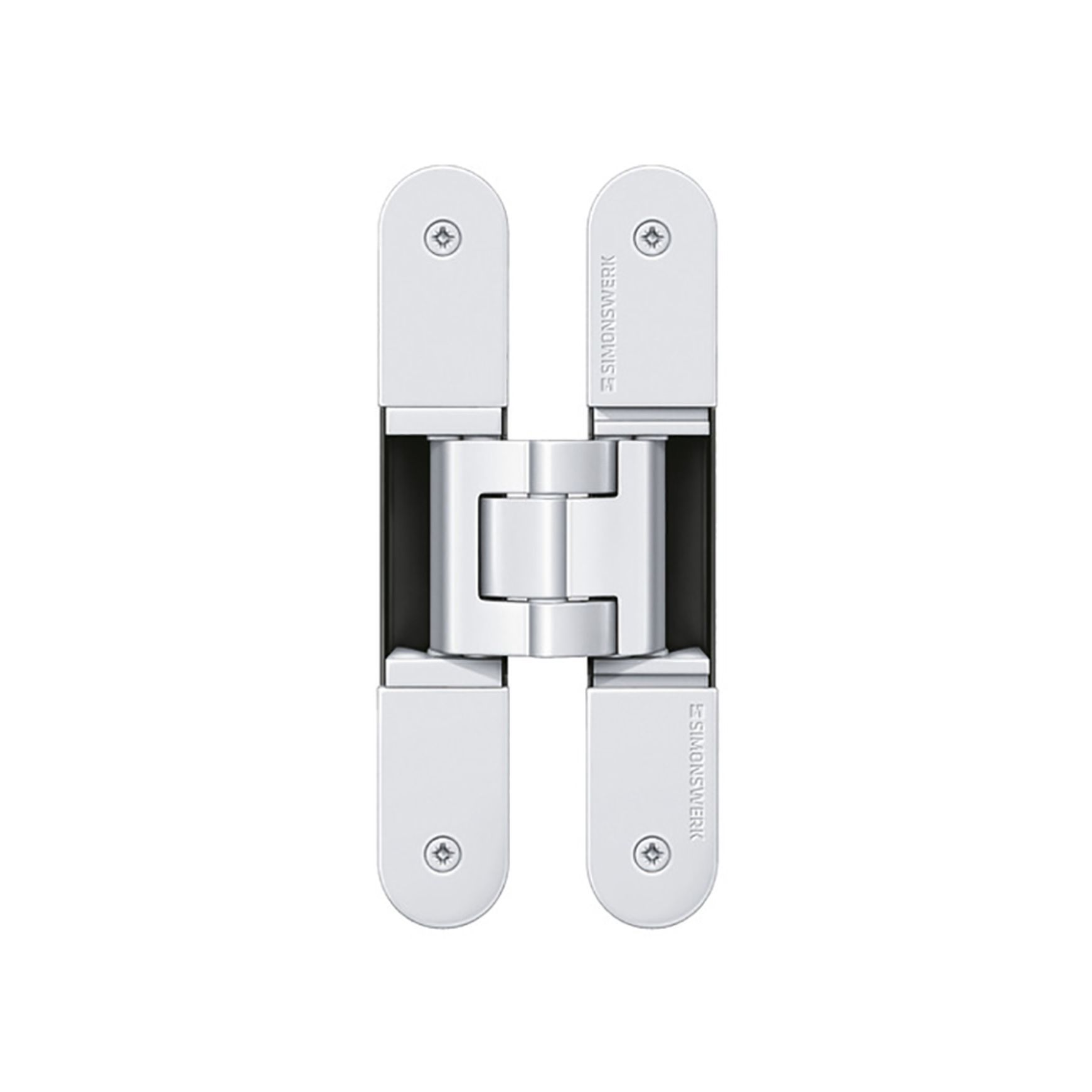

  • White

Features

• Provide options for quality residential doors and heavy-duty doors distinguished by exceptional quality construction of the hinge body, without the look of a hinge

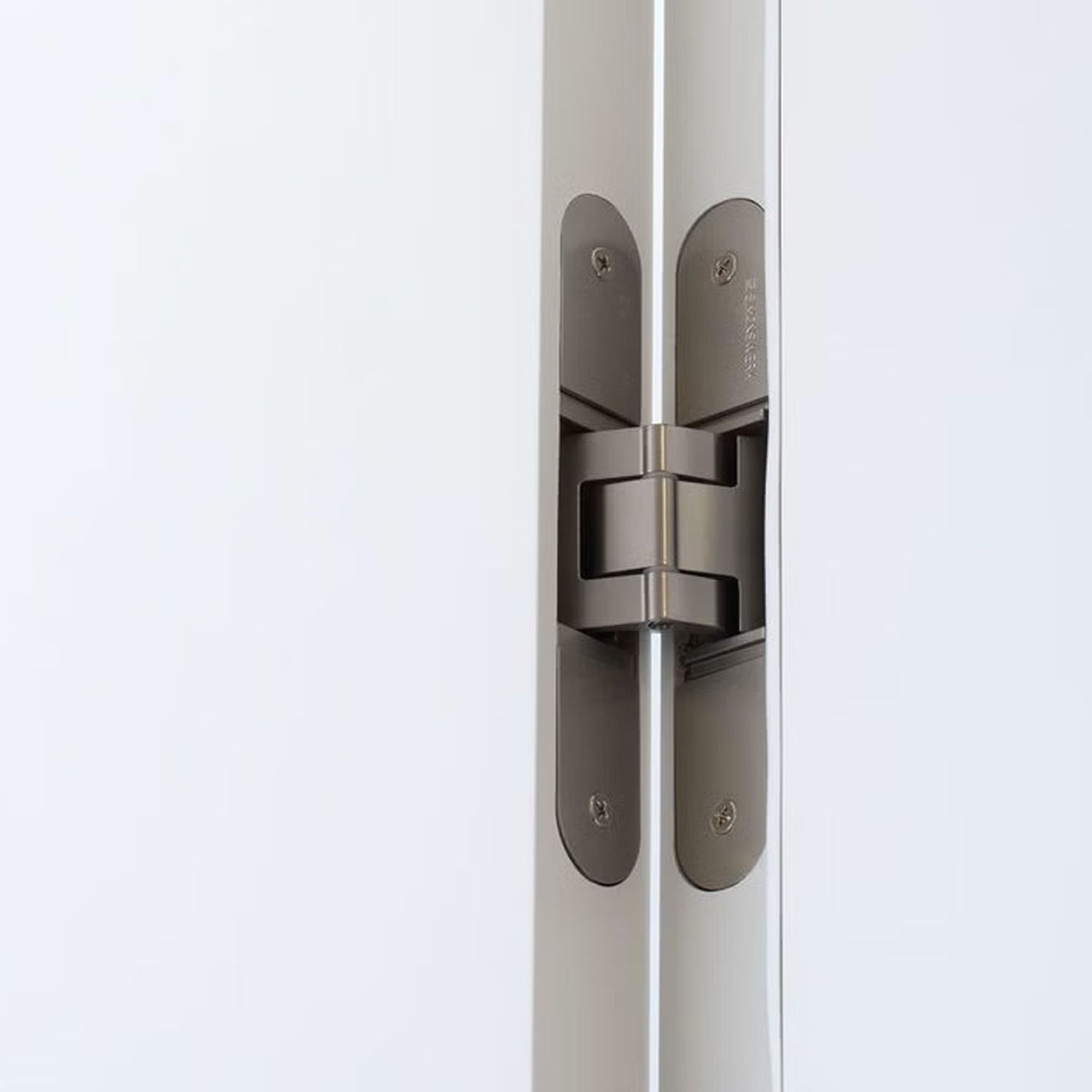

• Perfect for hidden doors, flush cabinetry doors/walls, and wherever a seamless look is required
• The newly developed convenient continuous height adjustment of +/- 3 mm prevents the Specifications: door from sagging and enables the door manufacturer to align the door efficiently and hassle-free. All types show a full hinge body which covers the routing entirely
• The small gap between the door and jamb avoids finger injury
• TECTUS hinges have an opening angle of up to 180 degrees and can be used with wood, steel, and aluminium frames
• Hinges can be adjusted in all three dimensions and require no maintenance
• Used on high-quality residential doors and functional heavy-duty doors in public buildings

Scope of use

Concealed Hinges is also known as Euro hinges or cup hinges, are commonly used in cabinetmaking for a variety of reasons. These hinges are called "concealed" because when the cabinet door is closed, the hinge is not visible from the outside.
