Horiso Rack Arm Systems

• Choice of operating systems: You have three options with regards to installation and operation: fixed, crank arm/handle, or motorised. Motorised operation is the most effective control for Rack Arm Systems. The electric motor incorporates internal thermal protection against overheating and a tubular motor drives a gearbox that is connected to the tilt shaft.

Aluminium Slat Profiles:

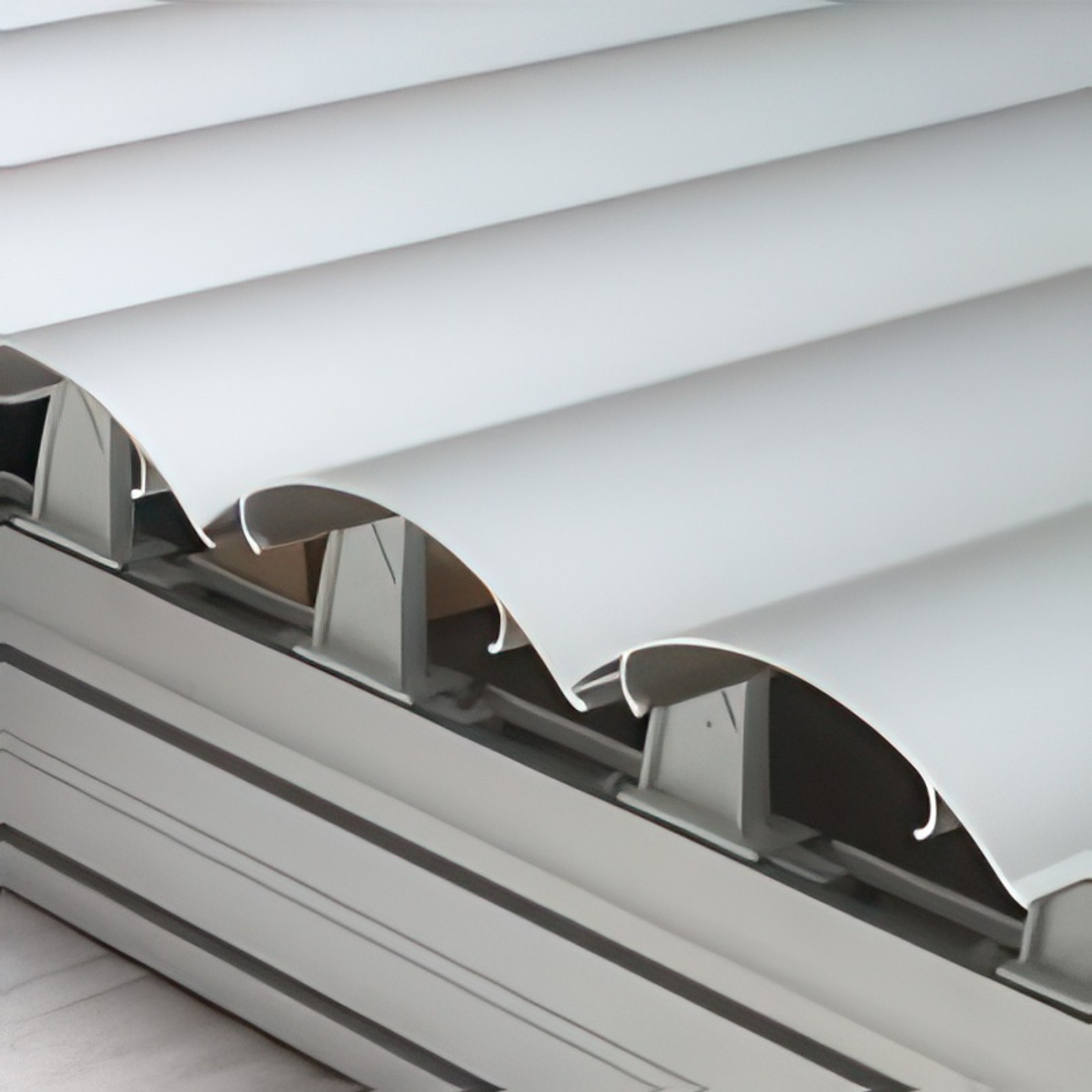

• Horiso Rack Arm aluminium louvre slats are made from durable light weight aluminium alloy extrusions in overlapping or interlocking slat options. Louvre slats are finished with a polyester and polyurethane coating and are available in eight standard colour options with custom colour options.

Aluminium Slat Colours:

• 75E Aluminium Louvre
• 88E Aluminium Louvre
• 145E Aluminium Louvre
• 155E Aluminium Louvre
• Aluminium Slat Colours
• Jet Black
• Monument Grey
• Storm Pearl
• Silver Pearl
• Dark Brown
• Bronze
• Clear Anodised
• White

Timber Slat Profiles:

• 74W Timber Louvre
• 87W Timber Louvre

• Horiso selects timber for the manufacturing of timber slats from sustainably managed forests in both western red cedar and Accoya® varieties. Timber louvre slats offer a natural and coordinating finish to compliment a building’s facade.

Timber Slat Colours:

• Western Red Cedar -Light Stain, Medium Stain, Dark Stain.

• This robust timber can withstand most weather conditions and is not prone to shrinkage or swelling. Due to its versatility, it can be used for both internal and external applications.
• A dimensionally stable timber under most weather conditions and is not prone to shrinkage or swelling.
• Due to its versatility, it can be used for both internal and external applications.
• Accoya® is modified timber made using a process called acetylation, a cutting-edge patented technology which enables it to resist rot, defy the elements and stay strong for decades. Accoya® wood is sourced from sustainable sources, including FSC® and Cradle to Cradle™ Gold environmental certification.
• For more information on Accoya® colour stains and lacquered finish options, please contact the A’besco team.

Motorised and Automation Control

• Motorised and automation control
• Ease of installation, including on shaped glazing
• Sun shading and privacy
• Slat positioning
• Durable and long-lasting

Key Features

• Effortless control: adjust your rack arm system with the touch of a button, thanks to smart motorised control.

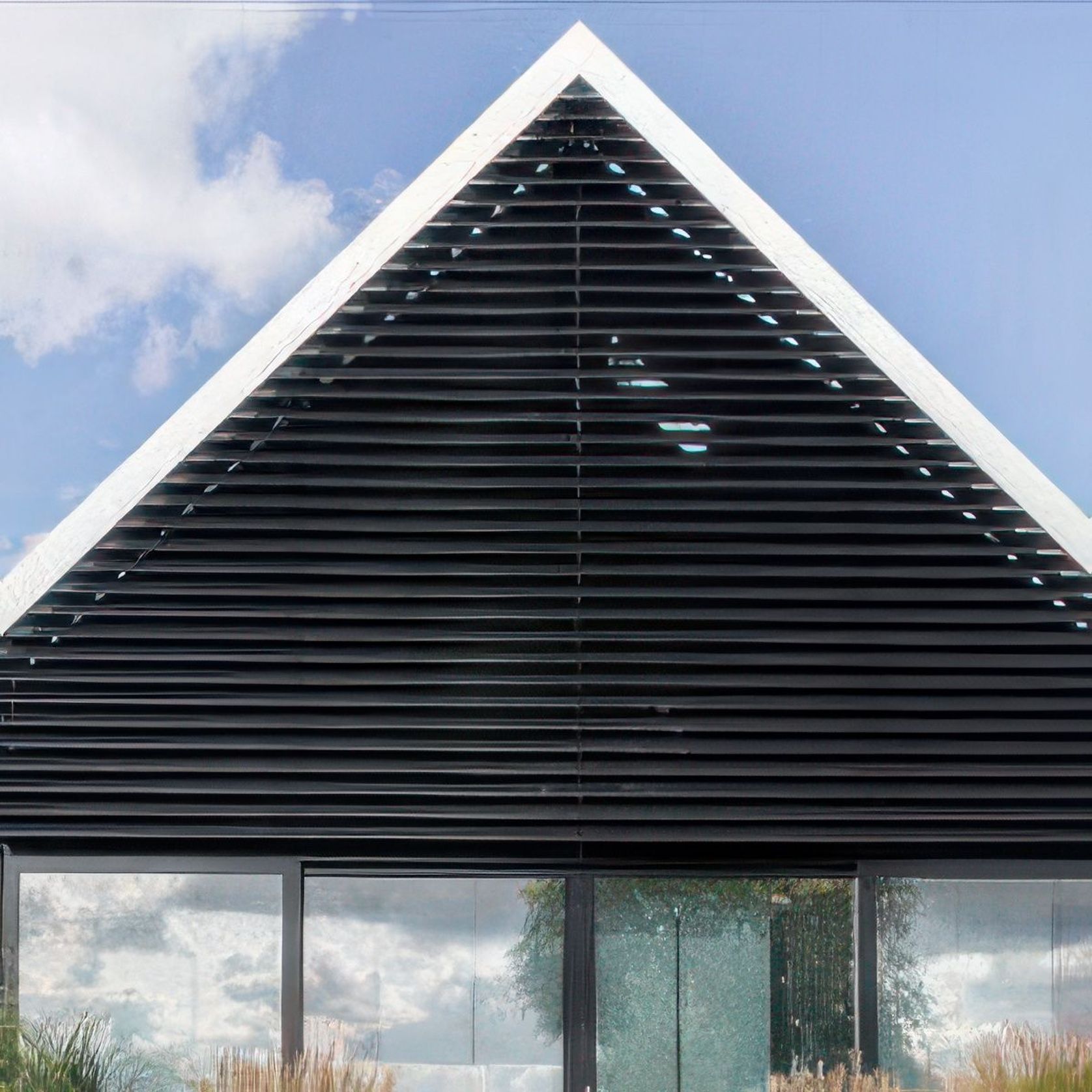

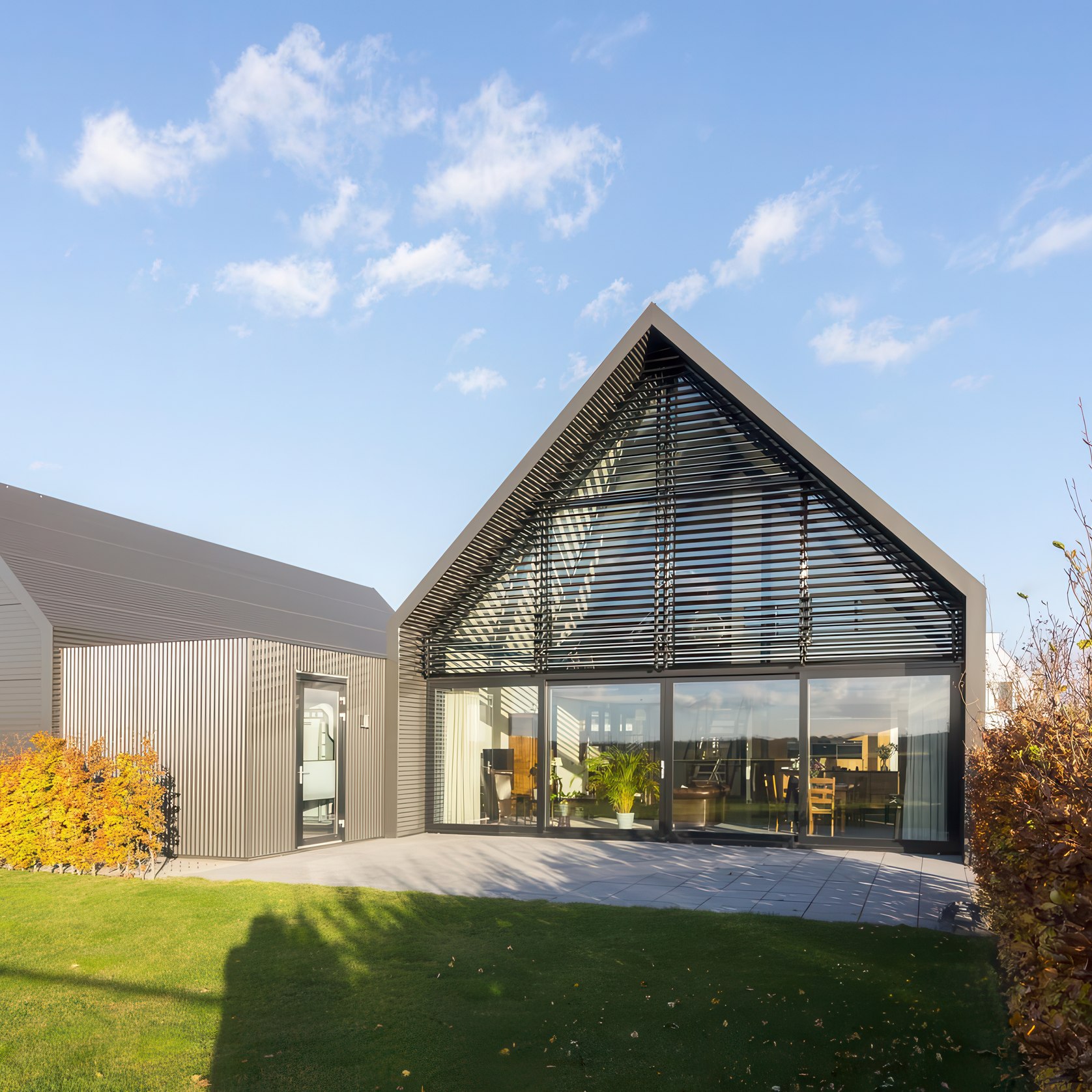

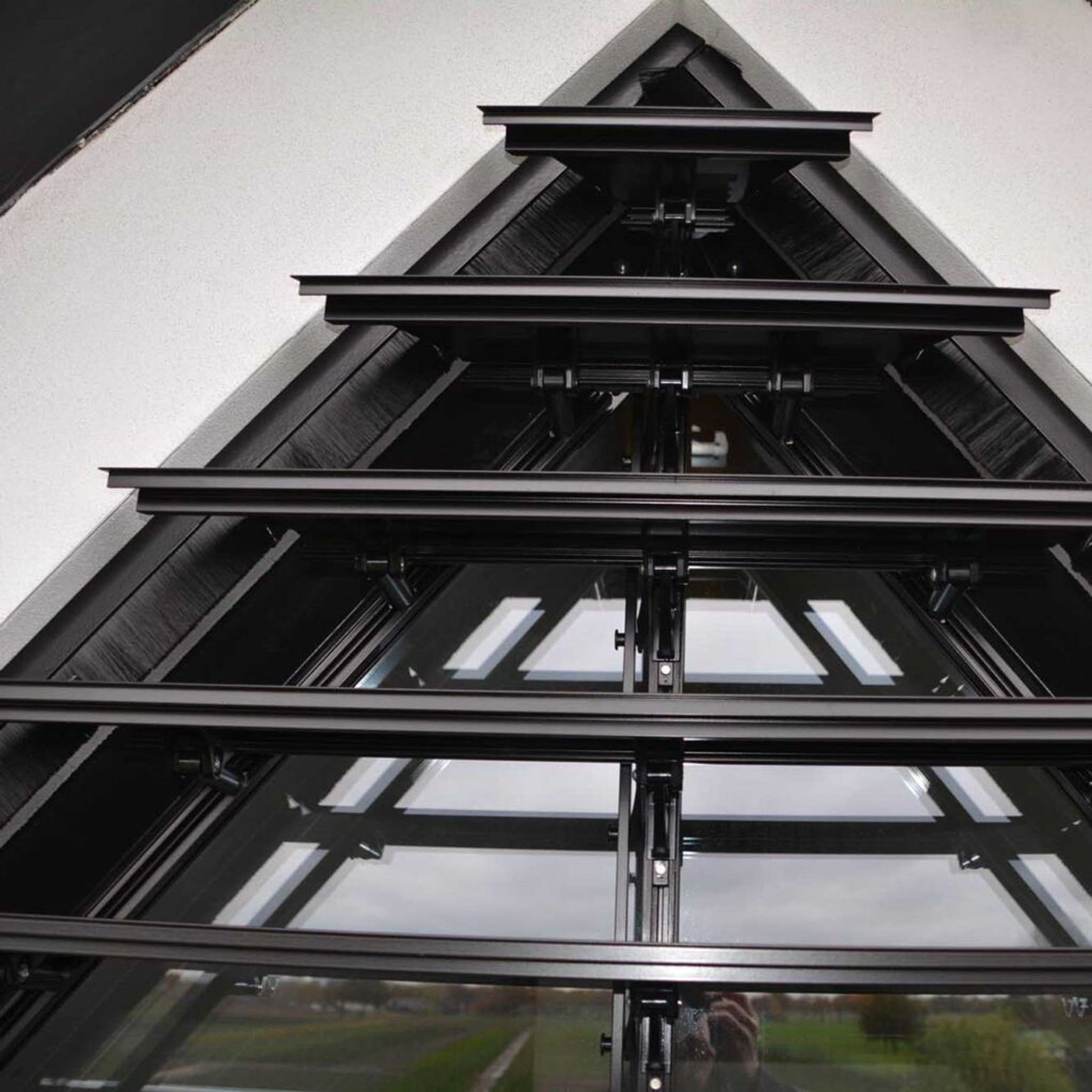

• Ease of installation: Your system can be fully customized to your home and installed on a wide range of building structures, as well as a range of shaped glazing—rectangular, triangular, trapezoidal, and circular.


Sun Shade and Privacy

• Interlocking louvres are available with brushes and perimeter baffles which can almost entirely blockout the sun’s rays, or adjusted to allow day-lighting as needed. cross ventilation can be achieved by slats automatically tilting to optimise shading at varying sun angles.

• Flexible sun positioning lets air flow freely through your space by tilting the slats and optimises shade at varying sun angles.


Made to Last

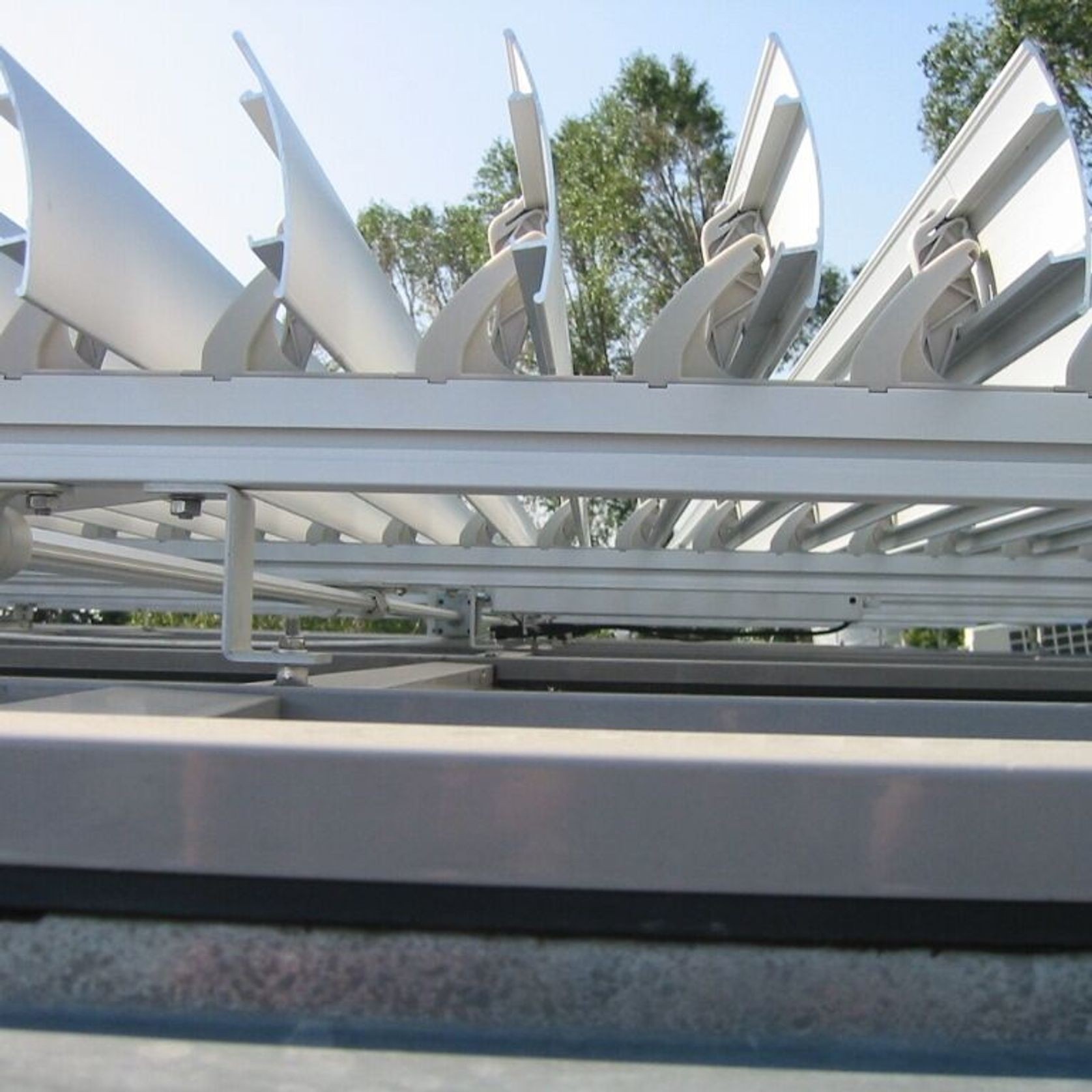

• The slats, operating and structural components are all made from high grade extruded aluminium.


Your Horiso Rack Arm System comes in four styles with aluminium profiles (75E, 88E, 145E and 155E) and three Red Western Cedar profiles (74W, 87W and 153W). These can be shaped and cut to size, mitre-cut or faceted. They are powder coated to eight standard colours or your choice from the DULUX® powder coat range.

The slats and components are lightweight and therefore suitable for light building structures as well as sloping facades and skylights. The range also includes systems suitable for internal and external installations on a range of shaped glazing: rectangular, triangular, trapezoidal and circular.

The Horiso Rack Arm System is easy to install, assembled on site, and all systems have a five year warranty. They typically take six weeks from consultation to installation, and are finished in Australia.

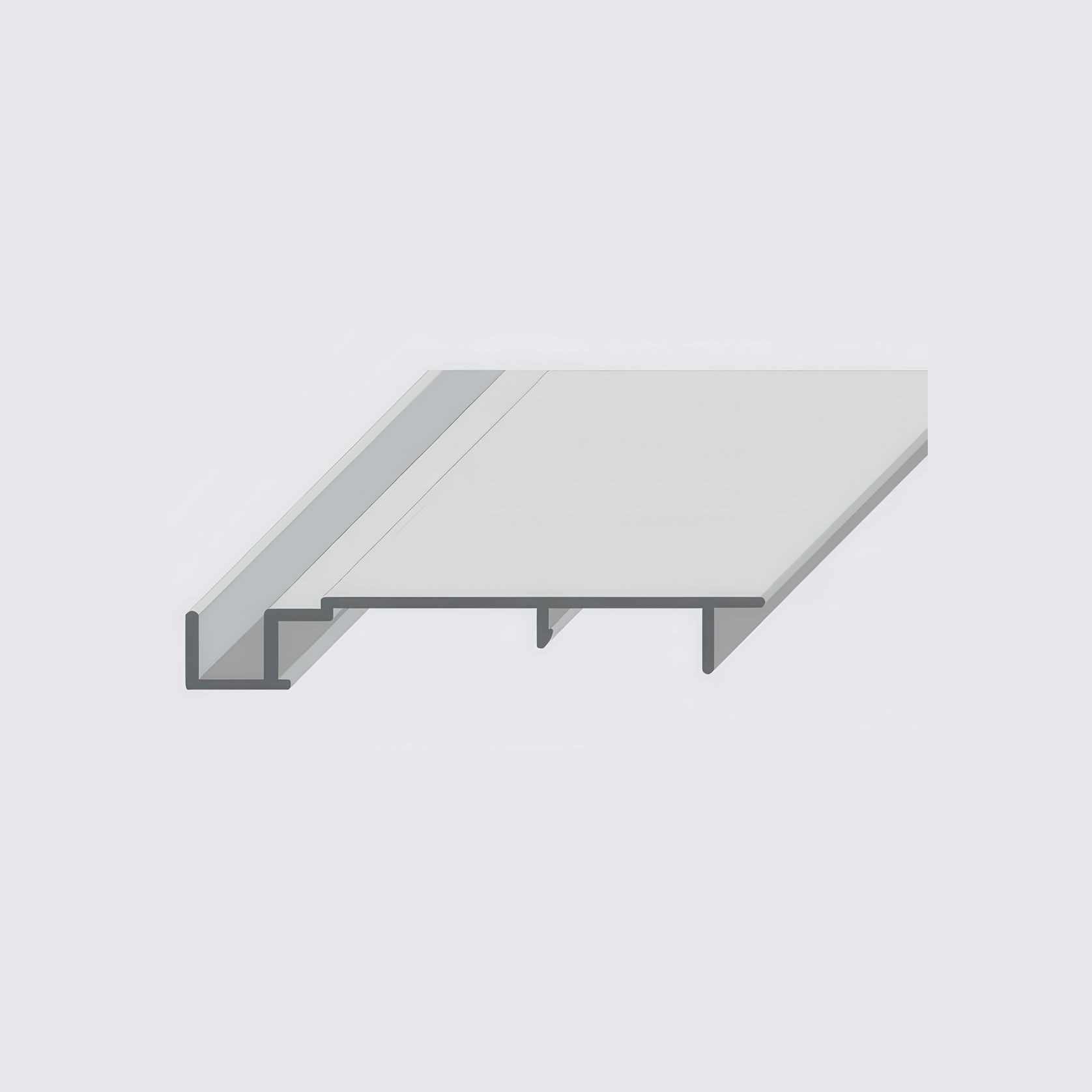

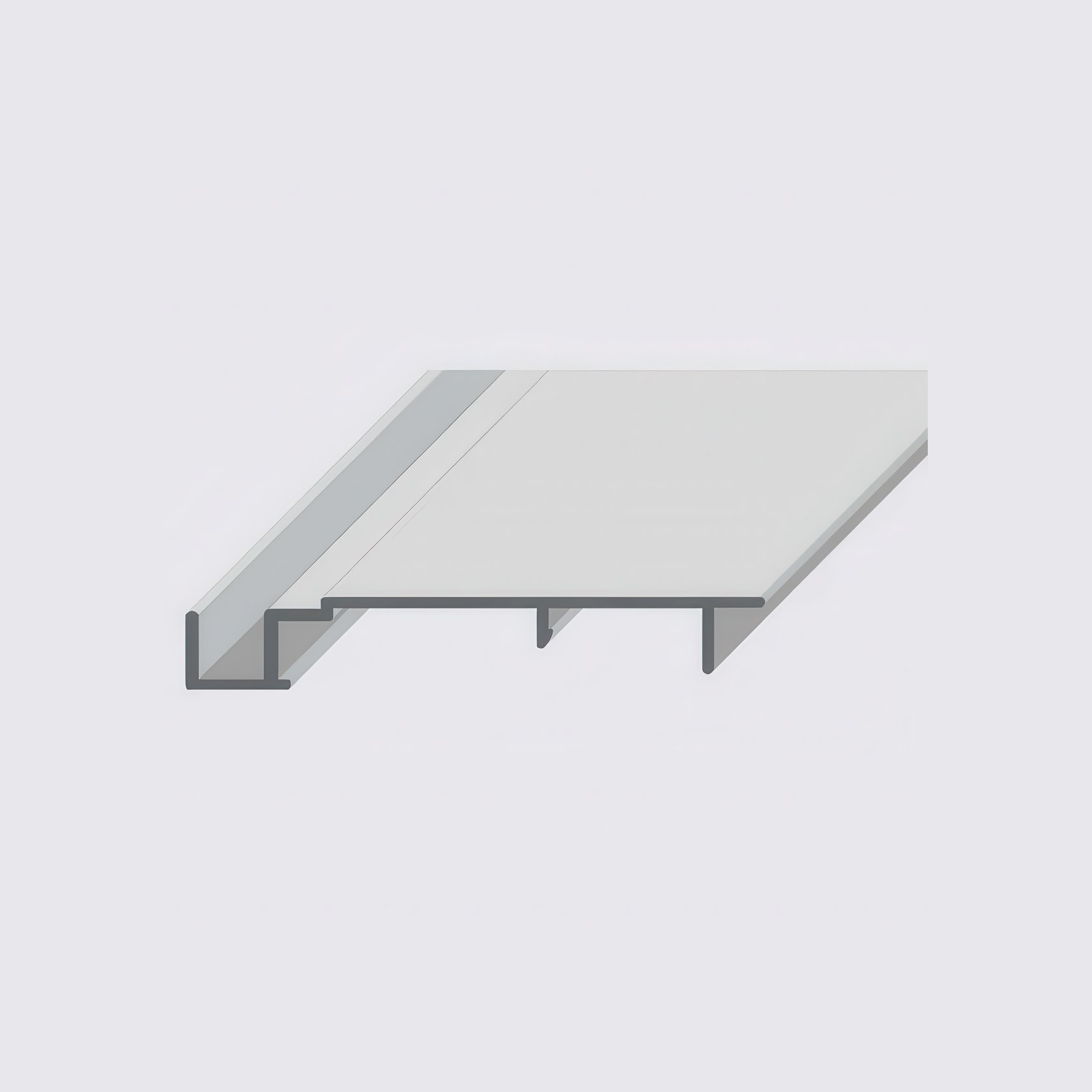

RA 75E Aluminium Louvre

• Material: High grade extruded aluminium
• Width: 75 mm
• Thickness: 1.5 mm
• Application: Overlapping slat for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


RA 88E Aluminium Louvre

• Material: High grade extruded aluminium
• Width: 88 mm
• Thickness: 1.5 mm

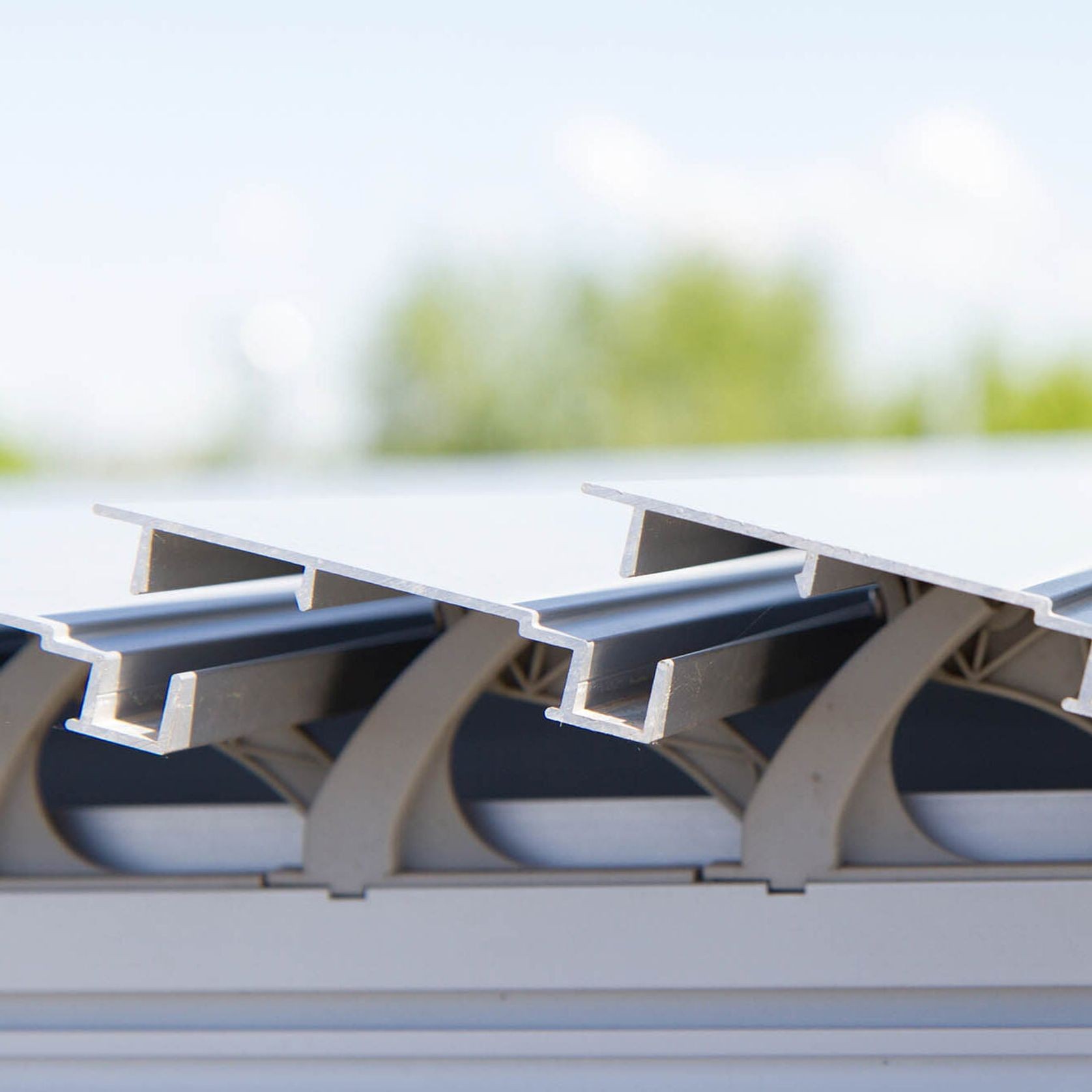

• Application: Interlocking slat for maximum light block-out for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


RA 145E Aluminium Louvre

• Material: High grade extruded aluminium
• Width: 145 mm
• Thickness: 2 mm
• Application: Larger overlapping slat for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


RA 155E Aluminium Louvre

• Material: High grade extruded aluminium
• Width: 145 mm
• Thickness: 2 mm
• Application: Larger overlapping slat for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


RA 74W Timber Louvre

• Material: Western red cedar or Accoya® varieties. Timber slats are sourced from sustainably managed forests.
• Width: 74 mm
• Thickness: 10 mm
• Application: Overlapping slat for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


RA 87W Timber Louvre

• Material: Western red cedar or Accoya® varieties. Timber slats are sourced from sustainably managed forests.
• Width: 74 mm
• Thickness: 10 mm
• Application: Overlapping slat for internal or external installation
• Configuration: All types of shaped windows for horizontal, vertical, and sloping façades


Applications

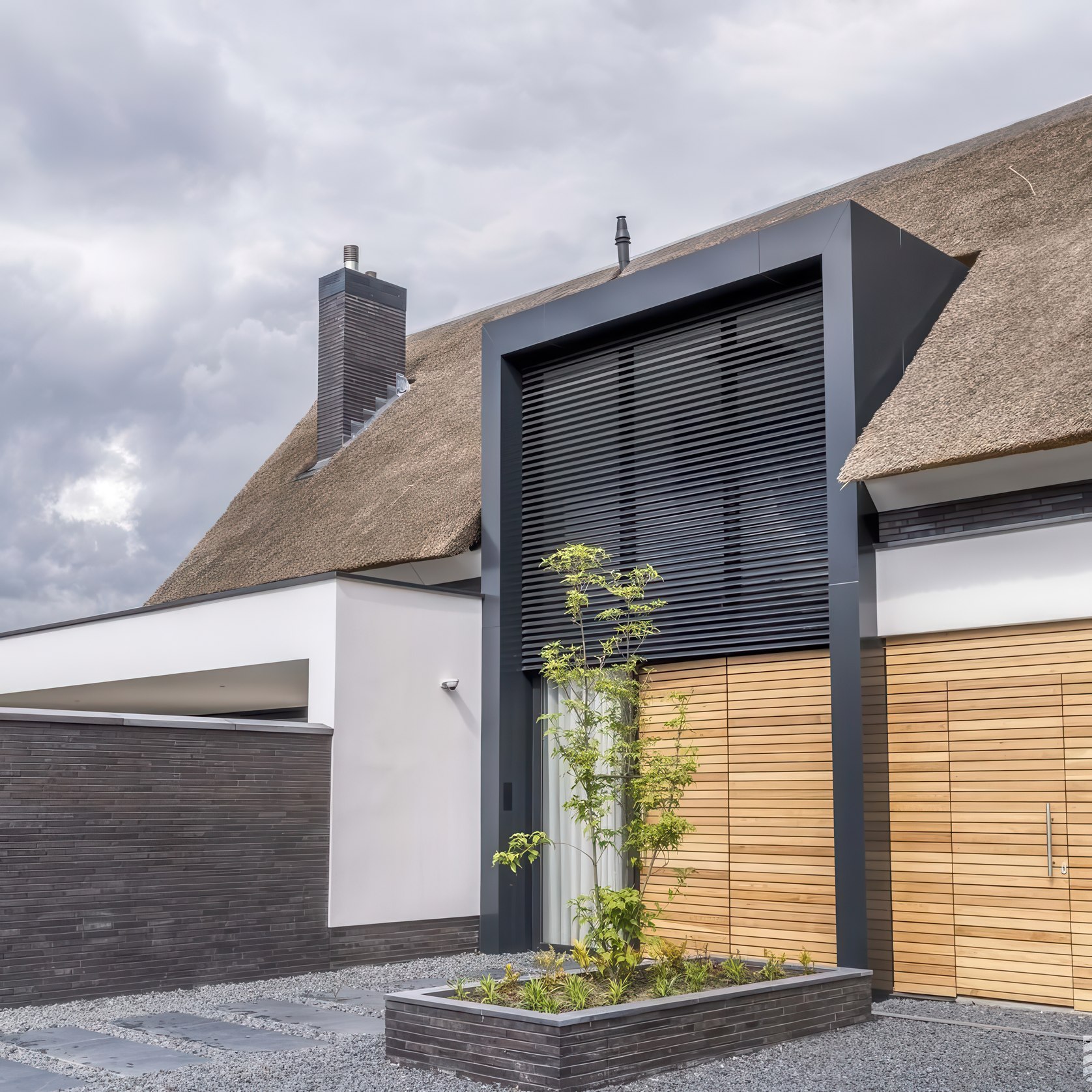

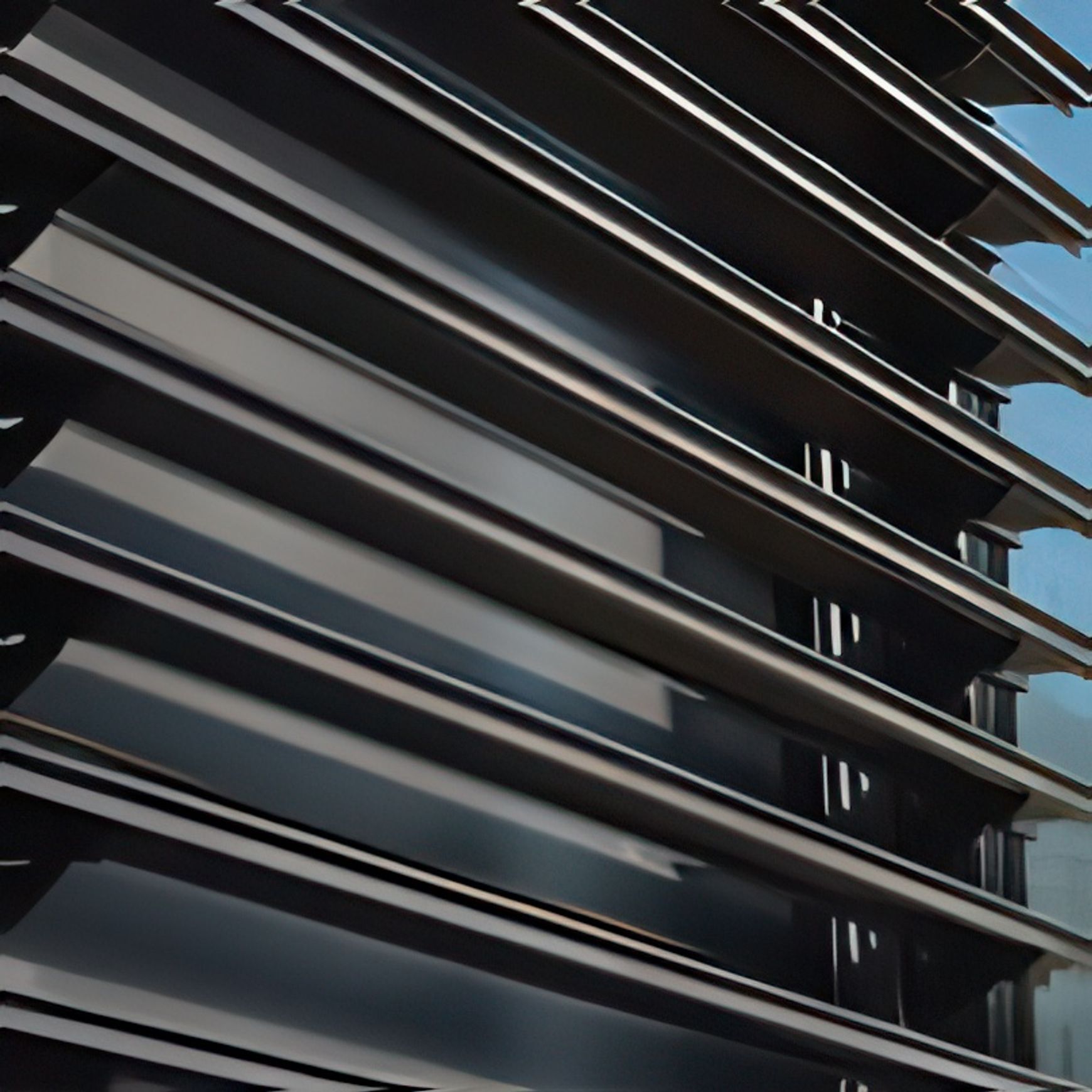

• Façades

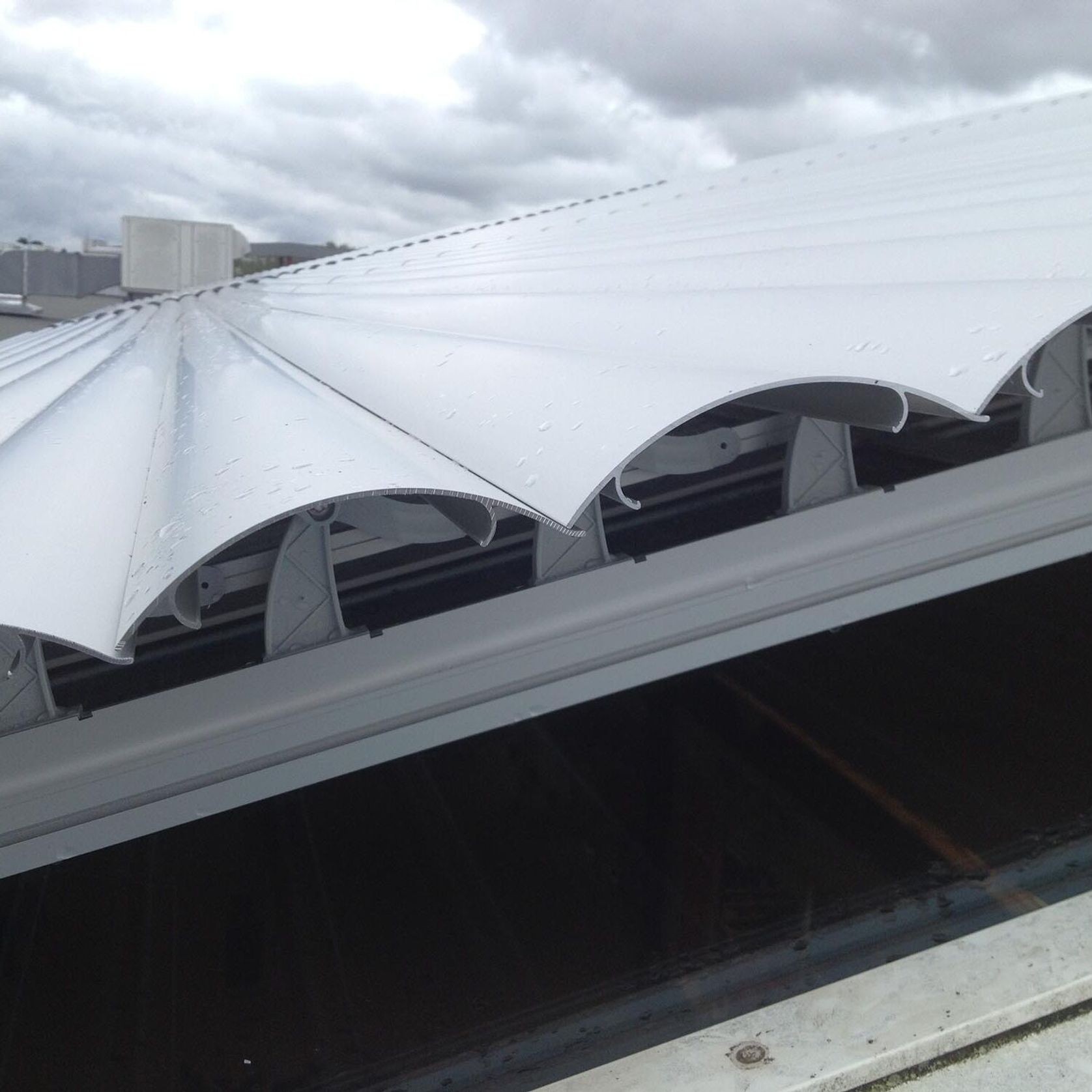

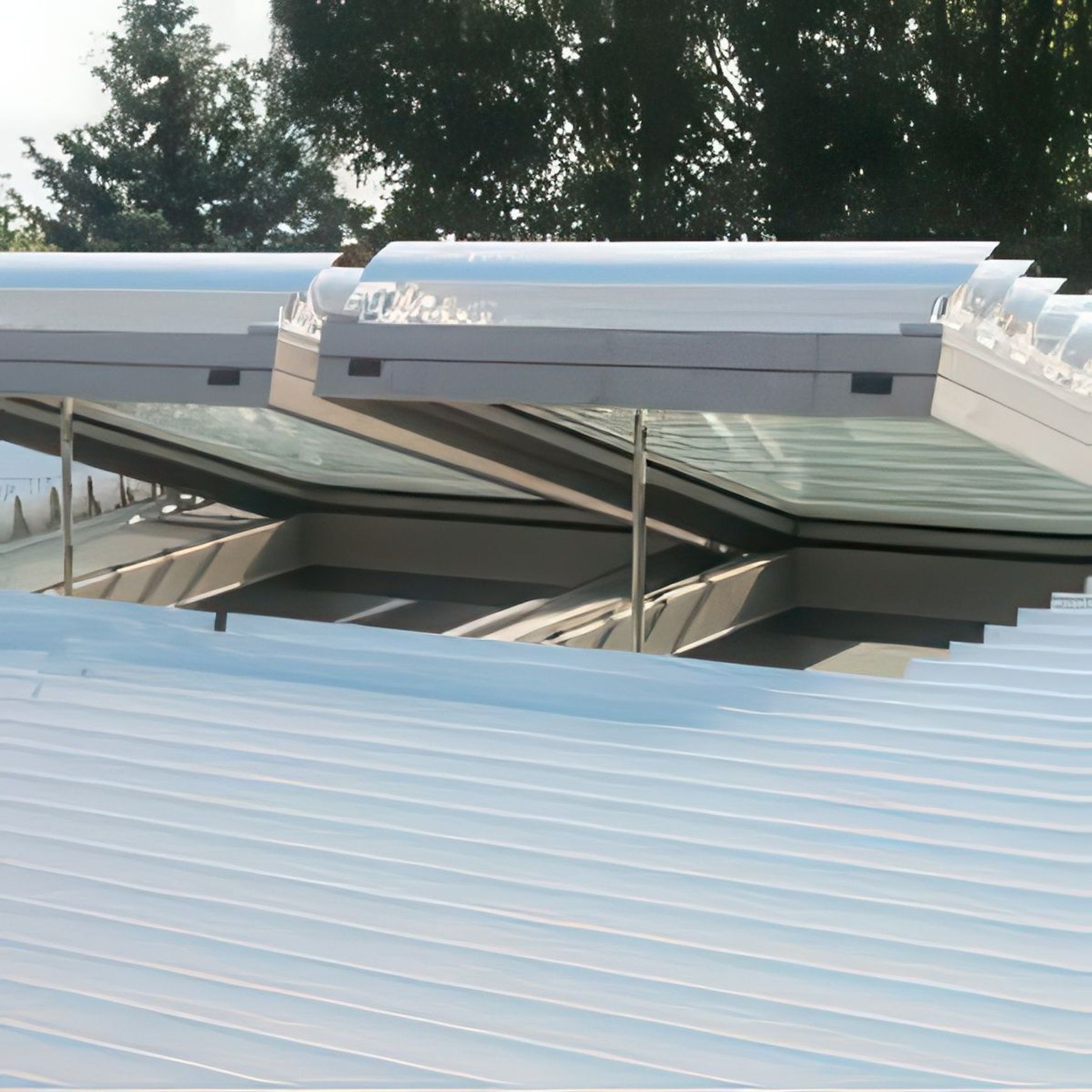

• Glass Roofs & Roof Skylights

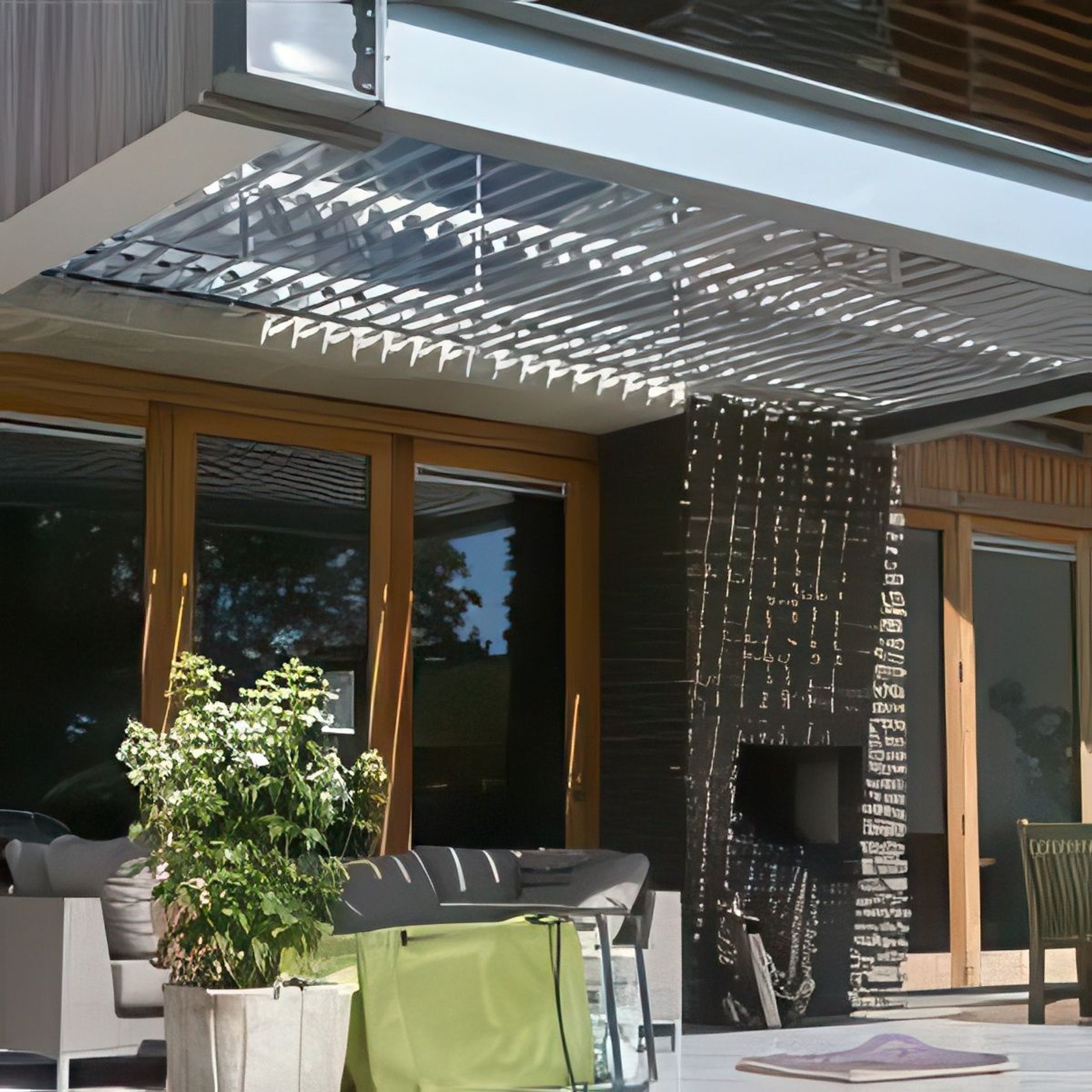

• Pergola Roofs

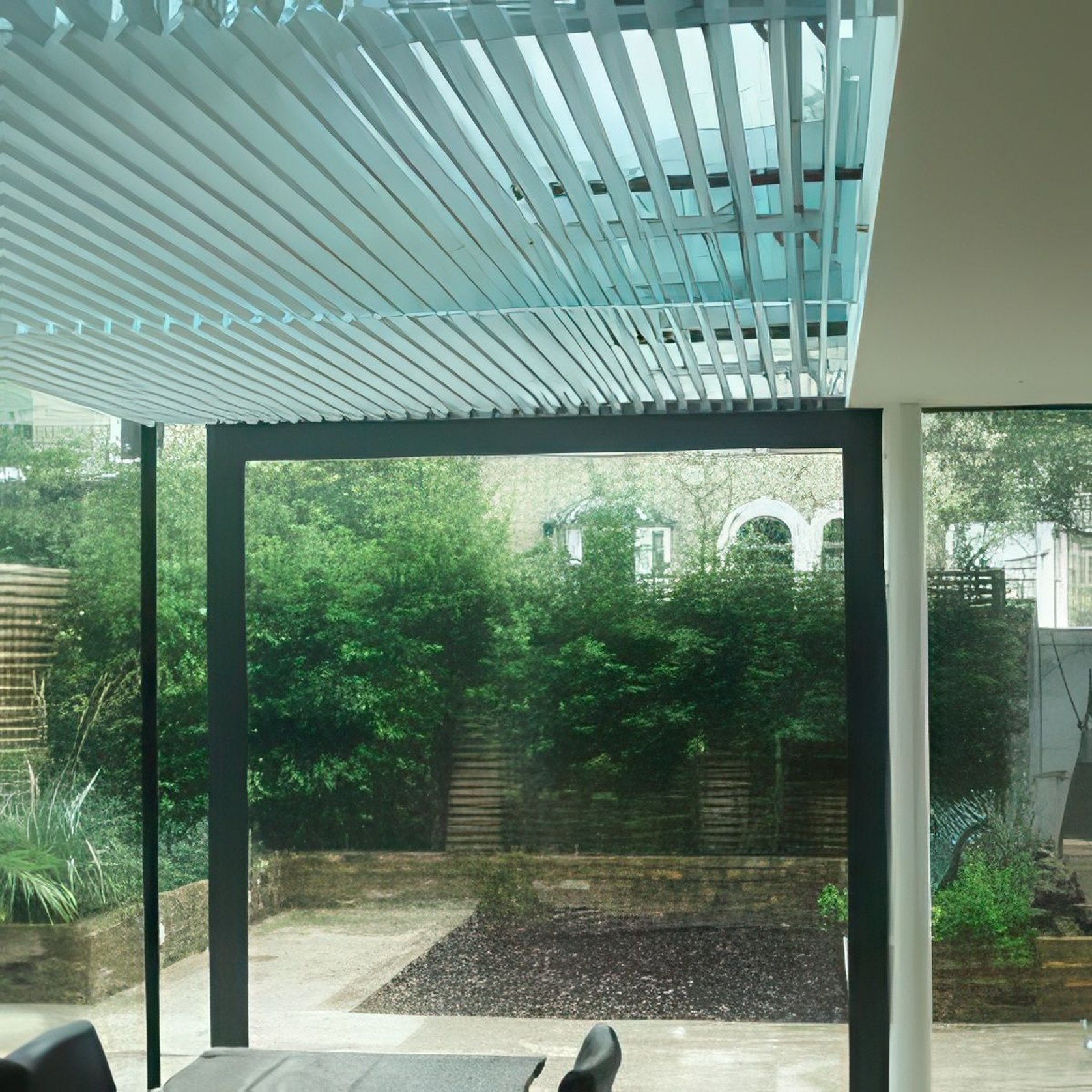

• Interior Skylights
