IN.05.214 Hydraulic Pivot for wooden doors up to 200 kg

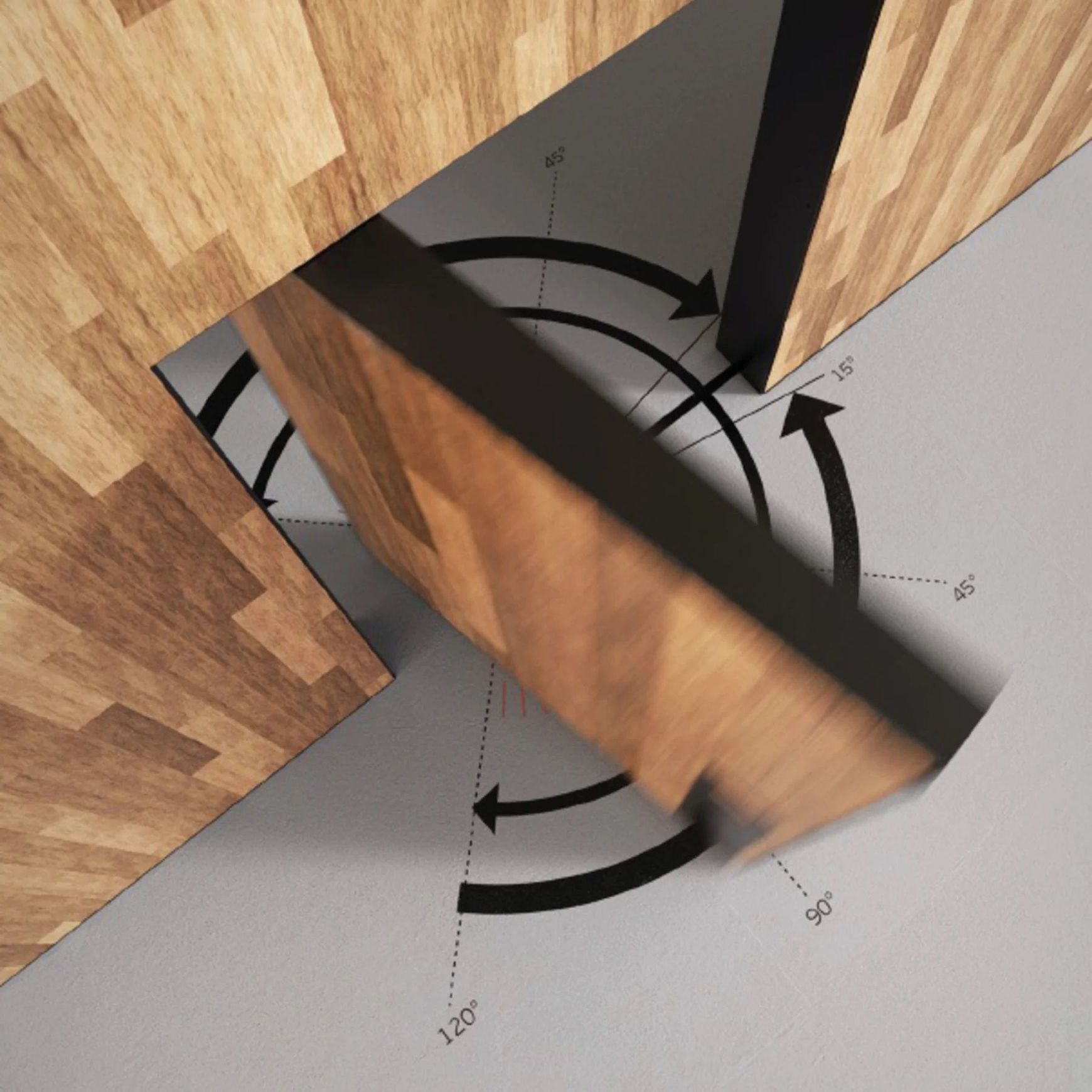

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort. The doors can be single or double-action, with a minimum thickness of 40mm.

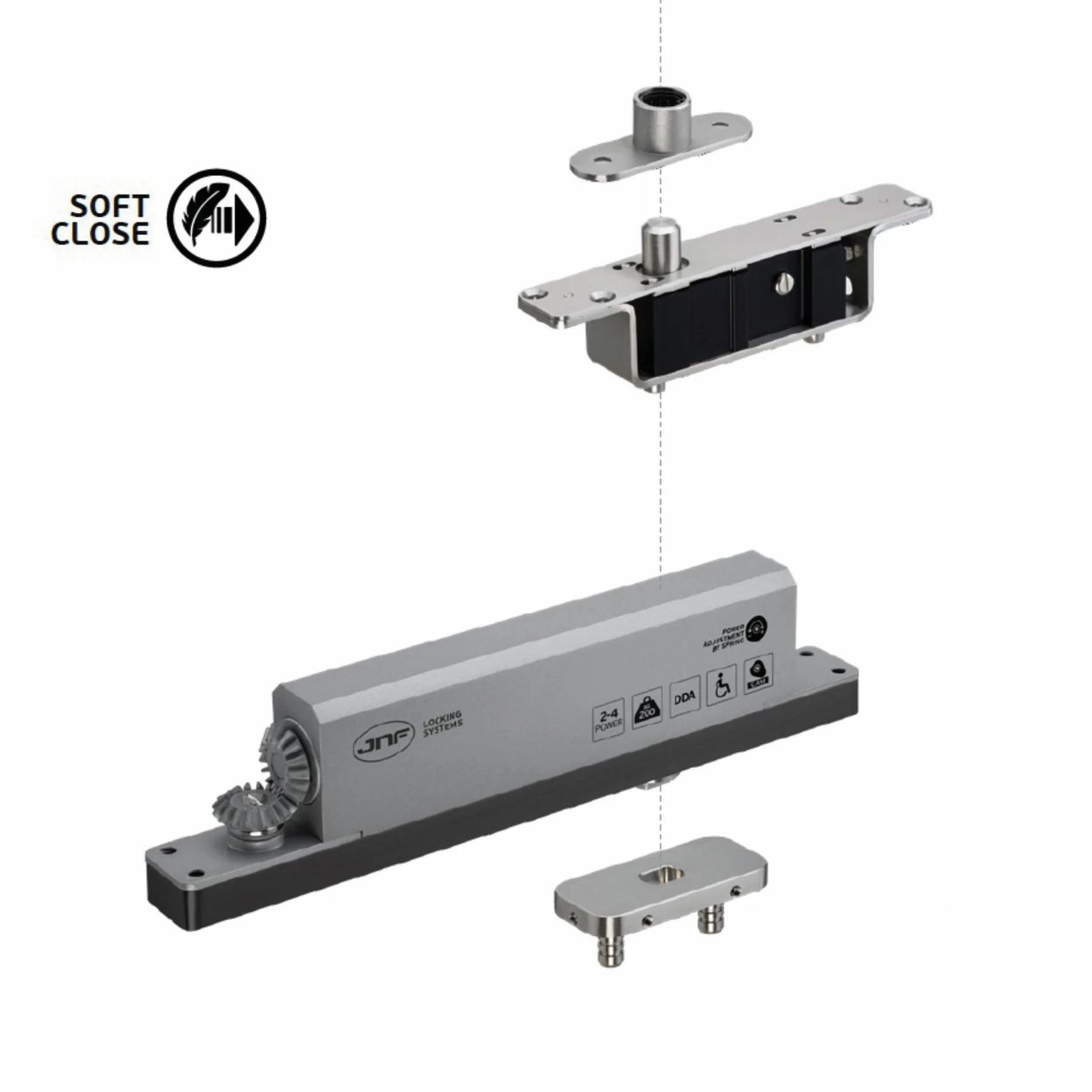

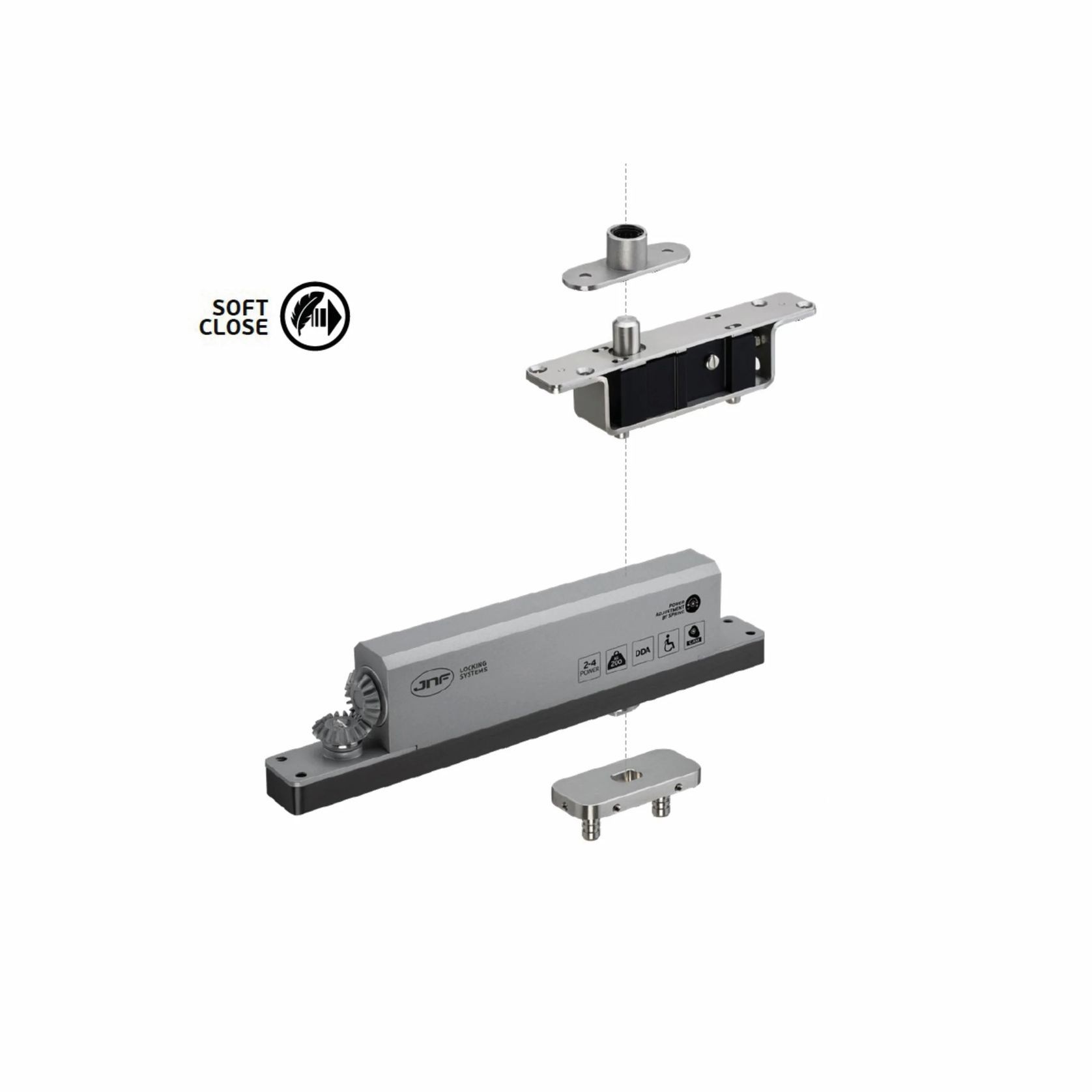

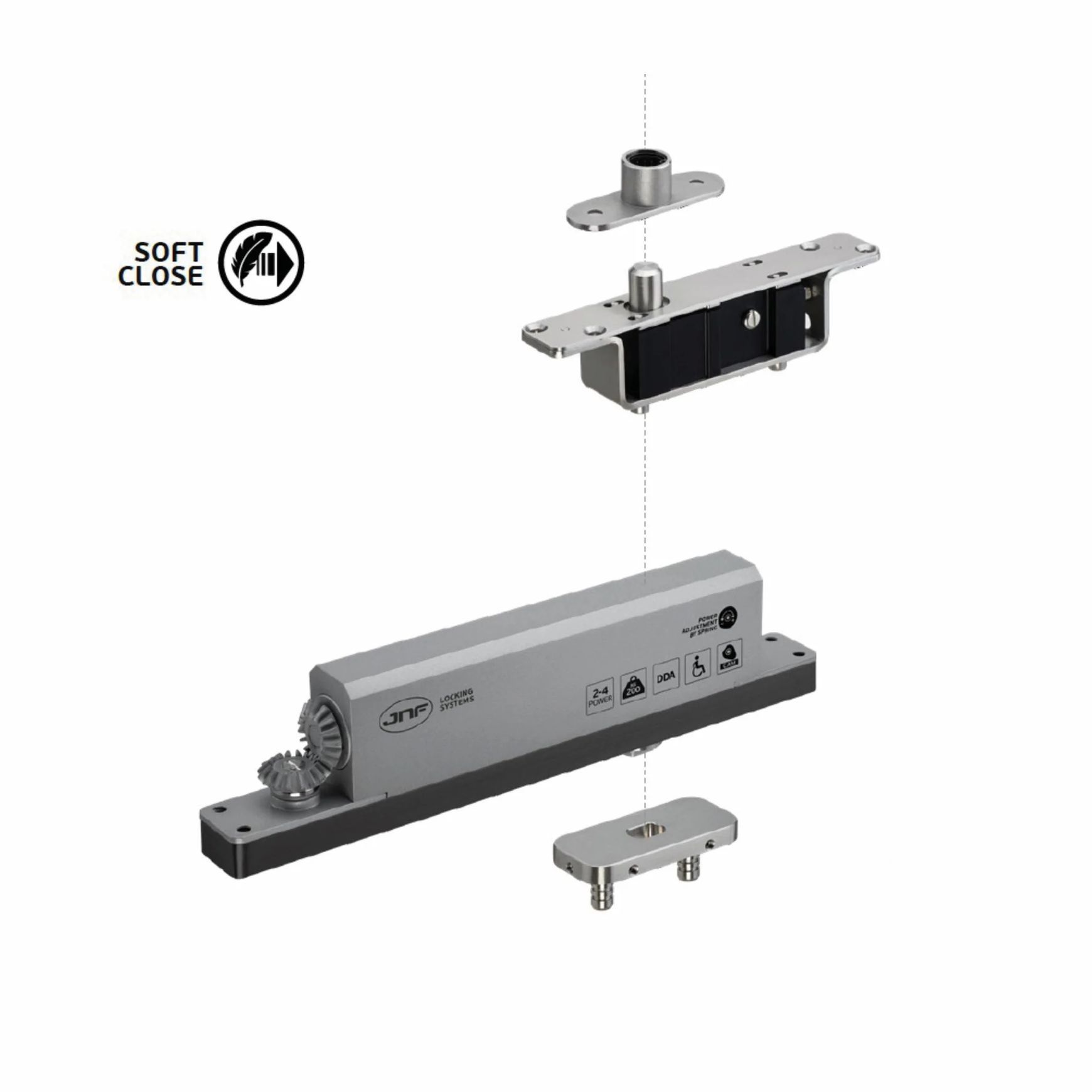

The system is hidden inside the door, with only a small base on the floor, bidirectional regulation, and a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being critical when the door has a lock installed.
One of this system's characteristics is that the door's rotation point can be from 40mm to the centre of the door. The installation is made from the top of the door, which allows the doors to go up to the ceiling.
To cover doors with weights from 40 to 200kg, lengths up to 3000mm and heights up to 4000mm, the system has force adjustment, which can be done with the installed door.
Product Details
- Product
- IN.05.214 JNF Hydraulic Pivot Set For Wooden Doors
- Category
- Internal Doors
- Sold by
- Mardeco
- Pricing
- $2,945.41
- Brand
- JNF Architectural Hardware
- Year
- 2022
- Warranty
- 5 years
Mardeco is specified by
SGAArchitects
Studio FoxArchitects
Chow:Hill ArchitectsArchitects
Dravitzki Brown ArchitectureArchitects
Stephen Jones ArchitectsArchitects
Leuschke Group ArchitectsArchitects
Borrmeister ArchitectsArchitects
Michael Murray StudioKitchen & Bathroom Designers
DrydenManufacturers and Suppliers
DJS CabinetryCarpenters & Cabinetmakers
Design House ArchitectureArchitectural Designers
Ockham ResidentialProperty Developers
JS KitchensKitchen & Bathroom Designers
Wonder.Architectural Designers
Regal KitchensKitchen & Bathroom Designers
Matakana Kitchens & JoineryCarpenters & Cabinetmakers
Kitchen LinkKitchen & Bathroom Designers
White Wood HomesBuilders
Faulkner ConstructionBuilders
Kitchen CreatorsKitchen & Bathroom Designers
CTRL SpaceInterior Designers
Kella Design CoInterior Designers
Elizabeth KaramKitchen & Bathroom Designers
Paton KitchensKitchen & Bathroom Designers
Boffa MiskellLandscape Architects
Bosanac BuildersBuilders
Honour CreativeInterior Designers
Auckland Waterproofing ServicesWaterproofers
Bridget Foley DesignInterior Designers
IN.05.214 Hydraulic Pivot for wooden doors up to 200 kg The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort.
The doors can be single or double-action, with a minimum thickness of 40mm.
The system is hidden inside the door, with only a small base on the floor, bidirectional regulation, and a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being critical when the door has a lock installed.
One of this system's characteristics is that the door's rotation point can be from 40mm to the centre of the door. The installation is made from the top of the door, which allows the doors to go up to the ceiling.
To cover doors with weights from 40 to 200kg, lengths up to 3000mm and heights up to 4000mm, the system has force adjustment, which can be done with the installed door.
- Scope of use
- Suitable for door thickness 40mm and up
- Maximum weight: 200 Kg
- Maximum door width 3000 mm
- Maximum door height 4000 mm
- Performance
Maximum door weight 200 kg
