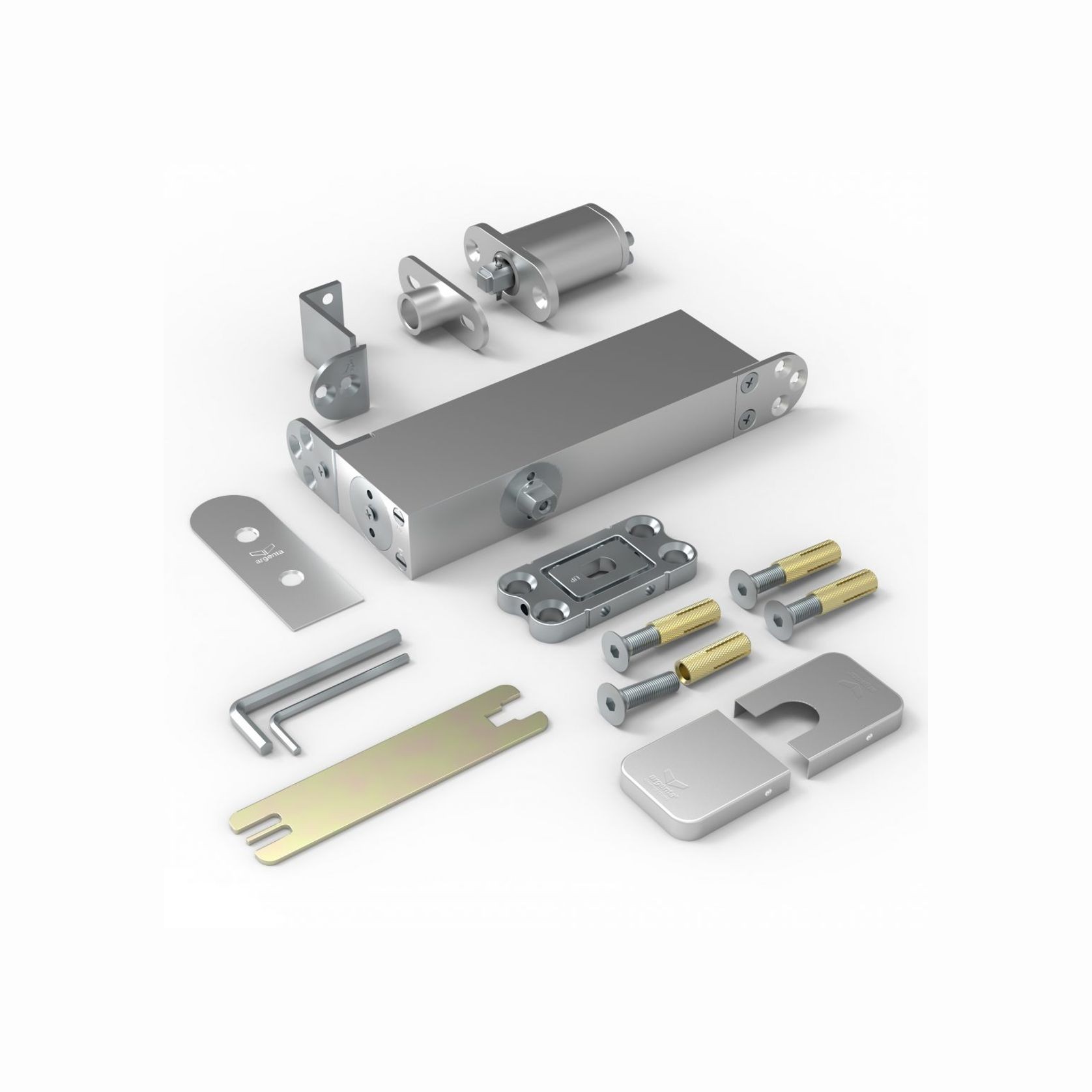

Internal Pivot Hinge 100 Swing Door
The Triline Pivotica minimalistic and invisible pivot hinge has several unique characteristics. Thanks to its compact size the Pivotica Pro is not only easy to mount in the door, but the pivot hinge can also be installed in pivoting floor-to-ceiling-height doors.
Triline’s internal pivot hinge is made of top-quality Belgium components.

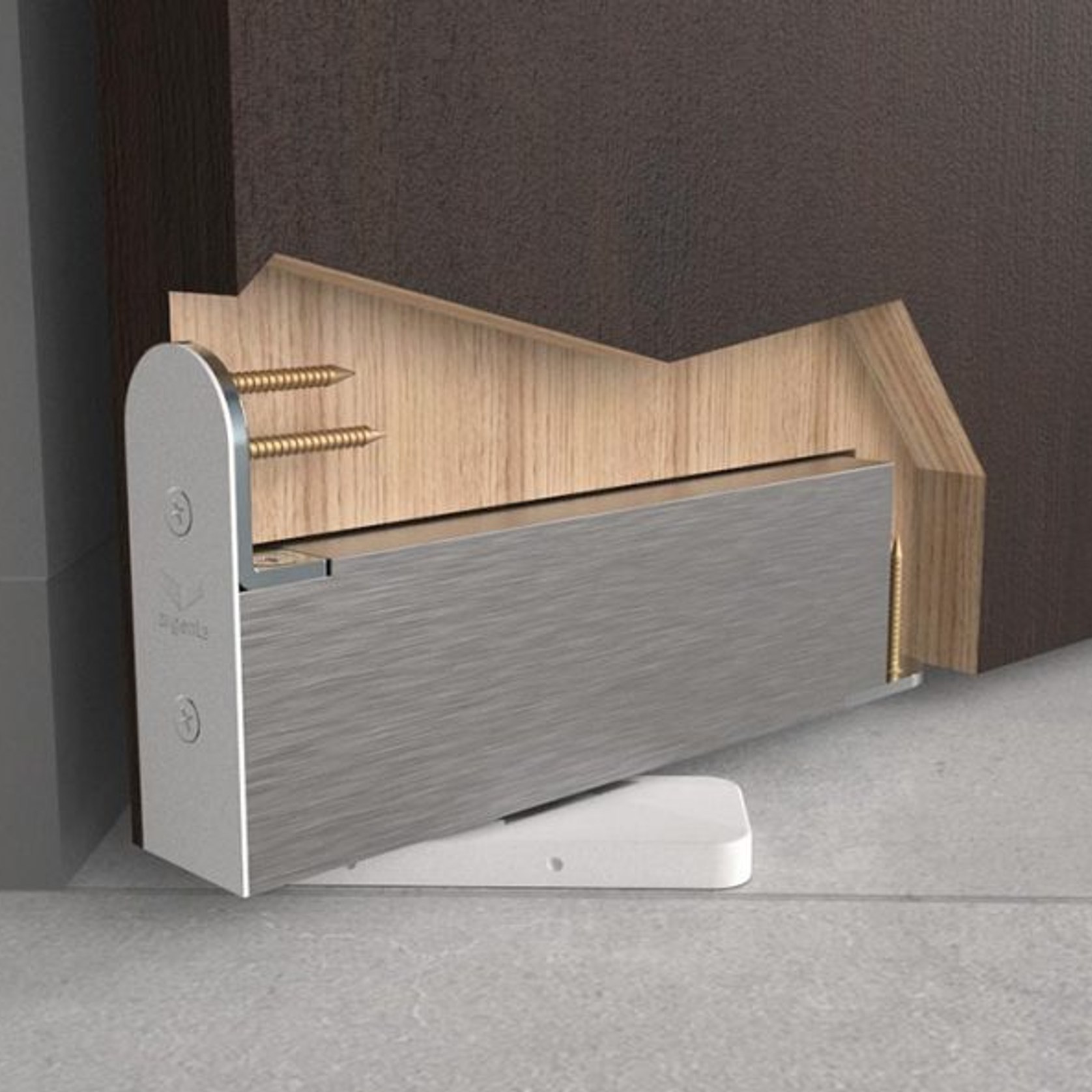

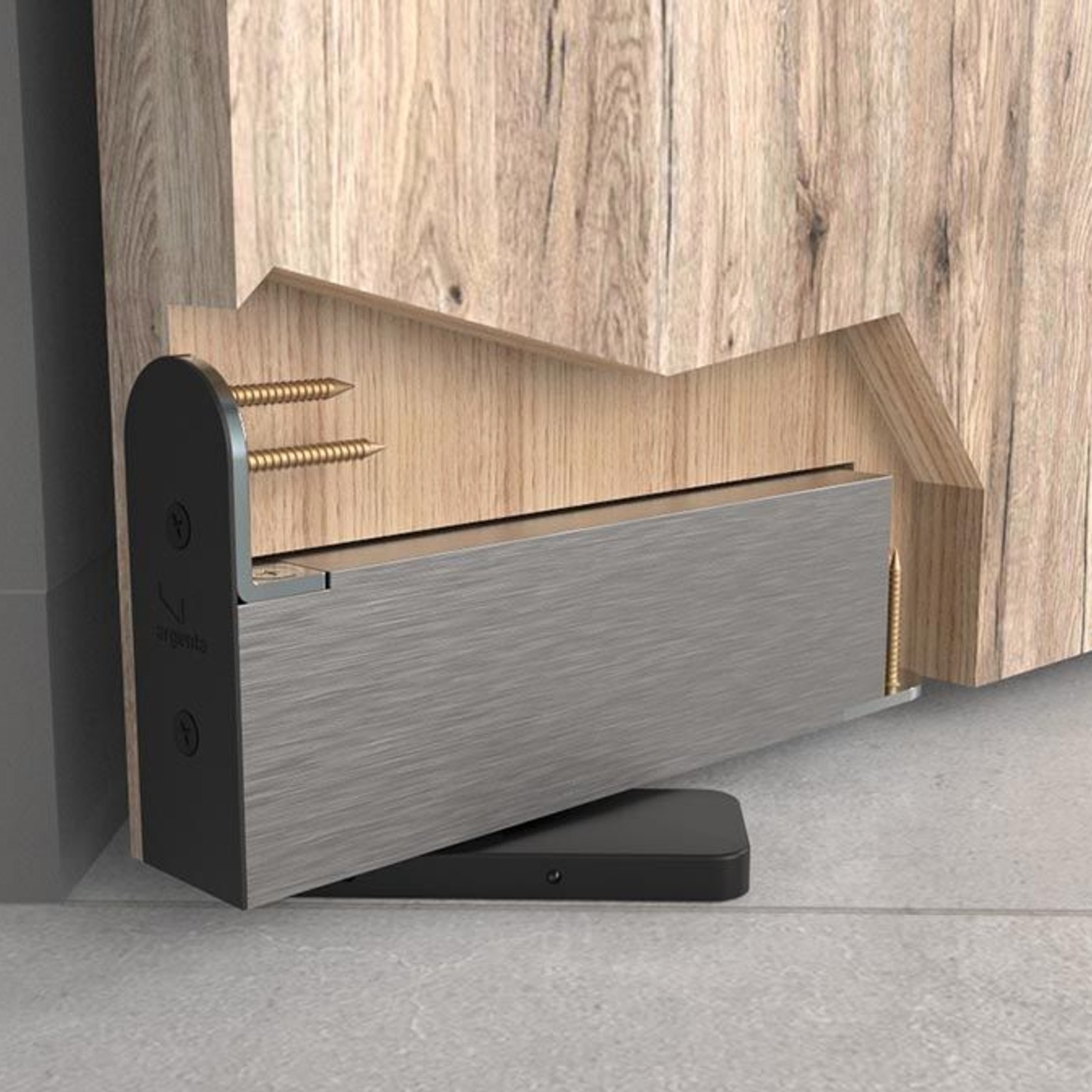

Because the pivot system is placed inside the door, the Argent Pivotica Pro can be used in both new constructions and renovations and it is suitable for floors with underfloor heating. Thanks to the extra bracket the position of the hinge can be chosen, resulting in a maximum door width of 2000mm if the hinge is placed in the centre of the door. From a door height of 2500mm we recommend using an Argenta magnotica, magnetic contactless door closer.
- CategoryInternal Doors
- RangeSwing Doors
- BrandTriline
- DesignerTriline
All parts of this pivot hinge are rust-resistant. The Pivotica is suitable for indoor use of both modern residential buildings as well as public buildings and offices.
- Finish: Brushed Stainless Steel
- Max. Door Weight: 100kg
- Max. Door Height: 3000mm
- Max. Door Width: 2000mm
- Min. Door Thickness: 40mm
- Max. Opening Angle: 150˚
- Fix Position: +90˚ / -90˚
- Suitable for Full Height Doors: Yes
- Active 2 Speed Damper: Yes
- Adjustable Floor Plate: Width Adjustment: -3/+3mm, Depth Adjustment: -3/+3mm
- Alignment: -4˚/+4˚
- Optional: Black or White Cover Caps
