KML-10 Electromechanical Lock
by dormakaba
Christchurch, New Zealand
- 71.8K profile views
- 15 saves
Product Details
- Product
- KML-10 Electromechanical Lock
- Category
- Window and Door Hardware
- Sold by
- dormakaba

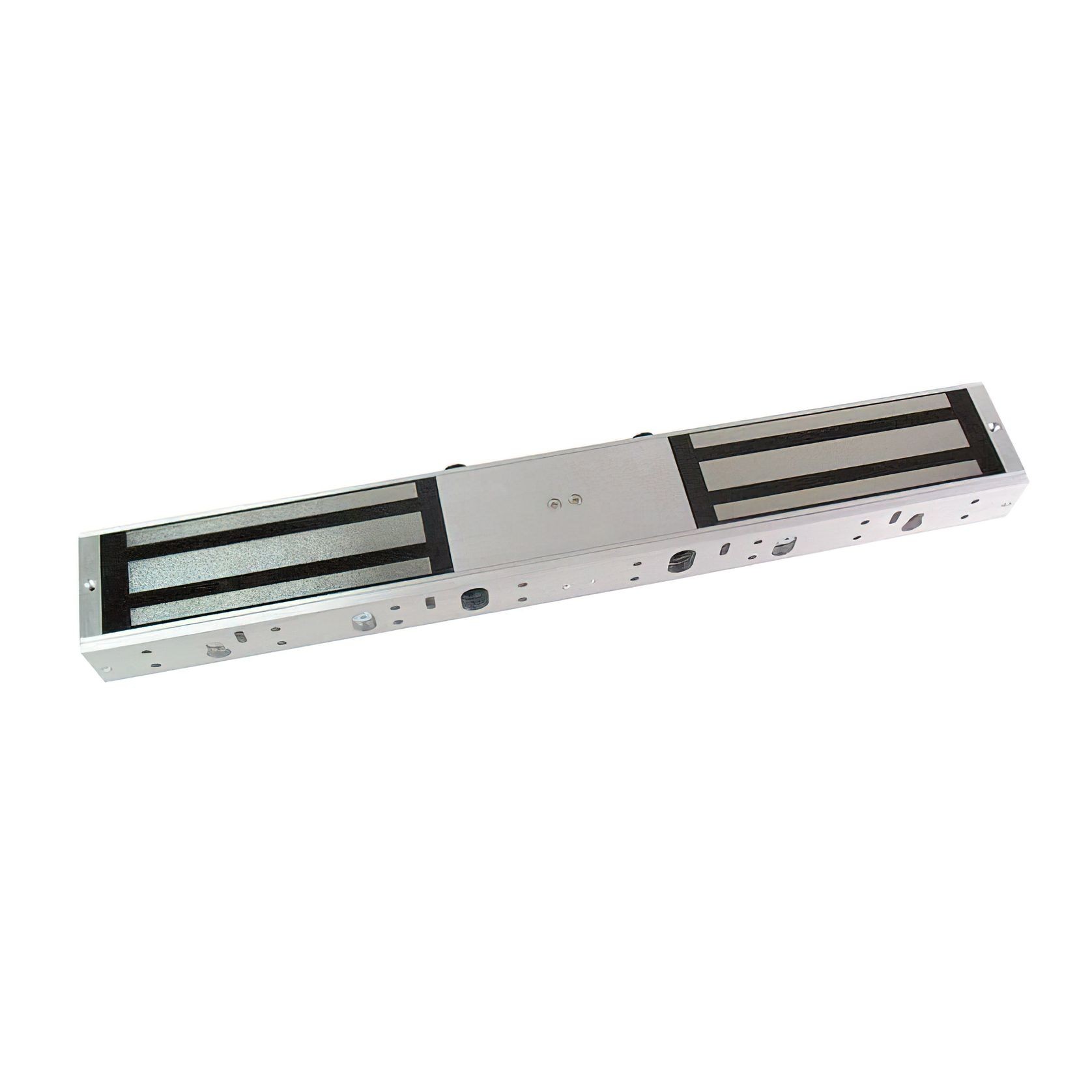

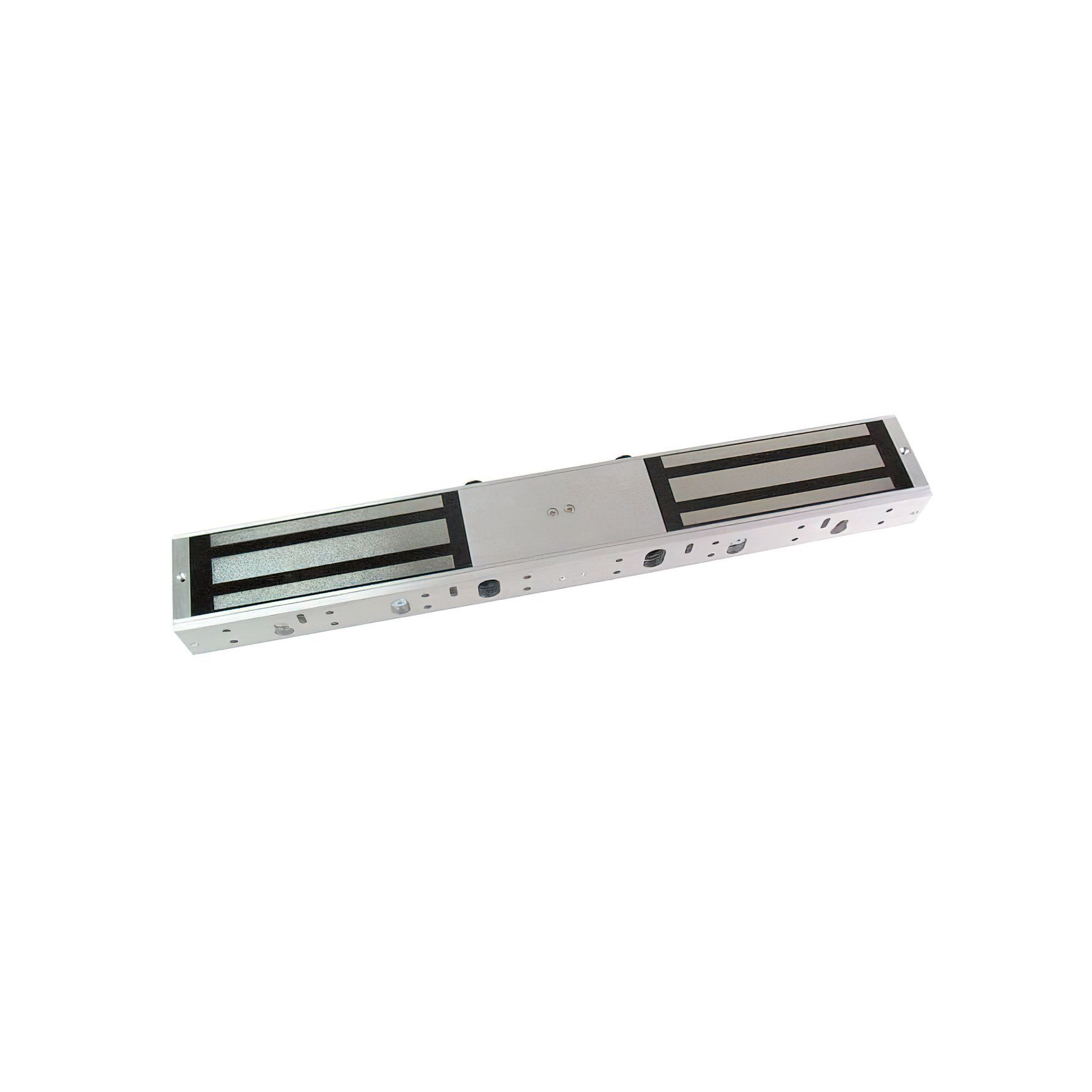

The dormakaba KML-10 is an electromagnetic lock that can be used for double or surface mounted doors.
It has a holding force of 540kg and dual voltage with both lock and door sensor. The KML-10 also features a built-in voltage spike suppressor and has a 2 hour fire rating.
- Specs
- Holding force: 540kg (1200lb / 5400N).
- Current draw: 500mA/12V, 250mA/24V.
- Dual voltage: 12/24VDC.
- Bi-colour LED monitor available.
- Built-in voltage spike suppressor.
- Hall effect monitoring.
- Lock sensor (hall effect IC).
- Door sensor.
- 2 hour fire rating.
- CE approval.
- C-Tick.
- Scope of use
- Holding Force 5,400N (540Kg).
- Voltage 12/24VDC.
- Current draw 500mA/12VDC, 250mA/24VDC.
- Material Brushed anodized aluminium housing.
- CE approved and has a 2 hour fire rating.
- Performance
- Holding Force 5,400N (540Kg).
- Voltage 12/24VDC.
- Current draw 500mA/12VDC, 250mA/24VDC.
- Material Brushed anodized aluminium housing.
- CE approved and has a 2 hour fire rating.
