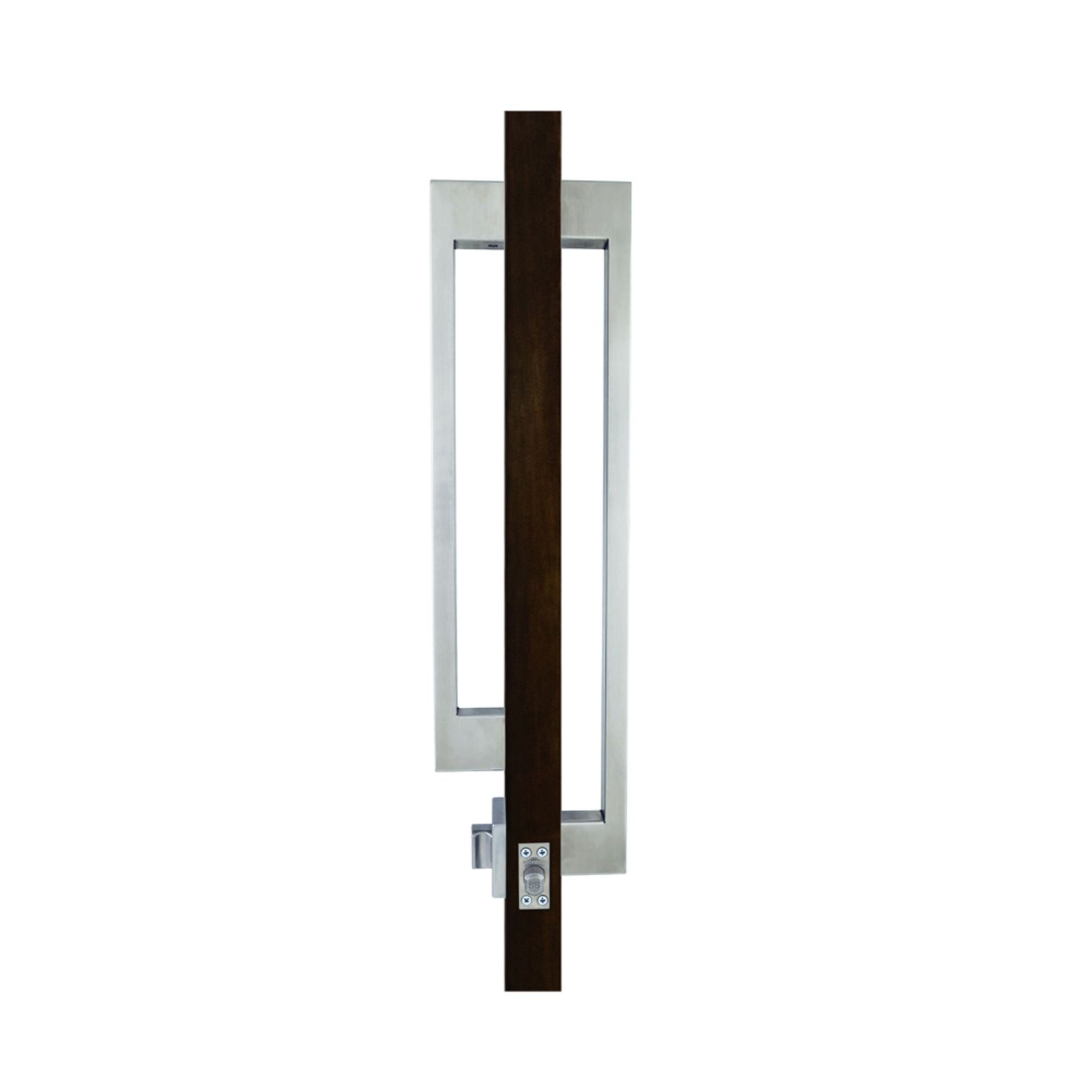

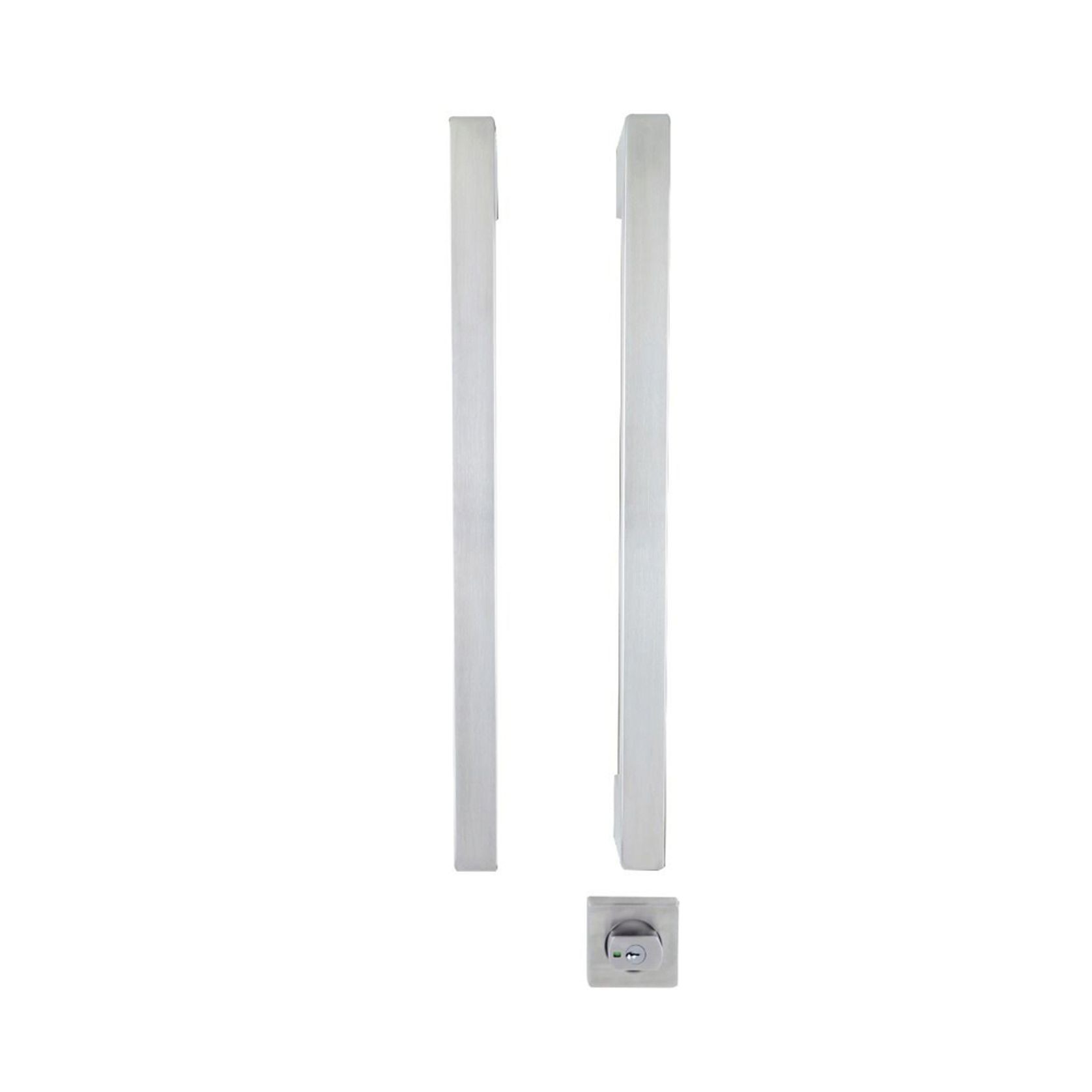

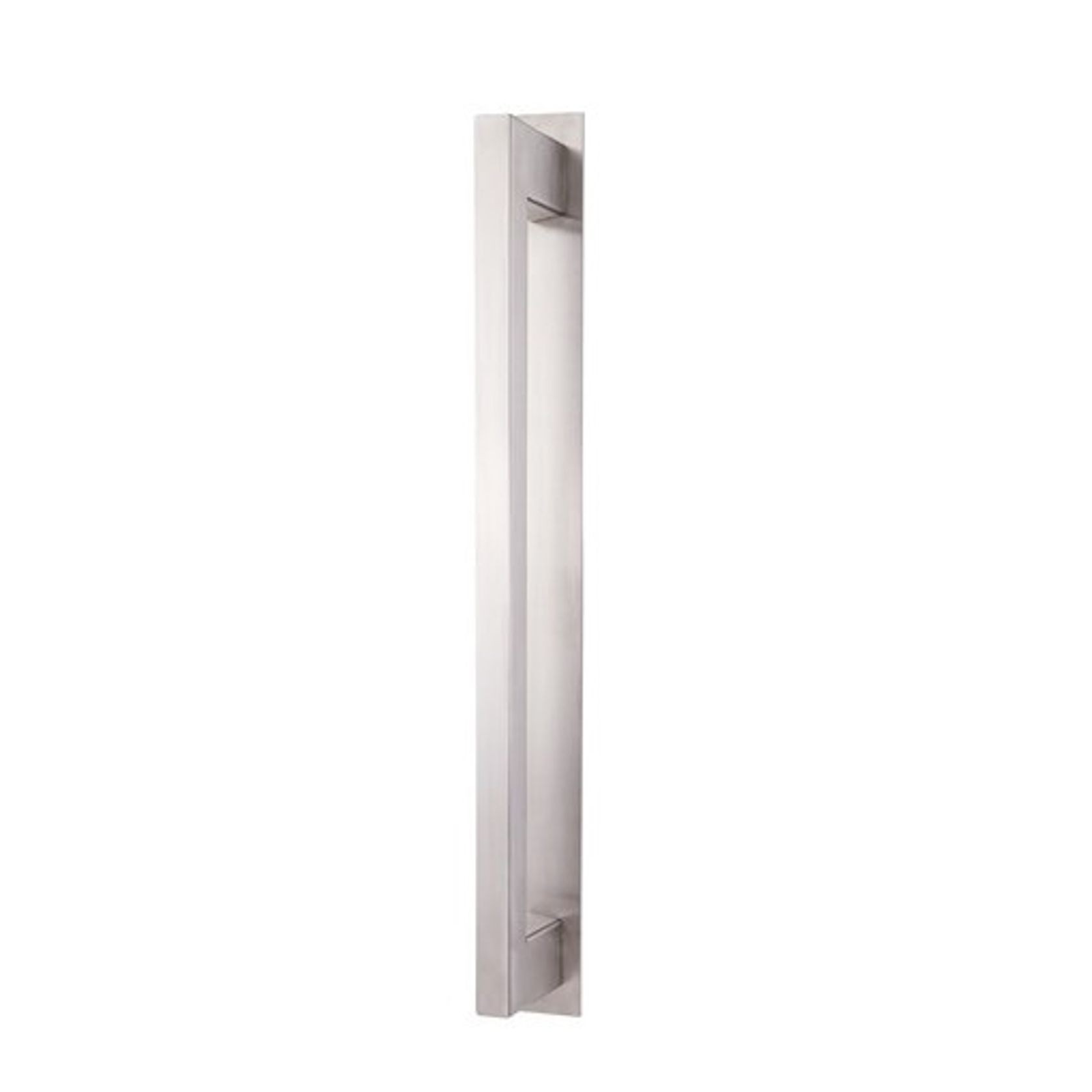

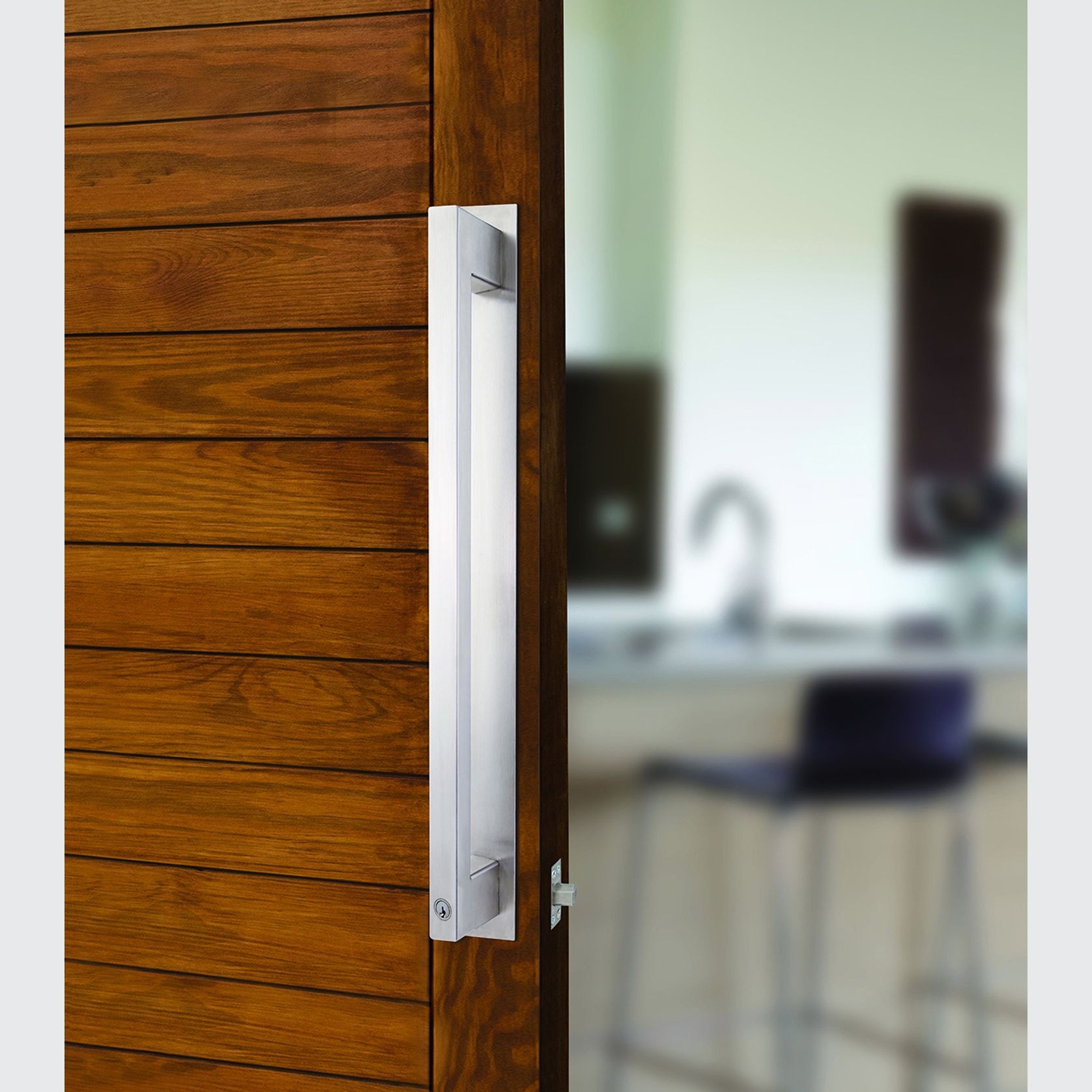

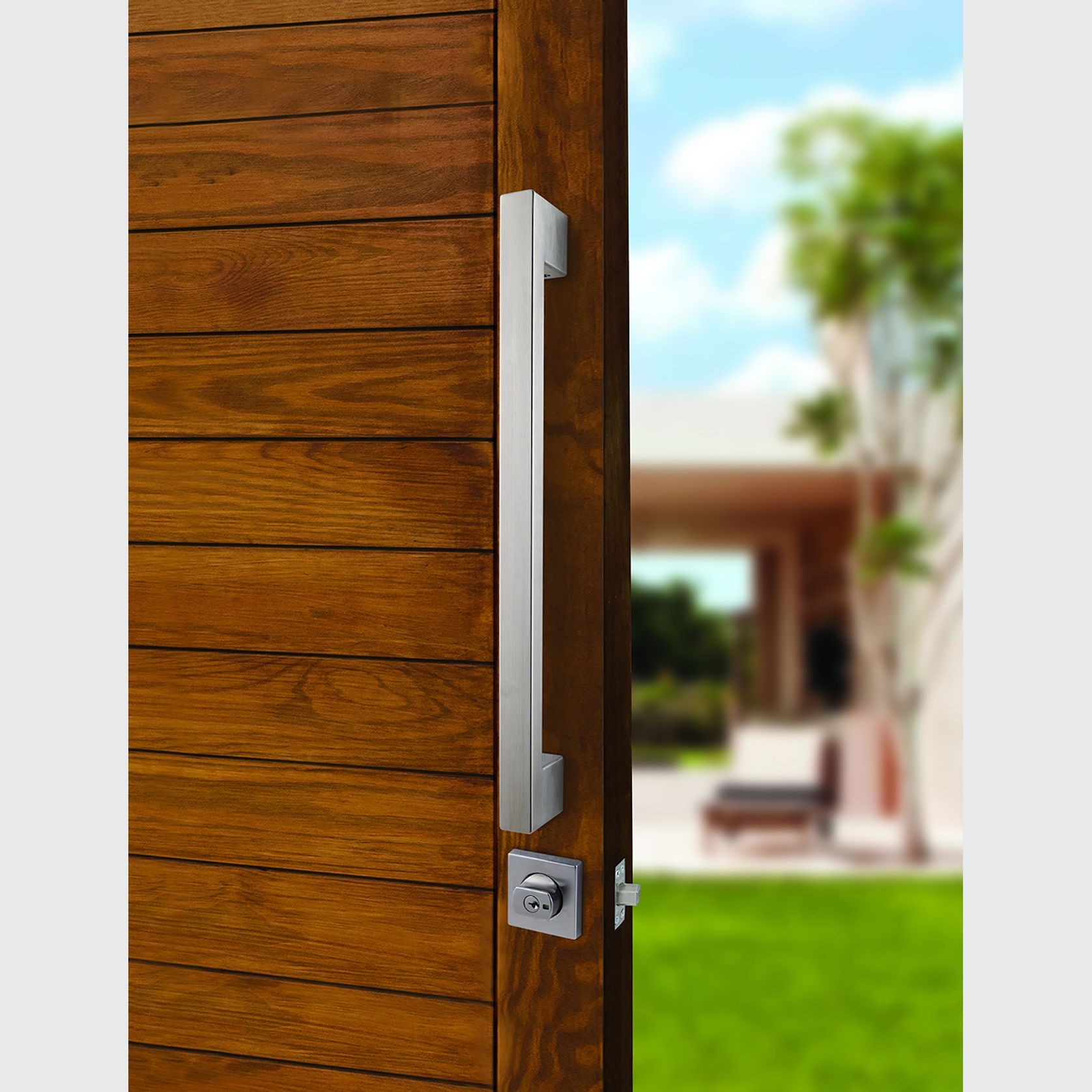

Lockwood Paradigm Door Pull Handle with Double Cylinder Deadbolt Satin Stainless Steel 005/DPHBSSS
Lockwood Paradigm Pull Handle with Double Cylinder Deadbolt
005/DPHBSSS
Pull Handle are used as a handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)
Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.
- Suitable for residential, new building and renovation market applications.
- Expresses superior state-of-the art design featuring a contemporary style that delivers exceptional safety and security.
- Incorporates innovative safety features from the Paradigm 005 Deadbolt and is manufactured with high end 304 grade stainless steel.
Details
- CategoryPull Handles
- RangeLockwood
Specifications
Features:
- Three function modes with DualSelect® provides combination of convenience and security
- High security cut resistant stainless steel bolt
- Brushed 304 Grade Stainless Steel Pull Handles
- Concealed screw fixings gives a neat and clean appearance
- Safety Release™ automatically unlocks internal knob upon key entry from outside
- LockAlert® indicator shows lock status at a glance
Specifications:

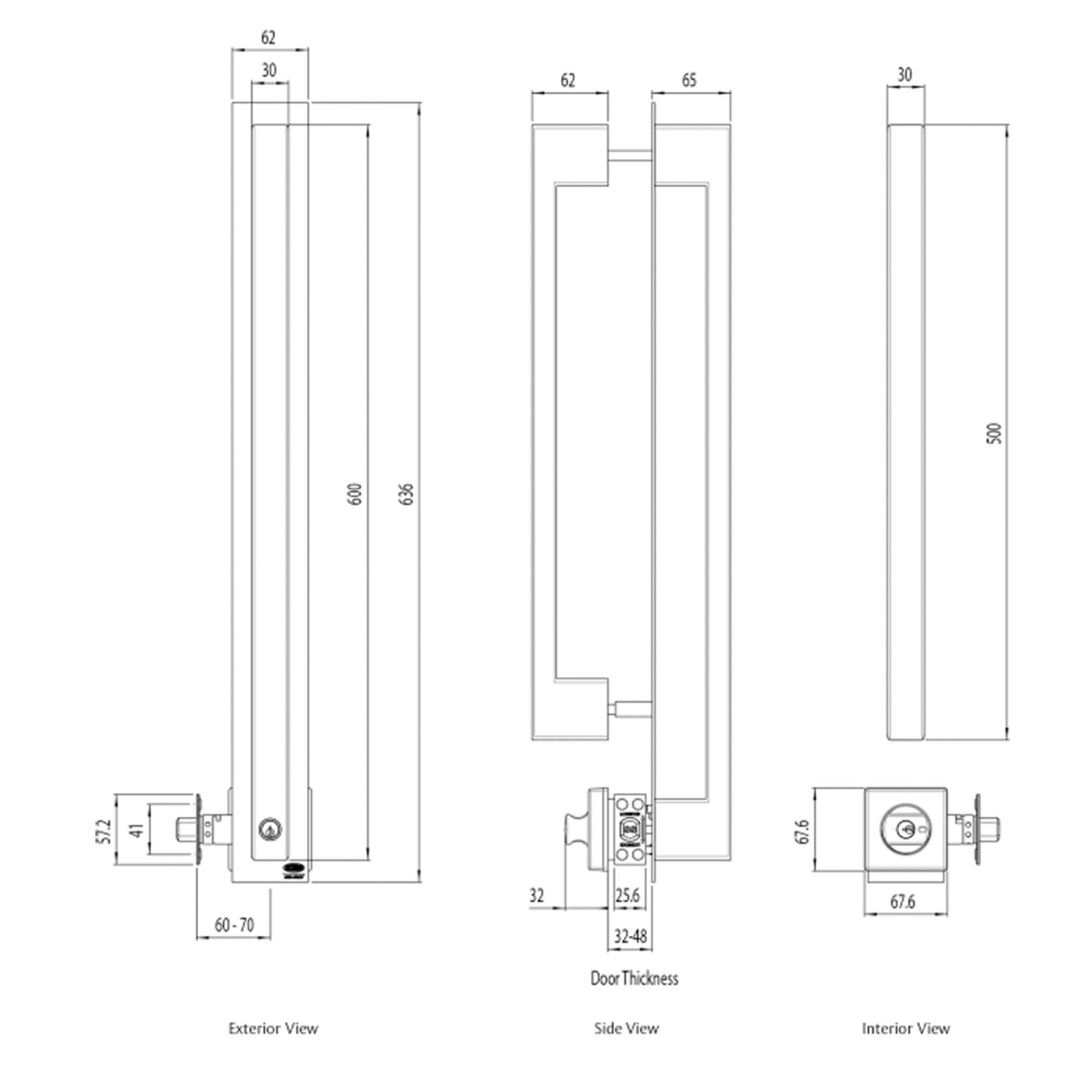

- Dimensions:
- External Handle Length: 600mm
- Internal Handle Length: 500mm
- Handle Width: 30mm
- Backset: 60mm-70mm adjustable
- Door Thickness: 32 - 48mm, 32-36mm doors require a spacer (Included)
- Finish: Satin Stainless Steel
- Materials: 304 Grade Stainless Steel
- Strike: Box strike with concealed crossgrain door frame strengthening screw
- Magnets: Door Magnets included to hold the door(s) in position when in passage mode (free to enter from outside and free to exit from inside)
- Keying:
- Supplied individually keyed with two keys per lock
- 78,000 key combinations
- Key blank KB2015P
Standards and Compliance:
- SL8 (Security) Australian Lock Standard (AS4145.2 - 2008)
- D8 (Durability) Australian Lock Standard (AS4145.2 - 2008)
- C6 (Corrosion) Australian Lock Standard AS4145.2 - 2008)
- K5 (Key Security) Australian Lock Standard AS4145.2 - 2008)
