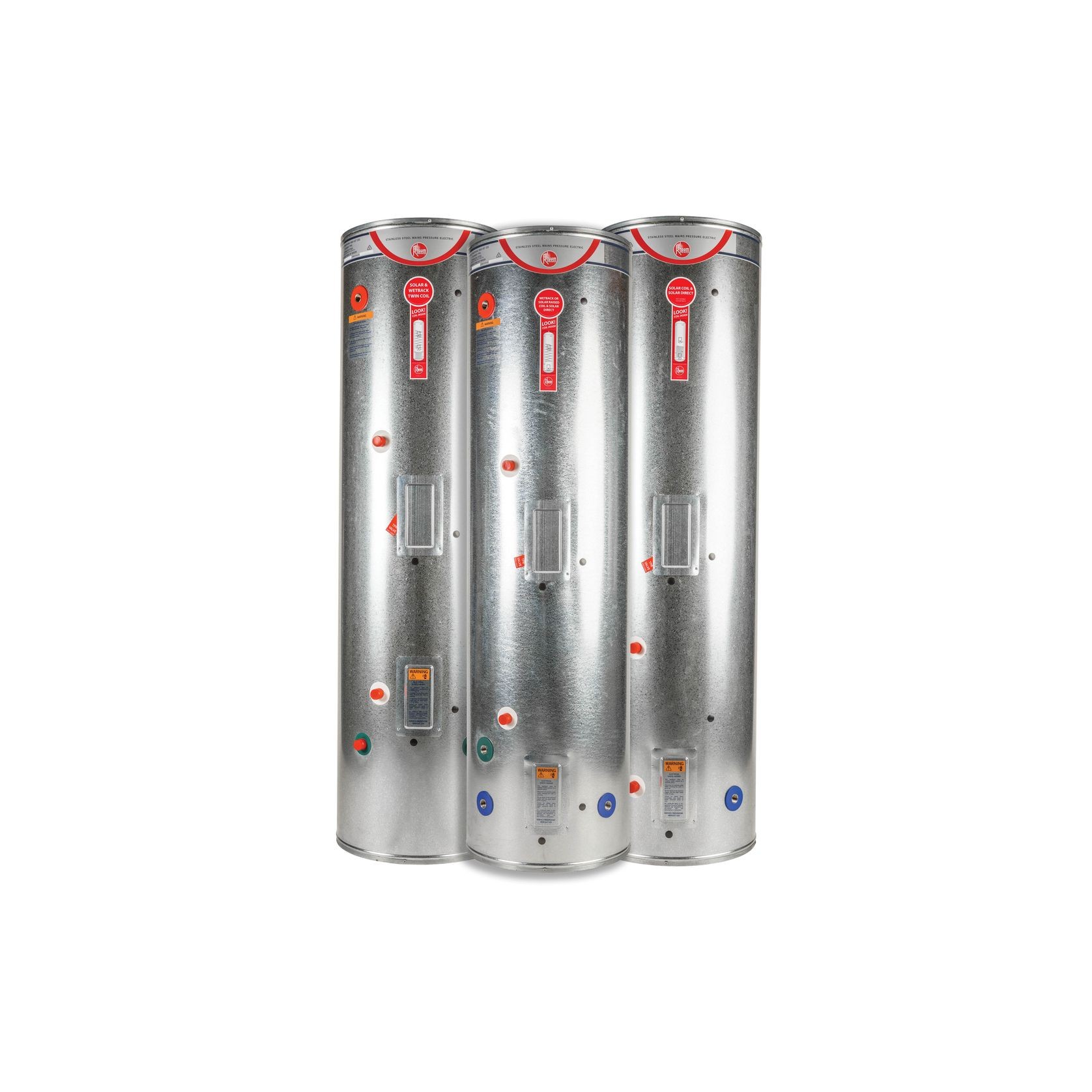

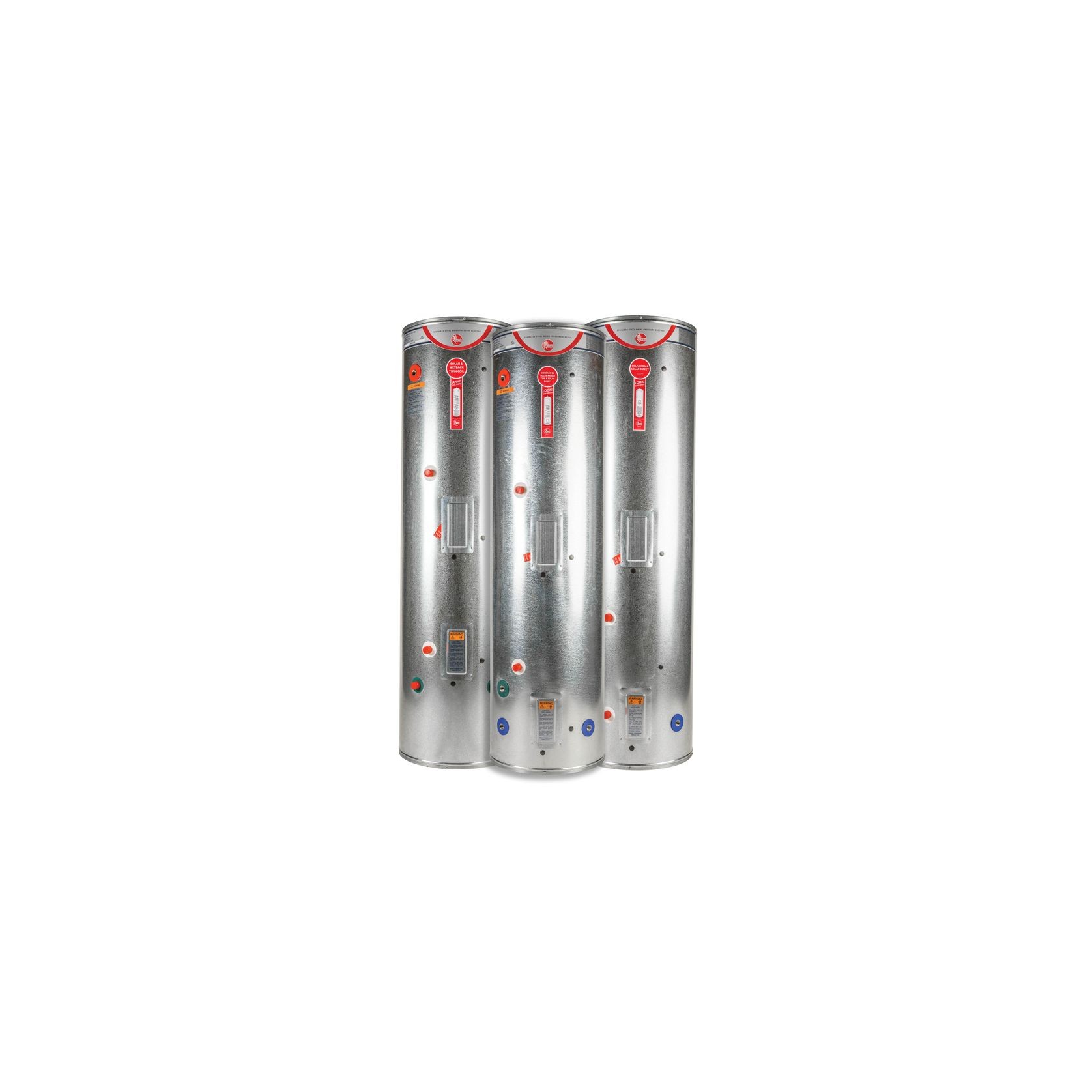

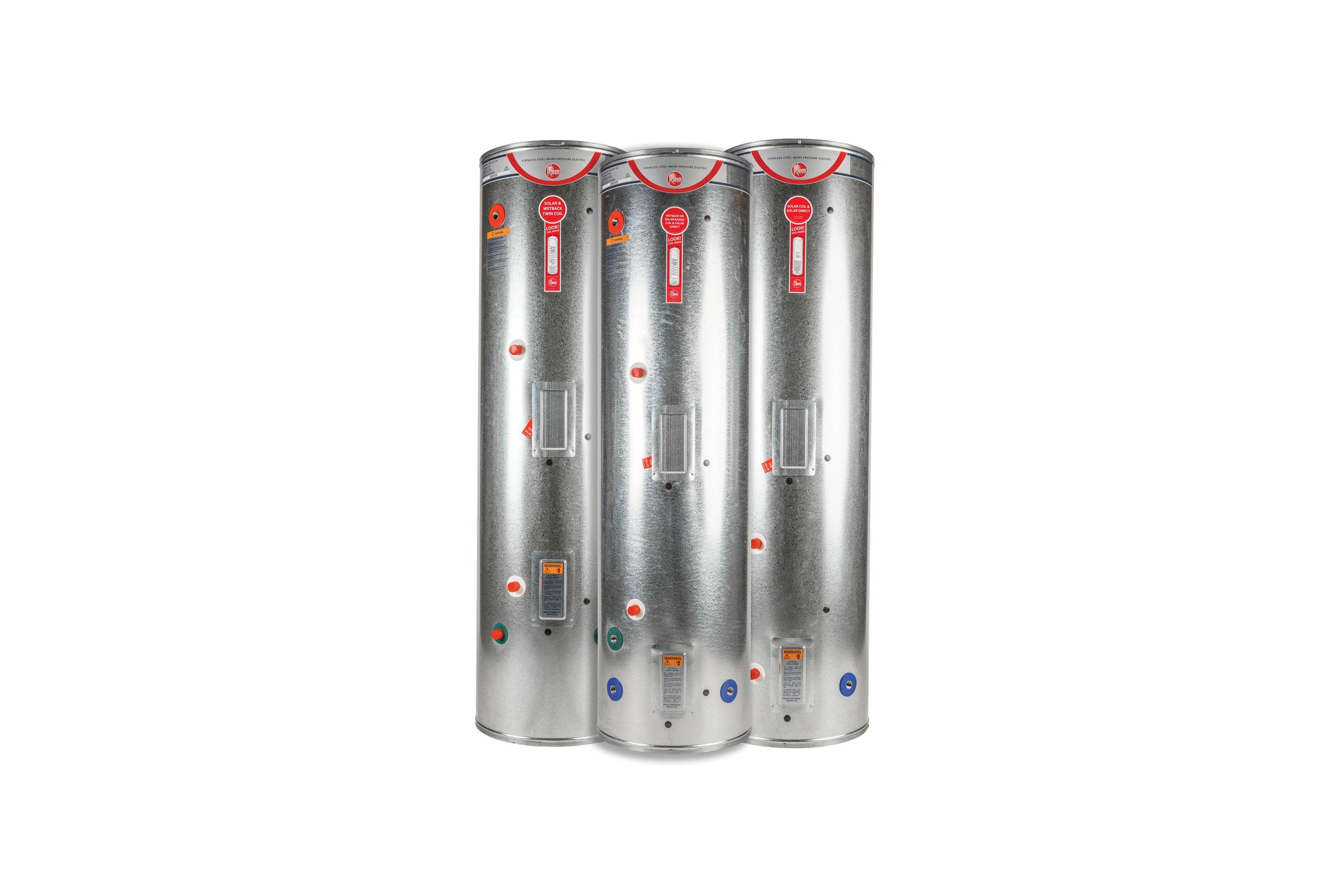

Mains Pressure SS Coil Electric Hot Water Cylinder
by Rheem
Auckland, New Zealand
- 199.8K profile views
- 35 saves
Rheem mains pressure stainless steel coil electric hot water cylinders feature an indirect stainless steel coil heat transfer system. Designed and engineered in New Zealand, this heat exchange system allows customers the flexibility to choose their heat sources. The various coil options enables the transfer of heat indirectly from wetback, solar, heat pump, or from a combination of thermosiphon/pumped sources. Available in 250L and 300L capacities.
- Abundant mains pressure hot water
- Solar, heat pump and wetback compatible
- Suitable for use across a wide range of water conditions
- Future proofed hot water system
- Indirect stainless steel coil heat transfer system
- Comes with coil installed either at the bottom or middle of the unit, or with an option for dual coils.
- Each unit comes with a lower element and thermostat installed. An upper element can also be installed to act as a back-up or booster (sold separately).
- Solstice Green insulation helps maintain the optimum water temperature, reducing energy use and providing economic and environmental benefits
- Designed and engineered in New Zealand
- 10 year domestic cylinder warranty
Product Details
- Product
- Mains Pressure SS Coil Electric Hot Water Cylinder
- Category
- Hot Water Cylinders
- Sold by
- Rheem
- Installation
- Professional installation required
Product specified by
Rheem mains pressure stainless steel coil electric hot water cylinders feature an indirect stainless steel coil heat transfer system.
Designed and engineered in New Zealand, this heat exchange system allows customers the flexibility to choose their heat sources. The various coil options enables the transfer of heat indirectly from wetback, solar, heat pump, or from a combination of thermosiphon/pumped sources. Available in 250L and 300L capacities.
- Abundant mains pressure hot water
- Solar, heat pump and wetback compatible
- Suitable for use across a wide range of water conditions
- Future proofed hot water system
- Indirect stainless steel coil heat transfer system
- Comes with coil installed either at the bottom or middle of the unit, or with an option for dual coils.
- Each unit comes with a lower element and thermostat installed. An upper element can also be installed to act as a back-up or booster (sold separately).
- Solstice Green insulation helps maintain the optimum water temperature, reducing energy use and providing economic and environmental benefits
- Designed and engineered in New Zealand
- 10 year domestic cylinder warranty
- Scope of use
Indoor Installation
- Specs / Details
Available in the following model configurations:
- MPSSCOIL 35625015ML | 250L | 560 x 1740H | 3.0kW | Mid Coil LHD (Wetback)
- MPSSCOIL 35625015MR | 250L | 560 x 1740H | 3.0kW | Mid Coil RHD (Wetback)
- MPSSCOIL 35625015LL | 250L | 560 x 1740H | 3.0kW | Lower Coil LHD (Solar)*
- MPSSCOIL 35625015LR | 250L | 560 x 1740H | 3.0kW | Lower Coil RHD (Solar)*
- MPSSCOIL 35625015DL | 250L | 560 x 1720H | 3.0kW | Dual Coil LHD (Wetback and Solar)
- MPSSCOIL 35630015ML | 300L | 560 x 2055H | 3.0kW | Mid Coil LHD (Wetback)
- MPSSCOIL 35630015MR | 300L | 560 x 2055H | 3.0kW | Mid Coil RHD (Wetback)
- MPSSCOIL 35630015LL | 300L | 560 x 2055H | 3.0kW | Lower Coil LHD (Solar)*
- MPSSCOIL 35630015LR | 300L | 560 x 2055H | 3.0kW | Lower Coil RHD (Solar)*
- MPSSCOIL 35630015DL | 300L | 560 x 2035H | 3.0kW | Dual Coil LHD (Wetback and Solar)
*Not suitable for Wetback installations
- Sustainability Facts
- All Rheem Stainless Steel Mains Pressure Coil water heaters meet or exceed the NZ MEPS (Minimum Energy Performance Standards).
- The water heaters have recyclable galvanised steel jackets (outer casing) and steel (inner) tanks, as well as recyclable valves. Recyclable cardboard packaging is used only on the top rim of the water heater, meaning there is no unnecessary waste.
- High quality Solstice ZD insulation allows the optimum water temperature to be maintained longer, which results in reduced energy usage and lower costs. Solstice ZD also has very low GWP (Global Warming Potential) and zero ozone-depleting properties.
- Rheem Stainless Steel Mains Pressure Coil water heaters are lighter to transport and install than traditional water heaters.
