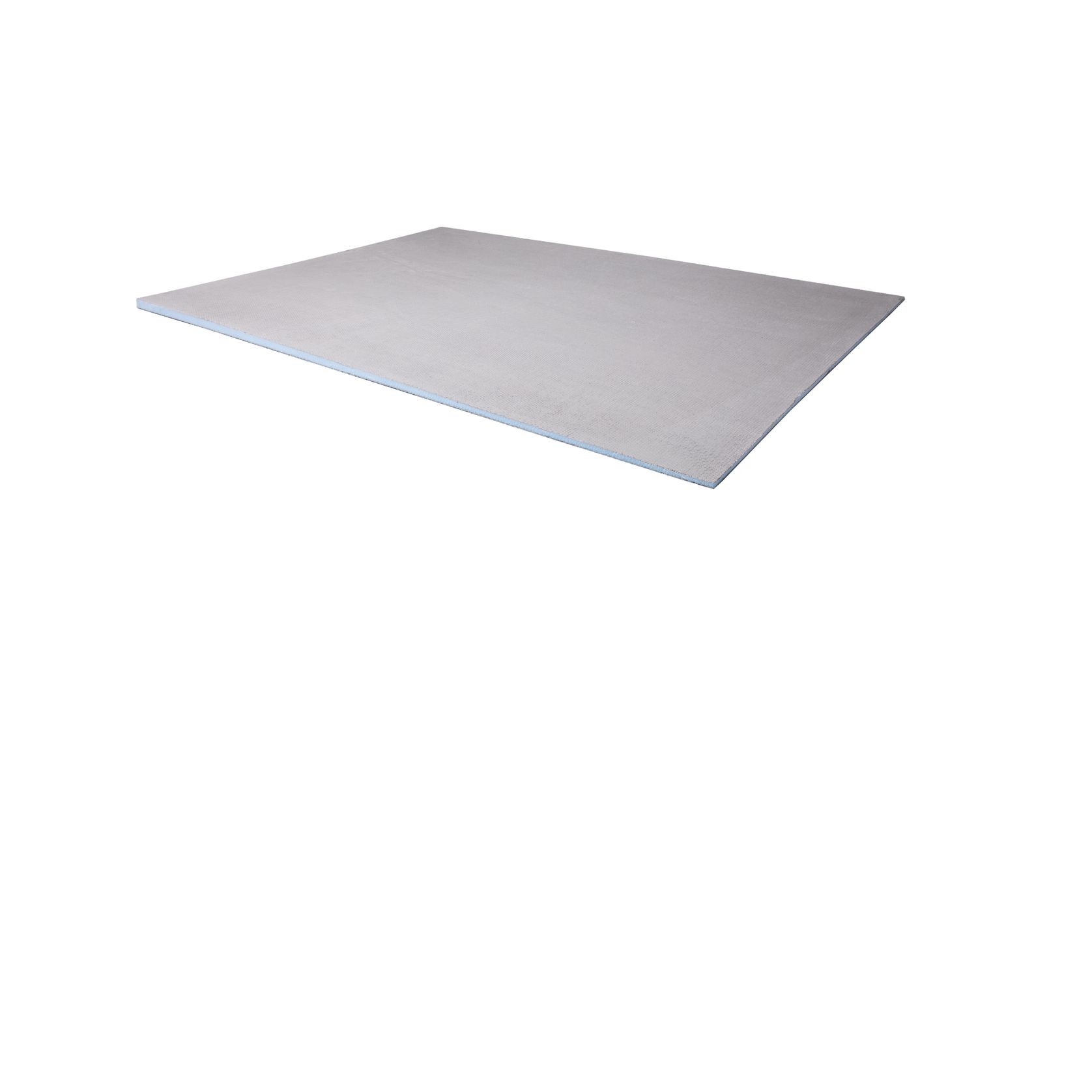

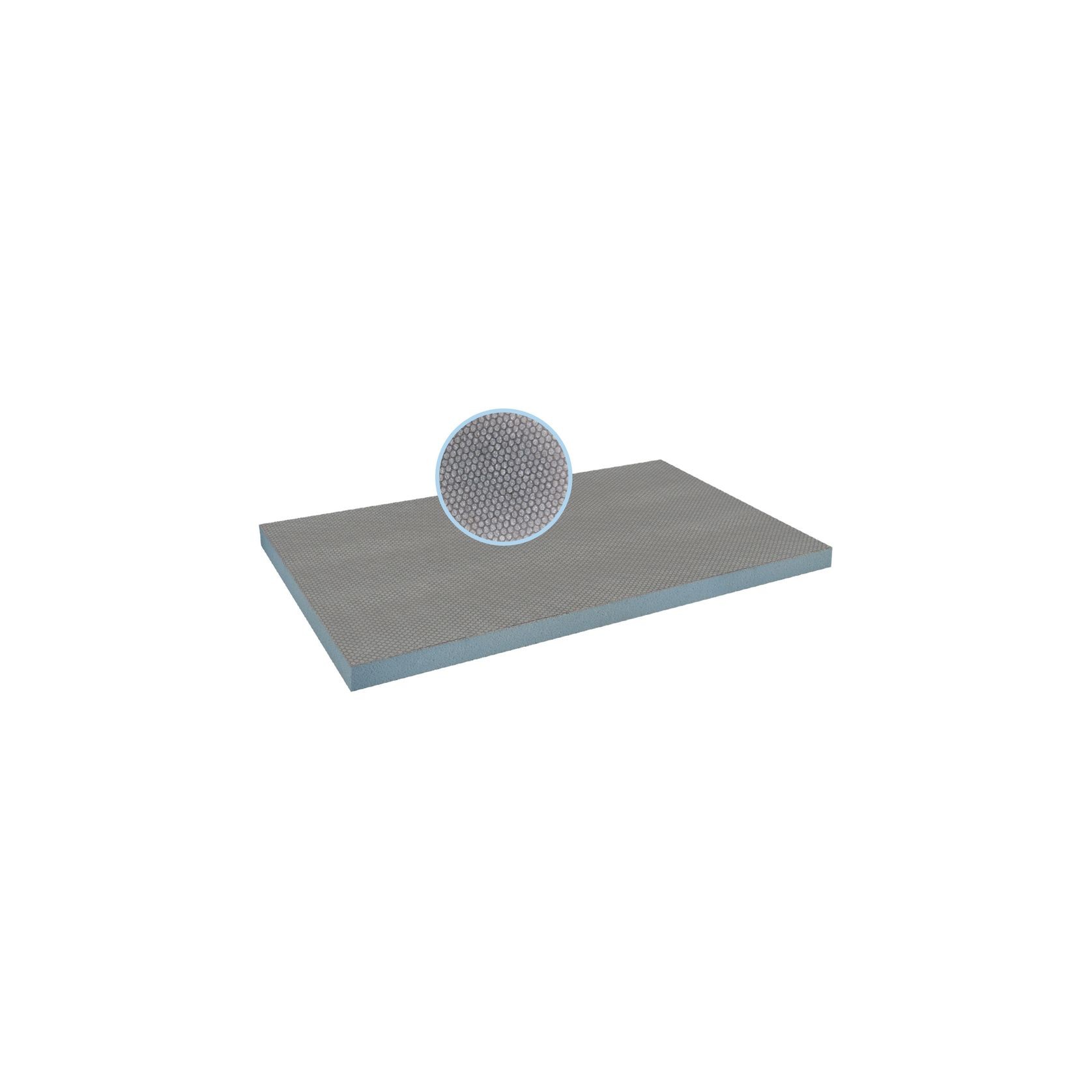

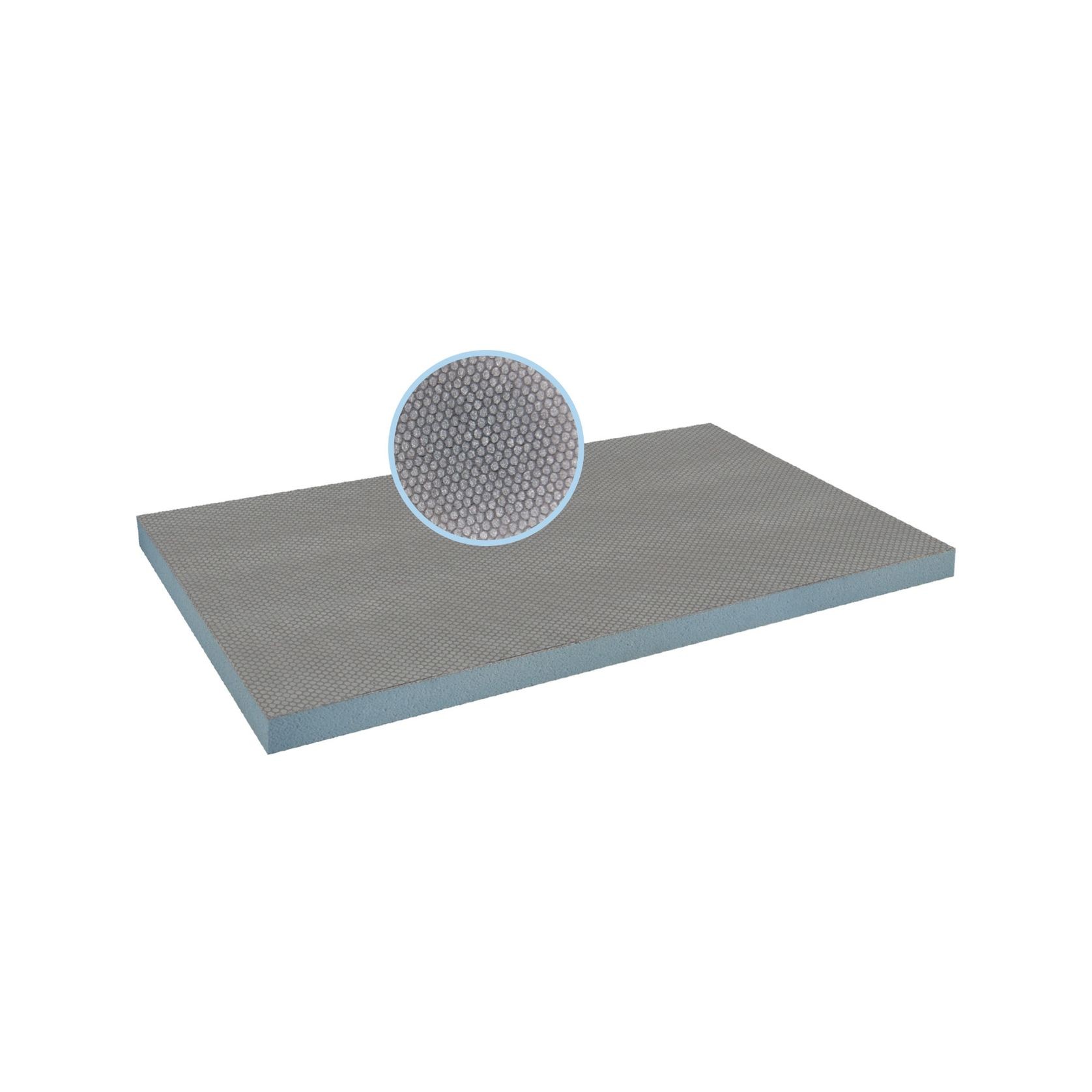

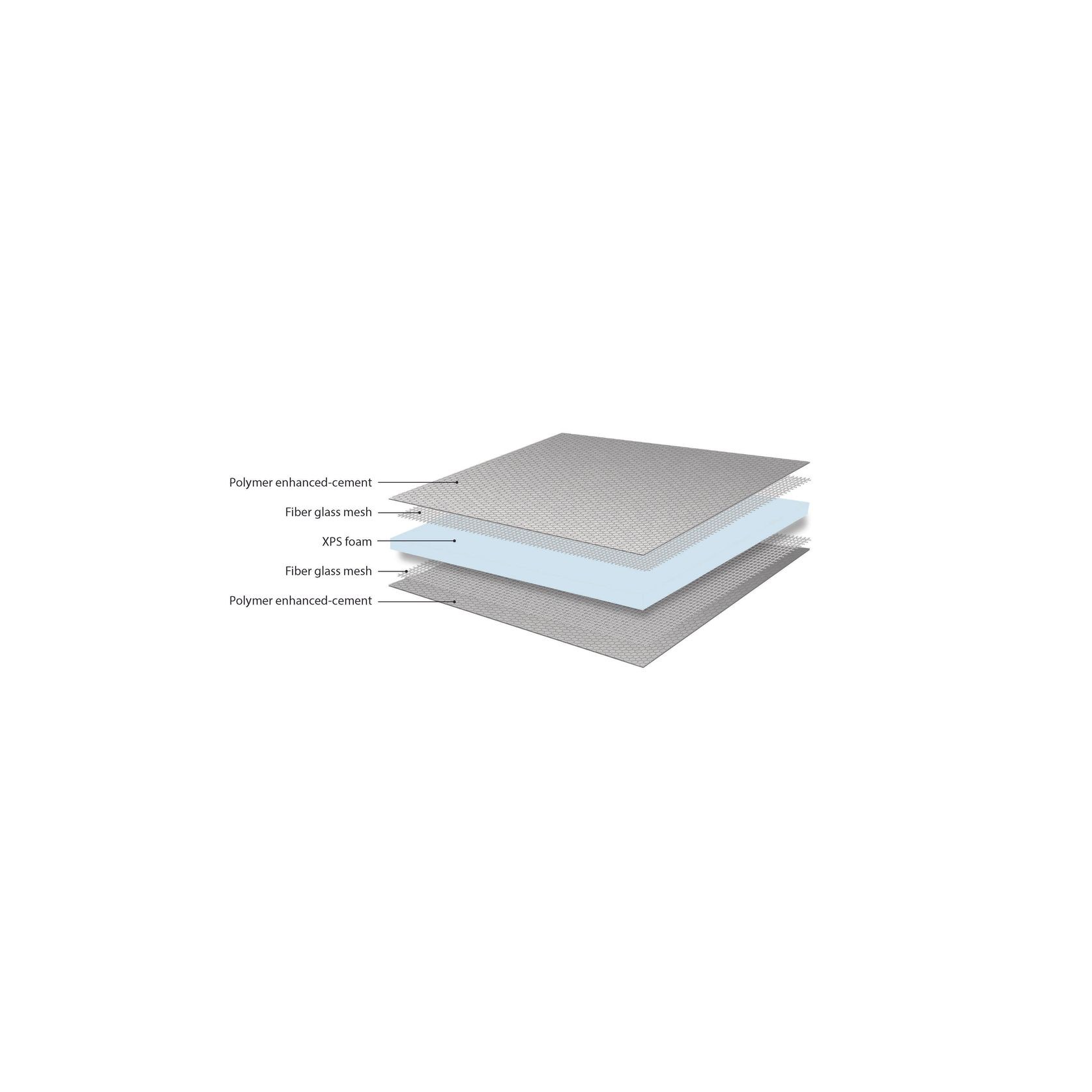

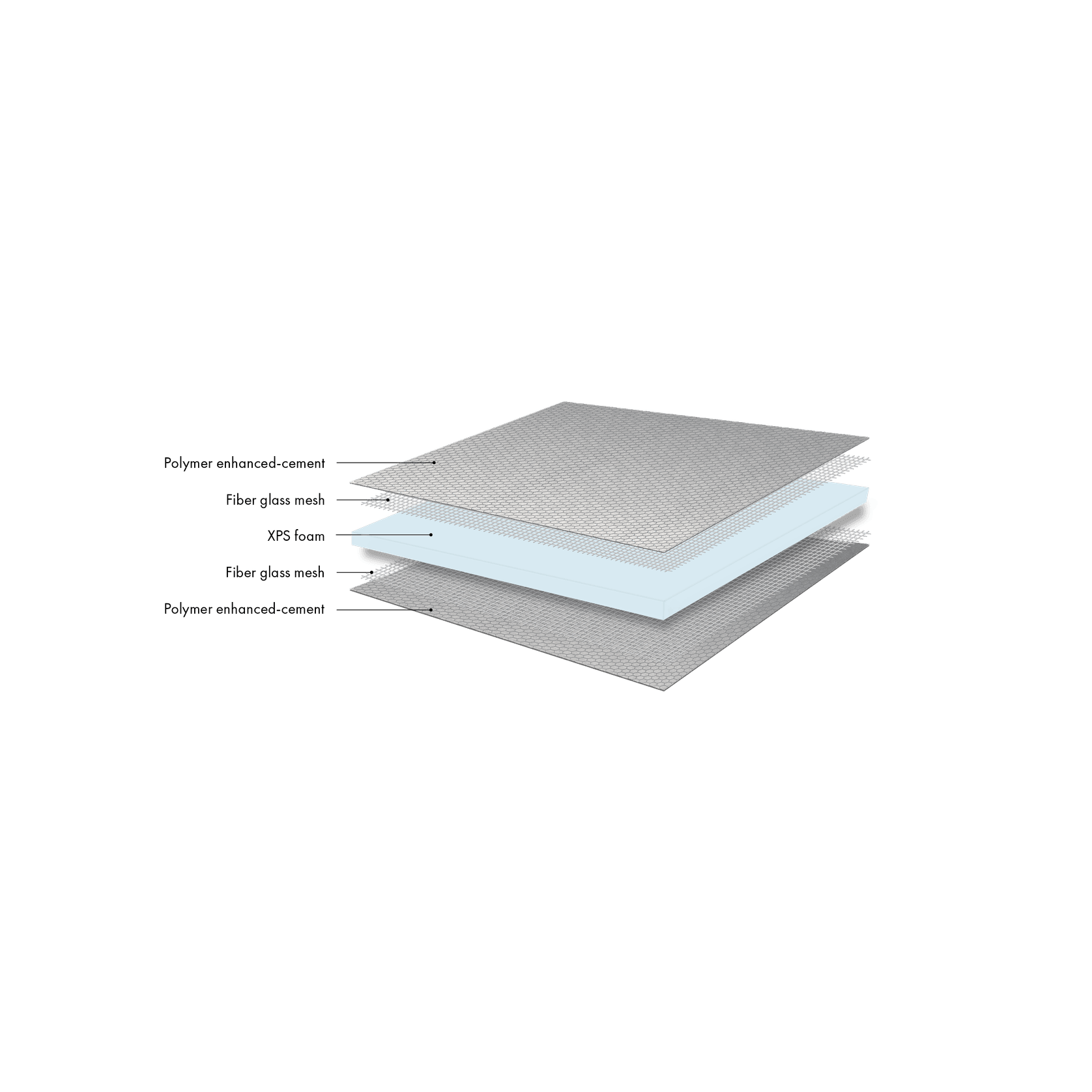

Marmox Insulated Tile Backer Board is made of extruded polystyrene, reinforced and covered on both sides with a fibreglass mesh embedded into a thin cement polymer mortar. The individual boards are 1250mm long x 600mm wide with an optional thickness of 6mm or 10mm, These boards are installed using a flexible tile adhesive in a similar manner to a large tile.

Marmox is placed between the concrete slab and the heating system creating a thermal barrier, ensuring all energy is directed upwards instead of being dispersed throughout the concrete slab. It also provides excellent acoustic properties particularly in reducing footfall noise and the echo often associated with large tiled areas. These insulation boards can reduce sound by up to 20 decibels.

Details
Specifications
  • Excellent heat insulation
  • Completely water resistant
  • High compressive strength
  • Excellent acoustic properties
  • Lightweight and easy to work with/install into new and existing building projects
  • Will not rot or break down
  • Environmentally friendly
  • Energy saving/energy efficient
  • Retains its R and U value even in moist conditions
  • Acts as a thermal barrier and significantly reduces heat loss to the substrate
  • Transforms undertile heating into a very responsive and efficient system
  • Can replace tile and slate underlay
