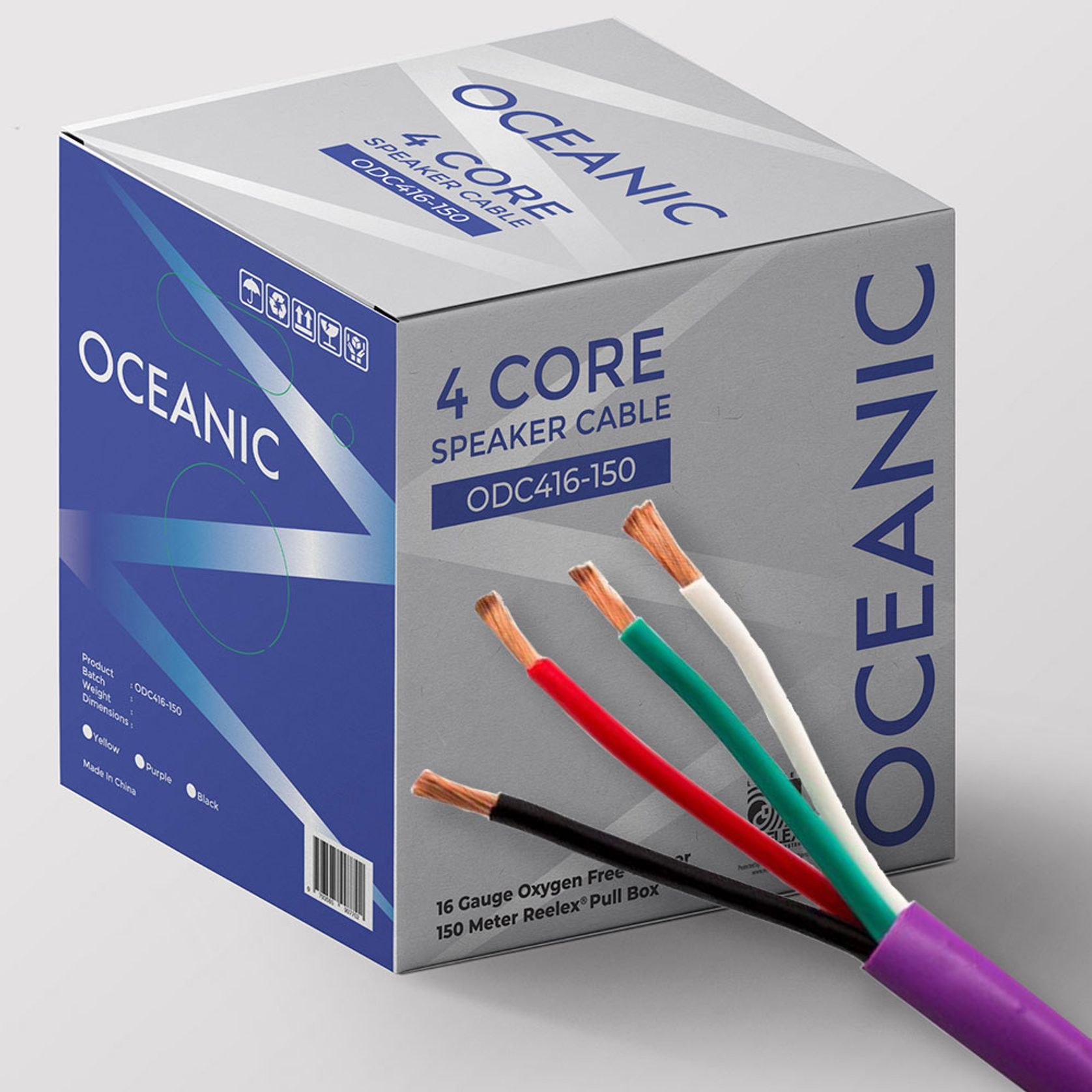

Oceanic 4 Core Speaker Cable 16 AWG - Reelex - Purple
This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
Dca rated speaker cable designed for optimal performance in low voltage applications. This high-quality cable features four 14 AWG conductors composed of 105 strands of oxygen-free copper, ensuring excellent signal transmission and durability.
- CategoryAudio Accessories
- BrandOceanic Cable
- Part Number:14/4OFC-PUR-D (Purple), 14/4OFC-WT-D (White)
- Regulatory Compliance: UL 444 & UL 13, Type CMR/CL3, EU RoHS 2011/65/EU, EN50575:2014 Reaction to Fire Class Dca
- Application: Speaker Cable, Power limited not to exceed 80V
- Conductor Material: Stranded Bare Copper
- Conductor Size: 14AWG X 4C
- Electrical & Physical Characteristics: Conductor Resistance: Max 9.2ohm/km at 20°C, Insulation, Resistance: Min 50MΩ*km at 20°C, Dielectric Strength: Min AC1.5KV
- Operating Temperature Range: 20°C to 75°C
- Insulation/Jacket Material: PVC
- Tensile Strength: (Unaged/Aged) 13.8Mpa / 11.7Mpa (100°C 168h)
- Elongation (Unaged/Aged): 100% / 50% (100°C 168h)
- Min. Bend Radius: 15D/120mm
- Colors: Black, Red, White, Green
- Packaging: 500ft/Box, Approx. Weight: 22kgs/48.501lbs, Approx. Dimension: 310x340x350mm, Packages per Pallet: 36
High End Professional Audio In-Wall Rated, Home Theater Grade, Speaker Audio
- 99.97% Oxygen Free bare copper conductors
- High Strand Count
- Ultra Flexibility
- Easy Pull Coated PVC jacket
- Easy Strip Construction
- ULListed, CMR In-Wall Rated, NEC CL2, and CEC CMG FT4; RoHS, CE
