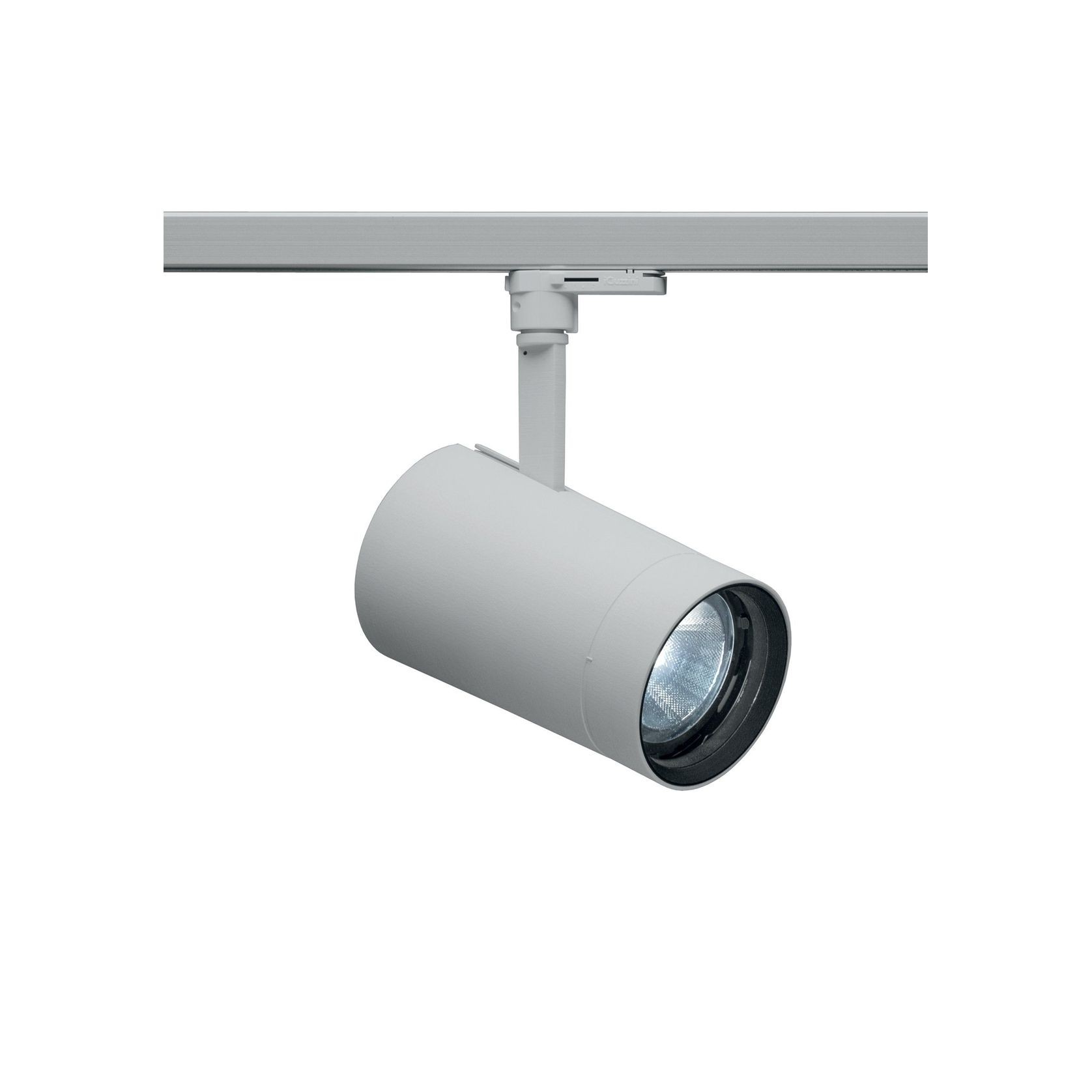

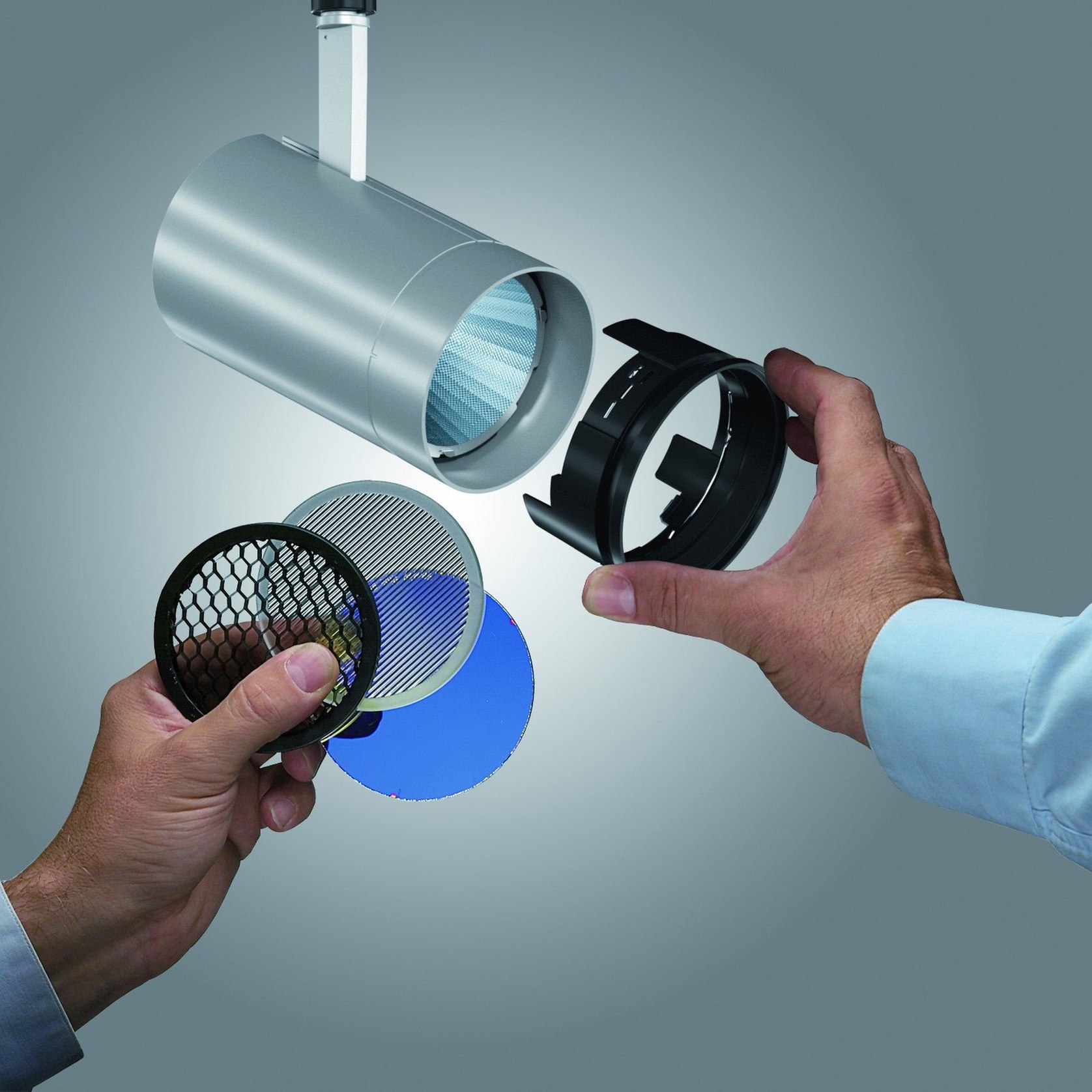

Adjustable spotlight with adapter for installation on electrified track for high output LED lamp with monochrome emission in a warm White (3000K) tone. Medium optic (15-20°). Dimmable electronic ballast integrated in the product. Luminaire made of die-cast aluminium and thermoplastic material, allows 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. The luminaire has mechanical aiming locks for both movements, operated using the same tool on two screws, one at the side of the rod and one on the adapter for the track. Passive heat dissipation. Spotlight designed to contain up to two flat accessories simultaneously. Another external component can also be applied, selected from directional flaps and an anti-glare screen. All external accessories rotate 360° about the spotlight longitudinal axis. LED lifetime with residual flow at 80% (L80): 50,000 h at Ta 25°
Product Details
- Product
- Palco Medium LED
- Category
- Spotlights
- Sold by
- ECC
- Range
- Palco
- Designer
- iGuzzini
- Brand
- iGuzzini
ECC is specified by
VDM ArchitectsArchitects
Rafe Maclean ArchitectsArchitects
Leuschke Group ArchitectsArchitects
Malcolm Taylor ArchitectsArchitects
prauArchitects
Eliška Lewis ArchitectsArchitects
Four Walls ArchitectureArchitects
Chow:Hill ArchitectsArchitects
Gerrad Hall ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Leuschke Kahn ArchitectsArchitects
TS ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Matt Brew ArchitectArchitects
Anna-Marie Chin ArchitectsArchitects
Fisher PartnersArchitects
Herbst ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
JTB ArchitectsArchitects
CDL BuildingBuilders
Suzanne Turley LandscapesLandscape Architects
Image ConstructionBuilders
Brackenridge BuildersConstruction
CV InteriorsInterior Designers
Wonder.Architectural Designers
Modern Barn LivingBuilders
Marlene Hudson DesignInterior DesignersYellowfox InteriorsInterior Designers
O'Neil + Shirley ArchitectureArchitectural Designers
RivetDesign & Build
Kate Pilot DesignInterior Designers
Eterno InteriorsInterior Designers
HellospaceCommercial Interior Fitouts
Kathrine McDonald DesignInterior Designers
Island InteriorsInterior Designers
KKIDInterior Designers
CPMC LimitedProject Managers
Franc AtelierInterior Designers
Spatial StudioInterior Designers
Faulkner ConstructionBuilders
HarbourCity Building CompanyBuilders
Izzard DesignInterior Designers
Formatt Bespoke Joinery Co.Carpenters & Cabinetmakers
Ester ElectricalElectricians
Sojo DesignInterior Designers
KurioInterior Designers
Feature LandscapesLandscapers
Nicola Manning DesignInterior Designers
FocusplanInterior Designers
Lindesay ConstructionConstruction
Lume DesignInterior Designers
Noel Jessop ArchitectureArchitectural Designers
Hello SaturdayInterior Designers
Spin DesignInterior Designers
Build UnlimitedBuilders
Studio 28Interior Designers
Pretty Sweet LightingElectricians
HK DesignInterior Designers
Hare InteriorsInterior Designers
Bespoke KitchensInterior Designers
Adjustable spotlight with adapter for installation on electrified track for high output LED lamp with monochrome emission in a warm White (3000K) tone.
Medium optic (15-20°). Dimmable electronic ballast integrated in the product. Luminaire made of die-cast aluminium and thermoplastic material, allows 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. The luminaire has mechanical aiming locks for both movements, operated using the same tool on two screws, one at the side of the rod and one on the adapter for the track. Passive heat dissipation. Spotlight designed to contain up to two flat accessories simultaneously. Another external component can also be applied, selected from directional flaps and an anti-glare screen. All external accessories rotate 360° about the spotlight longitudinal axis. LED lifetime with residual flow at 80% (L80): 50,000 h at Ta 25°
- Specs
Reference : MJ99
Colours : White (01), Black (04)
Dimensions : L21.4 x D12.2 x H24.6cm
Materials : Die-cast aluminium
Variations : Interchangeable reflectors, accessories, track or surface mount.
Lamptype : 39W LED warm white
Warranty : 5 Years
Application : Museum, Gallery, Retail
