Suitable for use on residential external facades, the PowerPanelXL system is fast and easy to install with outstanding acoustic and thermal qualities.
Hebel PowerPanelXL is an ideal building material for residential projects. Suitable for new homes, recladding existing homes, and for low-rise residential projects, PowerPanelXL is fast to build with, performs well acoustically and provides excellent thermal insulation.

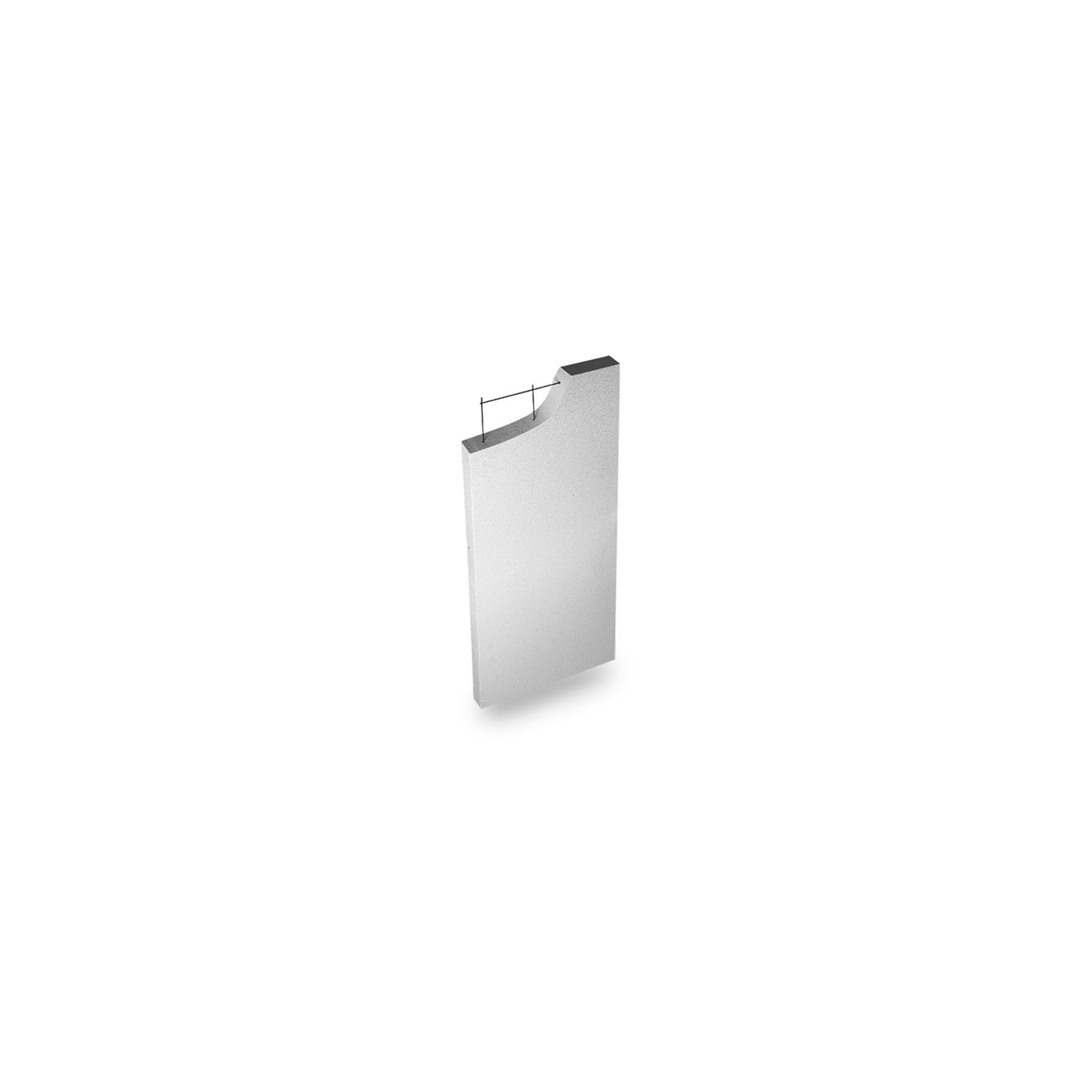

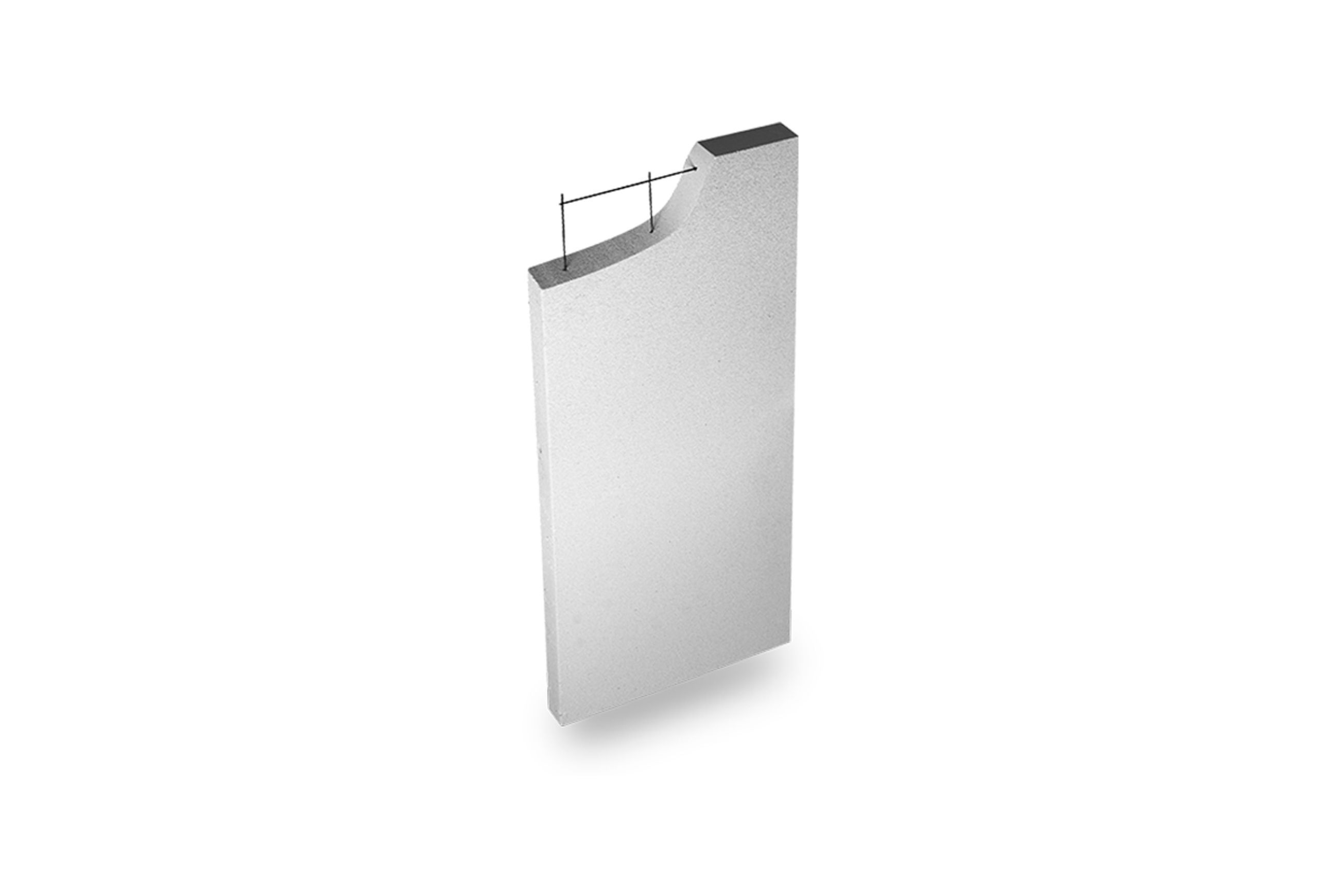

The PowerPanelXL system consists of 75mm thick, steel-reinforced AAC panels, fixed vertically to Hebel’s patented perforated Top Hat sections attached to a steel or timber loadbearing frame. Panels can be applied directly to steel framing without the need or cost of an additional thermal break.
Comfortable to live in, PowerPanelXL system provides sound insulation meaning less energy expended on heating, providing approx. 25% better thermal insulation than a vented AAC system (and 31% better than brick veneer).
The PowerPanelXL system has superior acoustic performance reducing noise transmission from external sources such as traffic, for a quieter home.
With a fire rating of 180 minutes without the need of additional material the Hebel PowerPanelXL system provides boundary wall capability and is rated against bushfires making it an ideal building in fire prone areas.
Benefits
- Strong and Solid
- Energy Efficient
- Quality and Speed
- Eco Friendly
- Noise Reduction
- Fire Resistant
Product Details
- Product
- Hebel PowerPanelXL
- Category
- Wall Panels & Cladding
- Sold by
- CSR Hebel
- Range
- Housing
Product specified by
Suitable for use on residential external facades, the PowerPanelXL system is fast and easy to install with outstanding acoustic and thermal qualities.
Hebel PowerPanelXL is an ideal building material for residential projects. Suitable for new homes, recladding existing homes, and for low-rise residential projects, PowerPanelXL is fast to build with, performs well acoustically and provides excellent thermal insulation.
The PowerPanelXL system consists of 75mm thick, steel-reinforced AAC panels, fixed vertically to Hebel’s patented perforated Top Hat sections attached to a steel or timber loadbearing frame. Panels can be applied directly to steel framing without the need or cost of an additional thermal break.
Comfortable to live in, PowerPanelXL system provides sound insulation meaning less energy expended on heating, providing approx. 25% better thermal insulation than a vented AAC system (and 31% better than brick veneer).
The PowerPanelXL system has superior acoustic performance reducing noise transmission from external sources such as traffic, for a quieter home.
With a fire rating of 180 minutes without the need of additional material the Hebel PowerPanelXL system provides boundary wall capability and is rated against bushfires making it an ideal building in fire prone areas.
Benefits
- Strong and Solid
- Energy Efficient
- Quality and Speed
- Eco Friendly
- Noise Reduction
- Fire Resistant
- Specs
PowerPanelXL for Residential & Multi-Residential External & Internal walls:
PowerPanelXL – Standard Range 75mm
- 2400x600x75mm SQ1M0
- 2550x600x75mm SQ1M0
- 2700x600x75mm SQ1M0
- 3000x600x75mm SQ1M0
PowerPanelXL Non-structural – Made to Length in 5mm increments
- 2400 to 3000 x 600×75 Made to length PowerPanelXL SQ1M
