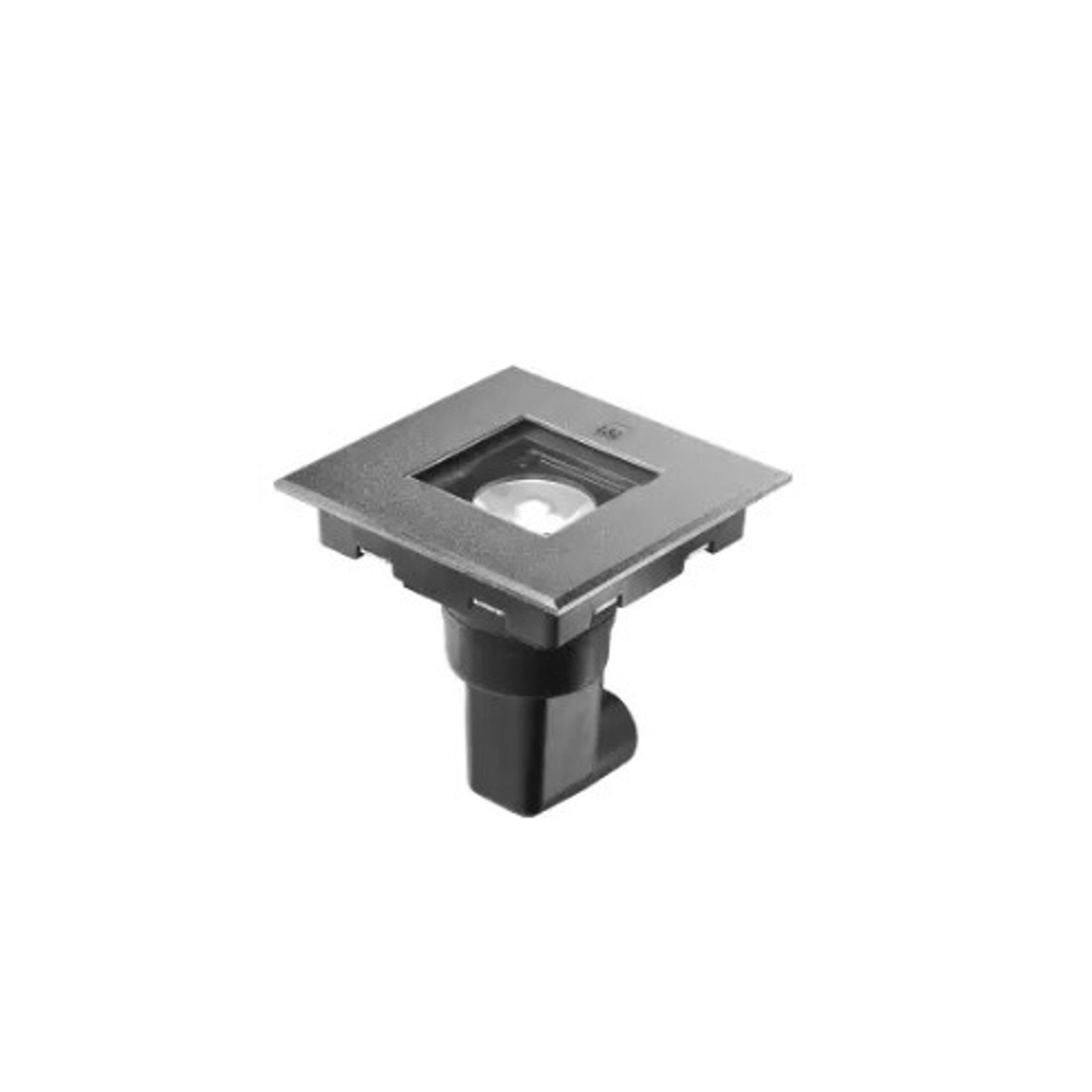

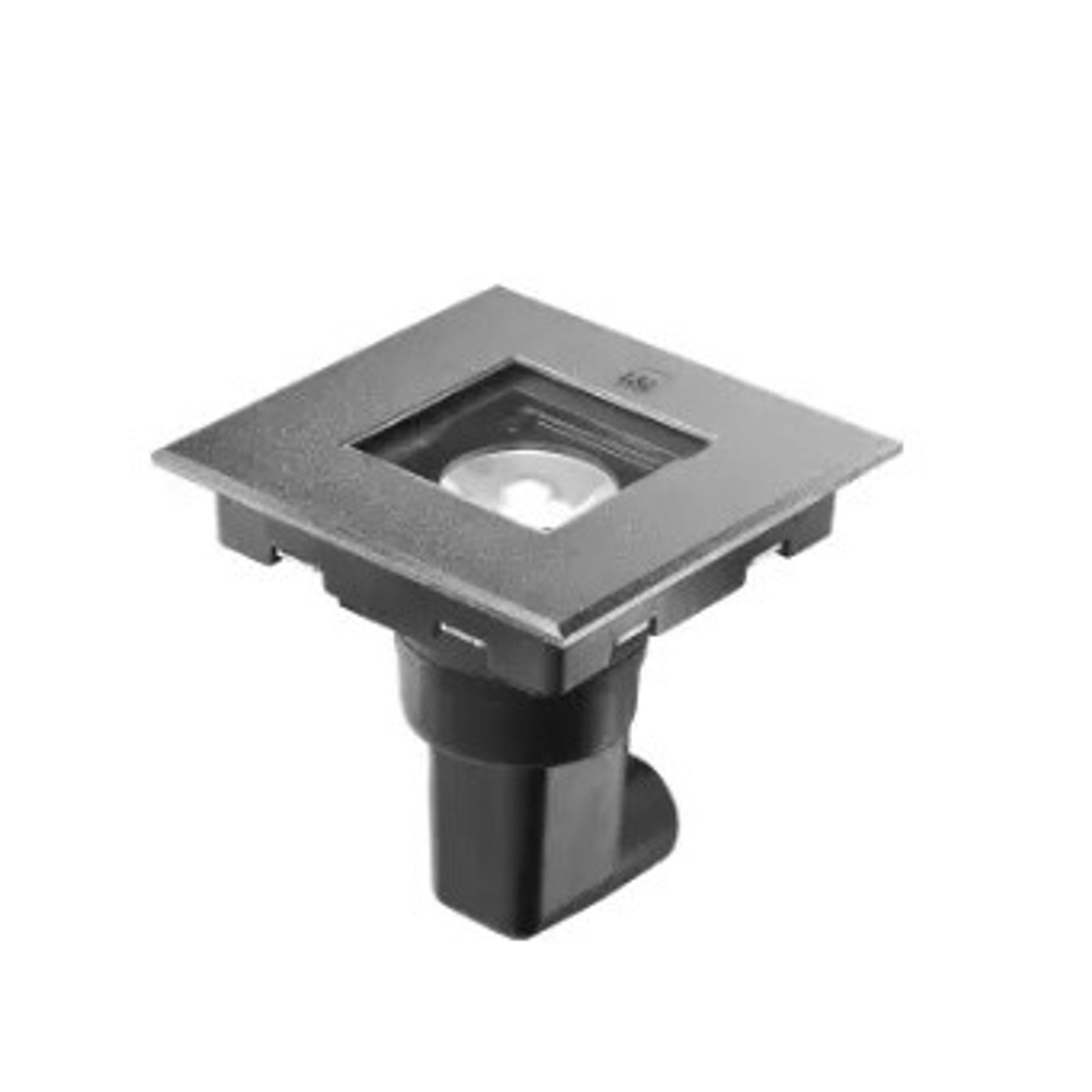

A square fixture with all-round potential

Family of drive-over recessed fixtures, with built-in 230Vac power supply, for architectural facade lighting. They have a distinctive square design and are available in two sizes and power ranges (3.5W and 8W). The more powerful version, Quilatero 2, is available with both fixed (Quilatero 2.0 / 2.1) and tiltable optics (Quilatero 2.4 / 2.5).

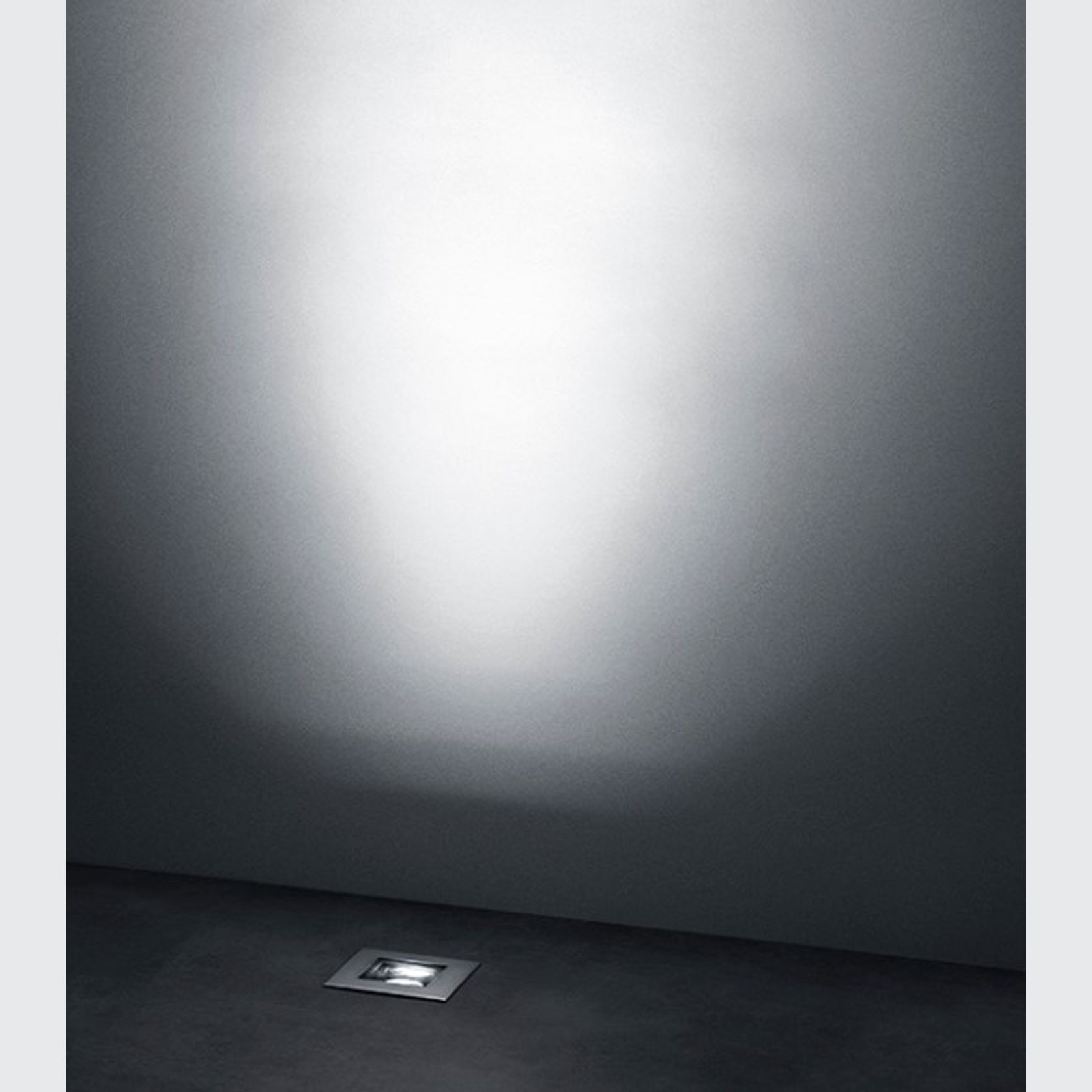

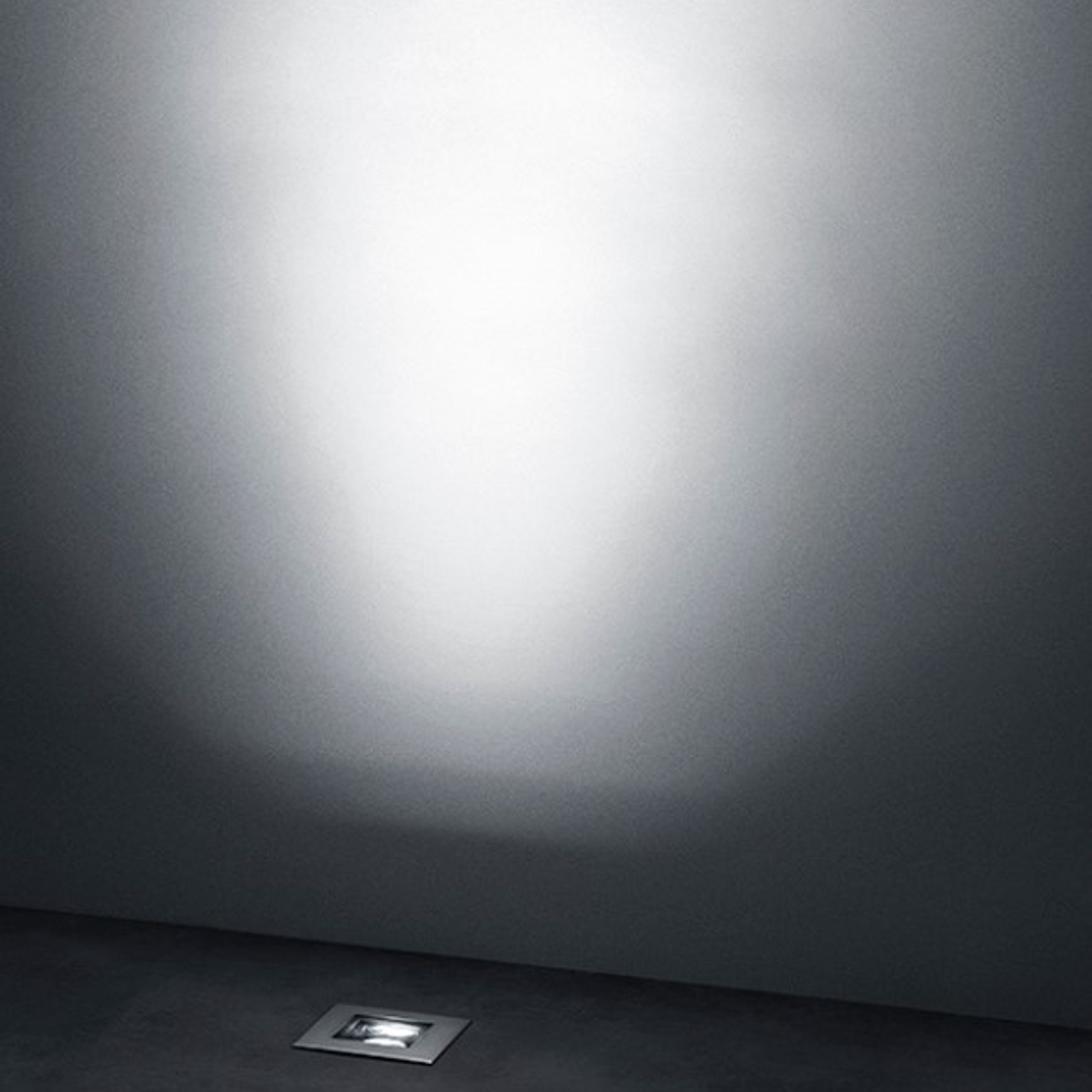

Quilatero’s wide range of optics is designed to meet the multiple needs of lighting professionals and includes outputs that are very narrow (7° and 8°), elliptical, sharp-edged (sharp optics) or wide and soft (diffuse optics). In addition, the wall washer optics, directed at the vertical surface, illuminate facades without contrasting shadows; this also reduces light spill.

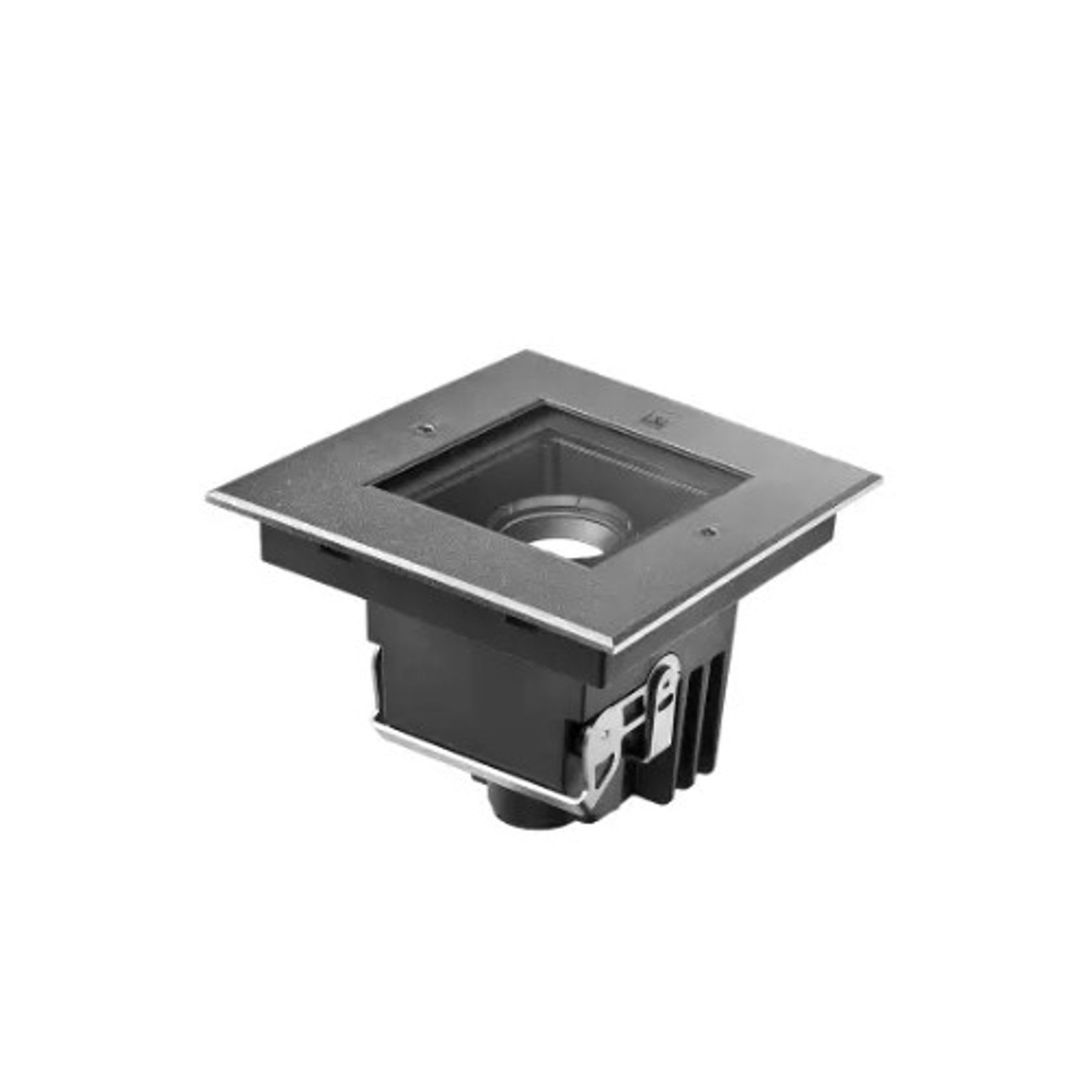

In the versions with optics tiltable by up to 20° (Quilatero 2.4 / 2.5), the magnetic system enables the optical unit to be angled from the outside, guaranteeing the fixture’s watertightness and IP66 / IP68 72h protection level; meanwhile, graduations and a locking screw ensure extreme precision and maintenance of the chosen angle of tilt.

Visit site

They have a distinctive square design and are available in two sizes and power ranges (3.5W and 8W). The more powerful version, Quilatero 2, is available with both fixed (Quilatero 2.0 / 2.1) and tiltable optics (Quilatero 2.4 / 2.5). Quilatero’s wide range of optics is designed to meet the multiple needs of lighting professionals and includes outputs that are very narrow (7° and 8°), elliptical, sharp-edged (sharp optics) or wide and soft (diffuse optics). In addition, the wall washer optics, directed at the vertical surface, illuminate facades without contrasting shadows; this also reduces light spill. In the versions with optics tiltable by up to 20° (Quilatero 2.4 / 2.5), the magnetic system enables the optical unit to be angled from the outside, guaranteeing the fixture’s watertightness and IP66 / IP68 72h protection level; meanwhile, graduations and a locking screw ensure extreme precision and maintenance of the chosen angle of tilt.

A square fixture with all-round potential Family of drive-over recessed fixtures, with built-in 230Vac power supply, for architectural facade lighting.

Specs: Colour: Cor-ten | Micro-blasted stainless steel
Light Temperature (°K): 2200 | 2700 | 3000 | 4000
Watts (W): 3.5 | 6 | 8
Luminous Flux (lm): 170 (3000K CRI>90) | 200 (3000K CRI 80) | 389 (3000K CRI>90) | 482 (3000k CRI 80)
IP: IP69K
Class: A++
Volts (Out): 110-230Vac
Type: Recessed for outdoor applications
Pieces: 2 (Outer casing required)
Length (mm): 122
