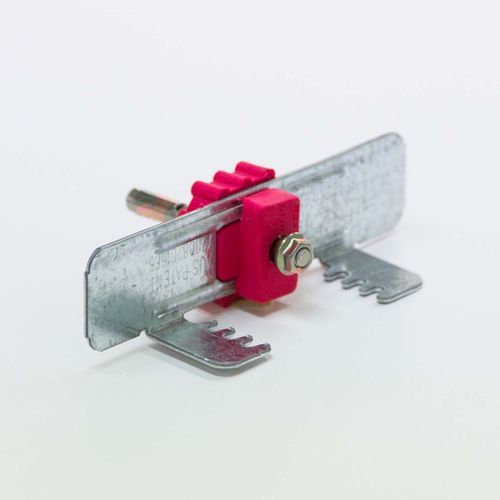

Resilmount M326R Static Deflection Direct fix Resilient Hangers
by EZ Concept
Perth, Australia
- 501.6K profile views
- 87 saves
The Resilmount M326R Static Deflection Direct Fix Resilient Hangers, the unparalleled solution for sensitive acoustic ceiling applications. With its innovative design, this direct-fix resilient hanger is renowned as the easiest mount in the industry to install, offering unmatched convenience and efficiency. Ideal for use in conjunction with the Studco concealed and suspended ceiling systems, or similar alternatives, the Resilmount M326R works diligently to minimise the attenuation of unwanted airborne noise, ensuring a peaceful environment.
Crafted to the highest standards, the Resilmount M326R boasts exceptional performance and reliability, making it a top choice for acoustic solutions. Its static deflection properties guarantee superior sound isolation, providing a seamless acoustic experience for all applications. Whether for commercial or residential use, these resilient hangers deliver outstanding results, surpassing expectations with their unmatched quality and effectiveness. Elevate your acoustic projects with the Resilmount M326R and experience the difference it can make.
Product Details
- Product
- Resilmount M326R Static Deflection Direct fix Resilient Hangers
- Category
- Acoustic
- Sold by
- EZ Concept
- Range
- Acoustic Mounts
- Designer
- Studco Building Systems
- Brand
- Studco Building Systems
EZ Concept is specified by
J Mammone ArchitectureArchitects
level architekture>konstruktArchitects
Woods BagotArchitects
DX ArchitectsArchitects
Tham ArchitectsArchitects
StudcoManufacturers and Suppliers
JCD StudioInterior Designers
Craft Built HomesBuilders
ABLEBuilders
APC BuildBuilders
Site Specific DesignsBuilding Designers
The Resilmount M326R Static Deflection Direct Fix Resilient Hangers, the unparalleled solution for sensitive acoustic ceiling applications.
With its innovative design, this direct-fix resilient hanger is renowned as the easiest mount in the industry to install, offering unmatched convenience and efficiency. Ideal for use in conjunction with the Studco concealed and suspended ceiling systems, or similar alternatives, the Resilmount M326R works diligently to minimise the attenuation of unwanted airborne noise, ensuring a peaceful environment.
Crafted to the highest standards, the Resilmount M326R boasts exceptional performance and reliability, making it a top choice for acoustic solutions. Its static deflection properties guarantee superior sound isolation, providing a seamless acoustic experience for all applications. Whether for commercial or residential use, these resilient hangers deliver outstanding results, surpassing expectations with their unmatched quality and effectiveness. Elevate your acoustic projects with the Resilmount M326R and experience the difference it can make.
- Specs / Details
- 21-46kg M326R-RED - Approx Kg / Piece: 0.03 - Sub Pack: 50 - Stock Pack: 50
- Uses Resilmount’s patented sound cell technology
- Specially suited for sensitive, high noise applications, such as ceilings between plant rooms and habitable spaces
- Meets static deflection requirements for BCA compliance
- Positive fixing to structure to reduce uplift during installation, maintenance and wind
- Can be fixed to concrete, steel or timber structures
- Provides total isolation from structure to ceiling system
- Failsafe against failure of ceiling system in the event of a fire
- Wire hanger locks out of way for easy installation
- Resilient element is locked into bracket using Resilmount patented twist-lock technology so unintended dislocation of the element is impossible
- Provides 4-6mm static deflection in accordance with the NCC
- Max. loading per mount is 35kg.
