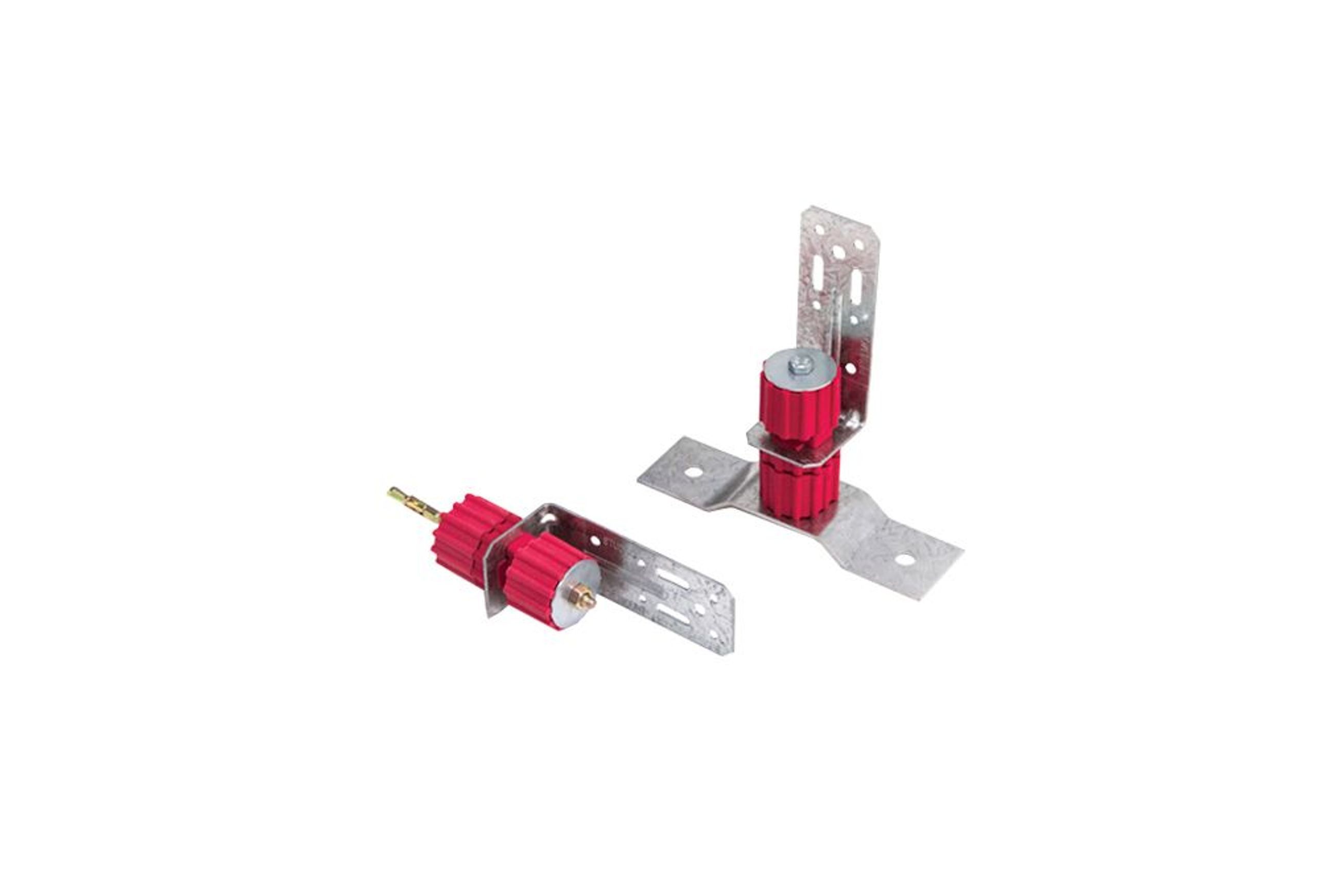

Resilmount® M481R & M482R Static Deflection Wall Brace
The Resilmount® M481R & M482R Static Deflection Wall Brace, a superior product from our range of Resilmount Isolation Systems by Studco. These premium polymer rubber isolation mounts have been meticulously crafted for the steel wall and ceiling industry, showcasing a dedication to innovation.
Engineered to significantly decrease vibration and sound transfer, the Resilmount Isolation Studs boast a distinctive red colouring that exceeds the requirements set forth by the Building Code of Australia and New Zealand Building Code. With acoustic testing conducted by reputable institutions such as Auckland University, PKA Acoustics, and Marshall Day Acoustics, these isolation mounts are an indispensable component in achieving optimal acoustic performance in any assembly.
- CategoryAcoustic
- BrandStudco Building Systems
- DesignerStudco Building Systems
Resilient Mounts Isolated Wall Brace M481R - RED
- Approx Kg / Piece -0.13
- Sub Pack - 50
- Stock Pack - 50
Resilient Mounts Isolated Wall Brace M481R - PUR
- Approx Kg / Piece -0.13
- Sub Pack - 50
- Stock Pack - 50
Resilient Mounts Isolated Wall Brace M482R - RED
- Approx Kg / Piece -0.20
- Sub Pack - 25
- Stock Pack - 25
Resilient Mounts Isolated Wall Brace M482R - PUR
- Approx Kg / Piece -0.20
- Sub Pack - 25
- Stock Pack - 25
- Isolates tall internal walls from the building structure
- Easy installations by screw fixing to stud web
- Eliminates possibility of shorting to the structure
- No need for installer to adjust or engage with compression bolt (M482R only)
- Allows reduced stud size/spacing which reduces build cost
- Can be installed after the wall framing is built
- Engineered to prevent wall buckling during earthquakes
- Laboratory tested to ISO 10140-2
- Provides 4-6mm static deflection in accordance with the NCC
- Max. loading per mount is 40kg
