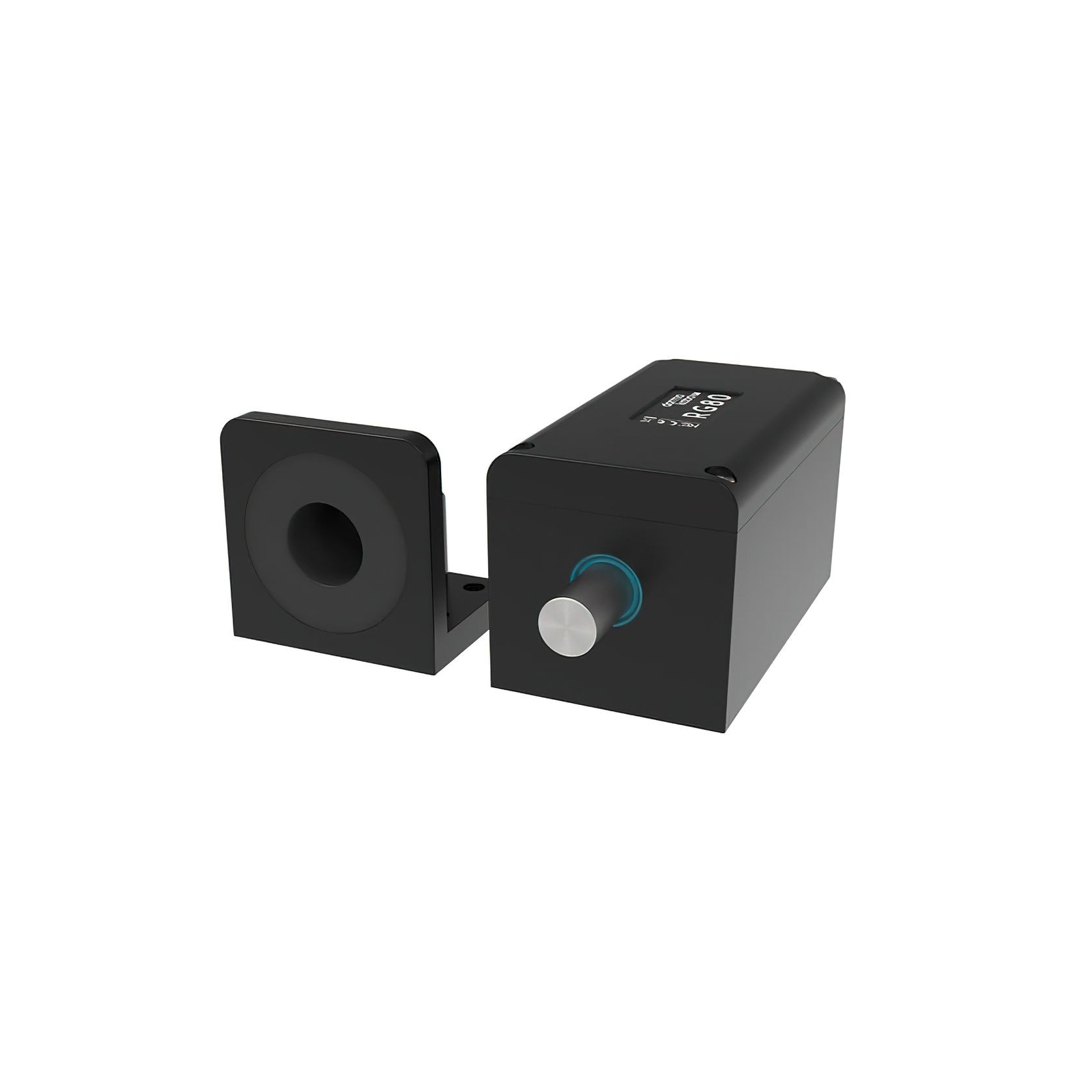

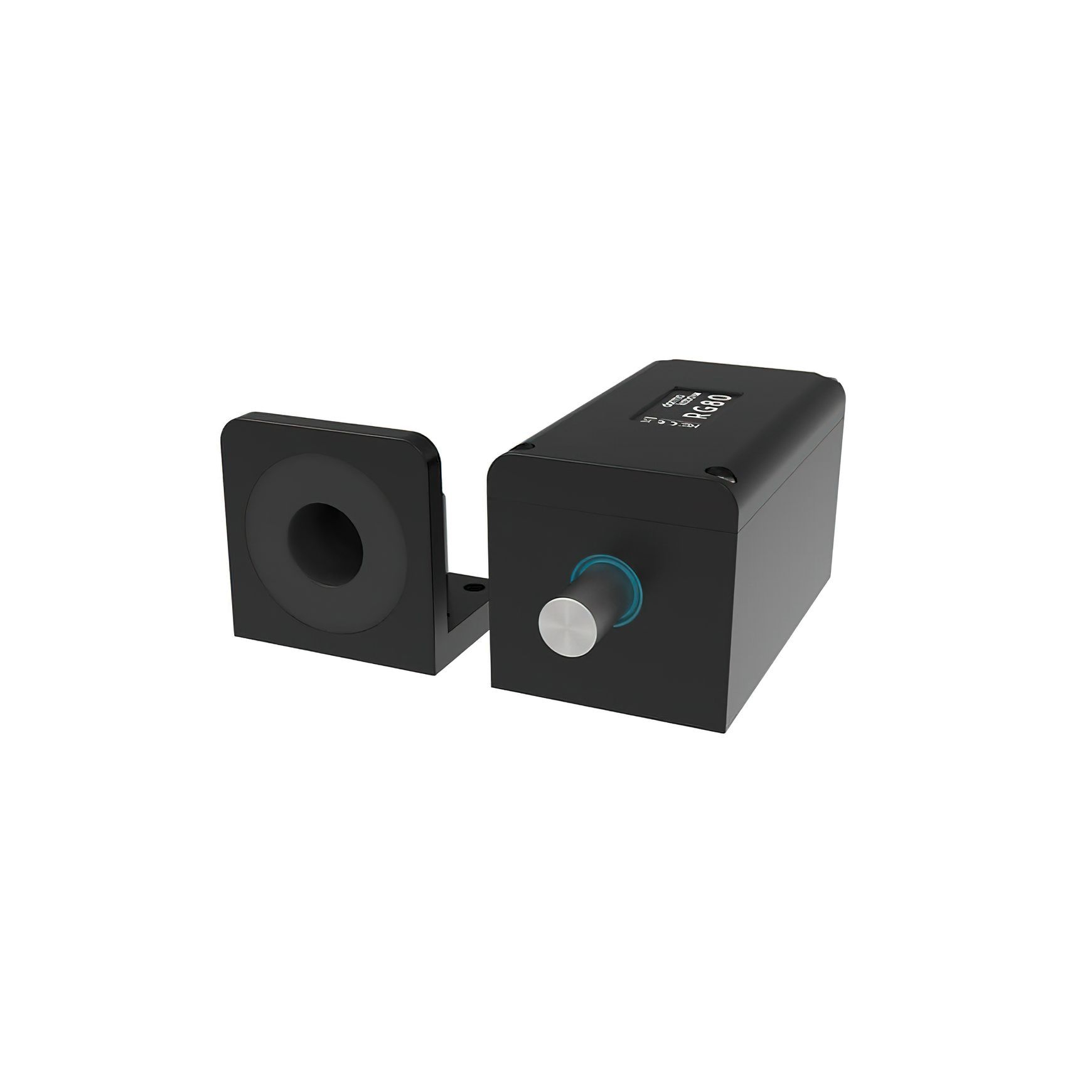

RG80 Weatherproof Lock

By dormakaba
Visit Website

The RG80 is the foremost high-strength lock designed for securing gates, roller doors, shipping containers and any other commercial door or entry way.

Designed with weatherproofing as one of its critical features the RG80 offers an impressive IP67 weather rating an E-coated aluminium lock body and strike for excellent corrosion resistance.

With full monitoring outputs including tamper-proof detection along with user configurable control settings, the RG80 is the perfect indoor and outdoor locking solution.

Details
  • Category
    Window and Door Hardware
  • Range
    Electromechanical Locking
Specifications
  • Automatic deadbolting, 18mm diameter stainless steel bolt pin.
  • 50,000N holding force (5,000Kg).
  • Door position switch.
  • Bolt locked monitor.
  • Bolt unlocked monitor.
  • Anti-tamper detection monitor.
  • Horizontal or vertical installation repositioning a single jumper.
  • Integrate with access control and alarm systems.
  • Weather Rating IP67.
  • User selectable fail safe / fail secure operation.
Scope of use

Material:

  • Lock/Strike Body - Aluminium: A383
  • Bolt Pin - Stainless steel: 304
  • Strike Ring - UV Stabilized ABS

Performance:

  • Dynamic Strength 200 Joules.
  • Holding Force 50,000N (5000Kg).
  • Weather Rating IP67.
  • Cycle Tested 300,000 cycles.
  • Operating Temperature -35oC ~ +70oC.
  • Operating Mode Fail Secure/Fail Secure.
  • Bolt Pin Stainless Steel, 18mm, 35mm stroke.
Performance

Material:

  • Lock/Strike Body - Aluminium: A383
  • Bolt Pin - Stainless steel: 304
  • Strike Ring - UV Stabilized ABS

Performance:

  • Dynamic Strength 200 Joules.
  • Holding Force 50,000N (5000Kg).
  • Weather Rating IP67.
  • Cycle Tested 300,000 cycles.
  • Operating Temperature -35oC ~ +70oC.
  • Operating Mode Fail Secure/Fail Secure.
  • Bolt Pin Stainless Steel, 18mm, 35mm stroke.
