ShadowDeck™ SuperSpan Aluminium Subframing System

ShadowDeck™ SuperSpan is an innovative aluminium framing system which can be used with decking and tiles.

Features

• Easy Installation
• Low Profile
• Durable & Versatile

What We Offer

Decking Substrate

Finish your deck with a tiling and/or timber decking by using our exclusive Patented ShadowDeck SuperSpan Aluminium SubFraming System & fasteners

Aluminium Framing

Our unique patented ShadowDeck SuperSpan Aluminium SubFraming System clicks into the Nurajack.

Ideal for low profile tile or timber decks.

Self Levelling Jacks

We recommend use Nurajack self levelling adjustable decking jacks to allow the deck to be adjusted to the level of the interior living space giving superior indoor outdoor flow

Floating Aluminium Deck Frame Layouts

The flipp’N click™ aluminium framing system has key advantages over traditional timber framing options. The system’s simplicity and lightweight design ensures that even apprentices can quickly master it, making it an efficient and user-friendly option for construction projects. A key feature is the ability to click the frame directly into self-levelling Nurajack head, this feature significantly speeds up installation, making it 80% faster than using timber. The patented aluminium framing is designed with strength in mind to give a wide span between jacks while still offering an incredibly stable surface.

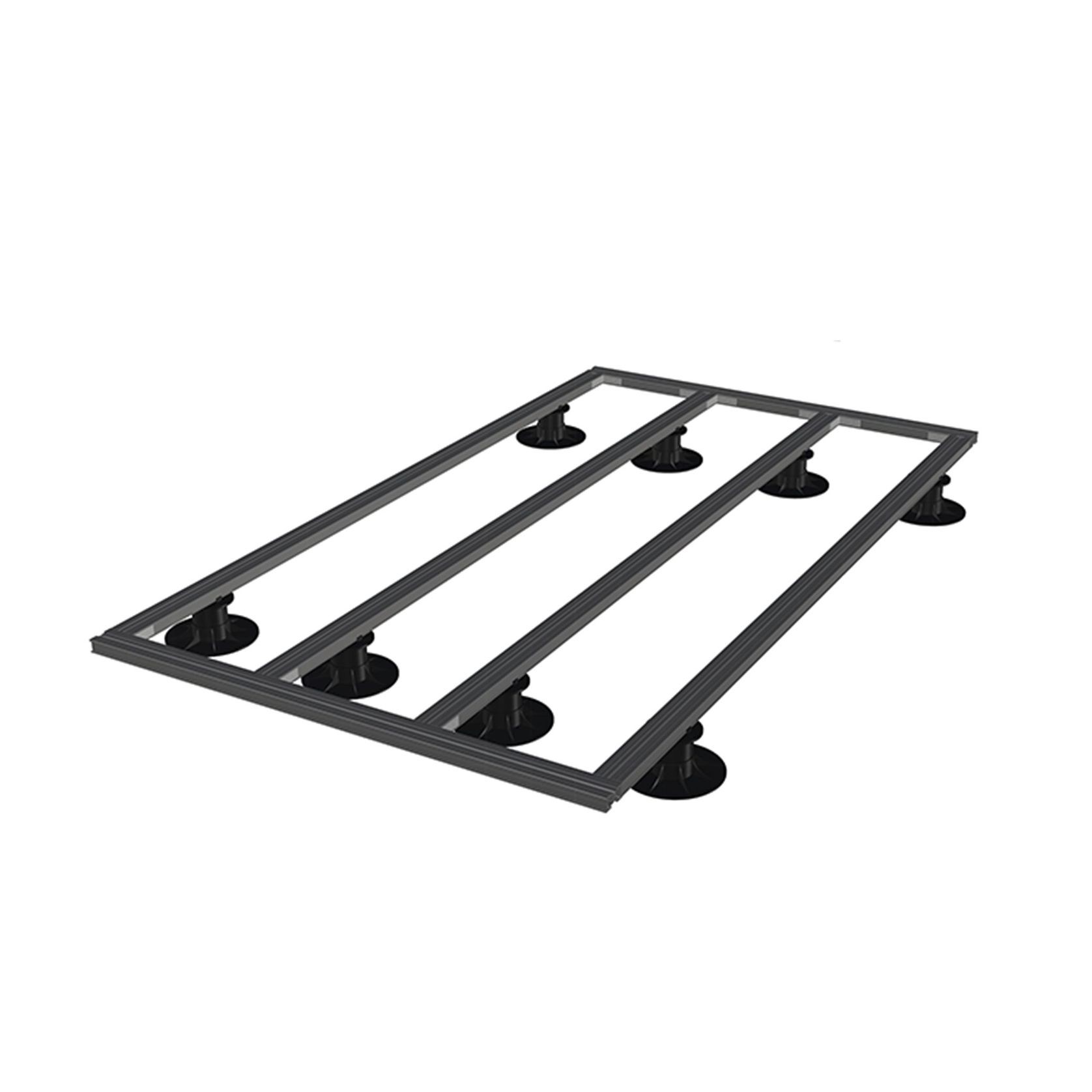

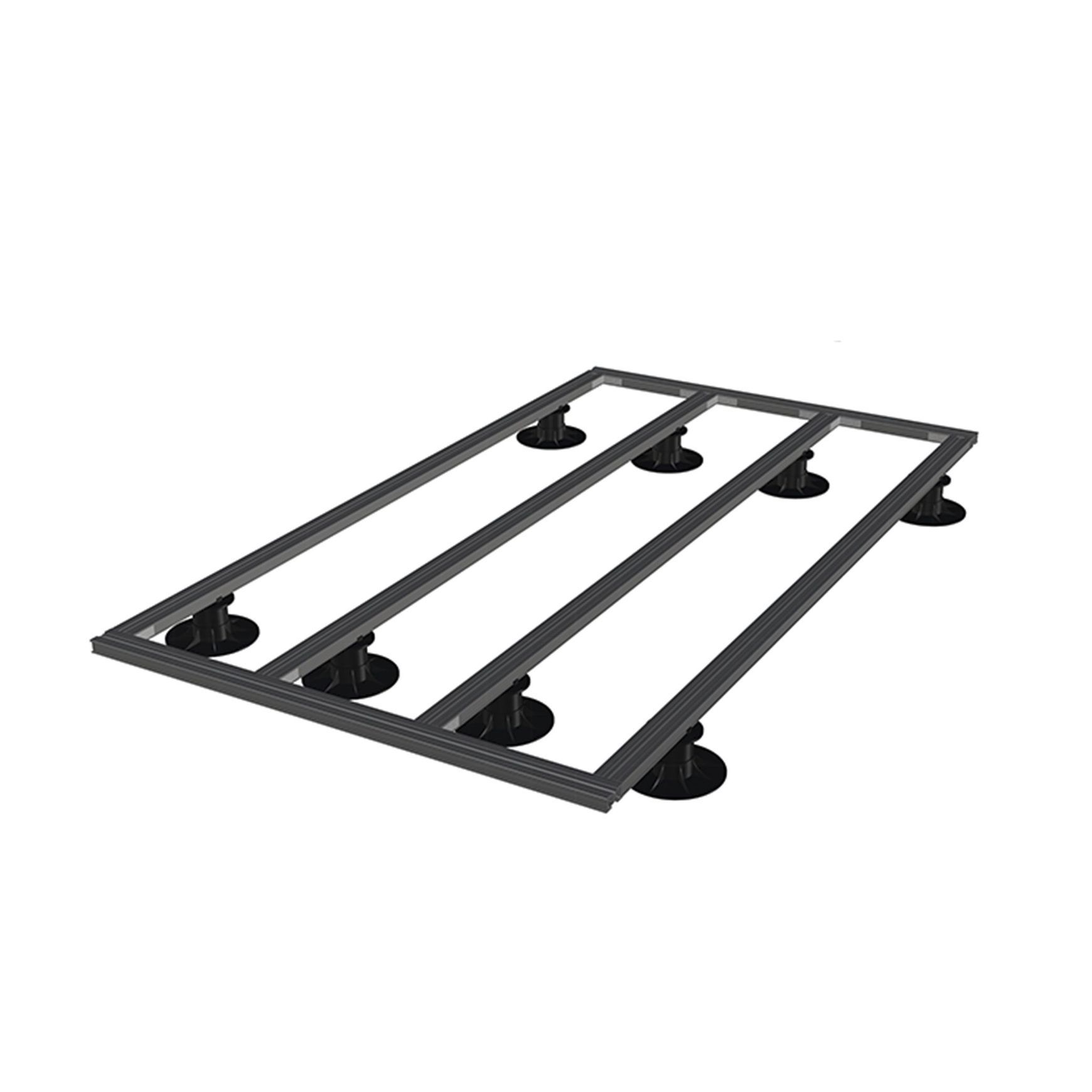

Joist Layout

Designed with spaces with low clearance in mind. The Joists are clipped directly into a Nurajack at 1200 Centres.

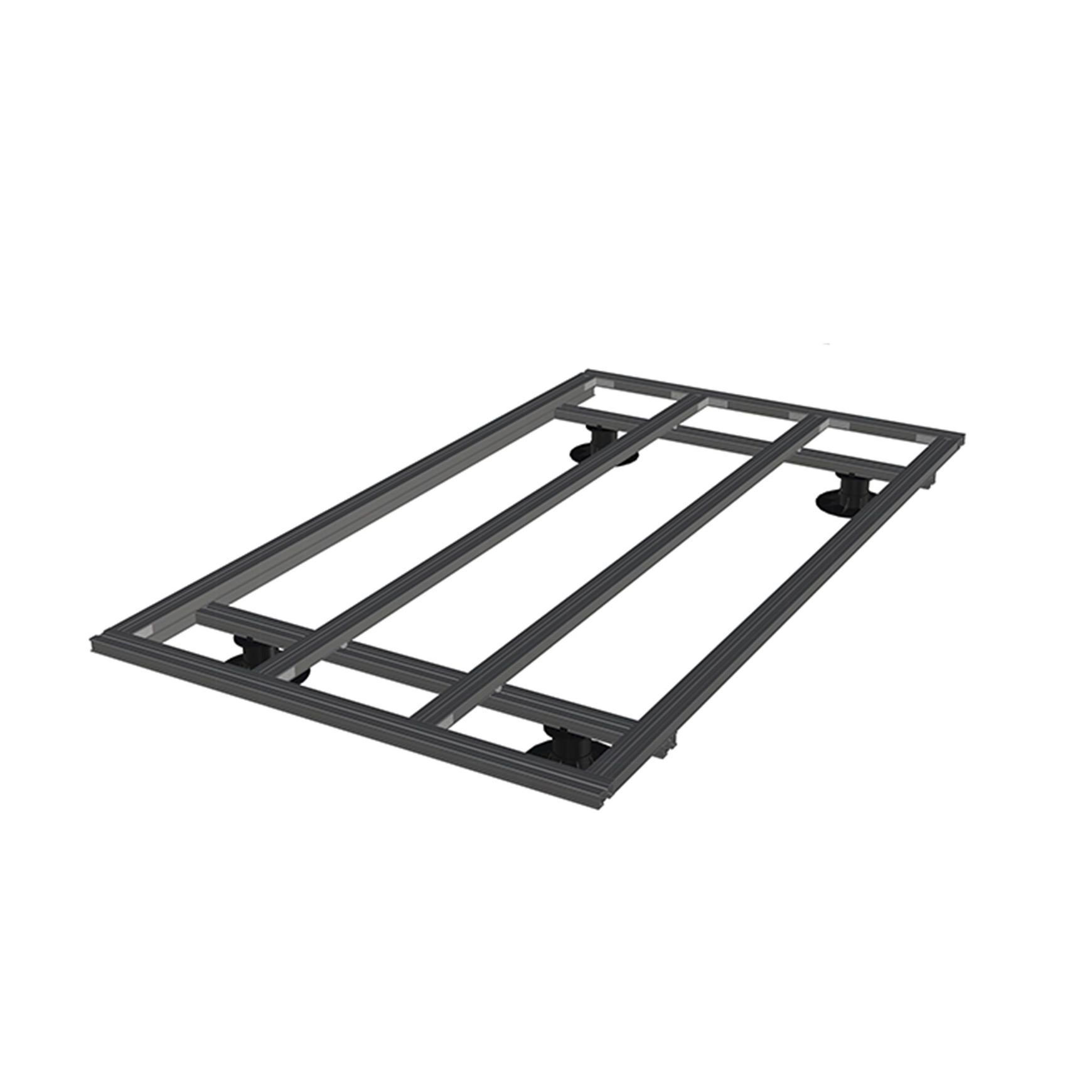

Joist & Bearer Layout

Designed to be extra strong. The Joists are fixed to the bearer using the “Joist to Bearer Side Clips” and the Bearers are clipped into a Nurajack at 1200 centres.

ShadowDeck™ SuperSpan Aluminium SubFraming Profile

• Joist/Bearer 30mm - Frame 30mm high x 60mm wide and can go as low as 30mm
• Joist/Bearer 60mm - Frame 60mm high x 60mm wide
• Joist/Bearer 120mm - Frame 120mm high x 60mm wide

ShadowDeck™ Components

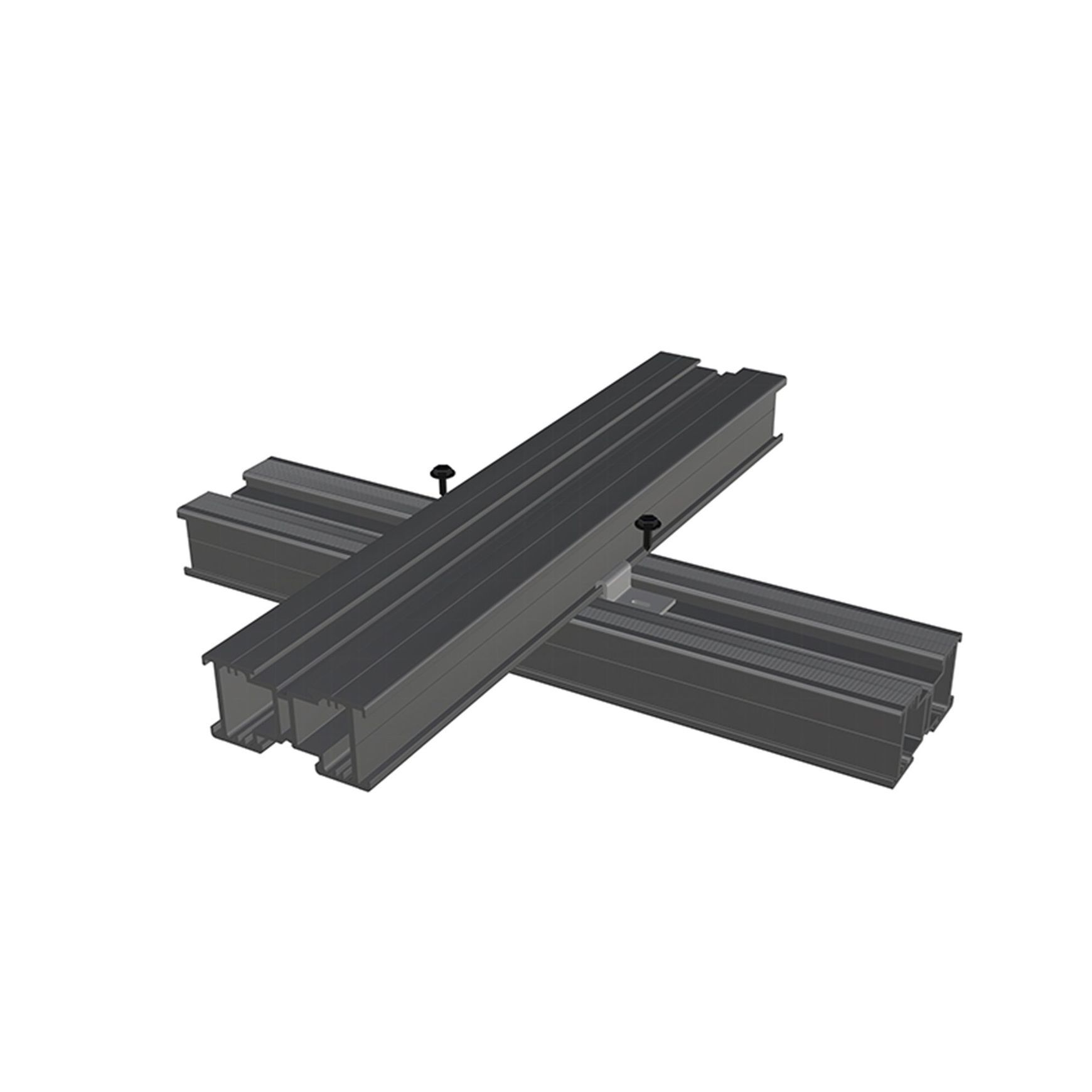

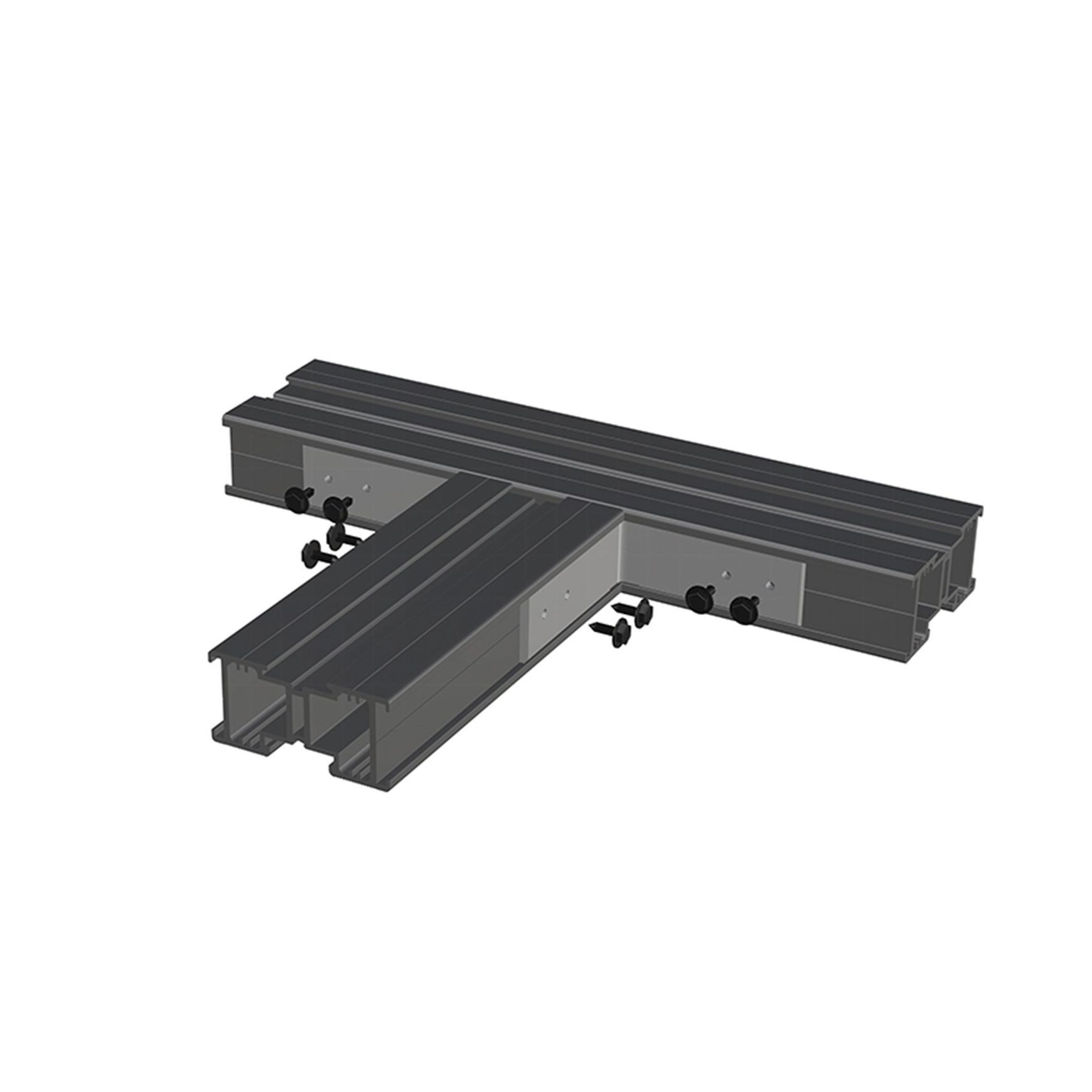

Joist to Bearer Side Clip

Designed for ease of installation, offering the flexibility to be secured with or without screws. You simply turn the side clip into the bearer framing, which locks the edge of your joist framing securely in place. This design ensures a firm and stable connection between the joist and bearer enhancing the overall structural integrity.

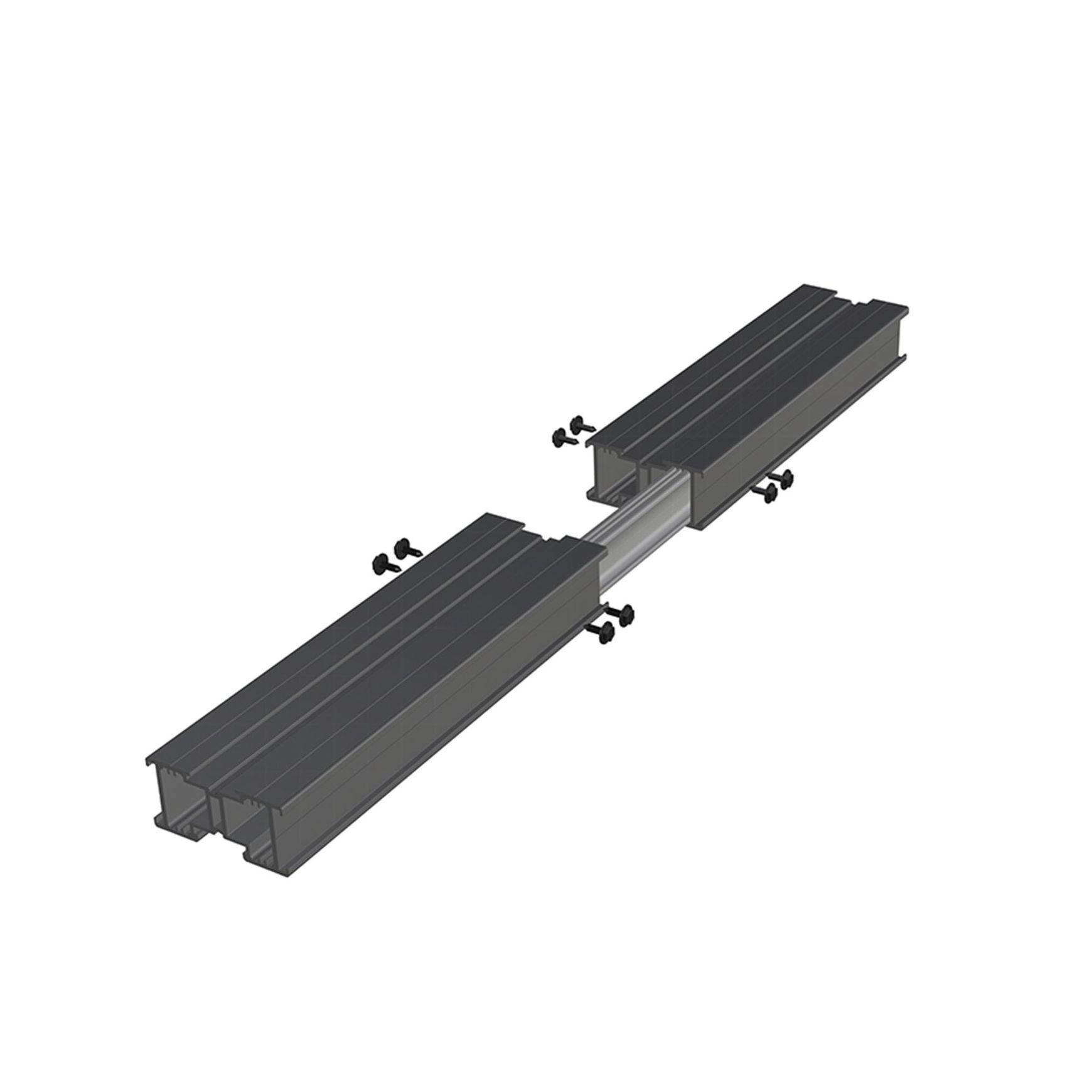

Joist/Bearer Framing Joiner

This component is designed to join and extend your framing or bearer aluminium lengths efficiently. The joiner allows you to extend your framing as required, which makes it easier to adapt the framing to different project requirements, while reinforcing it for additional strength

Joist/Bearer Corner Bracket

Designed for creating 90-degree angle connections in the framing system. The bracket component easily slides inside the frame, and can quickly screw it in place through the pre-drilled bracket holes, ensuring that the screws are properly seated. Its simple installation process provides a secure and precise corner connection.
