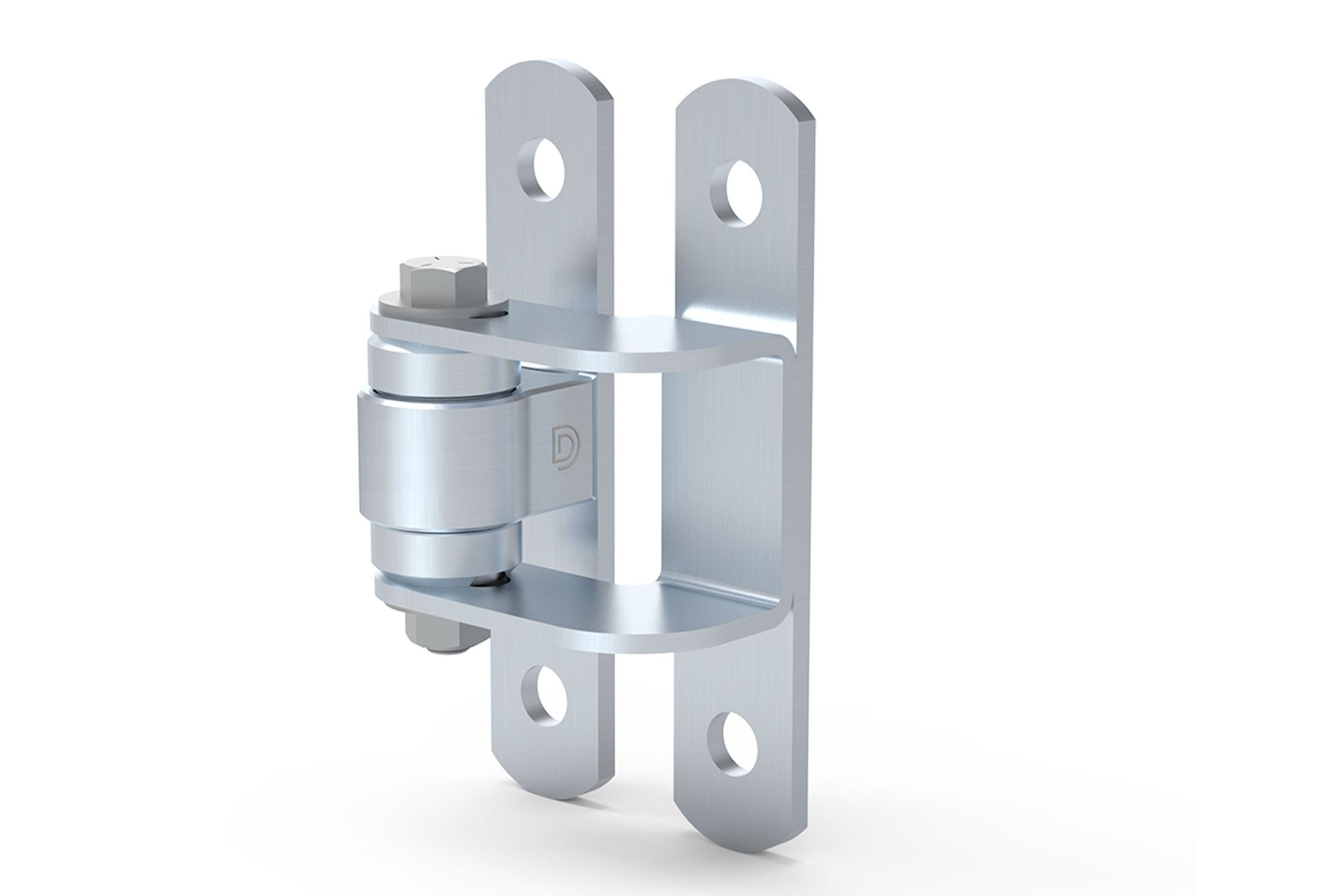

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to SHUT ITs unique bushing design The Bolt-On BadAsses, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage

Details
General
  • Country of origin
    Australia

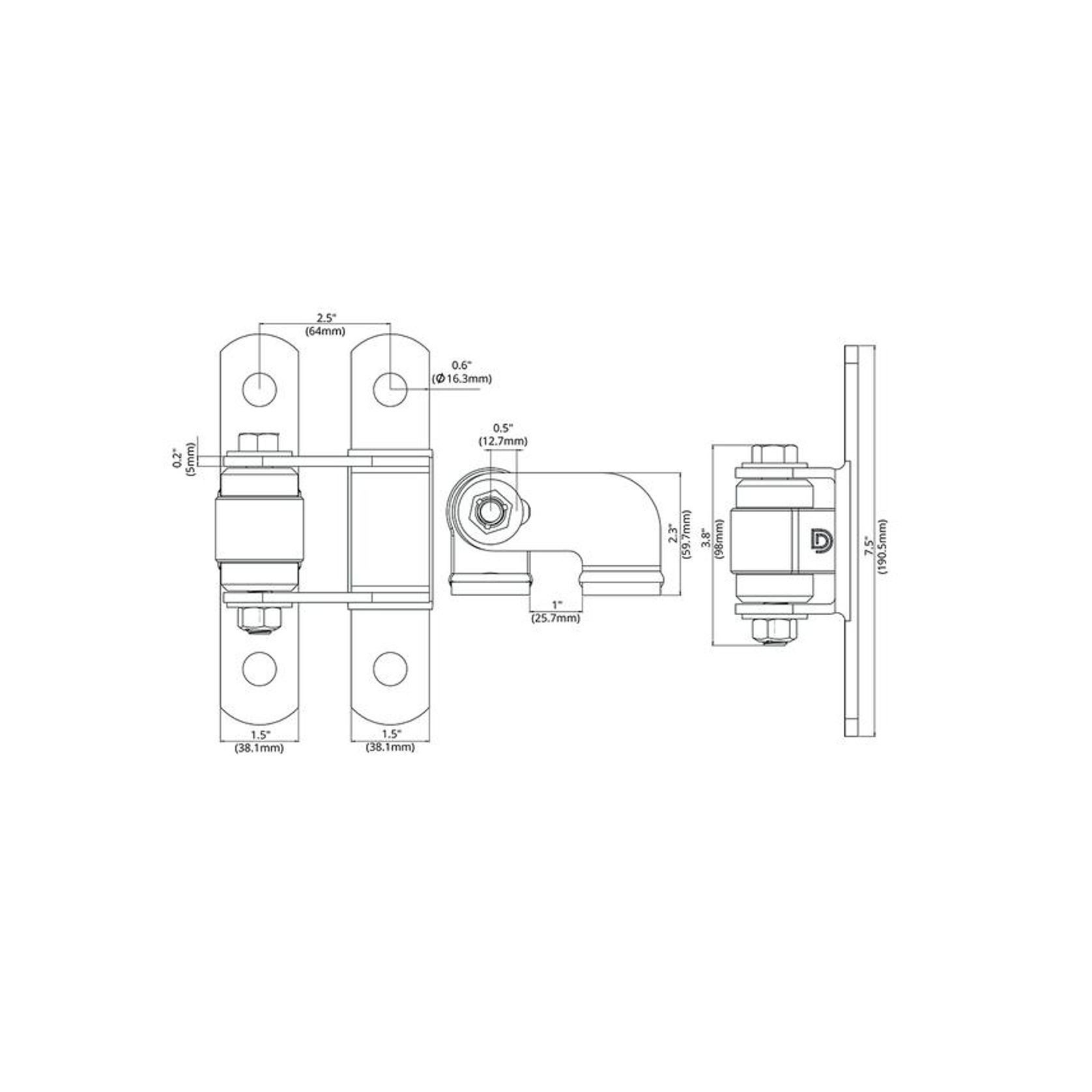

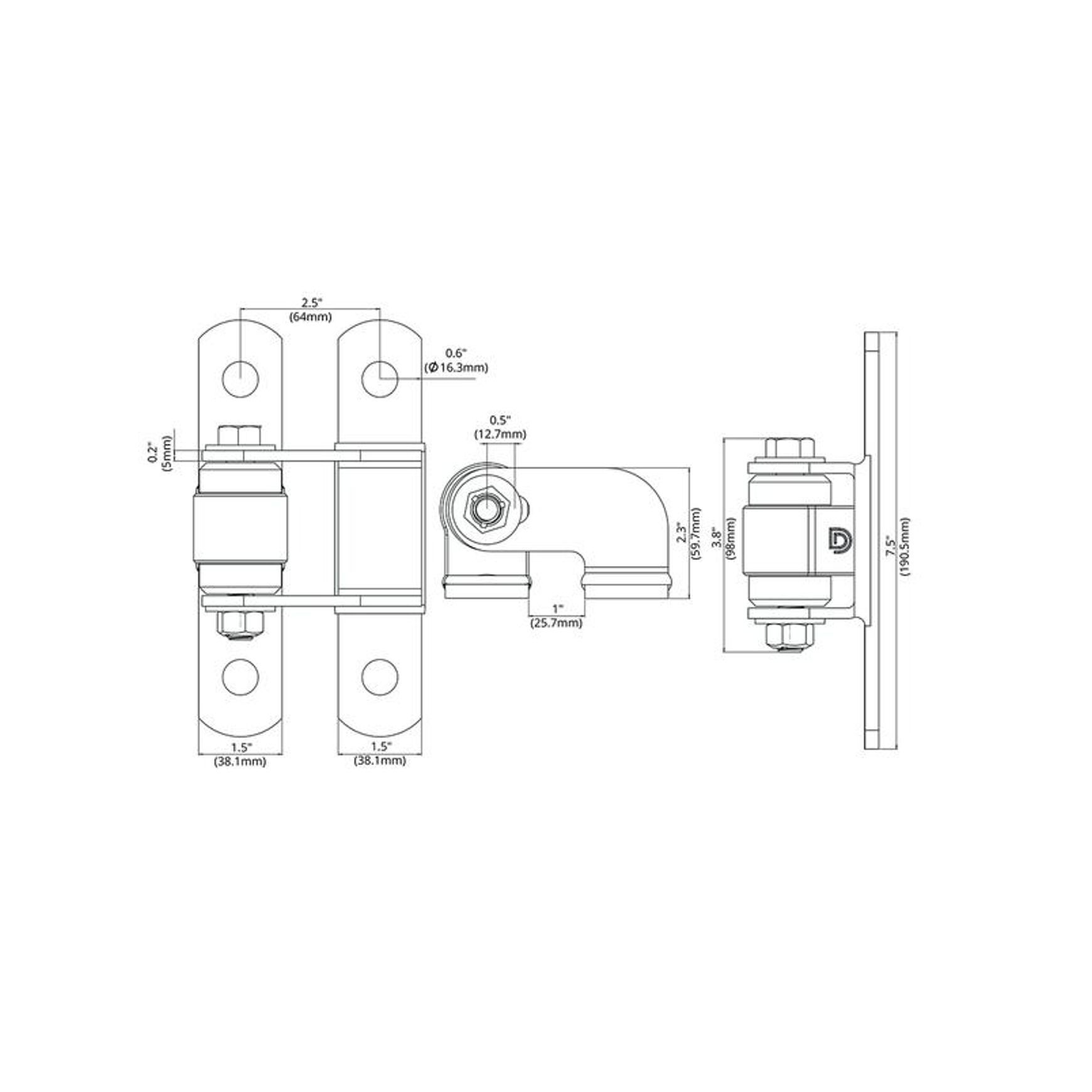

Specifications
  • Product Code - CI3720
  • Gate Type - Non-Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W - (7ft x 10ft)
  • Gate Frame/ Post Shape - Square to Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 13-25mm
  • Fixing Method - Bolt-On
  • Colour/Finish - Zinc
Scope of use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Features
  • Designed for gates where welding is not an option
  • Opens to 180
  • Achieve gate gaps as small as 13mm (1/2")
  • Horizontally adjustable to 13mm (1/2")
  • High-temp bearings, safe to powder-coat
  • Load rating per gate: 900kg (2,000 lb)
  • Maximum gate weight: 500kg (1,100 lb)
