Sureclose® Readyfit 108 Hinge With Safety Feature
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing.
There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied.
The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. Its remarkably simple for a commercial-style gate closer product.
All SureClose® Hinges and Closers are made of high-grade aluminium. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.
- CategoryGate Accessories, Automatic Gates, Security Gates
- RangeSureclose®
- BrandD&D Technologies
- DesignerD&D Technologies
- Warranty5 years
- Country of originAustralia
- Product Code: 74108323T, 74108325T
- Gate Type: Self-Closing
- Gate Material: Aluminium, Steel/Ornamental Iron
- Self-Closing Gate Weight: Up to 120kg (260lbs)
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape: Square-to-Square
- Min Post Size: 50mm+
- Ideal Gate Gap: 12-35mm
- Fixing Method: Screw-On, Bolt-On, Weld-On
- Colour/Finish: Black Anodised
Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate

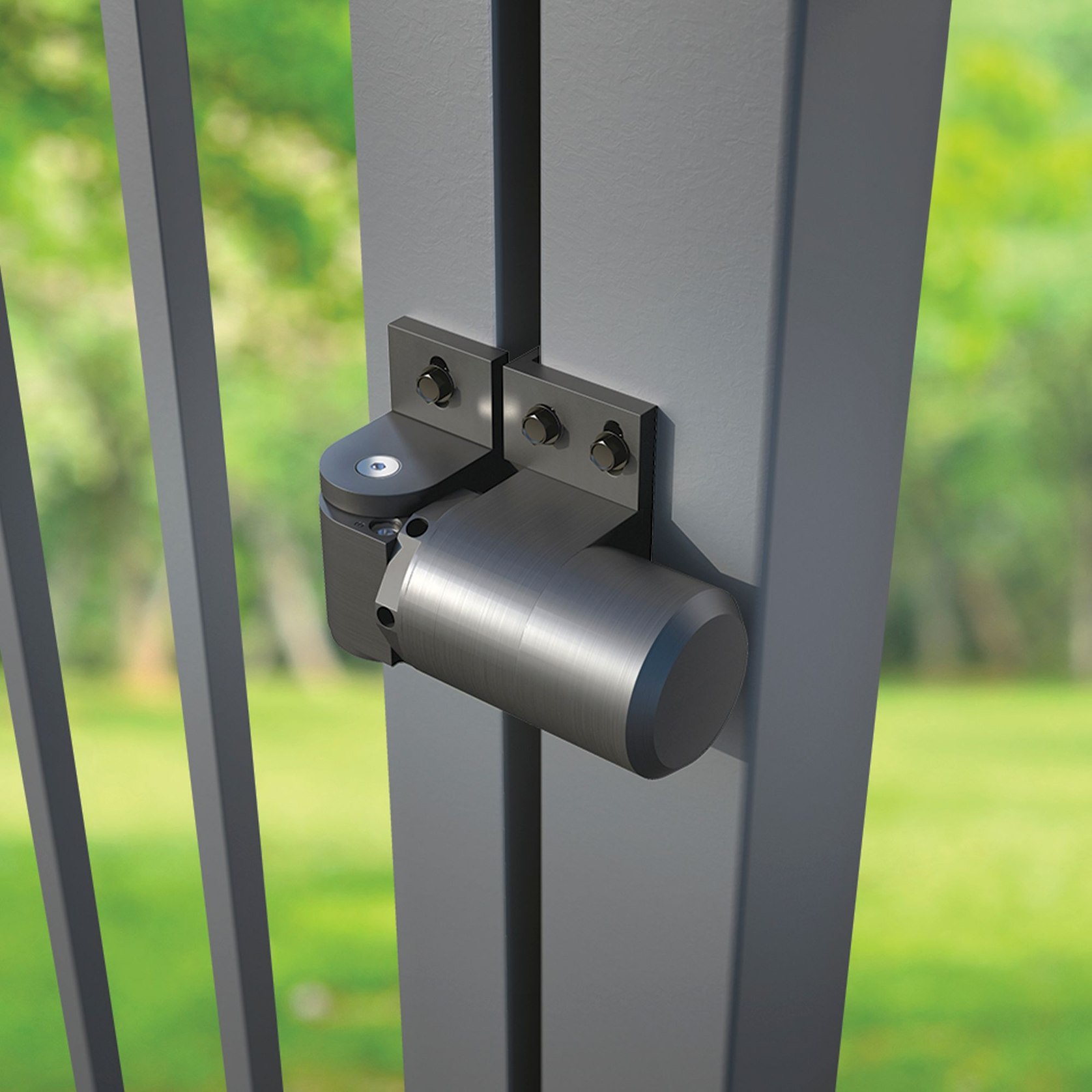

Externally Mounted, Hydraulic Self-Closing Hinge-Closer
- Controlled quiet close
- Gap variance of 12-35mm
- Self-closes gates up to 120kg (260lb) – See Chart
- Multiple mounting options, includes fasteners
- Final Snap Close Action
- Maximum opening angle 88
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 50mm (2")
- Must install a gate-stop to prevent the gate opening more than 90
- 5 Year Limited Warranty
