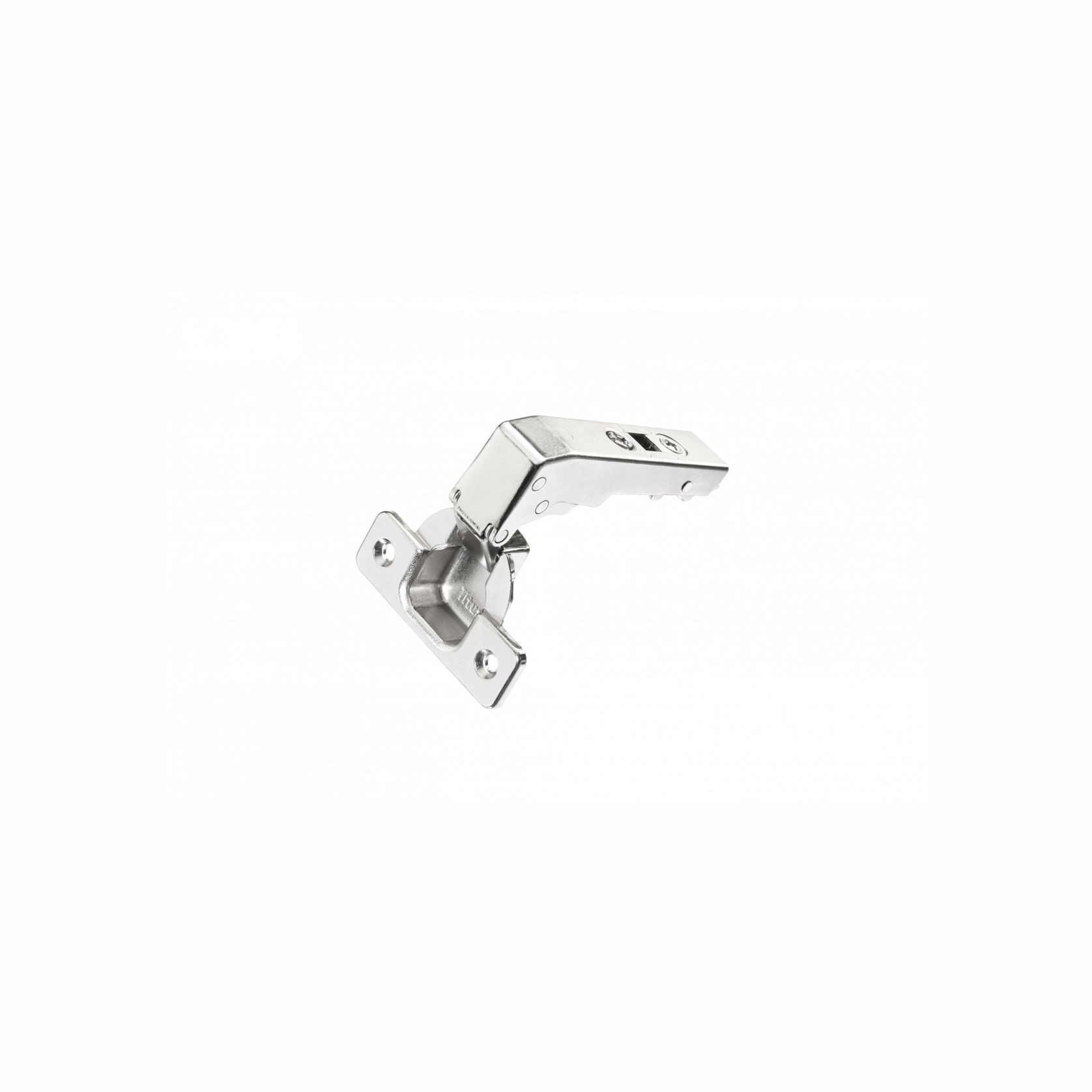

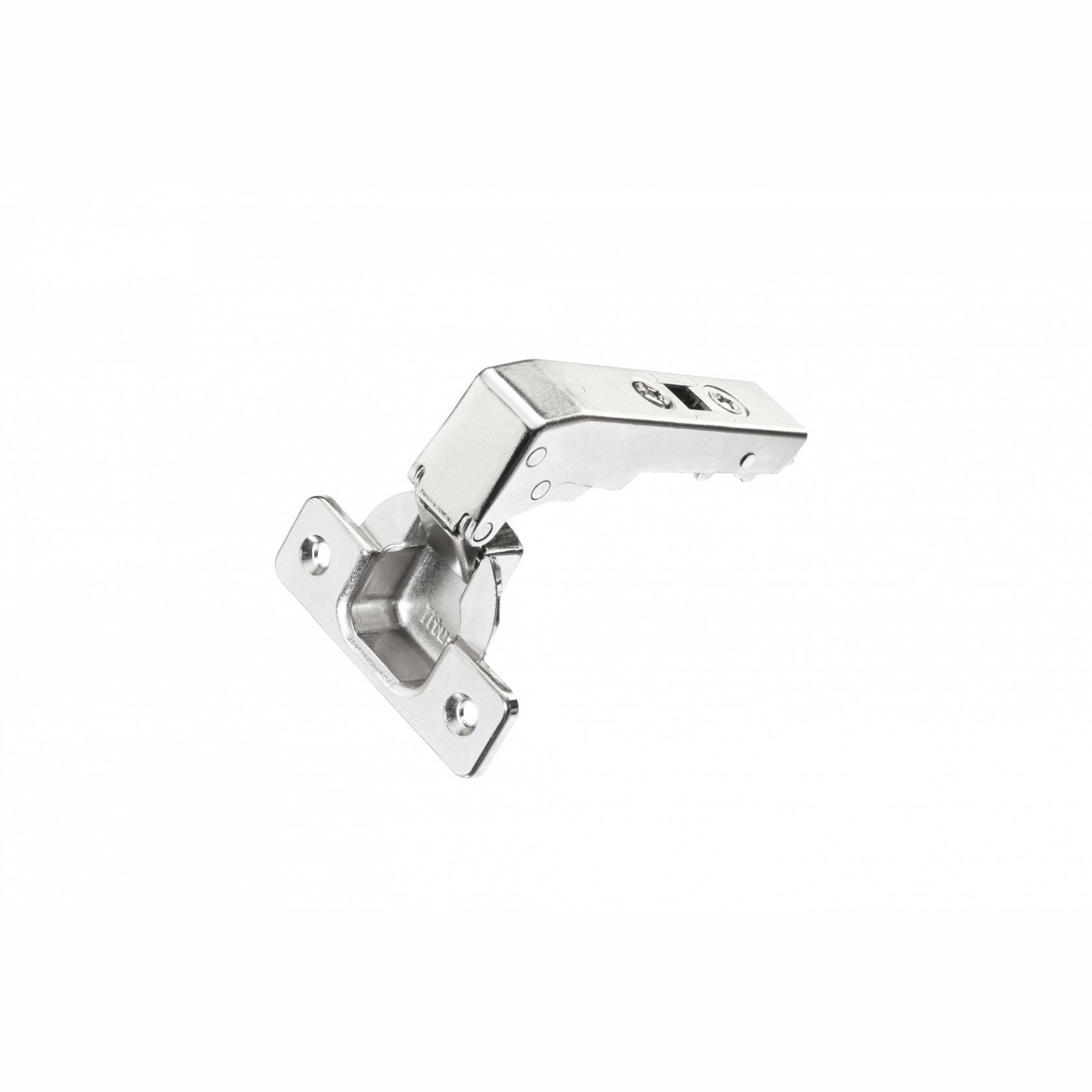

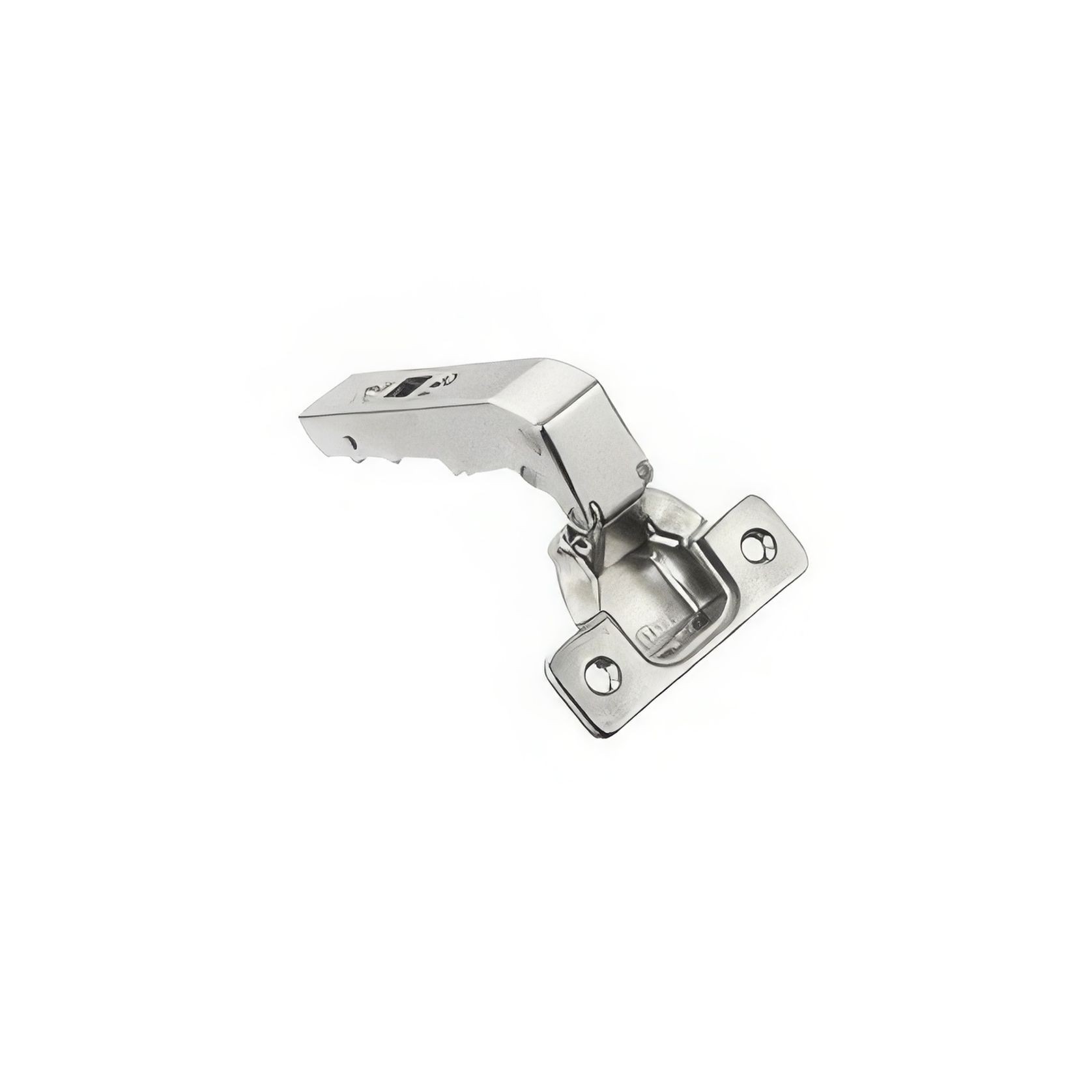

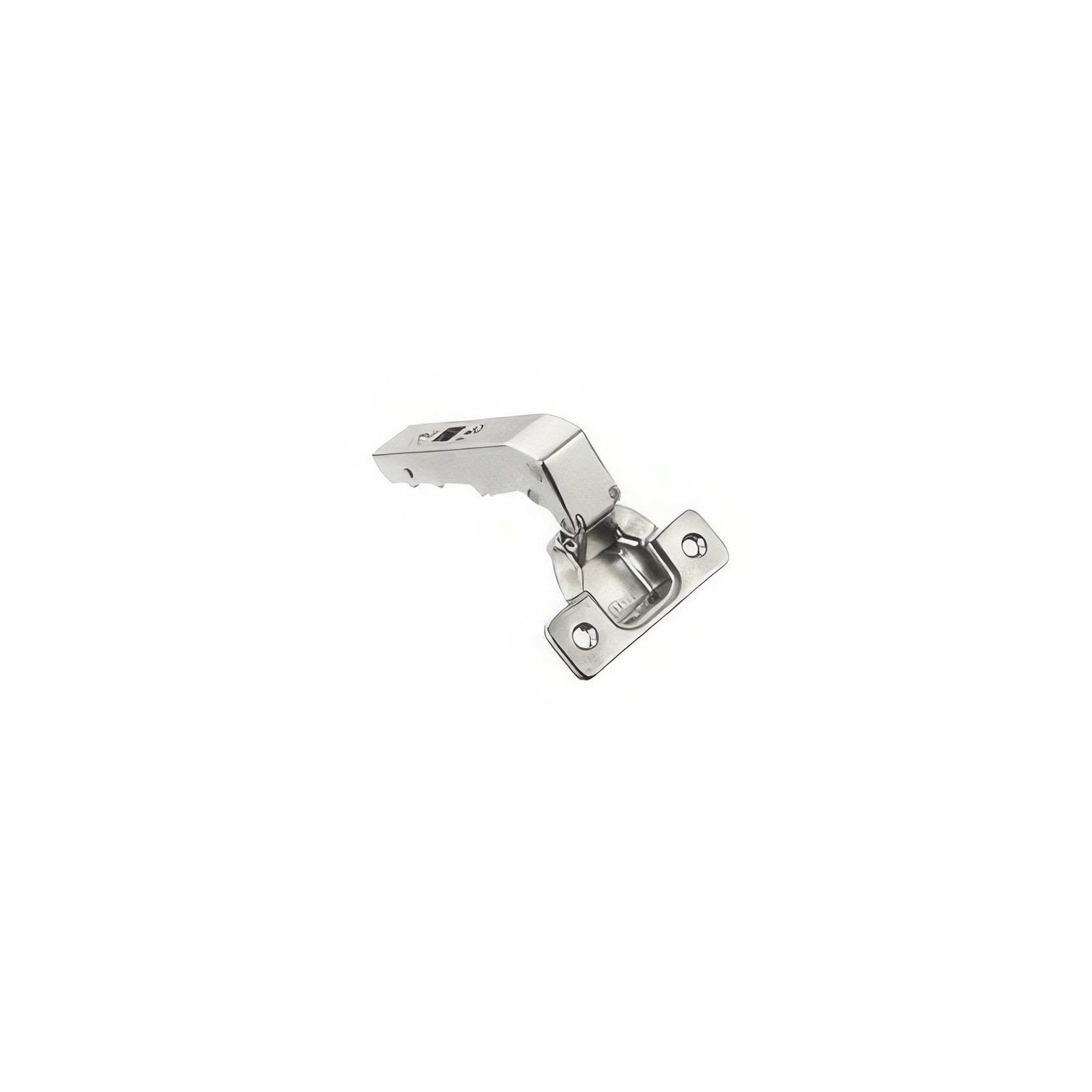

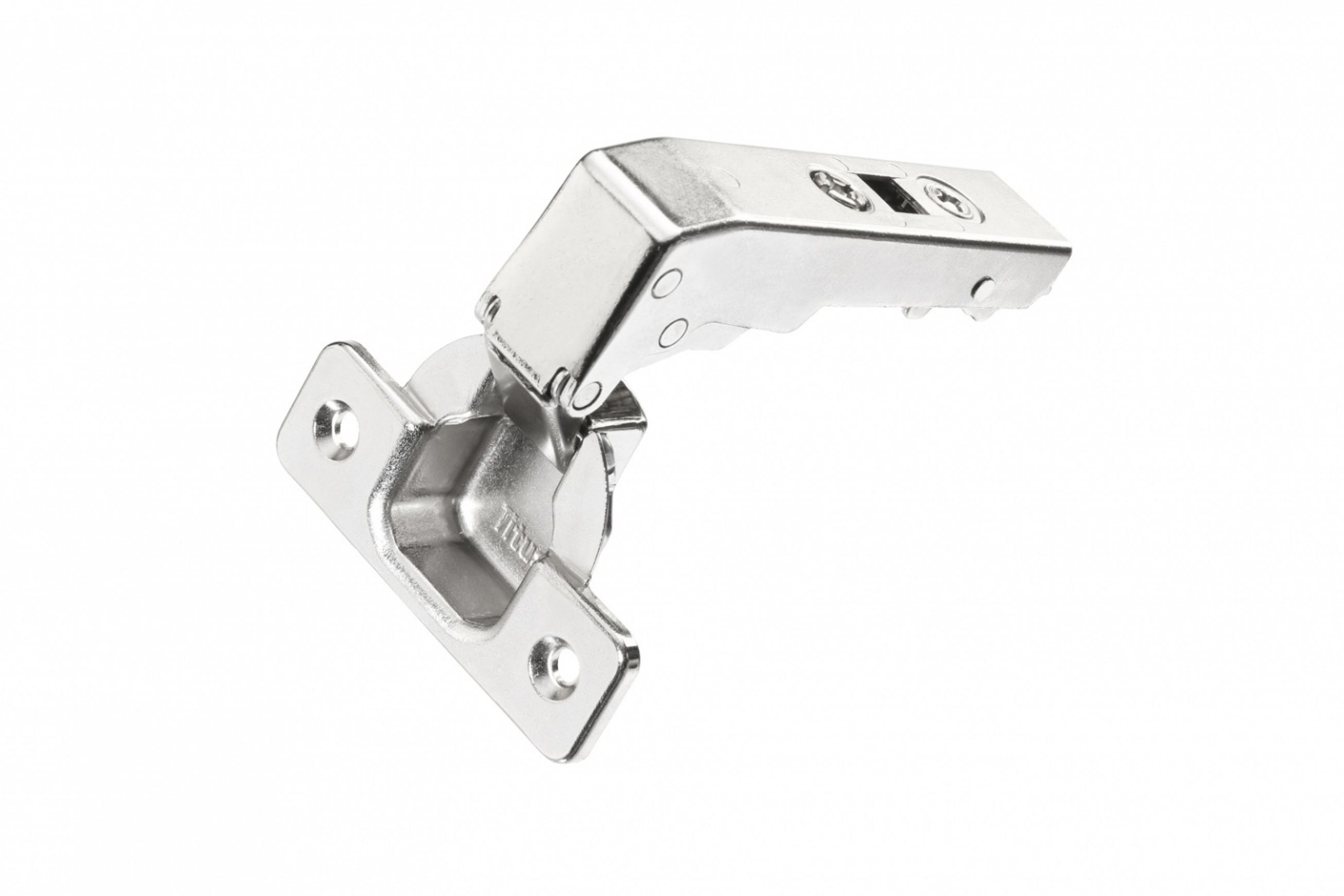

T-type 110/90° 17mm Hinge
- 48.2K profile views
- 3 saves
Titus concealed hinges for cabinet and furniture applications are market leaders in innovation and reliability. The new generation T-type hinge revolutionises furniture hardware with proprietary integrated soft-close damping and intuitive 3-way mounting, particularly for tall cabinets. The low hinge cup depths and high tolerances ensure smooth and consistent performance for the lifetime of the cabinet.
Product Details
- Product
- T-type 110/90° 17mm Hinge
- Category
- Cabinet Hinges
- Sold by
- Titus Tekform
- Range
- Hinges & Dampers
Titus Tekform is specified by
Titus concealed hinges for cabinet and furniture applications are market leaders in innovation and reliability.
The new generation T-type hinge revolutionises furniture hardware with proprietary integrated soft-close damping and intuitive 3-way mounting, particularly for tall cabinets. The low hinge cup depths and high tolerances ensure smooth and consistent performance for the lifetime of the cabinet.
- Specs
- Angled (°): 90
- Cranking (mm): 17
- Depth adjustment: +/-2.5mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: 3Way 'snap-on'
- Material: Steel & Zinc
- Side adjustment: +3/-1mm
- Opening angle (°): 110
- Features
- 90° angled application for wooden doors
- Hinge on plate mounting system: '3Way' 'snap-on'
