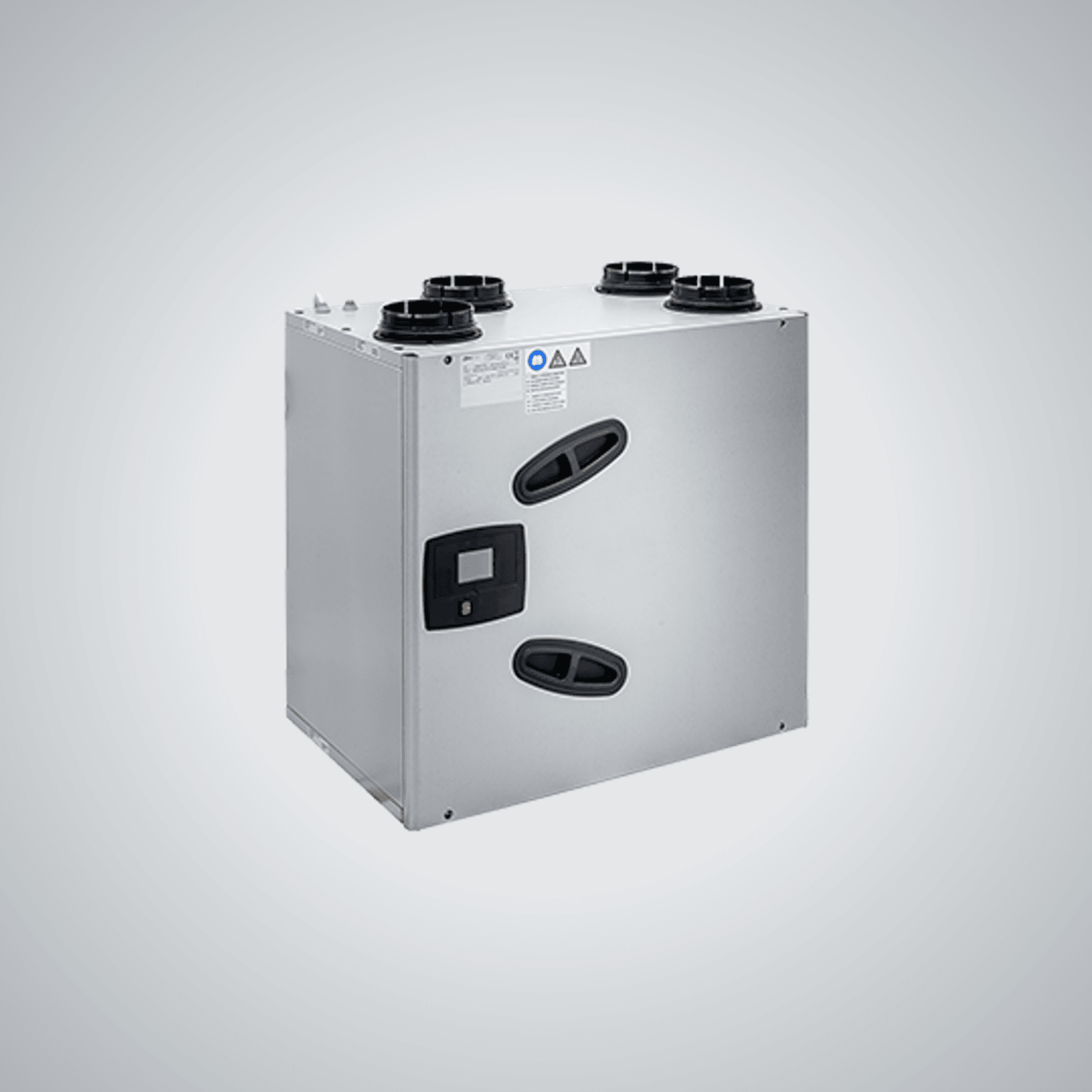

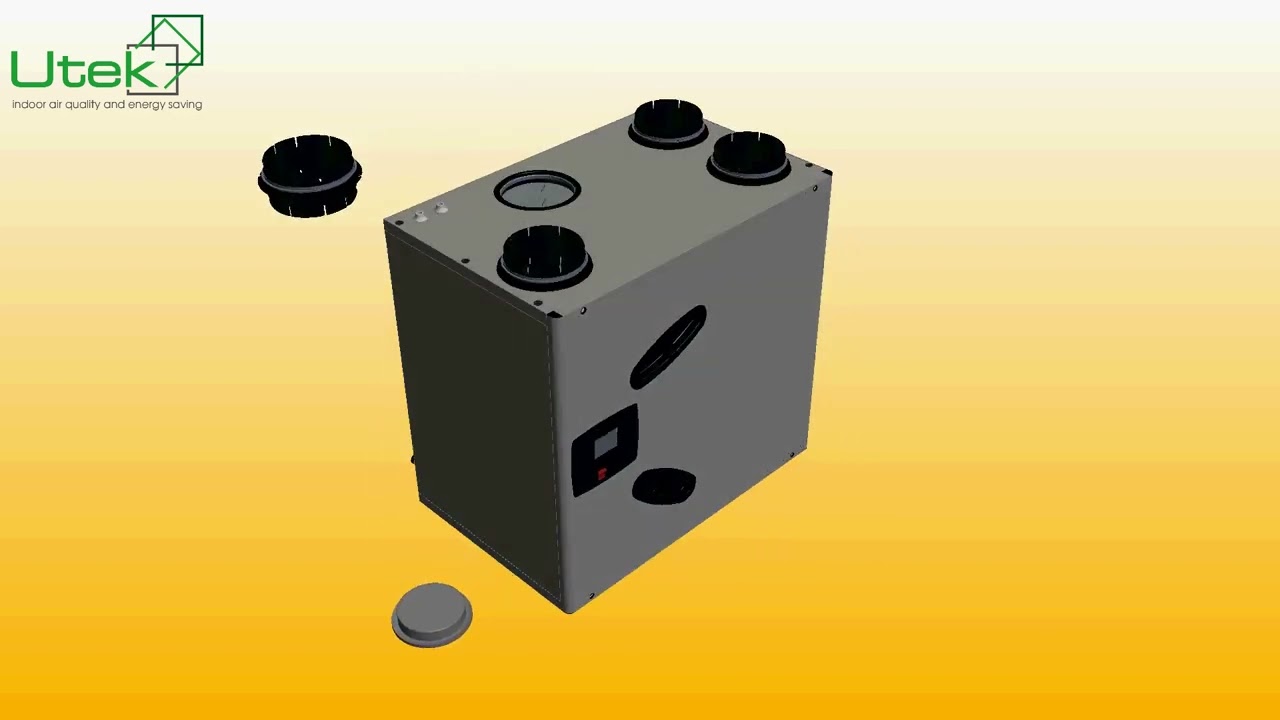

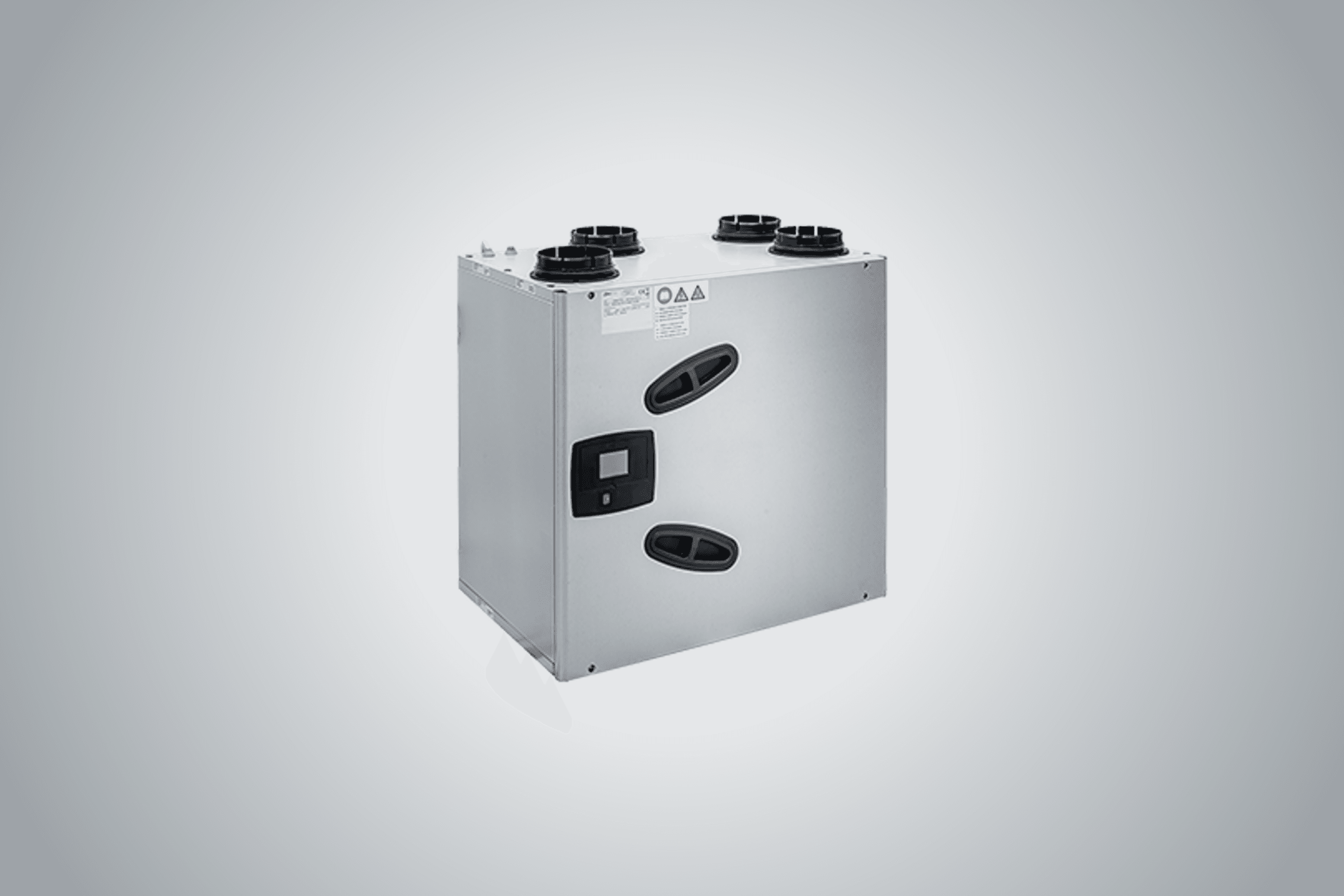

Utek Reversus 2 – Vertical Ventilation Unit
The Reversus unit from Utek Italy are highly developed MHRV units. With Utek’s commercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation.
Highlights

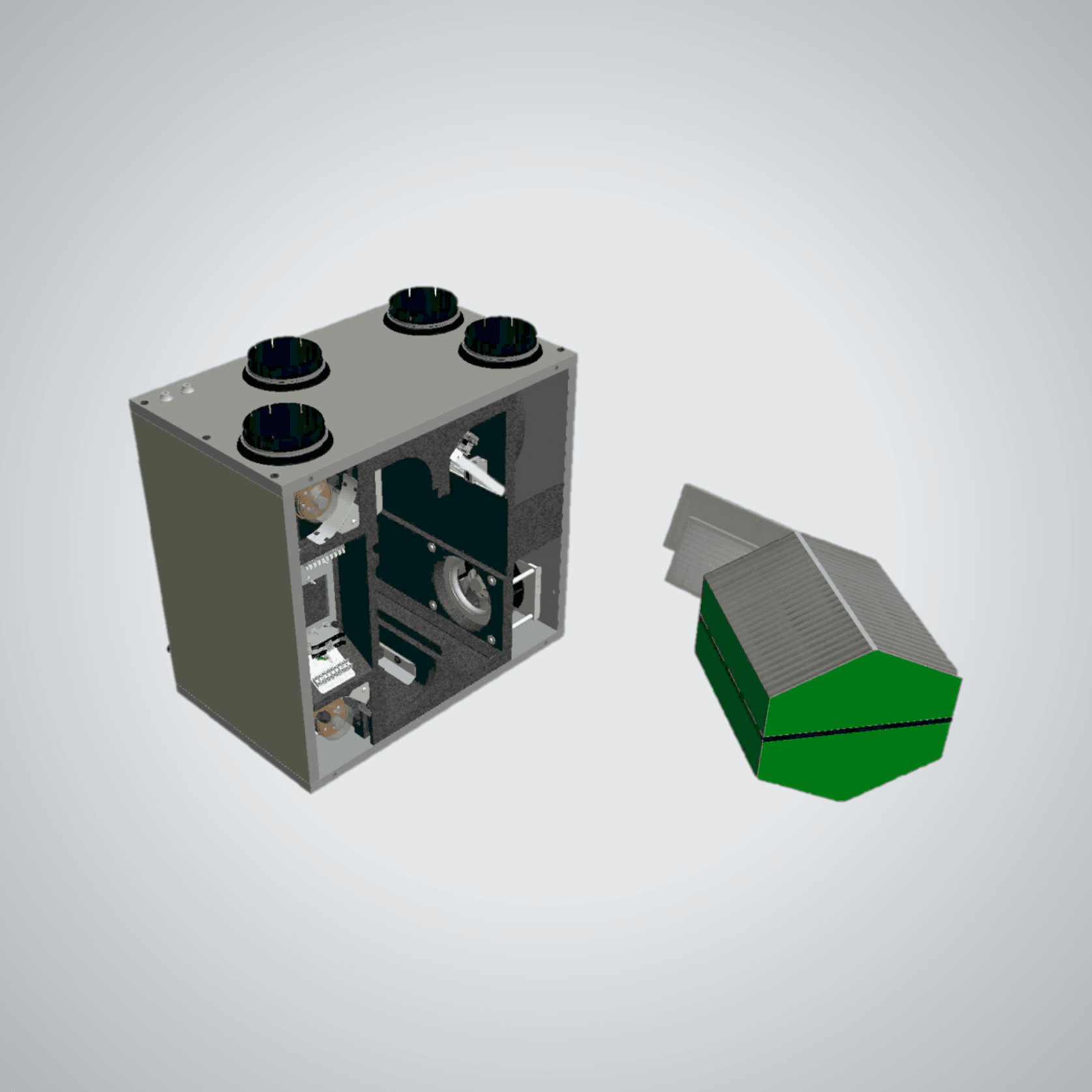

- High-efficiency counterflow heat exchanger
- EC-fans, pressure or flow controlled
- Touch-screen Controller
- Optional ventilation on demand (CO2, RH, VOC)
- Summer By-pass

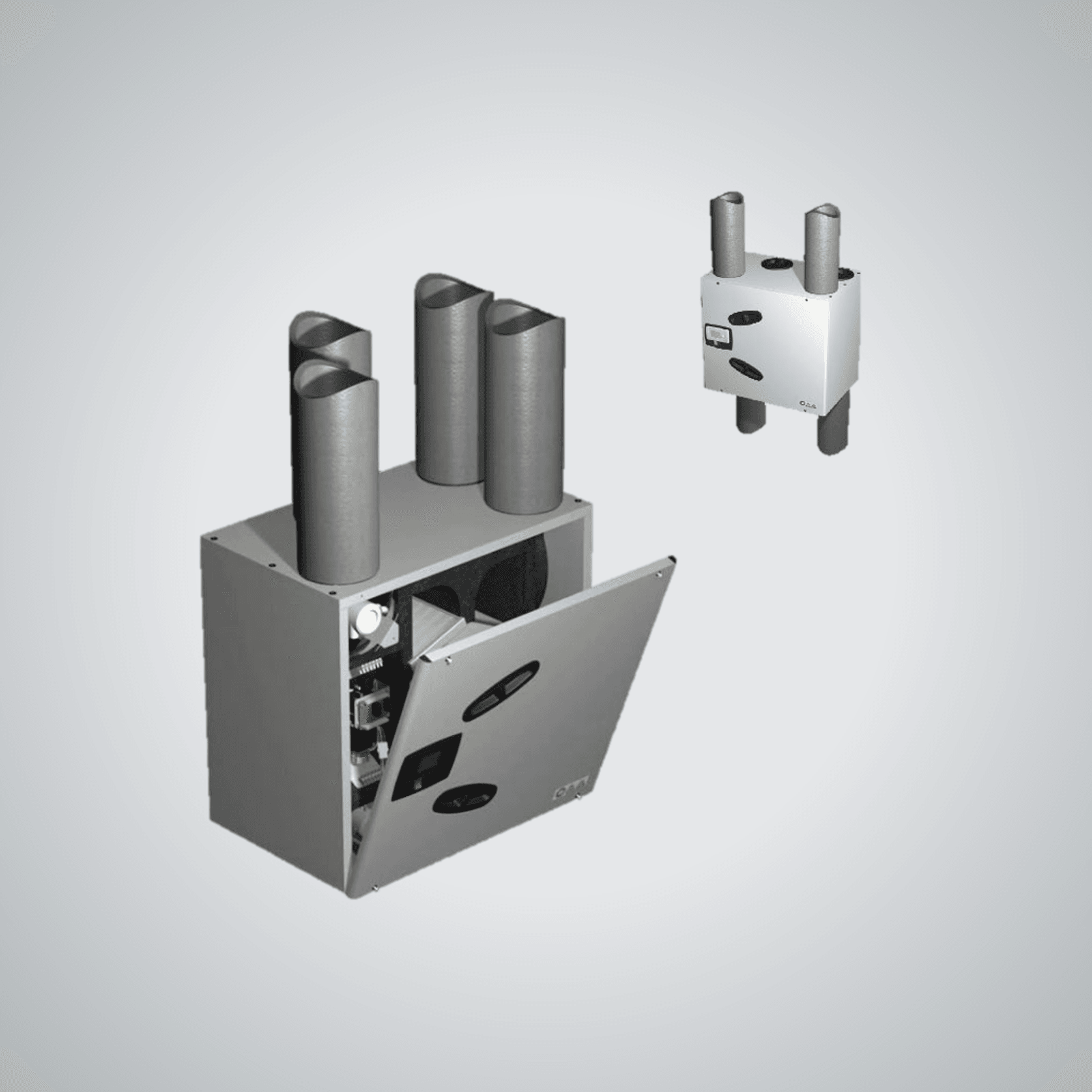

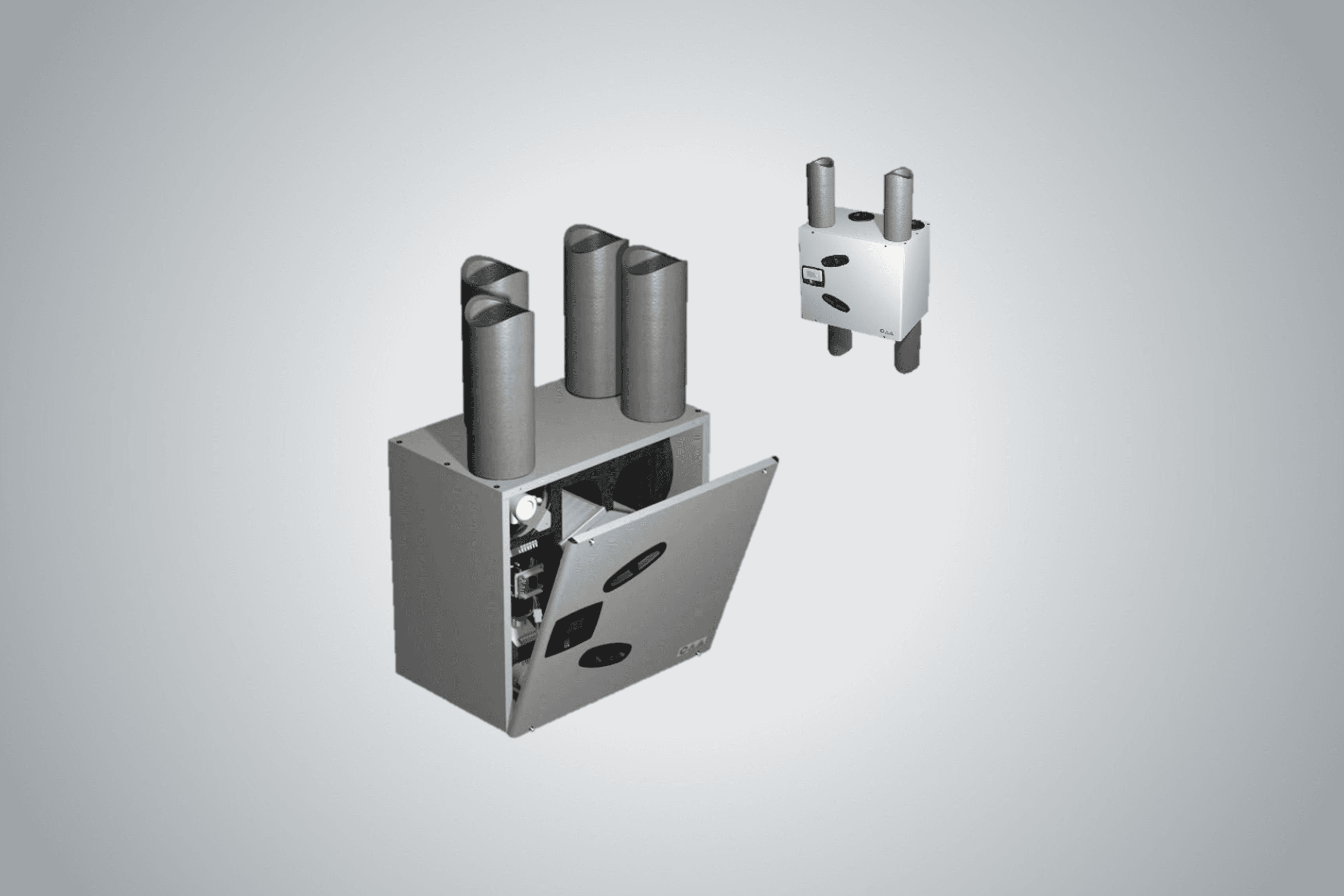

- Top or bottom duct connection
- Optional with hydronic Post-Heater/Cooler
- High-grade F7 filter for supply air (G4 for exhaust air)
- Meets G4 and Healthy Home Standard
- 2-year warranty
Product Details
- Product
- Utek Reversus 2 - Ventilation System with Heat Recovery
- Category
- Ducted Heat Pump Systems
- Sold by
- Solutionair
- Range
- Products
- Brand
- Utek - Italy
- Year
- 2022
- Warranty
- 2 years
Product Variants
- Colours
Solutionair is specified by
Utek Reversus 2 – Vertical Ventilation Unit The Reversus unit from Utek Italy are highly developed MHRV units.
With Utek’s commercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation.
Highlights
- High-efficiency counterflow heat exchanger
- EC-fans, pressure or flow controlled
- Touch-screen Controller
- Optional ventilation on demand (CO2, RH, VOC)
- Summer By-pass
- Top or bottom duct connection
- Optional with hydronic Post-Heater/Cooler
- High-grade F7 filter for supply air (G4 for exhaust air)
- Meets G4 and Healthy Home Standard
- 2-year warranty
- Specs

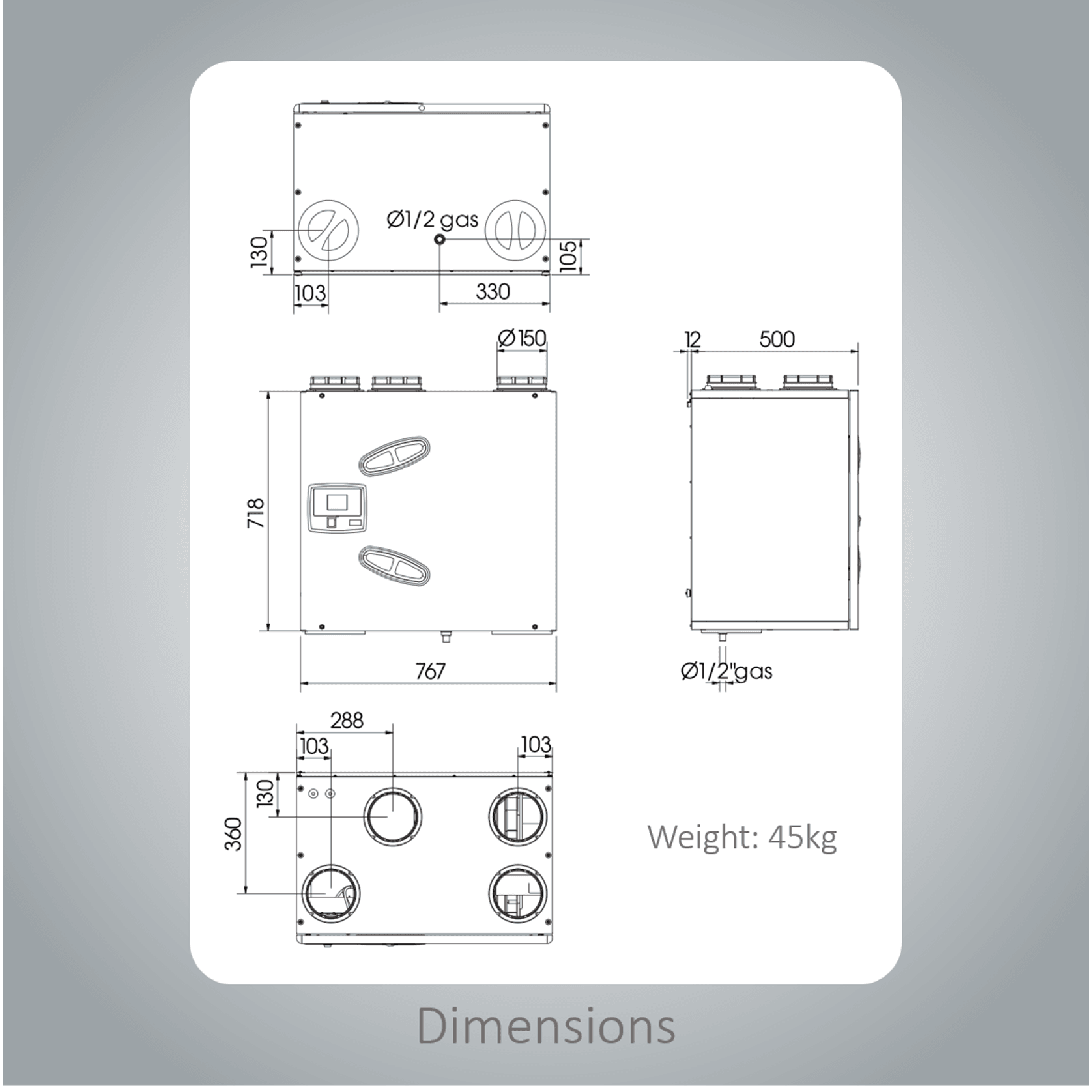

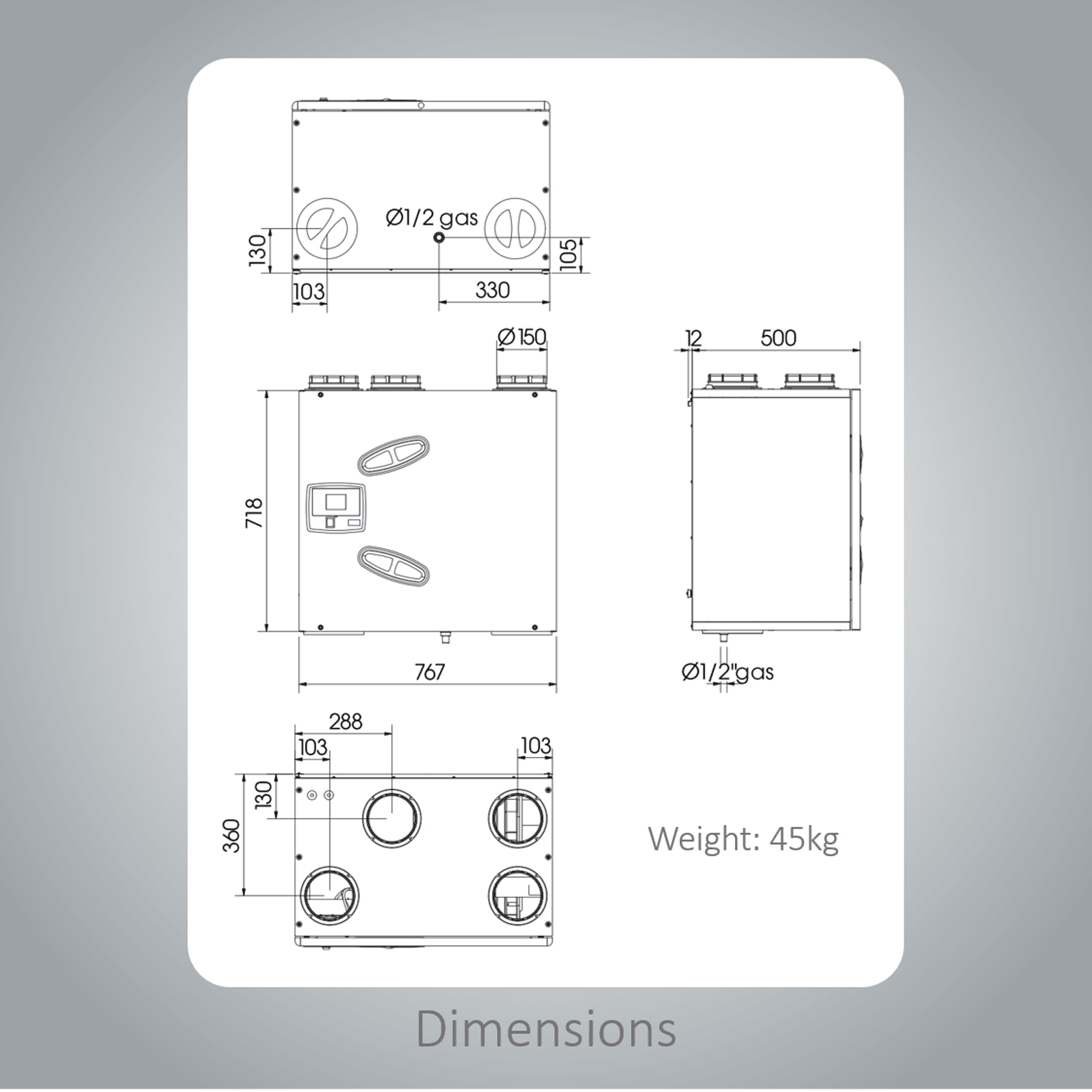

Dimensions
Height: 720mm (without spigots and siphon)
Wide: 770mm
Deep: 500mm
Sipot size: Ø 150mm
- Scope of use
Typical Application
- Domestic: Family houses with attic space
- Commercial: Office space, training rooms
- Includes dedicated bathroom, kitchen and laundry extraction
- Performance
- Airflow: 510 m³/h (max.)
- Pressure: 520 Pa (max.)
- Example: Duty point: 420m³/h @ 280Pa / House: 240m² with 2.6m ceiling
⇨ approx. 0.67 air changes per hour
- Versions
Reversus 2
- BP EVOD-PH-IP SV
MHRV unit without heater - BP EVOD-PH-IP Pre-Heater SV
MHRV unit with electric Pre-Heater to prevent heat-exchanger from frosting.Required for colder regions with winter frost. - BP EVOD-PH-IP SV+HB+BAFC500-150

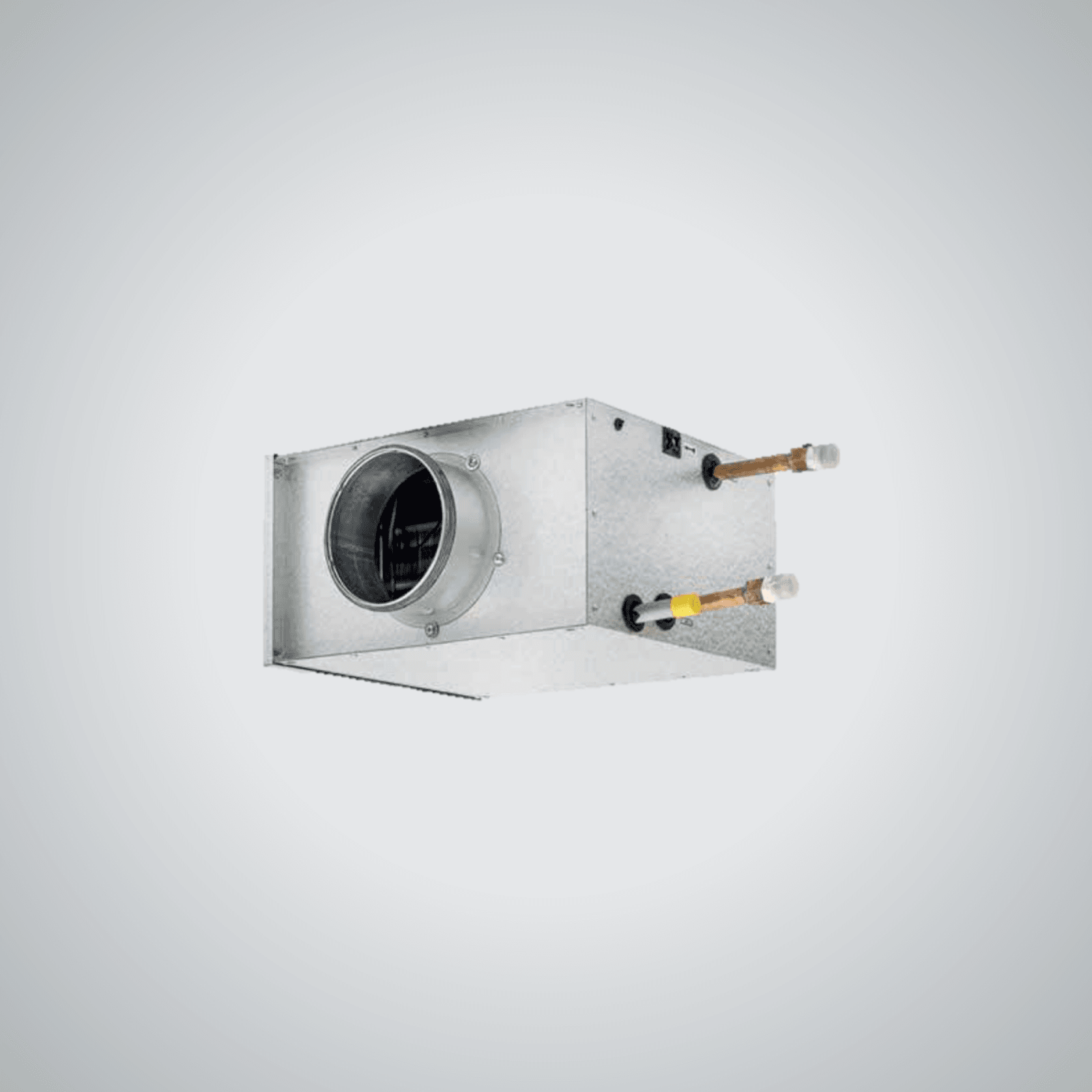

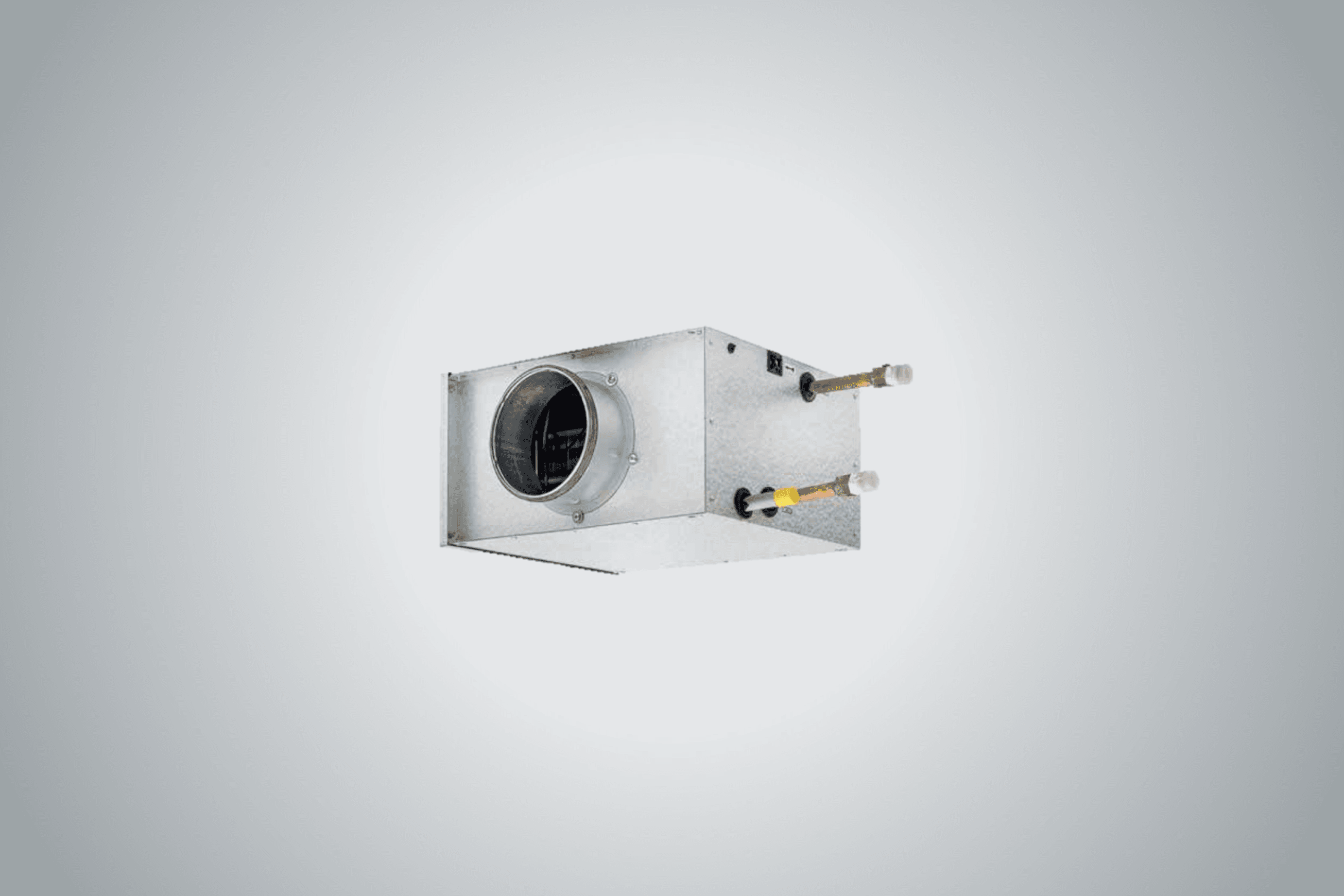

MHRV unit with hydronic Post-Heater/Cooler (Coil Unit). Coil unit controlled by Reversus Controller. Requires hydronic heat pump connection. - BP EVOD-PH-IP Pre-Heater SV+HB+BAFC500-150
Combination of above Heaters: MHRV unit with electric Pre-Heater and hydronic Post-Heater/Cooler.
- BP EVOD-PH-IP SV
- In The Box
- MHRV Unit

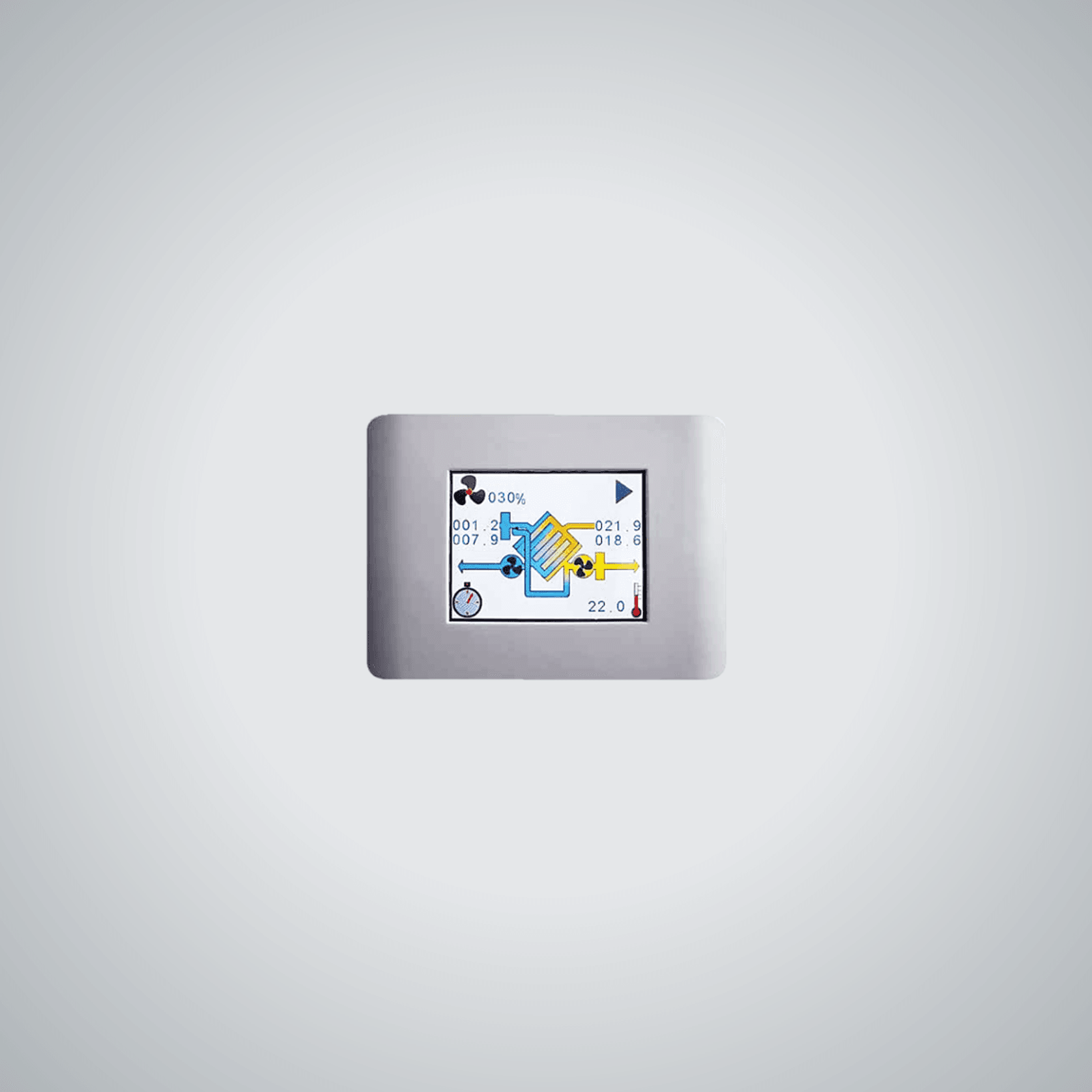

- Touchscreen Controller
- Wall-mounting brackets
- User manual
Typically required for domestic installation
- Tools and consumables (e.g. duct tape and screws)
- Indoor Duct System (Recommended: BlauFast 75 or 90)
- Ducting to outside (Recommended: EPP 150mm)
- Outdoor grill/ Trade seal*
- *Check with local council for acceptability
