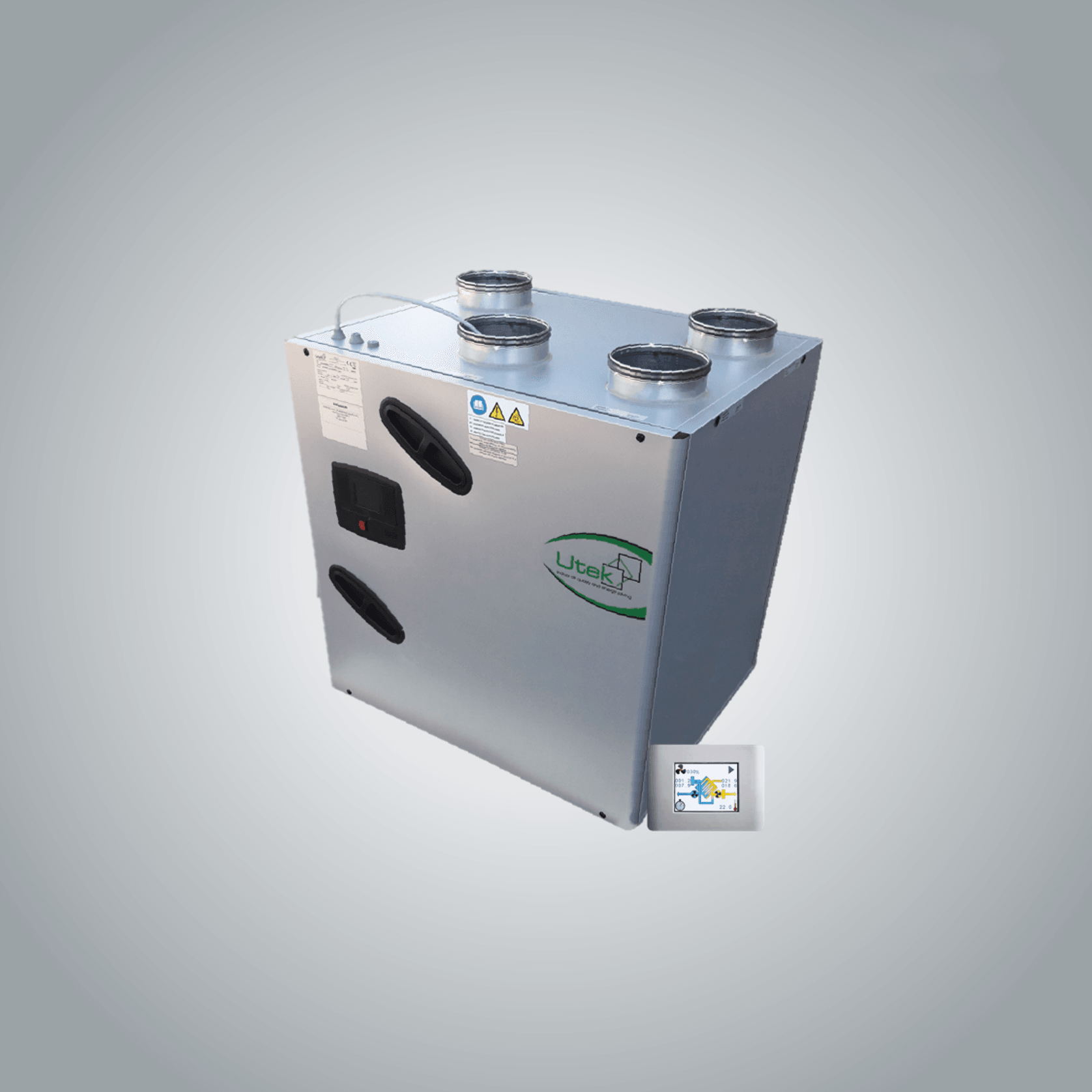

Utek Reversus 3 – Vertical Ventilation Unit
The Reversus unit from Utek Italy are highly developed MHRV units. With Utek’scommercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation and top connection.
Highlights
- High-efficiency counterflow heat exchanger
- EC-fans, pressure or flow controlled
- Touch-screen Controller
- Optional ventilation on demand (CO2, RH, VOC)
- Summer By-pass
- Optional with hydronic Post-Heater/Cooler
- High-grade F7 filter for supply air (G4 for exhaust air)
- Meets G4 and Healthy Home Standard
- 2-year warranty
Product Details
- Product
- Utek Reversus 3 - Ventilation System with Heat Recovery
- Category
- Ducted Heat Pump Systems
- Sold by
- Solutionair
- Range
- Products
- Brand
- Utek - Italy
- Warranty
- 2 years
Solutionair is specified by
Utek Reversus 3 – Vertical Ventilation Unit The Reversus unit from Utek Italy are highly developed MHRV units.
With Utek’scommercial background these units are built to perform and last. Its excellent pressure performance makes the unit suitable for large houses and commercial spaces with space for vertical installation and top connection.
Highlights
- High-efficiency counterflow heat exchanger
- EC-fans, pressure or flow controlled
- Touch-screen Controller
- Optional ventilation on demand (CO2, RH, VOC)
- Summer By-pass
- Optional with hydronic Post-Heater/Cooler
- High-grade F7 filter for supply air (G4 for exhaust air)
- Meets G4 and Healthy Home Standard
- 2-year warranty
- Scope of use
Typical Application
- Domestic: Family houses with attic space
- Commercial: Office space, training rooms
- Includes dedicated bathroom, kitchen and laundry extraction

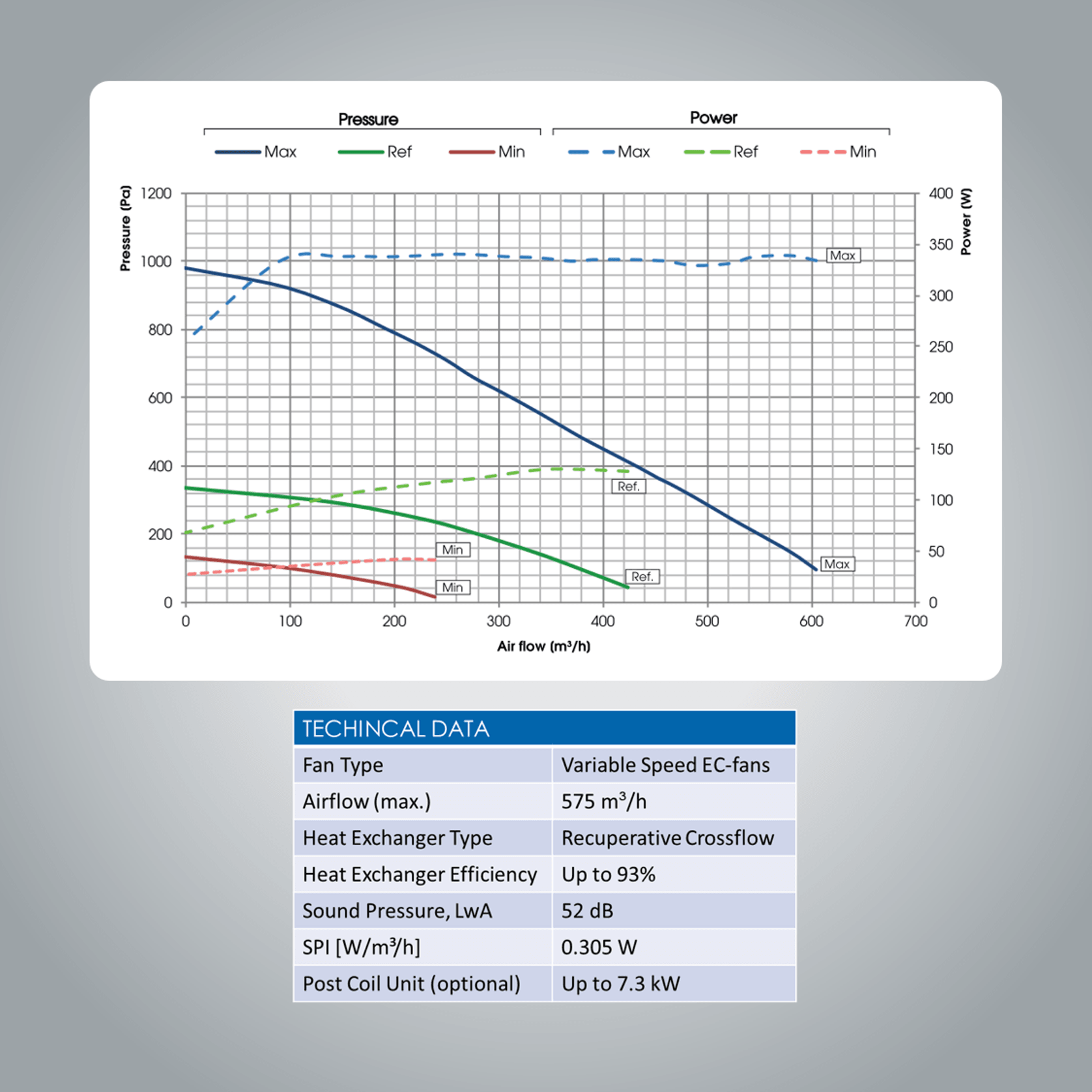

- Performance
- Airflow:575 m³/h (max.)
- Pressure:900 Pa (max.)
- Example: Duty point: 460m³/h @ 350Pa
- House: 270m² with 2.6m ceiling
⇨ approx. 0.66 air changes per hour
- Versions
Reversus 3
- BP EVOD-PH-IP SV
MHRV unit without heater - BP EVOD-PH-IP Pre-Heater SV
MHRV unit with electric Pre-Heater to protect heat-exchanger from frosting.Required for colder regions with winter frost. - BP EVOD-PH-IP SV+HB+BAFC500-160

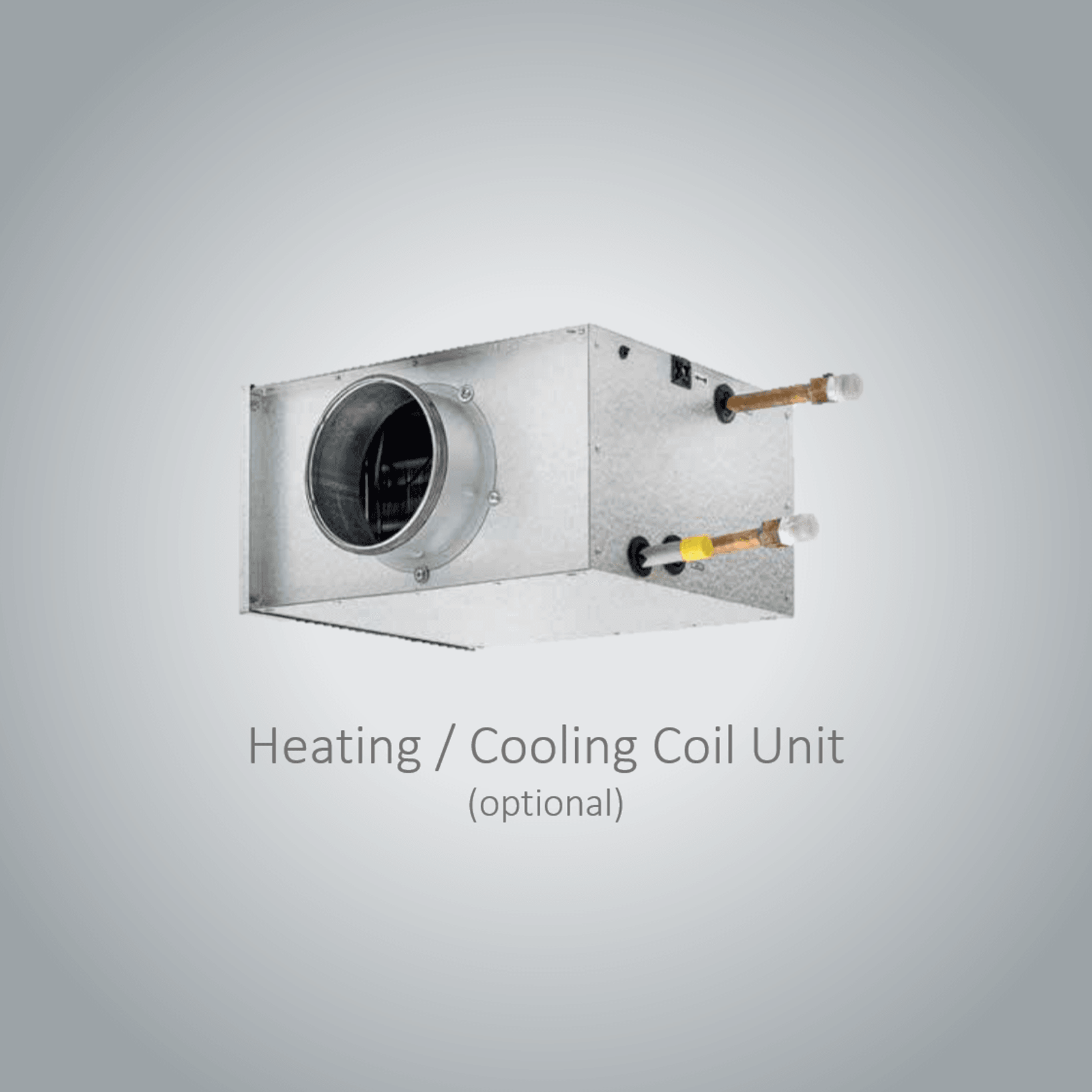

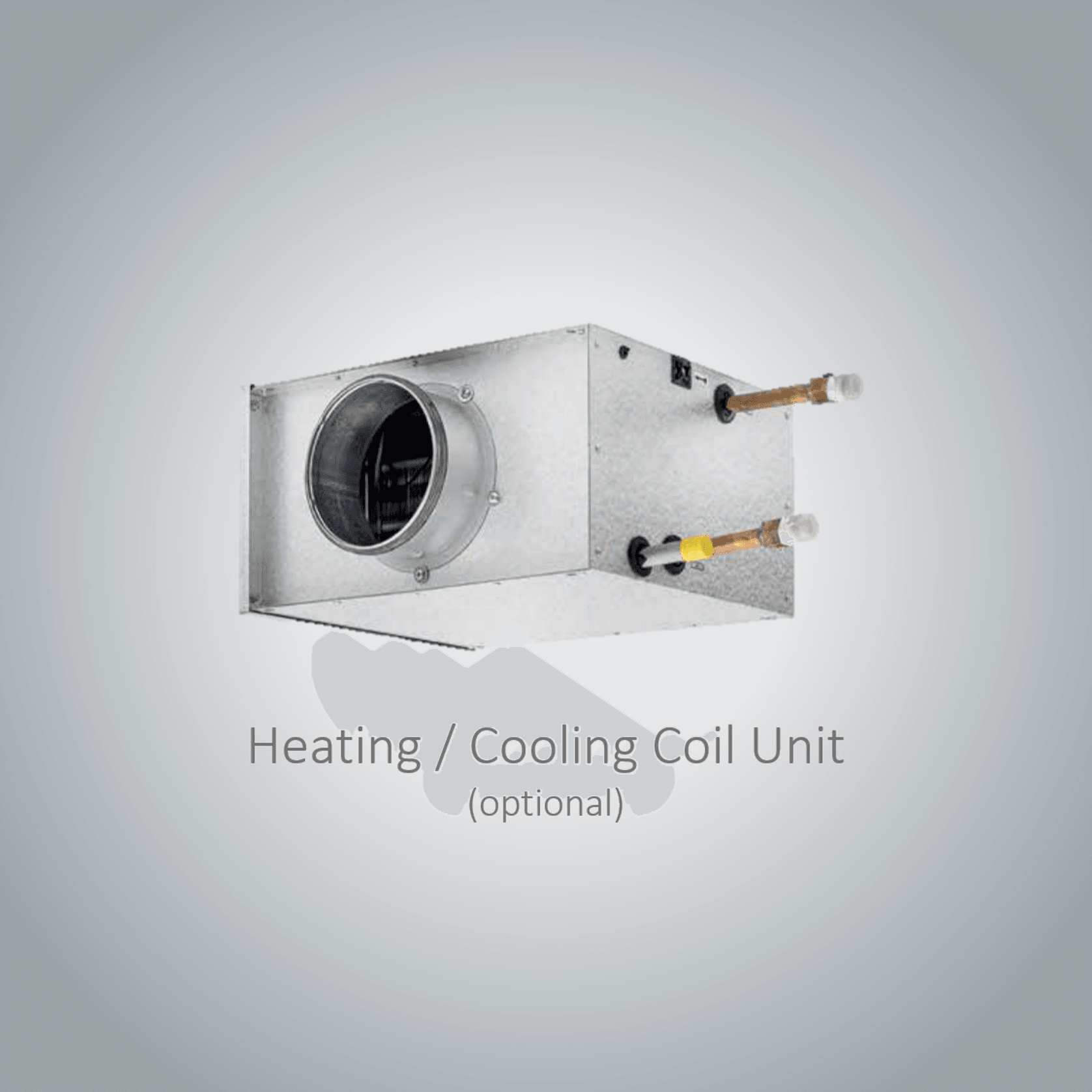

MHRV unit with hydronic Post-Heater/Cooler (Coil Unit). Coil unit controlled by Reversus Controller. Requires hydronic heat pump connection. - BP EVOD-PH-IP Pre-Heater SV+HB+BAFC500-160
MHRV unit with electric Pre-Heater and hydronic Post-Heater/Cooler.
- BP EVOD-PH-IP SV
- In The Box
- MHRV Unit

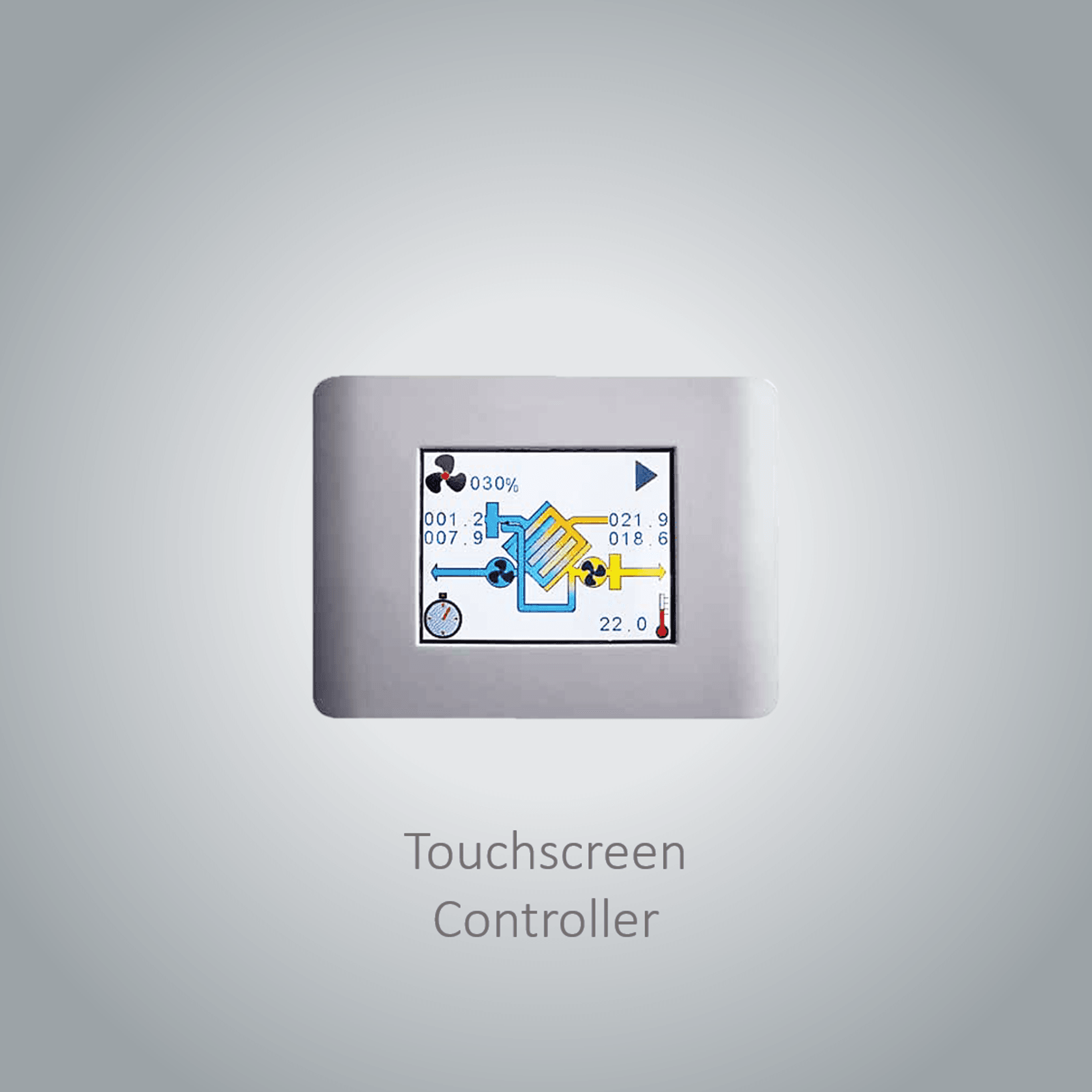

- Touchscreen Controller
- Wall-mounting brackets
- User manual
Typically required for domestic installation
- Tools and consumables (e.g. duct tape and screws)
- Indoor Duct System (Recommended: BlauFast 75 or 90)
- Ducting to outside (Recommended: EPP 160mm)
- Outdoor grill/ Trade seal*
- *Check with local council for acceptability
