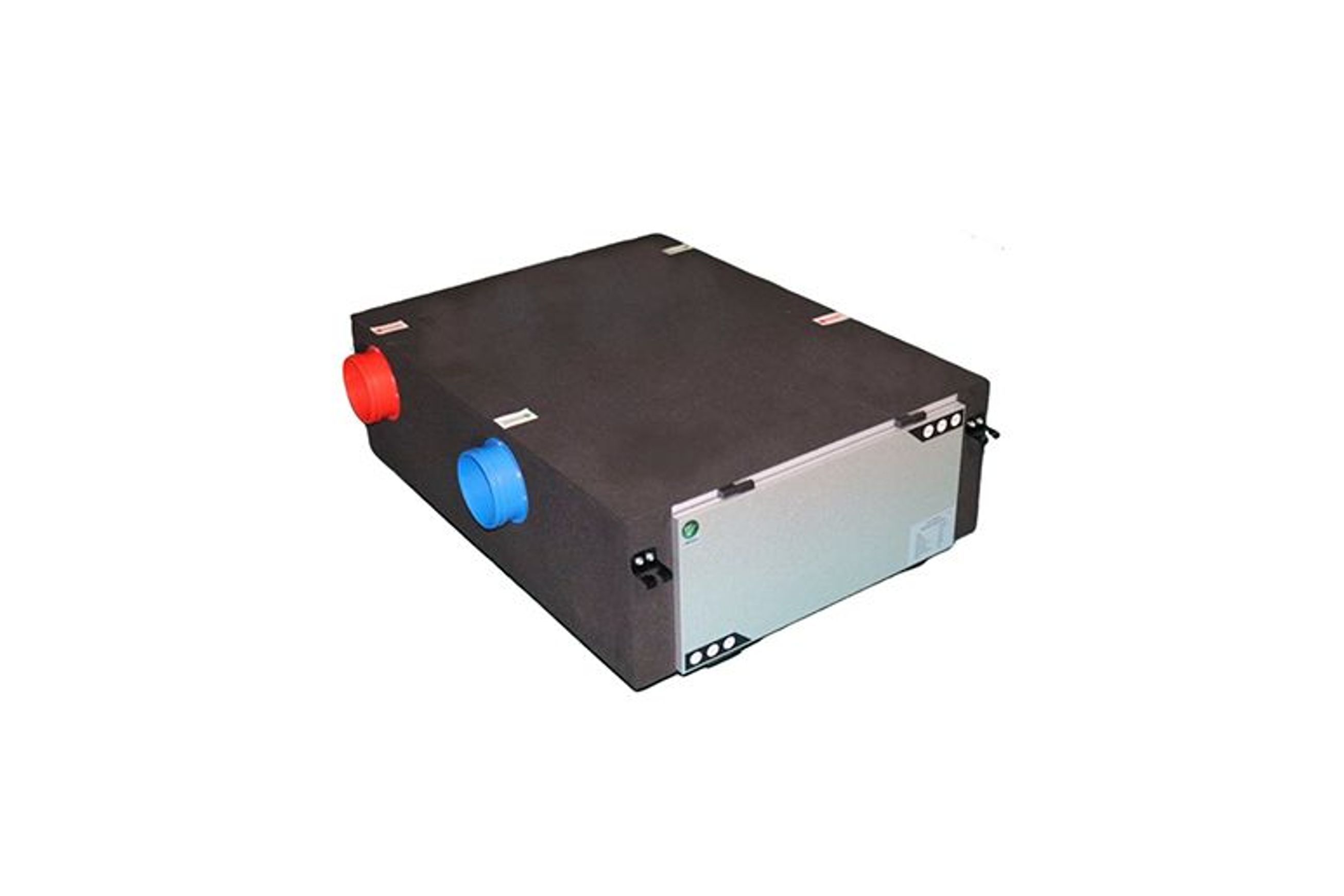

Solutionair Ventus 450 – Horizontal Ventilation Unit

Ventus 450 is a MVHR unit, designed by Solutionair for the New Zealand market which incorporates latest technology and components from world-leading supplier. Its powerful EC-fans and horizontal design makes the unit ideal for most of the single level NZ family houses.

Highlights

• Counter flow heat exchanger from Recair Netherlands (now Zehnder)

• EC-fans from ebm-papst Germany

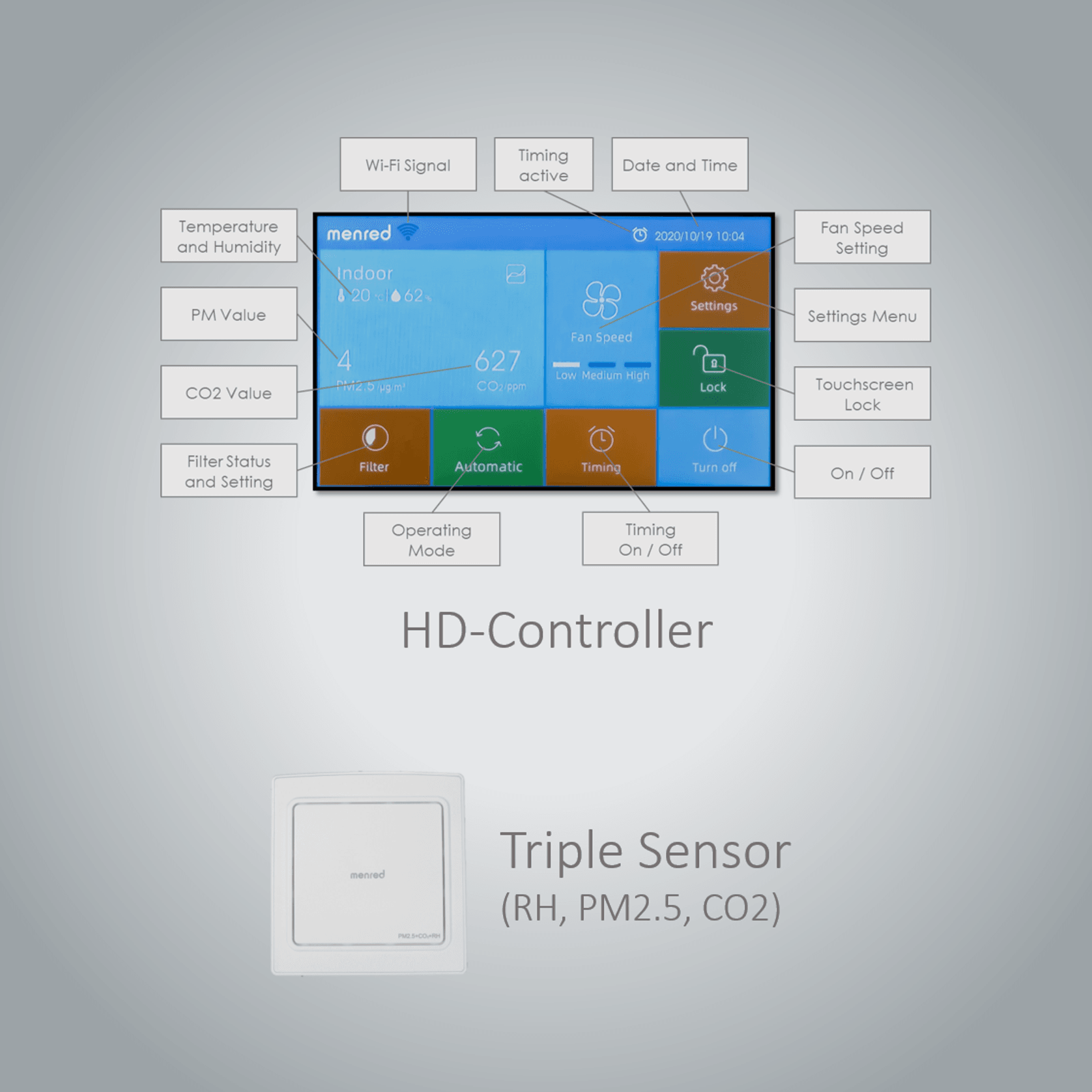

• HD Display Controller with touch screen

• Ventilation on demand (Sensor controlled)

• Triple-Sensor (RH, PM2.5, CO2)

• Summer By-pass

• Available as commercial through-wall version

• High-grade F7 filter for supply air (G4 for exhaust air)

• Meets G4 and Healthy Home Standard

• 5-year warranty

Details
Specifications

Technical Parameters:

Unit:

  • Voltage: 230 V
  • Frequency: 50 Hz
  • Weight: 52 kg
  • Current: 10 A
  • Enclosure Class: IP 24
  • Noise: (dB(A) 42

Heat Exchanger:

  • Exchanger Brand: Recair
  • Exchanger Model: Sensitive 300
  • Exchanger Type: Counter Flow

Fans:

  • Supply Fan: Ebm Papst EC
  • Extraction Fan: Ebm Papst EC
  • Combined Power: 120 W

Air Filtration:

  • On Extraction: G4
  • On Supply: PM2.5

Other:

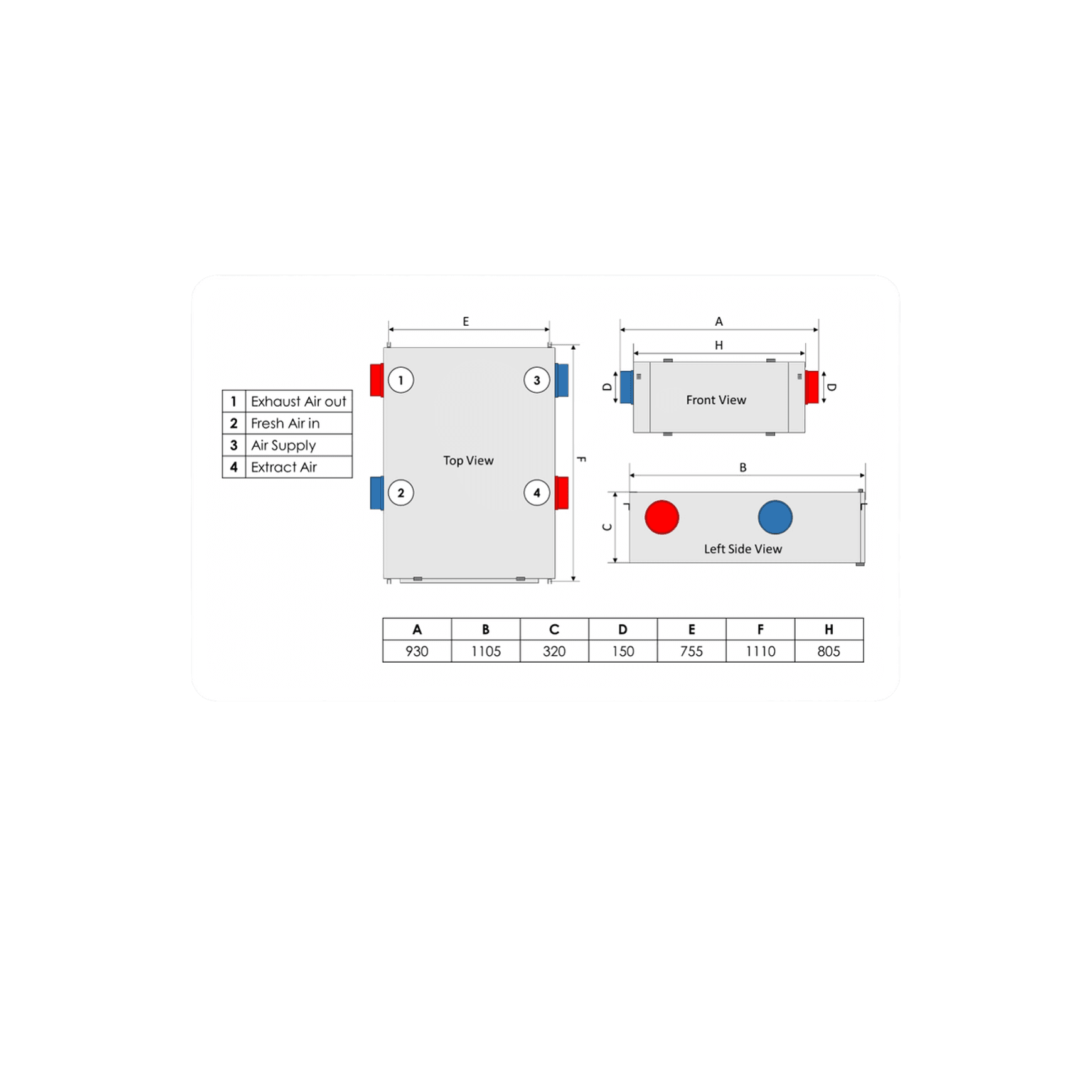

  • Mounting Type: Horizontal
Scope of use

Typical Application

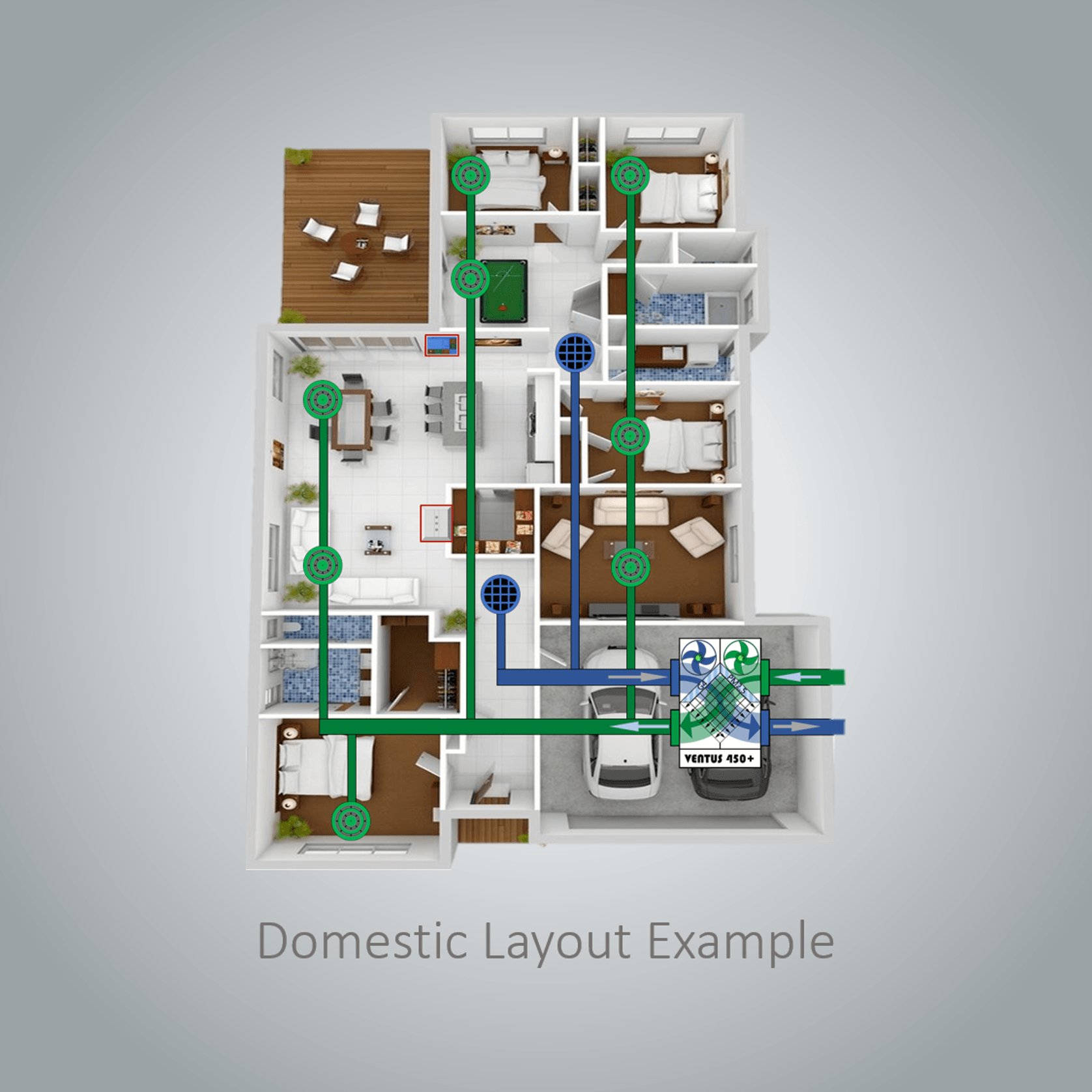

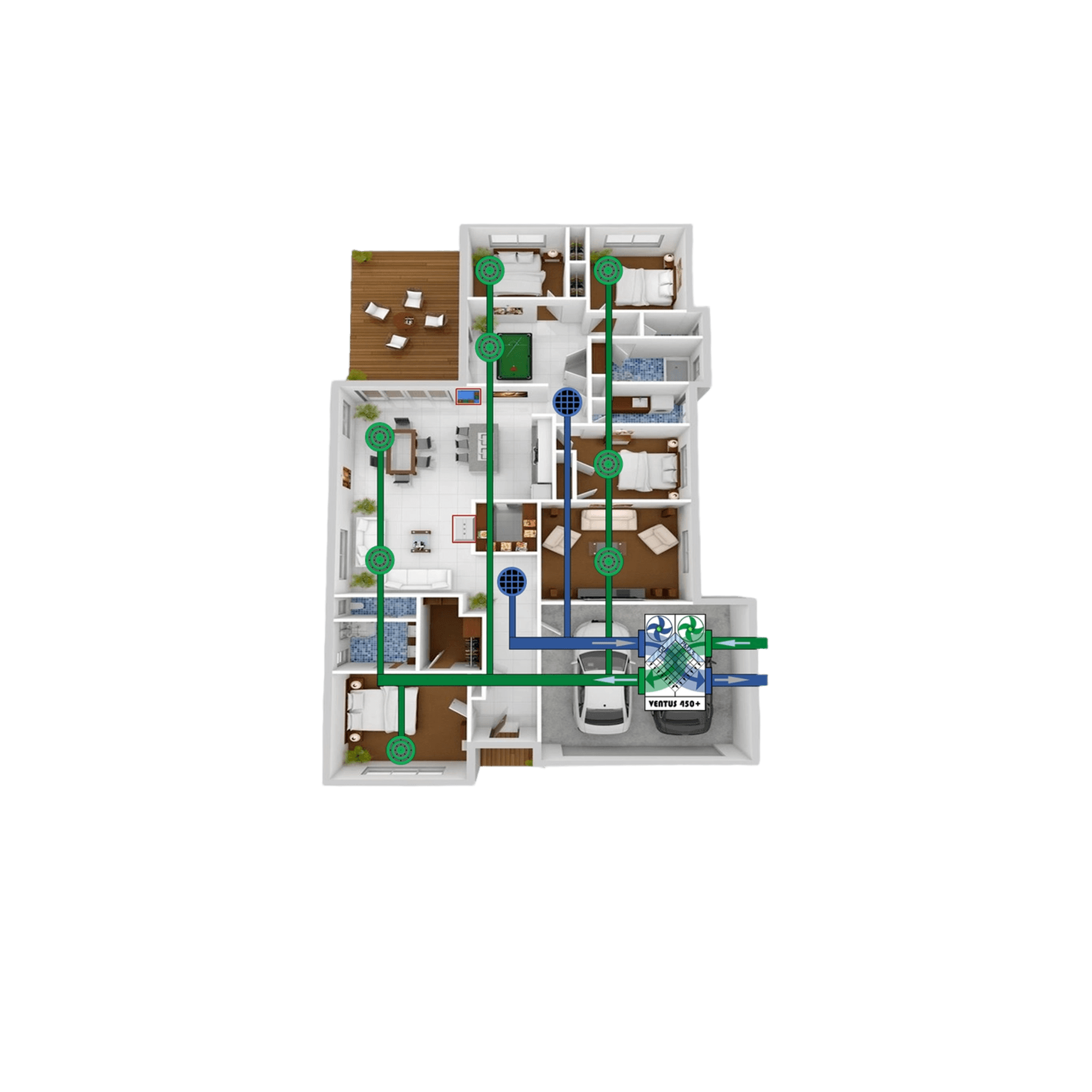

  • Domestic: Family houses with attic space
  • Commercial: Office space, training rooms
  • Includes dedicated bathroom, kitchen and laundry extraction

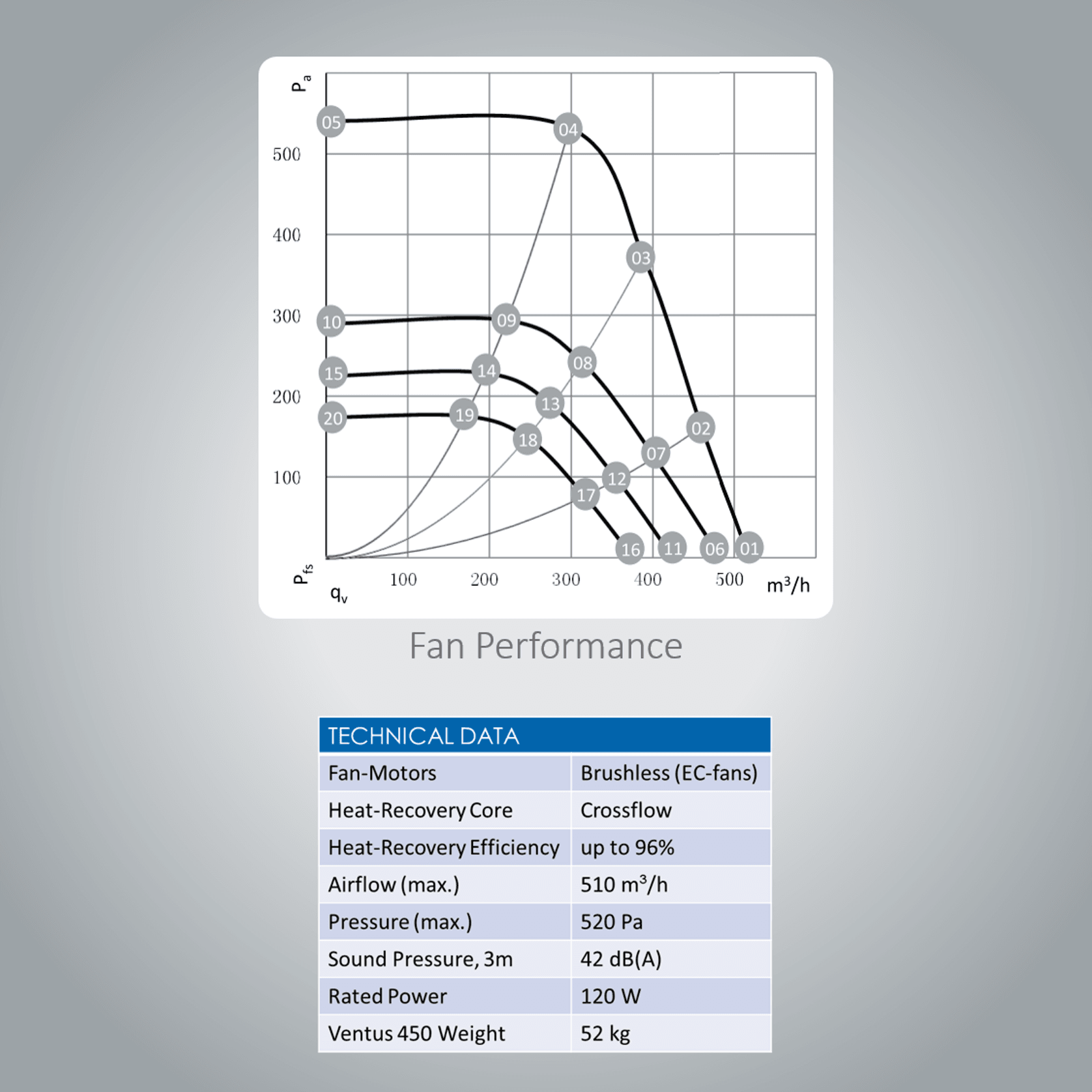

Performance
  • Airflow:​​ 510 m³/h (max.)
  • Pressure: ​​520 Pa (max.)
  • Example: ​Duty point: 420m³/h @ 280Pa / House: 240m² with 2.6m ceiling
    ⇨ approx. 0.67 air changes per hour
Versions
  • Solutionair Ventus 450+

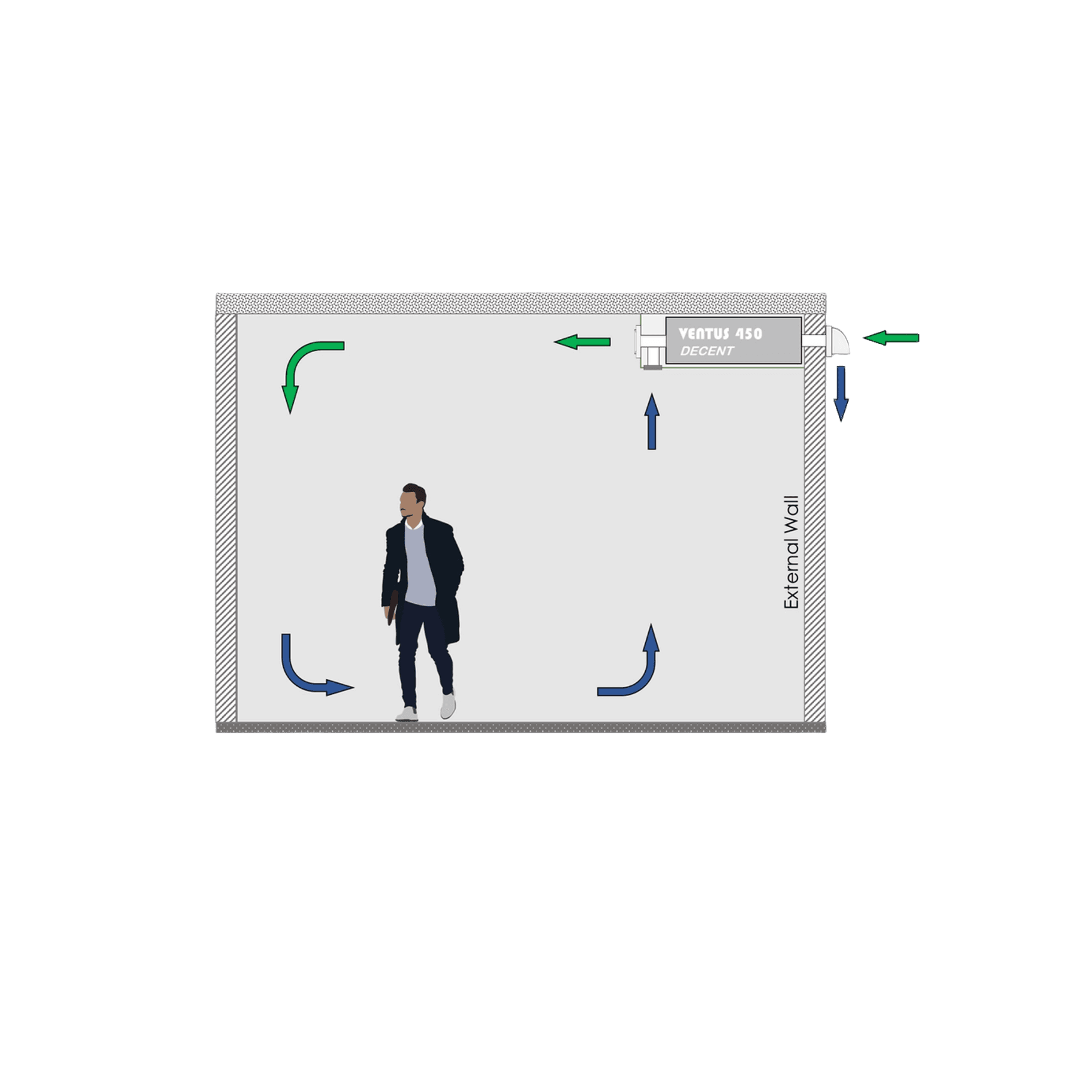

  • Solutionair Ventus 450 DECENT

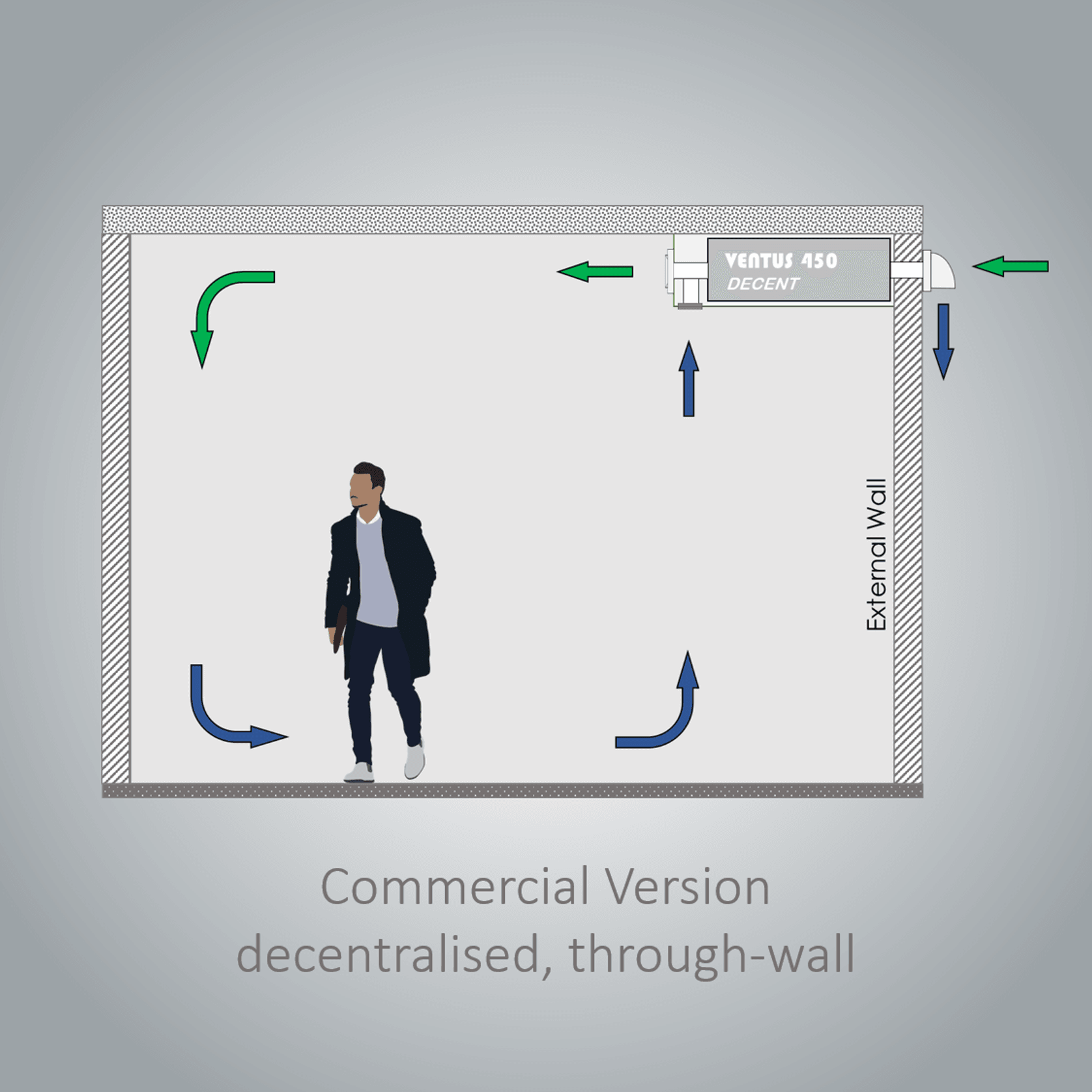

    Commercial version – available on request
In The Box
  • MHRV Unit
  • Touchscreen Controller
  • Triple Sensor (Wall mounted)
  • User manual

Typically required for domestic installation

  • Tools and consumables (e.g. duct tape and screws)
  • Mounting to hang unit earthquake safe (e.g. steel rods)*
  • Indoor Duct System (Recommended: BlauFast 75)
  • Ducting to outside (Recommended: EPP 150mm)
  • Outdoor grill/ Trade seal*

*Check with local council for acceptability
