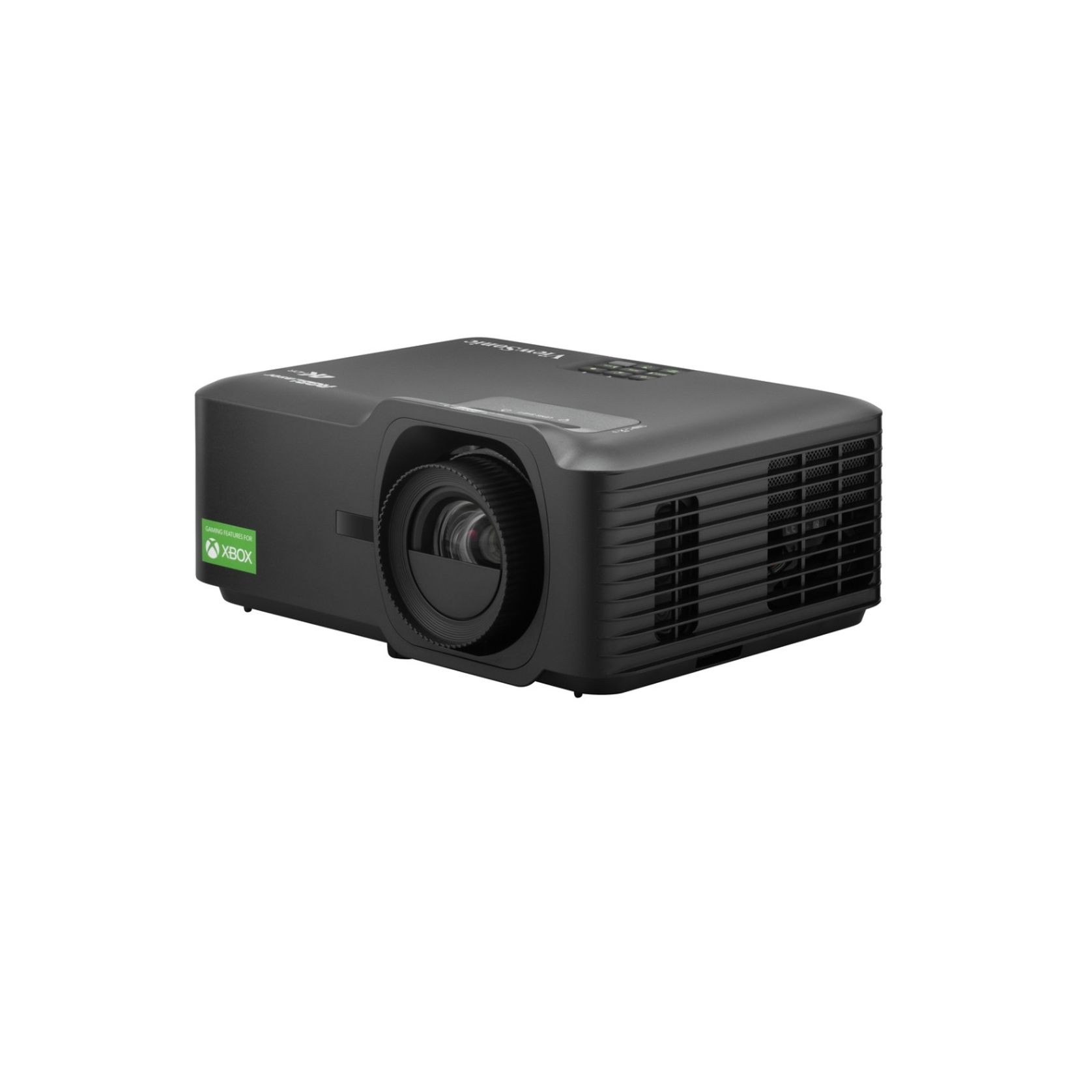

ViewSonic V57-4K RGB Laser Projector

Experience cinema-quality visuals in the comfort of your own home with the ViewSonic V57-4K RGB Laser Projector.

Specs

ViewSonic V57-4K RGB Laser Projector – Specifications

Display Technology

• 0.65" DMD chip
• Native Resolution: 3840 x 2160 (4K UHD)
• Brightness: 5,200 RGB Laser Lumens
• Contrast Ratio: 3,000,000:1
• Displayable Colors: 1.07 billion
• Light Source: RGB laser
• Light Source Life: Up to 30,000 hours (Eco Mode)

Projection Features

• Lens: F=2.5–3.26, f=20.911–32.62mm
• Throw Ratio: 1.4–2.24
• Optical Zoom: 1.6x
• Digital Zoom: 0.8x–2.0x
• Projection Offset: 137% ±10%
• Image Size: 30"–300"
• Throw Distance: 0.93–14.88m (100" @ 3.10m)
• Keystone Correction: ±30° horizontal and vertical
• Lens Shift (Vertical): +0%, -15%

Performance

• Input Lag: 4.2ms (at 1440p/120Hz)
• Noise Level: 30dB (Normal), 27dB (Eco)
• Supported Resolutions: VGA to 4K UHD
• HDR/HLG Supported
• Refresh Rate: Up to 240Hz
• Designed for Xbox: Certified for gaming performance

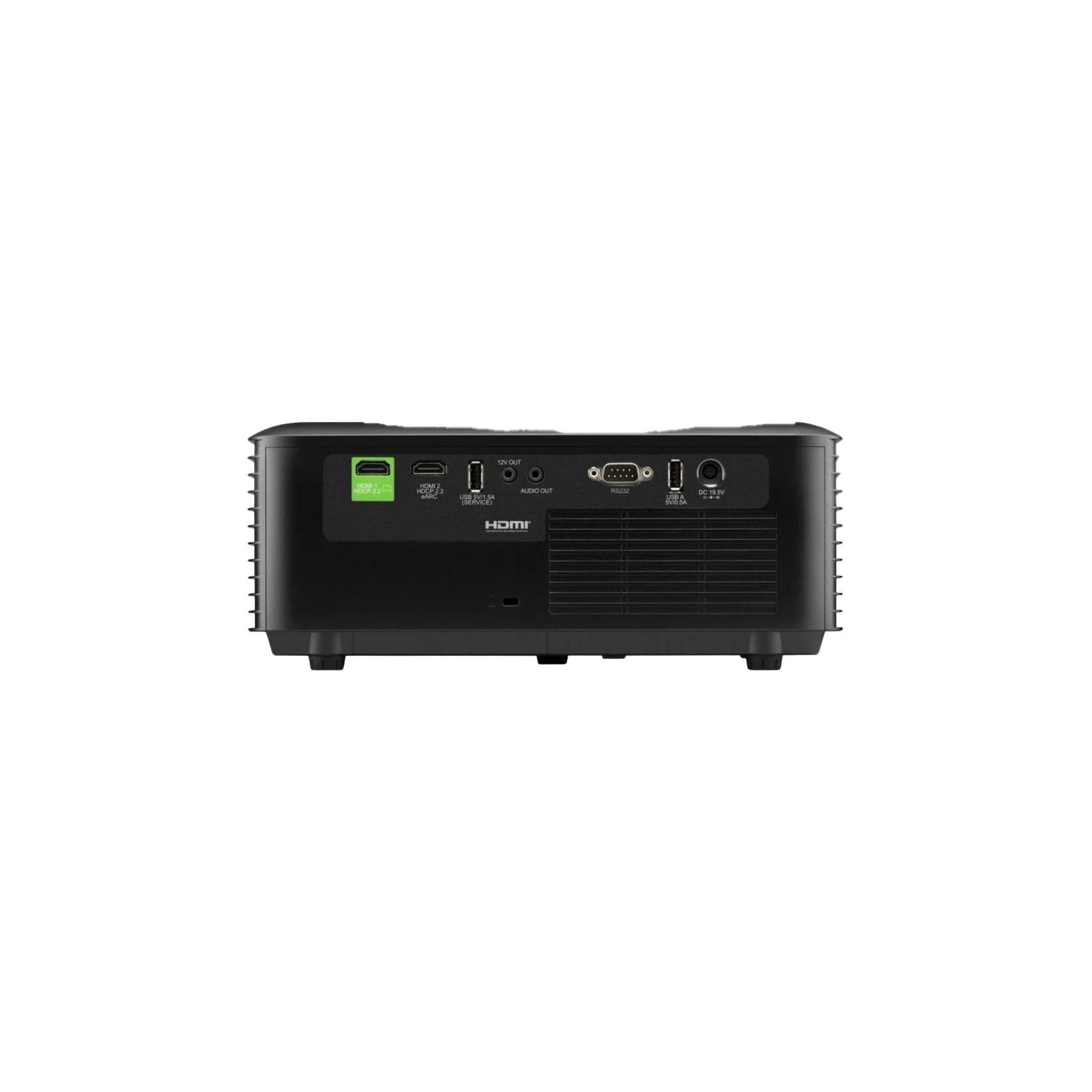

Connectivity

• HDMI: 2 x HDMI 2.0 (HDCP 2.2)
• USB:
  2 x USB-A (5V/0.5A and 5V/1.5A)
  1 x USB-A (Service)
• Audio:
  3.5mm Audio Out
  HDMI ARC/eARC
• Control: RS232 (DB9)
• 12V Trigger Port

Audio

• Built-in 15W speaker

Power & Dimensions

• Power Supply: 100–240V AC
• Power Consumption: 145W (Normal), <0.5W (Standby)

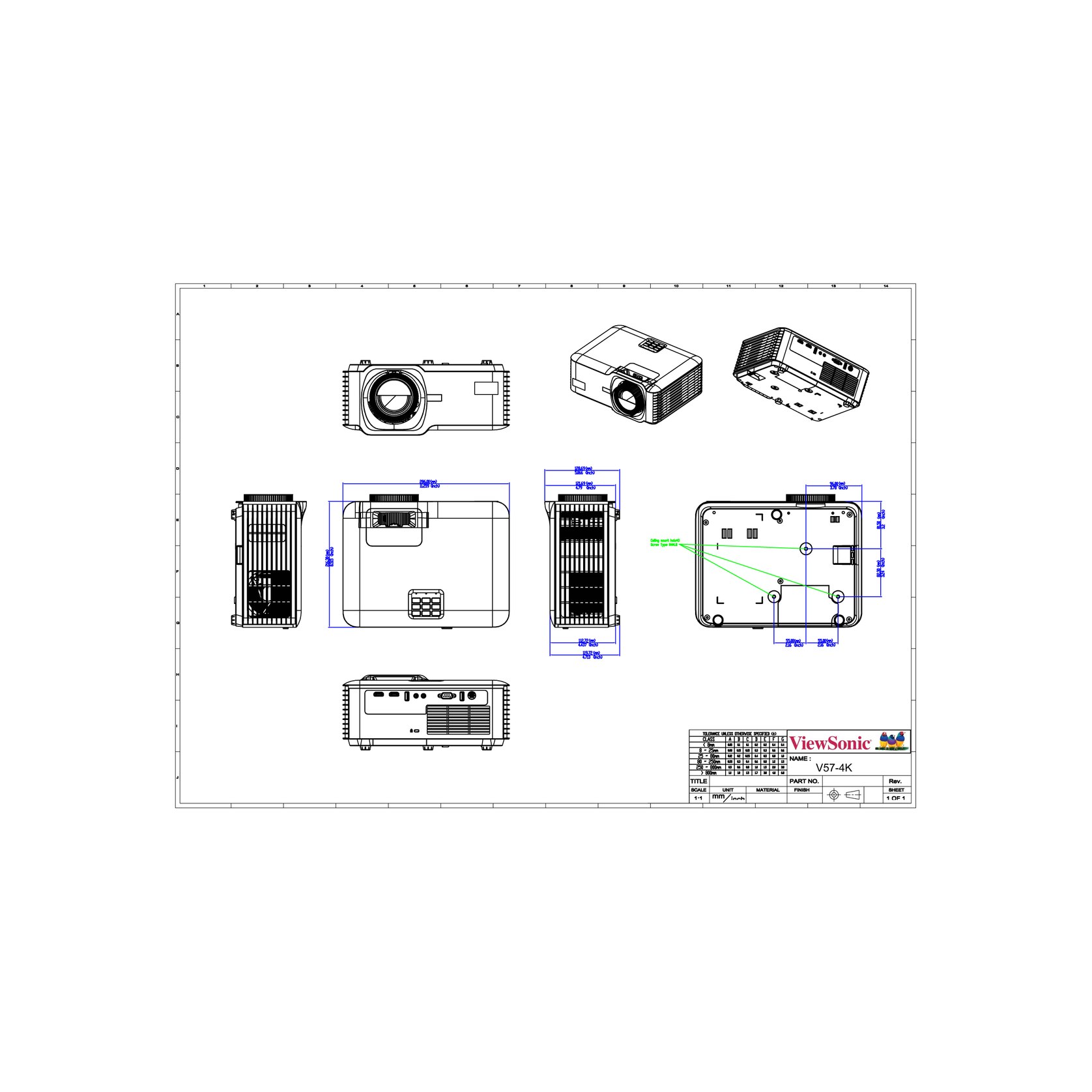

• Dimensions (W x D x H): 286 x 216 x 129 mm
• Net Weight: 2.7 kg

Included Accessories

• Power Cable
• Remote Control (backlit)
• Quick Start Guide
• Warranty Card

Features

ViewSonic V57-4K RGB Laser Projector is a premium home cinema projector designed to deliver exceptional visual performance and versatility.

• True 4K UHD Resolution: 3840 x 2160 pixels for ultra-sharp, detailed images.
• RGB Triple Laser Technology: Utilizes red, green, and blue laser diodes to achieve 100% BT.2020 color gamut coverage, delivering vivid and lifelike colors that surpass traditional digital cinema standards.
• High Brightness: 5,200 RGB Laser Lumens ensure bright and clear visuals in various lighting conditions, making it suitable for both dark and well-lit rooms.
• High Contrast Ratio: 3,000,000:1 contrast ratio, powered by a 0.65-inch DMD chip, reveals intricate details in dark scenes and enriches blacks for complete visual immersion.
• HDR/HLG Support: Supports High Dynamic Range (HDR) and Hybrid Log-Gamma (HLG) for enhanced color depth and contrast.
• Flexible Installation: Features a 1.6x optical zoom, vertical lens shift, horizontal/vertical keystone correction, and 4-corner adjustment for versatile setup options.
• Gaming Optimized: Certified as "Designed for Xbox," it supports 1440p at 120Hz with a low input lag of 4.2ms, providing a smooth and responsive gaming experience.
• Long-lasting Light Source: The mercury-free and lamp-free RGB laser light source offers up to 30,000 hours of usage in Eco mode.
• Quiet Operation: Operates at 30dB in normal mode and 27dB in Eco mode, ensuring minimal noise during viewing.
• Comprehensive Connectivity: Includes 2x HDMI 2.0 (HDCP 2.2), USB-A ports for power and service, 3.5mm audio out, HDMI ARC/eARC, and a 12V trigger for seamless integration with various devices.
• Built-in Speaker: Equipped with a 15W speaker, providing adequate audio output for casual viewing without the need for external speakers.

The ViewSonic V57-4K RGB Laser Projector is an excellent choice for home theater enthusiasts and gamers seeking high-quality visuals, vibrant colors, and flexible installation options. Its advanced features and performance make it suitable for various applications, from movie nights to immersive gaming sessions.

Scope of use

The ViewSonic V57-4K RGB Laser Projector is ideal for any home theatre or for large venues, auditoriums, and immersive commercial displays, delivering vibrant 4K visuals with precise colour accuracy and high brightness.
