How much does the VLR 70 S Heat Recovery Ventilation System cost?

STIEBEL ELTRON does not publish a price for the VLR 70 S Heat Recovery Ventilation System on ArchiPro. Send them an enquiry for pricing, or visit their website.

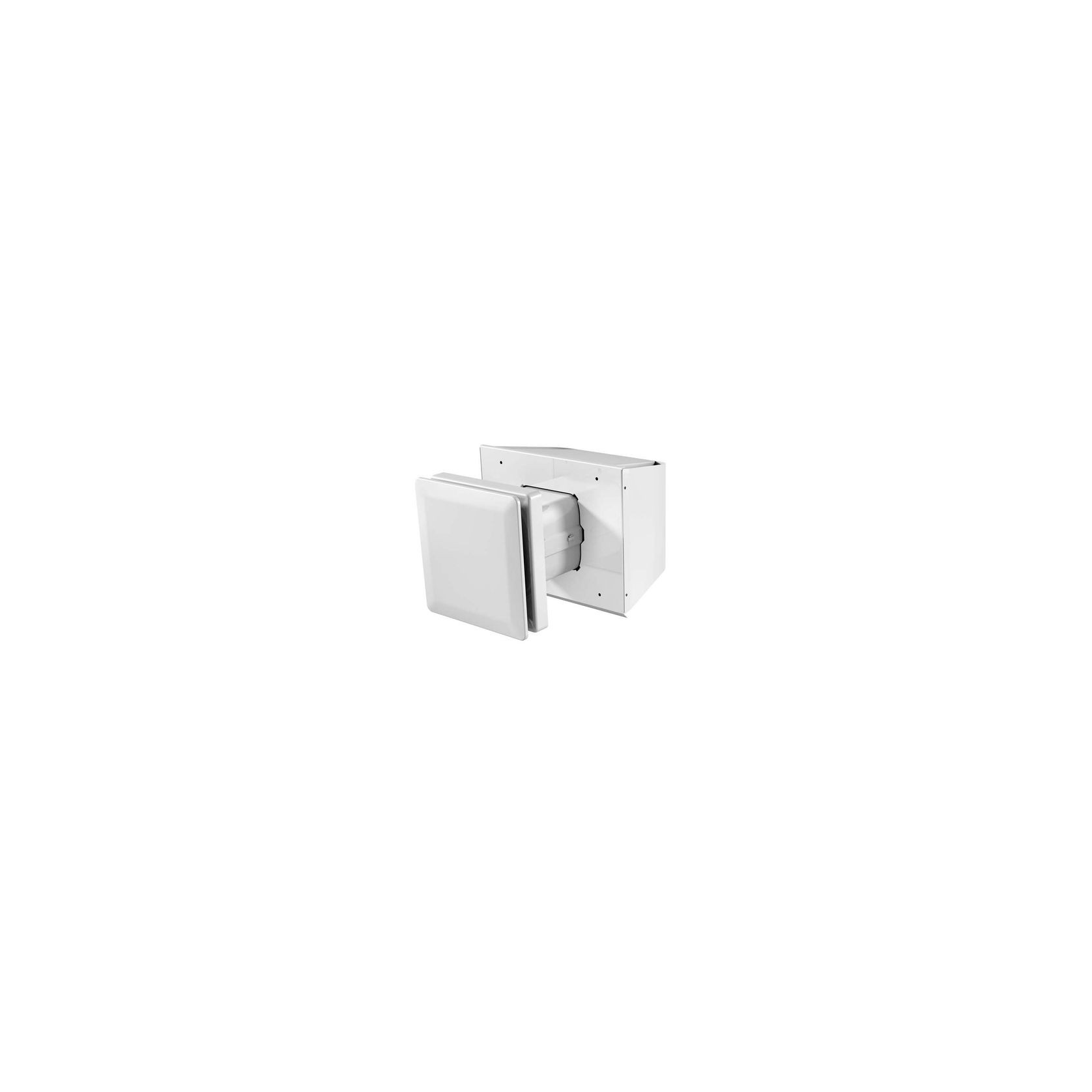

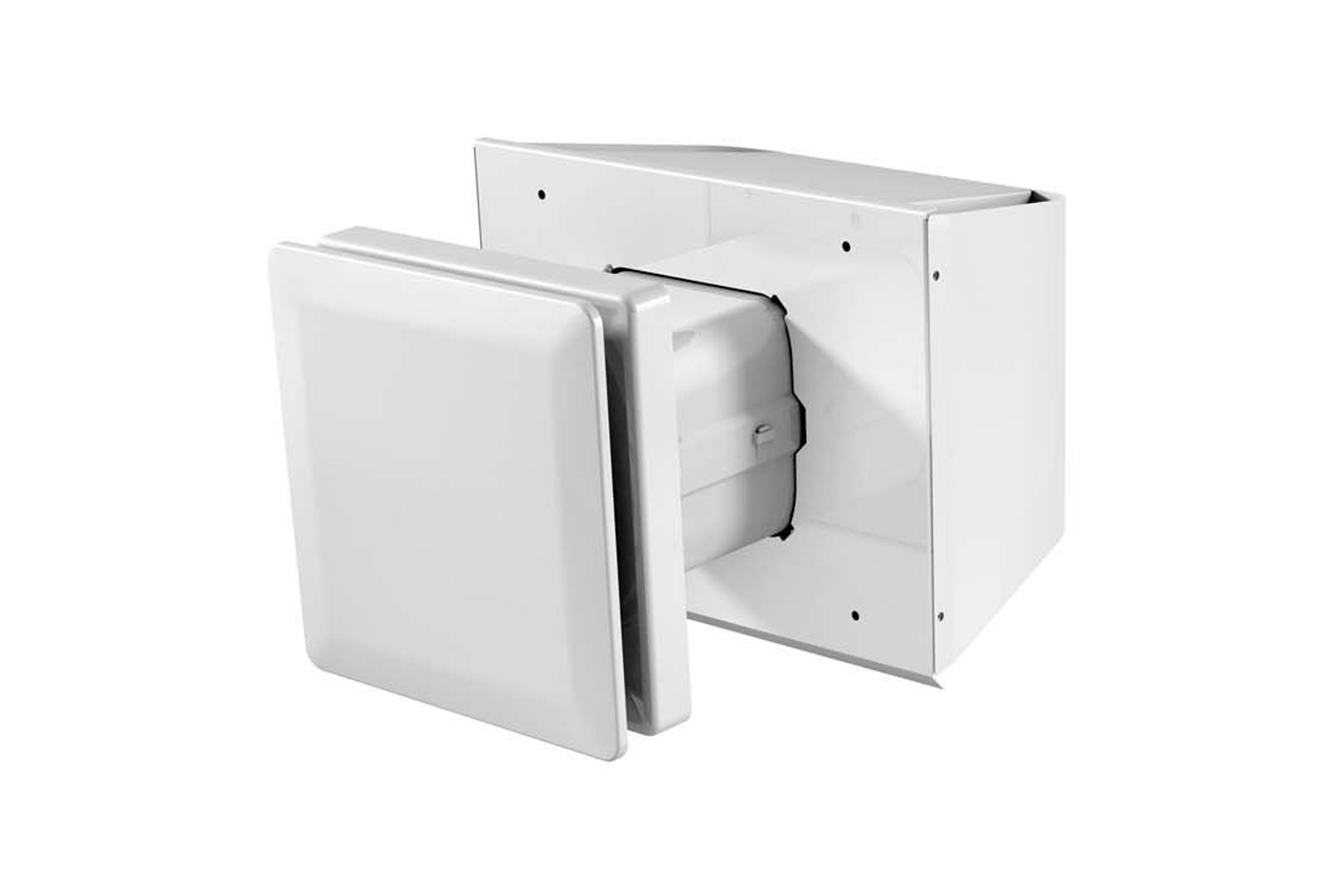

VLR 70 S Heat Recovery Ventilation System

Name: VLR 70 S Heat Recovery Ventilation System
Brand: STIEBEL ELTRON

by STIEBEL ELTRON

Auckland

280.2K profile views
61 saves

Visit Website

Create a pleasant indoor environment in the home with the VLR 70 S decentralised heat recovery ventilation. Installed in pairs with ducting through the walls, the VLR 70 S has a heat recovery level of up to 92%.

Decentralised ventilation unit with heat recovery for ventilating apartments and small commercial properties.

Contemporary design with a separate programming unit can be used for floor areas up to approx. 100 m2. Axial fan with a rigid fan curve, for use even in areas that are exposed to wind. With efficient aluminium heat exchanger and driving rain-resistant external panel. Straightforward filter replacement using easy to remove fan unit. Fine dust filter available as an accessory. White powder-coated stainless steel external panel. Matt white plastic internal panel. EC fan ensures efficient operation.

Installation in round or square wall outlets with a maximum thickness of 550 mm (550 to 800 mm including telescopic casing available as an accessory). Easily accessible electrical connection on the inside of the fan unit.

Tags

decentralised heat recovery ventilation ventilation ventilation system heat recovery heat ventilation

Product Details

Product: VLR 70 S Heat Recovery Ventilation System
Category: Heat Recovery Ventilation
Sold by: STIEBEL ELTRON
Range: Ventilation
Brand: Stiebel Eltron

STIEBEL ELTRON is specified by

VLR 70 S Heat Recovery Ventilation System

Visit site

Installed in pairs with ducting through the walls, the VLR 70 S has a heat recovery level of up to 92%. Decentralised ventilation unit with heat recovery for ventilating apartments and small commercial properties. Contemporary design with a separate programming unit can be used for floor areas up to approx. 100 m2. Axial fan with a rigid fan curve, for use even in areas that are exposed to wind. With efficient aluminium heat exchanger and driving rain-resistant external panel. Straightforward filter replacement using easy to remove fan unit. Fine dust filter available as an accessory. White powder-coated stainless steel external panel. Matt white plastic internal panel. EC fan ensures efficient operation. Installation in round or square wall outlets with a maximum thickness of 550 mm (550 to 800 mm including telescopic casing available as an accessory). Easily accessible electrical connection on the inside of the fan unit.

Create a pleasant indoor environment in the home with the VLR 70 S decentralised heat recovery ventilation.

Installed in pairs with ducting through the walls, the VLR 70 S has a heat recovery level of up to 92%.

Decentralised ventilation unit with heat recovery for ventilating apartments and small commercial properties.

Specs: Model number - VLR 70 S Trend

Power consumption - 7 W

Rated voltage - 24 V

Max. current - 0.3 A

Air volume flow - 20-70 m3/h

Filter class - ePM1 ≥ 50 % (F7) | ISO Coarse > 30 % (G2)

Min. outlet aperture diameter - 200 mm

Wall thickness - 100 - 300 mm

Sound power level - 35 dB(A) at 20 m3/h

Height - 285 mm

Width - 360 mm

Depth - 590 mm

Weight - 5.2 kg

Up to 92% heat recovery

Decentralised ventilation – suitable for new builds and renovations

Supplies fresh air from outside to in your home or office

Compact fan ensures easy inspection and maintenance

Quiet operation

Installed in pairs, connect up to 8 units together
