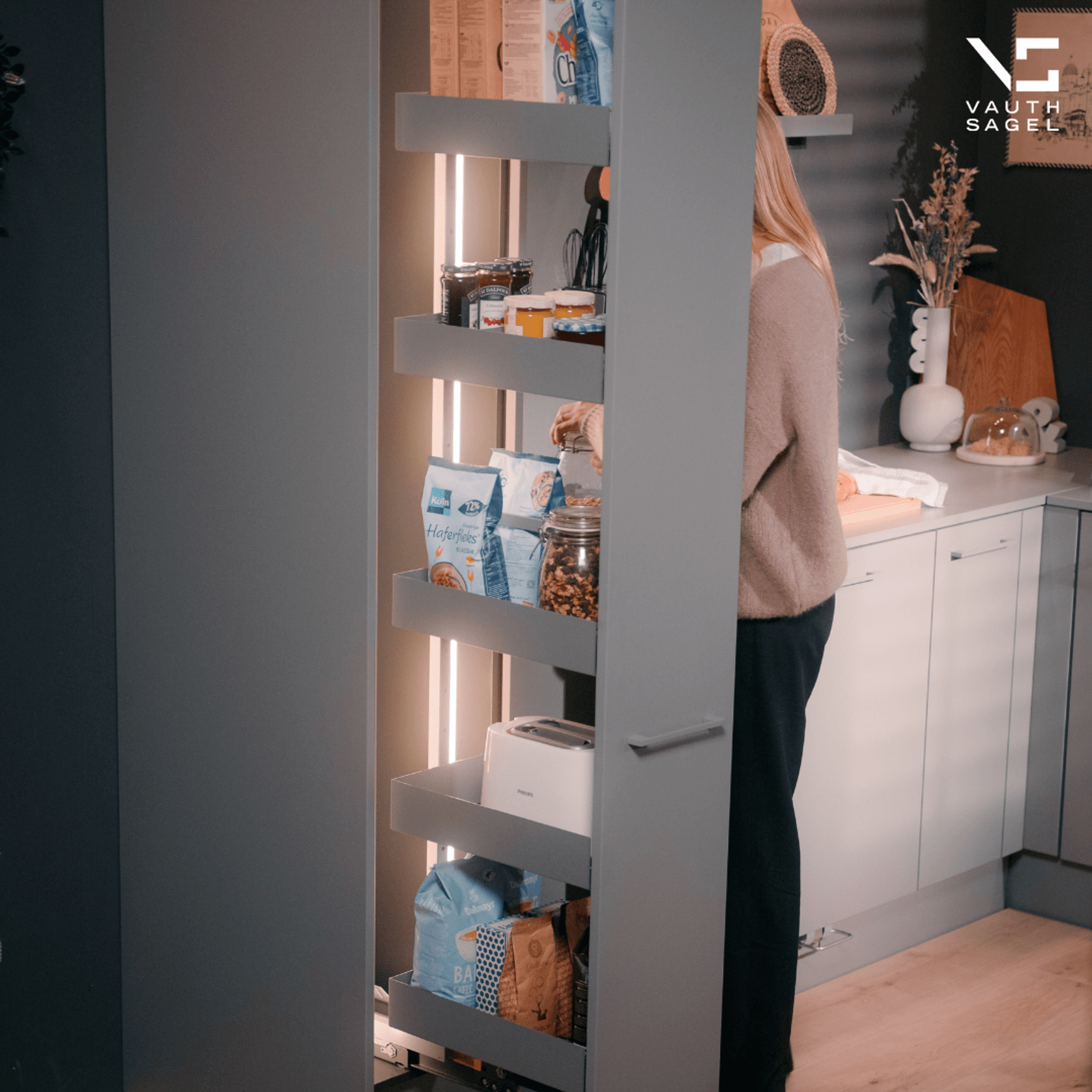

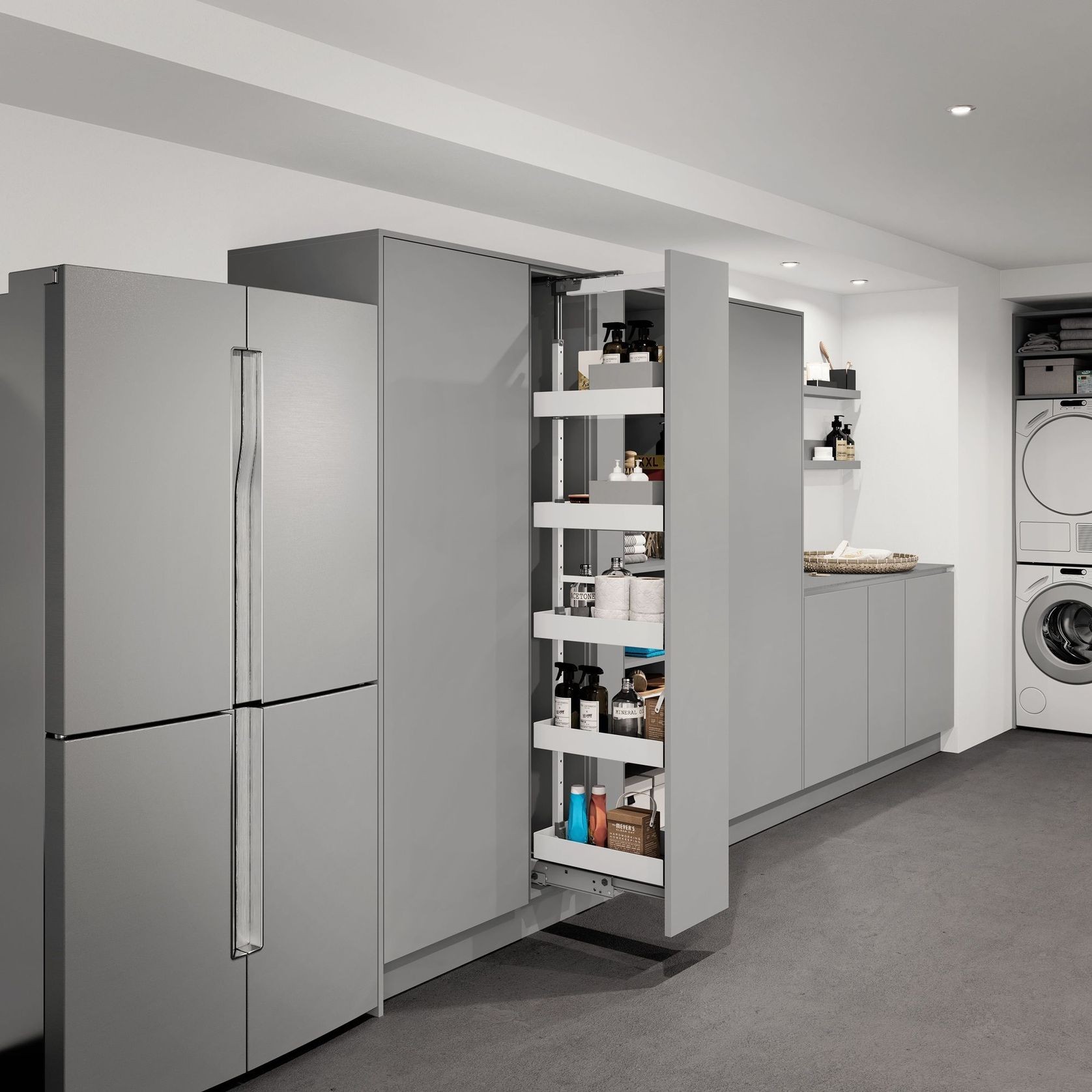

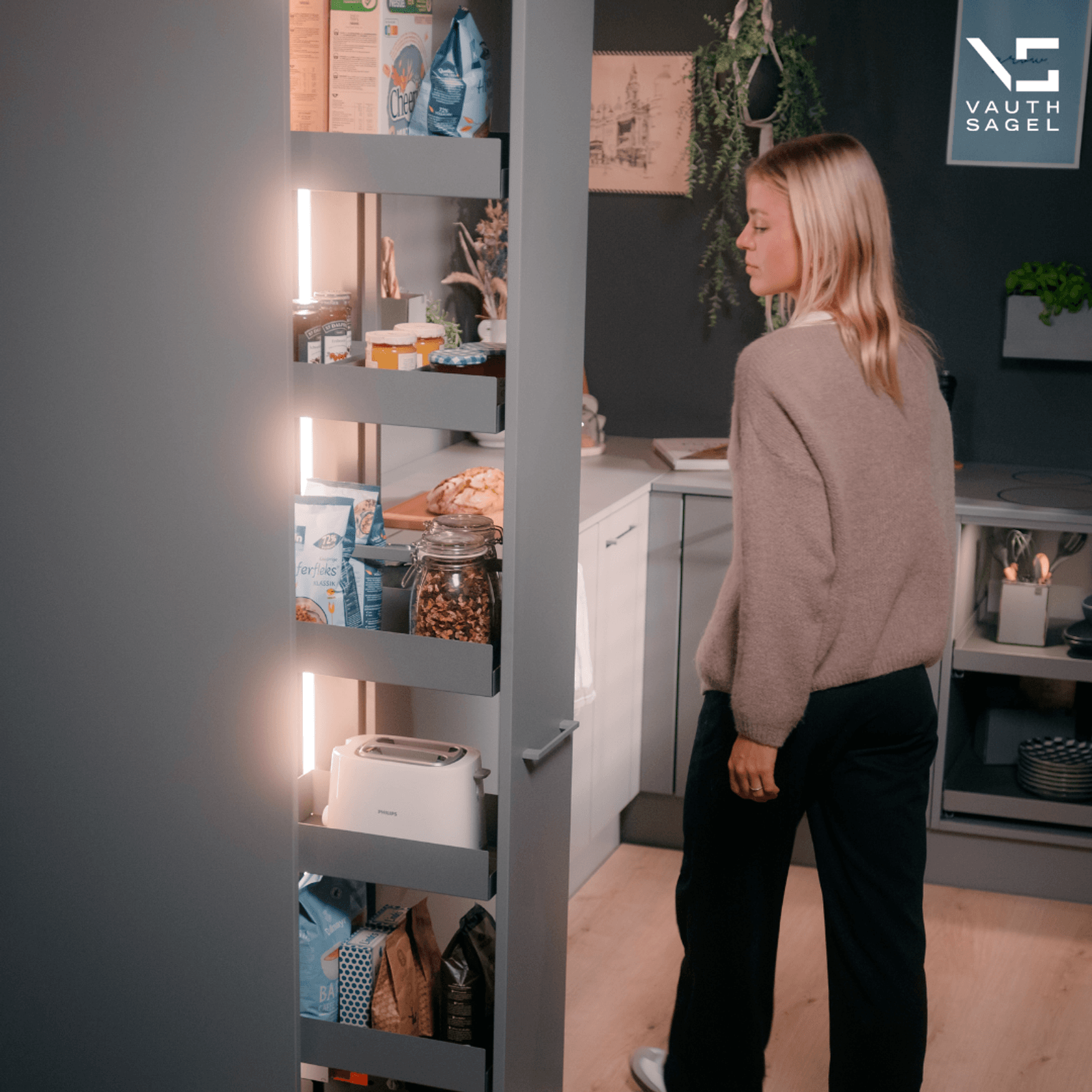

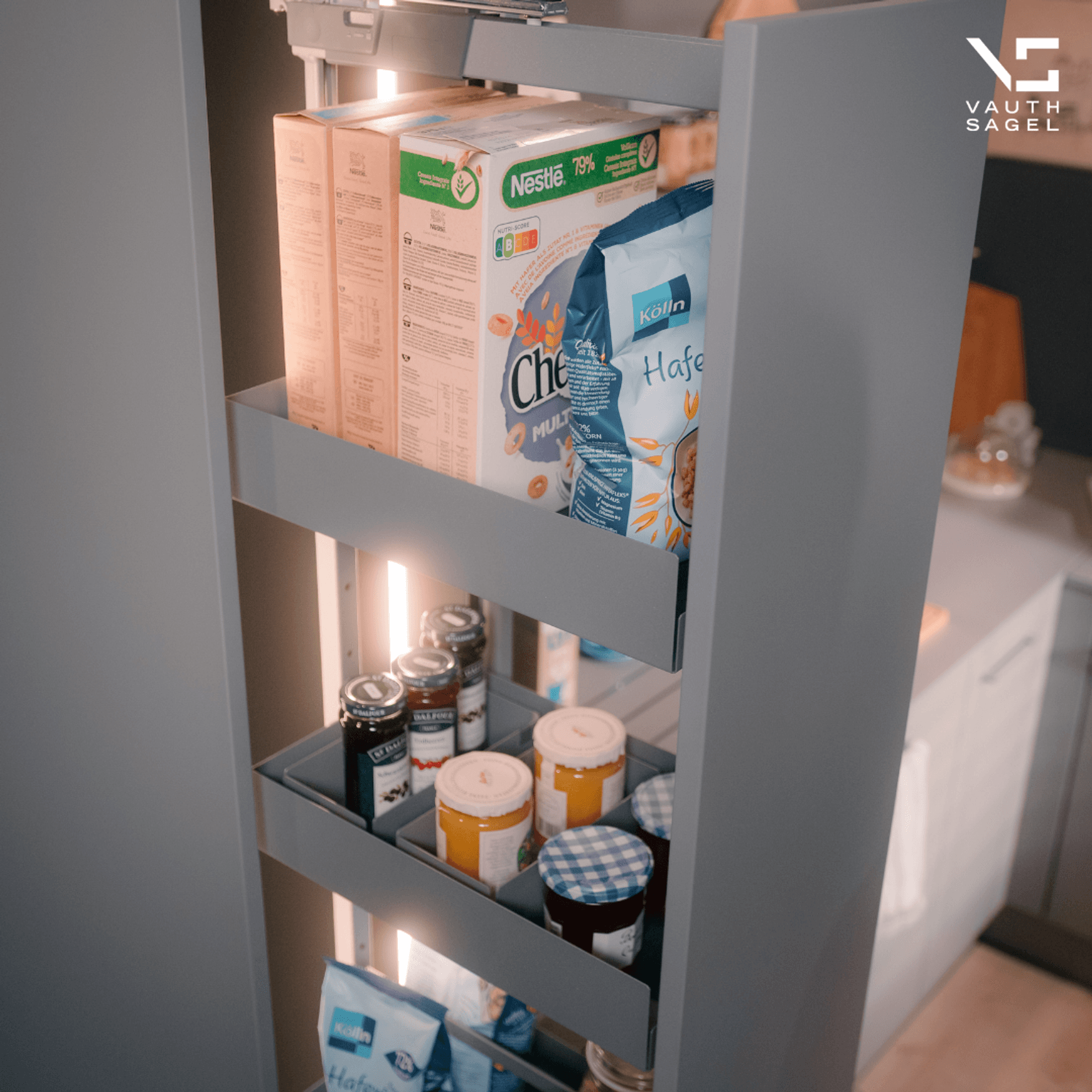

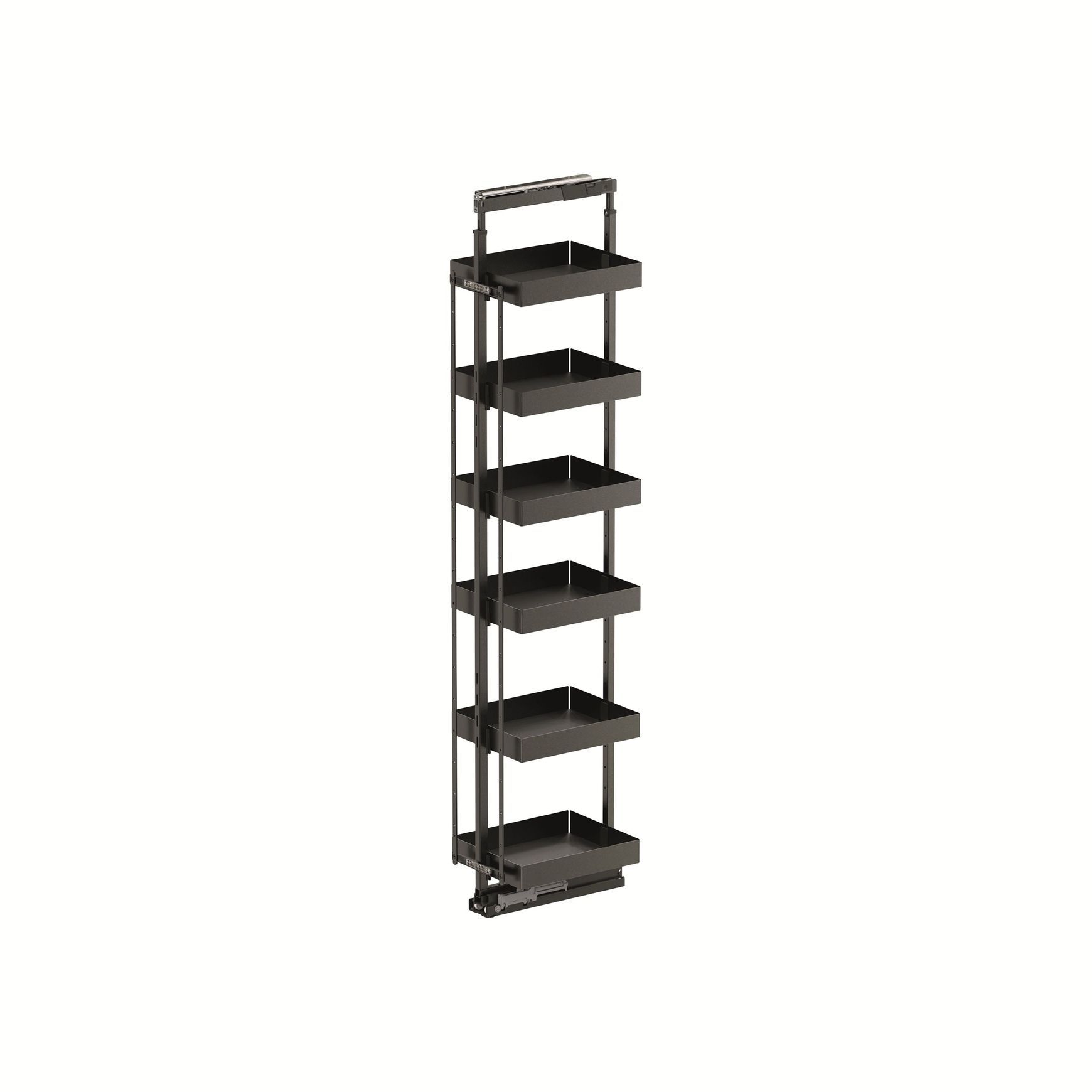

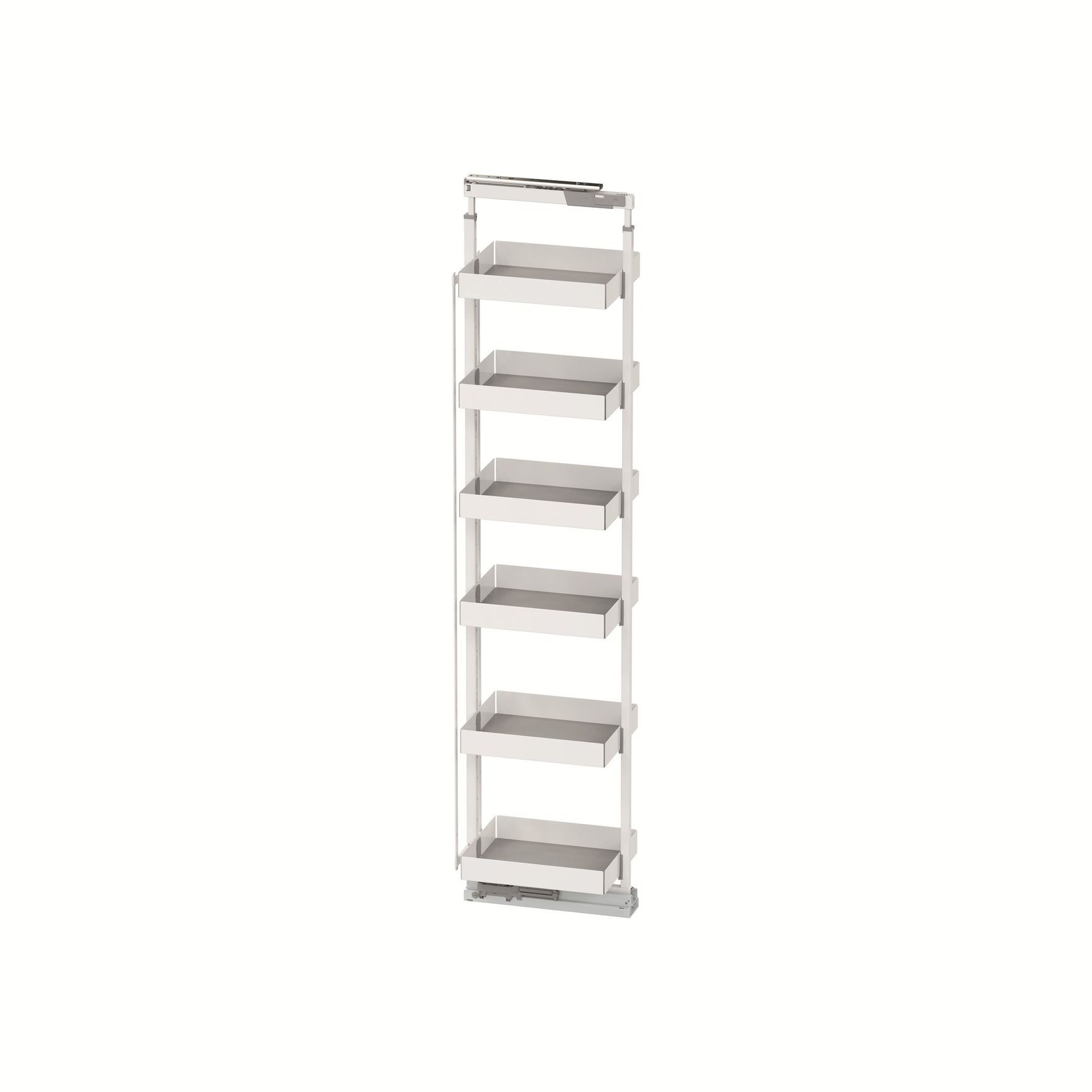

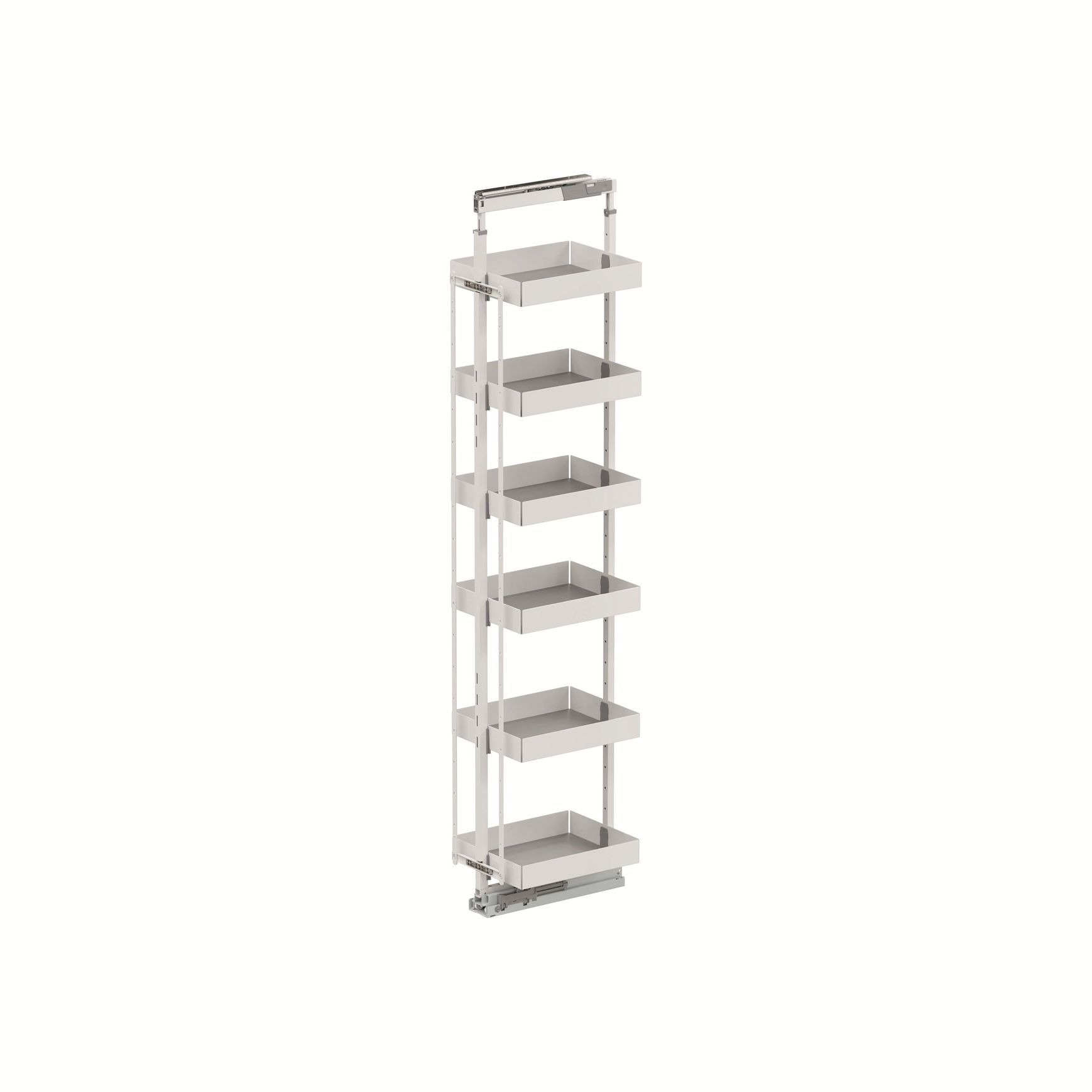

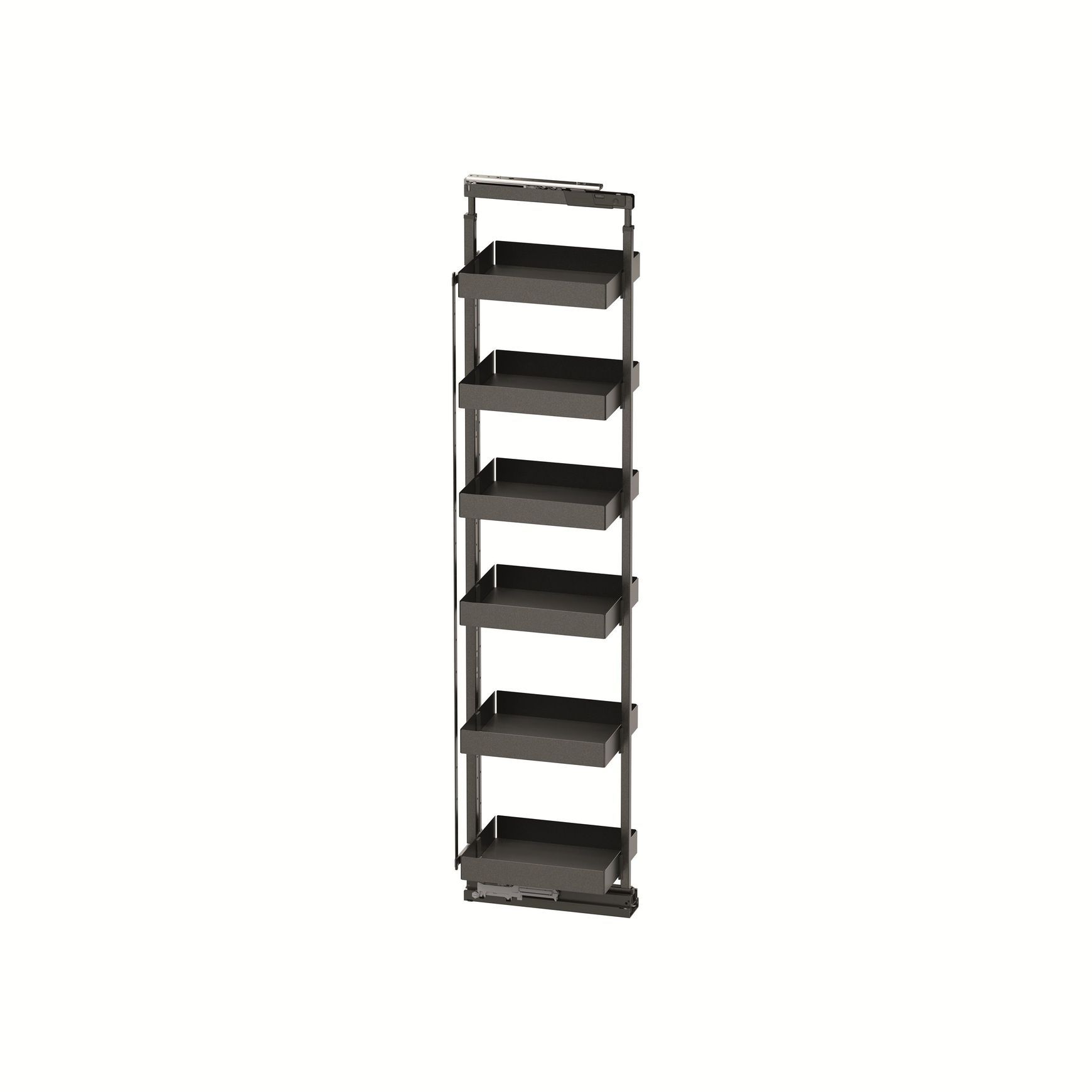

Essentio® by Vauth-Sagel: VS TAL Larder Pull Out Pantry

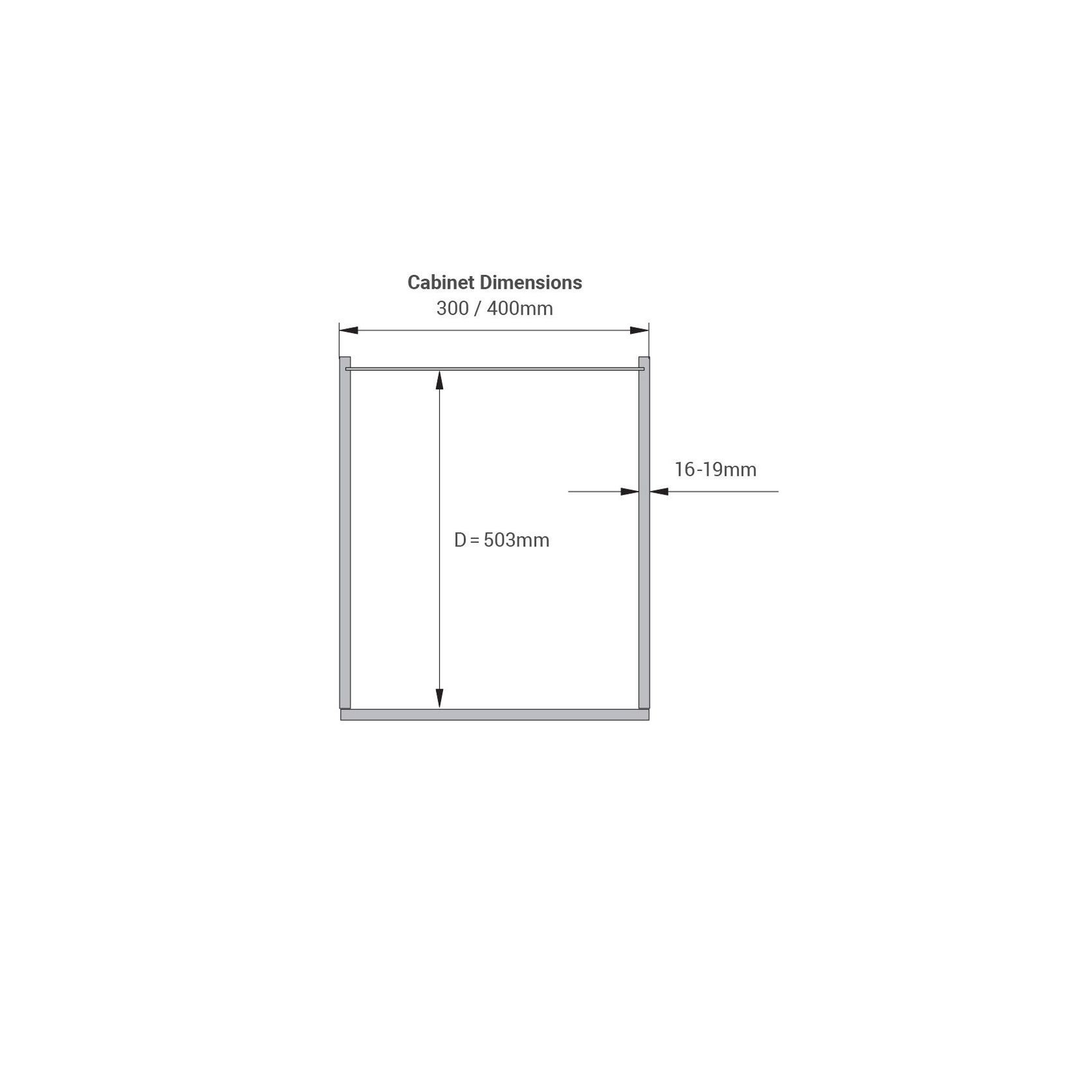

Cabinet widths: 300mm and 400mm
Frame heights: 1700-1950mm and 1900-2140mm
Minimum front to back depth: 503mm

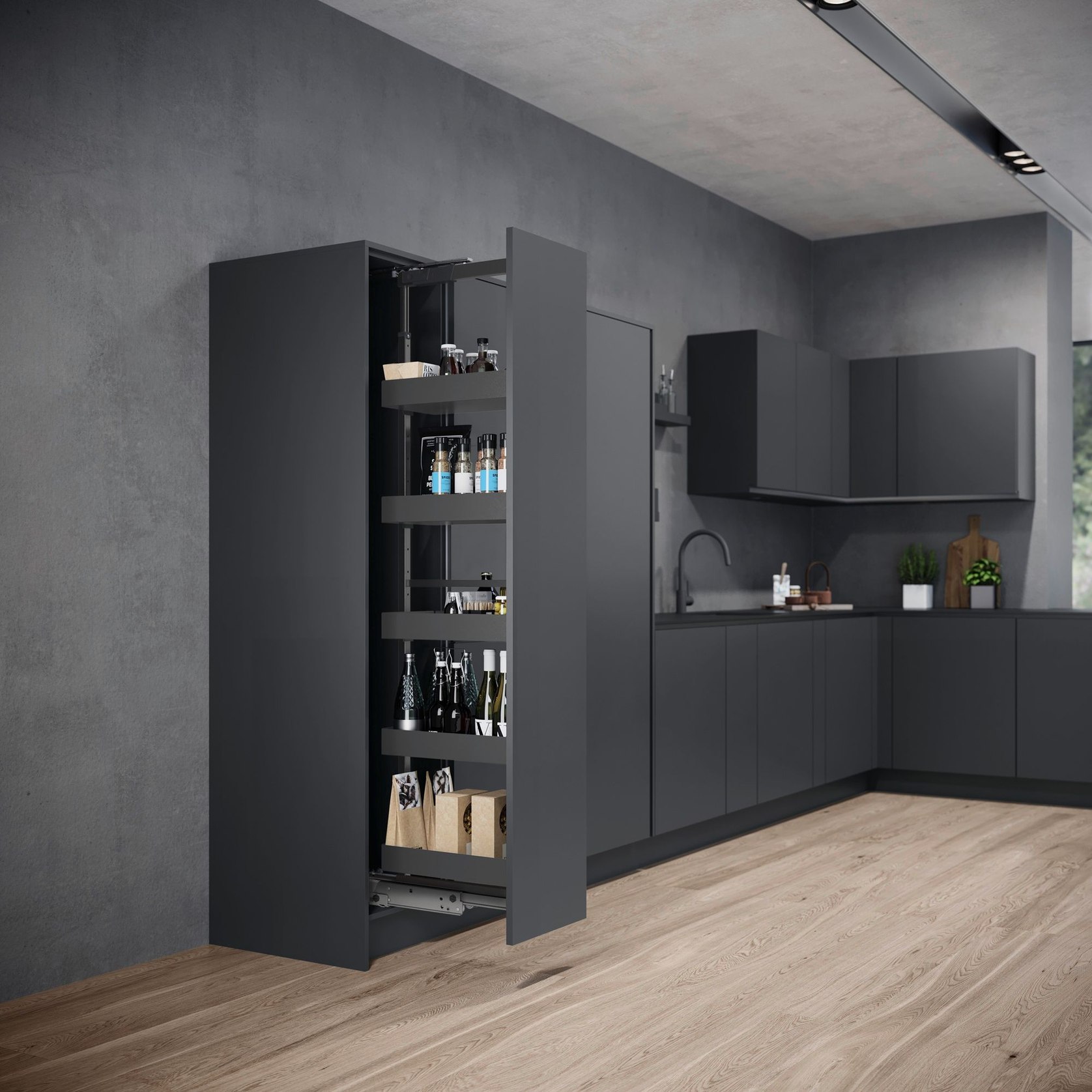

Available in White and in Lava Grey
Front panel should not exceed maximum frame height by more than 300mm

16kg capacity per basket; total sliding capacity 80kg
Total load capacity of 120kg (includes door panel)
6 individually height-adjustable baskets with 70mm side height

Meets requirements of impact test and corrosion requirements DIN EN 15338
Meets 72 hour condensation water test DIN EN 6270
Non-electric power assisted movement (PAM) comes standard with all units

Durable German design and manufacture

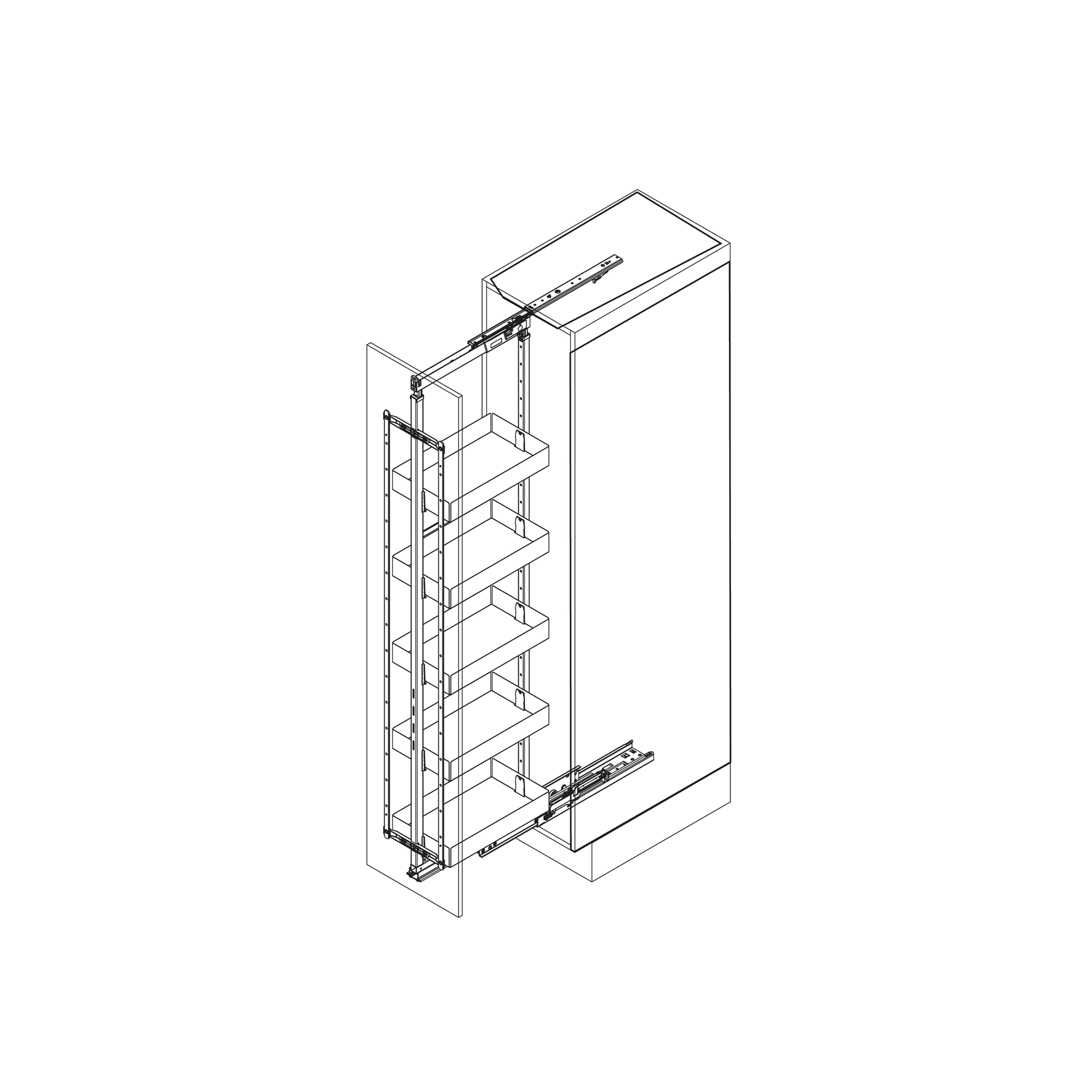

Supplied to be installed into your cabinet
Available in White and Lava Grey

Cabinet widths: 300mm and 400mm
Frame heights: 1700-1950mm and 1900-2140mm
Minimum front to back depth: 503mm
Available in White and in Lava Grey
Front panel should not exceed maximum frame height by more than 300mm
EasyFit: self-locking system for tool-free installation of frame onto upper and lower guide rails
3D front adjustment, even after installation
Integrated soft and self-closing with damping mechanism for smooth and silent operation
Full extension pull-out for easy access and full visibility
Stabilising front frame with pull out protection
Synchronised upper and lower end stops
Functional clip for height-adjustable baskets
16kg capacity per basket; total sliding capacity 80kg
Total load capacity of 120kg (includes door panel)
6 individually height-adjustable baskets with 70mm side height

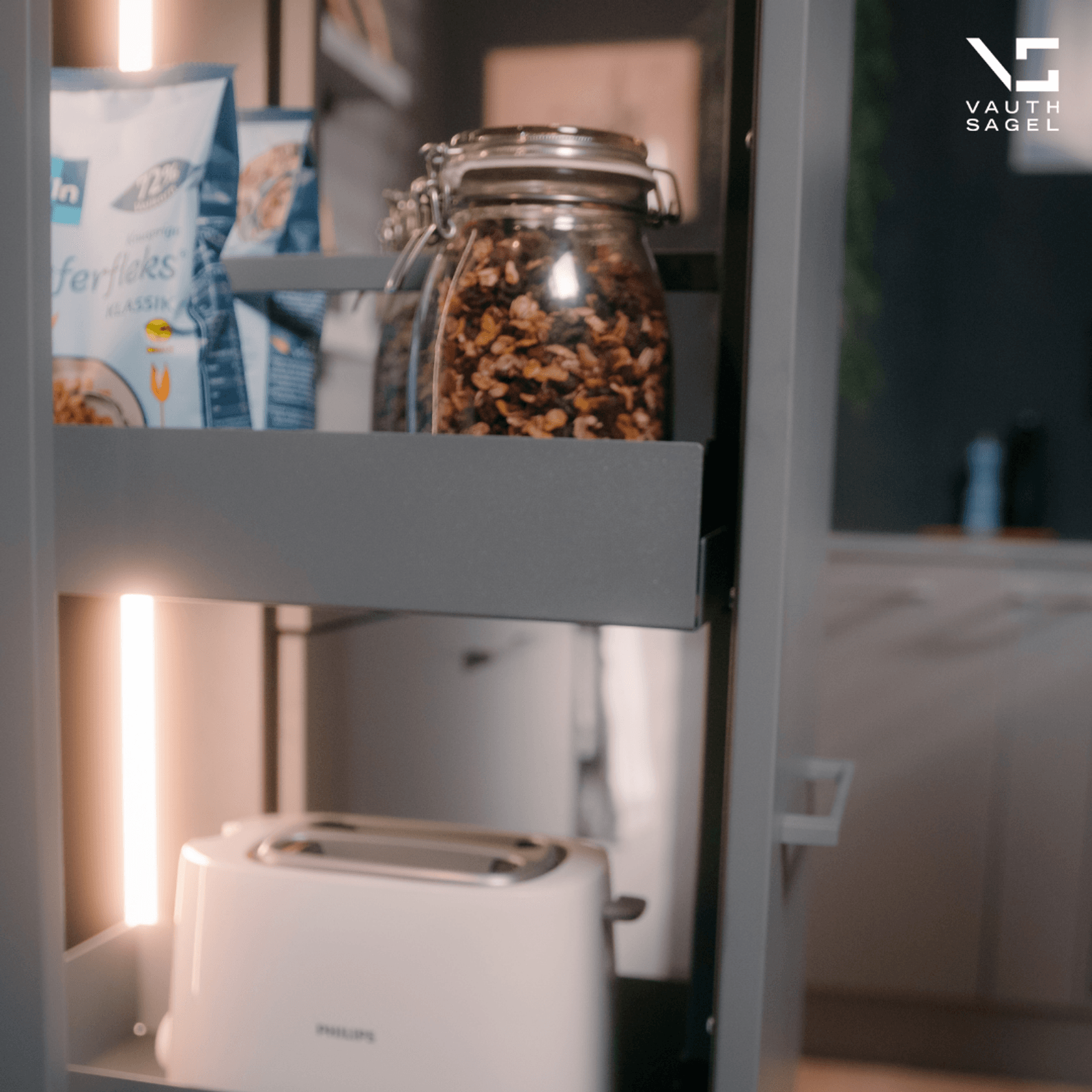

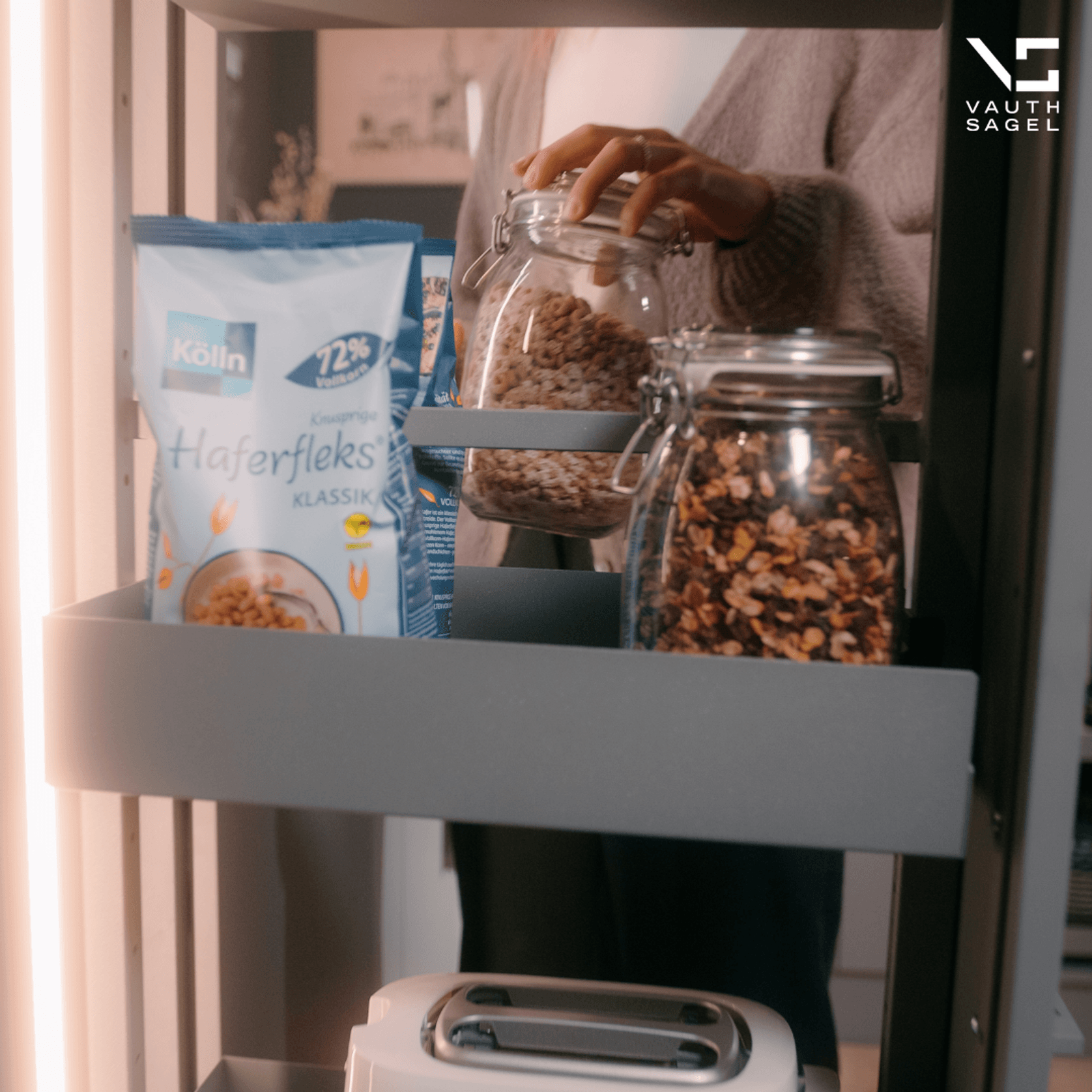

Baskets made of ultra-slim formed sheet steel, with a uniform, durable powder coated finish and an integrated non-slip mat finish
Retro-fit ready; can be installed into existing cabinets

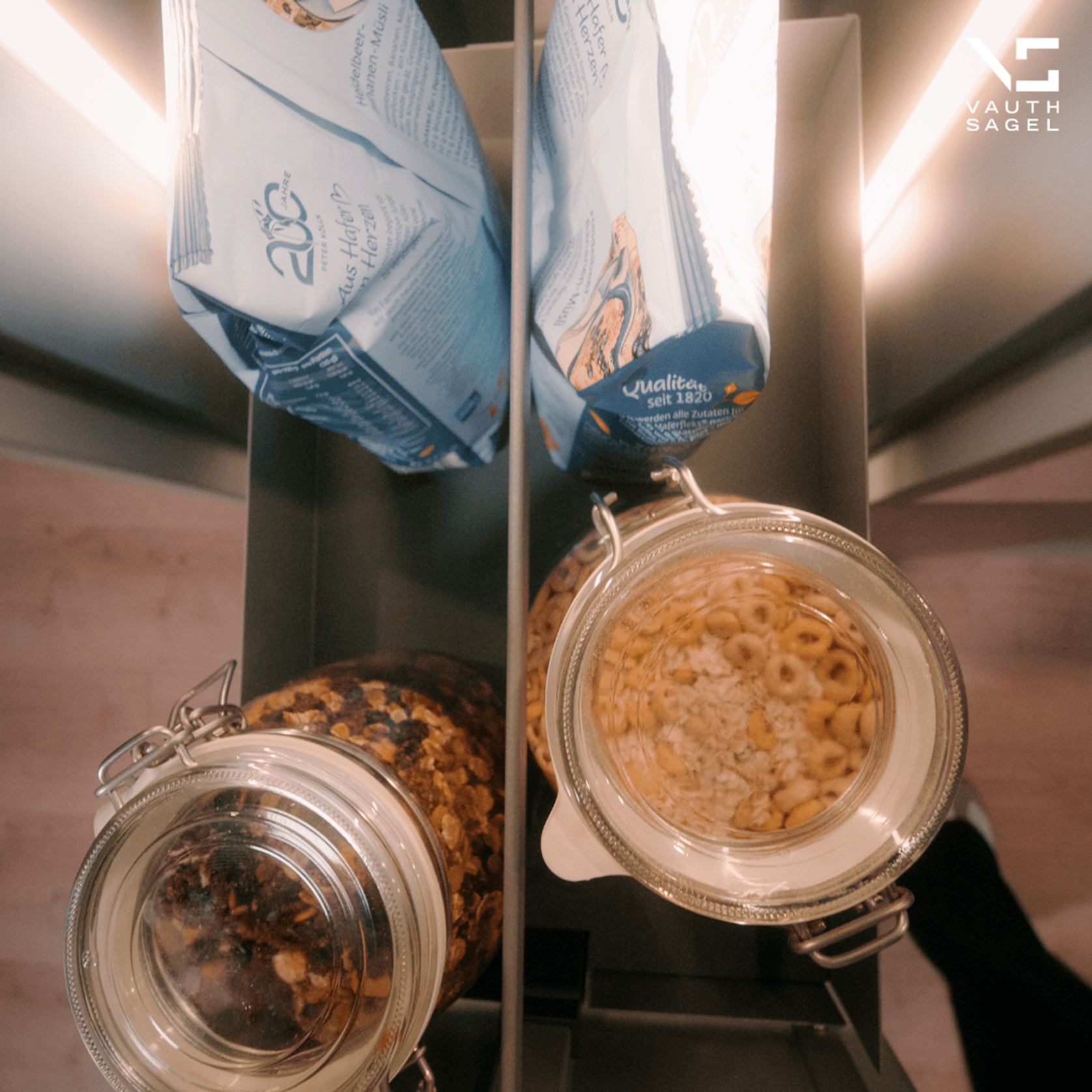

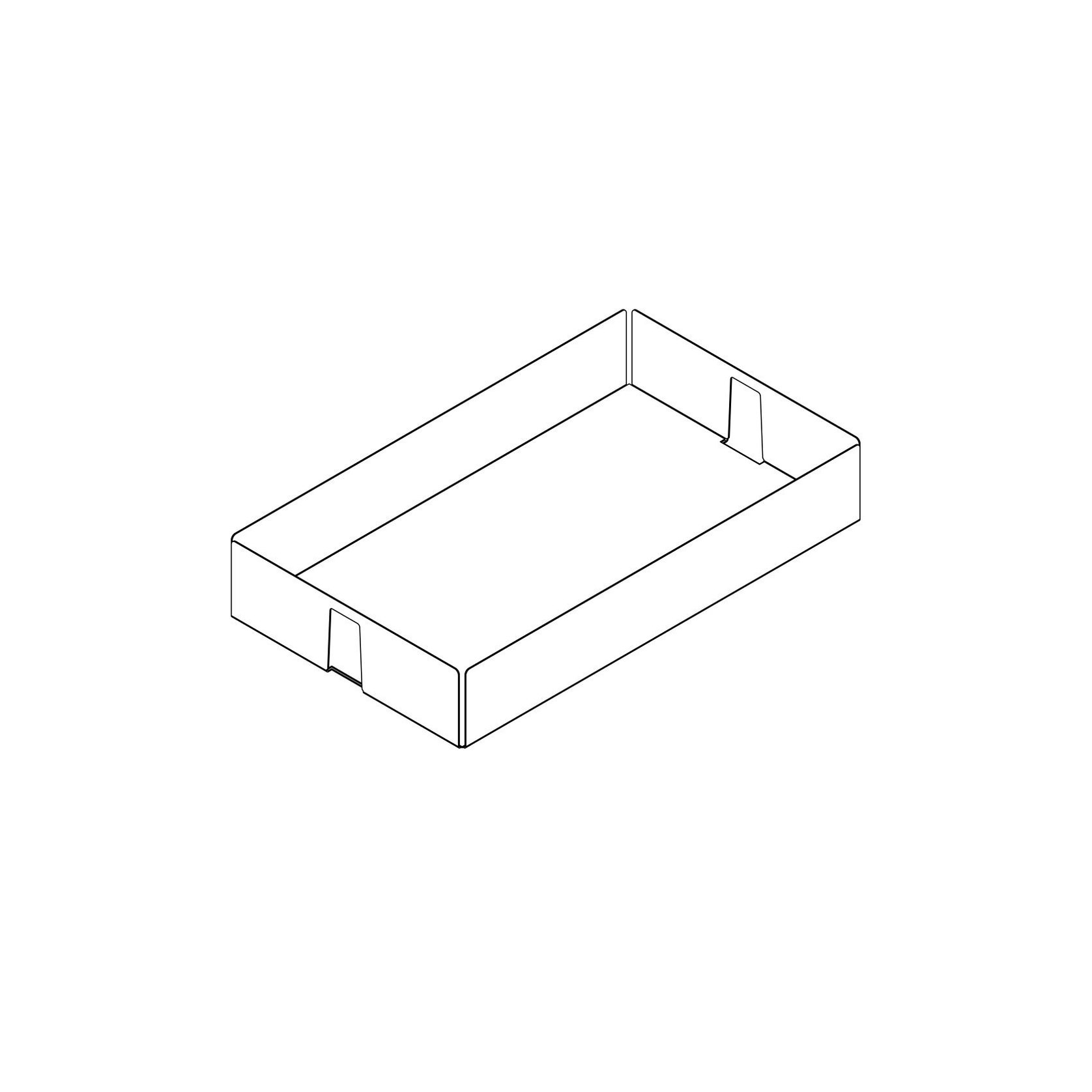

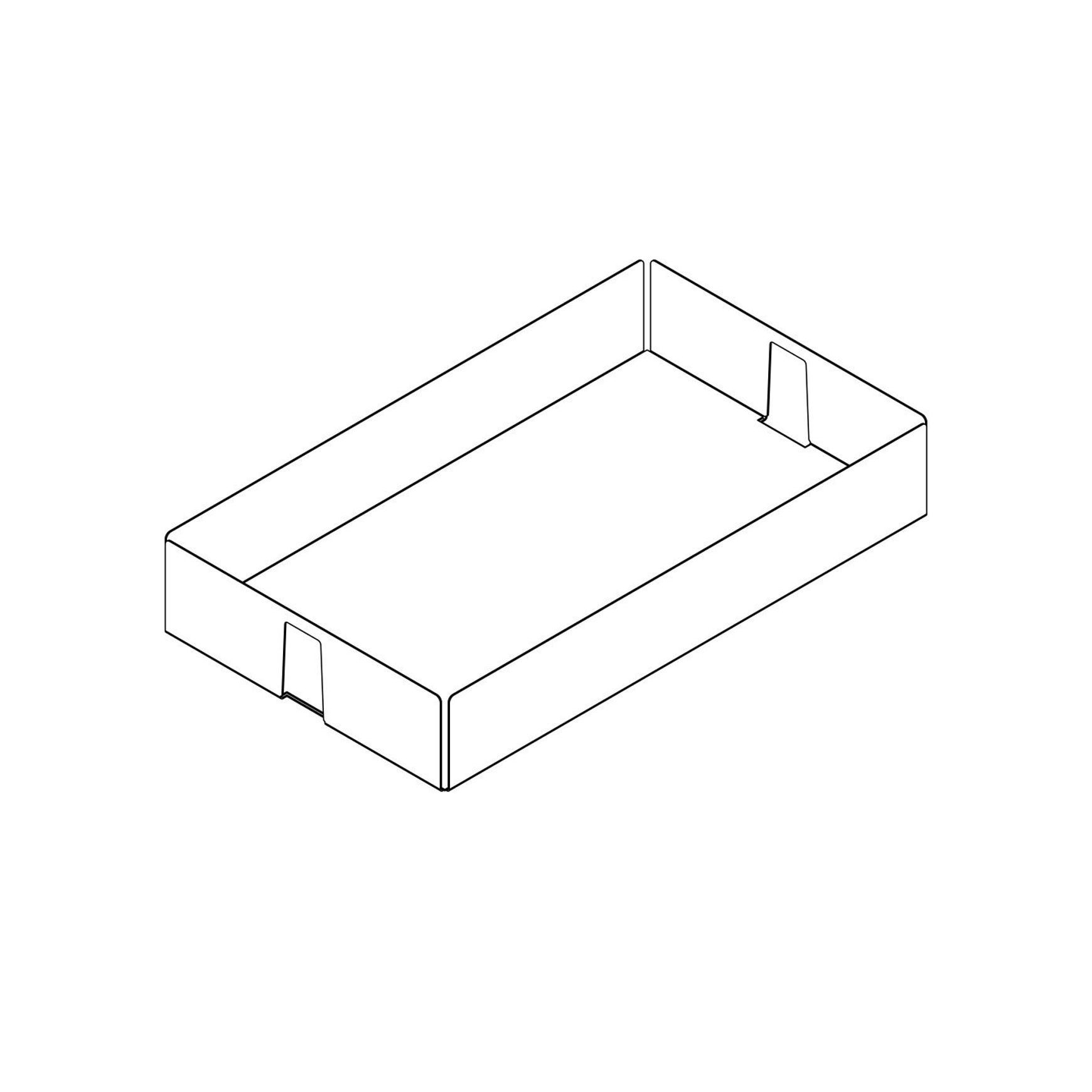

Compatible with VS ADD® Box and VS ADD® Separator
Meets requirements of impact test and corrosion requirements DIN EN 15338
Meets 72 hour condensation water test DIN EN 6270
Non-electric power assisted movement (PAM) comes standard with all units
VS309: Optional Push to Open Power Move Attachment. Dual-direction electrical power mechanism makes accessing and returning trays easy. One finger is all it takes to move a fully loaded VS TAL® Larder.

Important Note: To avoid base panel sagging, sufficient support for the cabinet base is required directly under the mechanism runner. Warranty depends on adequate support being installed with pantry.
