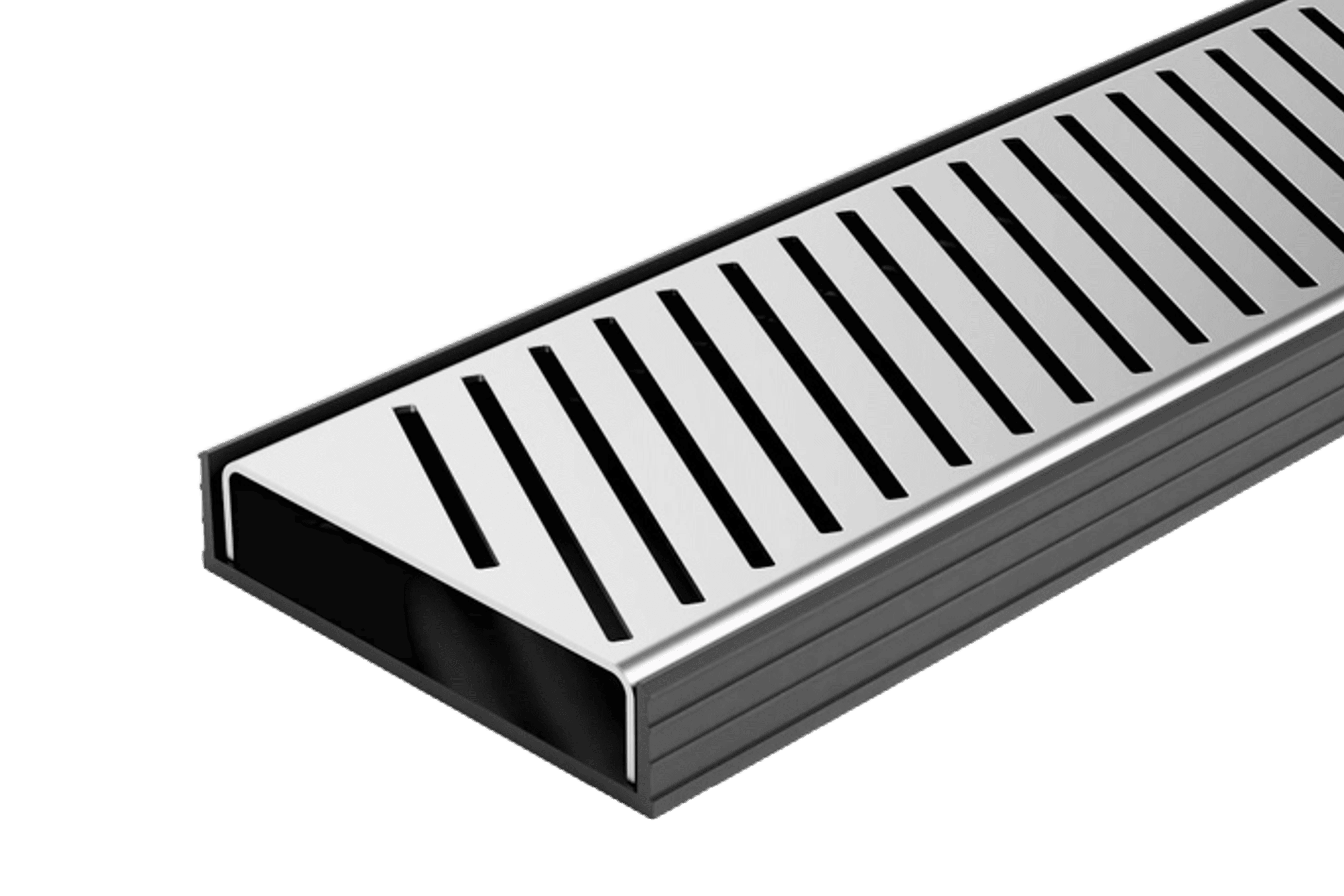

100PASGBL20 Linear Drainage System
by Stormtech
New South Wales
- 567.1K profile views
- 67 saves
Stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications. Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
Product Details
- Product
- 100PASGBL20 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Stormtech is specified by
DX ArchitectsArchitects
BVNArchitects
J Mammone ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Bower ArchitectureArchitects
Cadence & CoArchitects
Rama ArchitectsArchitects
Tim Hodges ArchitectArchitects
Eliza Blair ArchitectureArchitects
Winter ArchitectureArchitects
Chan ArchitectureArchitects
Taylor KnightsArchitects
Tham ArchitectsArchitects
Ian Moore ArchitectsArchitects
Utz Sanby ArchitectsArchitects
djrd architectsArchitects
Create ArchitectureArchitects
Smyth & SmythArchitects
SJBArchitects
Windiate ArchitectsArchitects
WexhausArchitects
Hive ArchitectureArchitects
Greenaway ArchitectsArchitects
ArchierArchitects
NTF ArchitectureArchitects
Whisker ArchitectureArchitects
K.Holland Architectural InteriorsInterior Designers
Seidler GroupDesign & Build
STUDIO GAXAInterior Designers
Hutchinson BuildersBuilders
Millboard DeckingManufacturers and Suppliers
BeecraftBuilding Designers
Sici DesignInterior Designers
Matic by DesignInterior Designers
Studio ApercuInterior Designers
Stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications.
Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
- Specs

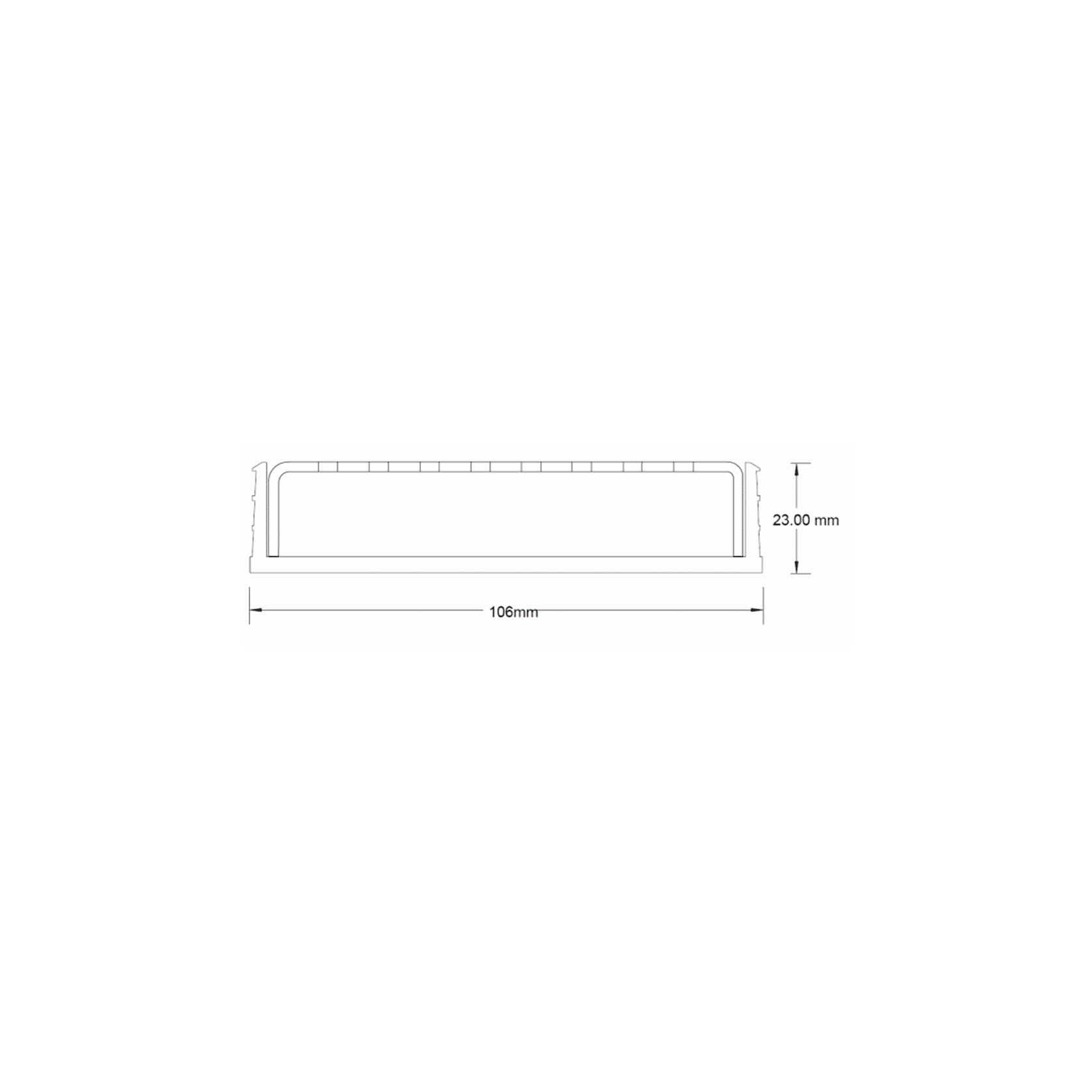

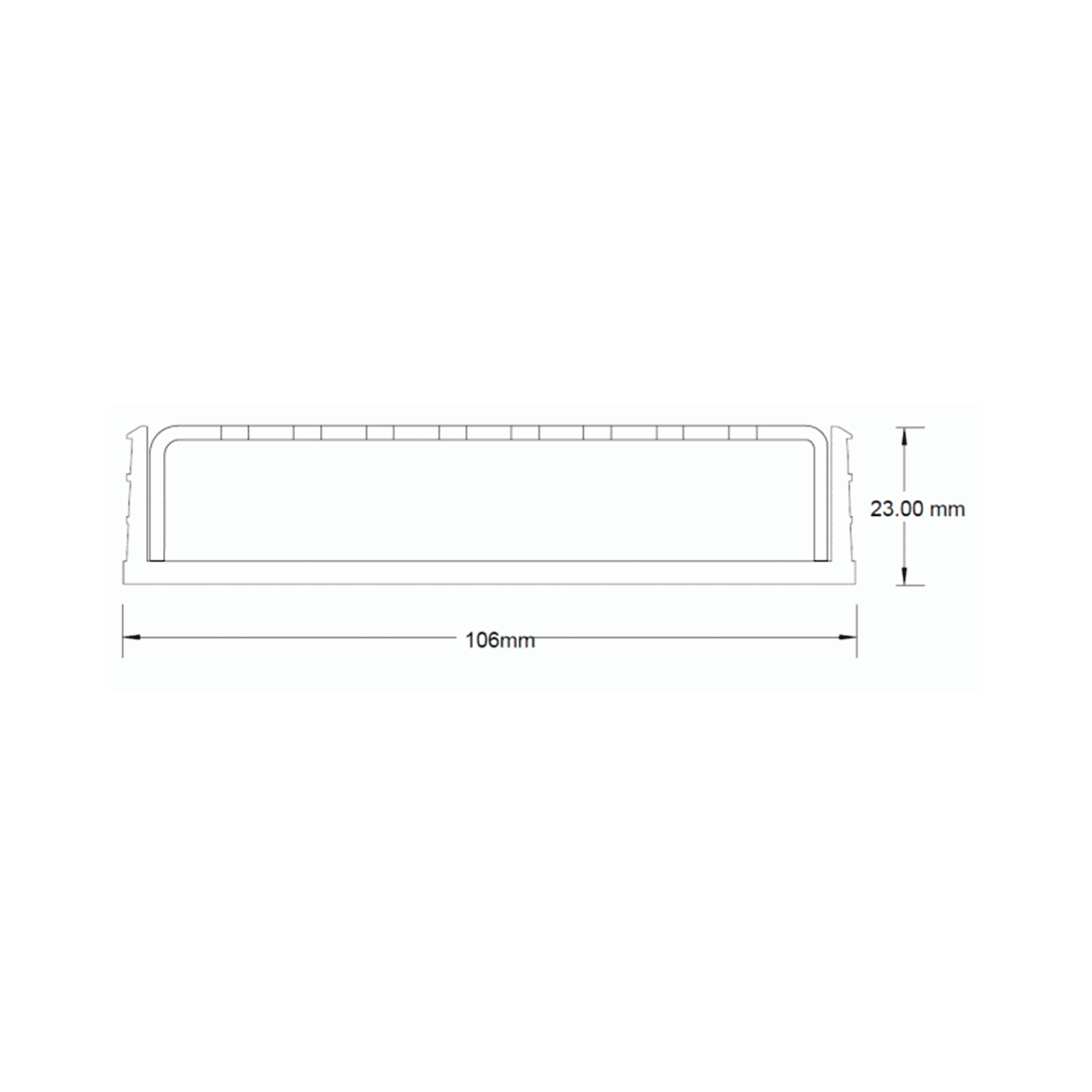

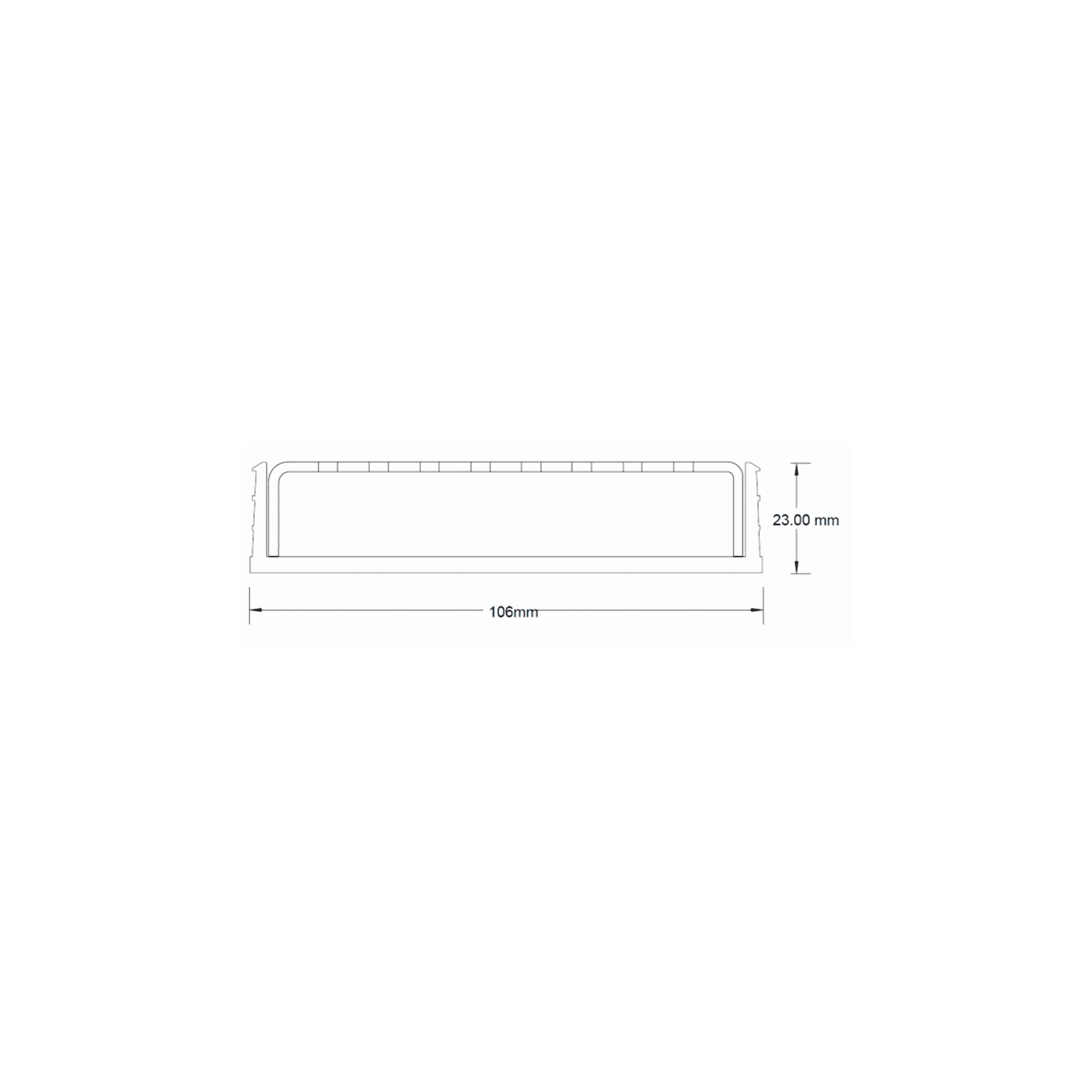

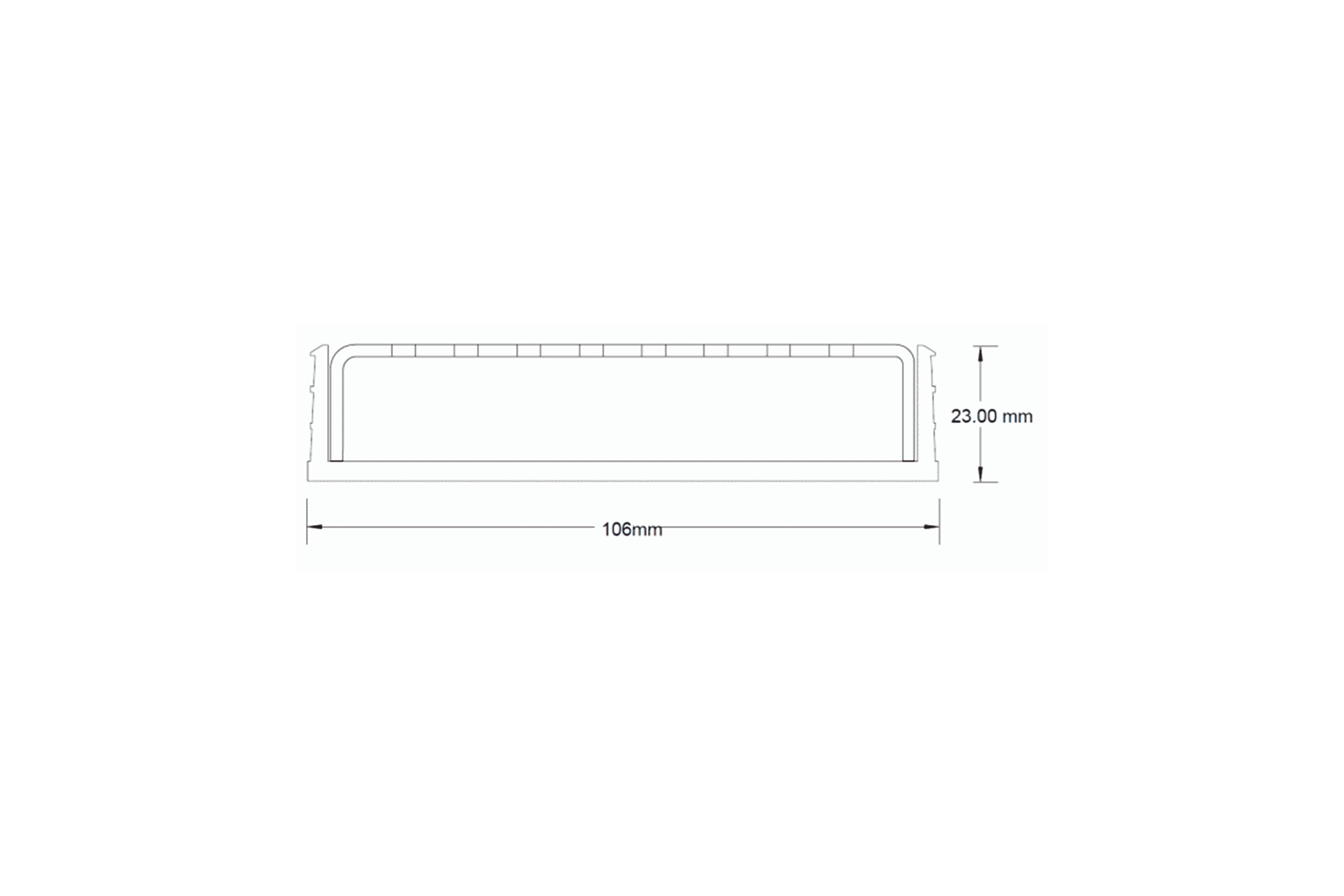

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm, 2100mm, 2200mm, 2400mm, 2500mm, 2700mm, 2800mm, 2900mm, 3000mm
- Outlet Size: DN80, DN100
- Features

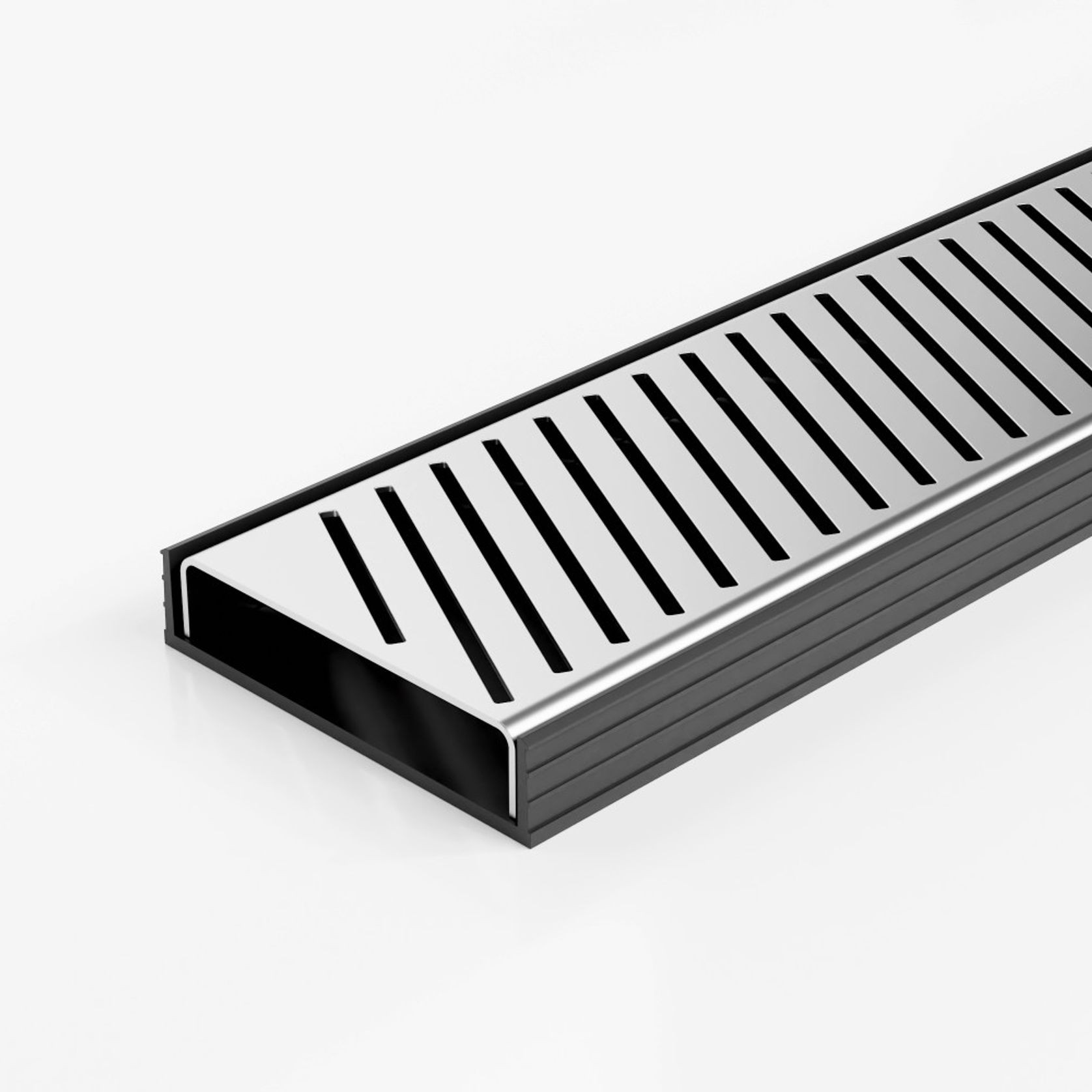

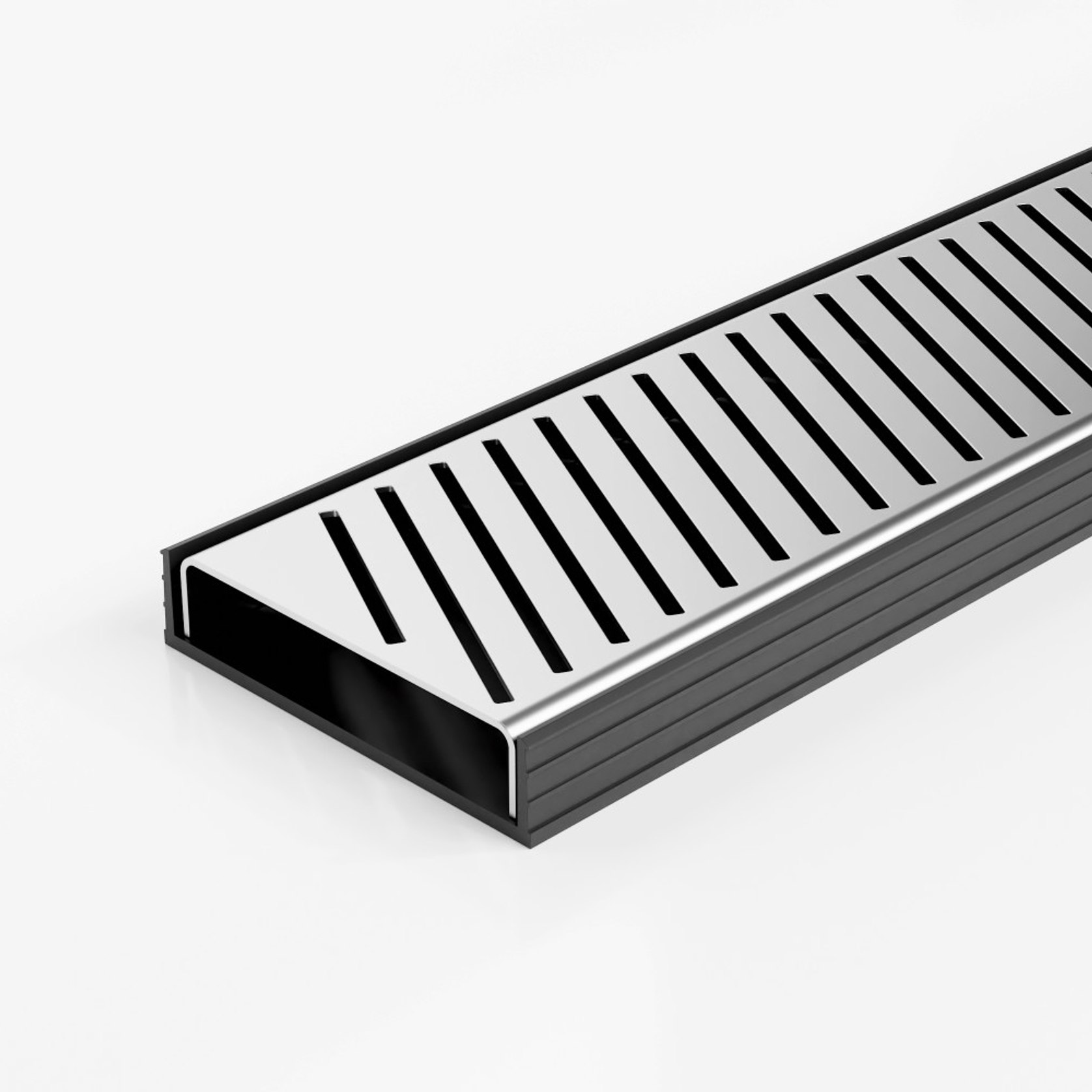

- 100mm Wide Punched Angle Slot Perforated Stainless Steel Grate with a black uPVC Channel.
- The 100PASG20 slot perforated grate is manufactured from 316 marine-grade stainless steel combined with a UPVC drainage channel and offers an affordable option to use the Slimline system.
- Kits longer than 3000mm available on request.
- Black uPVC channel is suitable for Internal use only
