65G90 Linear Drainage System
by Stormtech
New South Wales
- 567.6K profile views
- 67 saves
Developed for high-capacity drainage needs, providing flexibility in landscape and pool design.
Product Details
- Product
- 65G90 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- Special Assembly
Product Variants
- Size
Stormtech is specified by
Hive ArchitectureArchitects
djrd architectsArchitects
J Mammone ArchitectureArchitects
SJBArchitects
BVNArchitects
Windiate ArchitectsArchitects
Whisker ArchitectureArchitects
Taylor KnightsArchitects
Ian Moore ArchitectsArchitects
Bower ArchitectureArchitects
Chan ArchitectureArchitects
Eliza Blair ArchitectureArchitects
Smyth & SmythArchitects
Create ArchitectureArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
NTF ArchitectureArchitects
Rama ArchitectsArchitects
ArchierArchitects
Greenaway ArchitectsArchitects
Winter ArchitectureArchitects
Tim Hodges ArchitectArchitects
WexhausArchitects
DX ArchitectsArchitects
Tham ArchitectsArchitects
Millboard DeckingManufacturers and Suppliers
STUDIO GAXAInterior Designers
BeecraftBuilding Designers
Hutchinson BuildersBuilders
Matic by DesignInterior Designers
Studio ApercuInterior Designers
Seidler GroupDesign & Build
Sici DesignInterior Designers
K.Holland Architectural InteriorsInterior Designers
Developed for high-capacity drainage needs, providing flexibility in landscape and pool design.
- Specs
- Channel Width: 74mm
- Channel Depth: 42mm
- Length(s): 3000mm
- Outlet Size: N/A
- Features

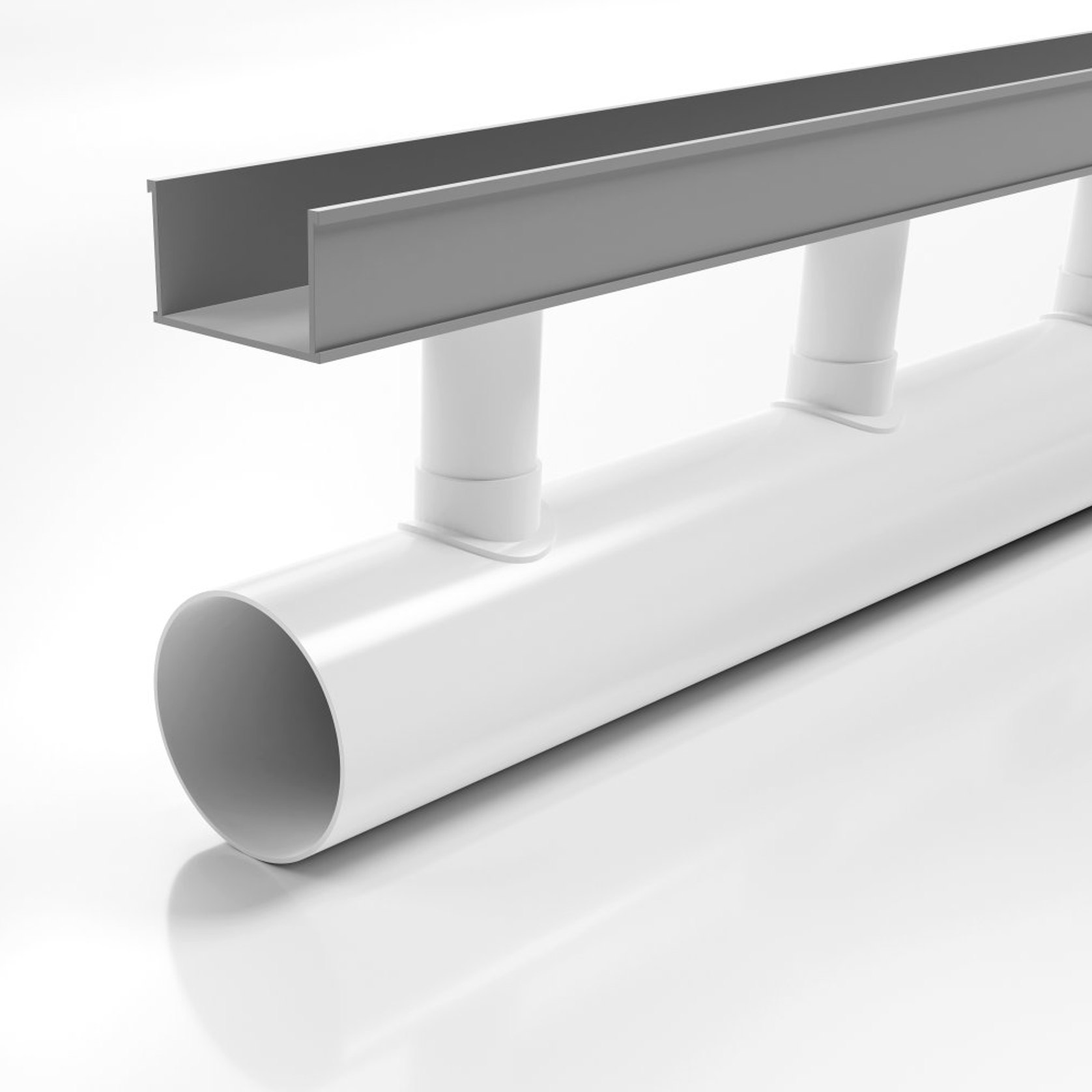

- 90mm Drainpipe with 65G UPVC Channel.
- A 65mm wide UPVC channel is connected via downpipes at 200mm intervals to sockets in a 90mm drain below.
- This allows the channel to be installed level while the drainpipe is given sufficient fall to be self-cleaning.

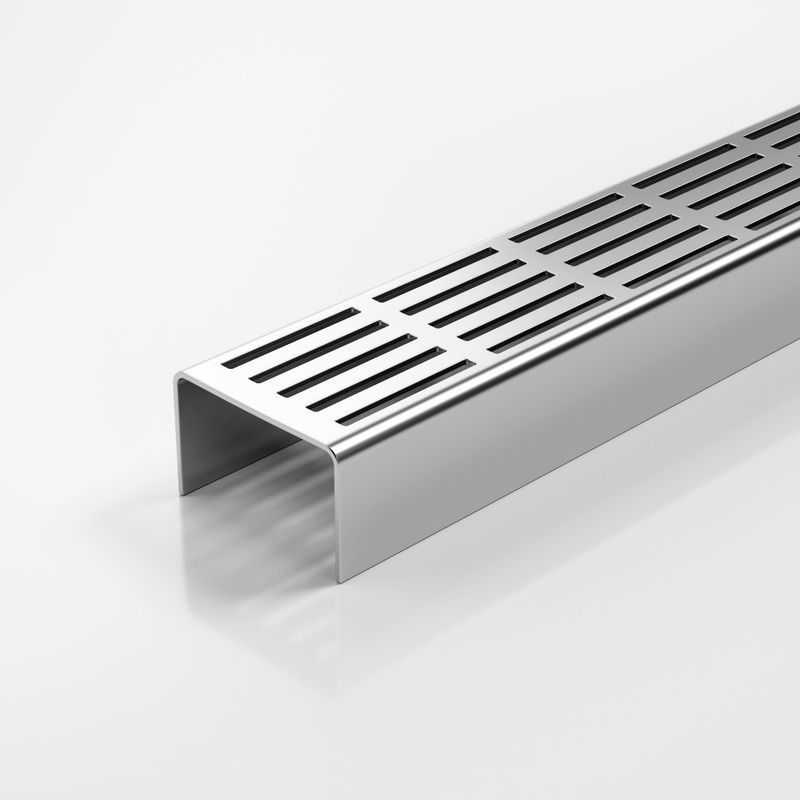

- The Special Assembly is then completed with a stainless steel grate from the AR, TR or PS series.
- Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
- This unique drainage system was recognised for its innovation by a DesignMark at the Australian International Design Awards.
