100TRiCO20 Linear Drainage System
by Stormtech
New South Wales
- 560.5K profile views
- 67 saves

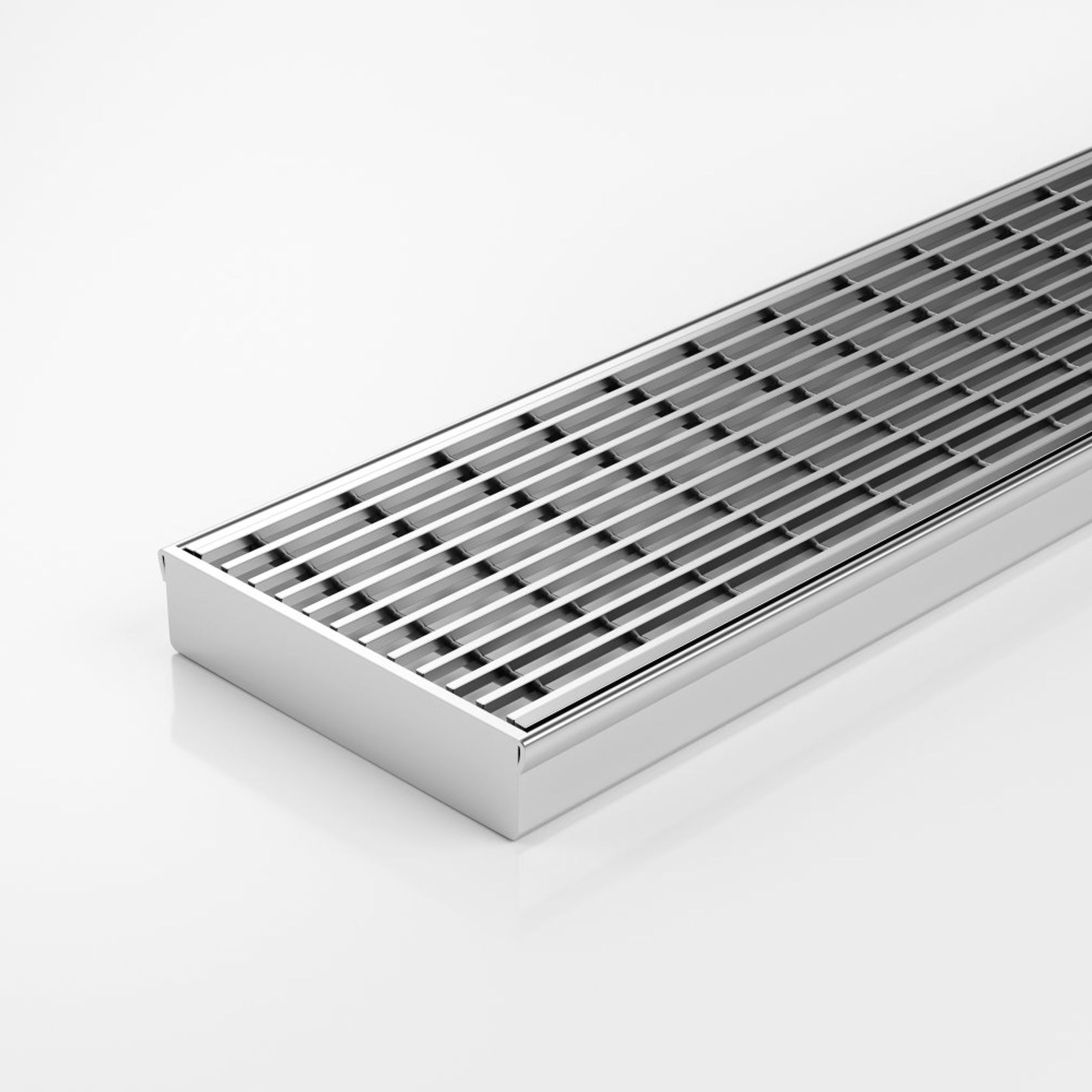

The Standard (TR) wedge wire grate style features a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance. Made from 316 marine-grade stainless steel for excellent strength, durability and corrosion resistance.
Product Details
- Product
- 100TRiCO20 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Product specified by
The Standard (TR) wedge wire grate style features a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance.
Made from 316 marine-grade stainless steel for excellent strength, durability and corrosion resistance.
- Specs

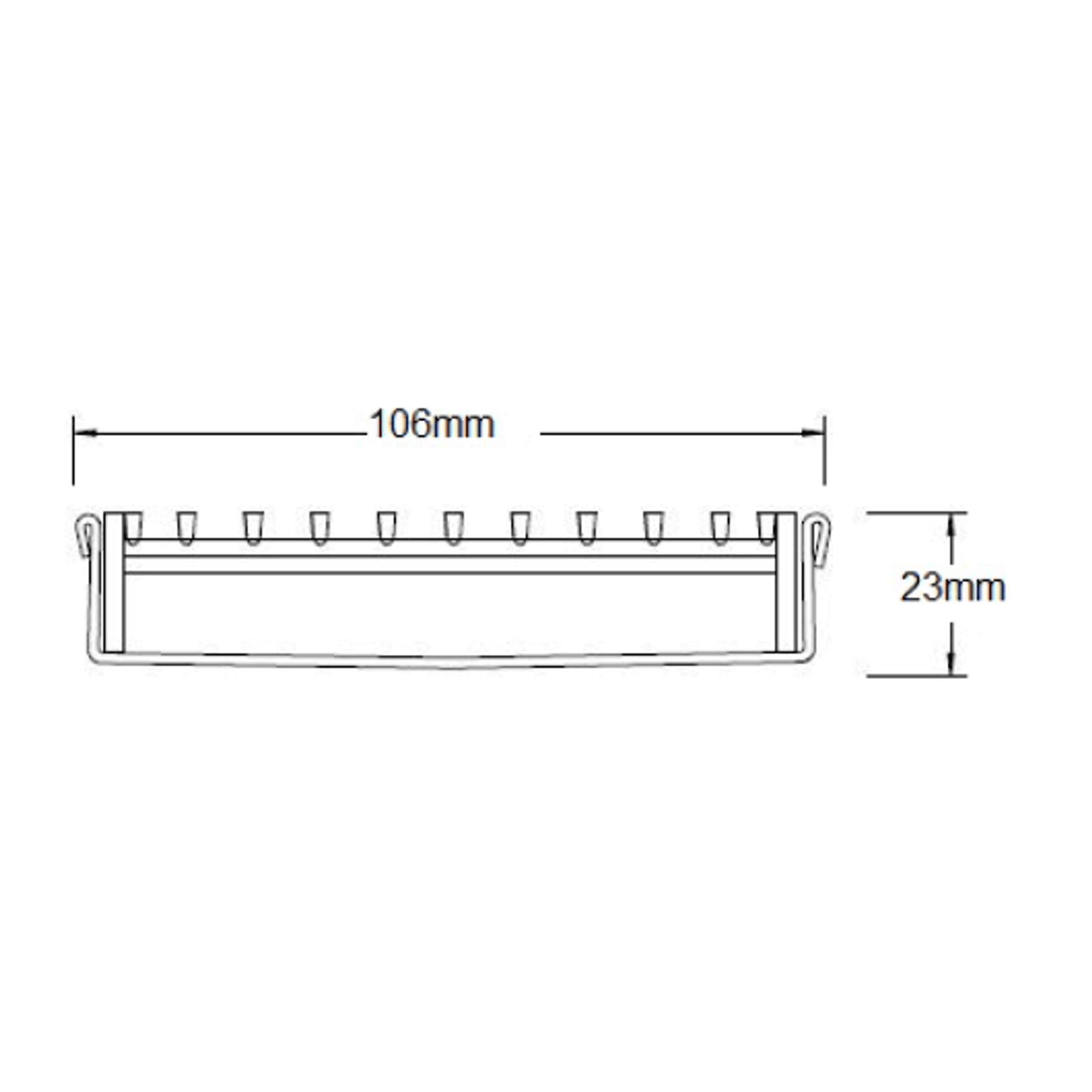

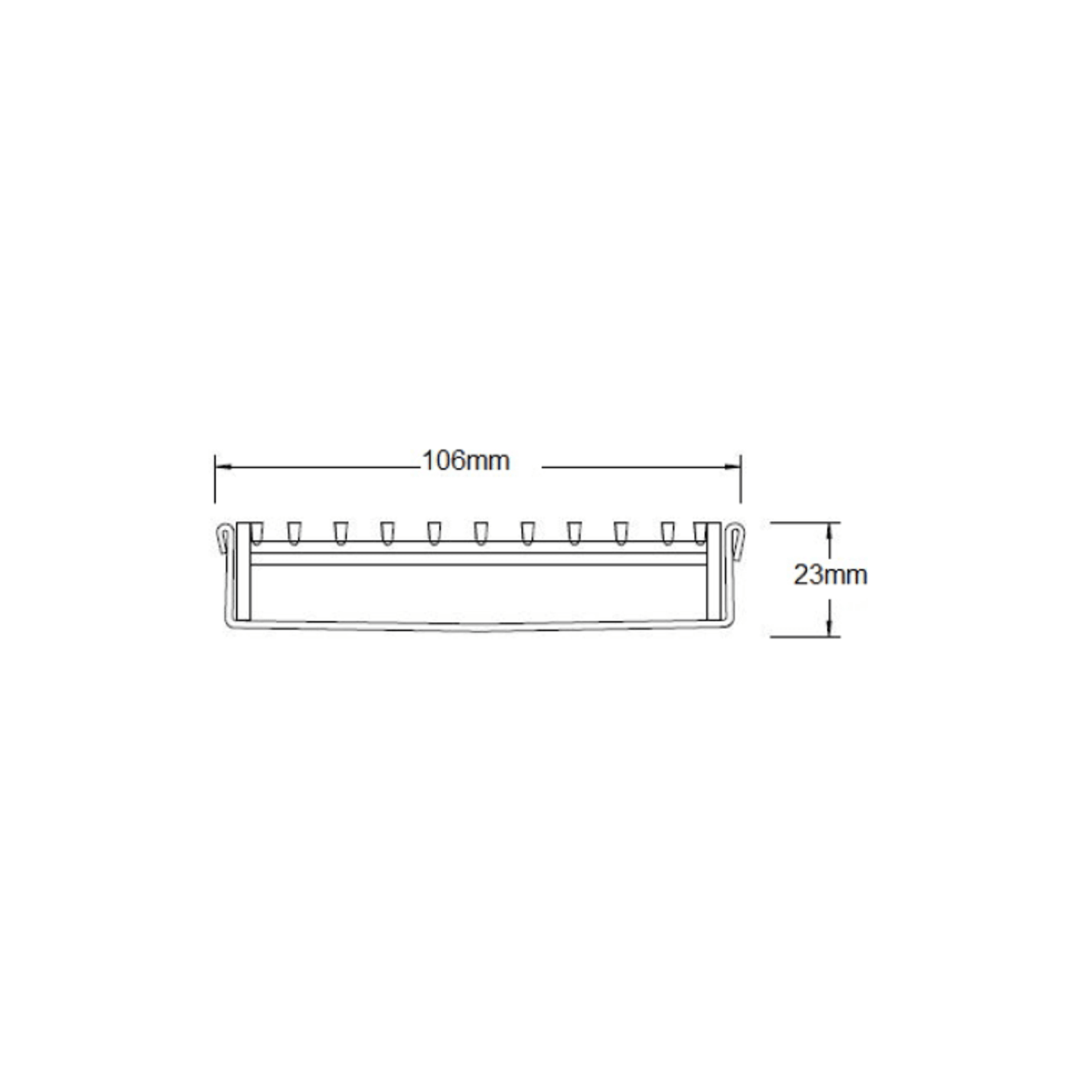

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1500mm
- Outlet Size: DN80
- Features
- Stainless steel linear drain grate and grey uPVC channel modular kit designed for architectural applications. Suitable for internal and external wet areas.
- uPVC kits feature a slightly oversized channel with a loose outlet, allowing self-selection of outlet position before cutting down the channel to size upon assembly.
- Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
- All stainless steel drainage unit with centre outlet.
- Please note that our TR grates have a non-finished finish.
- Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
Downloads
Downloads (9)9 Direct downloads • 4 Available on request
Frequently asked questions about
100TRiCO20 Linear Drainage System
The 100TRiCO20 Linear Drainage System is supplied by Stormtech. It is also on their website, and you can browse every product Stormtech lists on ArchiPro.
Stormtech does not publish a price for the 100TRiCO20 Linear Drainage System on ArchiPro. for pricing, or visit their website.
Yes. It has been specified in projects on ArchiPro, including Georgetown Stables by Cadence & Co. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Stormtech profile on ArchiPro has the rest of their products.
