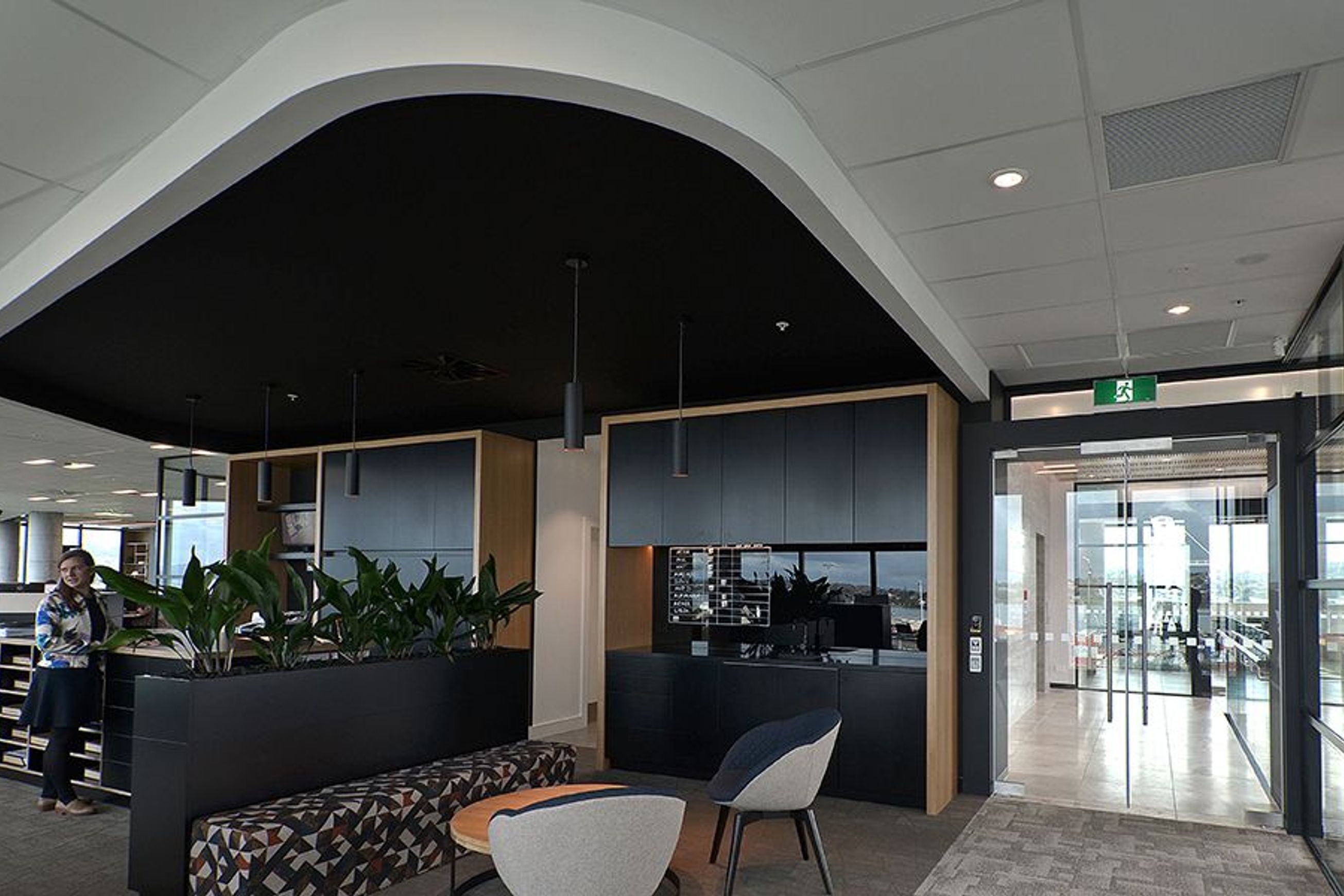

AMF Thermatex Acoustic Ceiling Tile
by CSR Potter Interior Systems
Auckland
- 404.0K profile views
- 52 saves

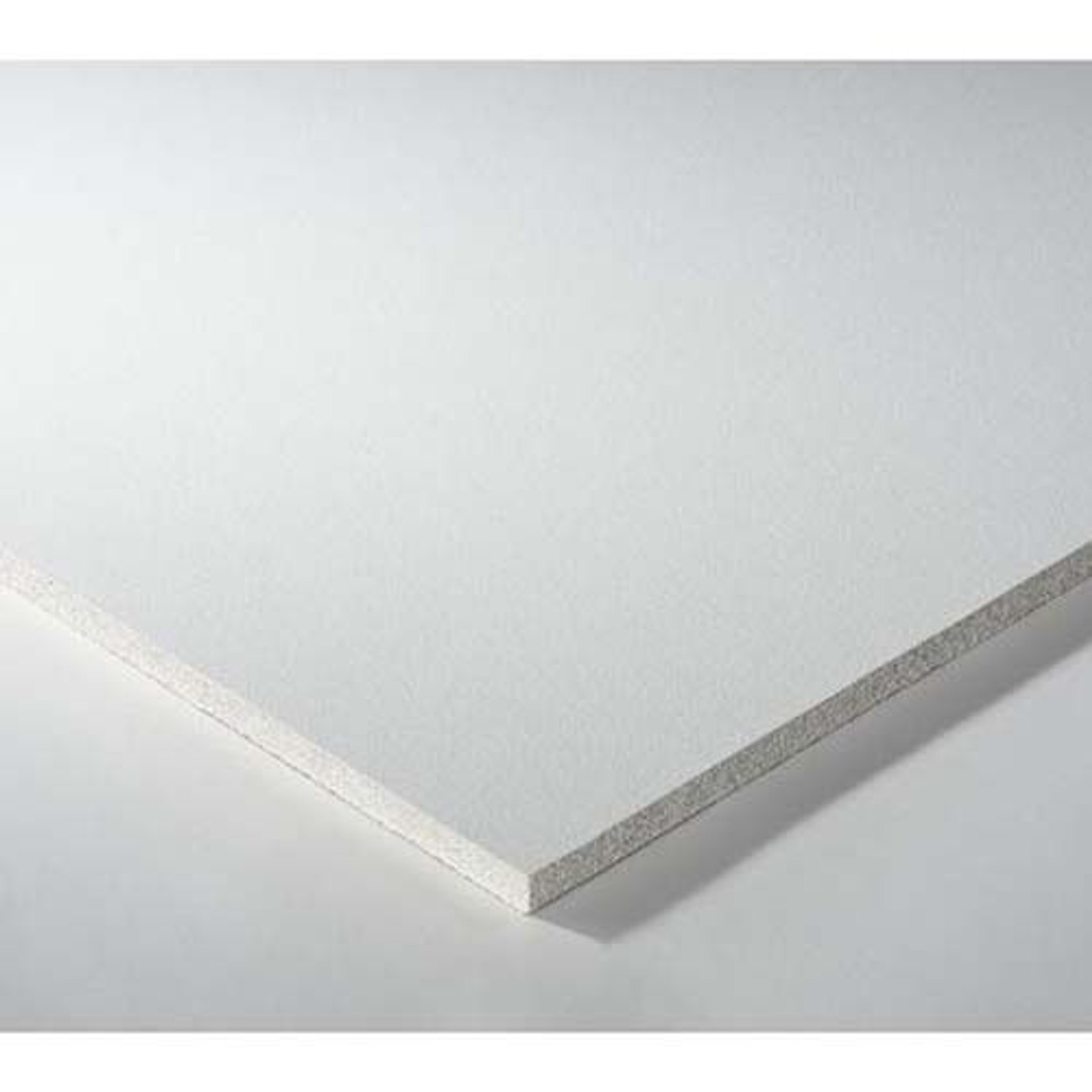

AMF Thermatex Acoustic Ceiling Tile is a 19 mm thick suspended ceiling tile made from a specially perforated mineral board and an acoustic fleece facing. The perforations provide excellent sound absorption while the fleece offers a smooth, elegant surface finish. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance. Our AMF Acoustic Range carries the Declare.
Product Details
- Product
- AMF Thermatex Acoustic Ceiling Tile
- Category
- Acoustic Panels
- Sold by
- CSR Potter Interior Systems
CSR Potter Interior Systems is specified by
ArchiProArchitects
DLA ArchitectsArchitects
architecture+Architects
Matt Brew ArchitectArchitects
YokeArchitects
Chow:Hill ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Fat Parrot ArchitectureArchitects
T Plus ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
RTA StudioArchitects
Origin HeritageArchitects
SA Plumbing SupplyManufacturers and Suppliers
Premium Golf SimulatorsManufacturers and Suppliers
AD ArchitectureArchitectural Designers
VidaSpace®Manufacturers and Suppliers
Mark Scowen PhotographyPhotographers
Bates SurfacesManufacturers and Suppliers
GS Cayless ConstructionBuilders
Lightforge PhotographyPhotographers
AllegionManufacturers and Suppliers
Prestige Garage DoorsManufacturers and Suppliers
CTRL SpaceInterior Designers
Metro Commercial InteriorsConstruction
New Zealand Green Building CouncilAssociations
Fisher® Windows and DoorsManufacturers and Suppliers
Elevate Architectural TransportablesBuilders
QuantumManufacturers and Suppliers
Bob Burnett ArchitectureArchitectural Designers
Autex AcousticsManufacturers and Suppliers
MnM DesignArchitectural Designers
FortéManufacturers and Suppliers
Resene Construction SystemsManufacturers and Suppliers
VADAInterior Designers
Creative ArchArchitectural Designers
FocusplanInterior Designers
Arc AtelierArchitectural Designers
AMF Thermatex Acoustic Ceiling Tile is a 19 mm thick suspended ceiling tile made from a specially perforated mineral board and an acoustic fleece facing.
The perforations provide excellent sound absorption while the fleece offers a smooth, elegant surface finish. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance. Our AMF Acoustic Range carries the Declare.
- Specs
- System - Exposed Grid System, demountable ceiling | Free span system, with exposed or concealed suspension | Bandraster system, with exposed or concealed suspension
- Dimensions - 600 x 600 mm, 1200 x 300 mm, 1200 x 600mm
- Thickness / Weight - 19 mm (c. 5.0 kg/m²)
- Colour - White similar to RAL 9010
- Edge details - SK, VT 24 (more profiles available on request)
- Sound absorption - NRC = 0.70 as per ASTM C 423
- Sound attenuation - CAC = 39 dB as per ASTM E413-10
- Fire Resistance - Group 1-S (as per ISO 5660 Parts 1 and 2)
- Light reflectance - up to 88%
- Thermal conductivity - λ = 0.052 - 0.057 W/mK as per DIN 52612
- Humidity - up to 95 % RH
- Clean Room - Class 3 as per ISO 14644-1
- Interior Air - Indoor air comfort GOLD status
