D4 Doors ATLAS Series cavity units are the ultimate choice for architectural designed projects. Thorough designed frame designed for 90mm stud walls with all the premium inclusions, minus the need for any pelmets, simply the best Zero Clearance cavity slider.
D4 Doors ATLAS Series is the best option for your zero-clearance requirements.

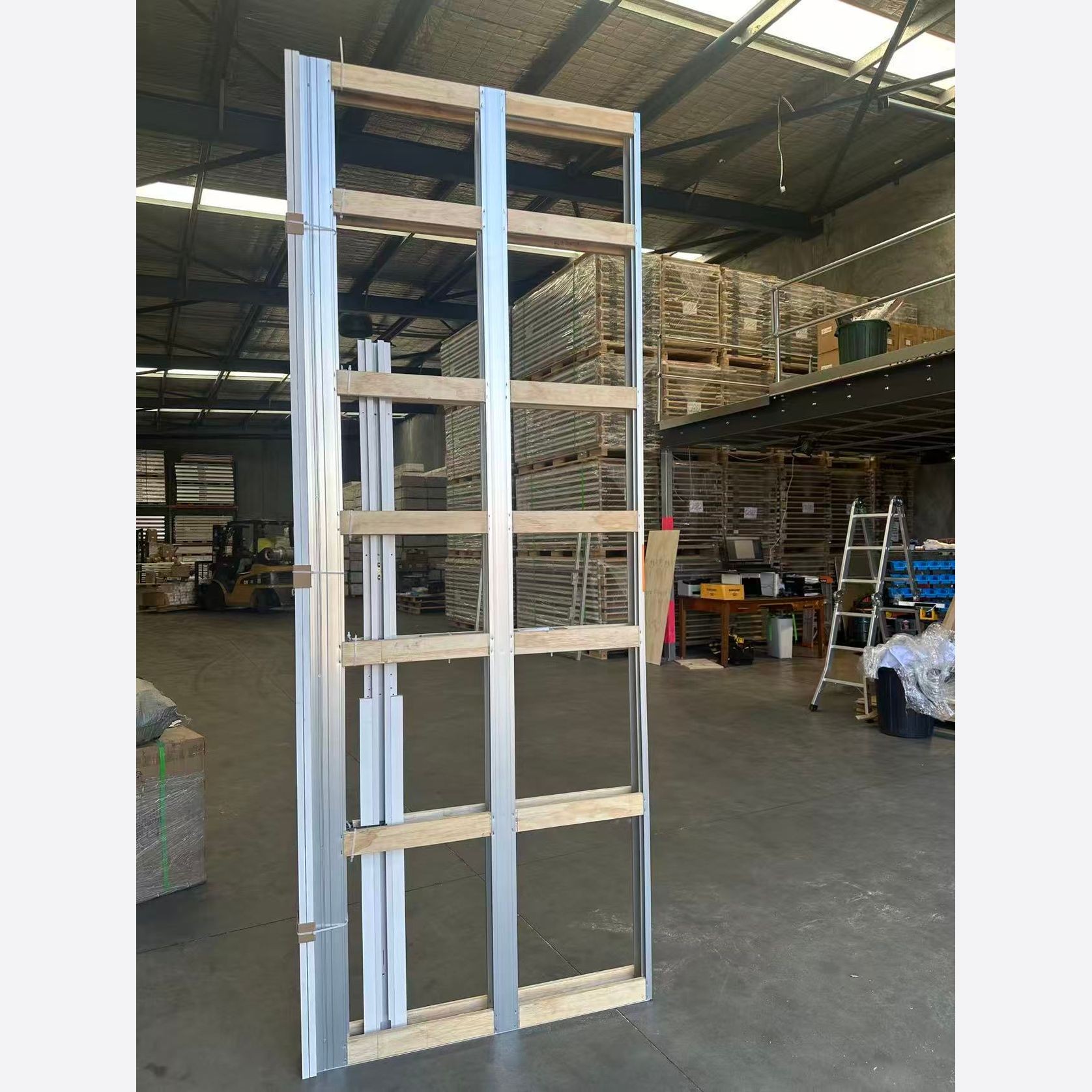

The X-Wide Factor features robust aluminium centre mullions that reinforce the entire structure, making them ideal for doors wider than 920mm. This added rigidity gives designers, builders, and homeowners greater freedom to choose diverse wall finishes—think elegant wall tiles, rich marble, statement feature walls, and beyond…
Product Details
- Product
- Atlas Cavity Sliding Door
- Category
- Cavity Slider Doors
- Sold by
- D4 Doors Sliding Systems
- Range
- ATLAS
- Brand
- D4 Doors
- Warranty
- 5 years
D4 Doors ATLAS Series cavity units are the ultimate choice for architectural designed projects.
Thorough designed frame designed for 90mm stud walls with all the premium inclusions, minus the need for any pelmets, simply the best Zero Clearance cavity slider.
D4 Doors ATLAS Series is the best option for your zero-clearance requirements.
The X-Wide Factor features robust aluminium centre mullions that reinforce the entire structure, making them ideal for doors wider than 920mm. This added rigidity gives designers, builders, and homeowners greater freedom to choose diverse wall finishes—think elegant wall tiles, rich marble, statement feature walls, and beyond…
- Specs
- Max. Door Height: 3000mm
- Max. Door Width: 2000mm (X-Wide Centre Mullions)
- Max. Door weight: 180kgs, Soft close supports up to 120kgs door weight.
- Max. Door Thickness: 27-40mm
- Type of Doors: Timber or framless glass.
- Plasterboard Thickness: 13mm
MAX 3000H X 2000W, 90MM STUD
Please download the editable custom order form, or contact us to find out how our products can be tailored to your projects.
Jamb finish options
- Architrave
- P50 Shadow-line
- P25 Stopping angle
- Square-set
- Corridor
- Floor-to-ceiling

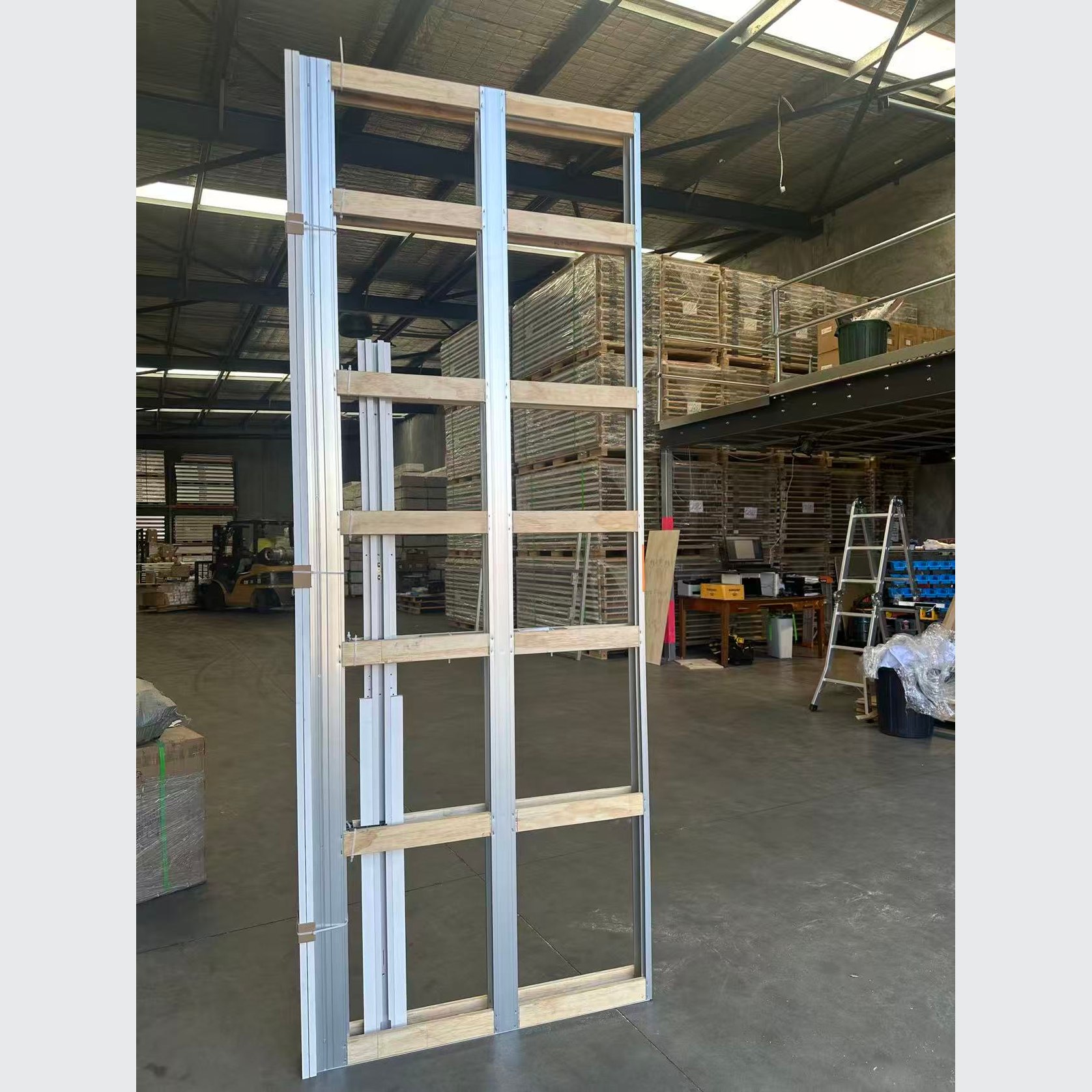

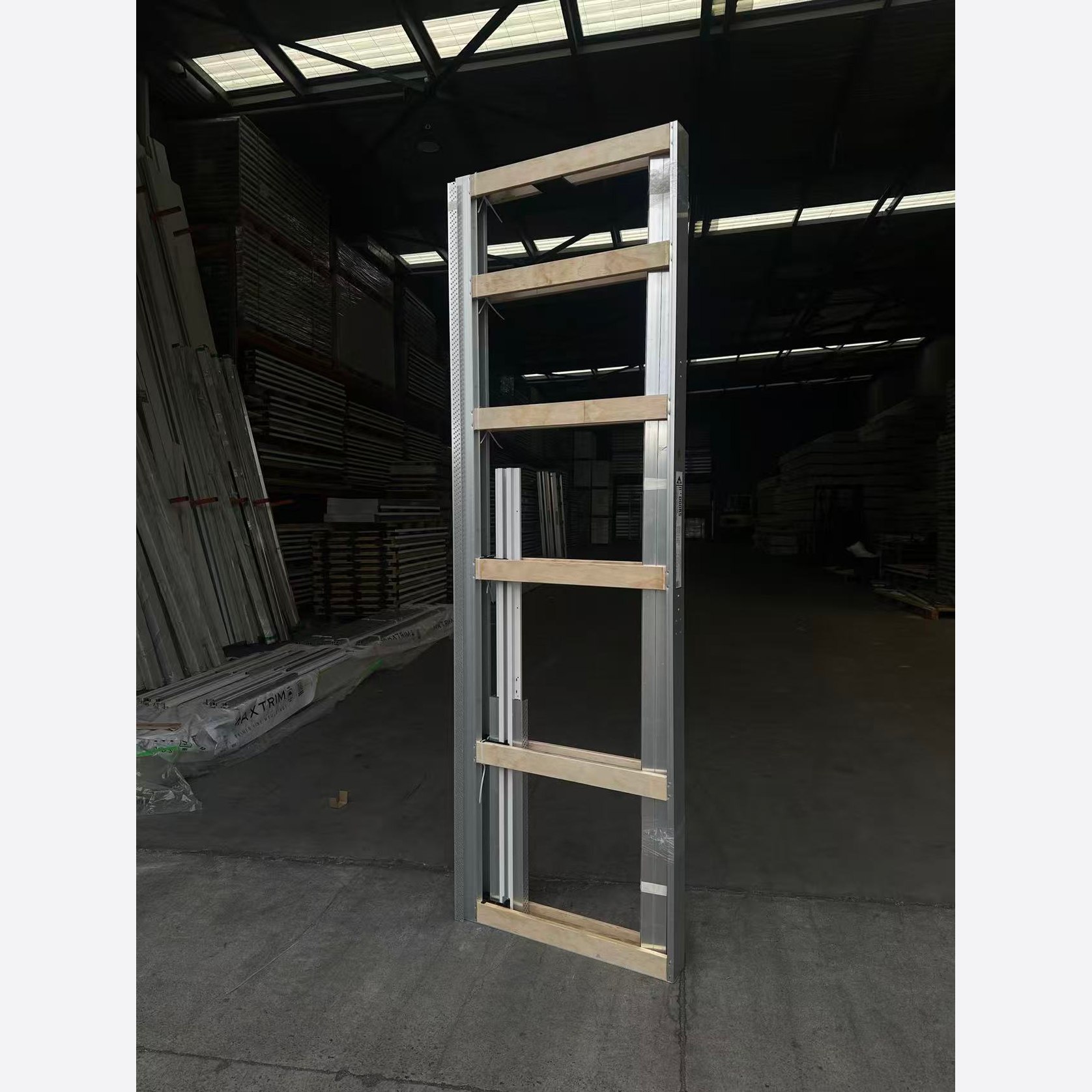

Materials
- Double wall design powder-coated aluminium track.

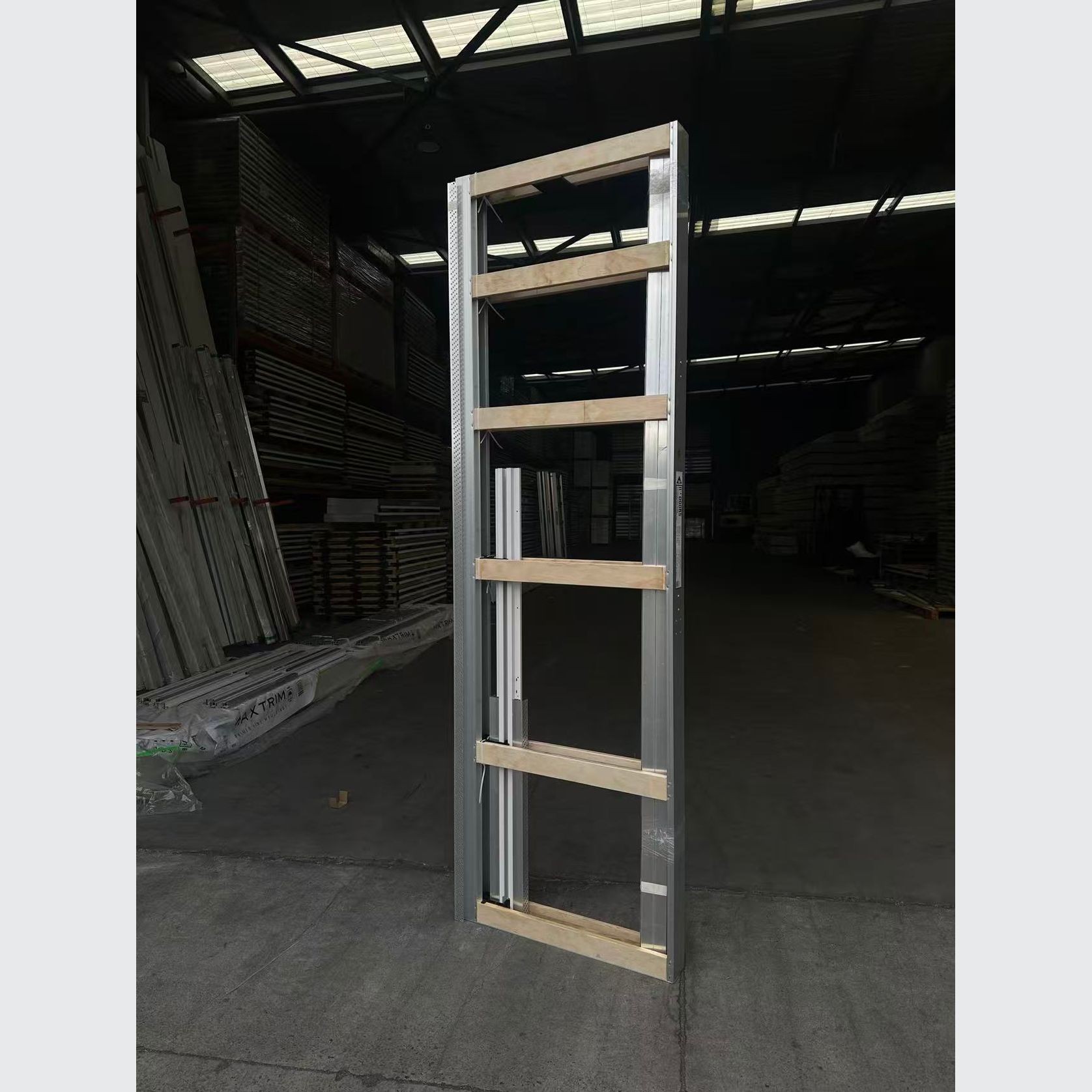

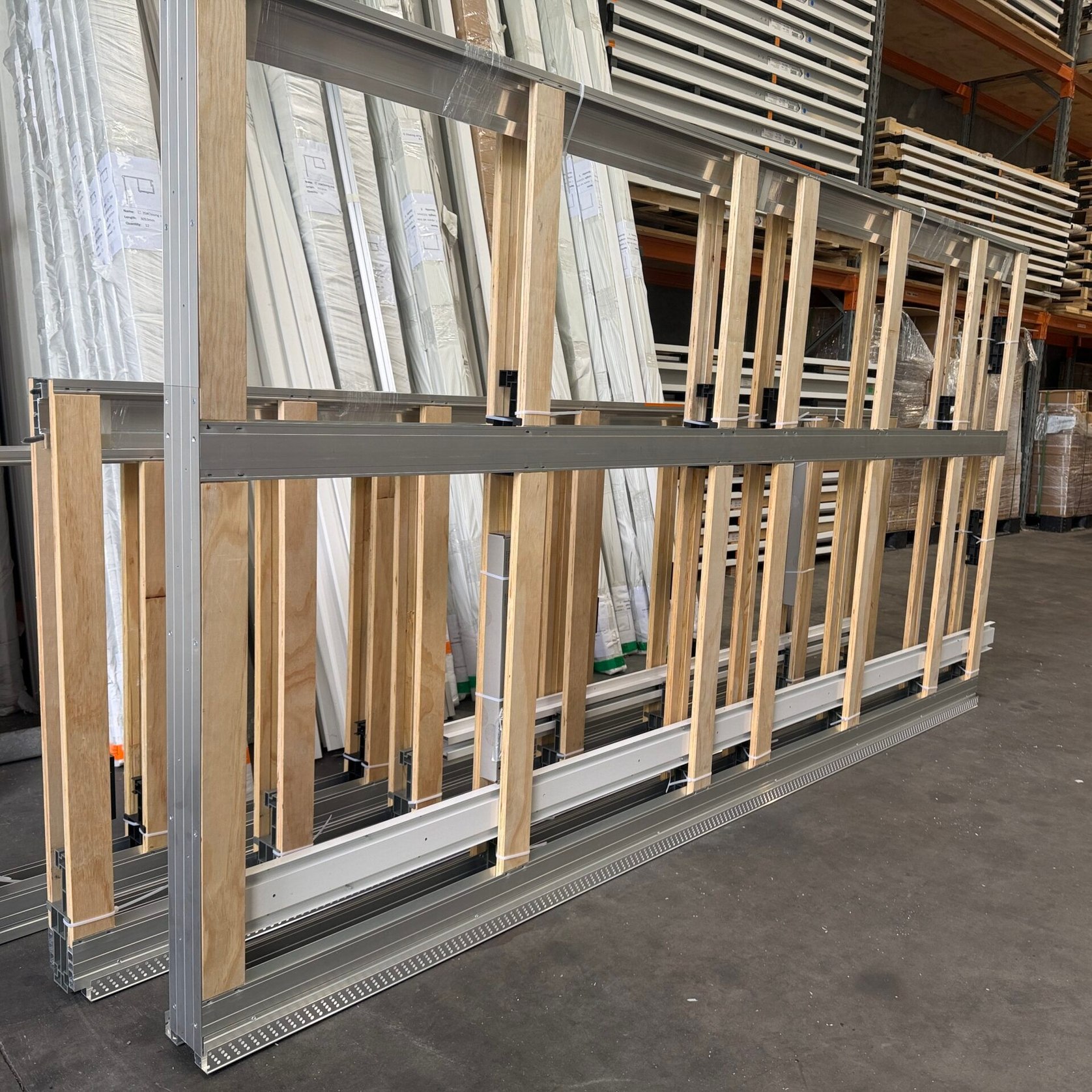

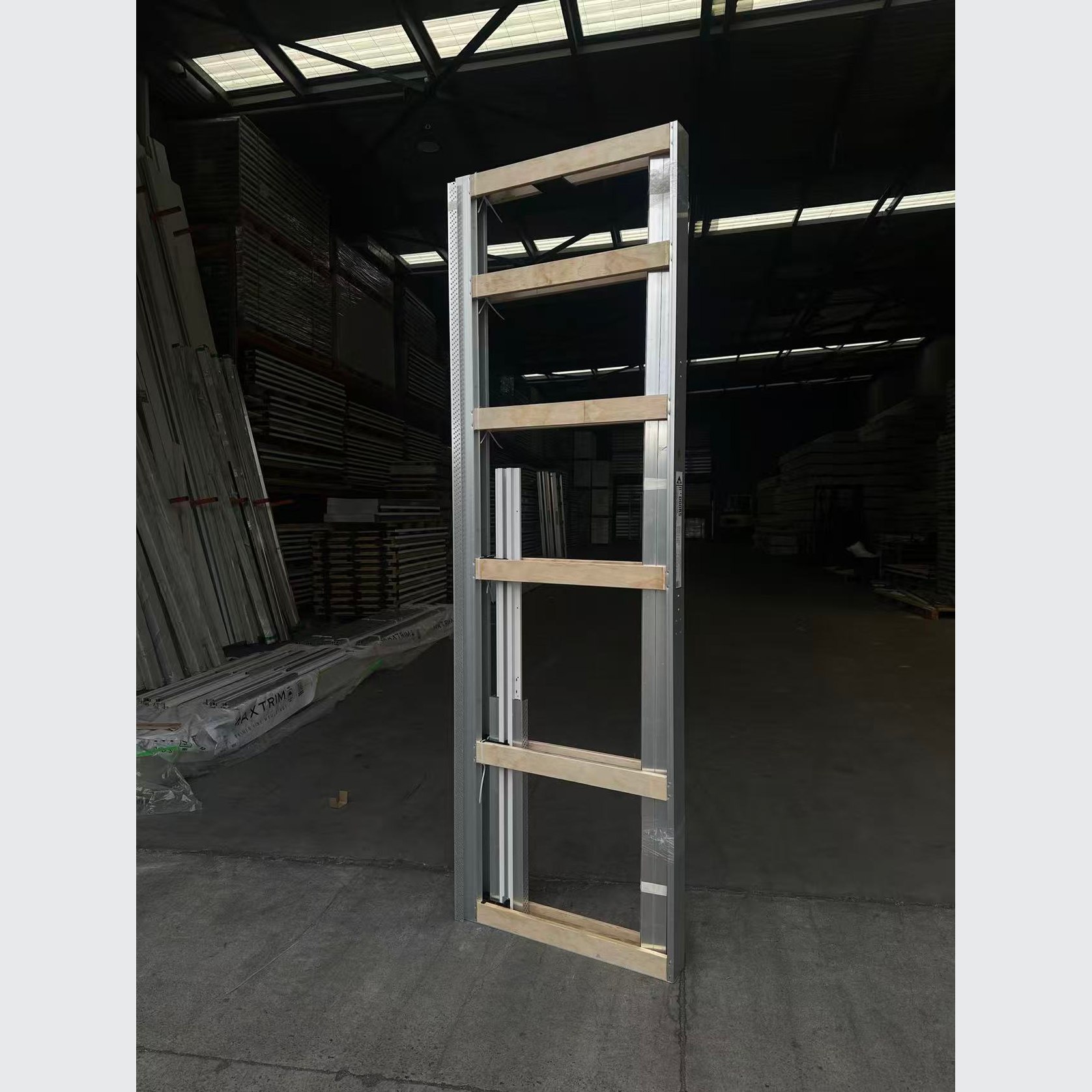

- LVL nogs & aluminium post and robust aluminium centre mullions.

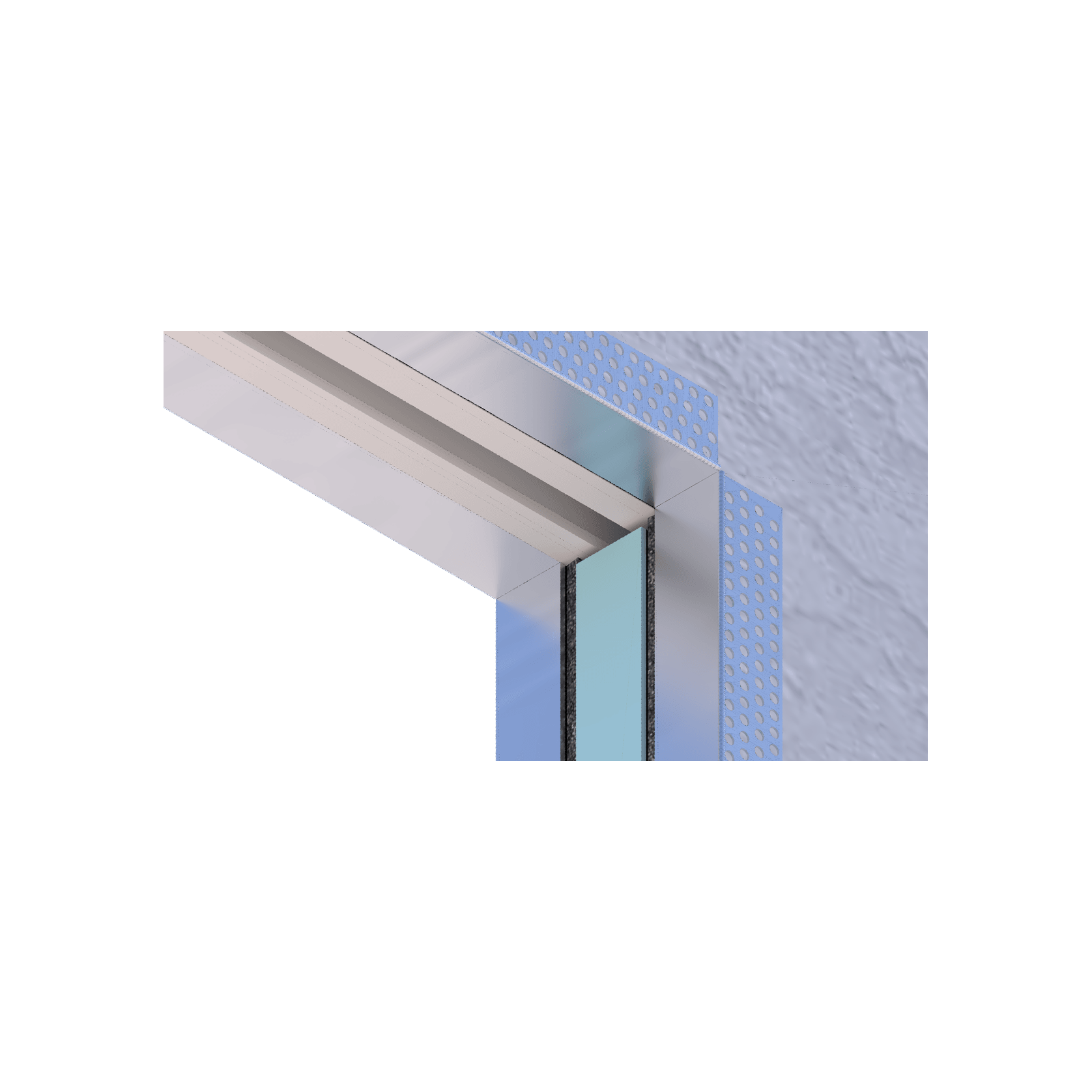

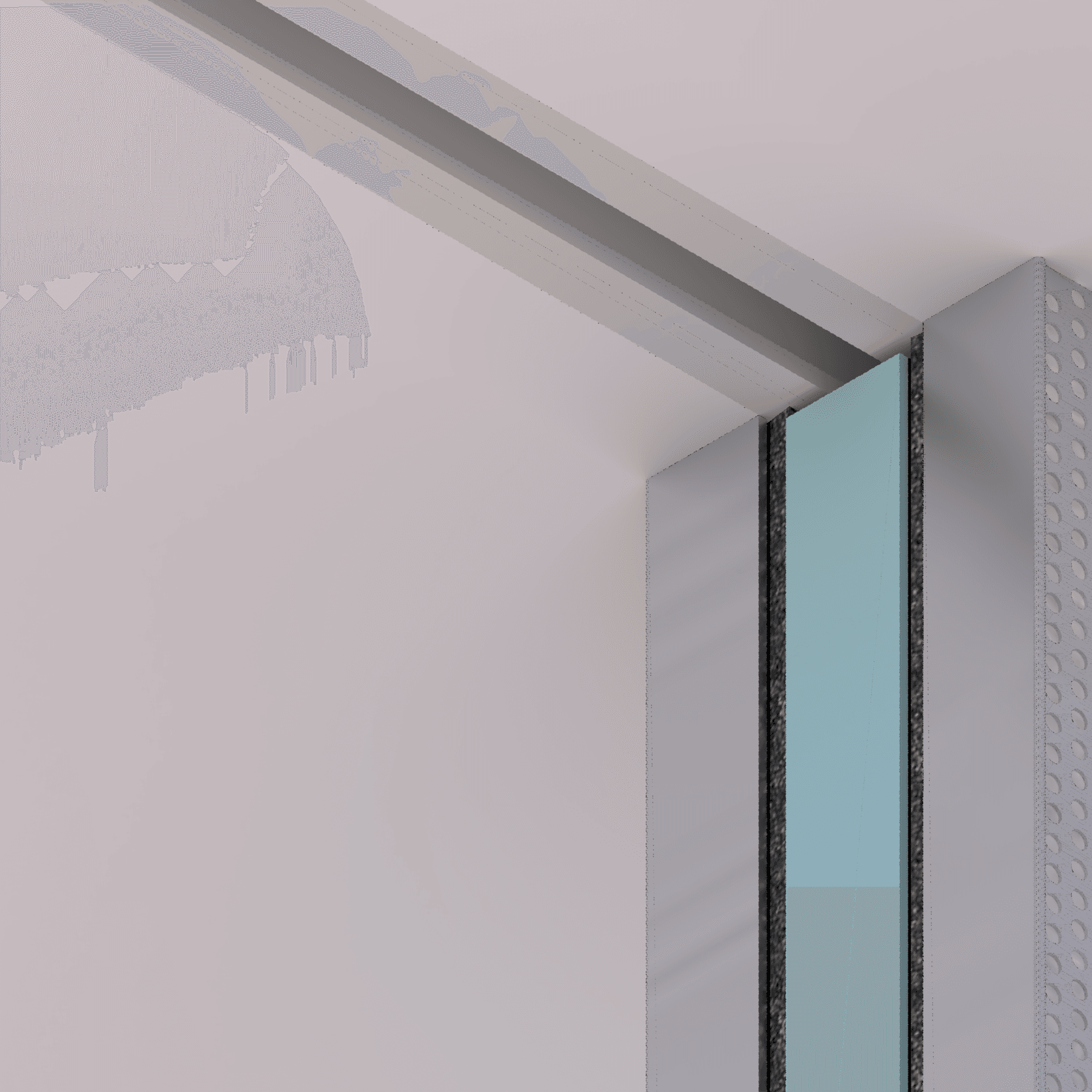

- White primed F/J pine split reveals backed by triple wall aluminium jambs with cavity brush.
- Features
- Self-balancing roller wheels.
- Robust quick-release plates to achieve 3.5mm minimum top clearance;
- 4-cell split jambs with added steel stiffener result in the strongest cavity slider jambs on the market.
- Soft-close mechanism to suit doors up to 120kgs.
- Smart Jamb Spacers.
- Splayed Guides, ‘T’-Shape Nylon Guides, Concealed ‘T’-Guide.
- Rebated Closing Jamb.
- Scope of use

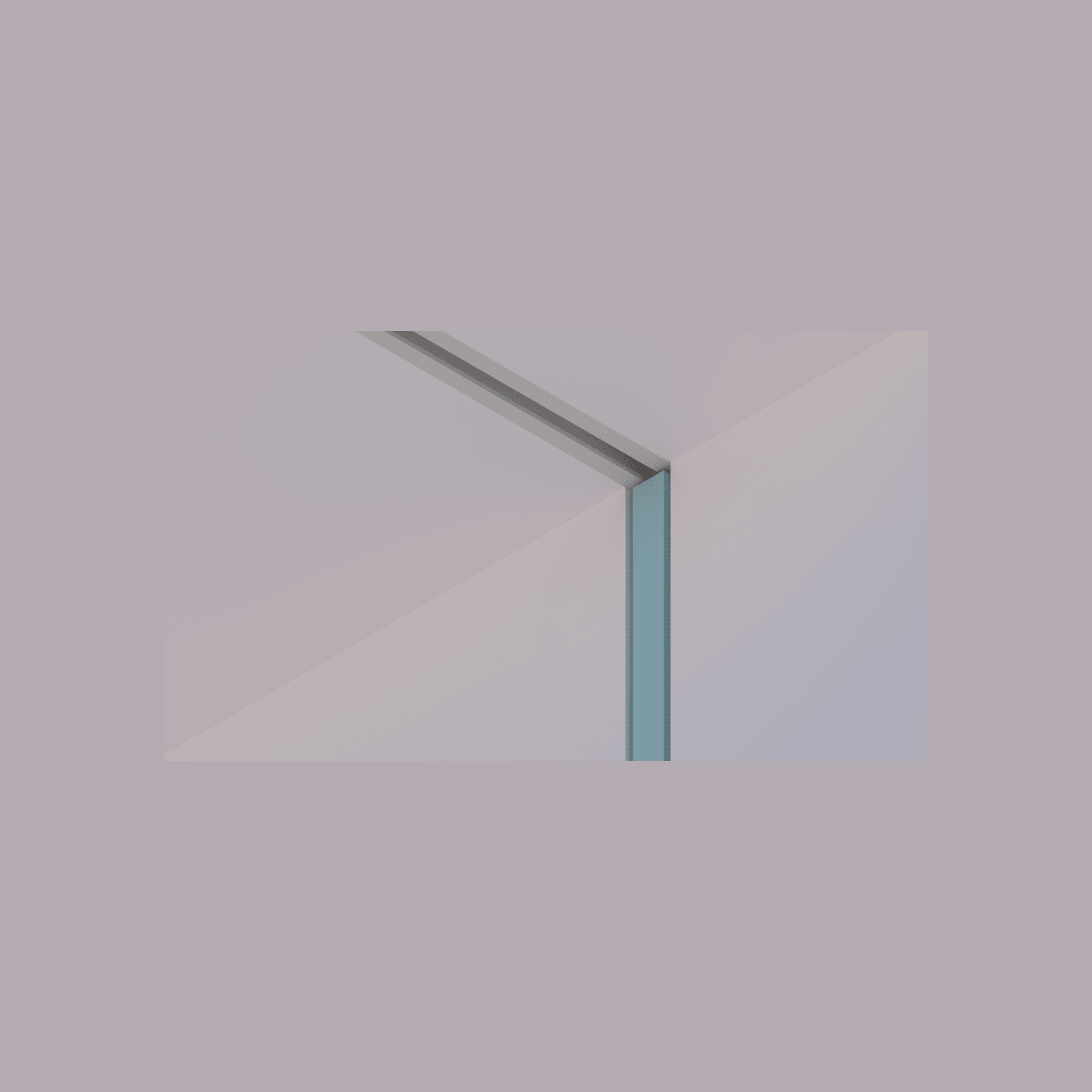

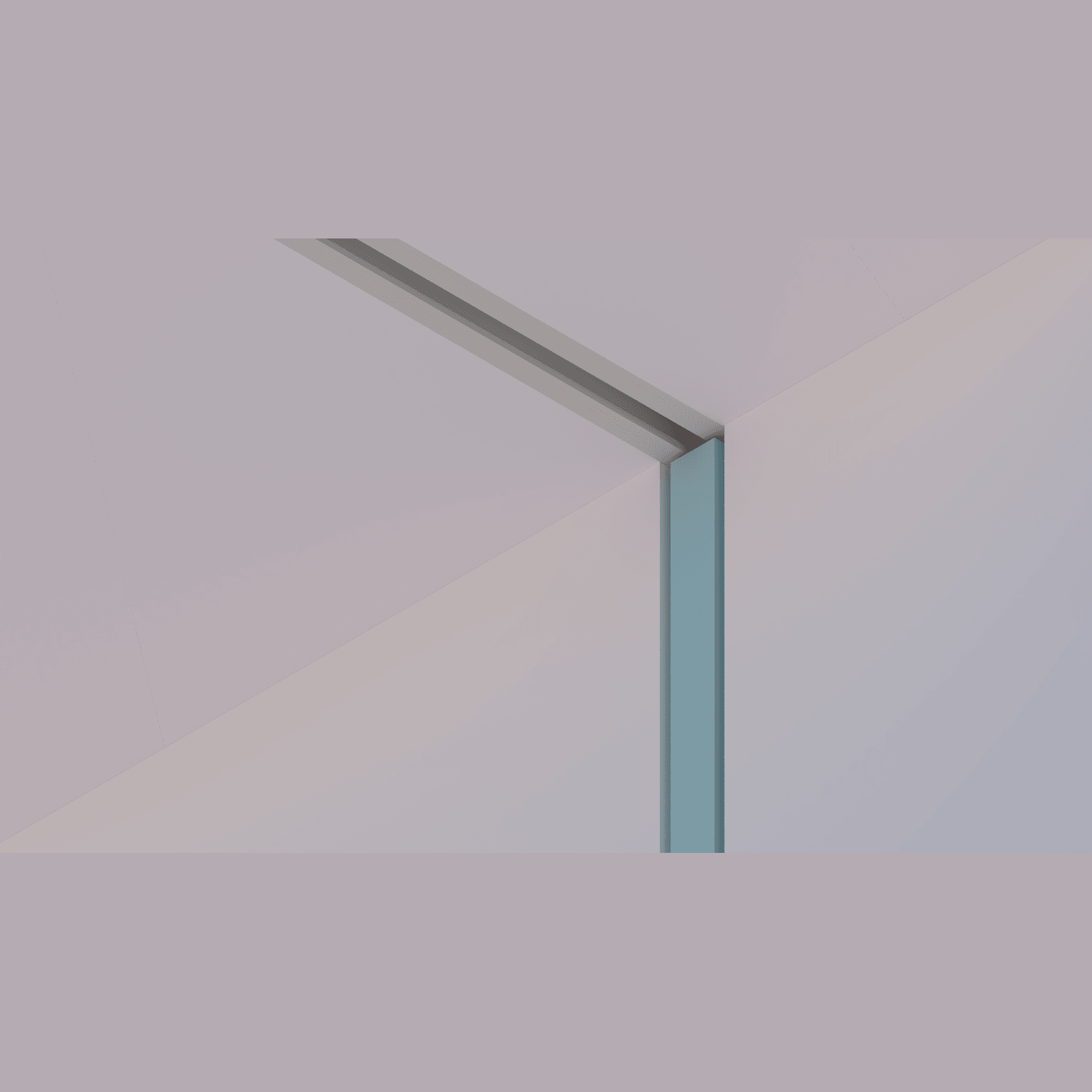

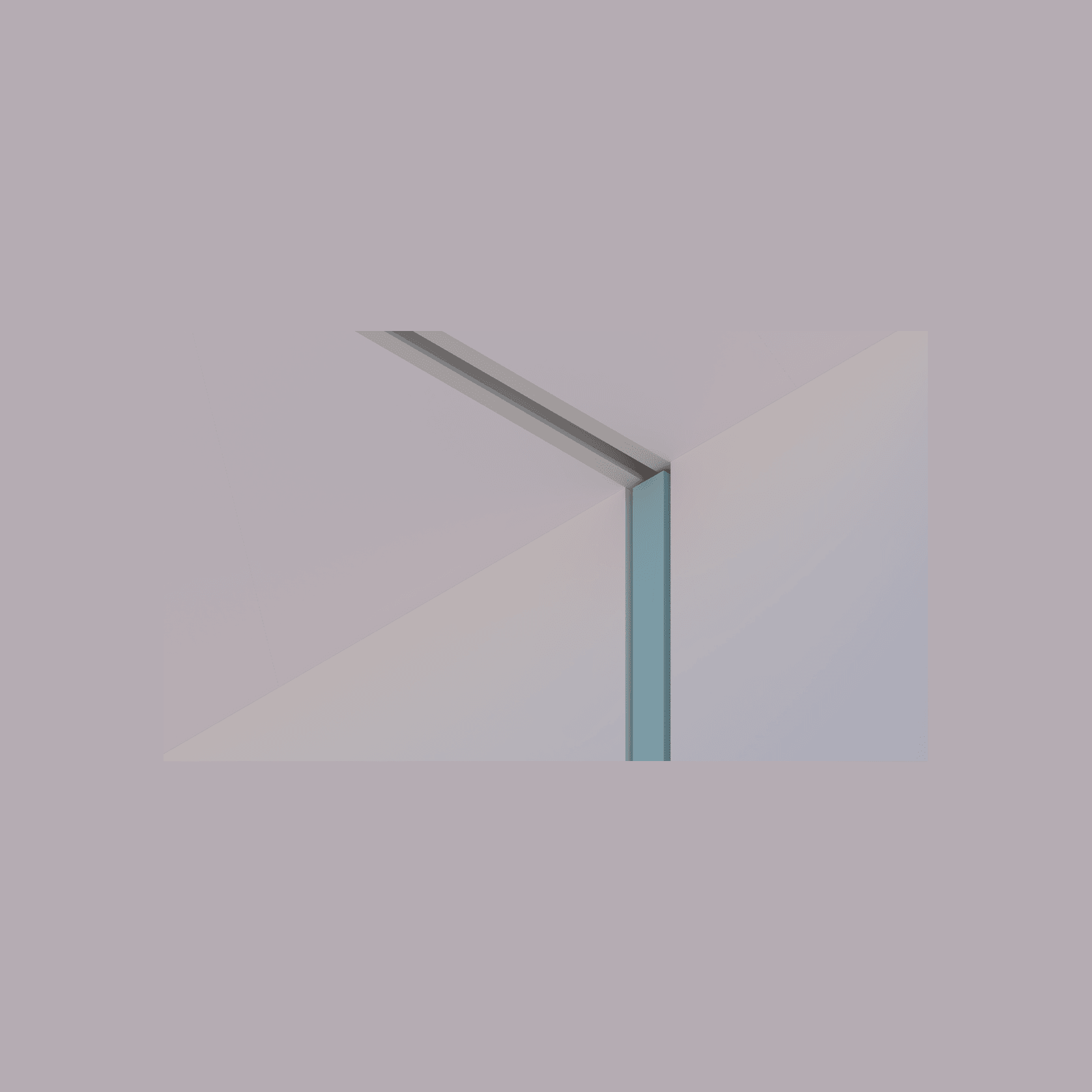

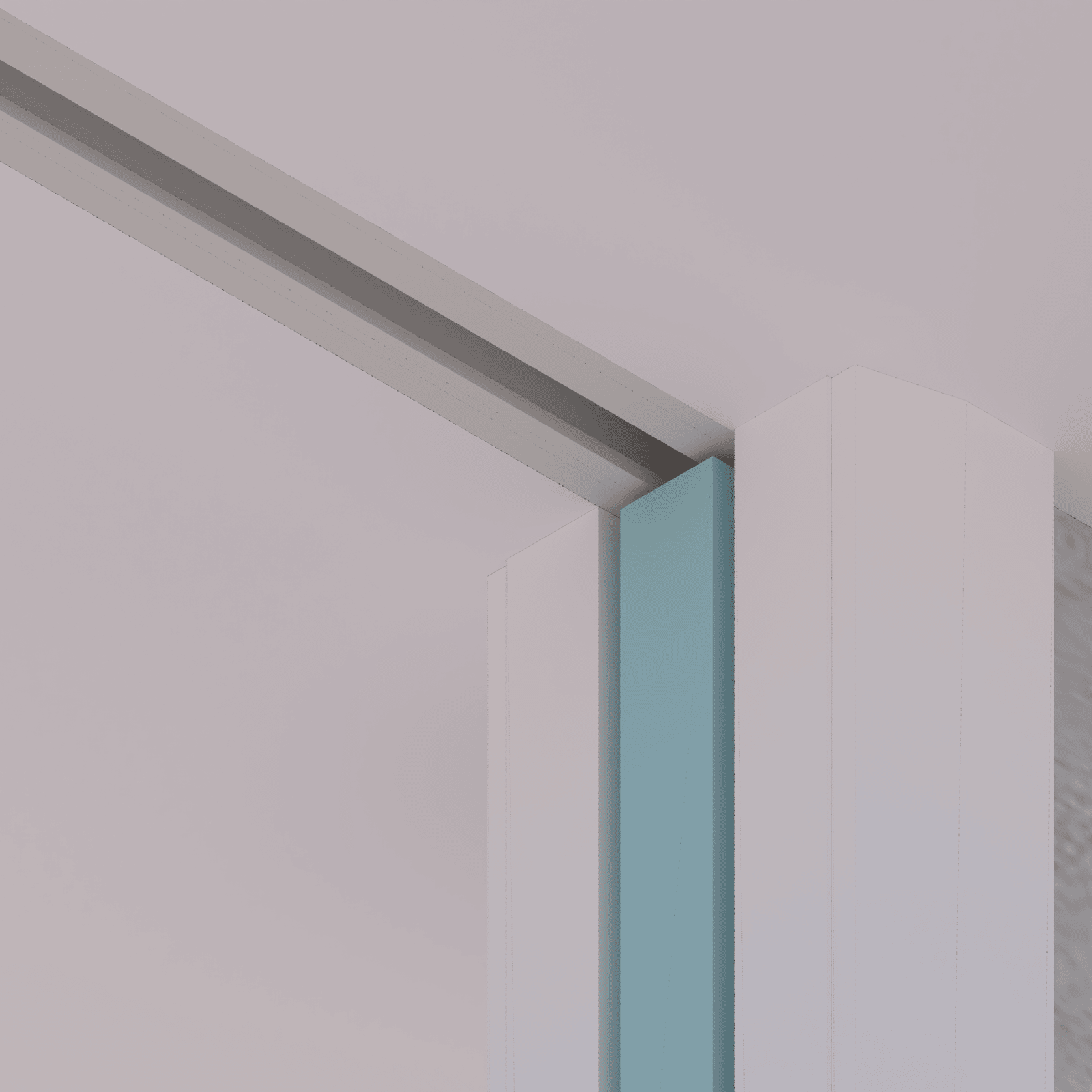

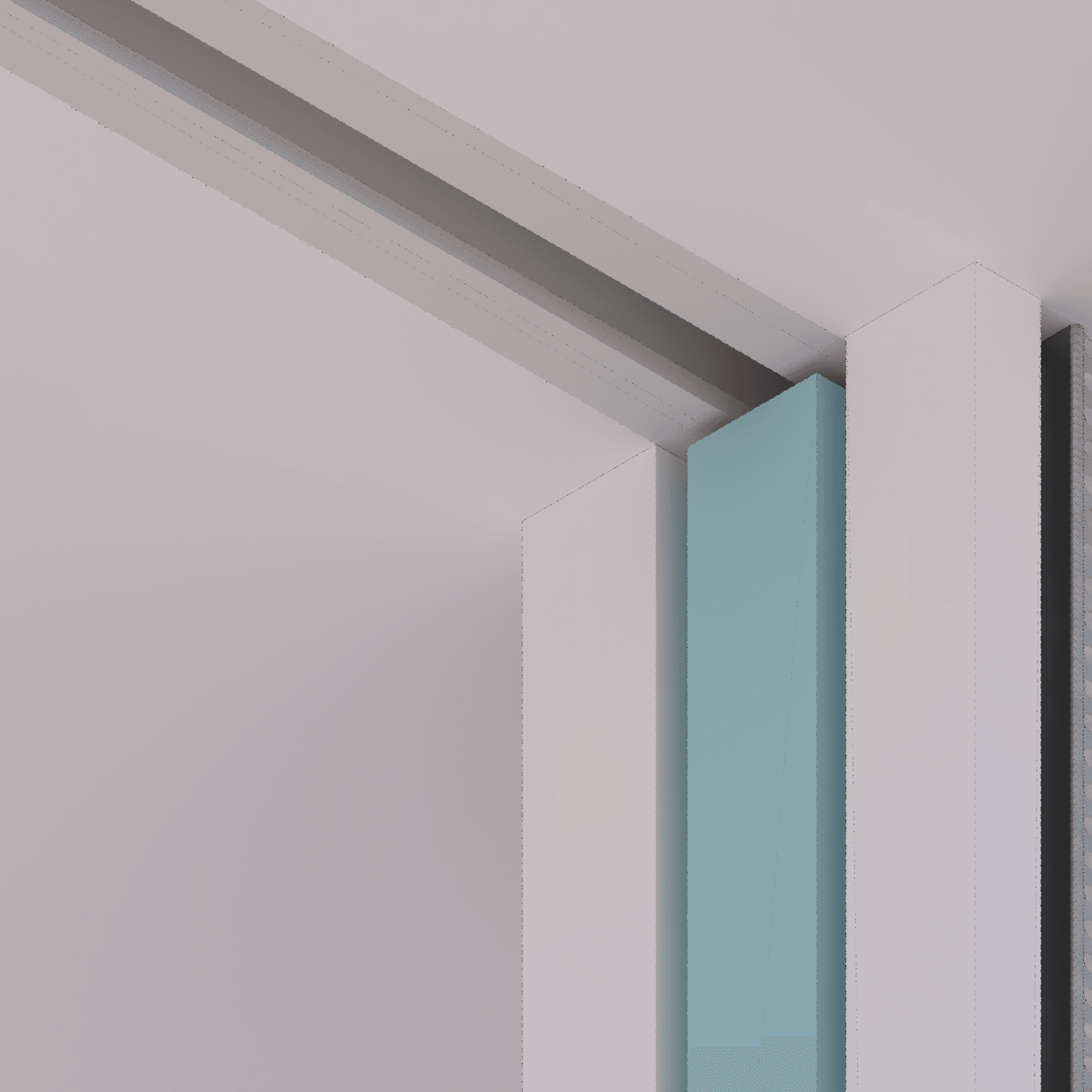

D4 Doors ATLAS Cavity range allows users to have a true zero-clearance sliding door that also comes with soft close mechnism. Minimum top clearance achieved is 3.8mm thanks to the smart designed quick-release.
This is a great option for residential and commercial uses in architectural designs.
- Meet the Slide Easy Collection
Our exclusive collection of cavity sliding doors offers a refined selection of premium products crafted to elevate any interior. Combining elegance with discretion, these units integrate seamlessly into your space, maximizing functionality without sacrificing aesthetic appeal. Each design is meticulously engineered to provide both style and practicality, making them the ideal solution for sophisticated, space-saving interiors.
